Z...

Zetex Semiconductor

ZTX751L

-60V PNP Medium Power Transistor - BVCEO > -60V - IC = -2A High Continuous Collector Current - ICM = -6A Peak Pulse Current - TJ up to +200°C for High Temperature Operation - Low Saturation Voltage < -0.3V @ -1A - PD = 1W Power dissipation - for industrial and consumer applications including lamp and solenoid drivers, audio amplifiers and complementary drivers for HiFi- amplifiers Datenblatt: ZTX751.pdf

€ 0 .60*

Zetex Semiconductor

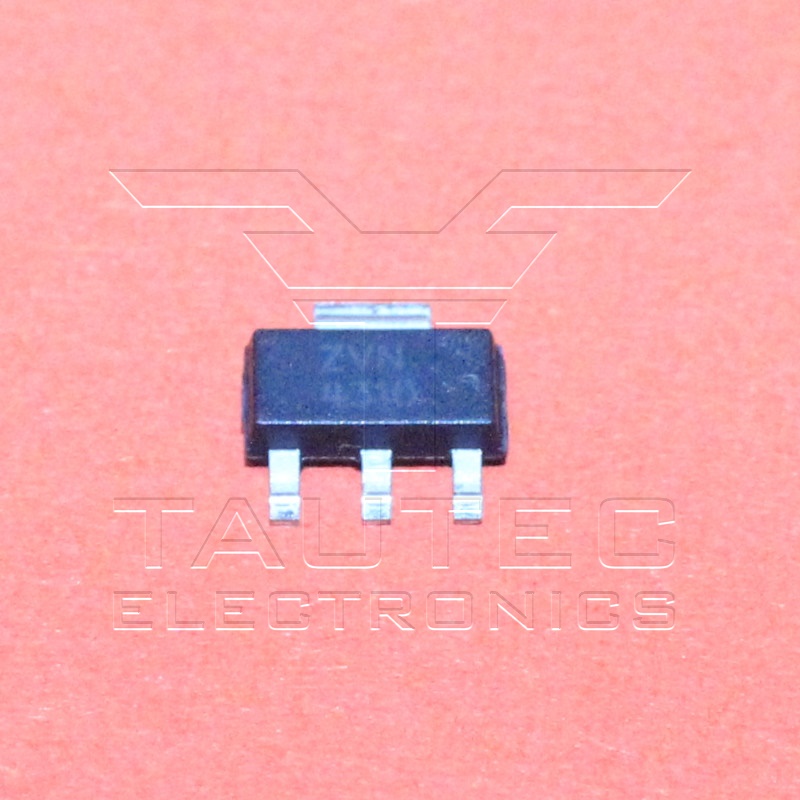

ZVN4310GTA

N-Channel MOSFET Transistor Polarity: N-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 100 V Id - Continuous Drain Current: 1.67 A Rds On - Drain-Source Resistance: 750 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Vgs th - Gate-Source Threshold Voltage: 1 V Pd - Power Dissipation: 3 W Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Datenblatt: ZVN4310G.pdf

€ 0 .71*

Zetex Semiconductor

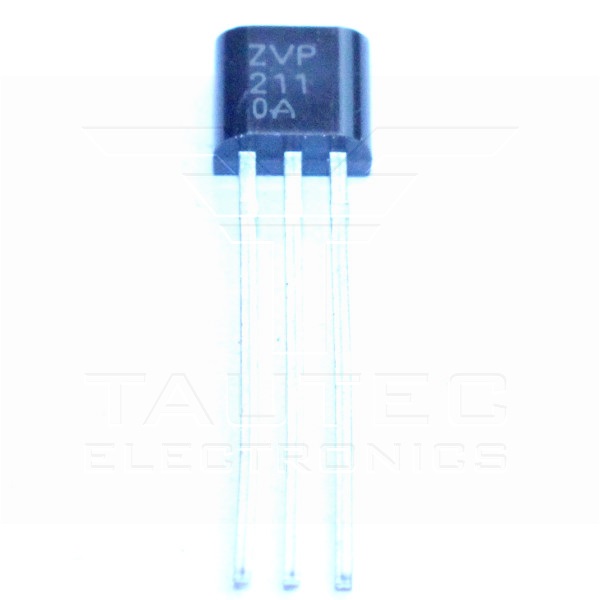

ZVP2110A

P-Channel MOSFET, -100V / -230mA / 8 Ohm Datenblatt: ZVP2110A.pdf

€ 0 .42*

Zetex Semiconductor

ZXM62P02E6

P-CHANNEL ENHANCEMENT MODE MOSFET -20V / -2.3A / 200mOhm - Low On-resistance - Fast Switching Speed - Low Threshold - Low Gate Drive Applications: - DC - DC Converters - Power Management Functions - Disconnect Switches - Motor Control Datenblatt: ZXM62P02E6.pdf

€ 0 .30*

Diodes Inc.

ZXT13N20DE6TA

Bipolar Transistors Transistor Polarity: NPN Configuration: Single Collector- Emitter Voltage VCEO Max: 20 V Collector- Base Voltage VCBO: 50 V Emitter- Base Voltage VEBO: 7.5 V Collector-Emitter Saturation Voltage: 170 mV Maximum DC Collector Current: 4.5 A Pd - Power Dissipation: 1.1 W Gain Bandwidth Product fT: 96 MHz Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Datenblatt: ZXT13N20DE6.pdf

€ 0 .25*

Diodes Inc.

ZXTN25100DFHTA

NPN Medium Power Transistor - BVCEX > 180V - BVCEO > 100V - BVECO > 6V - IC(cont) = 2.5A - VCE(sat) < 95mV @ 1A - RCE(sat) = 86mOhm - PD = 1.25W - Complementary part number ZXTP25100DFH Features: - High power dissipation SOT23 package - High gain - Low saturation voltage - 180V forward blocking voltage - 6V reverse blocking voltage Application - Motor control - DC fans - DC-DC converters - Lamp, relay, and solenoid driving Datenblatt: ZXTN25100DFHTA.pdf

€ 0 .10*
