T...

Infineon

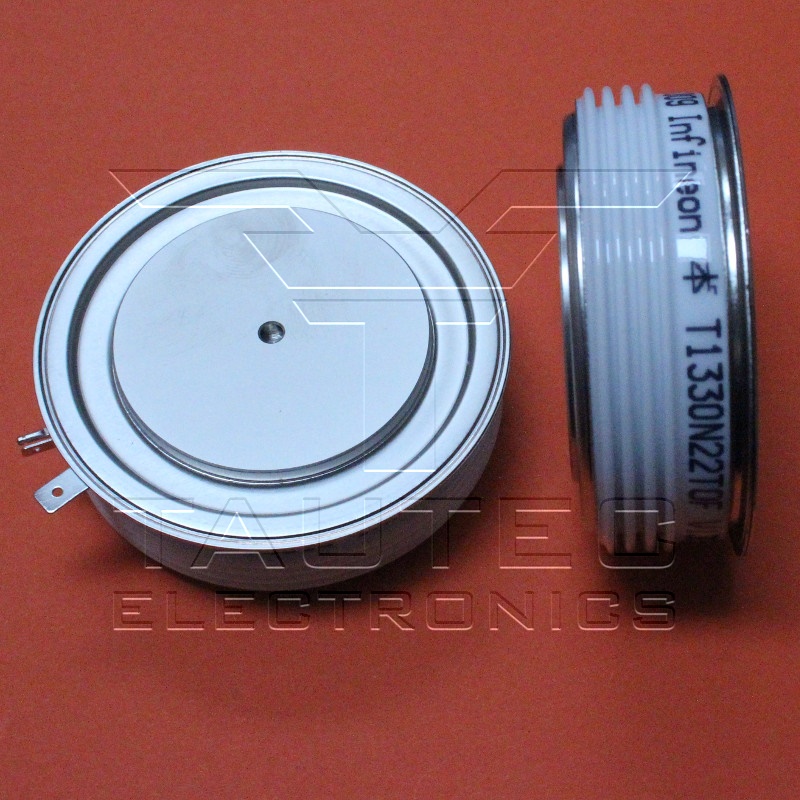

T1330N22TOF-VT

SCRs PCT 2200V 1330A Voltage - Off State: 2,2kV Current - On State (It (AV)) (Max): 1330A Current - On State (It (RMS)) (Max): 2600A Voltage - Gate Trigger (Vgt) (Max): 2,2V Current - Gate Trigger (Igt) (Max): 250mA Current - Non Rep. Surge 50, 60Hz (Itsm): 26500A at 50Hz Current - Hold (Ih) (Max): 300mA Operating Temperature: -40C to 125C Mounting Type: Chassis Mount Diameter: 75mm Package Height: 26.5mm Datenblatt: T1330N.pdf

€ 130 .00*

ST-Microelectronics

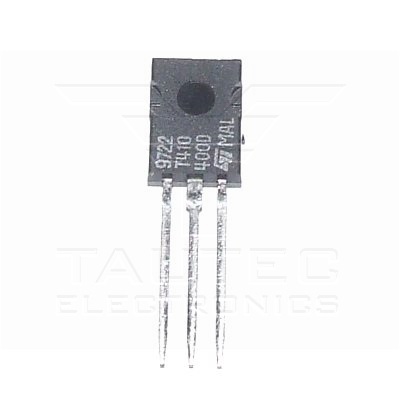

T410-400D

Triac 4A/400V ITRMS = 4 A VDRM = 400 V SENSITIVEGATE : IGT < 10mA HIGH COMMUTATION : (dI/dt)c > 3.5 A/ms Datenblatt: T410.pdf

€ 0 .25*

TAG Semiconductor

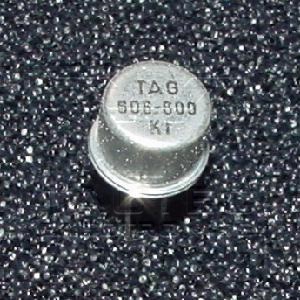

TAG606-600

Beschreibung: SCR in Metal Package 4A / 600V - VRRM = 600V - IRMS = 4A - IT = 1,6A - ITSM = 60A - IGT = 15mA - IH = 25mA - vergleichbar mit BTX30-600

€ 0 .40*

Sanken

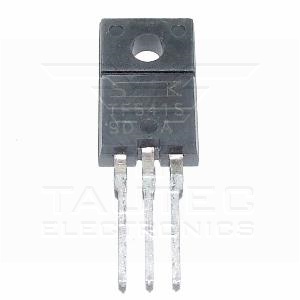

TF541S

Beschreibung: Thyristor 5A/400V Datenblatt: TF541S.pdf

€ 0 .60*

Texas Instruments

TIC236M

High Current Triacs 12A/600V - 12 A RMS - Glass Passivated Wafer - 400 V to 800 V Off-State Voltage - Max IGT of 50 mA (Quadrants 1 - 3) Datenblatt: TIC236M.pdf

€ 1 .00*

Bourns, Inc.

TICP206D

Triacs 400V 2A Peak On-State Voltage: 2.2 V Peak Repetitive Reverse Voltage: 400 V Maximum Gate Trigger Current: 10 mA Maximum Gate Trigger Voltage: 2.5 V Maximum Holding Current: 30 mA Mounting: Through Hole Operating Temperature: -40 to 110 C Max Processing Temp: 230C Datenblatt: TICP206D.pdf

€ 0 .28*

Eupec

TT131N12KOF

Beschreibung: Dual Common Cathode SCR Module 1200V / 131A Datenblatt: TT131N12KOF.pdf

€ 75 .00*

Eupec

TT142N12KOF

Beschreibung: Phase Control Thyristor Module 1200V / 142A Datenblatt: TT142N12KOF.pdf

€ 50 .00*

ST-Microelectronics

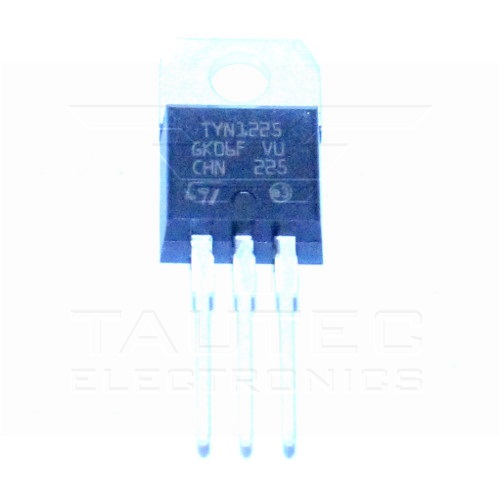

TYN1225RG

Standard 1200V / 25A SCRs Rated Repetitive Off-State Voltage VDRM: 1.2 kV Off-State Leakage Current @ VDRM IDRM: 10 uA Vf - Forward Voltage: 1.6 V Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 40 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: TYN1225.pdf

€ 0 .60*

ST-Microelectronics

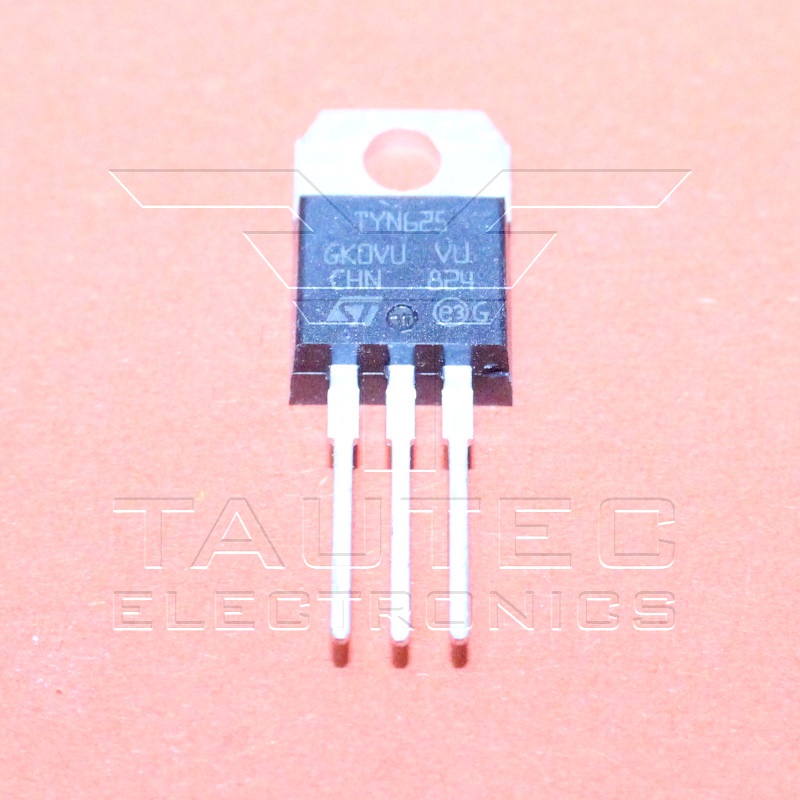

TYN625RG

Standard SCRs Breakover Current IBO Max: 314 A Current Rating: 25 A Rated Repetitive Off-State Voltage VDRM: 600 V Off-State Leakage Current @ VDRM IDRM: 4 mA Vf - Forward Voltage: 1.6 V Maximum Gate Peak Inverse Voltage: 5 V Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 40 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: TYN625.pdf

€ 0 .80*
