Teccor Electronics

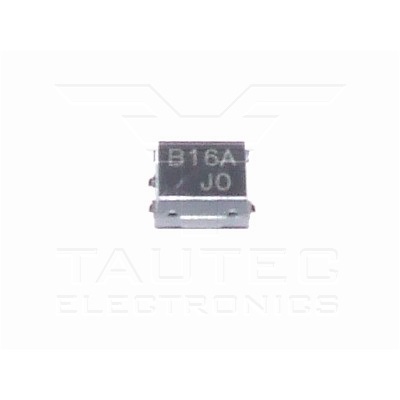

B1160CA

Battrax® SLIC Protector Datenblatt: B1160CA.pdf

€ 0 .30*

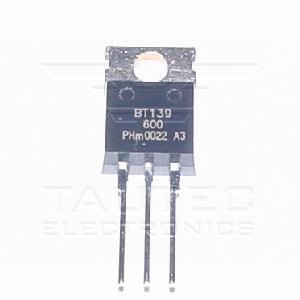

Philips

BT139-600

Beschreibung: Triac 16A/600V Datenblatt: BT139.pdf

€ 0 .25*

Philips

BT148W-600R

Logic Level Thyristor 600V / 0,6A Datenblatt: BT148W.pdf

€ 0 .20*

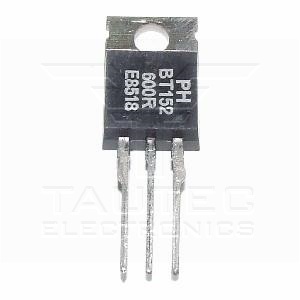

Philips

BT152-600R

Beschreibung: Thyristor 13A/650V Datenblatt: BT152.pdf

€ 0 .25*

ST-Microelectronics

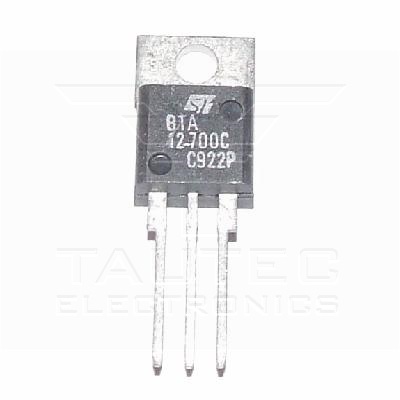

BTA12-700CW

Triac 12A/700V Non Repetitive On-State Current: 126 A Rated Repetitive Off-State Voltage VDRM: 700 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.6 V Holding Current Ih Max: 35 mA Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 35 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTA12.pdf

€ 0 .60*

ST-Microelectronics

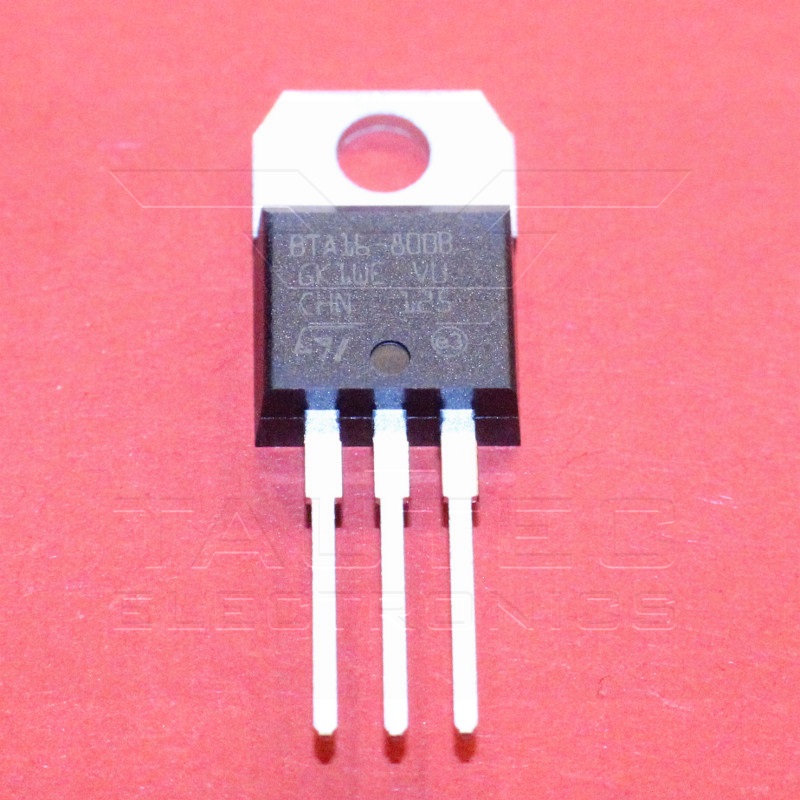

BTA16-800BRG

Logic Level And Standard Triac 800V / 16A Non Repetitive On-State Current: 168 A Rated Repetitive Off-State Voltage VDRM: 800 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 50 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 100 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTA16.pdf

€ 0 .80*

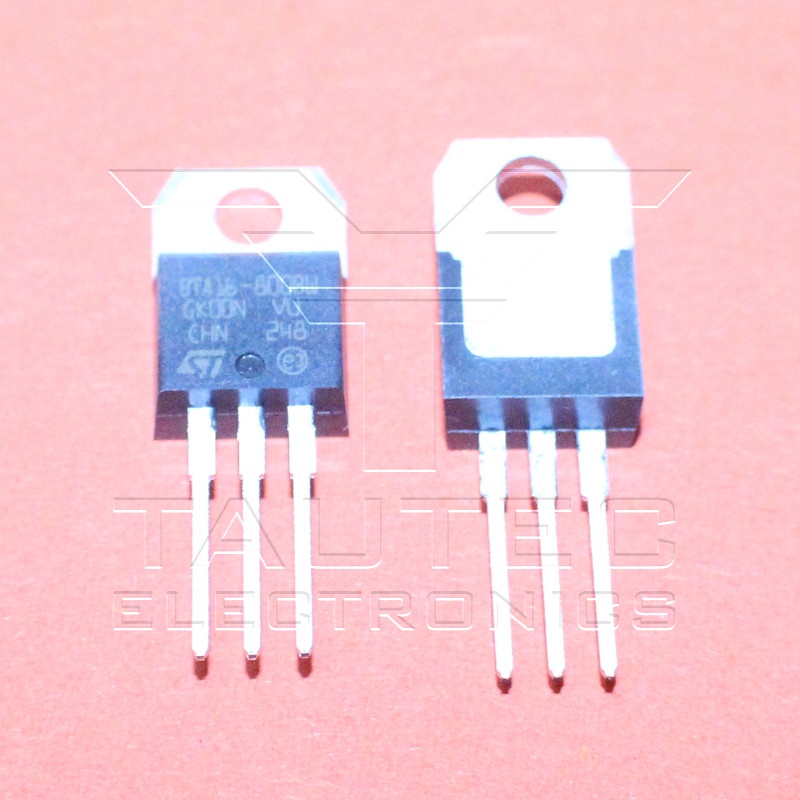

ST-Microelectronics

BTA16-800BWRG

Triacs 12 Amp 800 Volt Non Repetitive On-State Current: 126 A Rated Repetitive Off-State Voltage VDRM: 800 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 50 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 100 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C

€ 0 .91*

ST-Microelectronics

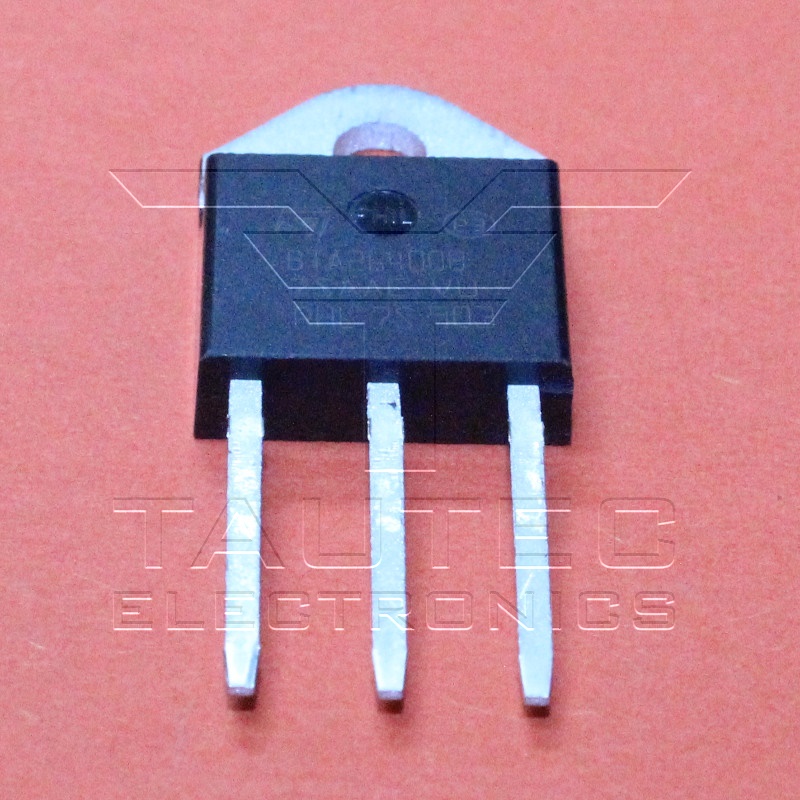

BTA26-400BRG

Triac 25A/400V Voltage - Off State: 400V Current - On State (It (RMS)) (Max): 25A Voltage - Gate Trigger (Vgt) (Max): 1,3V Current - Non Rep. Surge 50, 60Hz (Itsm): 250A, 260A Current - Gate Trigger (Igt) (Max): 50mA Current - Hold (Ih) (Max): 80mA Configuration: Single Operating Temperature: -40 C - 125 C (TJ) Mounting Type: Through Hole Datenblatt: BTA26.pdf

€ 3 .00*

ST-Microelectronics

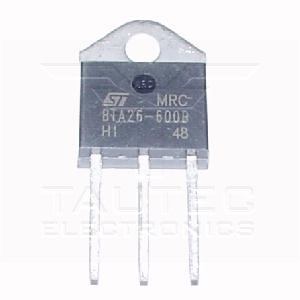

BTA26-600BRG

Triac 25A/600V Non Repetitive On-State Current: 260 A Current Rating: 25 A Rated Repetitive Off-State Voltage VDRM: 600 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 80 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 100 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Mounting Style: Through Hole Datenblatt: BTA26.pdf

€ 2 .45*

ST-Microelectronics

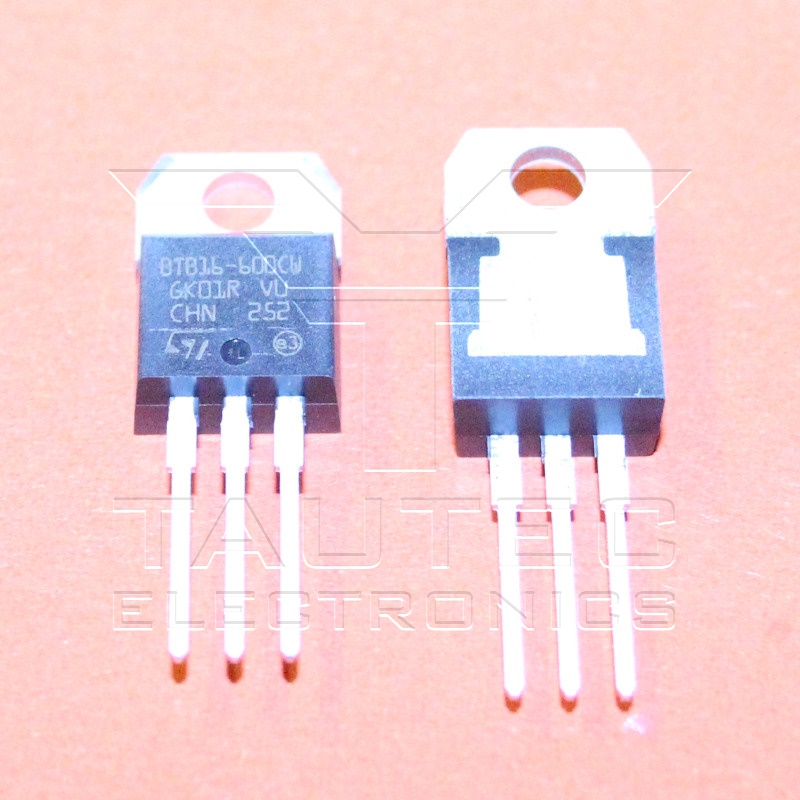

BTB16-600CWRG

Triacs 16 Amp 600 Volt Non Repetitive On-State Current: 168 A Rated Repetitive Off-State Voltage VDRM: 600 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 35 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 35 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTA16.pdf

€ 0 .89*

ST-Microelectronics

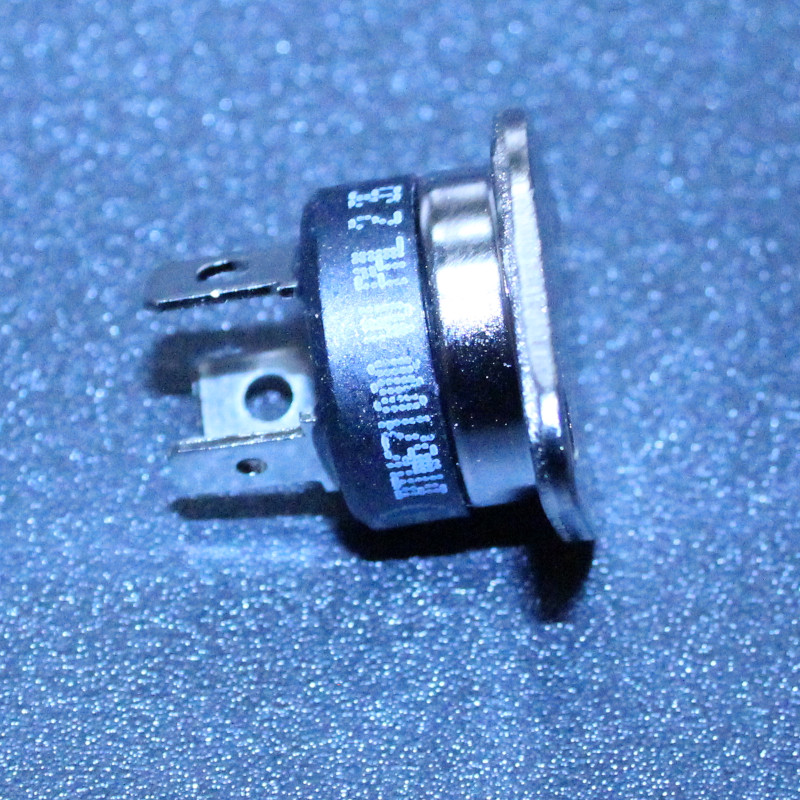

BTW67-1000

50A STANDARD SCRs Breakover Current IBO Max: 525 A Rated Repetitive Off-State Voltage VDRM: 1 kV Off-State Leakage Current @ VDRM IDRM: 20 uA Vf - Forward Voltage: 2 V Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 80 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C

€ 5 .67*

ST-Microelectronics

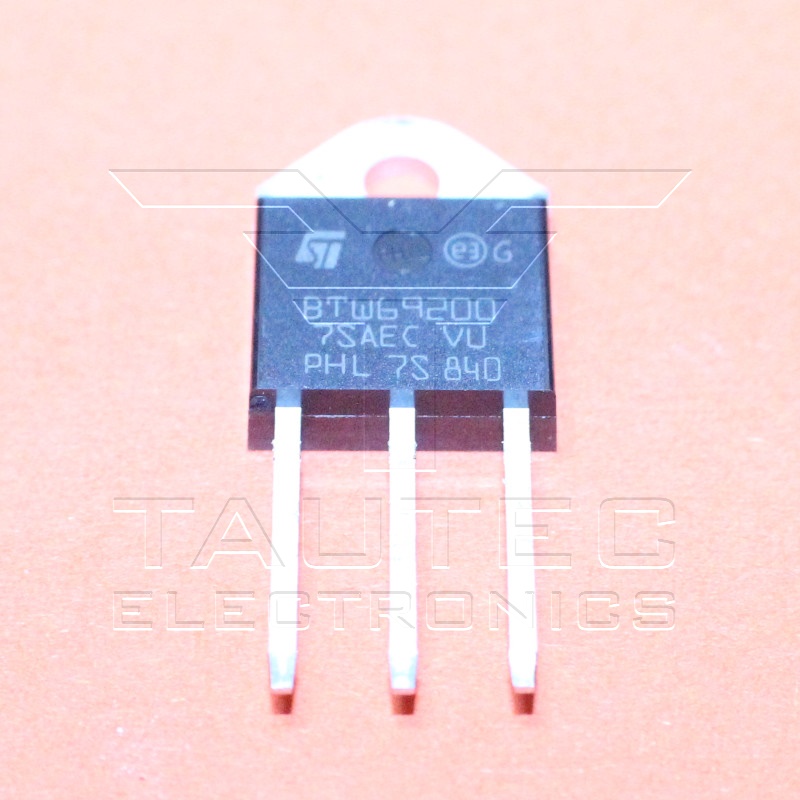

BTW69-200RG

SCRs 50 Amp 200 Volt Rated Repetitive Off-State Voltage VDRM: 5 V Off-State Leakage Current @ VDRM IDRM: 10 uA Vf - Forward Voltage: 1.9 V Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 80 mA Current Rating: 50 A Holding Current Ih Max: 150 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTW69.pdf

€ 1 .70*
