THYRISTOREN/TRIACS

Powerex

2N3669

Silicon Controlled Rectifier, 200 Volt, 8A, TO-3 Rated Repetitive Off-State Voltage VDRM: 200 V Off-State Leakage Current @ VDRM IDRM: 2 mA Vf - Forward Voltage: 1.8 V Gate Trigger Voltage - Vgt: 2 V Gate Trigger Current - Igt: 40 mA Holding Current Ih Max: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Mounting Style: Through Hole Package/Case: TO-3 50MIL Datenblatt: 2N3669.pdf

€ 2 .00*

Teccor Electronics

B1160CA

Battrax® SLIC Protector Datenblatt: B1160CA.pdf

€ 0 .30*

Philips

BT139-600

Beschreibung: Triac 16A/600V Datenblatt: BT139.pdf

€ 0 .25*

Philips

BT148W-600R

Logic Level Thyristor 600V / 0,6A Datenblatt: BT148W.pdf

€ 0 .20*

Philips

BT152-600R

Beschreibung: Thyristor 13A/650V Datenblatt: BT152.pdf

€ 0 .25*

ST-Microelectronics

BTA12-700CW

Triac 12A/700V Non Repetitive On-State Current: 126 A Rated Repetitive Off-State Voltage VDRM: 700 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.6 V Holding Current Ih Max: 35 mA Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 35 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTA12.pdf

€ 0 .60*

ST-Microelectronics

BTA16-800BRG

Logic Level And Standard Triac 800V / 16A Non Repetitive On-State Current: 168 A Rated Repetitive Off-State Voltage VDRM: 800 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 50 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 100 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTA16.pdf

€ 0 .80*

ST-Microelectronics

BTA16-800BWRG

Triacs 12 Amp 800 Volt Non Repetitive On-State Current: 126 A Rated Repetitive Off-State Voltage VDRM: 800 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 50 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 100 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C

€ 0 .91*

ST-Microelectronics

BTA26-400BRG

Triac 25A/400V Voltage - Off State: 400V Current - On State (It (RMS)) (Max): 25A Voltage - Gate Trigger (Vgt) (Max): 1,3V Current - Non Rep. Surge 50, 60Hz (Itsm): 250A, 260A Current - Gate Trigger (Igt) (Max): 50mA Current - Hold (Ih) (Max): 80mA Configuration: Single Operating Temperature: -40 C - 125 C (TJ) Mounting Type: Through Hole Datenblatt: BTA26.pdf

€ 3 .00*

ST-Microelectronics

BTA26-600BRG

Triac 25A/600V Non Repetitive On-State Current: 260 A Current Rating: 25 A Rated Repetitive Off-State Voltage VDRM: 600 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 80 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 100 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Mounting Style: Through Hole Datenblatt: BTA26.pdf

€ 2 .45*

ST-Microelectronics

BTB16-600CWRG

Triacs 16 Amp 600 Volt Non Repetitive On-State Current: 168 A Rated Repetitive Off-State Voltage VDRM: 600 V Off-State Leakage Current @ VDRM IDRM: 5 uA On-State Voltage: 1.55 V Holding Current Ih Max: 35 mA Gate Trigger Voltage - Vgt: 1.3 V Gate Trigger Current - Igt: 35 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTA16.pdf

€ 0 .89*

ST-Microelectronics

BTW67-1000

50A STANDARD SCRs Breakover Current IBO Max: 525 A Rated Repetitive Off-State Voltage VDRM: 1 kV Off-State Leakage Current @ VDRM IDRM: 20 uA Vf - Forward Voltage: 2 V Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 80 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C

€ 5 .67*

ST-Microelectronics

BTW69-200RG

SCRs 50 Amp 200 Volt Rated Repetitive Off-State Voltage VDRM: 5 V Off-State Leakage Current @ VDRM IDRM: 10 uA Vf - Forward Voltage: 1.9 V Gate Trigger Voltage - Vgt: 1.5 V Gate Trigger Current - Igt: 80 mA Current Rating: 50 A Holding Current Ih Max: 150 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: BTW69.pdf

€ 1 .70*

General Electric

C164A

Inverter SCR 100V / 110A Datenblatt: C164A.pdf

€ 33 .00*

POWER CONVERTIBLES

CD631240

Beschreibung: Phase Control Thyristor Module 1200V / 40A

€ 30 .00*

Renesas

CR08AS-12-BT1

Beschreibung: Low Power Use Thyristor 600V / 0,8A RENESAS Package code: PLZZ0004CA-A Datenblatt: CR08AS.pdf

€ 0 .17*

Mitsubishi Semiconductor

CR3JM

Beschreibung: Low Power Strobe Use Thyristor 400V / 0,8A Datenblatt: CR3JM.pdf

€ 0 .70*

IXYS

CS8-12io2

Beschreibung: Phase Control Thyristors 800V/16A Datenblatt: CS8.pdf

€ 10 .00*

Fagor Electronica

FS0832ND

SCR - Silicon Controlled Rectifier On-State Current: 8A Average On-state Current: 5A Gate Trigger Current: 200uA Off-State Voltage: 200V Peak Gate Dissipation: 5W Gate Dissipation: 1W Operating Temperature: -40C to 125C

€ 2 .00*

Fagor Electronica

FT0103MN00RB

Logic Level TRIAC Rated Average On-State Current: 1A Maximum Gate Trigger Current: 5mA Repetitive Peak Reverse Voltage: 600V Maximum Gate Trigger Voltage: 1.3V Repetitive Peak Forward Blocking Voltage: 600V Maximum Holding Current: 7mA Peak On-State Voltage: 1.5V Repetitive Peak Off-State Current: 0.5mA Dimensions: 6.7 x 3.7 x 1.7mm Maximum Operating Temperature: +125 °C Minimum Operating Temperature: -40 °C Datenblatt: FT0103MN00RB.pdf

€ 0 .04*

Hitachi

FU12E

Beschreibung: Triac 400V / 3A

€ 2 .50*

International Rectifier

IRKT136-12

Beschreibung: Thyristor/Thyristor Modul 1600V / 135A Datenblatt: IRKT136.pdf

€ 35 .00*

Motorola

MCR708A

Reverse Blocking Thyristors 600V / 4A Datenblatt: MCR708A.pdf

€ 0 .35*

ST-Microelectronics

P0109DA5AL3

Beschreibung: Sensitive standard SCRs up to 0.8 A Datenblatt: P0109DA5AL3.pdf

€ 0 .15*

Teccor Electronics

P2103AA

Beschreibung: SIDACtor® Protection Thyristors Datenblatt: P2103AA.pdf

€ 0 .50*

Powersem GmbH

PSUT 50/12

Beschreibung: Three Phase AC Controller Modules 1200V / 3x50A Datenblatt: PSUT.pdf

€ 35 .00*

Teccor Electronics

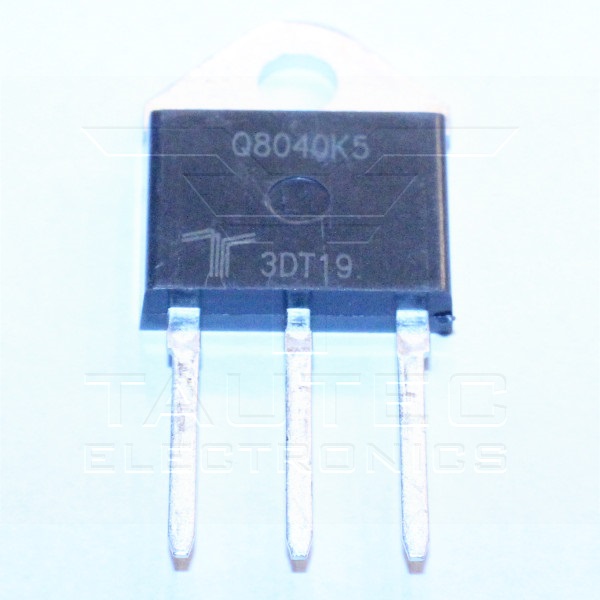

Q8040K5

Beschreibung: 800V / 40A Alternistor (High Commutation) Triacs Datenblatt: Q8040K5.pdf

€ 4 .00*

Semikron

SKET14/12

Thyristor/ Diode Modules 1200V / 14A Datenblatt: SKET14.pdf

€ 22 .00*

Semikron

SKKH91/04D

Beschreibung: Thyristor/ Diode Modules Datenblatt: SKKH91.pdf

€ 25 .00*

Semikron

SKKT106/16E

Beschreibung: Thyristor/ Diode Modules 1600V / 180A Datenblatt: SKKT106.pdf

€ 15 .00*

Semikron

SKKT19/18E

Beschreibung: Thyristor/ Diode Modules Datenblatt: SKKT19.pdf

€ 35 .00*

Semikron

SKKT57/18E

Beschreibung: Thyristor/ Diode Modules Datenblatt: SKKT57.pdf

€ 35 .00*

Semikron

SKT160/08C

Beschreibung: Thyristor 800V / 280A Datenblatt: SKT160.pdf

€ 60 .00*

Toshiba

SSM6N17FU

Silicon N Channel MOSFET For High Speed Switching And Analog Switch Applications Transistor Polarity: N-Channel Number of Channels: 2 Channel Vds - Drain-Source Breakdown Voltage: 50 V Id - Continuous Drain Current: 100 mA Rds On - Drain-Source Resistance: 20 Ohms Vgs - Gate-Source Voltage: - 7 V, + 7 V Vgs th - Gate-Source Threshold Voltage: 900 mV Pd - Power Dissipation: 200 mW Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Datenblatt: SSM6N17FU.pdf

€ 0 .04*

Infineon

T1330N22TOF-VT

SCRs PCT 2200V 1330A Voltage - Off State: 2,2kV Current - On State (It (AV)) (Max): 1330A Current - On State (It (RMS)) (Max): 2600A Voltage - Gate Trigger (Vgt) (Max): 2,2V Current - Gate Trigger (Igt) (Max): 250mA Current - Non Rep. Surge 50, 60Hz (Itsm): 26500A at 50Hz Current - Hold (Ih) (Max): 300mA Operating Temperature: -40C to 125C Mounting Type: Chassis Mount Diameter: 75mm Package Height: 26.5mm Datenblatt: T1330N.pdf

€ 130 .00*

ST-Microelectronics

T410-400D

Triac 4A/400V ITRMS = 4 A VDRM = 400 V SENSITIVEGATE : IGT < 10mA HIGH COMMUTATION : (dI/dt)c > 3.5 A/ms Datenblatt: T410.pdf

€ 0 .25*

TAG Semiconductor

TAG606-600

Beschreibung: SCR in Metal Package 4A / 600V - VRRM = 600V - IRMS = 4A - IT = 1,6A - ITSM = 60A - IGT = 15mA - IH = 25mA - vergleichbar mit BTX30-600

€ 0 .40*

Sanken

TF541S

Beschreibung: Thyristor 5A/400V Datenblatt: TF541S.pdf

€ 0 .60*

Texas Instruments

TIC236M

High Current Triacs 12A/600V - 12 A RMS - Glass Passivated Wafer - 400 V to 800 V Off-State Voltage - Max IGT of 50 mA (Quadrants 1 - 3) Datenblatt: TIC236M.pdf

€ 1 .00*

Bourns, Inc.

TICP206D

Triacs 400V 2A Peak On-State Voltage: 2.2 V Peak Repetitive Reverse Voltage: 400 V Maximum Gate Trigger Current: 10 mA Maximum Gate Trigger Voltage: 2.5 V Maximum Holding Current: 30 mA Mounting: Through Hole Operating Temperature: -40 to 110 C Max Processing Temp: 230C Datenblatt: TICP206D.pdf

€ 0 .28*
