F...

JAE Japan Aviation Electronics Industry, Ltd.

FA5S040HP1R3000

40 Position FPC Connector Contacts Flat Flex Type: FPC Mounting Type: Surface Mount, Right Angle Connector/Contact Type: Contacts, Bottom Number of Positions: 40 Pitch: 0.50mm FFC, FCB Thickness: 0.30mm Height Above Board: 1.45mm Locking Feature: Flip Lock Cable End Type: Tapered Contact Material: Copper Alloy Contact Finish: Gold Housing Material: Liquid Crystal Polymer (LCP), Glass Filled Actuator Material: Polyamide (PA), Nylon, Glass Filled Features: Solder Retention, Zero Insertion Force (ZIF) Voltage Rating: 50V Operating Temperature: -40°C to 85°C Material Flammability Rating: UL94 V-0 Current Rating (Amps): 0.8A per Contact Datenblatt: FA5S040HP.pdf

€ 3 .63*

JAE Japan Aviation Electronics Industry, Ltd.

FI-W9P-HFE-E1500

1.25mm pitch, Board-to-Cable, Standard type, 9 pos., Board side receptacle Number of Positions: 9 pos. Number of Rows: 2 Contact Pitch: 1.25 mm Rated Voltage: 200V Rated Current: 1A Operating Temperature Range: -40c to +80C Connector Type: Board side receptacle Connector Style: Right angle PCB Mounting Method: Soldering (SMT) Material of Contact: Copper alloy Finish of Contact in Connecting Area: Gold plating over Nickel Finish of Contact in PCB Mounting Area: Tin or Tin-alloy plating over Nickel Material of Housing: Glass filled PPS (UL94V-0) Datenblatt: FIW9PHFE.pdf

€ 1 .07*

Samtec, Inc

FLE-120-01-G-DV-P-TR

40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold Datenblatt: FLE-120-01-G-DV-P.pdf

€ 1 .50*

Samtec, Inc

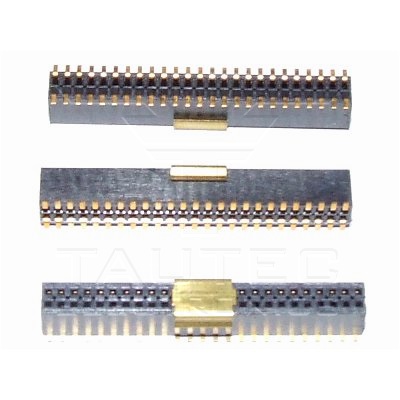

FLE-125-01-G-DV-P

Beschreibung: Conn Socket Strip SKT 50 POS 1.27mm Solder Datenblatt: FLE12501GDVP.pdf

€ 2 .00*

TE Tyco Electronics

FST-23A-8

FFC Jumper Cable, 8Conductors, 2.54mm, 24AWG, Copper, 3A /300VAC Datenblatt: FST23A8.pdf

€ 1 .79*

Samtec, Inc

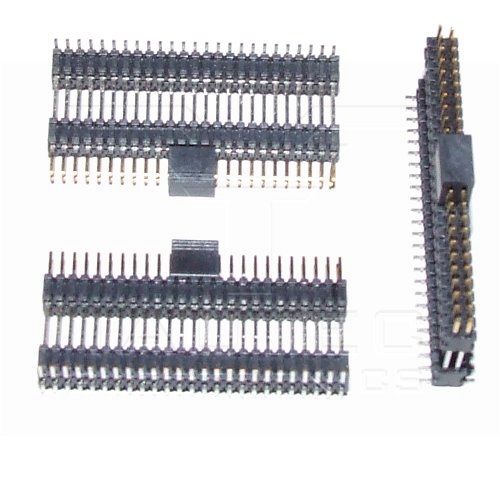

FW-25-05-L-D-410-120-P

Beschreibung: Conn Board Stacker HDR 50 POS 1.27mm Solder Datenblatt: FW2505LD410120P.pdf

€ 2 .00*
