JAE Japan Aviation Electronics Industry, Ltd.

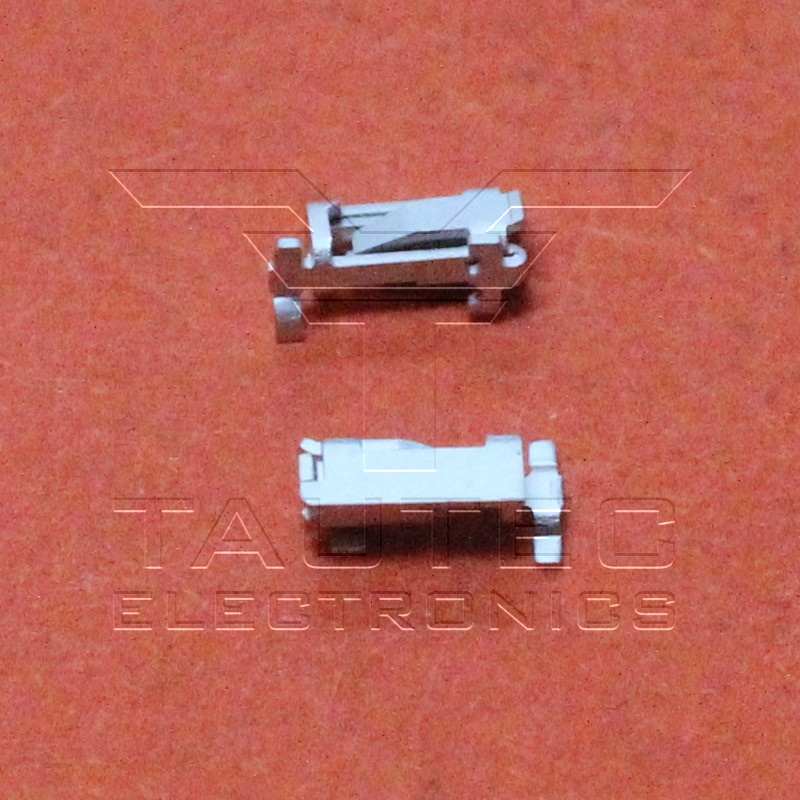

ES10S001JF1R4500
Single wire insert-in, 1 pos., Board side receptacle
Current Rating: 2 A
Contact Resistance: 30mOhm
Contact Plating: Tin
Contact Material: Copper Alloy
Application: Wire to Board
Contact Type: Socket (Female)
Features: Compact and low-profile structure
Height: 2 mm
Length: 5.1 mm
Width: 2.5 mm
Operating Temperature: -40C to +105C
Datenblatt:
ES10S001JF.pdf
€
