AMP

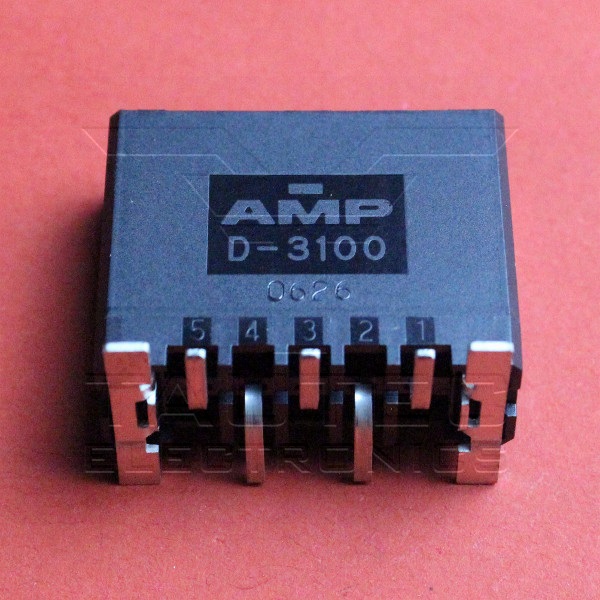

1-177665-5

DYNAMIC D-3, HDR, ASSY, SMT, 5 Pole, Dynamic 3000 Serie Datenblatt: 1-177665-5.pdf

€ 1 .00*

tyco

1-967282-1

Beschreibung: 32 Pol Messerleiste, 3.0mm Flachstecker Datenblatt: 1-967282-1.pdf

€ 8 .00*

Rosenberger

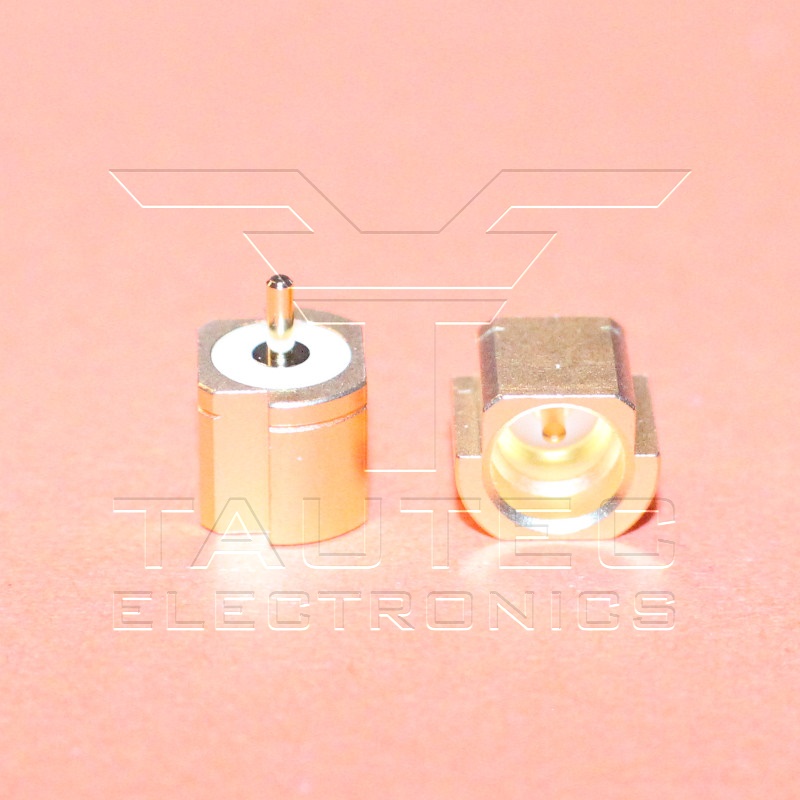

119S202-40ML5

RF Connectors / Coaxial Connectors PSMP Right Angle PCB - RF Series: P-SMP - Gender: Plug - Impedance: 50 Ohms - Maximum Frequency: 10 GHz - Termination Style: SMD/SMT - Orientation: Right Angle - Mounting Type: PCB - Contact Material: Brass - Contact Plating: Gold - Insulation Resistance: 5 GOhms - Mating Cycles: 100 Datenblatt: 119S202-40ML5.pdf

€ 2 .75*

Huber + Suhner AG

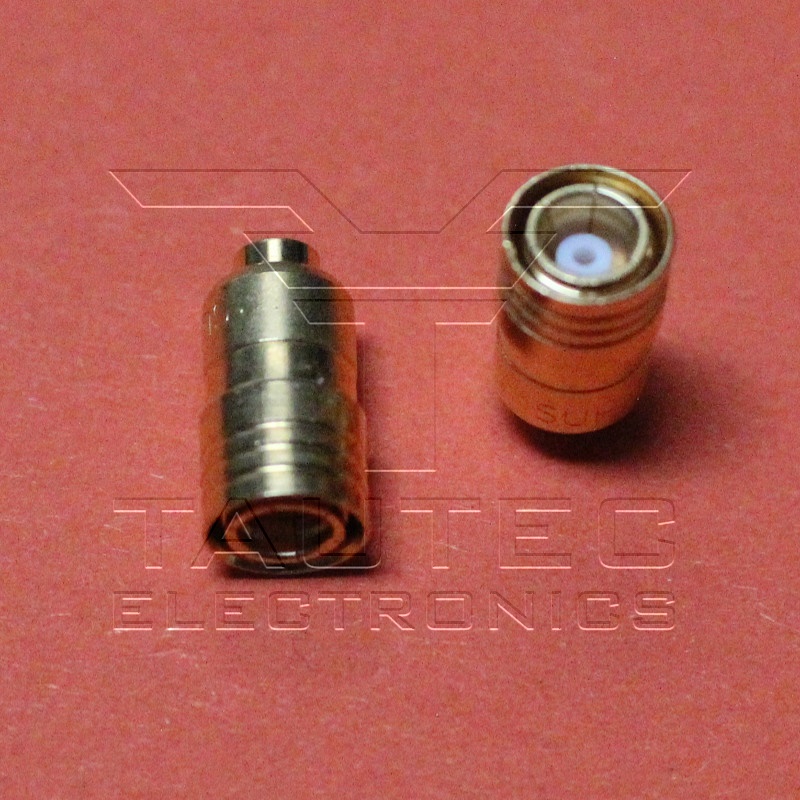

11SMB-50-2-13/111 NH

Coaxial Cable Connector - Impedance 50 Ohm - nterface frequency max. 4 GHz - Frequency range DC to 1 GHz 1 to 4 GHz - Return loss 25 dB 21 dB - Centre contact soldered - Outer contact soldered - Weight 0.0016 kg - Operating temperature -65 °C to 165 °C - 2011/65/EU, RoHS compliant Datenblatt: 11SMB-50-2-13.pdf

€ 7 .50*

TE Tyco Electronics

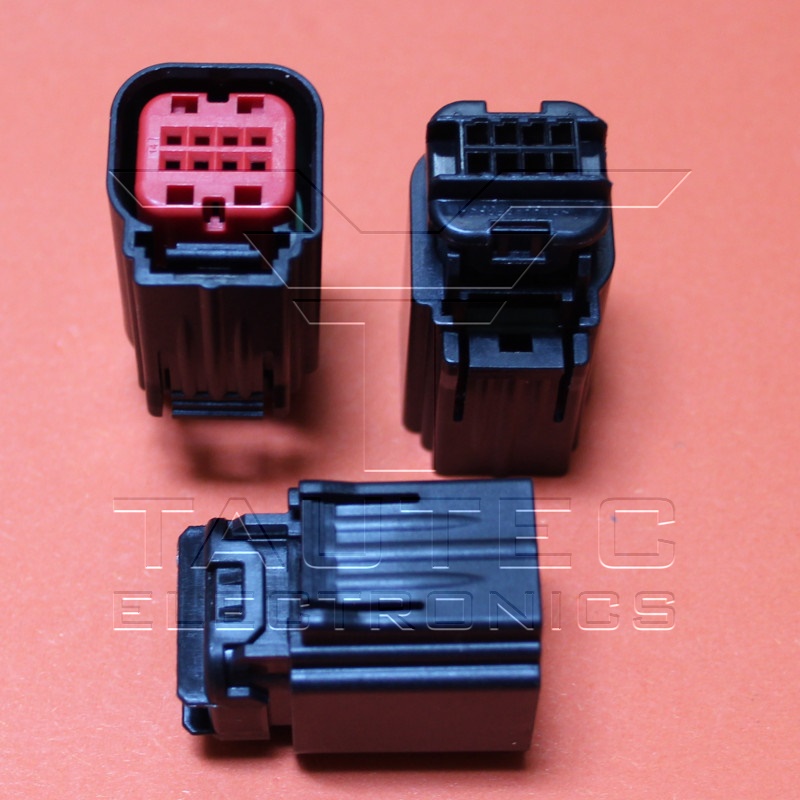

1411001-1

Automotive Connector Type: Housing Wire Gauge: 18-22AWG Number of Contacts: 8POS Number of Contact Rows: 2 Body Orientation: Straight Pitch: 2.54mm Gender: RCP Housing Material: Polyamide 66 Packaging: Bulk Current Rating (Max): 8/ContactA Housing Color: Black Product Height: 23.8mm Product Depth: 31.37mm Product Length: 19.4mm

€ 1 .20*

TE Tyco Electronics

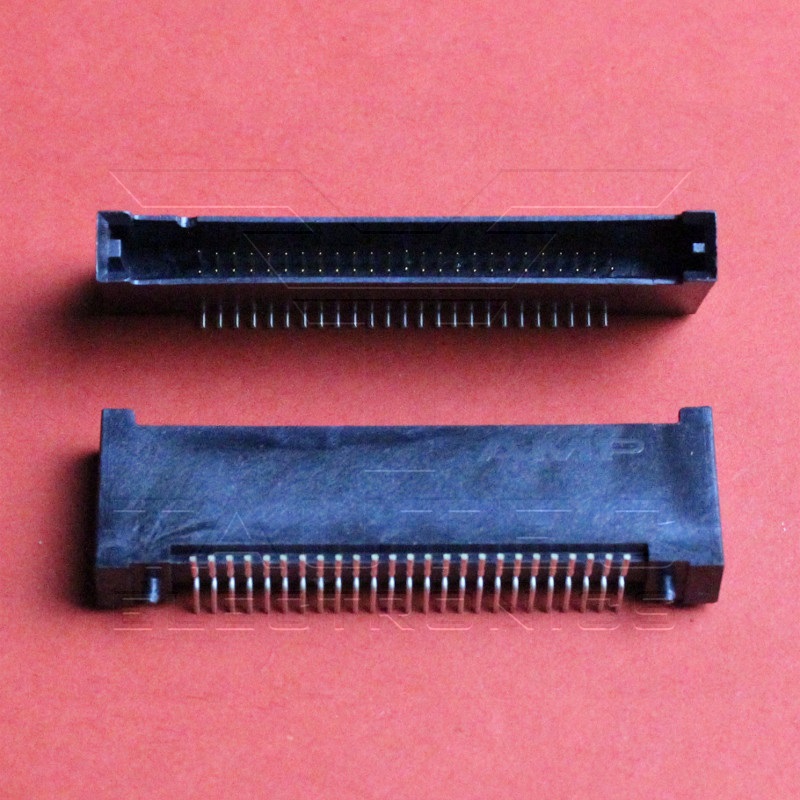

146839-1

Beschreibung: Connector Compact Flash Card, HDR, 50POS, 0.635mm Datenblatt: 146839-1.pdf

€ 3 .50*

Weidmüller Interface GmbH & Co.

1526860000

PCB plug-in connector - female plug, 5.08 mm - No. of poles: 6, 180° - Clamping yoke connection - Clamping range - rated connection, max.: 3.31 mm² - IEC: 400 V / 19 A / 0.2 - 2.5 mm² - UL: 300 V / 15 A / AWG 26 - AWG 12 Datenblatt: 1526860000.pdf

€ 2 .90*

ERNI Electronics

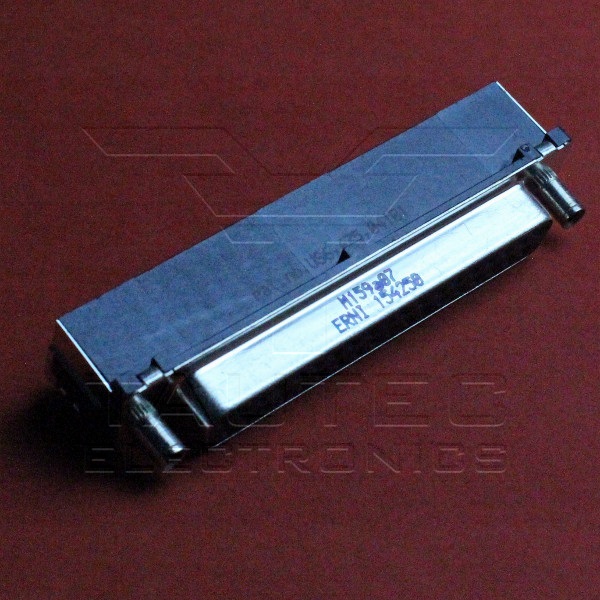

154246

Beschreibung: Connector D-Subminiature Female 25 POS RM: 2.76mm Datenblatt: 154246.pdf

€ 2 .50*

ERNI Electronics

154250

Beschreibung: Connector D-Subminiature Female 37 POS RM: 2.76mm Datenblatt: 154250.pdf

€ 4 .50*

Weidmüller Interface GmbH & Co.

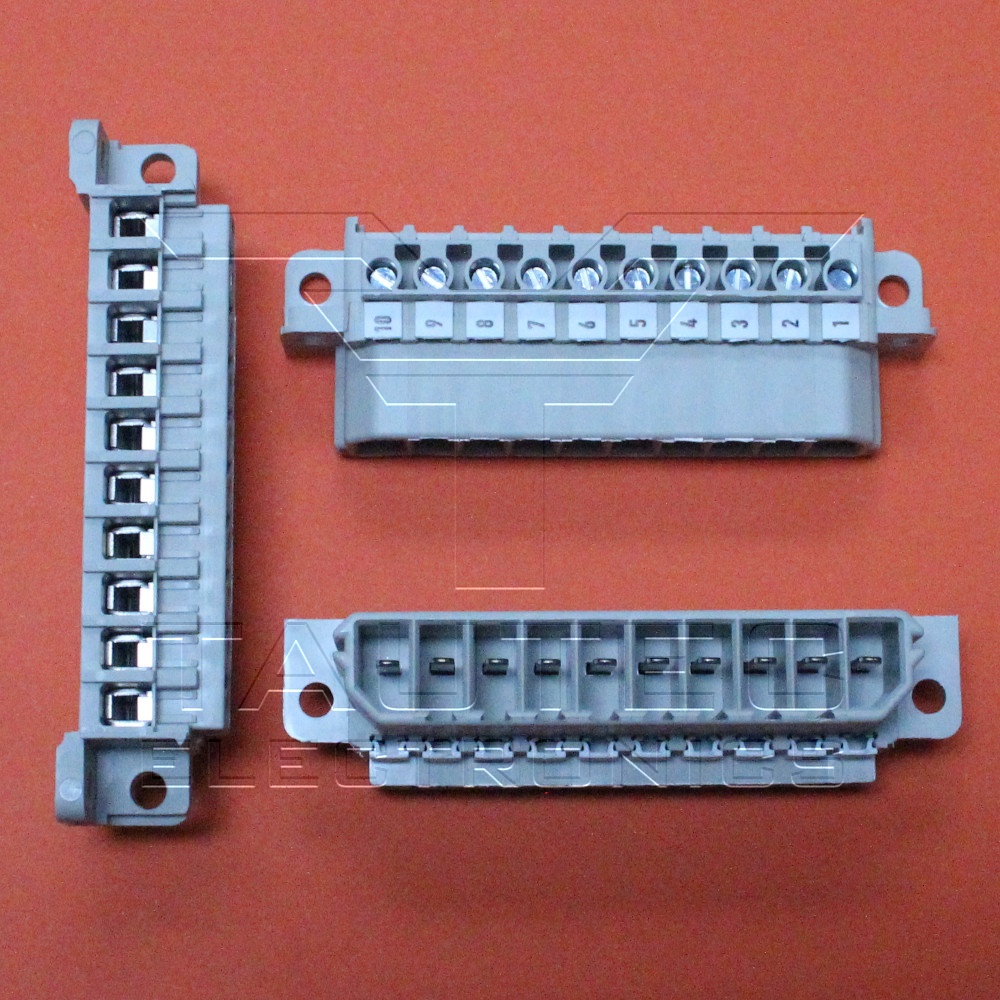

1612190000

Pluggable Terminal Blocks STV S 10 SS Rated current, min. number of poles (Tu=20C): 32A Rated voltage for surge voltage class / pollution degree II/2: 1000V Volume resistance: 1.60 mOhm Colour: Pebble grey Operating temperature, min.: -50C Operating temperature, max.: 100C Clamping range, min.: 0.5 mm2 Clamping range, max.: 4 mm2 Wire connection cross section AWG, min.: AWG 22 Wire connection cross section AWG, max.: AWG 12 Depth: 30.2mm Height: 21.4mm Net weight: 36.198g Weidmüller order-number: 1612190000 Datenblatt: 1612190000.pdf

€ 10 .20*

Huber + Suhner AG

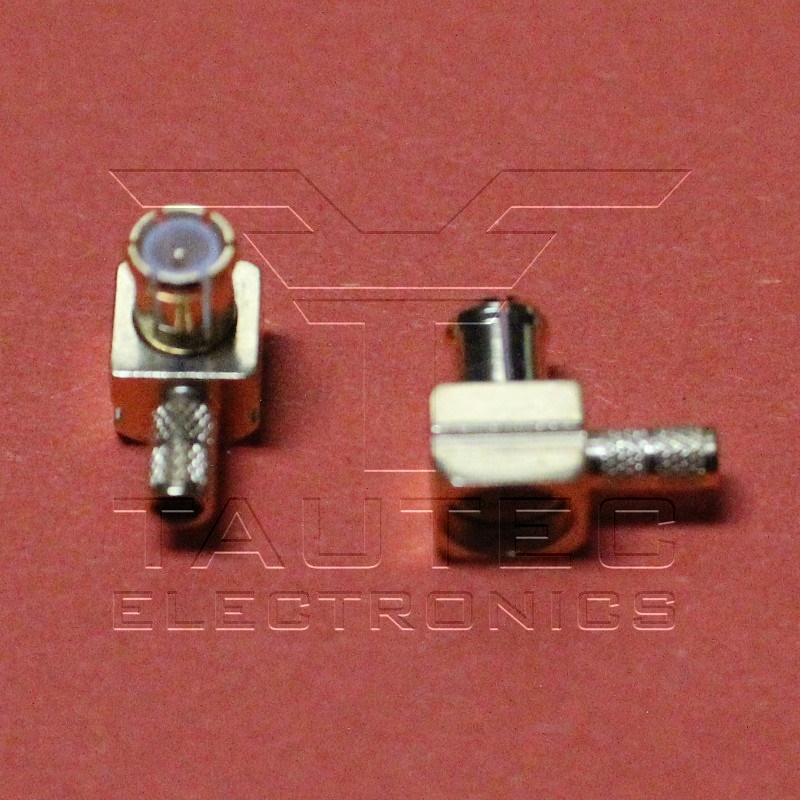

16MCX-50-2-5/111 NH

Coaxial Cable Connectors - Impedance 50 Ohm - Interface frequency max. 6 GHz - Centre contact soldered - Outer contact crimped - Weight 0.0011 kg - Operating temperature -65 °C to 165 °C - Centre contact Brass Gold Plating (Nickel underplated) - Outer contact Copper Beryllium Alloy Gold Plating (Nickel underplated) - Body Brass Gold Plating (Nickel underplated) - Insulator PFA / PTFE - Crimp ferrule Copper Gold Plating (without Nickel underplating)

€ 4 .50*

Weidmüller Interface GmbH & Co.

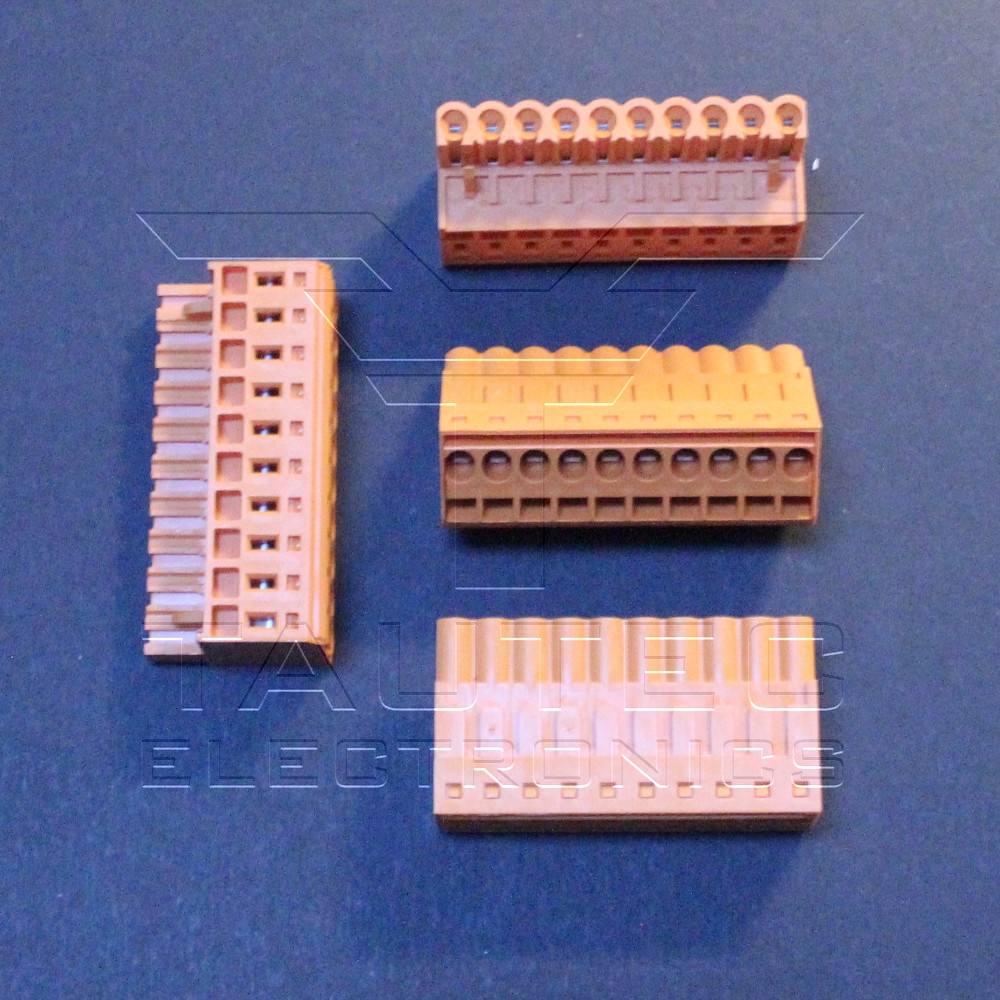

1707540000

Connector Terminal Block Base/Housing Material: PBT (Polybutylene Terephthalate) Body Orientation: Straight Contact Material': Copper Alloy Contact Plating: Tin Gender: Receptacle Housing Color: Orange Operating Temperature: -25 to 100 °C Current - IEC: 17A Voltage - IEC: 400 V Operating Temperature: -50°C ~ 100°C Pitch: 5.0800 mm Product Depth: 25.1 mm Product Dimensions: 50.8 x 25.1 x 15.2 mm Product Height: 15.2 mm Product Length: 50.8 mm Termination Method: Crimp Wire Size: 26 to 12, 26 AWG Datenblatt: 1707540000.pdf

€ 10 .00*

Phoenix Contact

1760213

PCB Terminal Block Pitch: 2.5 mm Number of positions: 2 Connection method: Slip-on connection Mounting: Wave soldering Color: green Datenblatt: 1760213.pdf

€ 1 .25*

Rosenberger

17S202-40ML5

Long-wipe SMP RIGHT ANGLE PLUG PCB LIMITED DETENT - Center contact Brass AuroDur, gold plated - Outer contact Brass AuroDur, gold plated - Dielectric PTFE - Impedance 50 Ohm - Frequency DC to 6 GHz - Return loss >= 28 dB, DC to 3 GHz / >= 23 dB, 3 to 6 GHz - Insertion loss = 5 GOhm - Center contact resistance

€ 3 .50*

Phoenix Contact

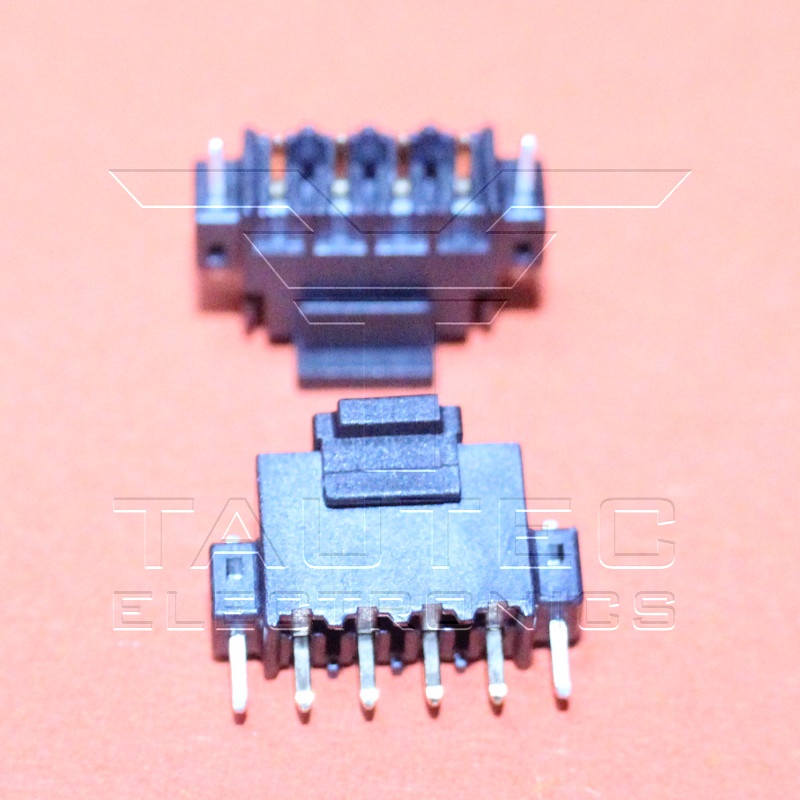

1821410

Pluggable Terminal Block Number of Positions: 4 Position Pitch: 2.54 mm Current Rating: 6 A Series: MCV Color: Black Height: 9.1 mm Length: 4.85 mm Width: 14.74 mm Datenblatt: MCV0,5/4-G-2,54 P20 THR R24.pdf

€ 1 .81*

Weidmüller Interface GmbH & Co.

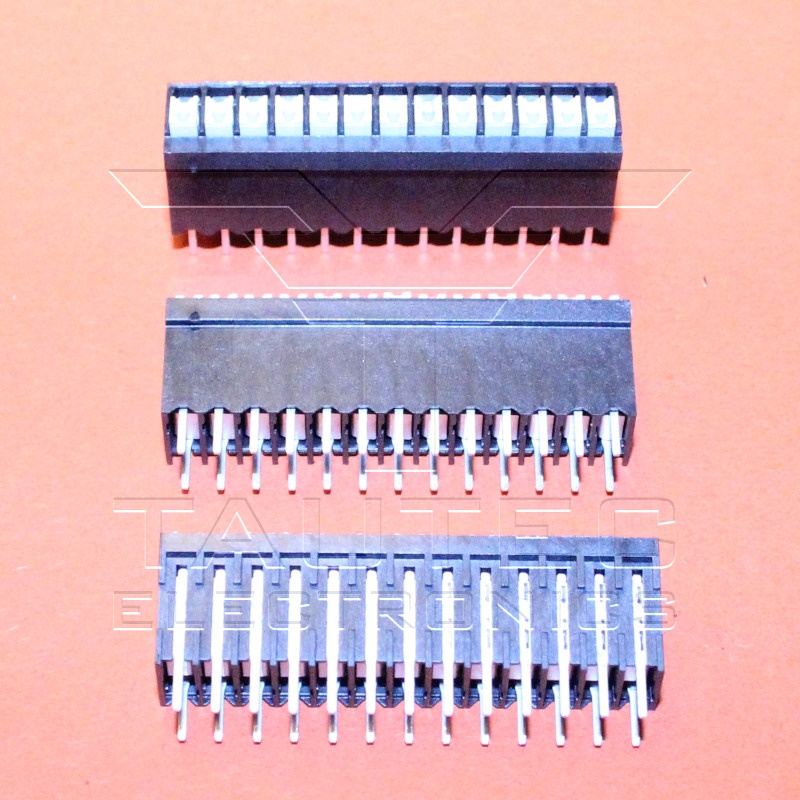

1870350000

Fixed Terminal Blocks Number of Levels: 1 Positions Per Level: 13 Pitch: 0.138" (3.50mm) Mating Orientation: Vertical with Board Current: 12 A Voltage: 300 V Wire Gauge: 16-24 AWG Mounting Type: Through Hole Wire Termination: Screwless - Push Button Clamp Color: Black Operating Temperature: -50°C - 240°C Housing Material: Liquid Crystal Polymer (LCP), Glass Filled Contact Material - Plating: Copper Alloy - Tin Plated Datenblatt: 1870350000.pdf

€ 5 .00*

Weidmüller Interface GmbH & Co.

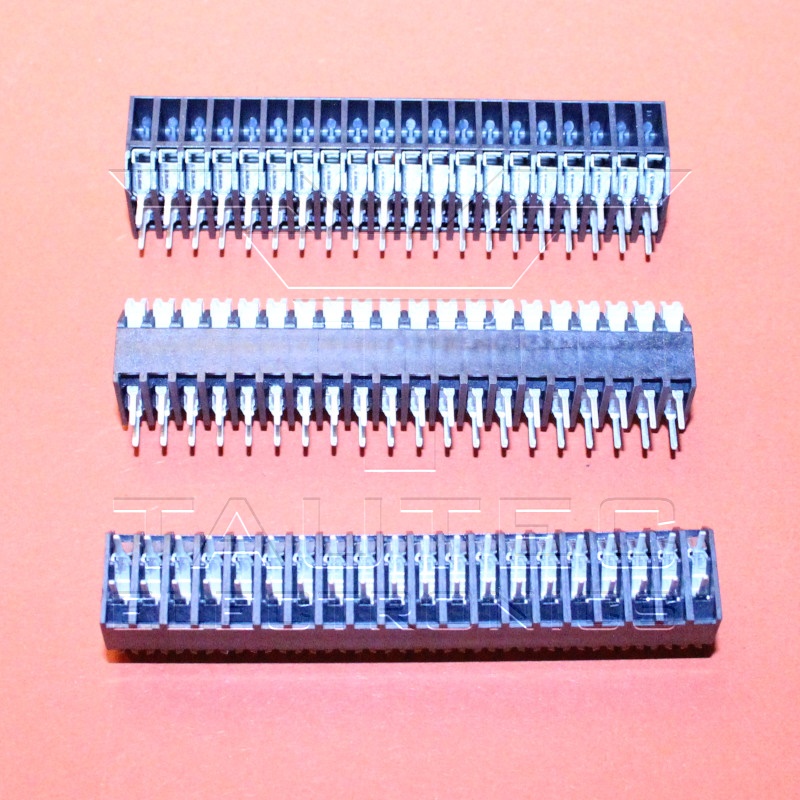

1886060000

Fixed Terminal Blocks Number of Positions: 20 Position Pitch: 3.81 mm Connection Method: Push-In Current Rating: 12 A Voltage Rating: 300 V Wire Gauge Min: 28 AWG Wire Gauge Max: 14 AWG Mounting Style: PCB Mount Mounting Angle: 135 deg Color: Black Datenblatt: 1886060000.pdf

€ 7 .50*

Weidmüller Interface GmbH & Co.

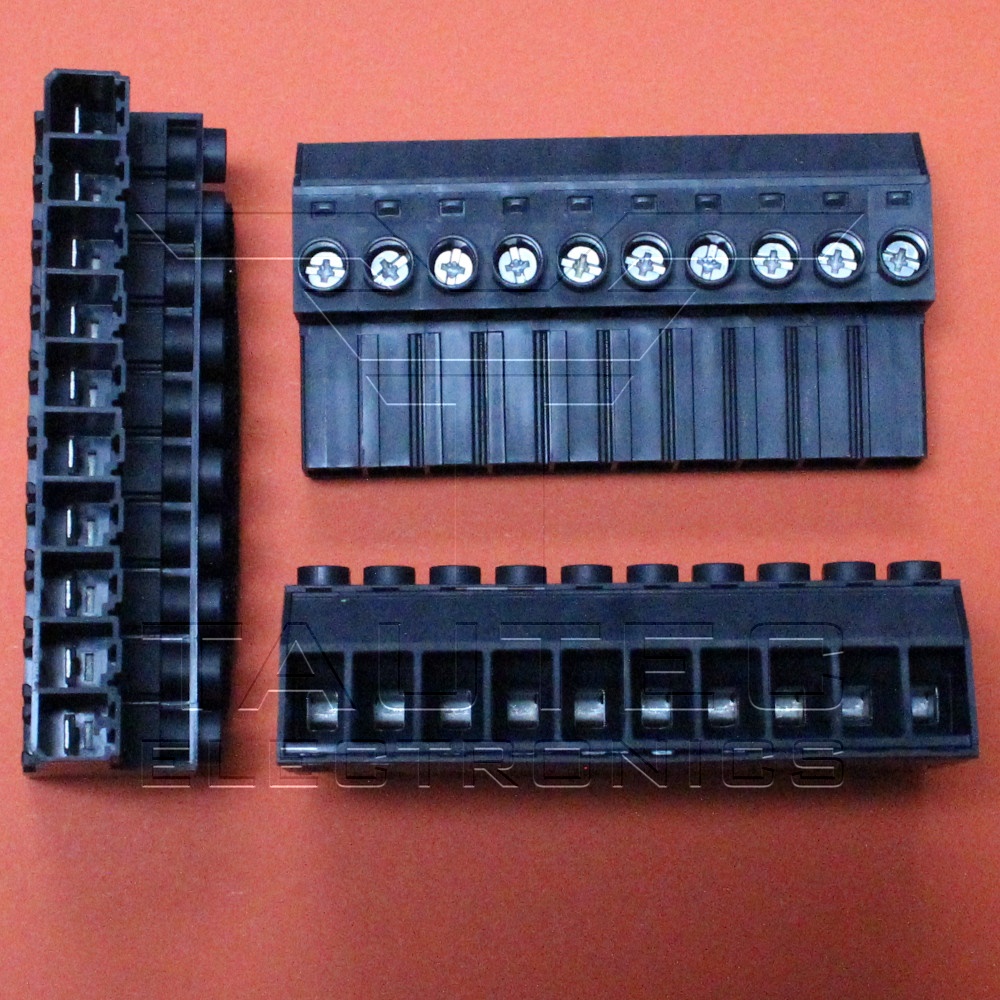

1931710000

PCB plug-in connector Rated current, min. number of poles (Tu=20C): 57 A Rated voltage for surge voltage class / pollution degree II/2: 1000 V Volume resistance: 4.50 mOhm Operating temperature, min.: -50C Operating temperature, max.: 125C Clamping screw: M 3 Colour: black Colour chart (similar): RAL 9011 Clamping range, min.: 0.2 mm² Clamping range, max.: 6 mm² Wire connection cross section AWG, min.: AWG 22 Wire connection cross section AWG, max.: AWG 8 Datenblatt: 1931710000.pdf

€ 9 .00*
