Molex

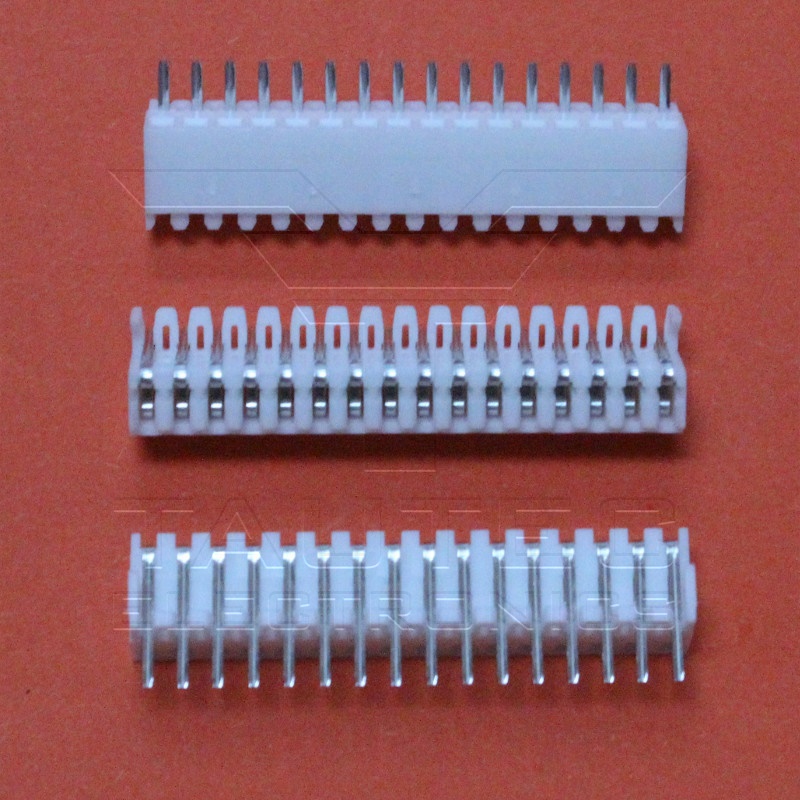

0038001406

KK® 254 PC Board Connector, Bottom Entry, with Cat Ear Terminal, 16 Circuits Connector Type:Receptacle, Bottom Entry umber of Positions: 16 Pitch - Mating: 2.54mm Number of Rows: 1 Mounting Type: Through Hole Termination: Solder Fastening Type: Push-Pull Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 2.54um Insulation Color: White Insulation Height: 7.90mm Contact Length - Post: 3.60mm Operating Temperature: -40C to 105C Material Flammability Rating: UL94 V-0 Datenblatt: 0038001406.pdf

€ 0 .60*

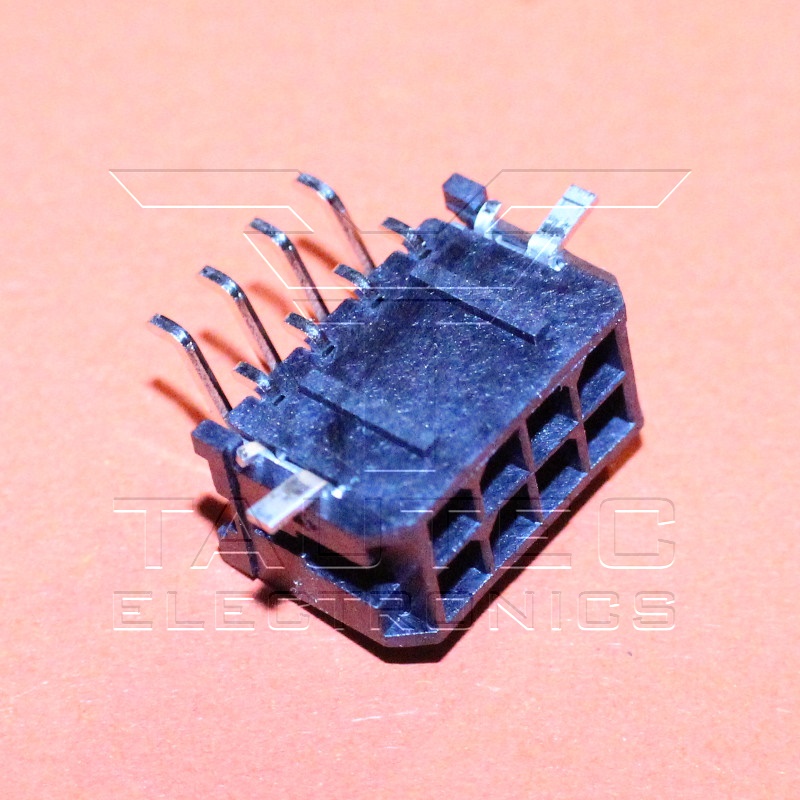

Molex

0430450809

Headers & Wire Housings MICRO-FIT 3.0 Number of Positions: 8 Position Pitch: 3 mm Number of Rows: 2 Row Mounting Style: SMD Mounting Angle: Right Angle Contact Gender: Pin (Male) Contact Plating: Tin Current Rating: 8.5 A Housing Material: Thermoplastic Voltage Rating: 600 V Flammability Rating: UL 94 V-0 Row Spacing: 3 mm Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: 0430450809.pdf

€ 1 .00*

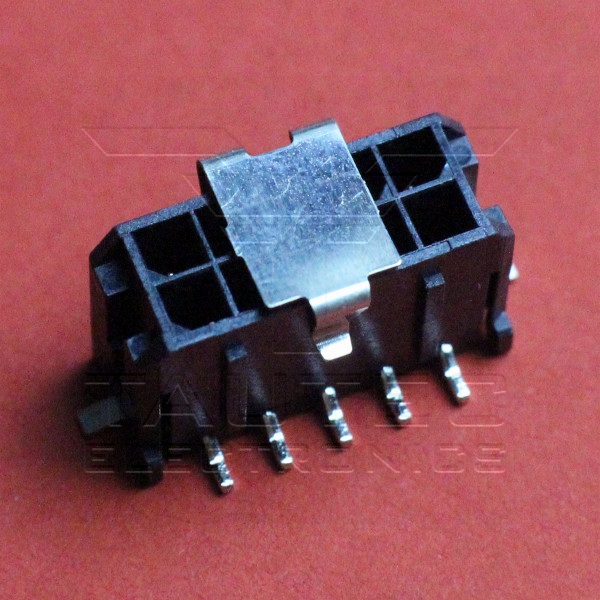

Molex

0430451018

Beschreibung: Micro-Fit 3.0™ Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Solder Tab, Tin, Glow Wire Compliant, Black Datenblatt: 0430451018.pdf

€ 1 .25*

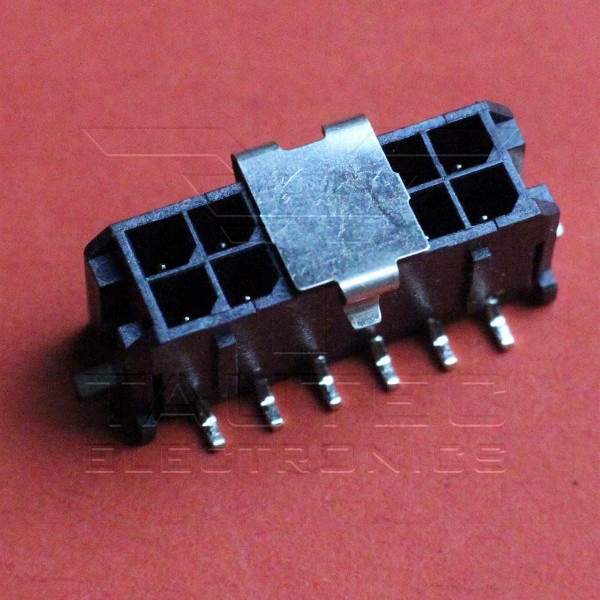

Molex

0430451218

Beschreibung: Micro-Fit 3.0™ Vertical Header, 3.00mm Pitch, Dual Row, 12 Circuits, with Solder Tab, Tin, Glow Wire Compliant, Black Datenblatt: 0430451218.pdf

€ 1 .25*

Molex

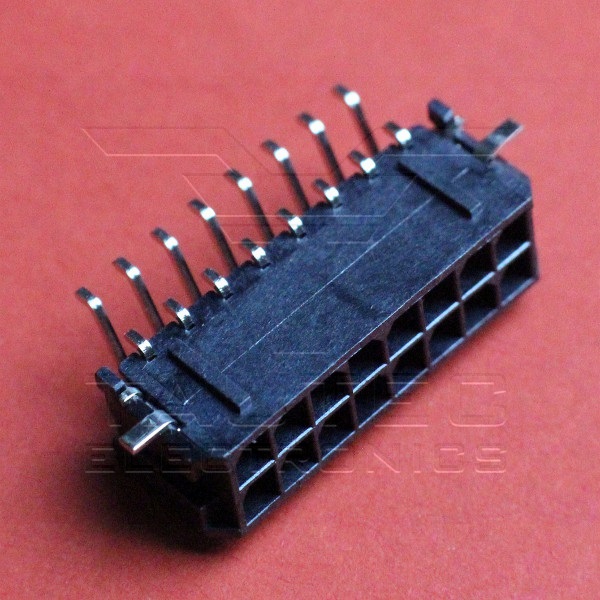

0430451609

Micro-Fit 3.0™ Right Angle Header, 3.00mm Pitch, Dual Row, 16 Circuits, with Solder Tab, Tin, Glow Wire Compliant, Black Number of Positions: 16 Position Pitch: 3 mm Current Rating: 8.5 A Voltage Rating: 600 V Flammability Rating: UL 94 V-0 Row Spacing: 3 mm Number of Rows: 2 Row Mounting Style: SMD Mounting Angle: Right Angle Contact Gender: Pin (Male) Contact Plating: Tin Series: 43045 Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: 0430451609.pdf

€ 1 .15*

Molex

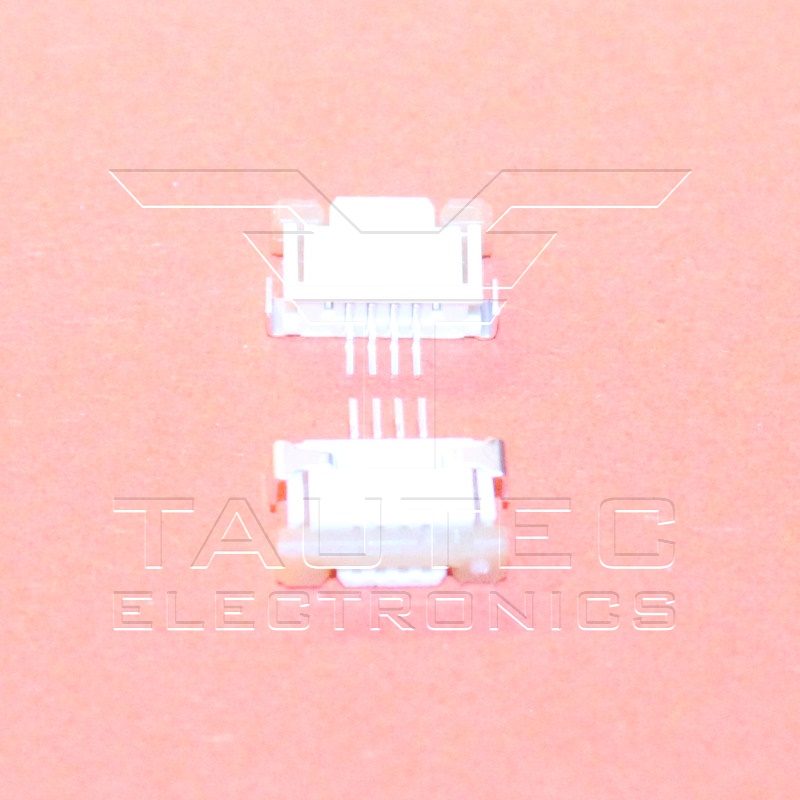

052207-0485

FFC & FPC Connectors 1.0MM FFC/FPC 4 - Product: Board Mount - Number of Positions: 4 Position - Pitch: 1 mm - Termination Style: SMD/SMT - Mounting Angle: Right Angle - Contact Location: Top Contact - Contact Plating: Tin Bismuth - Current Rating: 1 A - Housing Material: Polyamide (PA) - Voltage Rating: 125 V Datenblatt: 0522070485.pdf

€ 0 .55*

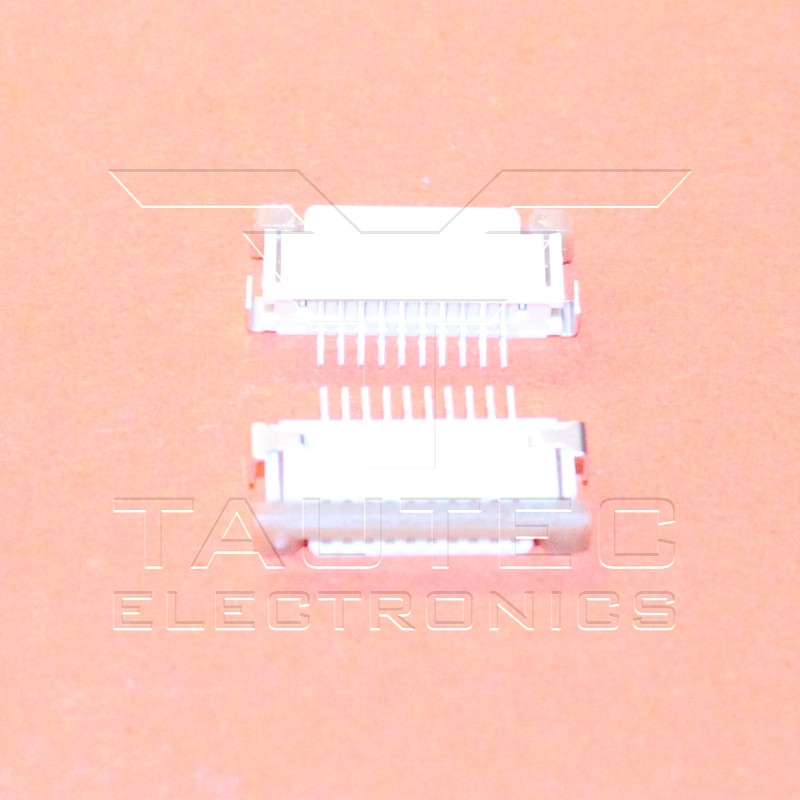

Molex

052207-1085

FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Top Contact Style Receptacle, 10 Circuits, High Barrier Packaging - Circuits (Loaded): 10 - Color - Resin: Natural - Contact Position: Top - Durability (mating cycles max): 30 - Entry Angle: 90° Angle - Flammability: 94V-0 - Mated Height: 2.70mm - Material - Metal Phosphor: Bronze - Material - Plating Mating: Tin-Bismuth - Material - Plating Termination: Tin-Bismuth - Material - Resin Nylon - Net Weight: 429.600/mg - Voltage Rating: 125 V Datenblatt: 0522071085.pdf

€ 0 .55*

Molex

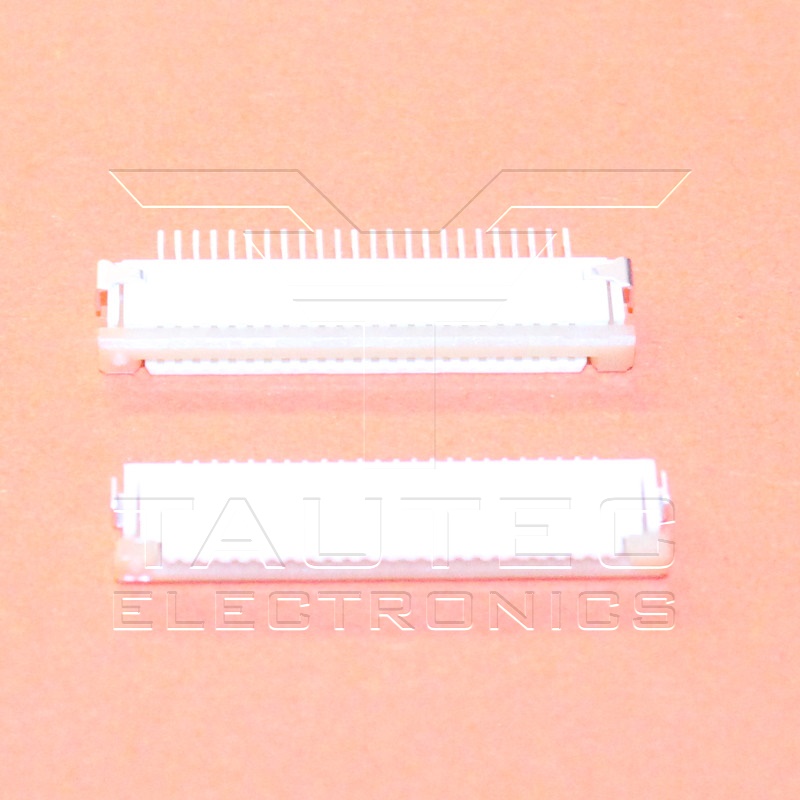

052207-2485

Datenblatt: 0522072485.pdf

€ 0 .80*

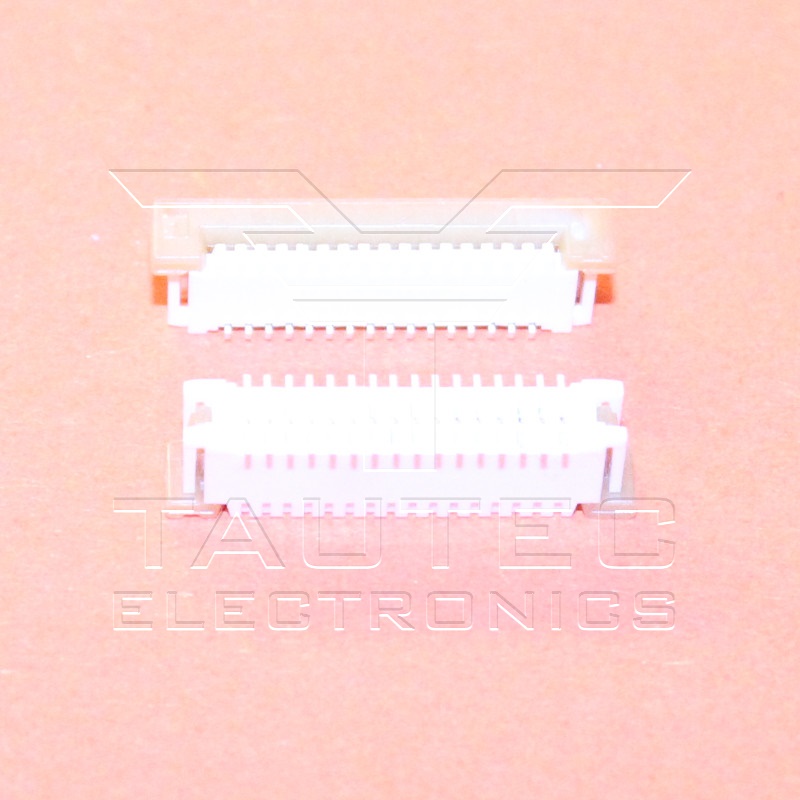

Molex

052610-1671

FFC & FPC Connectors 1.0MM FFC/FPC 16 CKT Vert. SMT ZIF - Number of Positions: 16 Position - Pitch: 1 mm - Termination Style: SMD - Mounting Angle: Vertical - Contact Plating: Tin-Bismuth over Nickel - Current Rating: 1 A - Gender: Female - Housing Material: Nylon - Voltage Rating: 125 V - Contact Material: Phosphor Bronze Datenblatt: 0526101671.pdf

€ 0 .70*

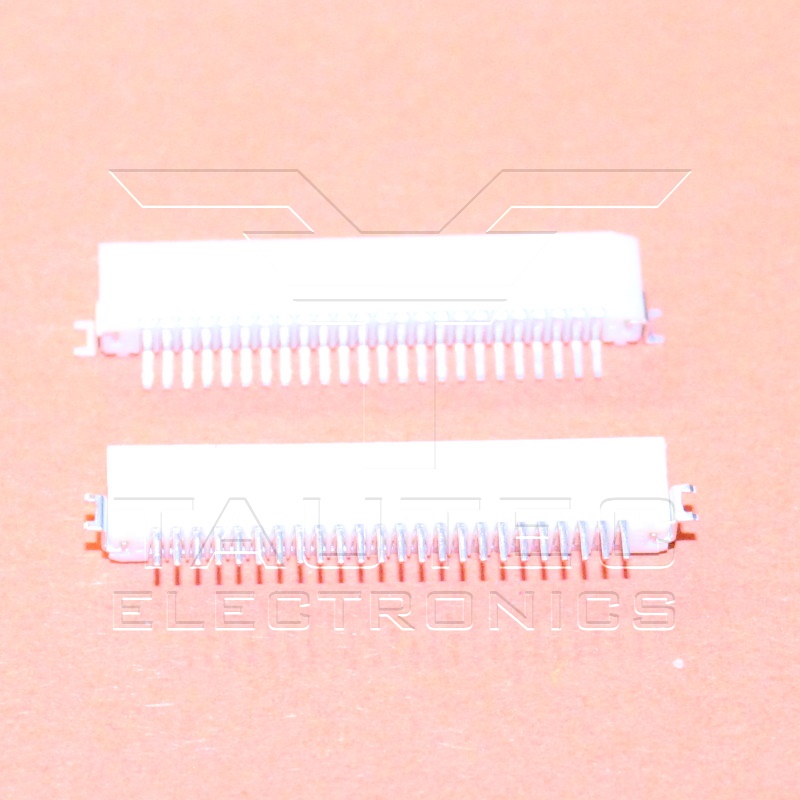

Molex

052793-2470

FFC/FPC Connector SKT 24 POS 1mm - Product: Board Mount - Number of Positions: 24 Position - Pitch: 1 mm - Termination Style: SMD - Mounting Angle: Right Angle - Contact Location: Top Contact - Contact Plating: Tin Bismuth - Current Rating: 500 mA - Housing Material: Polyphenylene Sulfide (PPS) - Voltage Rating: 50 V - Contact Material: Phosphor Bronze Datenblatt: 0527932470.pdf

€ 0 .40*

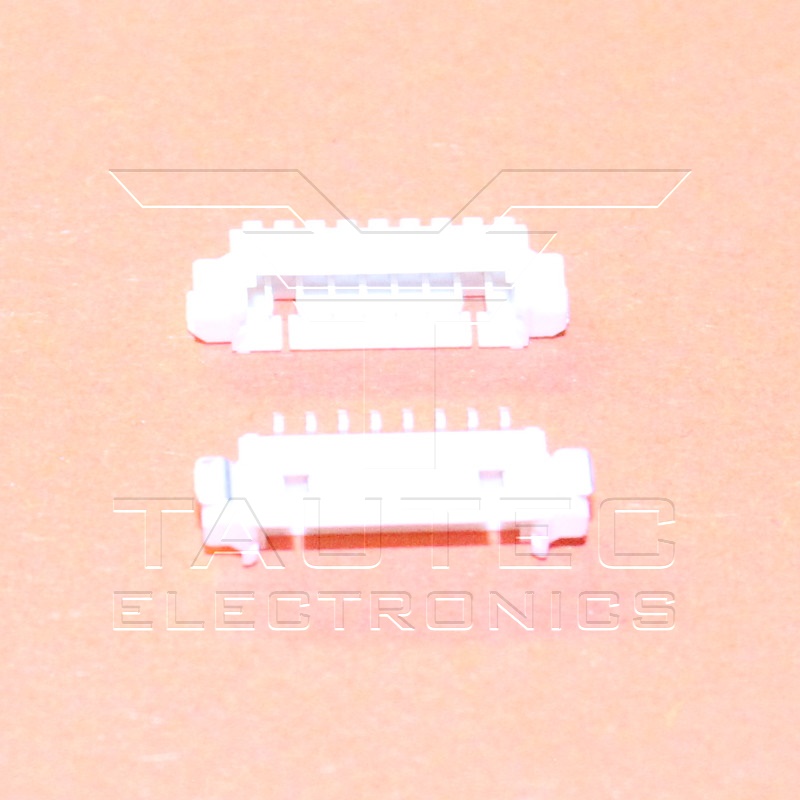

Molex

053261-0871

WIRE-BOARD CONNECTOR HEADER 8 POSITION - Product: Headers - Type: Shrouded - Number of Positions: 8 Position - Pitch: 1.25 mm - Number of Rows: 1 Row - Mounting Style: SMD - Termination Style: SMD/SMT - Mounting Angle: Right Angle - Contact Gender: Pin (Male) - Contact Plating: Tin - Current Rating: 1 A - Housing Material: Thermoplastic - Voltage Rating: 125 V Datenblatt: 0532610871.pdf

€ 0 .40*

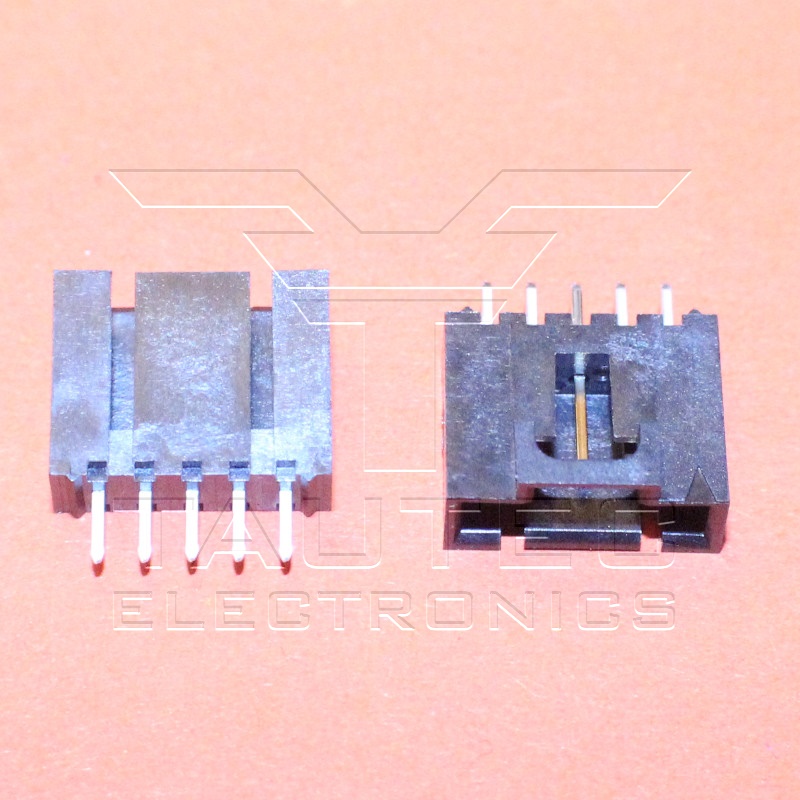

Molex

0705430004

Connector Shrouded Header Product: Headers Type: Shrouded Number of Positions: 5 Position Pitch: 2.54 mm (0.1 in) Number of Rows: 1 Row Mounting Style: Panel Mount Termination Style: Solder Pin Mounting Angle: Straight Contact Gender: Pin (Male) Contact Plating: Gold Series: 70543 Tradename: SL Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: 0705430004.pdf

€ 0 .92*

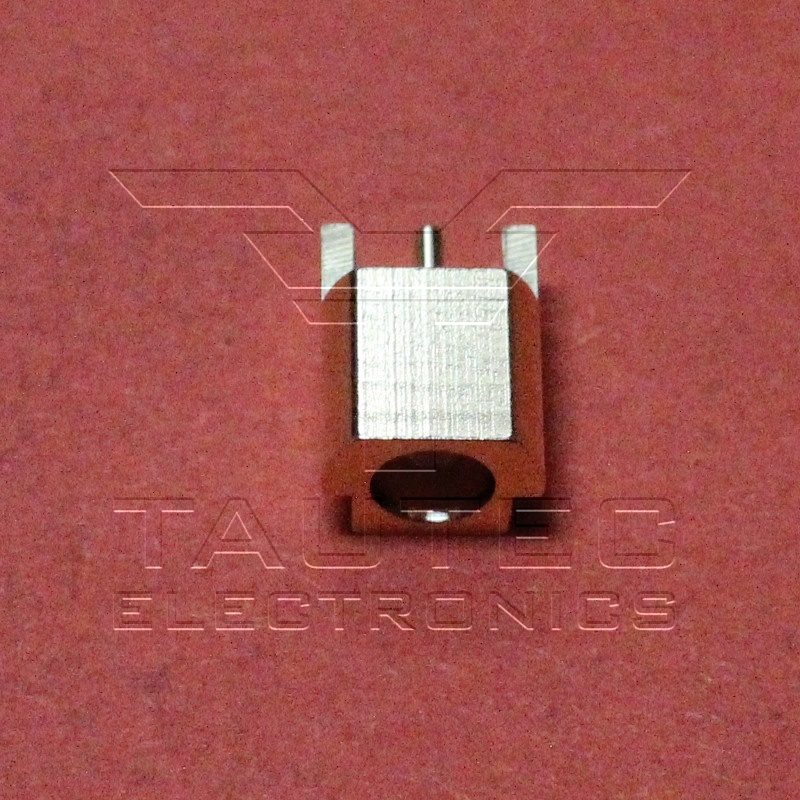

Molex

0734151064

RF Connectors / Coaxial Connectors MCX RF Series: MCX Gender: Jack (Female) Impedance: 50 Ohms Maximum Frequency: 6 GHz Termination Style: Solder Cable Type: RD-316 Packaging: Tray Contact Plating: Gold Body Finish: Gold Datenblatt: 0734151064.pdf

€ 1 .25*

Kyocera Connector Products Corporation

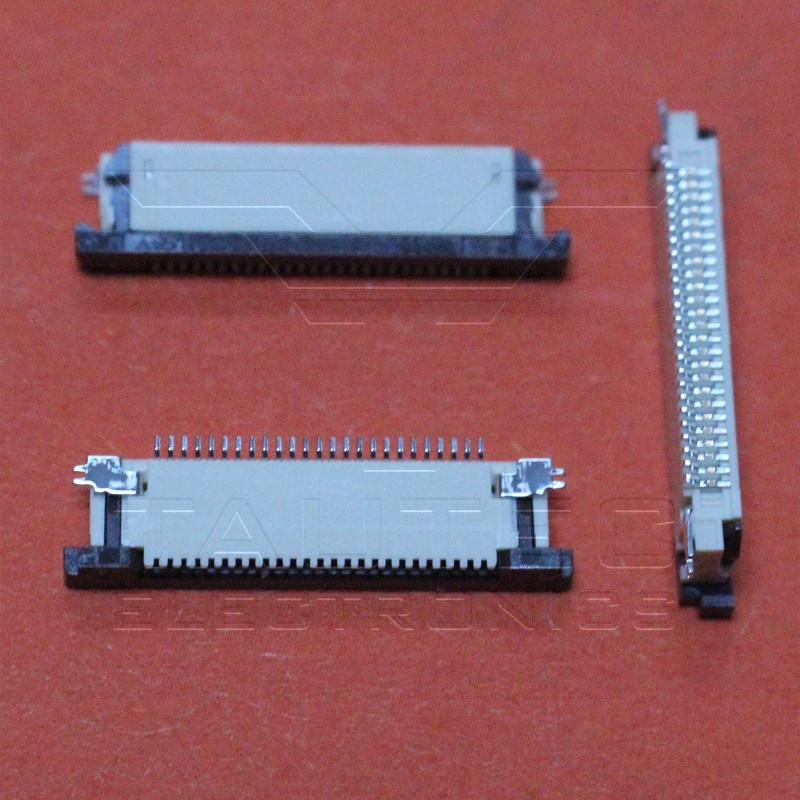

086210025340800A+

Beschreibung: FFC/FPC Connector SKT 25 POS 0.5mm Solder RA SMD Datenblatt: 086210025340800A+.pdf

€ 0 .30*

Franz Bider GmbH&Co KG

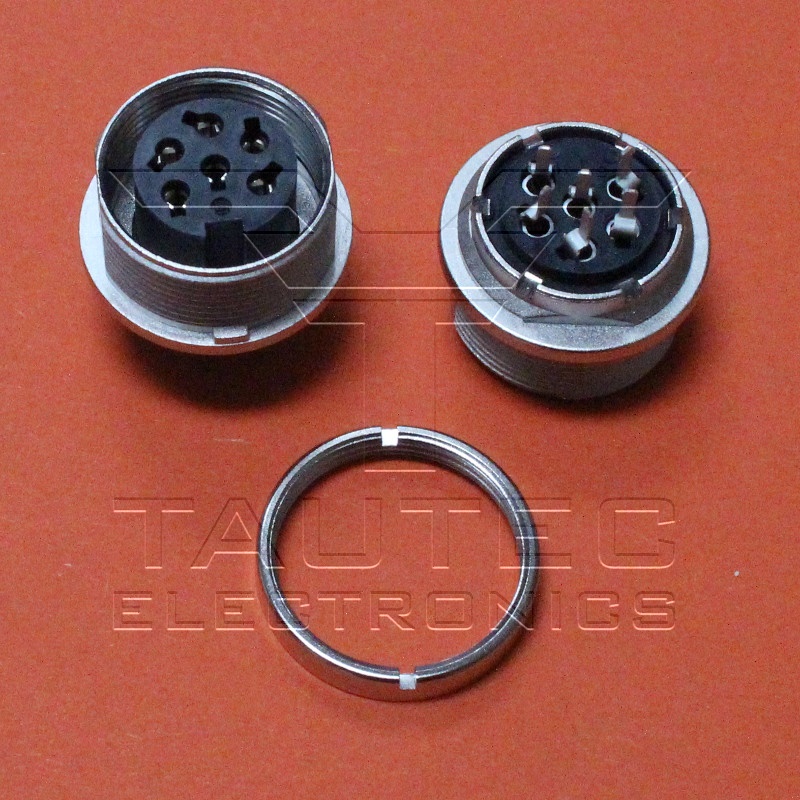

09-0324-90-06

Circular connectors, Screw locking, Solder pin, straight, Female contact Version: Socket Type of locking: Screw lock Voltage Rating: 250V Current Rating (Max): 5A Assembly: PCB mounting Pin number: 6-pole Orientation: straight Contact connection: Solder pin Cable cross-section: 0.75 mm² Cable diameter: 3 to 6 mm Shell Material: Zinc Die Casting Datenblatt: 09-0412-30-04.pdf

€ 3 .70*

Franz Bider GmbH&Co KG

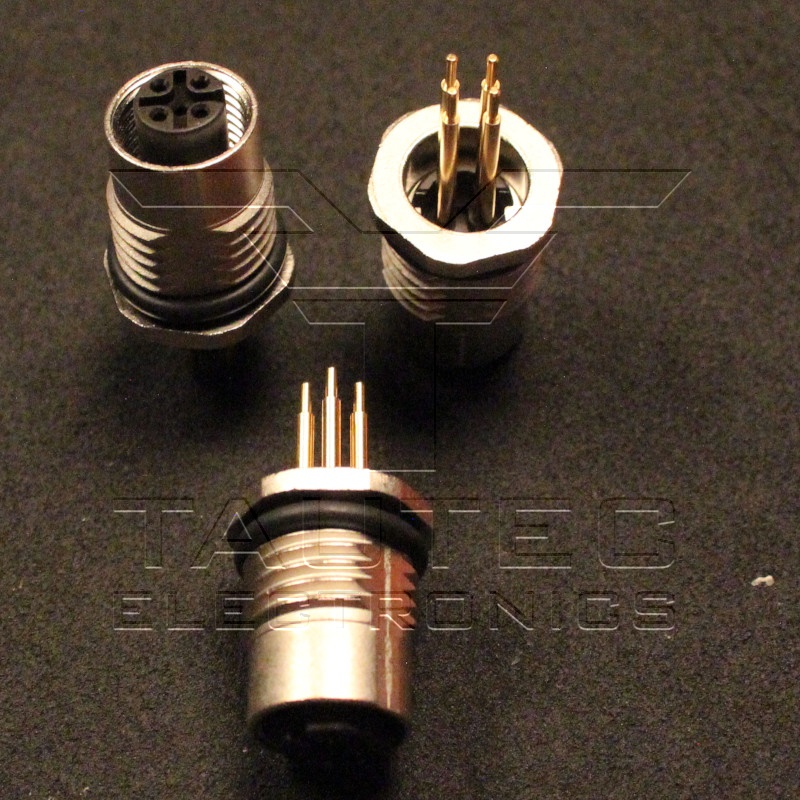

09-3432-92-04

M12 Female panel mount connector, Contacts: 4, unshielded, THT, IP68, PG 9, front fastened Connector design: Female panel mount connector Type standard: DIN EN 61076-2-101 Version: Connector socket straight Connector locking system: screw Termination: THT Degree of protection: IP68 Temperature range from/to: -40 C / +85 C Mechanical operation: > 100 Mating cycles Weight: 12.52g Country of Origin: DE Datenblatt: 0934329204.pdf

€ 7 .40*

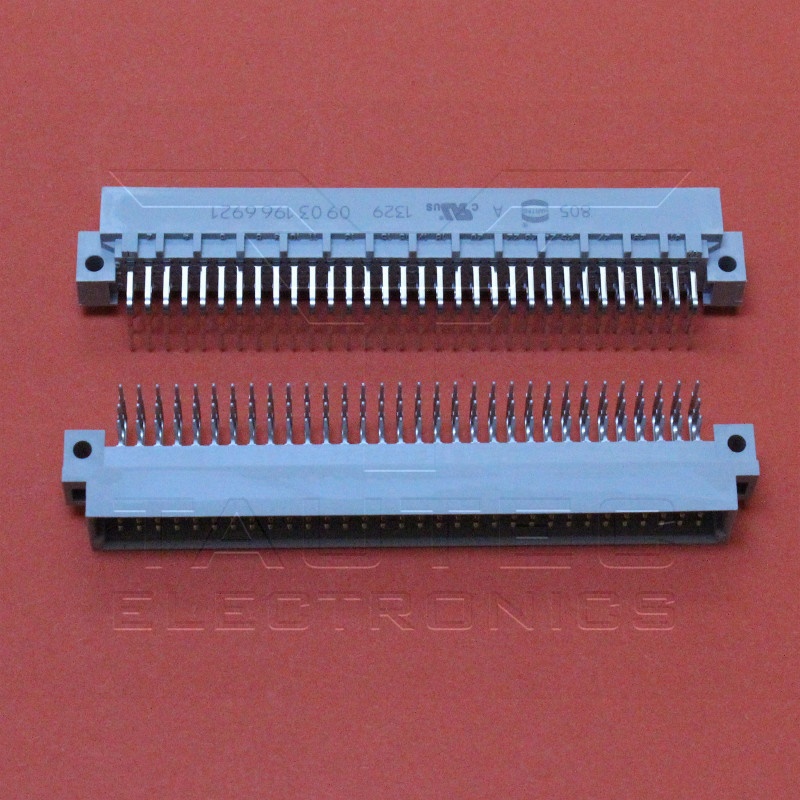

Harting Technology Group

09031966921

Beschreibung: DIN-Signal C096MS-3,0C1-2, male, solder, 96pole Datenblatt: 09031966921.pdf

€ 2 .00*

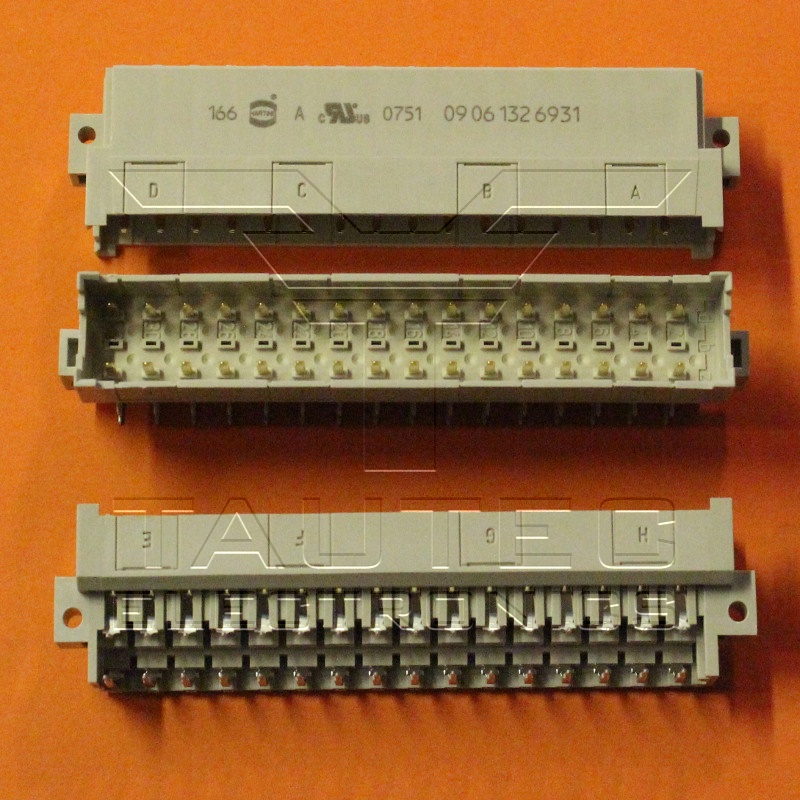

Harting Technology Group

09061326931

Connector DIN 41612 M 32 POS 5.08mm - Number of Positions: 32 Position - Number of Rows: 3 Row - Pitch: 5.08 mm - Type: F - Termination Style: Solder Pin - Mounting Angle: Right - Contact Plating: Nickel - Contact Material: Copper Alloy - Series: DIN-Power F Datenblatt: 09061326931.pdf

€ 2 .25*

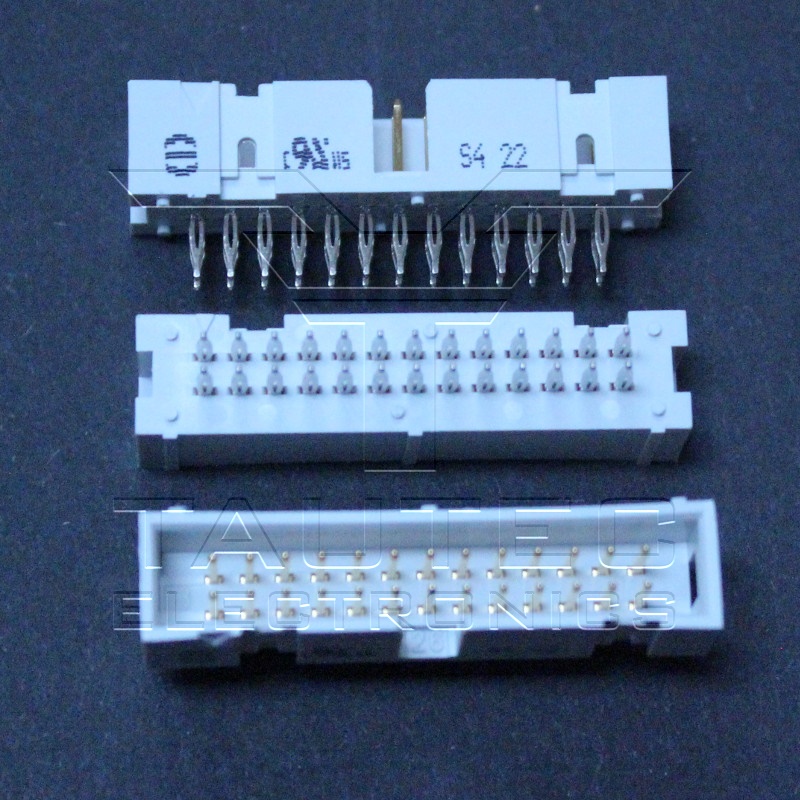

Harting Technology Group

09185265329

Connector Header Through Hole Connector Type: Header Contact Type: Male Pin Pitch - Mating: 0.100" (2.54mm) Number of Positions: 26 Number of Rows: 2 Row Spacing - Mating: 0.100" (2.54mm) Mounting Type: Through Hole Termination: Press-Fit, Solder Fastening Type: Push-Pull Contact Length - Mating: 0.240" (6.10mm) Contact Length - Post: 0.217" (5.51mm) Insulation Height: 0.350" (8.89mm) Contact Shape: Square Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Material: Copper Alloy Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled Features: Keying Slot Datenblatt: 09185265329.pdf

€ 2 .75*

Harting Technology Group

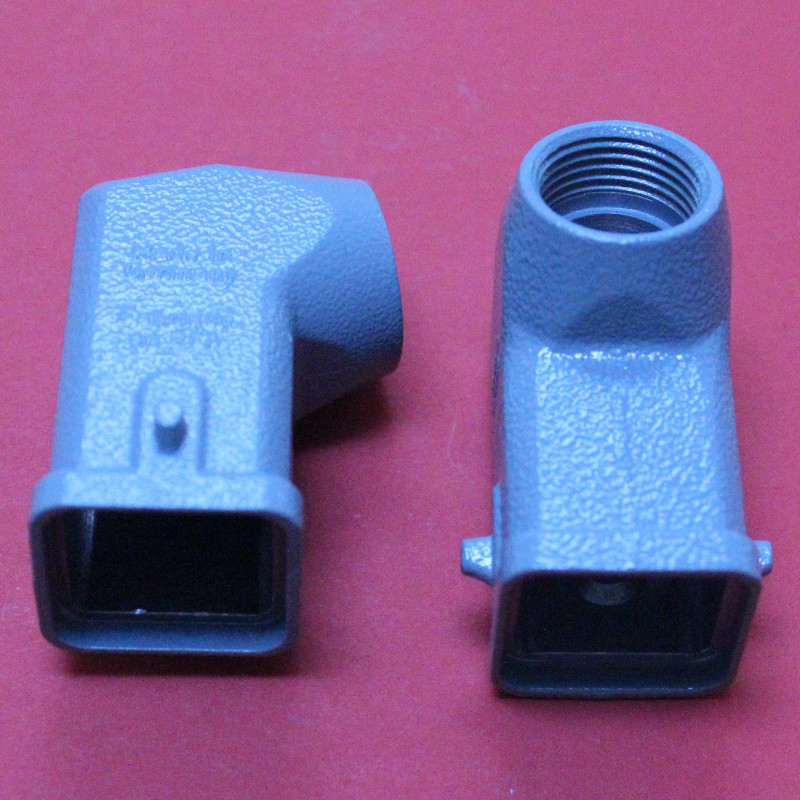

09200031640

HAN3A Tüllengehäuse, PG11, seitlich, grau, abgewinkelt Datenblatt: HAN3A-GW-PG11.pdf

€ 2 .75*
