SICHERUNGEN

Littlefuse

0154.500DR

Surface Mount Fuses Fuseblock Fuse Type: Fast Blow Current Rating: 500 mA Voltage Rating AC: 125 VAC Voltage Rating DC: 125 VDC Interrupt Rating: 50 A at 125 VAC, 50 A at 125 VDC Fuse Size/Group: 9.73 mm x 5.03 mm Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Datenblatt: 0154.500DR.pdf

€ 0 .88*

Littlefuse

0154001.DRT

Surface Mount Fuses Fuseblock Fuse Type: Slow Blow Current Rating: 1A Voltage Rating AC: 125 VAC Voltage Rating DC: 125 VDC Interrupt Rating: 50 A at 125 VAC, 50 A at 125 VDC Fuse Size/Group: 9.73 mm x 5.03 mm Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Datenblatt: 0154001.DRT.pdf

€ 0 .92*

Siba

160000.0,25GT

Fuse Chip Slow Blow Acting 0.25A 250V Acting: Slow Blow Application: Motor Circuit Fuse Size (mm): 4.5 X 8 Current Rating: 0.25A Voltage Rating: 250V Maximum AC Voltage Rating: 250V Maximum Power Dissipation: 0.22W Breaking Capacity at Rated Voltage: 100A at 250VAC Typical Melting I2t (A²S): 0.5 Termination Style: Solder Pad Number of Terminals: 2 Product Depth: 4.4mm Product Length: mm8 Product Height: 4.4mm Fuse Material: Ceramic Mounting: Surface Mount

€ 0 .55*

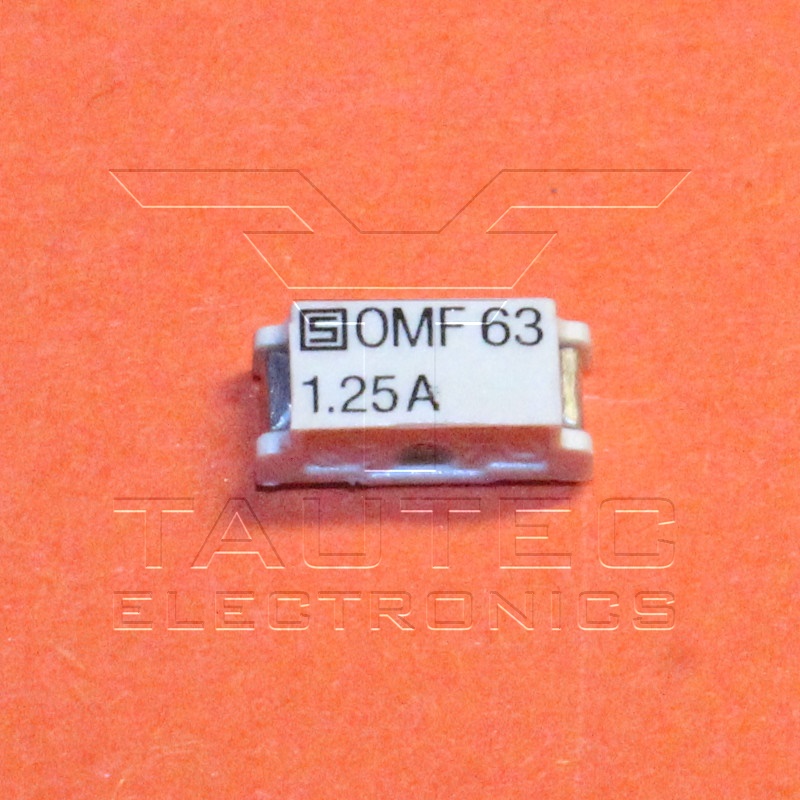

SCHURTER AG

3402.0010.22

Surface Mount Fuses OMF 63V 1.25A Product: Surface Mount Fuse Fuse Type: Fast Blow Current Rating: 1.25 A Voltage Rating AC: 63 VAC Voltage Rating DC: 63 VDC Interrupt Rating: 50 A Fuse Size/Group: 7.4 mm x 3.1 mm Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 70 C

€ 0 .41*

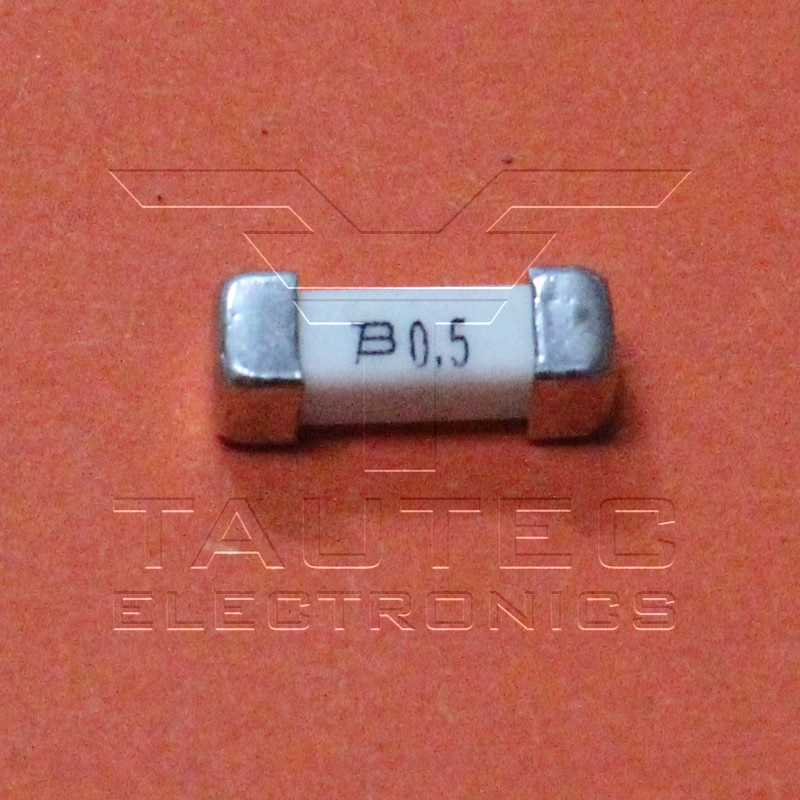

Bourns, Inc.

B0500T

Surface Mount Fuses 600V .5A Fuse Type: Fast Blow Current Rating: 500 mA Voltage Rating AC: 600 VAC Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Resistance: 350 mOhms Height: 3.05 mm Length: 9.65 mm Width: 3.05 mm Datenblatt: B0500T.pdf

€ 0 .50*

Bourns, Inc.

MF-SM100-2

PTC Resettable Fuses - PPTC 30Volts 80Amps Hold 1.1A Trip 2.2A - Compliant with AEC-Q200 Rev-C- Stress - Test Qualification for Passive Components in Automotive Applications - Surface mount devices - Fully compatible with current industry standards - Packaged per EIA 481-2 standard Datenblatt: MF-SM100.pdf

€ 0 .20*

tyco

SMD050F-2

PTC Resettable Fuse 0.5A(hold) 1A(trip) - Hold Current (A) :0.5 - Trip Current (A) :1 - Max Voltage Rating :60 - Max Fault Current Rating (A) :10 - Max Power Dissipation (W) :1.7 - Minimum Resistance (RMIN) (Ohms) : 0.35 - Max Resistance (R1max) (Ohms) : 1.4 - Max Time to Trip Time (Sec) : 4 - Package Size : 2920 - Max Voltage Rating (V) : 60 - Max Operating Temp (°C) : 85 Datenblatt: SMD050F.pdf

€ 0 .18*
