SENSOREN

Sensata Technologies

1NT01F-0217-F60-11

Thermostat 60°C SPST-NO Cylinder with Mounting Flange Quick Connect Datenblatt: 1NT01F.pdf

€ 1 .20*

HL Planar Technik GmbH

2KMZ20M1

Magnetfeld Sensoren - 1 Einheit besteht aus zwei selektierte Sensorpaare Datenblatt: KMZ20M1.pdf

€ 3 .50*

Allegro

A3122ELTTR

Hall Effect Switches for High Temperature Operation Supply Voltage VCC: 30 V Reverse Battery Voltage VRCC: -30 V Magnetic Flux Density B: Unlimited Output OFF Voltage VOUT: 28 V Reverse Output Voltage VOUT: -0.5 V Continuous Output Current IOUT: 25 mA Operating Temperature Range TA: -40°C to +85°C Storage Temperature Range TS: -65°C to +170°C Datenblatt: A3122.pdf

€ 0 .30*

Allegro

A3212ELHLT-T

Micropower, Ultrasensitive Hall-Ef fect Switches Datenblatt: A3212.pdf

€ 0 .41*

ST-Microelectronics

A3G4250DTR

Gyroscopes MEMS motion sensor 3-Axis Sensor Type: 3-axis Sensing Axis: X, Y, Z Range: 245 deg/s Output Type: Digital Sensitivity: 8.75 mdps/digit Interface Type: I2C, SPI Resolution: 16 bit Operating Supply Current: 7 mA Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.4 V Datenblatt: A3G4250D.pdf

€ 7 .00*

Analog Devices

ADXL250AQC

65 g to 650 g, Low Noise, Low Power, Single/Dual Axis iMEMS Accelerometers Datenblatt: ADXL250.pdf

€ 7 .50*

Diodes Inc.

AH1802-WG-7

High Sensitivity, Micropower Omnipolar Hall Effect Switch IC Datenblatt: AH1802.pdf

€ 0 .56*

Panasonic

AMN22112

MP Motion Sensor, Passive Infrared Type Datenblatt: AMN22112.pdf

€ 9 .00*

Panasonic

AMN41122

MP Motion Sensor, Passive Infrared Type Sensing Distance: 5 m Output Type: Digital Operating Supply Current: 46 uA Supply Voltage - Min: 2.2 V Supply Voltage - Max: 3 V Maximum Operating Temperature: + 60 C Minimum Operating Temperature: - 20 C Datenblatt: AMN41122.pdf

€ 10 .00*

Epcos

B59901D0070A040

PTC Thermistor Type: PTC Number of Terminals: 2 Maximum Voltage Rating: 30VDC Resistanceat 25C: 100 Ohm Resistance Tolerance: 4100K Operating Temperature: -65C - 126C Resistance Range at 25C: 50 to 300 Ohm Application: Limit Temperature Sensor Seated Plane Height: 20(Max)mm Product Length: 8.5mm Product Depth: 6.5mm Product Height: 20mm Construction: Radial Datenblatt: B59901D70A40.pdf

€ 2 .23*

Hans Turck GmbH & Co. KG

BIM-AKT-AP6X

Magnetinduktiver Näherungssensor Datenblatt: BIMAKTAP6X.pdf

€ 45 .00*

LEM

CT0.4-TP/SP1

Current Transducers Primary nominal current rms I(PN): 400mA VC Supply voltage (± 5 %): ± 15 V I C Current consumption: +- 45 mA RIS Isolation resistance at 500 VDC: > 500 MOhm VOUT Output voltage (Analog) at ± IPN, RL= 10kOhm, TA=25°C: ± 5 V ROUT Output internal resistance: < 51 Ohm RL Load resistance: 10 kOhm CL Capacitive loading:

€ 27 .20*

Comus International

CW1363-12

Beschreibung: TIP-OVER SWITCH - Normally Closed Datenblatt: CW1363.pdf

€ 1 .20*

Aosong

DHT11

Temperature Humidity Sensor Output Type: Digital Output: 16b Accuracy: +-5% RH Voltage - Supply: 3.5V to 5.5V Operating current: 0.3mA Mounting Type: Through Hole Temperature Range: 0°C to 50°C Humidity Range: 20% to 90% Package / Case: 3-SIP Module Datenblatt: DHT11.pdf

€ 4 .75*

Panasonic

DN8799MSATXL

Beschreibung: 3 V Operation Hall IC One-Way Magnetic Field Operation Datenblatt: DN8799MS.pdf

€ 0 .60*

Maxim

DS1821C+

Thermostats Programmable Digital Thermostat/monitor Accuracy: +/- 1 C Temperature Range: - 55 C to + 125 C Current Rating: 500 uA Voltage Rating: 5.5 VDC Product: Digital Thermostats

€ 3 .50*

Microchip

EMC1412-1-ACZL-TR

Board Mount Temperature Sensors Output Type: Digital, Analog Configuration: Remote Accuracy: +/- 1 C Supply Voltage - Min: 3 V Supply Voltage - Max: 3.6 V Operating Supply Current: 1120 uA Interface Type: 2-Wire, I2C, SMBus Resolution: 11 bit Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: EMC1412.pdf

€ 0 .48*

Micronas

HAL202TQ-K

Hall Effect Sensor - Bon(min): 0.5 mT - Bon(max): 6 mT - Boff(min): -6 mT - Boff(max): -0,5 mT - Vcc(min): 3.8 V - Top(max): 140 °C - Top(min) -40 °C – switching offset compensation at typically 62 kHz – operates from 3.8 V to 24 V supply voltage – overvoltage protection at all pins – reverse-voltage protection at VDD-pin – magnetic characteristics are robust against mechanical stress effects – short-circuit protected open-drain output by thermal shut down – operates with static magnetic fields and dynamic magnetic fields up to 10 kHz Datenblatt: HAL506SF.pdf

€ 0 .20*

Micronas

HAL504SF-K

Beschreibung: Hall Effect Sensor - Herstellerartikelnummer: HAL504SF-K-4-R-1-00-HASE-0229-F7-SFG-HC Datenblatt: HAL506SF.pdf

€ 0 .35*

Micronas

HAL506SF-E

Beschreibung: Hall Effect Sensor - Herstellerartikelnummer: HAL506SF-E-4-R-1-00-HASE-0231-F7-SF1-HE Datenblatt: HAL506SF.pdf

€ 0 .65*

NANA ELECTRONICS CO LTD

HNC-3100

3 Phasen Stromsensor 100A - 50mA

€ 130 .00*

NXP

HT2DC20S20/F,122

Beschreibung: HITAGTM2 Transponders Datenblatt: HT2DC20S20.pdf

€ 1 .00*

LEM

HTFS200-P/SP2

Current Transducer 200A Datenblatt: HTFS200.pdf

€ 22 .20*

NXP

KMA210

Programmable angle sensor For Measuring: Angle Technology: Magnetoresistive Rotation Angle - Electrical, Mechanical: 0° to 180° Output: Analog Voltage Output Signal: Clockwise Increase Actuator Type: External Magnet, Not Included Linearity: +-1.2% Voltage - Supply: 4.5V to 5.5V Mounting Type: Through Hole Termination Style: PC Pin Operating Temperature: -40°C to 160°C Datenblatt: KMA210.pdf

€ 4 .77*

Kingstate Electronics Corporation

KMTG1603-1

Beschreibung: Piezo Buzzer, 25VDC/5mA, 81dB, 4kHz Datenblatt: KMTG1603-1.pdf

€ 0 .60*

Siemens

KTY10-4

Silicon Temperature Sensor Datenblatt: KTY10.pdf

€ 0 .70*

Siemens

KTY10-5

Silicon Temperature Sensor Resistance @ 25°C: 1,97 kOhms Operating Voltage max: 25V Operating Current max: 7mA Operating Temperature: -50°C to 150°C Datenblatt: KTY10.pdf

€ 0 .20*

Infineon

KTY13-6

Beschreibung: Silicon Temperature Sensor Datenblatt: KTY13.pdf

€ 0 .18*

Infineon

KTY23-7

Silicon Temperature Sensor Datenblatt: KTY23.pdf

€ 0 .18*

NXP

KTY81/122

Silicon Temperature Sensor R25=1000Ohm - 1020Ohm Datenblatt: KTY81.pdf

€ 0 .30*

LEM

LA 100-P

Beschreibung: 100A Current Transducer Datenblatt: LA100P.pdf

€ 34 .00*

Honeywell

LF20

Beschreibung: DUCT Temperature Sensors NTC 20kOhm Datenblatt: LF20.pdf

€ 75 .00*

National Semiconductor

LM70CIMMX-3

Beschreibung: SPI/10-Bit plus Sign Digital Temperature Sensor Datenblatt: LM70.pdf

€ 0 .40*

National Semiconductor

LM74CIM-5/NOPB

Beschreibung: SPI/Microwire12-Bit Plus Sign Temperature Sensor Datenblatt: LM74.pdf

€ 0 .60*

National Semiconductor

LM83CIMQA

Beschreibung: 3 Diode Input ACPI Compatible Digital Temperature Sensor with Two-Wire Interface Datenblatt: LM83.pdf

€ 1 .00*

Freescale Semiconductor

MPXH6115A6U

High Temperature Accuracy Integrated Silicon Pressure Sensor for Measuring Absolute Pressure, On-Chip Signal Conditioned, Temperature Compensated and Calibrated Datenblatt: MPXH6115A.pdf

€ 8 .60*

Philips

OH191/E

Beschreibung: Sensor-Chip für ABS-Systeme

€ 0 .55*

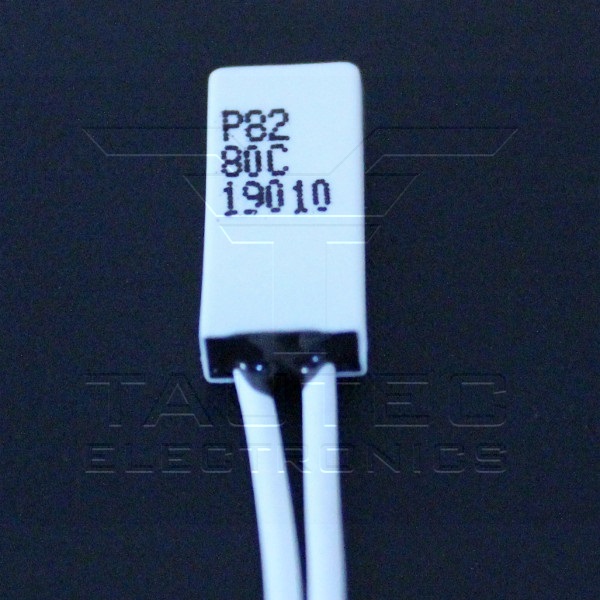

Limitor GmbH

P82-080-05-200

Beschreibung: Schutz-Temperaturbegrenzer P Art: Thermostatschalter öffnend Öffnungstemperatur: 80 C° Schaltleistung: 250VAC / 2,5A Temp.-Bereich: max. 160°C Montageart: Befestigung mit C-Bügel Herstellerbezeichn.: P82-080-05-200-10A (Fa. Limitor) Datenblatt: P82.pdf

€ 1 .25*

Murata Manufacturing Co., Ltd.

SCL3300-D01-004

3-axis MEMS Inclination Sensor Digital Output 3.3V Sensitivity: 12000 LSB/g Output Type: Digital Mounting Style: PCB Mount Series: SCL3300 Operating Supply Voltage: 3.3V Maximum Operating Temperature: + 125 C Minimum Operating Temperature: - 40 C Datenblatt: SCL3300.pdf

€ 20 .00*

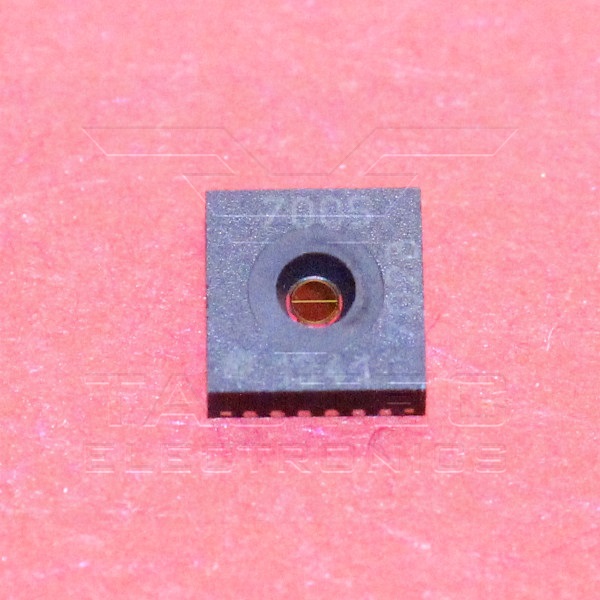

Silicon Laboratories

SI7005-B-FM

Beschreibung: Digital Relative Humidity And Temperature Sensor Datenblatt: SI7005.pdf

€ 5 .00*
