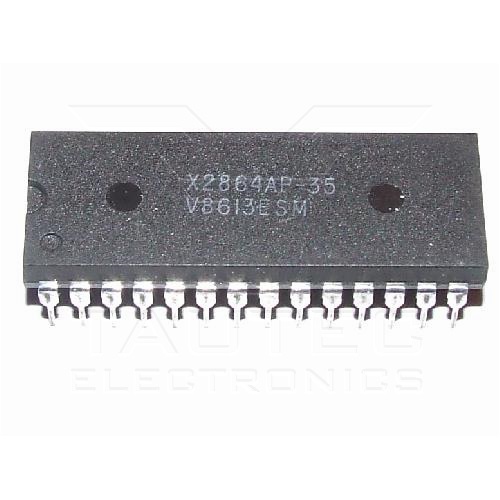

Beschreibung: Parallel Electrically-Erasable PROM (EEPROM) - With CE/WE/OE
Number of Words=8k
Bits Per Word=8
t(a) Max. (s) Access Time=350n
Output Config=3-State
Number of Chip Selects=1
Program Voltage (V)=5.0
Nom. Supp (V)=5.0

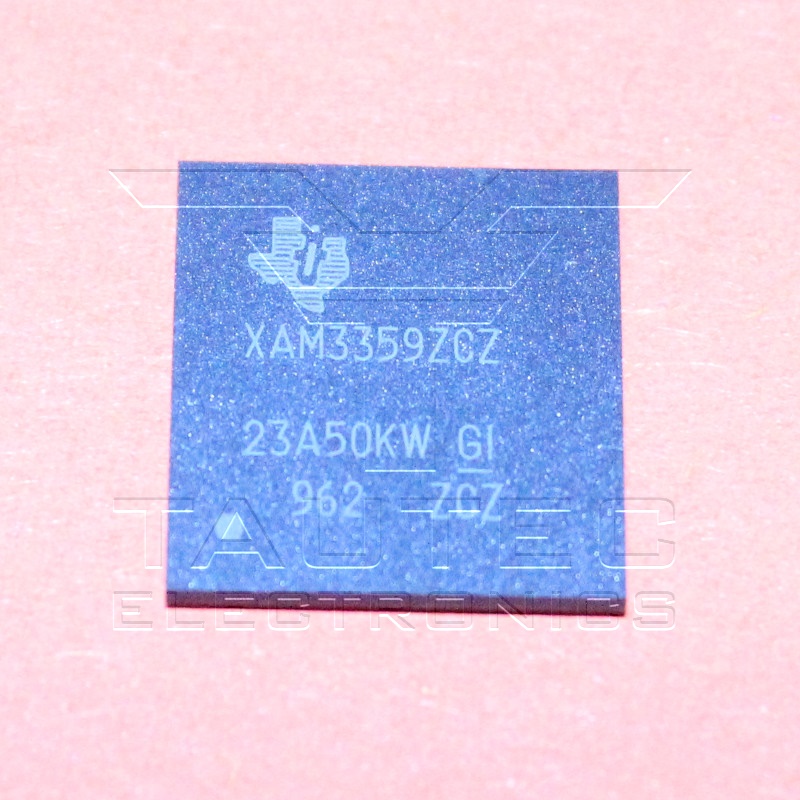

Sitara Processor: ARM Cortex-A8, EtherCAT, 3D, PRU-ICSS
Core: ARM Cortex A8
Number of Cores: 1 Core
Data Bus Width: 32 bit
L1 Cache Instruction Memory: 32 kB
L1 Cache Data Memory: 32 kB
Memory Type: L1/L2/L3 Cache, RAM, ROM
Data RAM Size: 64 kB
Data ROM Size: 176 kB
Interface Type: CAN, Ethernet, I2C, SPI, UART, USB
I/O Voltage: 1.8 V, 3.3 V
L2 Cache Instruction / Data Memory: 256 kB
Number of Timers/Counters: 8 x 32 bit
Processor Series: Sitara
Datenblatt:
XAM3359ZCZ.pdf

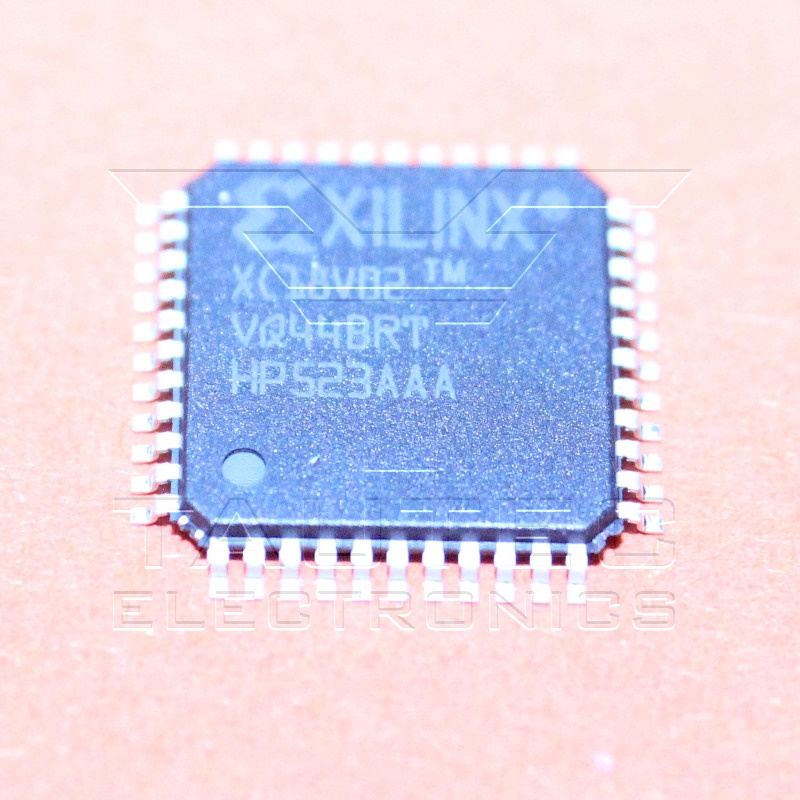

XC18V00 Series In-System-Programmable Configuration PROMs
- In-System Programmable 3.3V PROMs for Configuration of Xilinx FPGAs
- Endurance of 20,000 Program/Erase Cycles
- Program/Erase Over Full Industrial Voltage and Temperature Range (–40°C to +85°C)
- IEEE Std 1149.1 Boundary-Scan (JTAG) Support
- JTAG Command Initiation of Standard FPGA Configuration
- Simple Interface to the FPGA
- Cascadable for Storing Longer or Multiple Bitstreams
- Low-Power Advanced CMOS FLASH Process
- Dual Configuration Modes
- Serial Slow/Fast Configuration (up to 33 MHz)
- Parallel (up to 264 Mb/s at 33 MHz)
- 5V-Tolerant I/O Pins Accept 5V, 3.3V and 2.5V Signals
- 3.3V or 2.5V Output Capability
- Design Support Using the Xilinx ISE™ Foundation™
Datenblatt:
XC18V04VQG44C.pdf

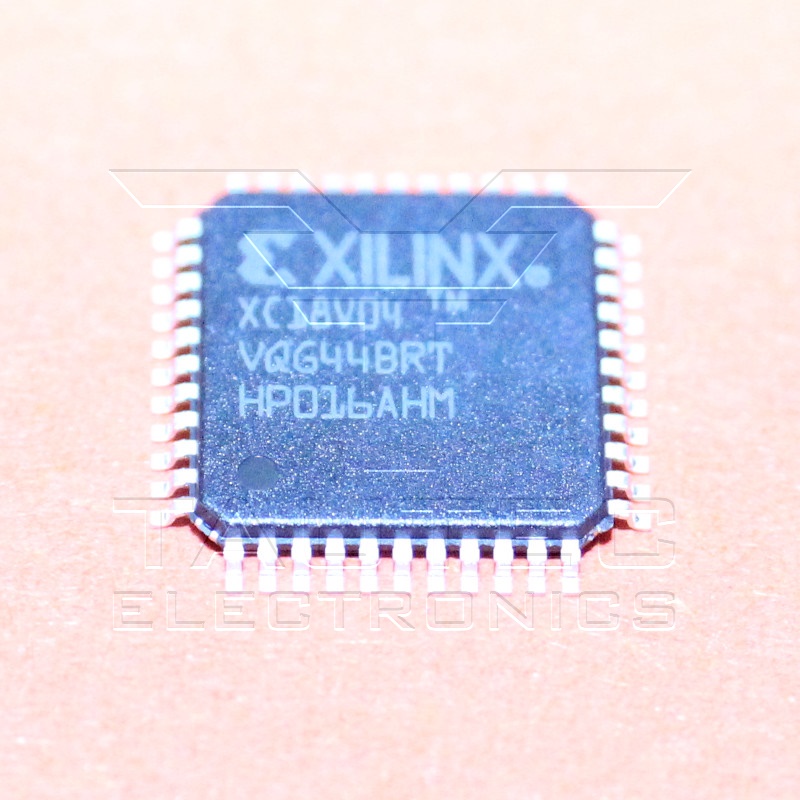

XC18V00 Series In-System-Programmable Configuration PROMs
- In-System Programmable 3.3V PROMs for Configuration of Xilinx FPGAs
- Endurance of 20,000 Program/Erase Cycles
- Program/Erase Over Full Industrial Voltage and Temperature Range (–40°C to +85°C)
- IEEE Std 1149.1 Boundary-Scan (JTAG) Support
- JTAG Command Initiation of Standard FPGA Configuration
- Simple Interface to the FPGA
- Cascadable for Storing Longer or Multiple Bitstreams
- Low-Power Advanced CMOS FLASH Process
- Dual Configuration Modes
- Serial Slow/Fast Configuration (up to 33 MHz)
- Parallel (up to 264 Mb/s at 33 MHz)
- 5V-Tolerant I/O Pins Accept 5V, 3.3V and 2.5V Signals
- 3.3V or 2.5V Output Capability
- Design Support Using the Xilinx ISE™ Foundation™
- Lead-Free (Pb-Free) Packaging
Datenblatt:
XC18V04VQG44C.pdf

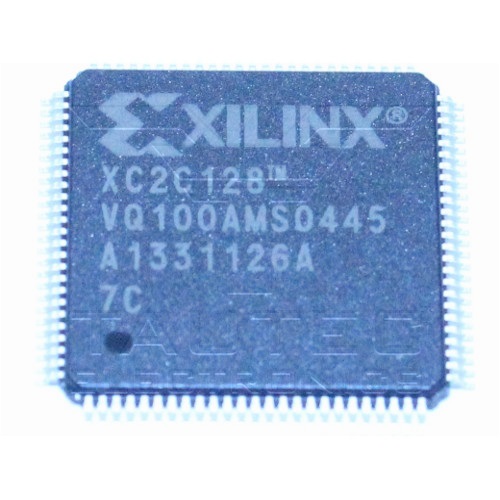

CoolRunner-II CPLD
• Optimized for 1.8V systems
- As fast as 5.7 ns pin-to-pin delays
- As low as 13 ?A quiescent current
• Industry’s best 0.18 micron CMOS CPLD
- Optimized architecture for effective logic synthesis
- Multi-voltage I/O operation — 1.5V to 3.3V
• Advanced system features
- Fastest in system programming
· 1.8V ISP using IEEE 1532 (JTAG) interface
- IEEE1149.1 JTAG Boundary Scan Test
- Optional Schmitt-trigger input (per pin)
- Unsurpassed low power management
· DataGATE enable (DGE) signal control
- Two separate I/O banks
- RealDigital 100% CMOS product term generation
- Flexible clocking modes
· Optional DualEDGE triggered registers
· Clock divider (divide by 2,4,6,8,10,12,14,16)
· CoolCLOCK
- Global signal options with macrocell control
· Multiple global clocks with phase selection per macrocell
· Multiple global output enables
· Global set/reset
- Advanced design security
Datenblatt:
XC2C128.pdf

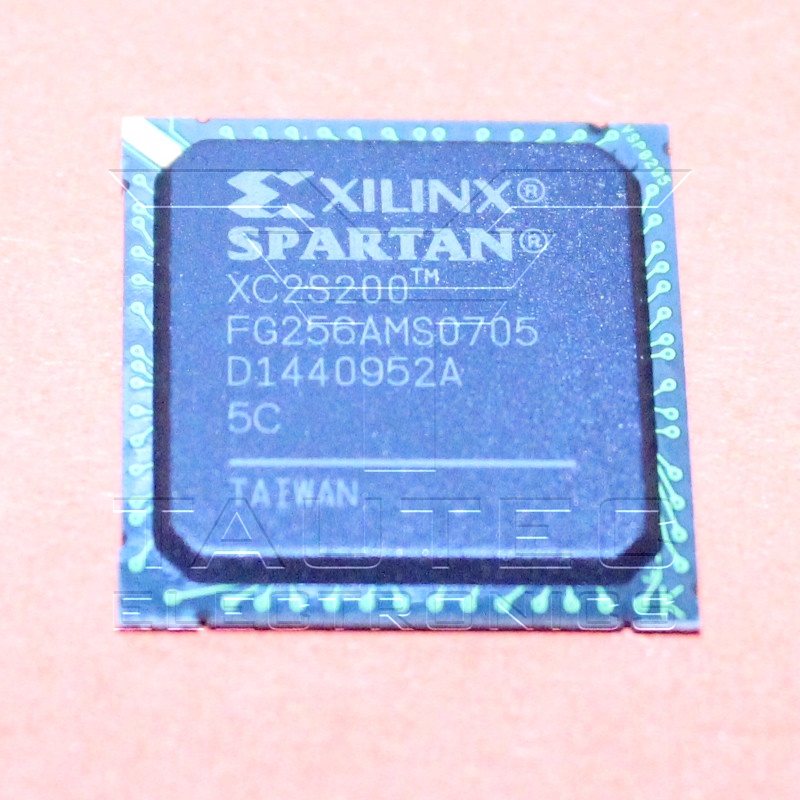

Spartan-II 2.5V FPGA Automotive IQ Product Family
- Guaranteed to meet full electrical specifications over TJ = –40°C to +125°C
- Second generation ASIC replacement technology
- Densities as high as 5,292 logic cells with up to 200,000 system gates
- Streamlined features based on Virtex architecture
- Unlimited reprogrammability
- SelectRAM+™ hierarchical memory:
- 16 bits/LUT distributed RAM
- Configurable 4K-bit block RAM
- Fast interfaces to external RAM
- Fully PCI compliant
- Low-power segmented routing architecture
- Full readback ability for verification/observability
- Dedicated carry logic for high-speed arithmetic
- Dedicated multiplier support
- Cascade chain for wide-input functions
- Abundant registers/latches with enable, set, reset
- Four dedicated DLLs for advanced clock control
- Four primary low-skew global clock distribution nets
- IEEE 1149.1 compatible boundary scan logic
- Family footprint compatibility in common packages
- 16 high-performance interface standards
- Zero hold time simplifies system timing
- Fully supported by powerful Xilinx development system
- Foundation™ ISE Series: Fully integrated software
- Alliance Series™: For use with third-party tools
- Fully automatic mapping, placement, and routing
Datenblatt:
XC2S200.pdf

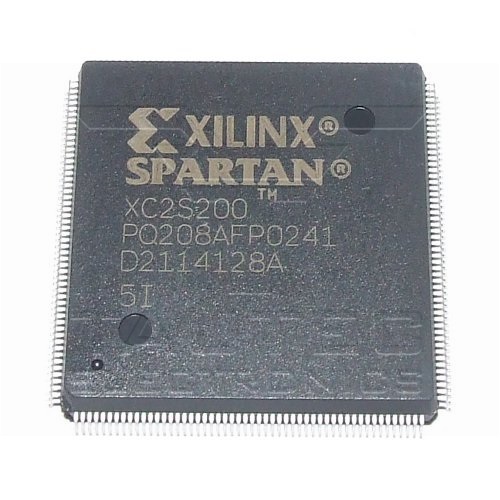

Spartan-II 2.5V FPGA Automotive IQ Product Family
- Guaranteed to meet full electrical specifications over TJ = –40°C to +125°C
- Second generation ASIC replacement technology
- Densities as high as 5,292 logic cells with up to 200,000 system gates
- Streamlined features based on Virtex architecture
- Unlimited reprogrammability
- SelectRAM+™ hierarchical memory:
- 16 bits/LUT distributed RAM
- Configurable 4K-bit block RAM
- Fast interfaces to external RAM
- Fully PCI compliant
- Low-power segmented routing architecture
- Full readback ability for verification/observability
- Dedicated carry logic for high-speed arithmetic
- Dedicated multiplier support
- Cascade chain for wide-input functions
- Abundant registers/latches with enable, set, reset
- Four dedicated DLLs for advanced clock control
- Four primary low-skew global clock distribution nets
- IEEE 1149.1 compatible boundary scan logic
- Family footprint compatibility in common packages
- 16 high-performance interface standards
- Zero hold time simplifies system timing
- Fully supported by powerful Xilinx development system
- Foundation™ ISE Series: Fully integrated software
- Alliance Series™: For use with third-party tools
- Fully automatic mapping, placement, and routing
Datenblatt:
XC2S200.pdf
Spartan-IIE FPGA Family
- Densities as high as 15,552 logic cells with up to 600,000 system gates
- Streamlined features based on Virtex®-E FPGA architecture
- Unlimited in-system reprogrammability
- Very low cost
- Cost-effective 0.15 micron technology
- Fully 3.3V PCI compliant to 64 bits at 66 MHz and CardBus compliant
- Low-power segmented routing architecture
- Dedicated carry logic for high-speed arithmetic
- Efficient multiplier support
- Cascade chain for wide-input functions
- Abundant registers/latches with enable, set, reset
- Four dedicated DLLs for advanced clock control
- Eliminate clock distribution delay
- Multiply, divide, or phase shift
- Four primary low-skew global clock distribution nets
- IEEE 1149.1 compatible boundary scan logic
Datenblatt:
XC2S400E.pdf

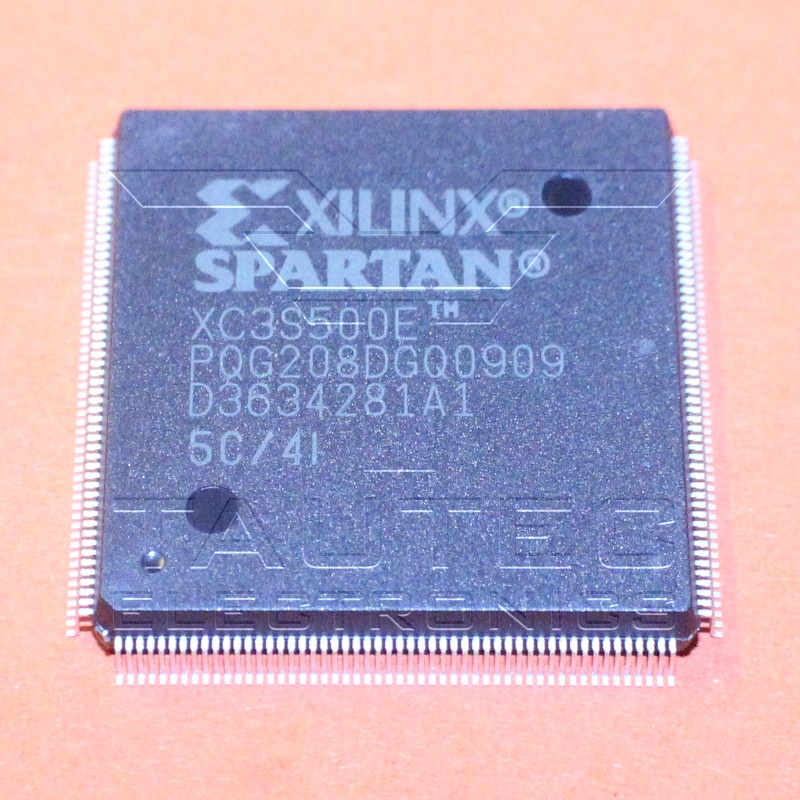

FPGA - Field Programmable
Number of Logic Elements: 10476 LE
Number of I/Os: 158 I/O
Supply Voltage - Min: 1.14 V
Supply Voltage - Max: 1.26 V
Distributed RAM: 73 kbit
Embedded Block RAM - EBR: 360 kbit
Maximum Operating Frequency: 300 MHz
Number of Gates: 500000
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 100 C
Datenblatt:
XC3S500E.pdf

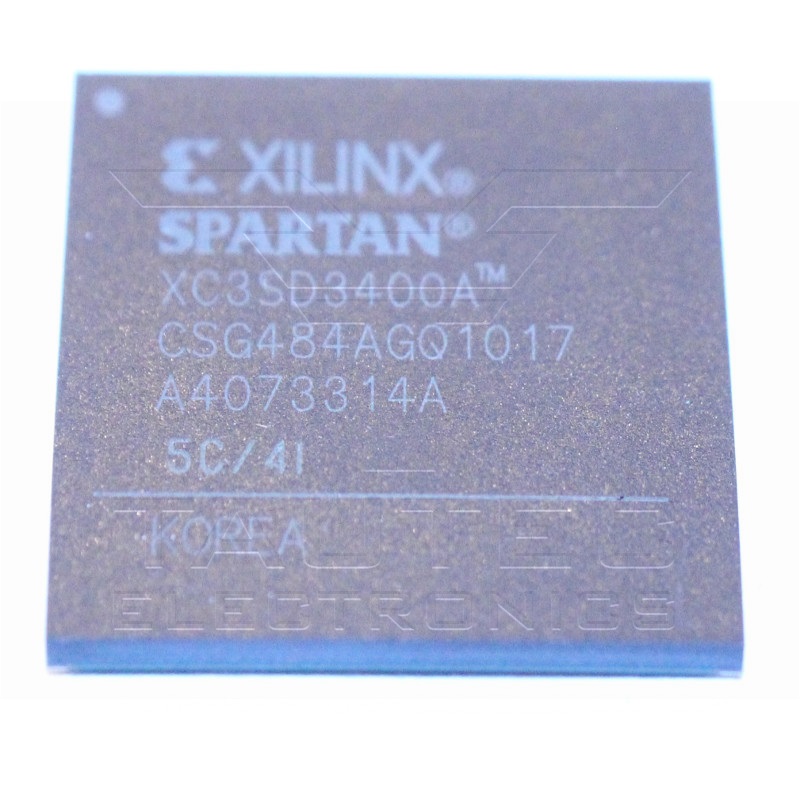

Spartan-3A DSP FPGA
- Very low cost, high-performance DSP solution for high-volume, cost-conscious applications
- 250 MHz XtremeDSP DSP48A Slices
- Dedicated 18-bit by 18-bit multiplier
- Available pipeline stages for enhanced performance of at least 250 MHz in the standard -4 speed grade
- 48-bit accumulator for multiply-accumulate (MAC) operation
- Integrated adder for complex multiply or multiply-add operation
- Integrated 18-bit pre-adder
- Optional cascaded Multiply or MAC
- Re-programmability Support Yes
- Maximum Internal Frequency 667 MHz
- Device Logic Cells 53712
- Screening Level Industrial
- Maximum Operating Supply Voltage 1.26 V
- Maximum Number of User I/Os 309
- Device Logic Gates 3400000
- Minimum Operating Supply Voltage 1.14 V
- Operating Temperature -40 to 100 °C
- Fabrication Technology 90nm
Datenblatt:
XC3SD3400A.pdf

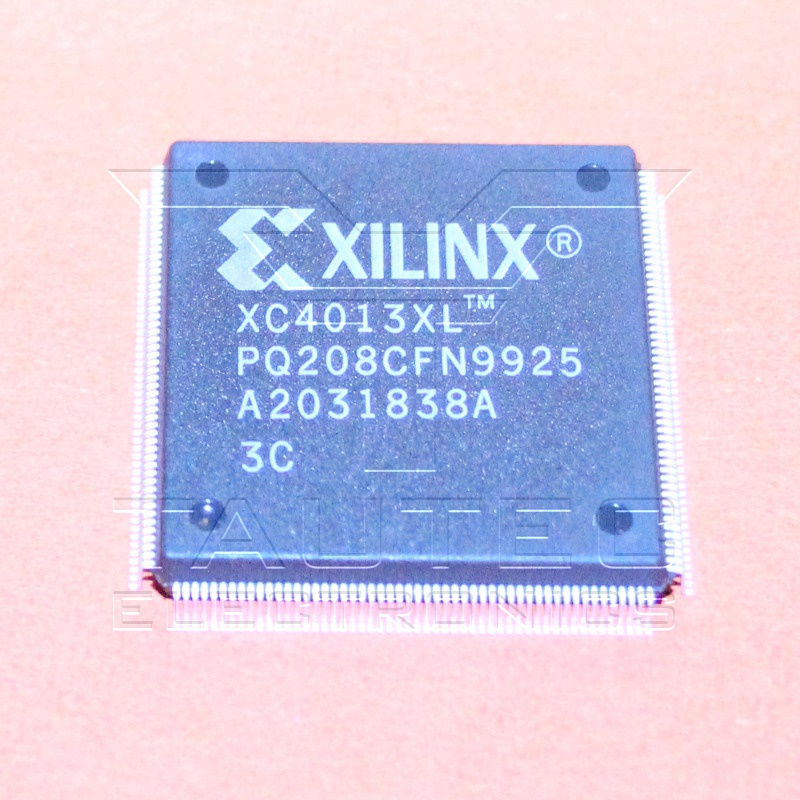

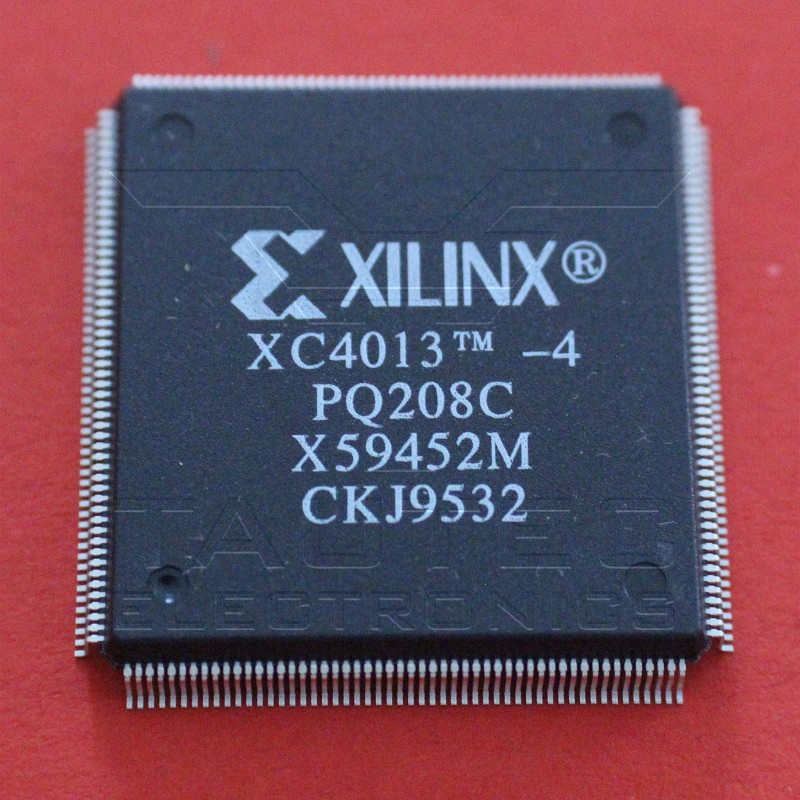

Field-Programmable Gate Arrays
Number of LABs/CLBs: 576
Number of Logic Elements/Cells: 1368
Total RAM Bits: 18432
Number of I/O: 160
Number of Gates: 13000
Voltage - Supply: 3V to 3.6V
Operating Temperature: 0°C to 85°C (TJ)
Datenblatt:
XC4013XL.pdf

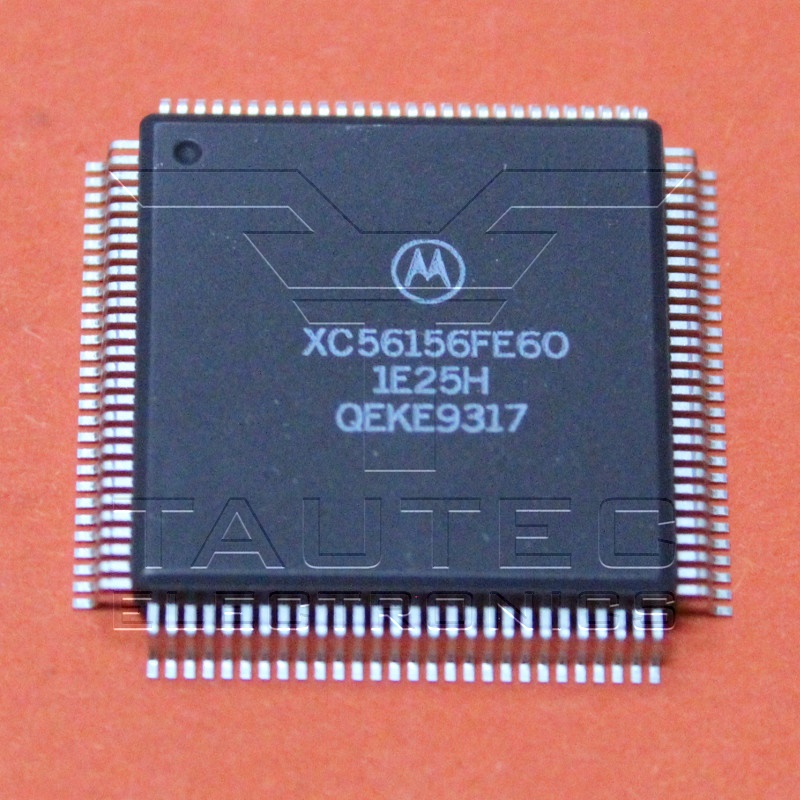

16bit General Purpose Digital Signal Processor
— Up to 30 Million Instructions Per Second (MIPS) – 33 ns instruction cycle at 60 MHz
— Up to 180 Million Operations Per Second (MOPS) at 60 MHz
— Highly parallel instruction set with unique DSP addressing modes
— Two 40-bit accumulators including extension byte
— Parallel 16 ´ 16-bit multiply-accumulate in 1 instruction cycle (2 clock cycles)
— Double precision 32 ´ 32-bit multiply with 72-bit result in 6 instruction cycles
— Least Mean Square (LMS) adaptive loop filter in 2 instructions
— 40-bit Addition/Subtraction in 1 instruction cycle
— Fractional and integer arithmetic with support for multiprecision arithmetic
— Hardware support for block-floating point FFT
— Hardware-nested DO loops including infinite loops
— Zero-overhead fast interrupts (2 instruction cycles)
— Three 16-bit internal data buses and three 16-bit internal address buses for maximum information transfer on-chip
