SL...
GEC Plessey

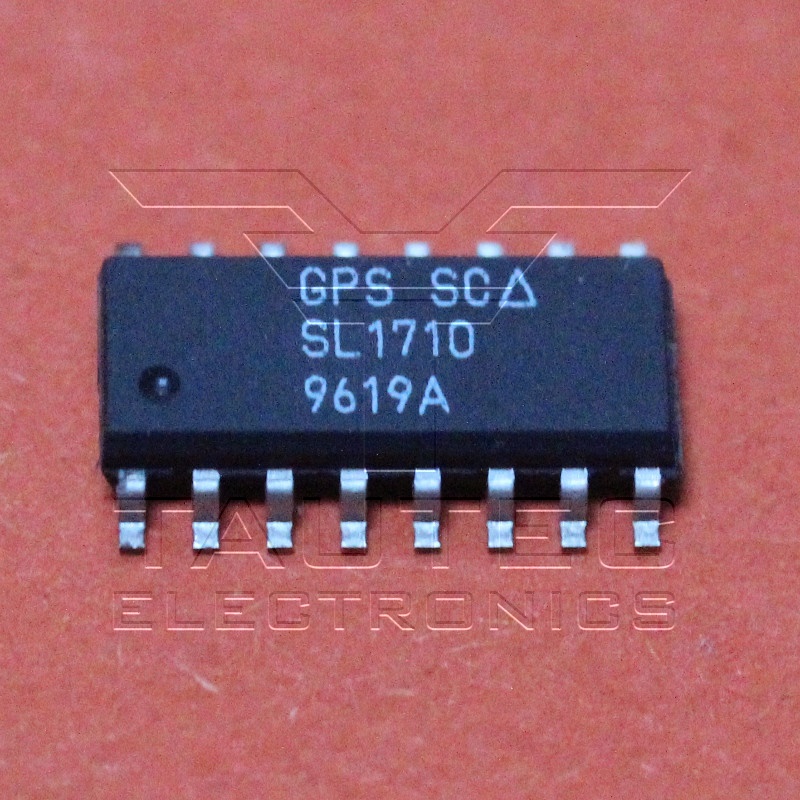

SL1710/KG/MPAS
QUADRATURE DOWNCONVERTER
- Wide input frequency range (350–500MHz)
- On–chip VCO with quadrature generation, Phase match better than 2o, gain match better than 1dB
- Nominal 40dB conversion gain from IF input to I and Q outputs
- AGC amplifier with 18dB gain control range
- Low impedance I and Q single ended outputs, with 15MHz +-1dB BW
- Divide by 32 prescaler outputs
- Suitable for QPSK and up to 64QAM systems
Datenblatt:
SL1710.pdf
€
1
.35*
GEC Plessey

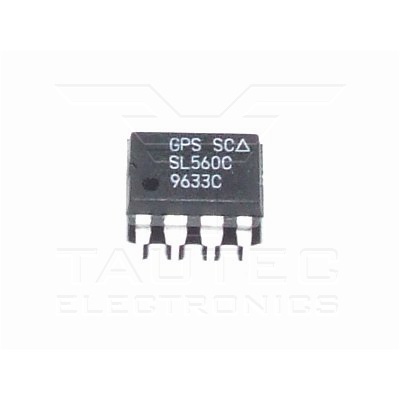

SL560C
300MHz Low Noise Amplifier
FEATURES:
- Gain up to 40dB
- Noise Figures less than 2dB (Rs 200 ohm)
- Bandwidth 300MHz
- Supply Voltage 2-15V (Depending on Configuration)
- Low Power Consumption
APPLICATIONS:
- Radar IF Preamplifiers
- Infra-Red Sysems Head Amplifiers
- Amplifiers in Noise Measurement Systems
- Low Power Wideband Amplifiers
- Instrumentation Preamplifiers
- 50 ohm Line Drivers
- Wideband Power Amplifiers
- Wideband Dynamic Range IF Amplifiers
- Aerial Preamplifiers
Datenblatt:
SL560.pdf
€
5
.80*
GEC Plessey

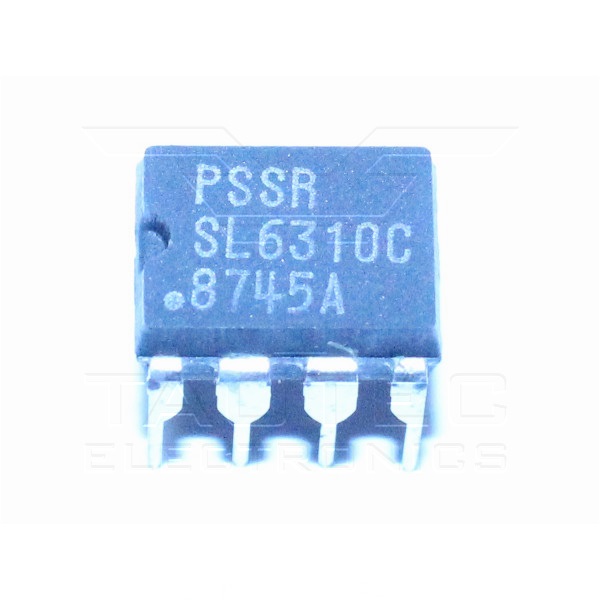

SL6310CDP8
Beschreibung: 500mW switchable Audio Amplifier Op Amp
Datenblatt:
SL6310C.pdf
€
4
.00*
