Intel

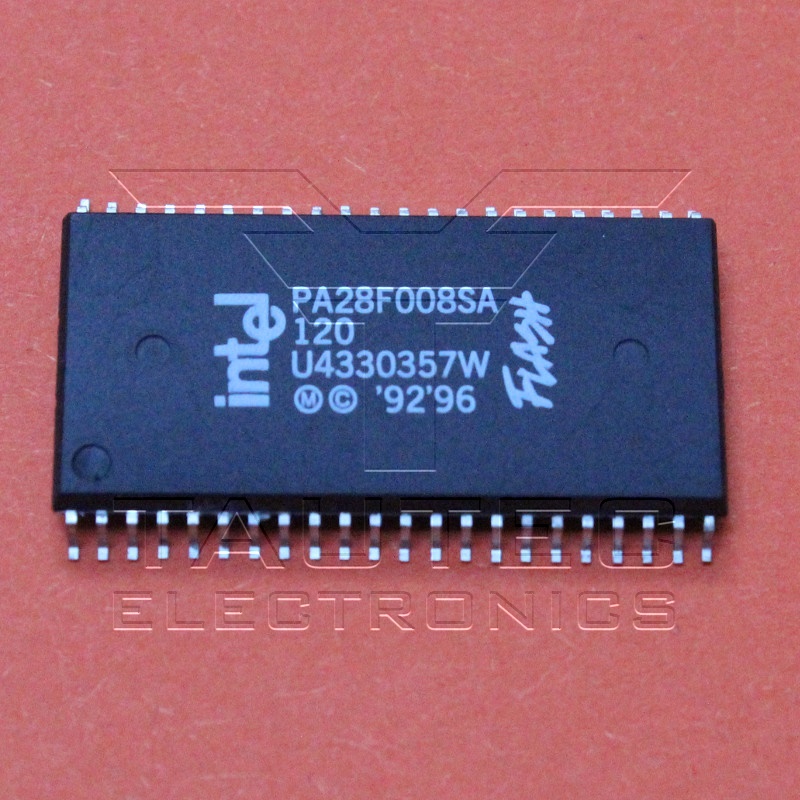

PA28F008SA-120

8-MBIT (1-MBIT X 8) FlashFile™ MEMORY - High-Density Symmetrically-Blocked Architecture - Sixteen 64-Kbyte Blocks - Extended Cycling Capability - 100,000 Block Erase Cycles - 1.6 Million Block Erase Cycles per Chip - Automated Byte Write and Block Erase - Command User Interface - Status Register - System Performance Enhancements - RY/BY# Status Output - Erase Suspend Capability - Deep Power-Down Mode: 0.20 uA ICC Typical - Very High-Performance Read: 85 ns Maximum Access Time - SRAM-Compatible Write Interface - Hardware Data Protection Feature: Erase/Write Lockout during Power Transitions Datenblatt: 28F008SA.pdf

€ 8 .00*

AMD

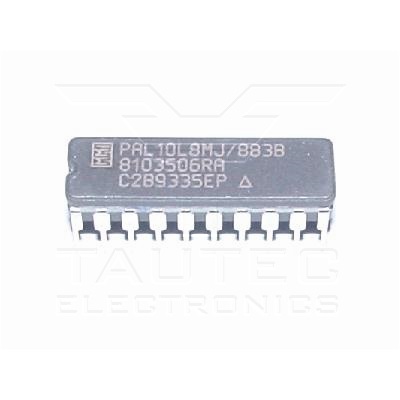

PAL10L8MJ/883B

Beschreibung: Fuse-Programmable Array Logic Device (FPAL)

€ 4 .50*

National Semiconductor

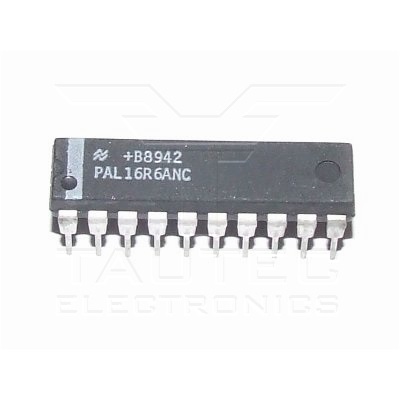

PAL16R6ANC

Beschreibung: Standard High-Speed PAL Circuit Datenblatt: PAL16R6ANC.pdf

€ 0 .75*

MMI Monolithic Memories Inc.

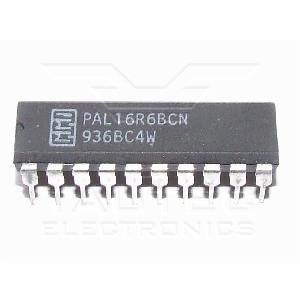

PAL16R6BCN

Beschreibung: TTL programmable array logic IC Datenblatt: PAL16R6.pdf

€ 1 .00*

MMI Monolithic Memories Inc.

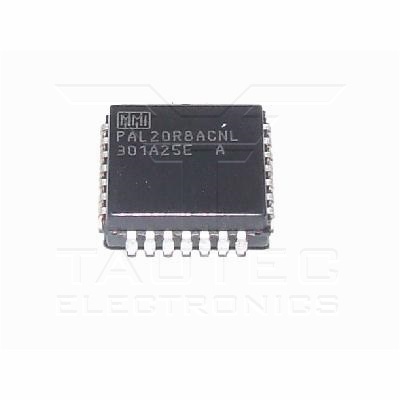

PAL20R8ACNL

Beschreibung: Fuse-Programmable Array Logic Device (FPAL) - Security Fuse Datenblatt: PAL20R8.pdf

€ 0 .85*

Vantis

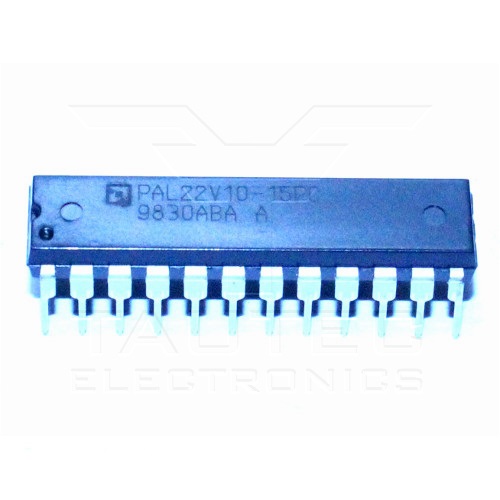

PAL22V10-15PC

24-Pin TTL Versatile PAL Device 15ns Supply Voltage with Respect to Ground: –0.5 V to +7.0 V DC Input Voltage: –1.2 V to VCC + 0.5 V DC Output or I/O Pin Voltage: –0.5 V to VCC + 0.5 V Supply Voltage (VCC) with Respect to Ground: +4.75 V to +5.25 V Ambient Temperature with Power Applied: –55°C to +125°C Global asynchronous reset and synchronous preset for initialization Power-up reset for initialization and register preload for testability As fast as 7.5-ns propagation delay and 91 MHz fMAX (external) Datenblatt: PAL22V10.pdf

€ 4 .00*

Cypress Semiconductor

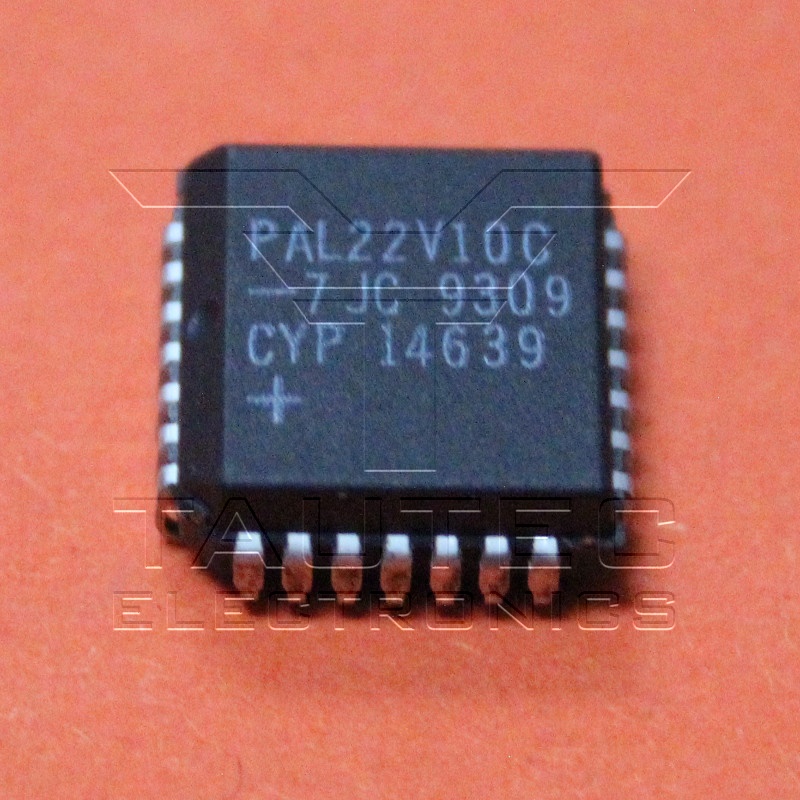

PALC22V10C-7JC

Flash-erasable Reprogrammable CMOS PAL® Device Advanced second-generation PAL architecture Low power: 55 mA max. “L” / 90 mA max. standard CMOS EPROM technology for reprogrammability Variable product terms: 2 x (8 through 16) product terms User-programmable macrocell Up to 22 input terms and 10 outputs Datenblatt: PALC22V10.pdf

€ 6 .50*

AMD

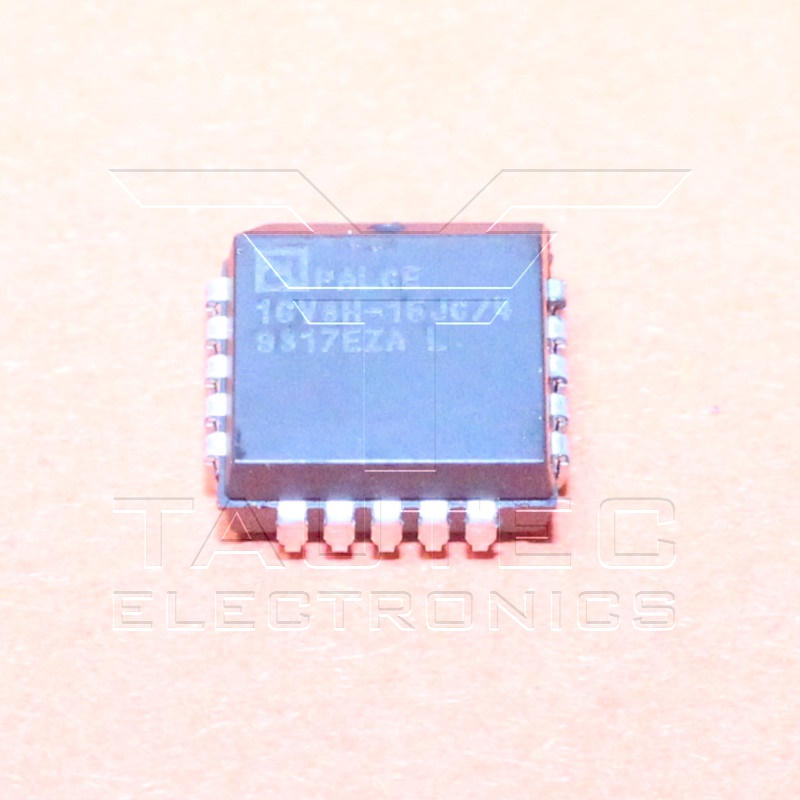

PALCE16V8H-15JC/4

EE CMOS 20-Pin Universal Programmable Array Logic IC Datenblatt: PALCE16V8.pdf

€ 2 .00*

Lattice Semiconductor

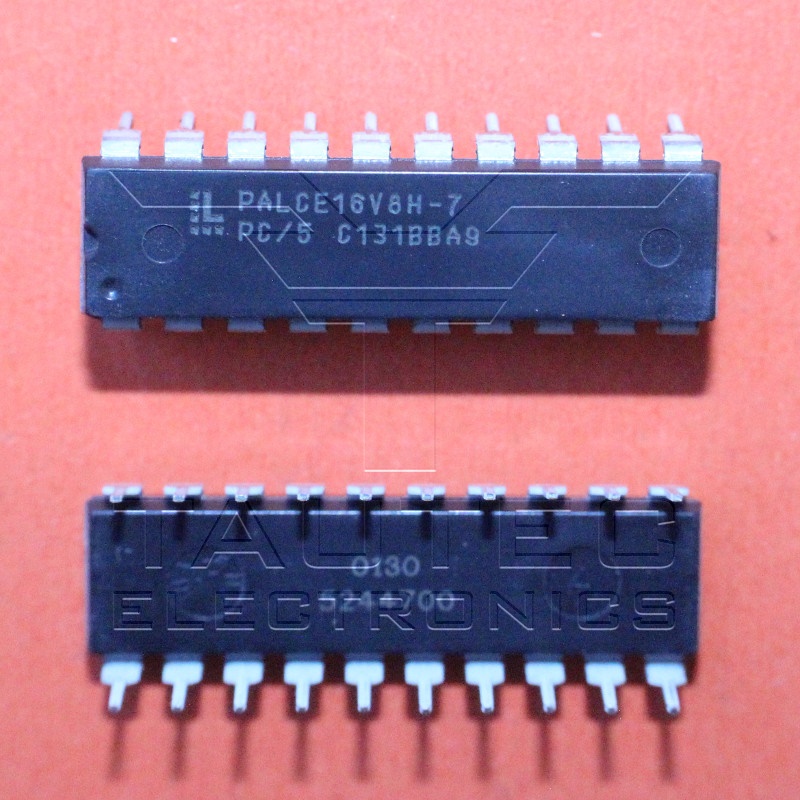

PALCE16V8H-7PC/5

EE CMOS 20-Pin Universal Programmable Array Logic IC Datenblatt: PALCE16V8.pdf

€ 3 .00*

AMD

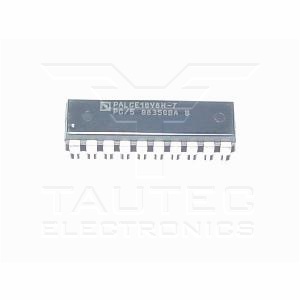

PALCE16V8H-7PC/5

EE CMOS 20-Pin Universal Programmable Array Logic IC Datenblatt: PALCE16V8.pdf

€ 3 .00*

AMD

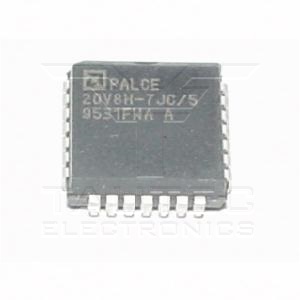

PALCE20V8H-7JC/5

Beschreibung: EE CMOS 24-Pin Universal Programmable Array Logic IC Datenblatt: PALCE20V8.pdf

€ 0 .75*

Cypress Semiconductor

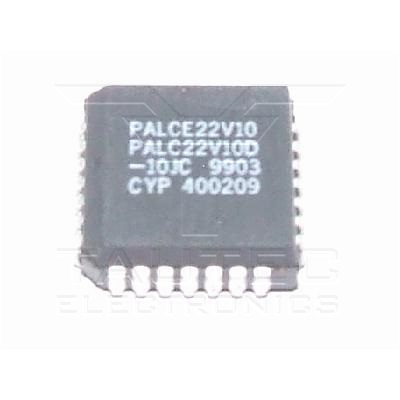

PALCE22V10D-10JC

Beschreibung: Flash Erasable, Reprogrammable CMOS PAL Device Datenblatt: PALCE22V10D.pdf

€ 1 .50*

AMD

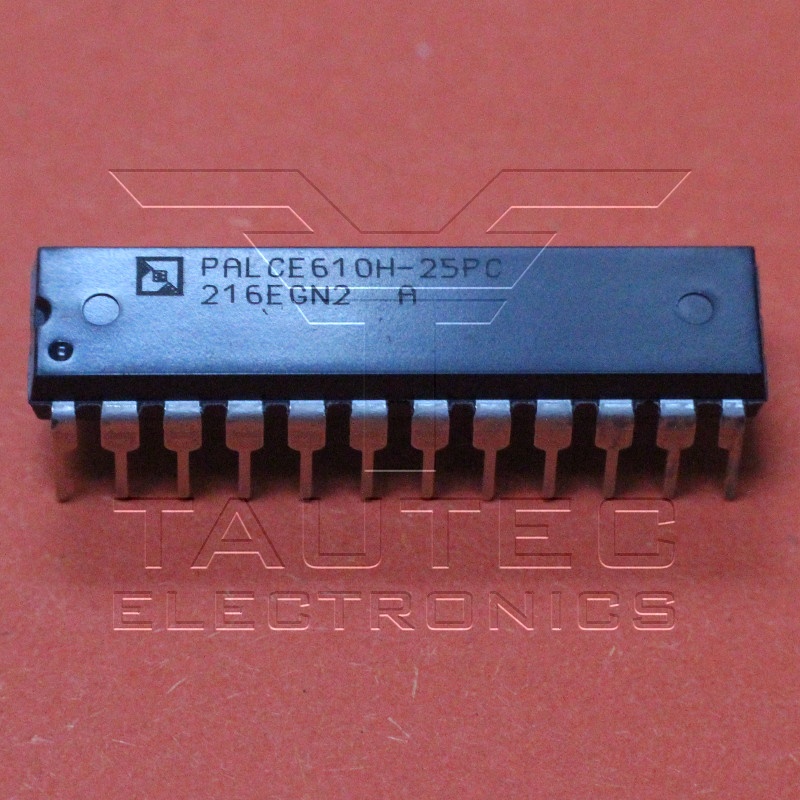

PALCE610H-25PC

EE CMOS High Performance Programmable Array Logic - Electrically-erasable CMOS technology - Sixteen macrocells with configurable I/O architecture - Registered or combinatorial operation - Registers programmable as D, T, J-K, or S-R - Asynchronous clocking via product term or bank register clocking from external pins - Register preload for testability - Power-up reset for initialization - Supply Voltage (VCC): +4.75 V to +5.25 V - Ambient Temperature (TA): 0°C to +75°C Datenblatt: PALCE610H-25PC.pdf

€ 5 .00*

AMD

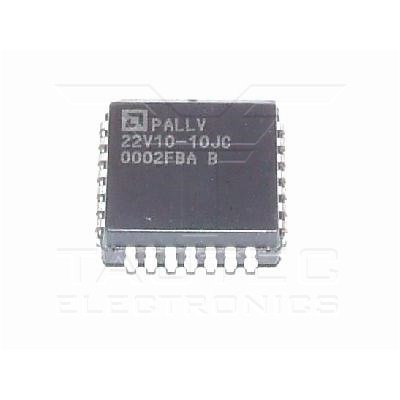

PALLV22V10-10JC

Beschreibung: Low-Voltage Zero Power 24-Pin EE CMOS Versatile PAL Device Datenblatt: PALLV22V10.pdf

€ 3 .50*
