DG...

Siliconix

DG201BDY

Beschreibung: Improved Quad CMOS Analog Switches Datenblatt: DG201B.pdf

€ 0 .40*

Siliconix

DG202BDJ

Improved Quad CMOS Analog Switches - ± 22 V supply voltage rating - TTL and CMOS compatible logic - Low on-resistance - RDS(on): 45 Ohm - Low leakage - ID(on): 20 pA - Single supply operation possible - Extended temperature range - Fast switching - tON: 120 ns - Low glitching - Q: 1 pC - Wide analog signal range - Simple logic interface - Higher accuracy - Minimum transients - Reduced power consumption Datenblatt: DG202B.pdf

€ 0 .90*

Siliconix

DG211DY

Beschreibung: Low-Cost Monolithic Quad SPST CMOS Analog Switches Datenblatt: DG211.pdf

€ 0 .50*

Vishay

DG213DY-E3

Quad Complementary CMOS Analog Switch Number of Channels: 4 Channel Configuration: 4 x SPST On Resistance - Max: 60 Ohms Supply Voltage - Min: 3 V Supply Voltage - Max: 40 V Minimum Dual Supply Voltage: +/- 3 V Maximum Dual Supply Voltage: +/- 22 V On Time - Max: 130 ns Off Time - Max: 100 ns Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: DG213DY.pdf

€ 0 .84*

Siliconix

DG300ACJ

Beschreibung: TTL Compatible CMOS Analog Switches Datenblatt: DG300A.pdf

€ 2 .50*

Siliconix

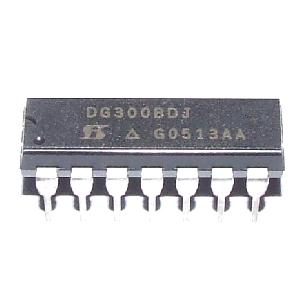

DG300BDJ

Beschreibung: TTL Compatible CMOS Analog Switches Datenblatt: DG300.pdf

€ 3 .00*

Maxim

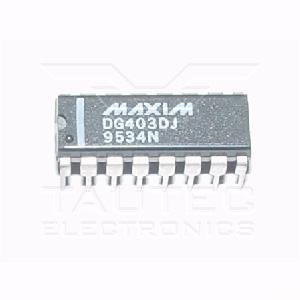

DG403DJ

Beschreibung: Improved, Dual, High-Speed Analog Switch Datenblatt: DG403.pdf

€ 1 .50*

Siliconix

DG408DY

Beschreibung: 8-Channel High-Performance CMOS Analog Multiplexer Datenblatt: DG408.pdf

€ 0 .90*

Siliconix

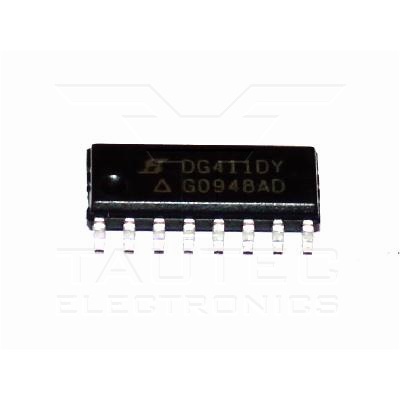

DG411DY

Precision Monolithic Quad SPST CMOS Analog Switches Number of Channels: 4 Channel Configuration: 4 x SPST On Resistance - Max: 45 Ohms Supply Voltage - Min: 10 V Supply Voltage - Max: 30 V Minimum Dual Supply Voltage: +/- 4.5 V Maximum Dual Supply Voltage: +/- 20 V On Time - Max: 175 ns Off Time - Max: 145 ns Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: DG411.pdf

€ 0 .71*

Siliconix

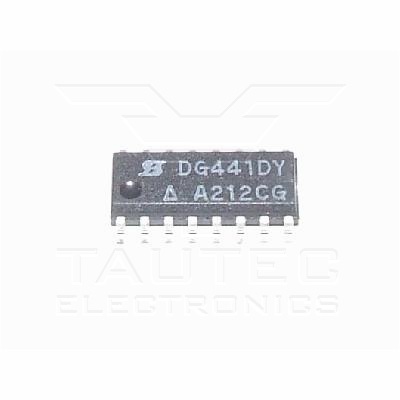

DG441DY

Beschreibung: Improved, Quad, SPST Analog Switch

€ 0 .75*

Siliconix

DG441DY

Beschreibung: Improved, Quad, SPST Analog Switch

€ 1 .00*

Siliconix

DG538ADN

Beschreibung: 4-/8-Channel Wideband Video Multiplexers Datenblatt: DG538A.pdf

€ 1 .50*
