CO...

Connect One

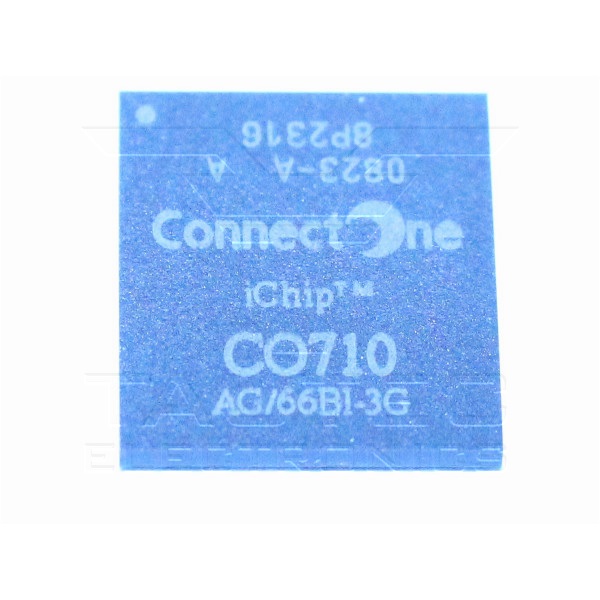

CO710AG/66BI-3G

Communication Internet Controllers™ - Firmware-Version: i710d708b06 - Microprocessor-controllable through a serial connection or parallel bus. - Supports remote firmware update by host, email, or direct modem-to-modem communications. - Stores backup copy of previous firmware version. - 128KB SRAM and 1M flash memory. - Supports additional external memory. - Driven by Connect One’s “AT+i" extension to the AT command set. - Stand-alone Internet communication capabilities. - Binary Base64 encoding and MIME. - Opens up to 10 simultaneous TCP or UDP sockets and up to 2 Listen (server) sockets. - Power Save mode. - 3.3-volts, CMOS technology for I/O and 1.8 volt for core. - Onboard non-volatile memory stores all functional and Internet-related parameters. - Supports several layers of status reports. - Internal self-test procedures. - Internal "Watchdog" guard circuit. - Auto baud rate detection. - Supports up to 230,400 bps in Serial mode. - Includes hardware and software flow control. - RoHS compliant 121-ball uBGA package (10 x 10 x 1.2 mm with 0.8 mm ball pitch). Datenblatt: CO710AG.pdf

€ 96 .00*
