BT...

Brooktree

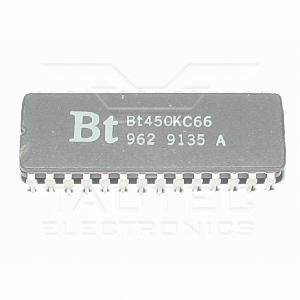

BT450KC66

Beschreibung: 4-Bit Digital-to-Analog Converter - Clock Rate 66MHz max Settling Time (S) = 25n Max Relative Accuracy (LSB) = .12 Volt or Cur. Mode = Current Input Arithmetic Code = A V(IL) Max.(V)Lo Level In.Volt. = 0.8 V(IH) Min.(V)Hi Level In.Volt. = 2.0 Logic Level Family = TTL Vsup(+) Nom.(V) Pos.Sup.Volt. = 5.0 P(D) Max.(W) Power Dissipation = 900m

€ 6 .00*

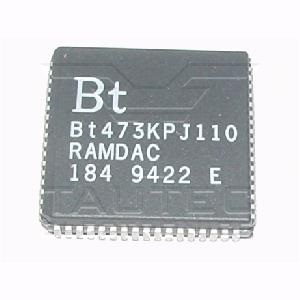

Brooktree

BT473KP110

Beschreibung: Monolithic CMOS Triple 8-Bit True-Color RAMDAC

€ 8 .75*

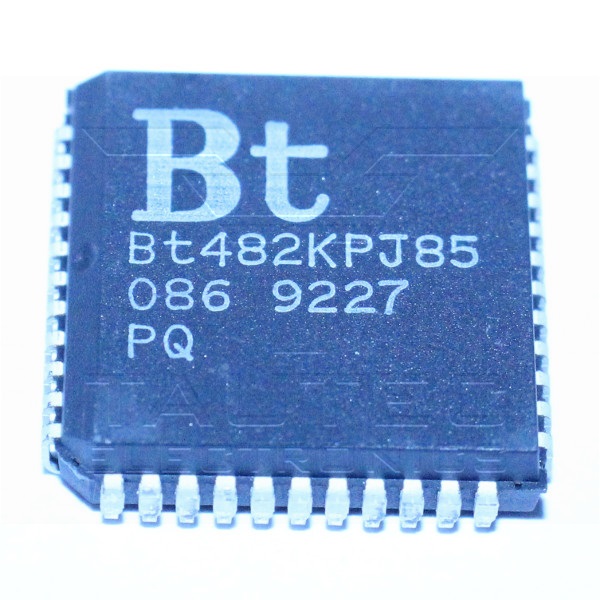

Brooktree

BT482KPJ85

Beschreibung: Triple 8-Bit Digital-to-Analog Converter - 85MHz, 256x24 Clr Pal RAM

€ 2 .00*

Conexant

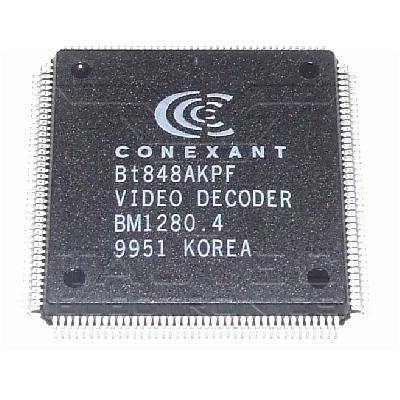

BT848AKPF

Beschreibung: Single-Chip Video Capture for PCI Datenblatt: BT848.pdf

€ 4 .80*

Brooktree

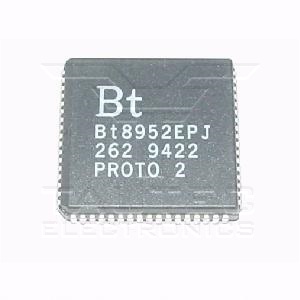

BT8952EPJ

Beschreibung: HDSL Transceiver

€ 10 .00*

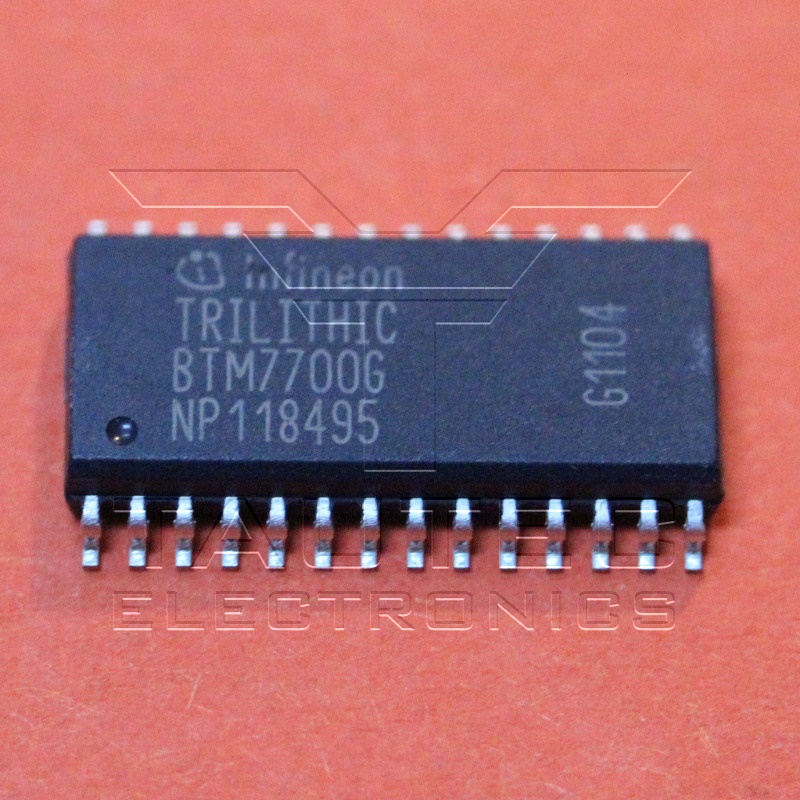

Infineon

BTM7700G

Quad D-MOS Switch Driver Free configurable as bridge or quad-switch Optimized for DC motor management applications Low RDS ON High side: 110 m? typ. @ 25°C, 280 m? max. @ 150°C Low side: 80 m? typ. @ 25°C, 200 m? max. @ 150°C Peak current: typ. 9.5 A @ 25 °C Very low quiescent current: typ. 5 ?A @ 25 °C Small outline, enhanced power PG-DSO-package Operates up to 40 V PWM frequencies up to 1 kHz Load and GND-short-circuit-protection Overtemperature shut down with hysteresis Undervoltage detection with hysteresis Status flag diagnosis Internal clamp diodes Isolated sources for external current sensing Green Product (RoHS compliant) Datenblatt: BTM7700G.pdf

€ 1 .02*

Infineon

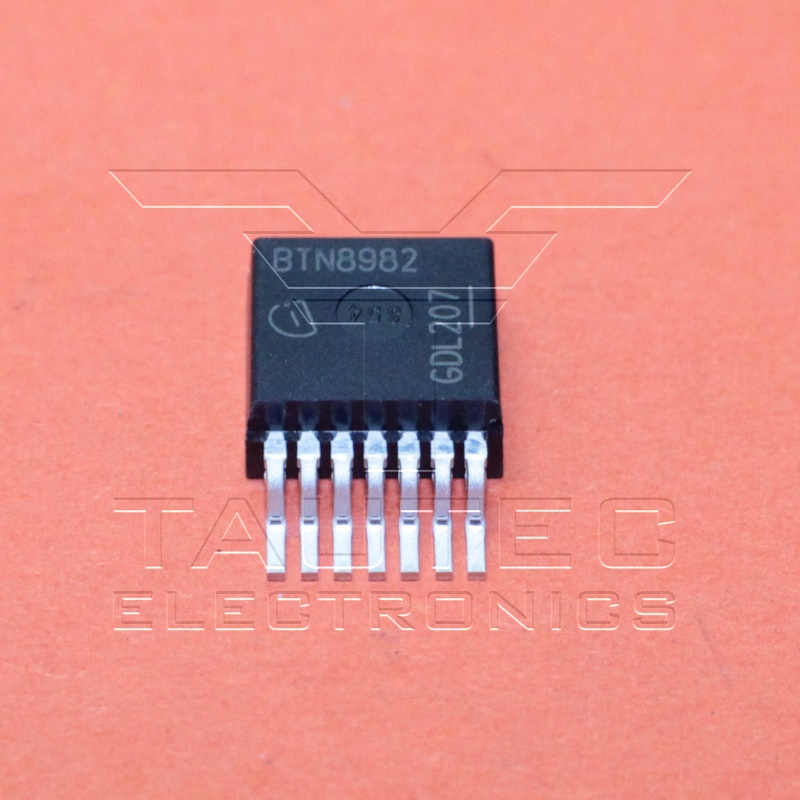

BTN8982TA

Motor/Motion/Ignition Controllers & Drivers Product: Brushed DC Motor Drivers Type: Half Bridge Output Current: 9 A Operating Supply Current: 2.2 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C

€ 1 .00*

Siemens

BTS100 E3044A

Smart Highside Power Switch TempFET Datenblatt: BTS100.pdf

€ 2 .20*

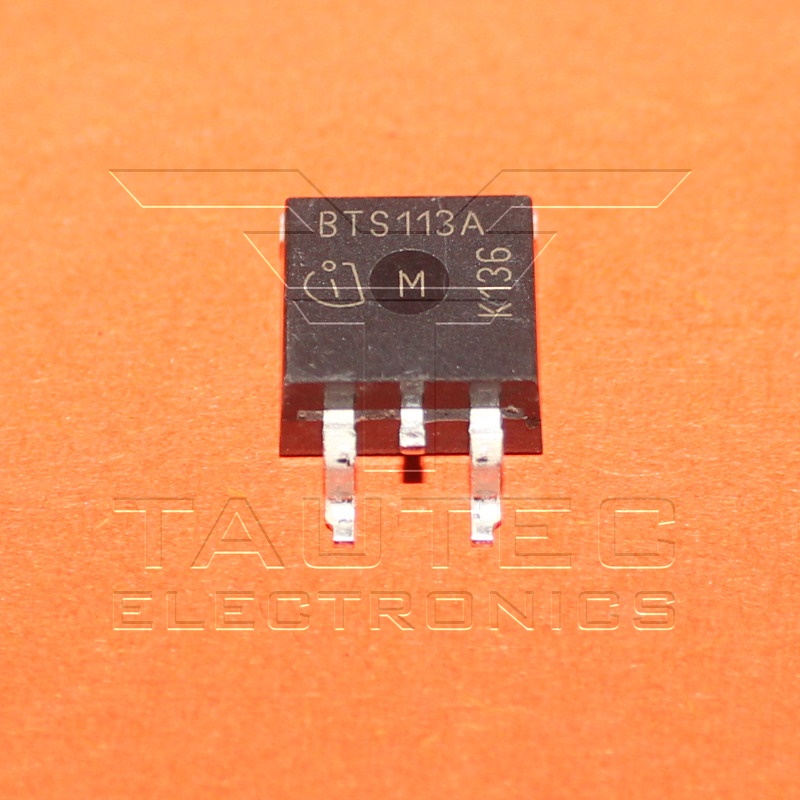

Infineon

BTS113A E3045A

Smart Highside Power Switch TempFET - N channel - Vds = 60V - Id = 11,5A - Rdson = 0.17 Ohm - package: TO-220AB SMD Version (TO-263) - Logic level - Enhancement mode - Temperature sensor with thyristor characteristic - The drain pin is electrically shorted to the tab Datenblatt: BTS113A.pdf

€ 1 .52*

Infineon

BTS115A

Smart Highside Power Switch TempFET 50V / 15.5A / 0.12 Ohm - N channel - Logic level - Enhancement mode - Temperature sensor with thyristor characteristic - The drain pin is electrically shorted to the tab Datenblatt: BTS115A.pdf

€ 2 .75*

Infineon

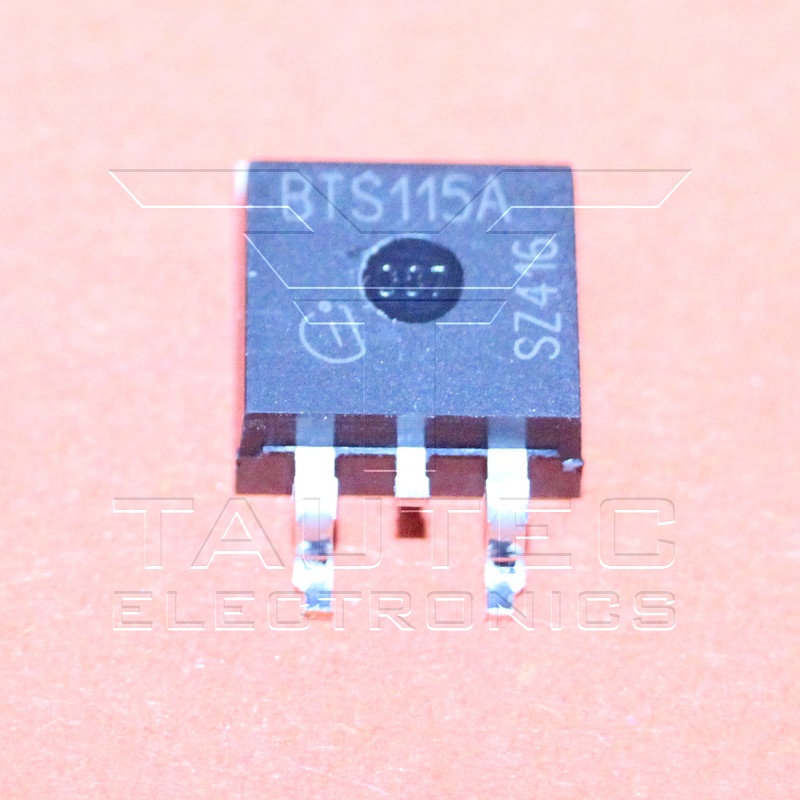

BTS115A-E3045A

Smart Highside Power Switch TempFET Number of Channels: 1 Channel Transistor Polarity: N-Channel Vds - Drain-Source Breakdown Voltage: 50 V Id - Continuous Drain Current: 6.7 A Rds On - Drain-Source Resistance: 120 mOhms Vgs th - Gate-Source Threshold Voltage: 1.5 V Vgs - Gate-Source Voltage: 10 V Pd - Power Dissipation: 50 W Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Datenblatt: BTS115A.pdf

€ 1 .00*

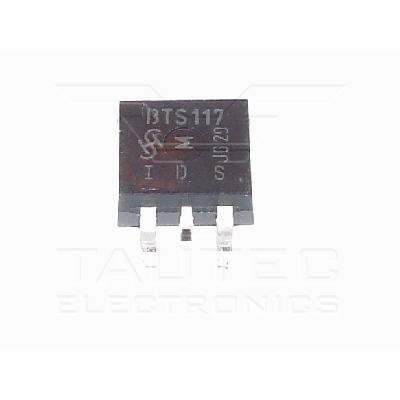

Siemens

BTS117

Beschreibung: Smart Lowside Power Switch Ordering Code: Q67060-S6500-A3 Datenblatt: BTS117.pdf

€ 1 .90*

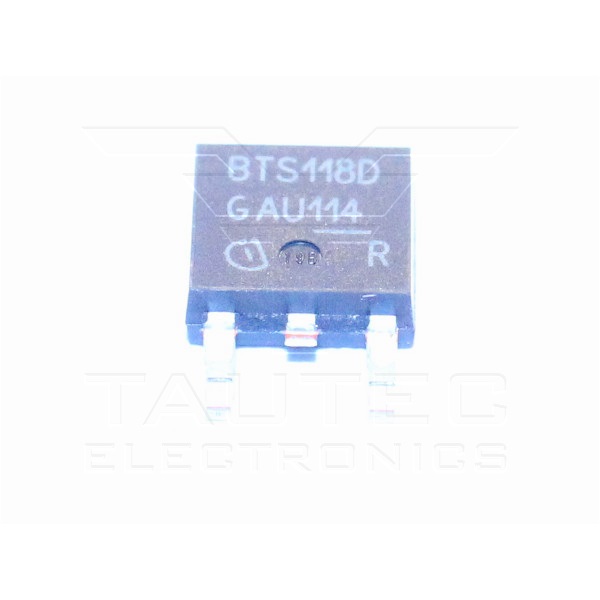

Infineon

BTS118D

Smart Lowside Power Switch Number of Outputs: 1 Output Output Current: 2.4 A Current Limit: 15 A On Resistance - Max: 100 mOhms On Time - Max: 100 us Off Time - Max: 100 us Operating Supply Voltage: - 0.2 V to 10 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Datenblatt: BTS118D.pdf

€ 0 .50*

Siemens

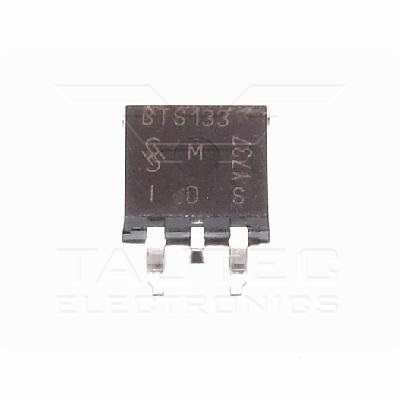

BTS133 E3045A

Beschreibung: Smart Low Side Switches - 60V / 50mΩ / 21A Datenblatt: BTS133.pdf

€ 1 .80*

Siemens

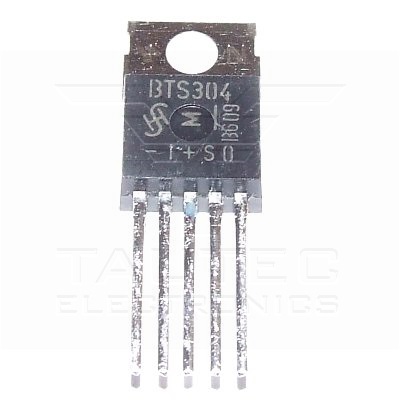

BTS304

Description: Smart Power Switch

€ 2 .10*

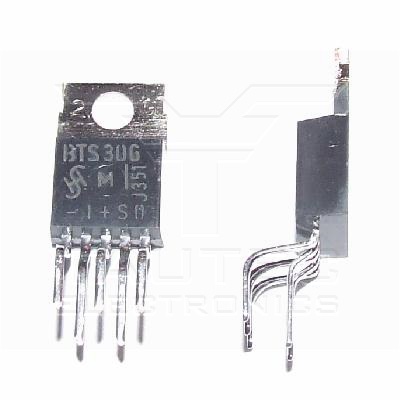

Siemens

BTS306

TEMPFET - Smart Power Switches

€ 5 .00*

Infineon

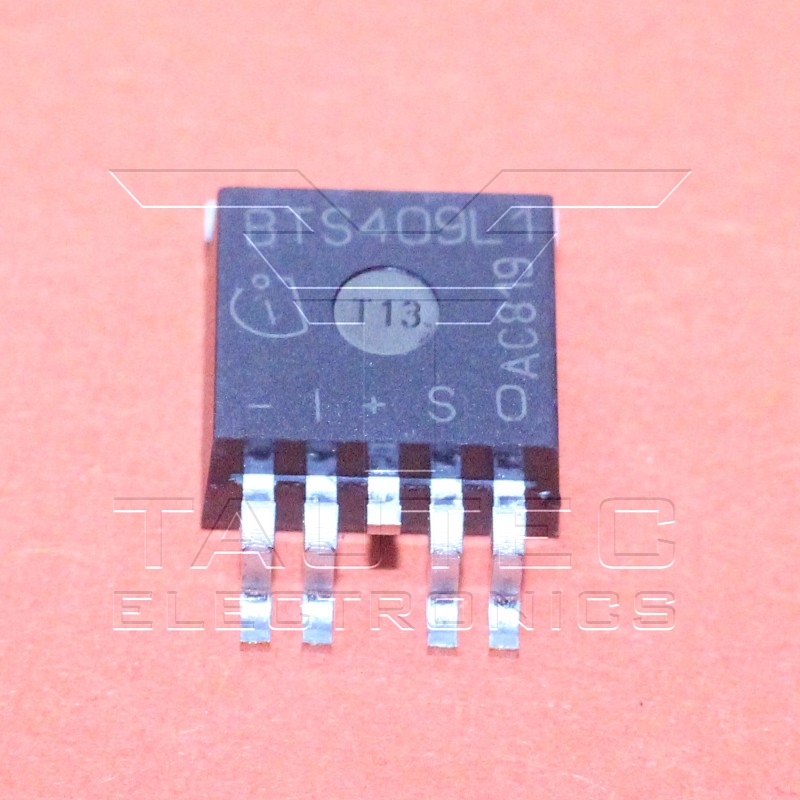

BTS409L1

Smart High-Side Power Switch Number of Outputs: 1 Output Output Current: 2.3 A Current Limit: 4 A On Resistance - Max: 200 mOhms Operating Supply Voltage: 5 V to 34 V Supply Voltage - Min: 5 V Supply Voltage - Max: 34 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C On Time - Max: 400 us Off Time - Max: 400 us Datenblatt: BTS409L1.pdf

€ 1 .10*

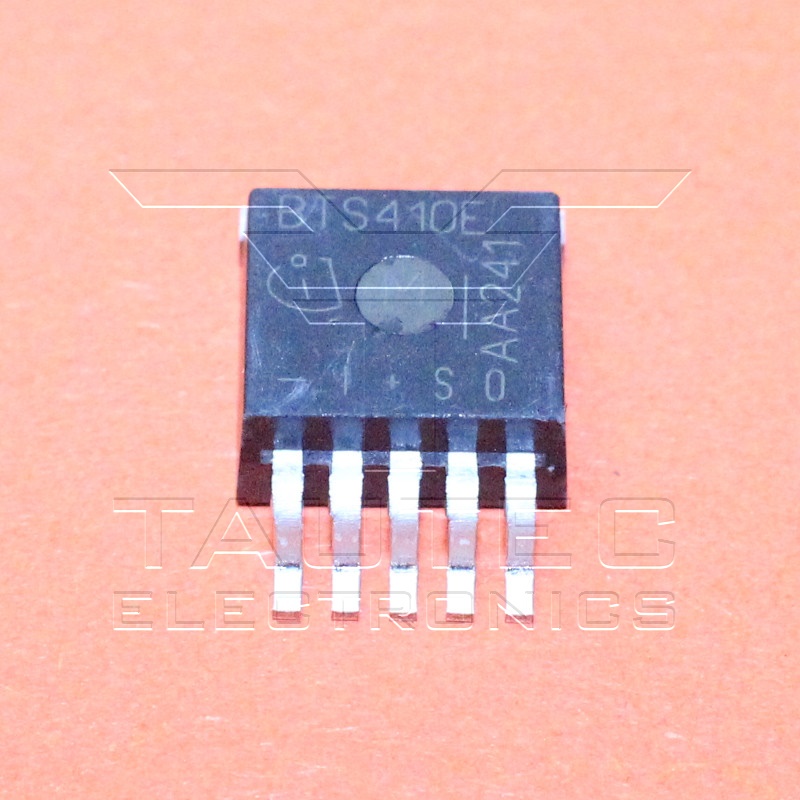

Infineon

BTS410E E3122A

PROFET - Smart Highside Power Switch Number of Outputs: 1 Output Output Current: 1.8 A Current Limit: 5 A On Resistance - Max: 220 mOhms On Time - Max: 125 us Off Time - Max: 85 us Operating Supply Voltage: 4.7 V to 42 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Datenblatt: BTS410E.pdf

€ 0 .77*

Siemens

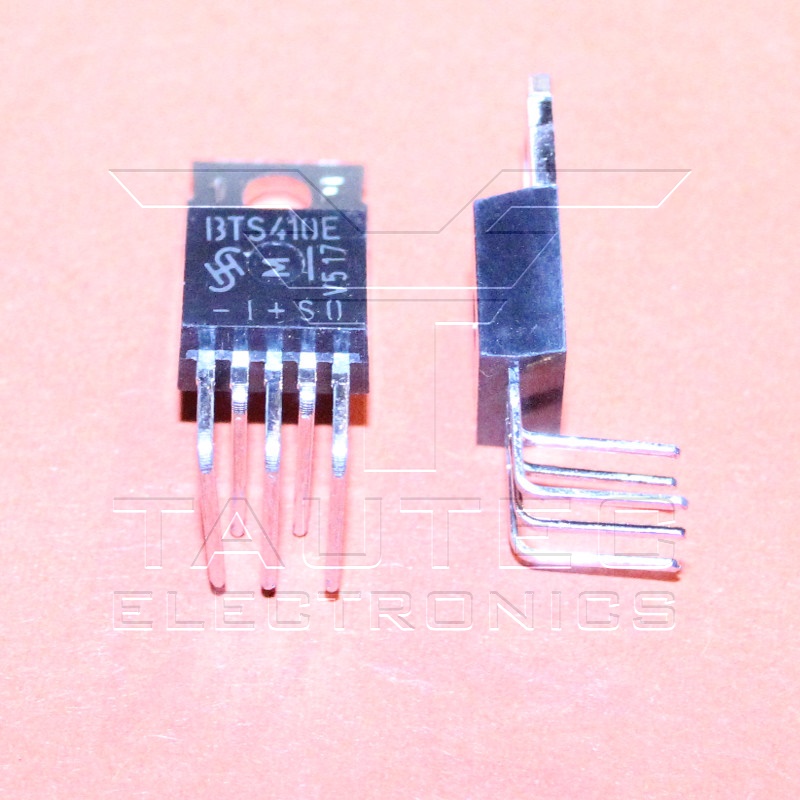

BTS410E-E3040

PROFET - Smart Highside Power Switch Active Overvoltage Protection Vbb: > 50V Nominal Load current Il: 1.6A Max. Power Dissipation Ptot: 75W Operating Temperature Range: Tj: -40 ... +150 Grad Datenblatt: BTS410E.pdf

€ 4 .50*

Infineon

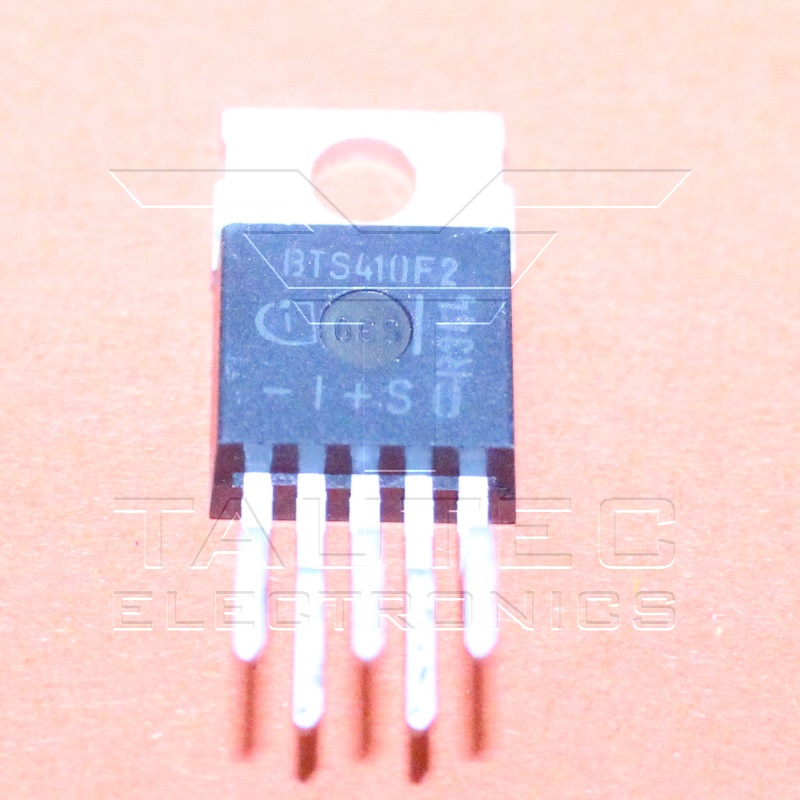

BTS410F2

Smart Highside Power Switch Type: High Side Number of Outputs: 1 Output Output Current: 1.8 A Current Limit: 2.7 A On Resistance - Max: 220 mOhms On Time - Max: 125 us Off Time - Max: 85 us Operating Supply Voltage: 4.7 V to 42 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Datenblatt: BTS410F2.pdf

€ 5 .60*

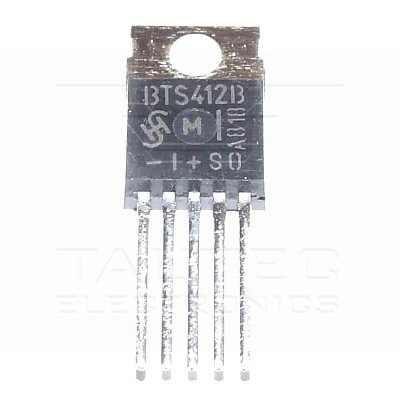

Siemens

BTS412B E3043

PROFET High Side Switch PROFET High Side Switch · Overload protection · Current limitation · Short circuit protection · Thermal shutdown · Overvoltage protection (including load dump) · Fast demagnetization of inductive loads · Reverse battery protection1) · Undervoltage and overvoltage shutdown with auto-restart and hysteresis · CMOS diagnostic output · Open load detection in OFF-state · CMOS compatible input · Loss of ground and loss of Vbb protection · Electrostatic discharge (ESD) protection Datenblatt: BTS412B.pdf

€ 3 .50*

Infineon

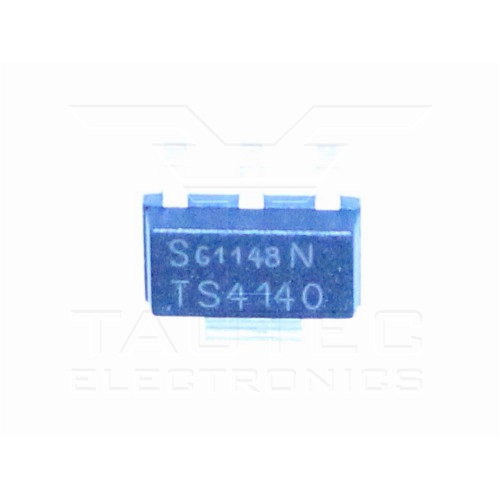

BTS4140N

Smart High-Side Power Switch One Channel: 1 x 1 Number of Outputs: 1 Output Output Current: 200 mA Current Limit: 700 mA On Resistance - Max: 1 Ohms Pd - Power Dissipation: 1.7 W On Time - Max: 100 us Off Time - Max: 175 us Operating Supply Voltage: 4.9 V to 60 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Datenblatt: BTS4140.pdf

€ 0 .82*

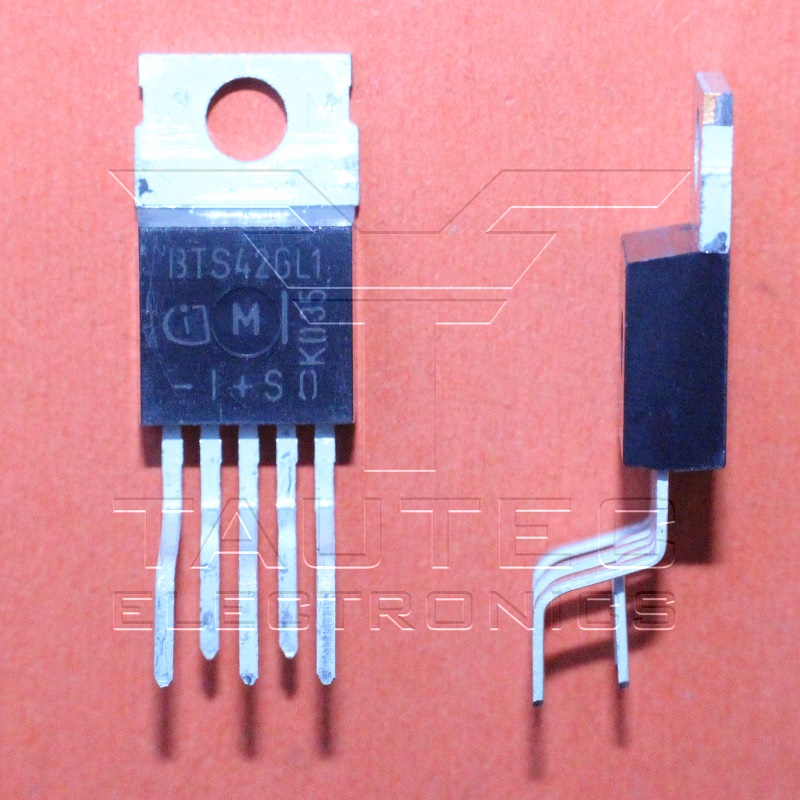

Infineon

BTS426L1

Smart High Side Switches Overvoltage protection Vbb(AZ): 43 V Operating voltage Vbb(on): 5.0 ... 34 V On-state resistance RON: 60 mOhm Load current (ISO) IL(ISO): 7.0 A Current limitation IL(SCr): 16 A Datenblatt: BTS426L1.pdf

€ 5 .00*

Siemens

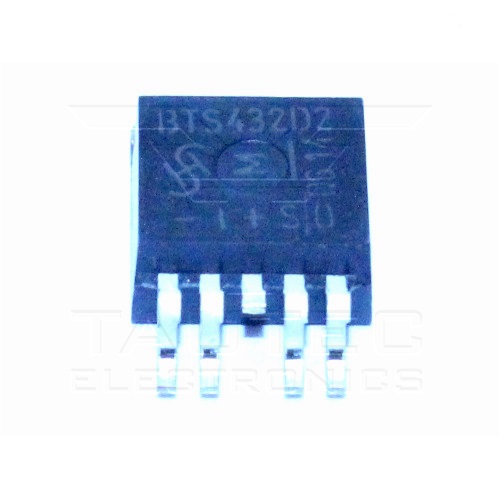

BTS432D2 E-3062A

Smart Highside Power Switch Datenblatt: BTS432.pdf

€ 2 .00*

Infineon

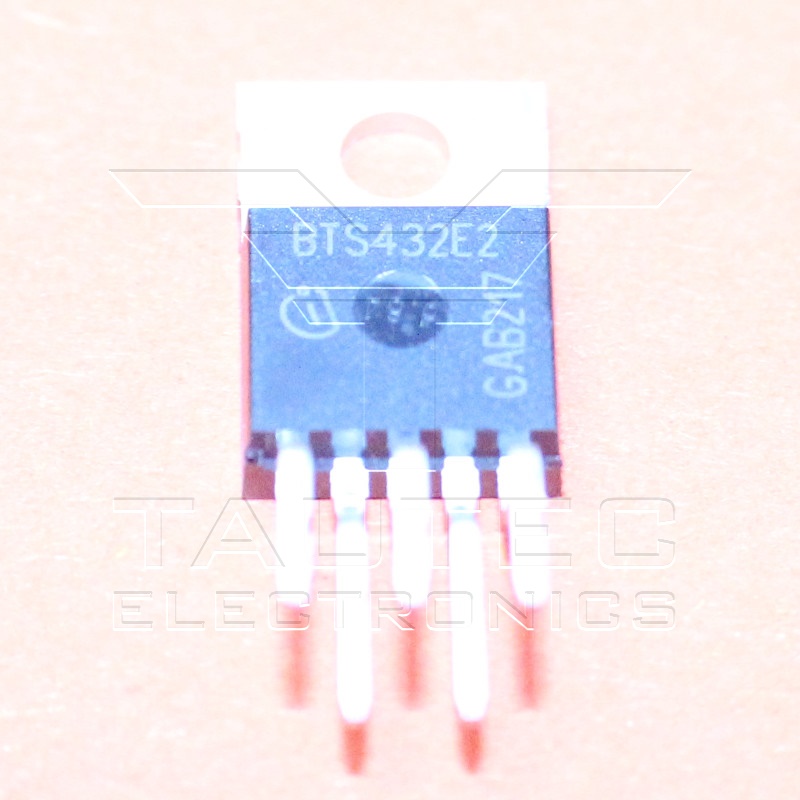

BTS432E2

Smart Highside Power Switch - Load dump and reverse battery protection - Clamp of negative voltage at output - Short-circuit protection - Current limitation - Thermal shutdown - Diagnostic feedback - Open load detection in ON-state - CMOS compatible input - Electrostatic discharge (ESD) protection - Loss of ground and loss of Vbb protection - Overvoltage protection - Undervoltage and overvoltage shutdown with autorestart and hysteresis Datenblatt: BTS432.pdf

€ 2 .80*

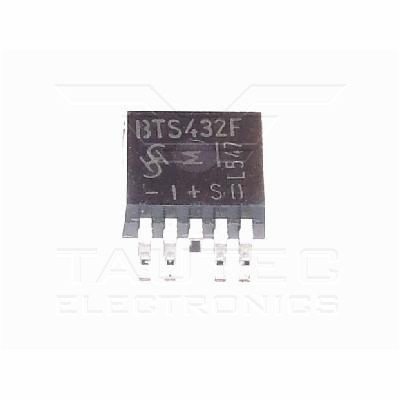

Siemens

BTS432F2 E-3062A

Beschreibung: Smart Highside Power Switch Datenblatt: BTS432F2.pdf

€ 3 .00*

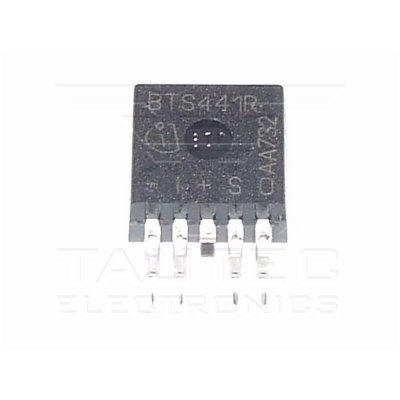

Infineon

BTS441RG

Beschreibung: Smart Power High-Side-Switch, One Channel: 20 mΩ Datenblatt: BTS441R.pdf

€ 2 .50*

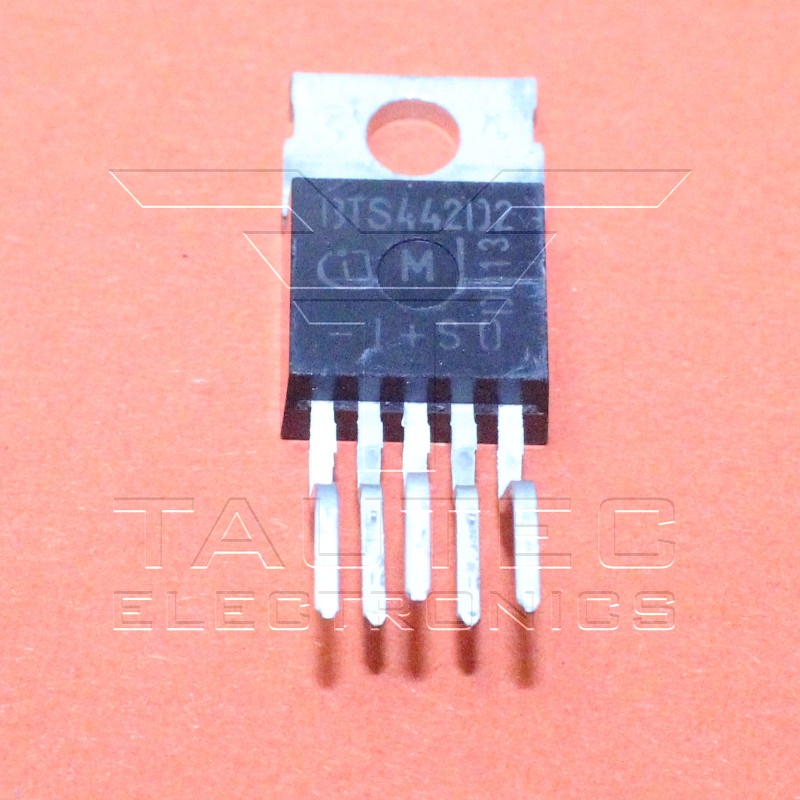

Infineon

BTS442D2

Smart Highside Power Switch Overvoltage protection Vbb(AZ) 63 V Operating voltage Vbb(on) 4.5 ... 42 V On-state resistance RON 18 mOhm Load current (ISO) IL(ISO) 21 A Current limitation IL(SCr) 70 A Current limitation Short-circuit protection Thermal shutdown Overvoltage protection (including load dump) Fast demagnetization of inductive loads Reverse battery protection1) Undervoltage and overvoltage shutdown with auto-restart and hysteresis CMOS diagnostic output Open load detection in ON-state CMOS compatible input Electrostatic discharge (ESD) protection Datenblatt: BTS442D2.pdf

€ 4 .00*

Infineon

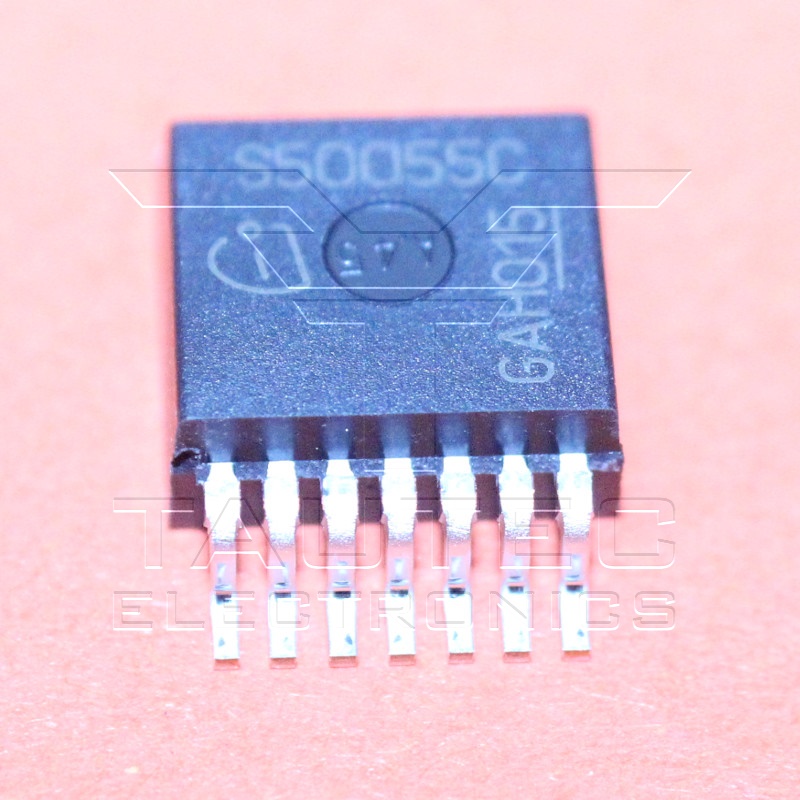

BTS50055-1TMC

Smart Highside High Current Power Switch - Reverse battery protection by self turn on of power MOSFET - Overload protection - Current limitation - Short circuit protection - Overtemperature protection - Overvoltage protection (including load dump) - Clamp of negative voltage at output - Fast deenergizing of inductive loads 1) - Low ohmic inverse current operation - Diagnostic feedback with load current sense - Open load detection via current sense - Loss of Vbb protection2) - Electrostatic discharge (ESD) protection - Green product (RoHS compliant) - AEC qualified - Operating voltage Vbb(on) 5.0 ... 34 V - On-state resistance RON 6.0 m? - Noinal current IL(nom) 17 A - Load current (ISO) IL(ISO) 70 A - Short circuit current limitation IL(SC) 130 A - Current sense ratio IL : IIS 14 000 Datenblatt: BTS50055.pdf

€ 2 .75*

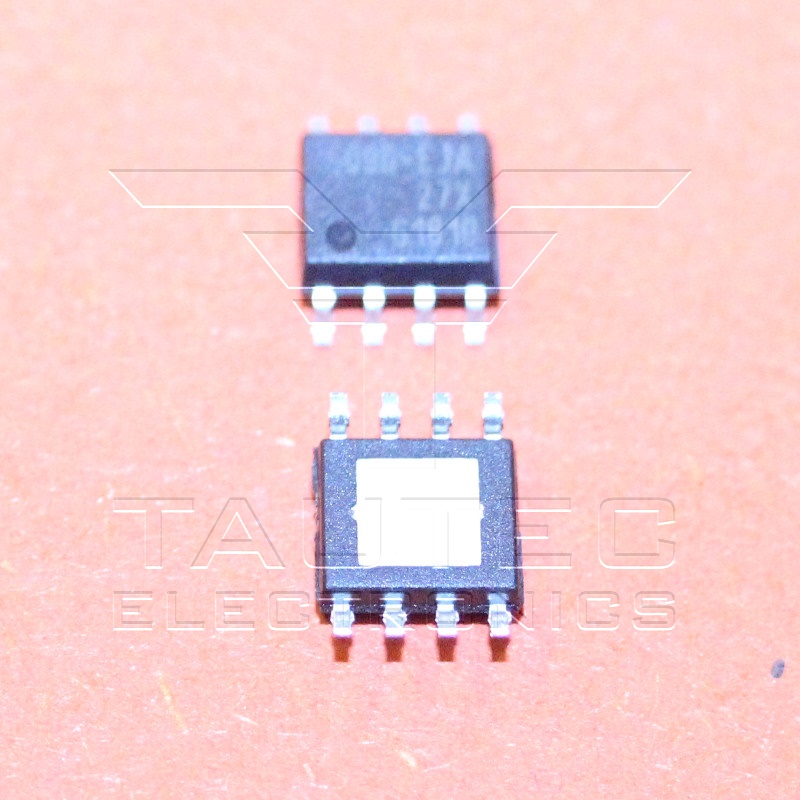

Infineon

BTS5090-1EJA

Power Switch ICs Type: High Side Number of Outputs: 1 Output Output Current: 3 A Current Limit: 20 A On Resistance - Max: 90 mOhms On Time - Max: 230 us Off Time - Max: 230 us Operating Supply Voltage: 5 V to 28 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Datenblatt: BTS5090.pdf

€ 0 .36*

Infineon

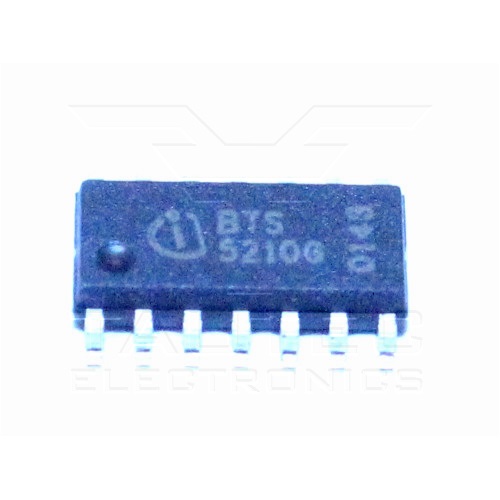

BTS5210G

Smart High-Side Power Switch Two Channels: 2x140mOhm Datenblatt: BTS5210G.pdf

€ 0 .30*

Infineon

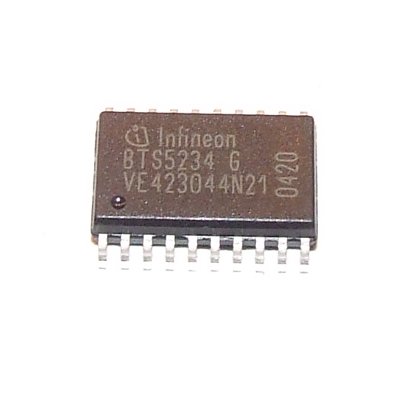

BTS5234G

Beschreibung: Smart High-side Power Switch ProFET Two Channels, 60mOhm Datenblatt: BTS5234G.pdf

€ 1 .75*

Infineon

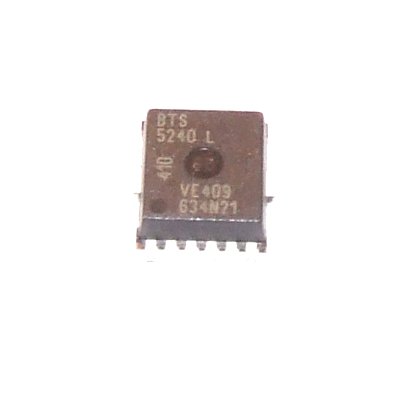

BTS5240L

Beschreibung: Smart High-Side Power Switch Two Channels: 2 x 25mΩ IntelliSense Datenblatt: BTS5210L.pdf

€ 1 .75*

Infineon

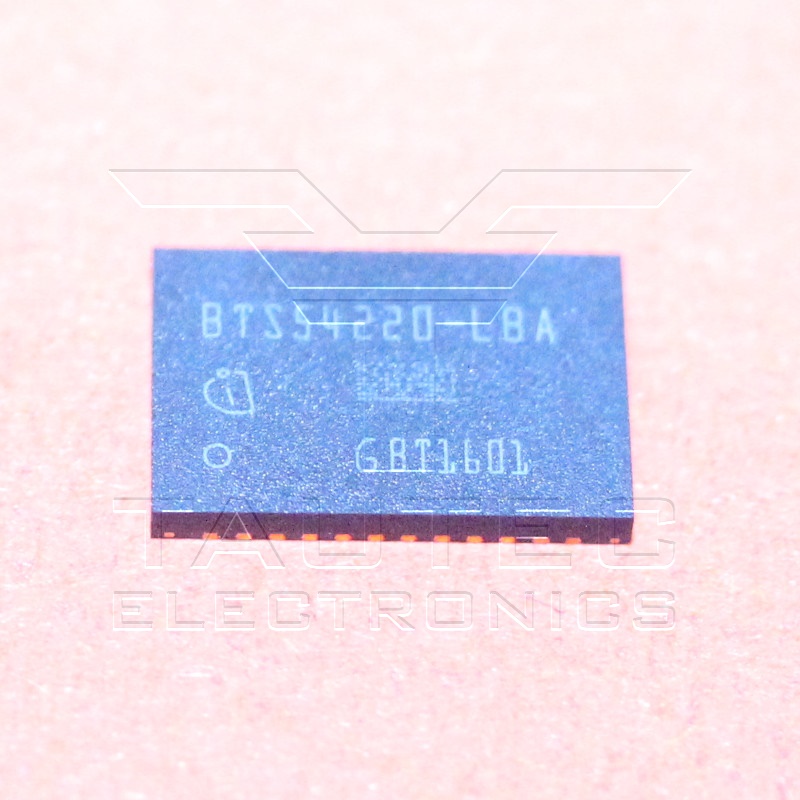

BTS54220-LBA

SPI Power Controller 8-bit serial peripheral interface (daisy chain capable SPI) for control and diagnosis CMOS compatible parallel input pins for four channels Selectable AND- / OR-combination for parallel inputs (PWM control) Load type configuration via SPI (bulbs or LEDs) for optimized load control Very low stand-by current Device ground independent from load ground Green Product (RoHS-Compliant) AEC Qualified Datenblatt: BTS54220-LBA.pdf

€ 1 .75*

Siemens

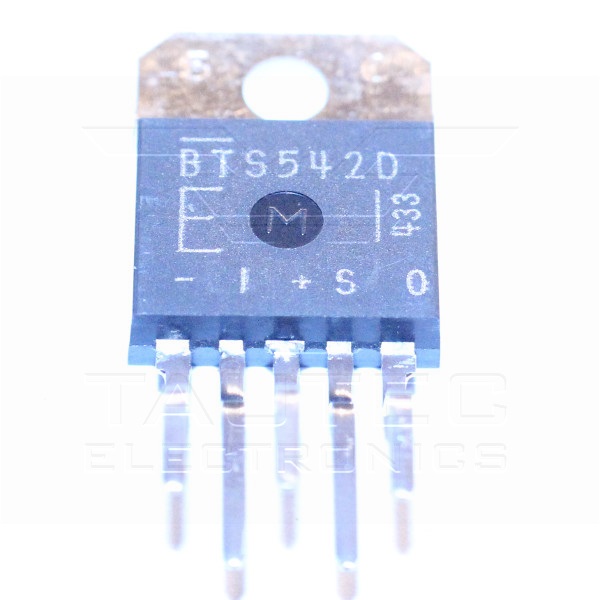

BTS542D

Beschreibung: High Side Switch

€ 15 .00*

Siemens

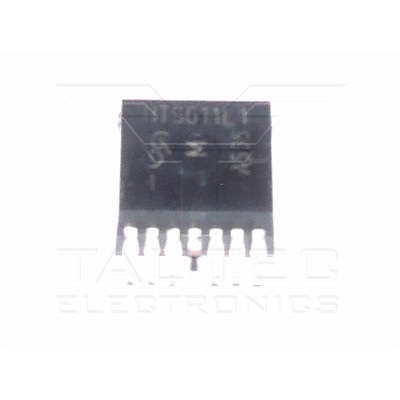

BTS611L1 E-3128A

Smart Two Channel Highside Power Switch Datenblatt: BTS611L1.pdf

€ 1 .20*

Siemens

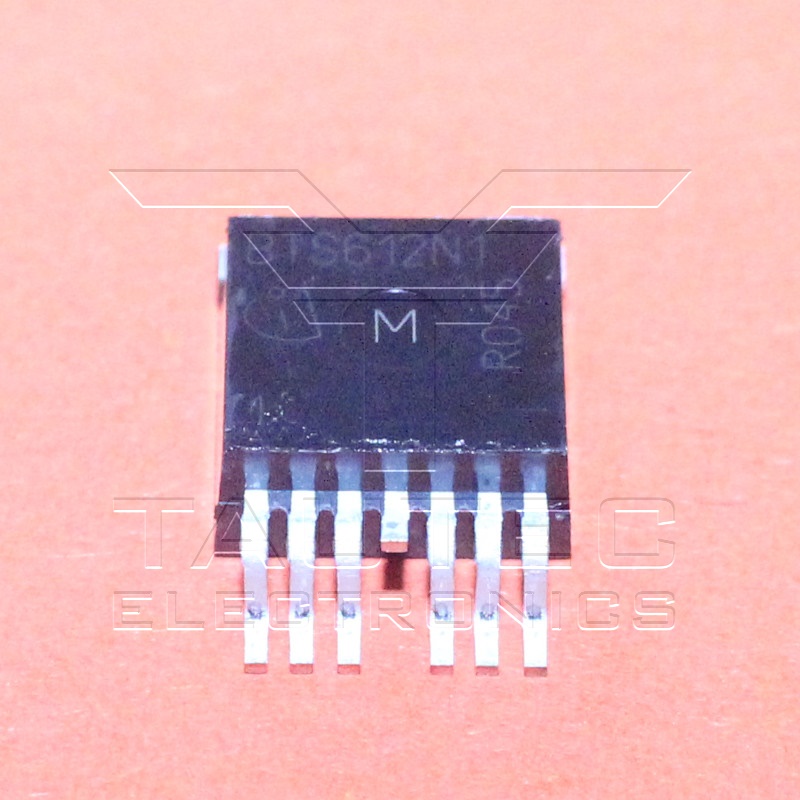

BTS612N1 E3128A

Smart Two Channel Highside Power Switch Datenblatt: BTS612N1.pdf

€ 1 .65*

Infineon

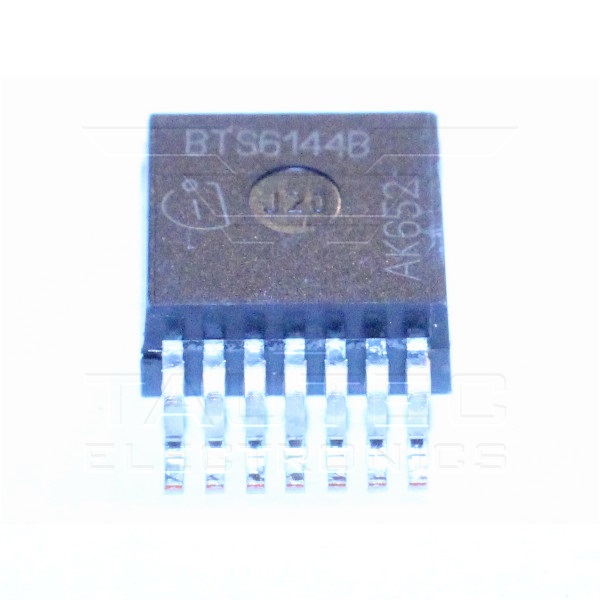

BTS6144B

SDM Smart Highside Power Switch Datenblatt: BTS6144B.pdf

€ 1 .27*

Infineon

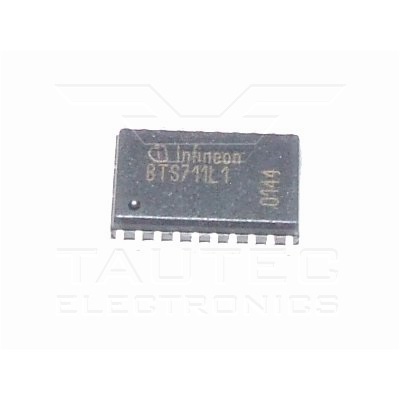

BTS711L1

Smart High-Side Power Switch Type: High Side Number of Outputs: 4 Output Output Current: 1.9 A Current Limit: 4 A On Resistance - Max: 200 mOhms Operating Supply Voltage: 5 V to 34 V Supply Voltage - Min: 5 V Supply Voltage - Max: 34 V Pd - Power Dissipation: 3.6 W Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C On Time - Max: 400 us Off Time - Max: 400 us Datenblatt: BTS711L1.pdf

€ 3 .14*

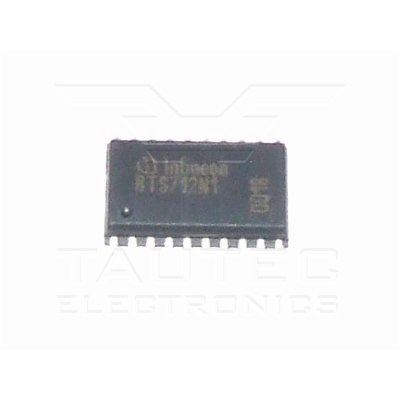

Infineon

BTS712N1

Smart Four Channel Highside Power Switch Number of Outputs: 4 Output Output Current: 1.9 A Current Limit: 4 A On Resistance - Max: 200 mOhms On Time - Max: 400 us Off Time - Max: 0 us Operating Supply Voltage: 5 V to 34 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 150 C Datenblatt: BTS712.pdf

€ 2 .22*
