7...

TelCom Semiconductor

710CE

Beschreibung: Single Voltage Comparator Input Bias Current Max. (A)=40u t(resp) (S)=40n V(io) Max. (V)=6.5m I(io) Max. (A)=7.5u Com Mode Inp Range (VICR)=10 Volt Gain Min=60 Strobe Inp (Y/N)=No P(D) Max.(W) Power Dissipation=150m Nom. Supp (V)=18

€ 8 .00*

TDK Semiconductor

73K222U-IH

Beschreibung: Single-chip modem

€ 6 .00*

TDK Semiconductor

73K322L-IH

Beschreibung: CCITT V.23, V.22, V.21 Single-Chip Modem Datenblatt: 73K322L.pdf

€ 10 .00*

NXP

74AHC74D,118

D-Type Edge Triggered Flip-Flop Polarity: Inverting/Non-Inverting Input Type: Single-Ended Output Type: Differential Propagation Delay Time: 3.7 ns at 5 V High Level Output Current: - 8 mA Low Level Output Current: 8 mA Supply Voltage - Min: 2 V Supply Voltage - Max: 5.5 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: 74AHC74.pdf

€ 0 .07*

Philips

74AHCT1G125GV

Beschreibung: Bus buffer/line driver; 3-state Datenblatt: 74AHCT1G125GV.pdf

€ 0 .04*

ON-Semiconductor

74AUP1T97L6X

Logic Gates 2 Input, Low Power Config Logic Function: Configurable Number of Gates: 1 Gate Logic Family: AUP Number of Input Lines: 3 Input Package/Case: Micropak-6 Number of Output Lines: 1 Output Low Level Output Current: 4 mA High Level Output Current: - 4 mA Propagation Delay Time: 2.7 ns Supply Voltage - Min: 2.3 V Supply Voltage - Max: 3.6 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C

€ 0 .25*

NXP

74HC109D

Dual JK Flip-Flop with Set and Reset Datenblatt: 74HC109.pdf

€ 0 .16*

NXP

74HC4515N

Encoders, Decoders, Multiplexers & Demultiplexers w/ Input Latch Logic Family: HC Number of Bits: 4 bit Number of Input Lines: 4 Input Number of Output Lines: 16 Output Propagation Delay Time: 23 ns Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C

€ 7 .00*

NXP

74HC595D,118

Beschreibung: Shift Register Single 8-Bit Serial to Serial/Parallel Datenblatt: 74HC595.pdf

€ 0 .10*

NXP

74HCT00D,653

Quad 2-Input NAND Gate The 74HC00; 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of Vcc Logic Type: NAND Gate No. of Inputs: 2 Supply Voltage Min: 4.5V Supply Voltage Max: 5.5V Operating Temperature Min: -40°C Operating Temperature Max: +125°C Datenblatt: 74HCT00.pdf

€ 0 .30*

NXP

74HCT02D

Quad 2-input NOR gate Logic Function: NOR Logic Family: HCT Number of Gates: 4 Gate Number of Input Lines: 2 Input Number of Output Lines: 1 Output High Level Output Current: - 6 mA Low Level Output Current: 6 mA Propagation Delay Time: 19 ns Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: 74HCT02.pdf

€ 0 .13*

NXP

74HCT139PW

Dual 2-to-4 line decoder/demultiplexer Number of Input Lines: 2 Input Number of Output Lines: 4 Output Propagation Delay Time: 50 ns Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V Supply Current - Max: 0.008 mA High Level Output Current: - 6 mA Low Level Output Current: 6 mA Operating Supply Voltage: 5 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: 74HCT139.pdf

€ 0 .08*

NXP

74HCT3G07DP-Q100

Beschreibung: Triple Buffer With Open-Drain Outputs Datenblatt: 74HCT3G07.pdf

€ 0 .10*

NXP

74HCT4066D,118

Analogue Switch ICs Number of Channels: 4 Channel Configuration: 4 x SPST On Resistance - Max: 128 Ohms Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V On Time - Max: 36 ns Off Time - Max: 53 ns Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: 74HCT4066.pdf

€ 0 .13*

NXP

74HCT573D

Octal D-type transparent latch; 3-state - 74HCT573: TTL level - Inputs and outputs on opposite sides of package allowing easy interface with-microprocessors - Useful as input or output port for microprocessors and microcomputers - 3-state non-inverting outputs for bus-oriented applications - Common 3-state output enable input - Multiple package options - Complies with JEDEC standard no. 7 A - ESD protection: - HBM JESD22-A114F exceeds 2 000 V - MM JESD22-A115-A exceeds 200 V - Specified from -40C to +85C and from +40C to +125C Datenblatt: 74HCT573.pdf

€ 0 .12*

Fairchild

74LCX16841MTD

Beschreibung: Low Voltage 20-Bit Transparent Latch with 5V Tolerant Inputs and Outputs Datenblatt: 74LCX16841.pdf

€ 0 .80*

NXP

74LV125PW

Buffers & Line Drivers Number of Input Lines: 4 Input Number of Output Lines: 4 Output Polarity: Non-Inverting High Level Output Current: - 16 mA Low Level Output Current: 16 mA Quiescent Current: 160 uA Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: 74LV125.pdf

€ 0 .15*

NXP

74LVC1G02GW

Single 2-input NOR gate Number of Gates: 1 Gate Number of Input Lines: 2 Input Number of Output Lines: 1 Output High Level Output Current: - 32 mA Low Level Output Current: 32 mA Propagation Delay Time: 2.1 ns Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.65 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C Datenblatt: 74LVC1G02.pdf

€ 0 .11*

NXP

74LVC1G11GM

Logic Gates Number of Gates: 1 Gate Number of Input Lines: 3 Input Number of Output Lines: 1 Output High Level Output Current: - 32 mA Low Level Output Current: 32 mA Propagation Delay Time: 3 ns Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.65 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C

€ 0 .06*

NXP

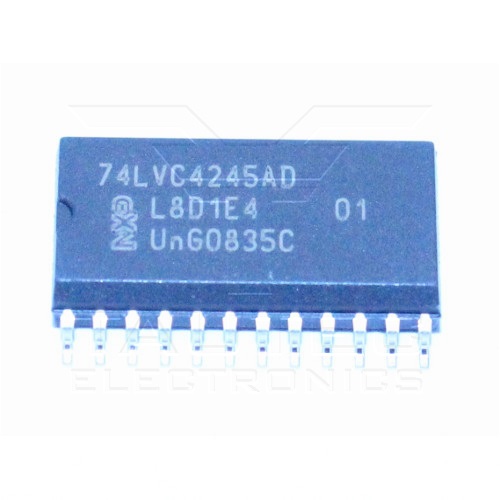

74LVC4245AD

Octal Dual Supply Translating Transceiver; 3-State Datenblatt: 74LVC4245A.pdf

€ 0 .39*

NXP

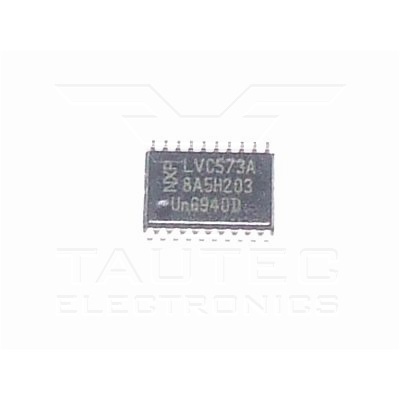

74LVC573APW

Beschreibung: Octal D-Type Transparent Latch With 5 V Tolerant Inputs/Outputs; 3-State Datenblatt: 74LVC573A.pdf

€ 0 .10*

Philips

74LVC573APW

Beschreibung: Octal D-Type Transparent Latch With 5 V Tolerant Inputs/Outputs; 3-State Datenblatt: 74LVC573A.pdf

€ 0 .10*

Fairchild

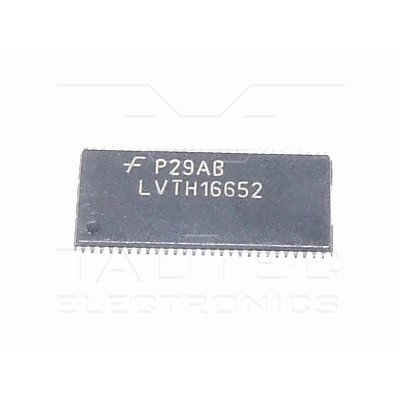

74LVTH16652MTDX

Low Voltage 16-Bit Transceiver/register With 3-STATE Outputs Datenblatt: 74LVTH16652.pdf

€ 0 .78*

Intersil

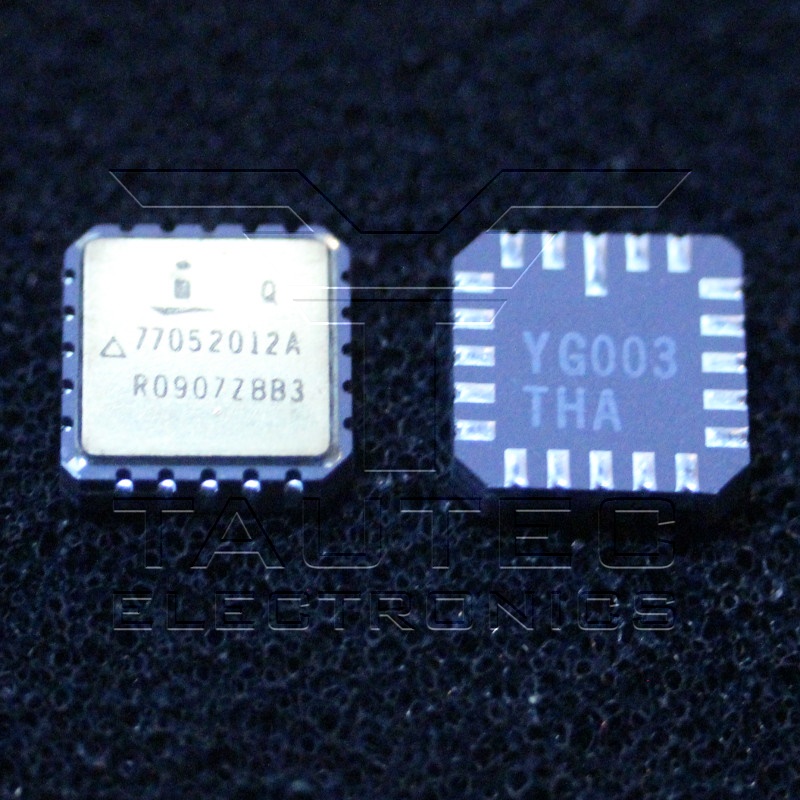

77052012A

Multiplexer Switch ICs SMD VERSION HI4-0508 Number of Channels: 1 Channel Low ON Resistance: 180 Ohm Wide Analog Signal Range: +-15V Access Time: 250ns Maximum Power Supply: 44V On Time - Max: 1 us Off Time - Max: 1.5 us Operating Supply Voltage: 15 V Supply Current - Max: +/- 12 mA Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Datenblatt: 77052012A.pdf

€ 82 .45*

Teridian Semiconductor Corp.

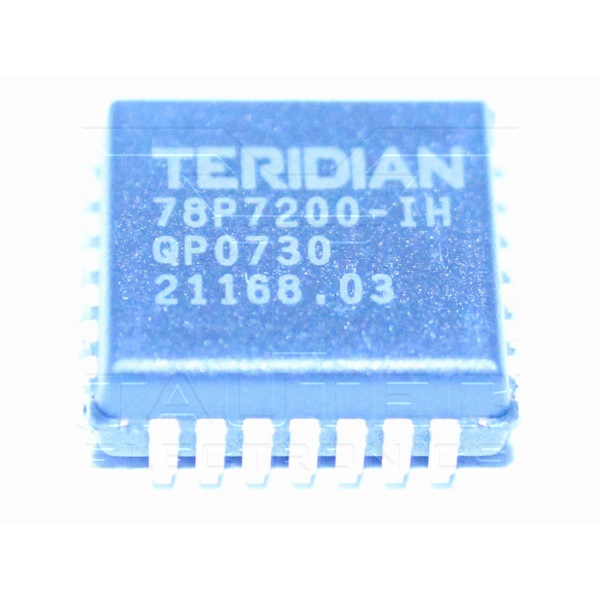

78P7200-IH

E3/DS3/STS-1 Line Interface Unit Voltage - Supply: 4.75V - 5.25V Current - Supply: 155mA Power: 930 mW Operating Temperature: -40°C - 85°C Datenblatt: 78P7200.pdf

€ 3 .50*

ST-Microelectronics

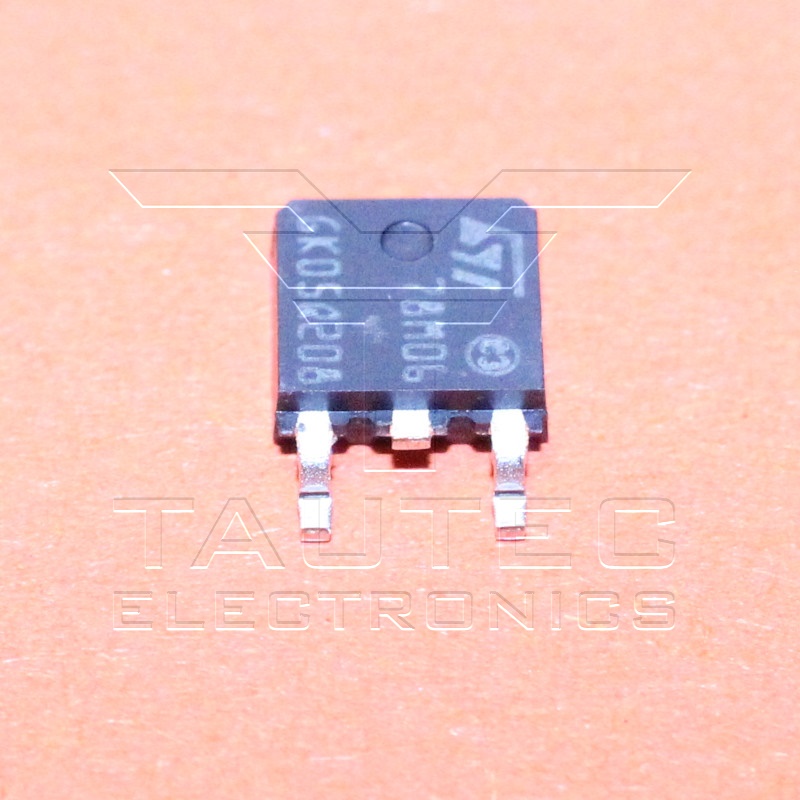

L78M06CDT

Linear Voltage Regulators 6.0V 0.5A Number of Outputs: 1 Output Polarity: Positive Output Voltage: 6 V Output Current: 500 mA Load Regulation: 120 mV Line Regulation: 100 mV Output Type: Fixed Minimum Operating Temperature: 0 C Maximum Operating Temperature: + 150 C Datenblatt: L78M06CDT.pdf

€ 0 .17*

TDK Semiconductor

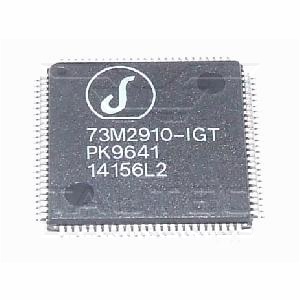

TSC73M2910-IGT

High PerformanceMicrocontroller - 8032 compatible instruction set - 34 MHz Operation @ 4.5 – 5.5V - 44 MHz Operation @ 4.75 – 5.5V (2910A) - 22 MHz Operation @ 4.5 – 5.5V - HDLC support logic (Packetizer, 16 and 32 CRC, zero ID) - 24 pins for user programmable I/O ports - 8 pins programmable chip select logic or I/O for memory mapped peripheral eliminating glue logic - 3 external interrupt sources (programmable polarity) - 16 dedicated latched address pins - Multiplexed data/address bus - Instruction cycle time identical to 8032 - Buffered oscillator (or OSC/2) output pin - 1.8432 MHz UART clock available - Bank select circuitry to support up to 128k of external program memory Datenblatt: 73M2910.pdf

€ 3 .20*
