TS...
Knitter Switch

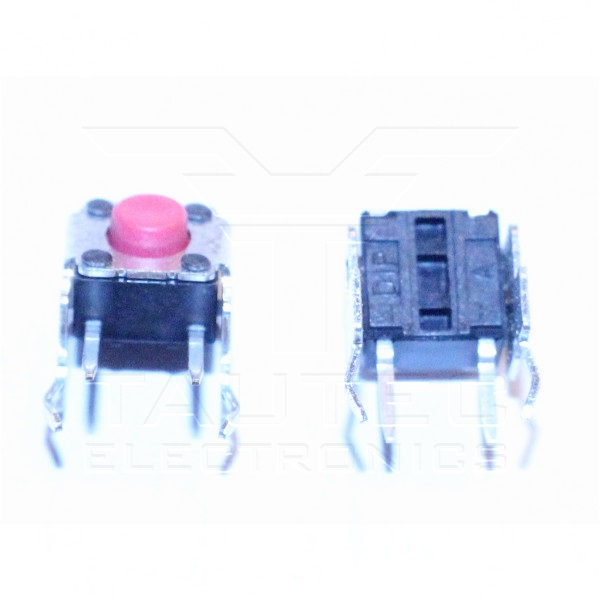

TS 62R
Tact Switches for SMT
Body Orientation: Right Angle
Terminal Type: PC Pins
Product Length (mm): 8.5(mm)
Product Height (mm): 7.2(mm)
Actuator Length (mm): 1.3(mm)
Product Depth (mm): 7.85(mm)
Operating Force: 2.6(N)
Voltage Rating (VDC): 12(V)
Actuator Style: Round Button
Actuator Color: Red
Current Rating (Max): 0.05(A)
Ground Terminal: Yes
Operating Temp Range: -40C to 85C
Contact Plating: Silver Clad
Contact Material: Phosphor Bronze
Pole Throw Configuration: SPST
Datenblatt:
TS62.pdf
€
0
.30*
Knitter Switch

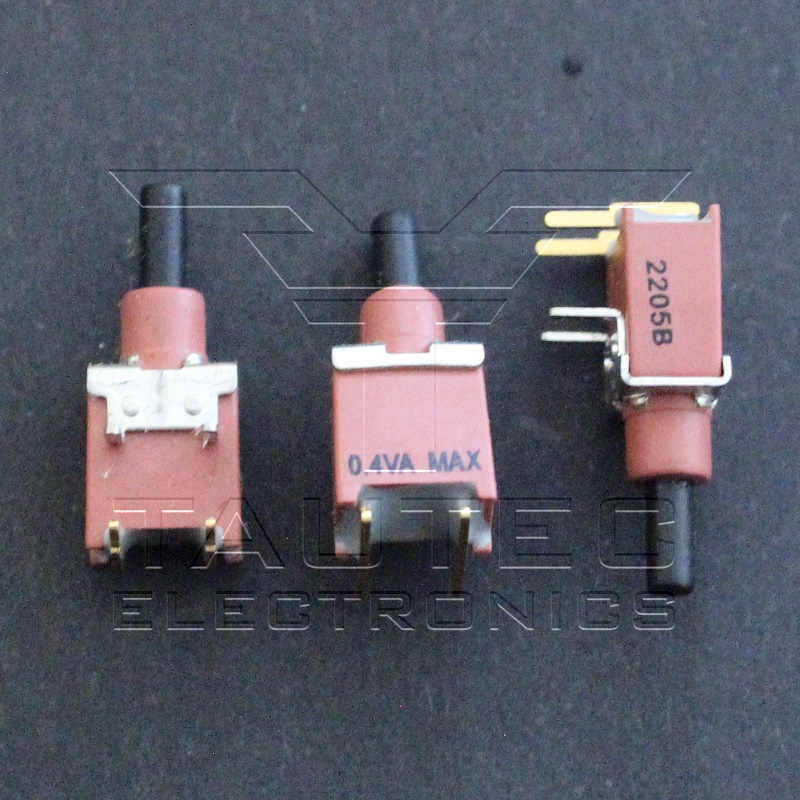

TSP1C-RA
Switch Push Button
Mounting Style: Through Hole
Contact Material: Copper Alloy
Pole Throw Configuration: SPST
Operating Temp Range: -30C to 85C
Product Height (mm): 6.2(mm)
Product Length (mm): 8.13(mm)
Contact Plating: Gold/Nickel
Actuator Style: Round Plunger
Mechanical Life: 50000
Terminal Type: PC Pins
Type: Momentary Contact
Actuator Material: Polyamide
Switch Configuration: OFF Mom
AC Voltage Rating (Max): 20V
DC Voltage Rating (Max): 20V
Datenblatt:
TSP1CRA.pdf
€
0
.70*
