Cherry Semiconductor

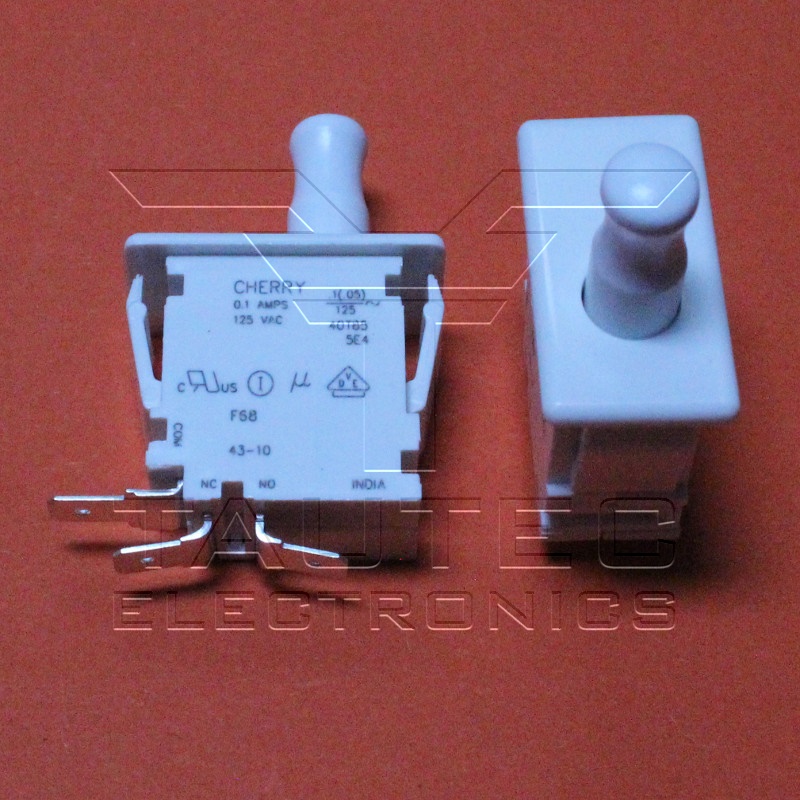

F68-30A
Panel Mount Switches
Number of positions: 2
Contacts configuration: SPDT
Contacts rating: 0.1A / 125VAC
Leads: 4,8x0,8mm connectors
Switching method: OFF-(ON)
Operating temperature: -40...85C
Mounting: on panel
Mounting hole diameter: 28.3mmx14mm
Body dimensions: 24.6x13.7x25.6mm
Body material: Polyester
Contact plating: gold-plated
Switches features: pulled actuator
Number of terminals: 3
Conform to the norm: UL, VDE
Stable positions number: 1
Datenblatt:
F68-30A.pdf
€
3
.00*
Cherry Semiconductor

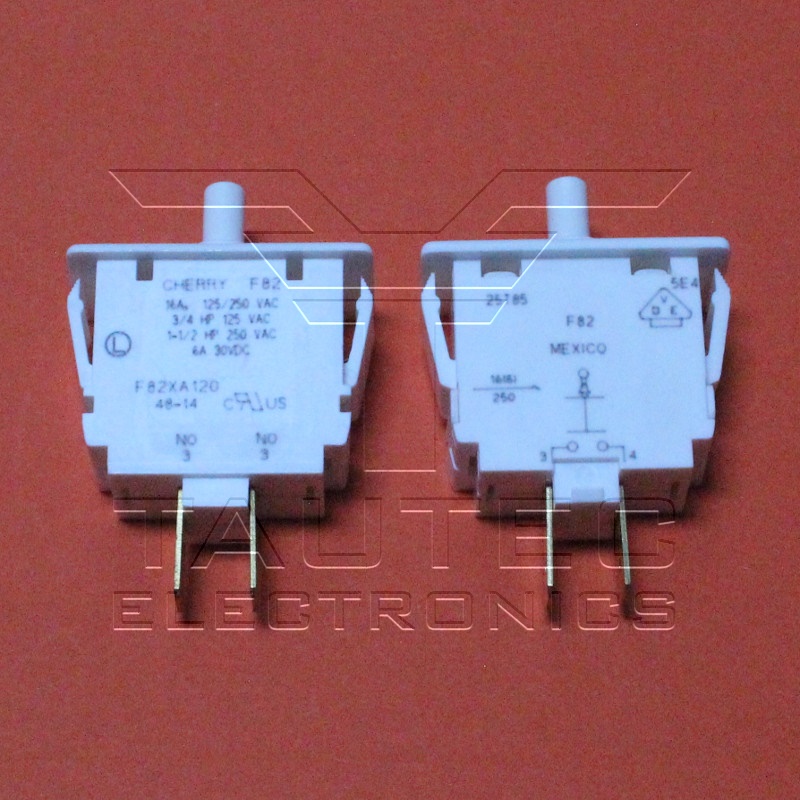

F82X-A120
Switch Push Button
Mounting: Panel Mount
Pole Throw Configuration: SPST
Actuator Style: Round Plunger
Switch Configuration: N.C.
Maximum Current Rating: 16 at 250VAC
Maximum Power Rating: 1118.55VA
Electrical Life (Cycles): 50000
Termination Style: Quick Connect
Number of Terminals: 2
Terminal Length: 10.16mm
Body Orientation: Straight
Minimum Operating Temperature: -25C
Maximum Operating Temperature: 85C
Body Length: 39.88mm
Body Depth: 17.4mm
Body Height: 29.41mm
Product Length: 39.88mm
Product Depth: 17.4 mm
Datenblatt:
F82X-A120.pdf
€
7
.10*
