SCHALTER

ZF Electronics Systems

0F7930A0

Pushbutton Switches Illuminated: Non-Illuminated Contact Form: DPDT Mounting Style: Panel Mount Switch Function: ON - OFF Actuator: Round Current Rating: 10 A Voltage Rating AC: 250 VAC Termination Style: Quick Connect Contact Plating: Silver Actuator Style: Round Datenblatt: 0F7930A0.pdf

€ 3 .50*

TE Tyco Electronics

1-1437561-1

Ick washer Diameter: 0.19 Thread Finish: zinc Product key: 11098 Datenblatt: 1-1437561-1.pdf

€ 0 .22*

TE Tyco Electronics

1-1437561-2

Hex Nut Diameter: 48mm Thread Finish: bright nickel Product key: 11106-AG Datenblatt: 1-1437561-2.pdf

€ 0 .22*

RAFI

1.14.100.502/0000

Tactile Switches Mounting Style: Through Hole Mounting Direction: Straight Stem Height: 1.33 mm Actuator: Round Switch Function: OFF - (ON) Operating Force: 3.3 N Current Rating: 100 mA Voltage Rating DC: 35 VDC Power Rating: 1 W Ground Terminal: No Contact Form: SPST Termination Style: Solder Pin Color: Clear Datenblatt: 1.14.100.502/0000.pdf

€ 1 .28*

SCHURTER AG

1301.9319.24

Short Travel Switch 6X6, 9.5MM Circuit: SPST-NO Switch Function: Off-Mom Contact Rating at Voltage: 0.05A at 12VDC Actuator Type: Standard Mounting Type: Surface Mount Actuator Height off PCB, Vertical: 9.50mm Actuator Orientation: Top Actuated Termination Style: Gull Wing Outline: 6.00mm x 6.00mm Illumination: Non-Illuminated Datenblatt: 1301931924.pdf

€ 0 .22*

Marquardt Mechatronik GmbH

1808.1102

Single Rocker Switches to 12 (4) A 250 V AC Contact Form: SPDT Switch Function: ON - OFF - ON Current Rating: 6 A Voltage Rating AC: 125 VAC Termination Style: Quick Connect Actuator: Rocker Mounting Style: Panel Series: 1800 Brand: Marquardt Switches Maximum Operating Temperature: + 100 C Minimum Operating Temperature: - 20 C Datenblatt: 18081102.pdf

€ 1 .00*

APEM

25139NAH

Slide Switches SPDT 4A 125V Contact Form: SPDT Switch Function: ON - OFF - ON Current Rating: 4 A Voltage Rating AC: 125 VAC Termination Style: PC Pin Actuator: Flush Mounting Style: Through Hole Contact Plating: Silver Mounting Angle: Straight Travel: 4 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: 25139NAH.pdf

€ 1 .19*

APEM

25546NA-6X693UL

Professional Slide Switches ECCN: EAR99 Mounting: PCB Through Hole Body Orientation: Right Angle Actuator Style: Side Slide Pole Throw Configuration: DPDT Switch Configuration: On On Contact Rating: 4A at 125VAC Operating Temperature: -40 to 85 C Termination Style: PC Pins Dimension: 14.1 x 18.5 x 8.1 mm Datenblatt: 25546NA-6X693UL.pdf

€ 2 .75*

Honeywell

2DM1

Snap Action Switches Contact Form: DPDT Switch Function: OFF - (ON) Actuator: Plunger Current Rating: 10 A Voltage Rating AC: 277 VAC Operating Force: 6.67N Mechanical Life (Cycles): 1000000 Termination Style: Quick Connect Contact Material: Silver Housing Material: Polyester Illuminated: Non-Illuminated Mounting Style: Chassis Mount Maximum Operating Temperature:+ 82 C Minimum Operating Temperature: - 37 C Product Length: 39.88mm Product Depth: 17.27mm Product Height: 60.45mm Datenblatt: 2DM1.pdf

€ 7 .07*

SEL

48434 41002

Knopf-Drehschalter SB20F - Schalterhöhe einschließlich Rastwerk nur 9,2mm bei 20mm Durchmesser. - Horizontaler Einbau durch Zusatzleiterplatte möglich. - Wahlweise mit oder ohne Anschläge. - Steckbare Anschläge nachrüstbar - Anzahl der Ebenen max. 1Ebene - Anschlüsse Lötstifte - Schaltleistung max. 5 VA/W - Schaltspannung max. 150 VV - Schaltstrom max. 130mA - Ruhestrom max. bei ?u 20°C ?3A - Prüfspannung bei 50 Hz 1000 V Datenblatt: SB20.pdf

€ 2 .50*

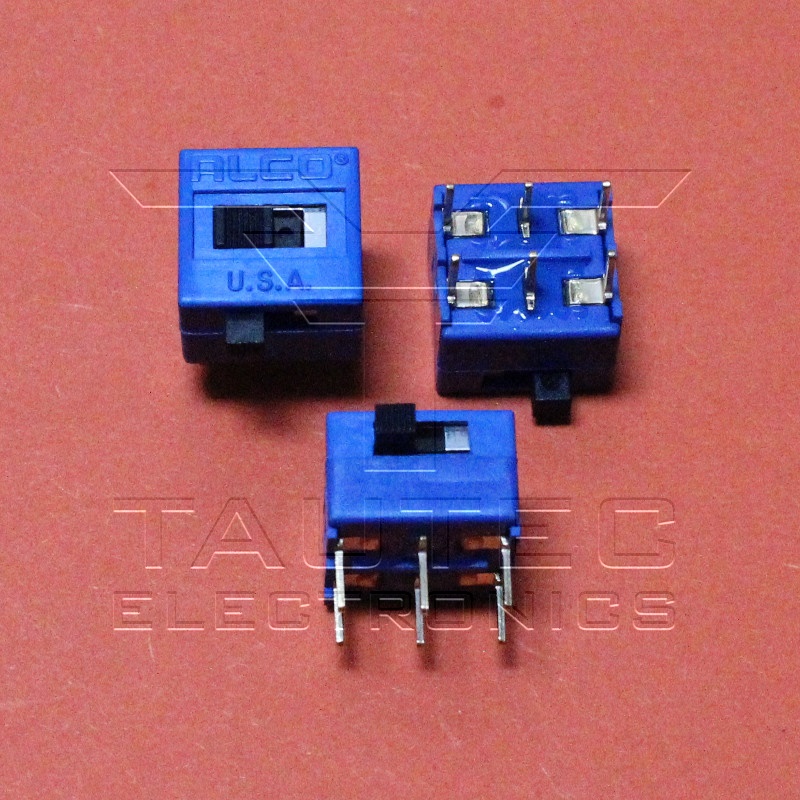

TE Tyco Electronics

5-1437580-0

Slide Switch Switch Configuration: ON None ON Contact Plating: Gold/Nickel Mounting Style: Through Hole Contact Material: Copper Alloy Actuator Style: Side Slide Pole Throw Configuration: DPDT Product Length: 11.94mm Product Height: 8mm Terminal Type: PC Pins Voltage Rating (Max): 20VAC / 20VDC Operating Temp Range: -20C to 65C Datenblatt: MSSA211NGRA.pdf

Varianten ab 6,00 €*

€ 6 .20*

C K Components

7101MD9ABE

Miniature Toggle Switch Group Rating:

€ 0 .72*

Omron

A22-10

Switch Contact Blocks Type: SPST-NO For Use With: Pushbutton Switches Designed for: A22 Series Mounting Style: Panel Termination Style: Screw Illumination: Non-Illuminated Current Rating (Max): 10A Voltage Rating (Max): 440VAC Datenblatt: A22-10.pdf

€ 8 .15*

Omron

A6DR-0100

Space-saving, Subminiature DIP Switch Offers Both Sealed and Unsealed Construction Number of Positions: 10 Position Switch Type: DIP Actuator: Switch Terminal Pitch: 2.54 mm Termination Style: Solder Pin Current Rating: 100 mA Contact Material: Beryllium Copper Mounting Style: PCB Mount Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 20 C Datenblatt: A6DR.pdf

€ 3 .00*

Omron

A6RS-102RF-P

Surface-mounting Rotary DIP Switches Datenblatt: A6RS.pdf

€ 0 .70*

Omron

A6T-8101

Beschreibung: DIP Switch With Through Hole Terminals Datenblatt: A6T.pdf

€ 1 .00*

Omron

A9S21-0012

Slide Switch Contact Configuration: DPDT Switch Operation: On-On Switch Mounting: Through Hole Contact Current Max: 50mA Contact Voltage AC Max: 60V Contact Voltage DC Max: 60V Orientation: Horizontal Datenblatt: A9S21-0012.pdf

€ 3 .22*

Panasonic

ABV121061

Snap Action Switch Circuit: SPDT Switch: Function On-Mom Current: Rating: 3AAC Voltage Rating: 250VAC Actuator Type: Round (Pin Plunger) Mounting Type: Chassis Mount Ingress Protection IP50: Dust Protected Operating Temperature: -40C to 85C Datenblatt: ABV121061.pdf

€ 2 .00*

Panasonic

AH1462619

Basic / Snap Action Switches Contact Form: SPDT Switch Function: ON - (OFF), OFF - (ON) Actuator: Level Current Rating: 3 A Voltage Rating AC: 125 VAC Voltage Rating DC: 30 VDC Operating Force: 0.49 N Termination Style: Solder Pin Mounting Style: PCB Mount IP Rating: IP40 Datenblatt: AH1462619.pdf

€ 1 .00*

Knitter Switch

ATE1G

Switch Toggle Contact Plating: Gold/Nickel Contact Material: Phosphor Bronze Current Rating (Max): 0.05A Mounting Style: PC MOUNT Actuator Style: ROUND LEVER Pole Throw Configuration: SPDT Product Length: 9.5mm Product Depth: 5mm Product Height: 18mm Actuator Length: 6.1mm AC Voltage Rating (Max): 48VAC DC Voltage Rating (Max): 48VDC Switch Configuration: Mom OFF Mom Insulation Resistance: 1000(Mohm) Body Orientation: Straight Operating Temp Range: -20C to 85C Contact Resistance Max : 50mOhm Termination Style: PC Pins Number of Terminals: 3 Bushing Type: UNTHREADED Dielectric Strength: 500VRMS Electrical Life: 40000 Thread Size: NOT REQUIRED Mechanical Life: 60000 Datenblatt: ATE1G.pdf

€ 1 .77*

Omron

B3F-1050

Tactile Switches Mounting Style: Through Hole Mounting Direction: Straight Stem Height: 7.3 mm Actuator: Rectangular Operating Force: 1 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: No Contact Form: SPST Termination Style: Solder Pin Length: 6 mm Width: 6 mm Height: 3.4 mm Datenblatt: B3F-1050.pdf

€ 0 .08*

Omron

B3F-4055

Tactile Switches Mounting Style: Through Hole Mounting Direction: Straight Termination Style: Solder Pin Actuator: Rectangular Contact Form: SPST Operating Force: 2.5 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: Yes Length: 12 mm Width: 12 mm Height: 3.5 mm Stem Height: 7.3 mm Datenblatt: B3F-4055.pdf

€ 0 .21*

Omron

B3FS-1000P

Tactile Switch, Surface-mounting Switches Ideal for High-density Mounting Mounting Style: SMD/SMT Mounting Direction: Straight Actuator: Round Termination Style: Leadless Contact Form: SPST Operating Force: 1 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: No Stem Height: 3.1 mm Length: 6.3 mm Height: 2.6 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 20 C Datenblatt: B3FS.pdf

€ 0 .23*

Omron

B3FS-4002P

€ 0 .13*

Omron

B3S-1000

Tactile Switches Contact Form: SPST Termination Style: Leadless Actuator: Round Operating Force: 1.6 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: No Stem Height: 4.3 mm Length: 6.6 mm Width: 6 mm Height: 3.65 mm Contact Plating: Silver Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 20 C Datenblatt: B3S-1000.pdf

€ 0 .07*

Omron

B3U-1000P

Tactile Switches Operating Force: 1.5 N Current Rating: 50 mA Voltage Rating DC: 12 VDC Ground Terminal: No Contact Form: SPST Termination Style: Leadless Length: 2.5 mm Width: 3 mm Height: 1.2 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Datenblatt: B3U-1000P.pdf

€ 0 .68*

Omron

B3U-3100PM-B

Beschreibung: Ultra-small Tactile Switch (SMT) Datenblatt: B3U.pdf

€ 0 .25*

Omron

B3W-1002

Tactile Switches Mounting: Through Hole Pole Throw Configuration: SPST Actuator Style: Flat Round Button Switch Configuration: N.O. Maximum Current Rating: 0.05A Dielectric Strength: 500VAC Minimum Insulation Resistance: 100 MOhm Maximum Contact Resistance: 100mOhm Mechanical Life: 300000 Cycles Operating Force: 2.26N Actuator Color: Yellow Actuator Length: 0.9 mm Number of Rows: 2 Row Spacing: 6.5 mm Datenblatt: B3W.pdf

€ 0 .39*

Omron

B3W-4000

Sealed Tactile Switch Mounting Style: Through Hole Mounting Direction: Straight Stem Height: 4.3 mm Actuator: Round Operating Force: 2 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: Yes Contact Form: SPST Termination Style: Solder Pin Length: 12 mm Width: 12 mm Height: 4.3 mm Series: B3W Contact Plating: Silver Operating Temperature Range: - 25 C to + 70 C Datenblatt: B3W.pdf

€ 0 .40*

Omron

B3W-4055

Tactile Switches Mounting Style: Through Hole Mounting Direction: Straight Stem Height: 7.3 mm Actuator: Rectangular Operating Force: 3.4 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: No Contact Form: SPST Termination Style: Solder Pin Length: 12 mm Width: 12 mm Height: 3.55 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Datenblatt: B3W-4055.pdf

€ 0 .27*

Omron

D3DC-3N

Door Detection Switch Contact Form: SPST Switch Function: OFF - (ON) Actuator: Plunger Current Rating: 100 mA Voltage Rating DC: 30 VDC Operating Force: 102 gf Termination Style: Quick Connect Mounting Style: Chassis Mount Datenblatt: D3DC-3N.pdf

€ 1 .10*

ZF Electronics Systems

D413-VGAQ

Miniature Snap Switch Switching current 0.1A at 250 VAC Ambient temperature -40 to max. +150C Cadmium-free contact materials Halogen-free plastic material (T85 versions) Degree of protection IP40 Datenblatt: D413.pdf

€ 1 .05*

ZF Electronics Systems

DB1F-A1BA

Subminiature Snap Switch Precision switch with high repeat accuracy Configuration: SPDT NC Contact Rating: 5 A, 125/250 VAC; 1A/48V Terminal Type: Solder, short Actuator Type: Radius, no auxiliary actuator Datenblatt: DB1F-A1BA.pdf

€ 0 .91*

Cherry Semiconductor

DB3EB1LB

Snap Action Switch Actuator Material: Plastic, Polybutylene Contact Material: Gold, Silver Depth: 6.45mm Housing Material: Polyethylene Length: 20mm Max Current Rating: 100mA Max Operating Temperature: 85°C Min Operating Temperature: -40°C Max Voltage Rating (AC): 250V Max Voltage Rating (DC): 250V Operating Force: 0.59N Termination: Quick Connect Throw Configuration: SPST Datenblatt: DB3EB1LB.pdf

€ 0 .52*

ZF Electronics Systems

DB5E-A1BA

Switch Snap Action Mounting: Screw Mount Switch Configuration: N.O. Actuator Style: Pin Plunger Pole Throw Configuration: SPST Maximum Current Rating: 1 at 250VAC / 250VDC Electrical Life (Cycles): 50000 Mechanical Life (Cycles): 15000000 Maximum Movement Differential: 0.1mm Termination Style: Solder Base Material: Polyethylene Terephthalate|CuZn Body Orientation: Straight Minimum Operating Temperature: -40C Maximum Operating Temperature: 85C Body Length: 20mm Body Depth: 6.5mm Body Height: 9.65mm Operating Force: 0.69N Datenblatt: DB5E-A1BA.pdf

€ 0 .75*

ZF Electronics Systems

DC3A-K8AA

DC Subminiature Switch PCB terminal 0.6 x 0.5 mm RH side Contact configuration: S.P.S.T. - N.O. Switching voltage (max.): 250 VAC Contact Rating: 6A Ambient temperature: – 40 to + 85C/120C Auxiliary actuator: Without lever Electrical life: 6,000 Mechanical life: 100000 Datenblatt: DC3A-K8AA.pdf

€ 0 .75*

Cherry Semiconductor

DG23C3LA

Subminiatue Switch - Small dimensions, just 0.504? x 0.228? x 0.256? (12.8mm x 5.8mm x 6.5mm) - Depending on model, contact rating is suitable for low switched currents and voltages for light-current applications with loads of up to 3 amps 125VAC - with auxiliary actuator - Pin`s on the left side Datenblatt: DG23C3LA.pdf

€ 1 .15*

Multicomp

DM1-01P-30-3

Microswitch, Subminiature, Short Lever, SPDT, Solder, 1 A, 5 VDC Microswitch Type: Subminiature Microswitch Actuator: Short Lever Contact Configuration: SPDT Switch Terminals: Solder Contact Current Max: 1A Contact Voltage DC Nom: 5VDC Product Range: DM1 Series Contact Voltage AC Nom: 125VAC Operating Force Max: 30gf

€ 0 .20*

Knitter Switch

DRS3116

Hexadecimal Inverse Subminiature Rotary Coded Switches Datenblatt: DRS3116.pdf

€ 1 .50*

DIPTRONICS MANUFACTURING INC

DTSM-32N-V-T/R

SMT Tacticle Switch - Compact size 3.5x6mm -Sharp click feeling -Choice of SMT terminal type APPLICATION: -Audio, OA equipment -Instrumentation -Industrial Datenblatt: DTSM-3.pdf

€ 0 .25*
