NEC Tokin
UB2-24NU
Miniature Signal Relays
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 1 A
Maximum Switching Current: 1 A
Switching Voltage: 250VAC, 220VDC - Max
Coil Type: Non-Latching
Coil Voltage: 24 VDC
Coil Current: 9,6mA
Coil Resistance: 2.504 kOhms
Power Consumption: 140 mW
Contact Termination: Solder Pin
Contact Material: Silver Alloy (Ag) with Gold Plating
Operating Temperature: -40°C to 85°C
Datenblatt:
UB2-24NU.pdf
€
1
.53*
NEC Tokin
UB2-4.5NU
Low Signal Relays
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 1 A
Maximum Switching Current: 1 A
Maximum AC Voltage Rating: 250 VAC
Maximum DC Voltage Rating: 220 VDC
Maximum Power Rating: 30/37.5 W|VA
Coil Voltage: 4.5 VDC
Coil Resistance: 1.44 kOhms
Coil Type: Non-Latching
Power Consumption: 140 mW
Contact Material: Silver (Ag) with Gold Plating
Datenblatt:
UB2-4.5NU.pdf
€
2
.40*

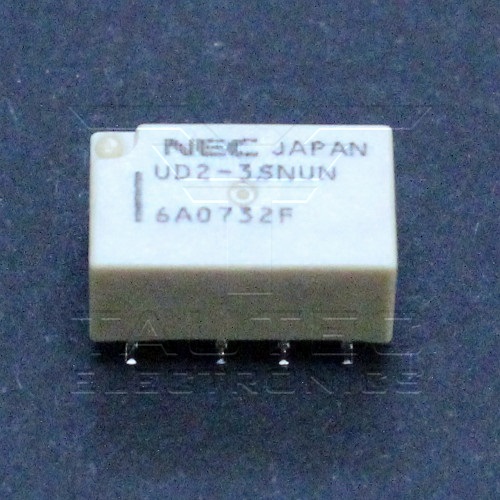

NEC
UD2-3SNUN-L
3V Miniature Signal Relay
Coil Voltage: 3VDC
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 1A
Switching Voltage: 250VAC, 220VDC - Max
Coil Current: 33,3mA
Coil Resistance: 90 Ohms
Coil Type: Latching, Single Coil
Termination Style: Gull Wing
Contact Material: Silver Alloy, Gold Alloy
Datenblatt:
UD2 NEC.pdf
€
0
.38*
NEC Tokin
UD2-5NEN
Signal Relays
Coil Voltage: 5VDC
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 1A
Switching Voltage: 250VAC, 220VDC - Max
Coil Current: 20mA
Coil Type: Non Latching
Coil Resistance: 250 Ohms
Contact Material: Silver Alloy, Gold Alloy
Termination Style: Gull Wing
Operating Temperature: -40°C to 85°C
Datenblatt:
UD2-5NEN.pdf
€
1
.00*
