RY...

Takamisawa

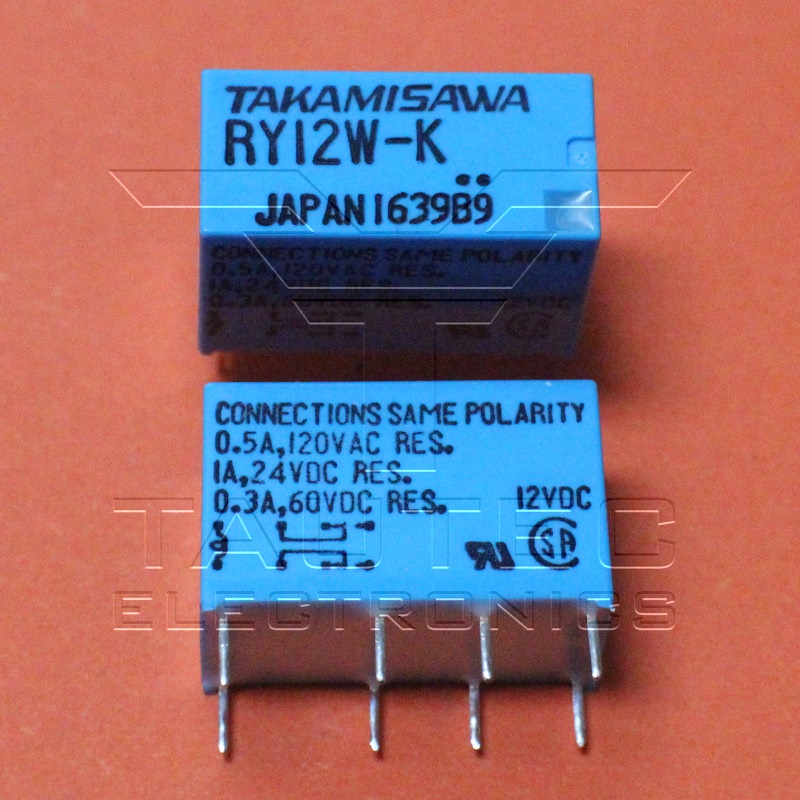

RY-12W-K

Low Signal Relays Coil Voltage: 12 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 500 mA Contact Current Rating: 1 A Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 150 mW Contact Termination: Solder Pin Series: RY Coil Resistance: 960 Ohms Contact Material: Silver Palladium (AgPd) with Gold Plating Mounting Style: Through Hole

€ 0 .75*

Fujitsu

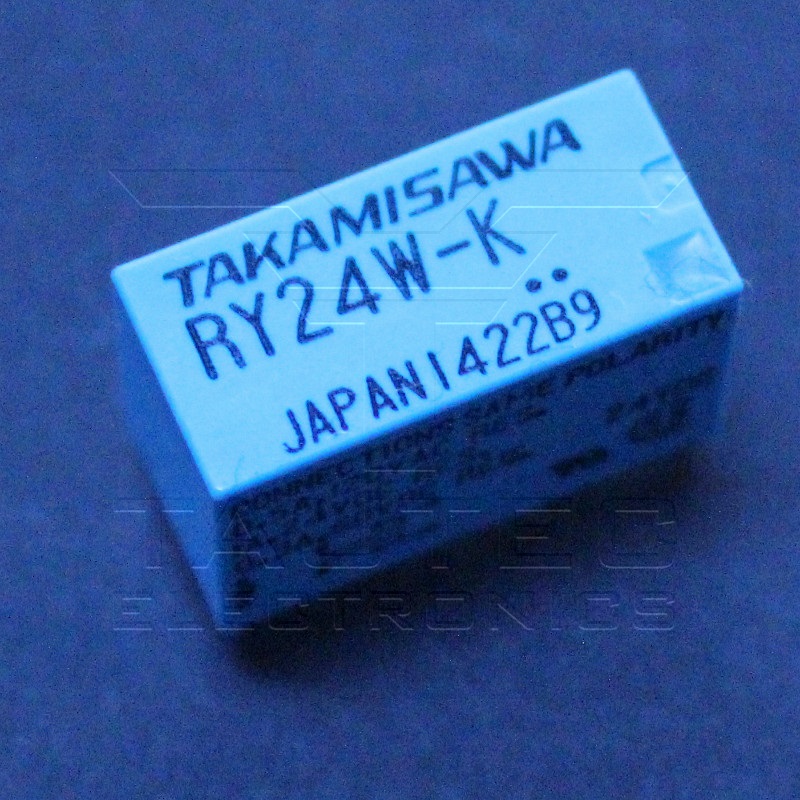

RY-24W-K-UL

24VDC 2 Pole Miniature PCB Relay Operating Temp Range: -30C to 90C Pick-up Voltage (Max): 16.8VDC Pin Count: 8 Contact Form: 2 Form C Dropout Volt (Min): 1.2VDC Rad Hardened: No Contact Arrangement: DPDT Termination Style: Solder Pin Mounting Style: Through Hole Type: Signal Relay Seal: Sealed Contact Material: AgPd/Au Voltage Rating (VAC): 120(V) Voltage Rating (VDC): 60(V) Coil Resistance: 2880(ohm) Package / Case: DIP Product Length (mm): 20.2(mm) Product Depth (mm): 9.8(mm) Product Height (mm): 12.5(mm) Coil Voltage DC: 24V Coil Current: 8.33(mA) Contact Current Rating: 1(A) Relay Construction: Non-Latching Operate Time: 6(ms) Coil Suppression Diode: No Maximum Power Rating: 24W/60VA Dropout Volt: 1.2VDC Datenblatt: RY-24W-K.pdf

€ 1 .62*

Takamisawa

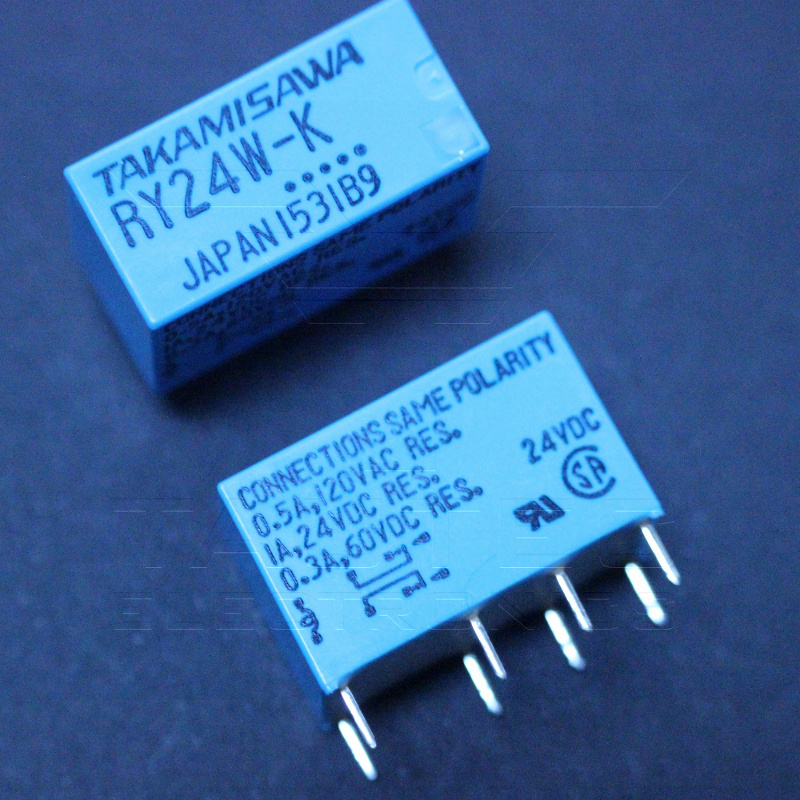

RY-24W-K-UL

€ 1 .60*

Fujitsu

RY-24W-K-UL

€ 1 .44*

Takamisawa

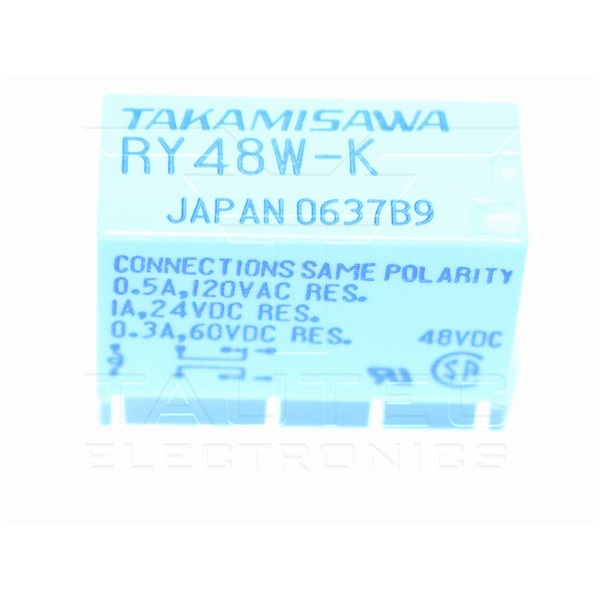

RY-48W-K

48VDC 2 Pole Miniature PCB Relay Coil Voltage: 48 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 300 mW Contact Termination: Solder Pin Series: RY Coil Resistance: 7.68 kOhms Contact Material: Silver Palladium (AgPd) with Gold Plating Datenblatt: RY48W-K.pdf

€ 1 .40*

Takamisawa

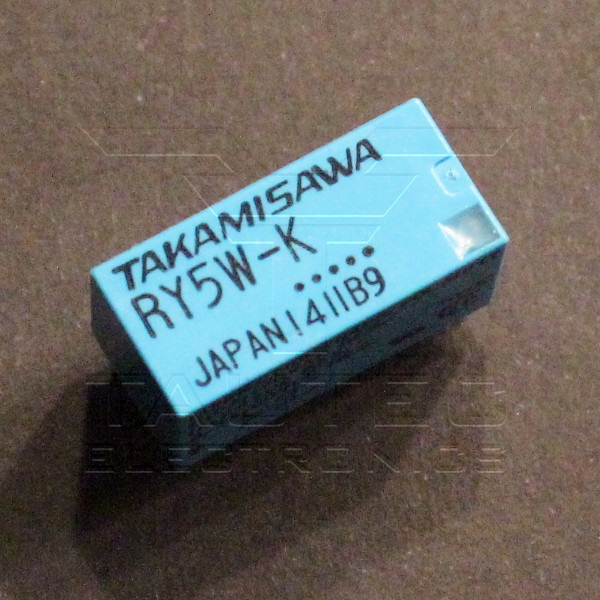

RY-5W-K

5VDC 2 Pole Miniature PCB Relay Coil Voltage: 5 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 150 mW Contact Termination: Solder Pin Series: RY Coil Resistance: 165 Ohms Contact Material: Silver Palladium (AgPd) with Gold Plating Datenblatt: RY5W-K.pdf

€ 0 .75*

Takamisawa

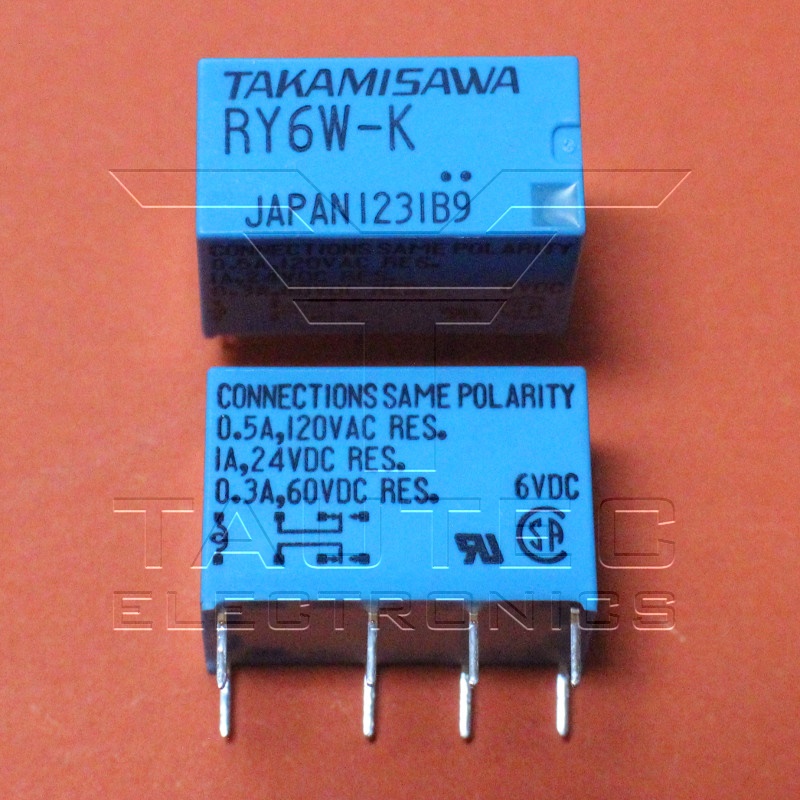

RY-6W-K

Low Signal Relays Coil Voltage: 6 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 150 mW Contact Termination: Solder Pin Series: RY Coil Resistance: 240 Ohms Contact Material: Silver Palladium (AgPd) with Gold Plating Mounting Style: Through Hole Datenblatt: RY-24W-K.pdf

€ 1 .10*

Schrack

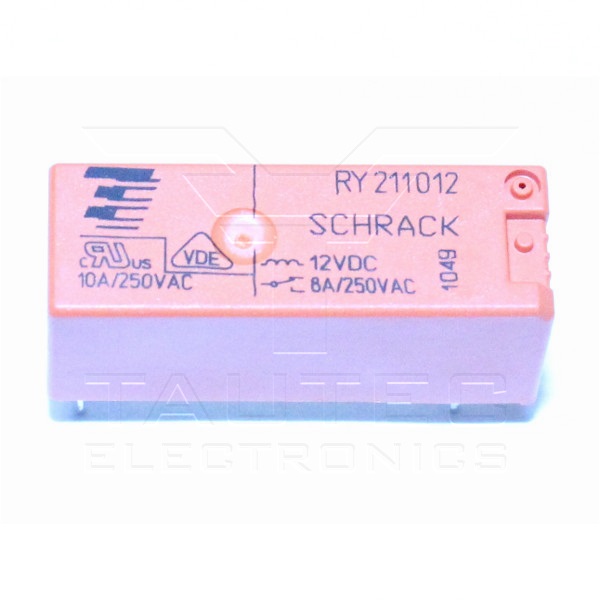

RY211012

Beschreibung: Power PCB Relay 12VDC Tyco-Artikelnummer: 4-1393224-6 Datenblatt: RY211012.pdf

€ 1 .50*

Takamisawa

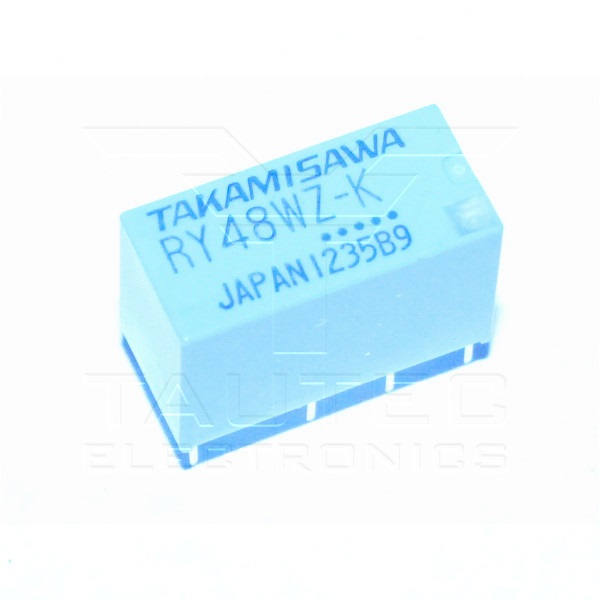

RY48WZ-K

Beschreibung: 48VDC 2 Pole Miniature PCB Relay Datenblatt: RY SERIES.pdf

€ 1 .10*

TE Tyco Electronics

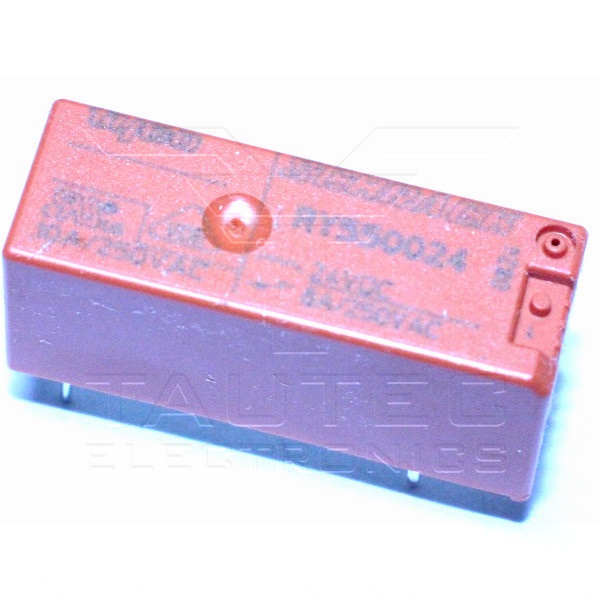

RY550024

24VDC Miniature Power PCB Relay Relay Contact Form: 1 Form B (SPST-NC) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Type: Non-Latching Coil Resistance: 2.35 kOhms Contact Material: Silver Cadmium Oxide (AgCdO) Length: 28.5 mm Width: 10.1 mm Height: 12.3 mm Power Consumption: 220 mW Datenblatt: RY550024.pdf

€ 1 .70*
