N...

Aromat

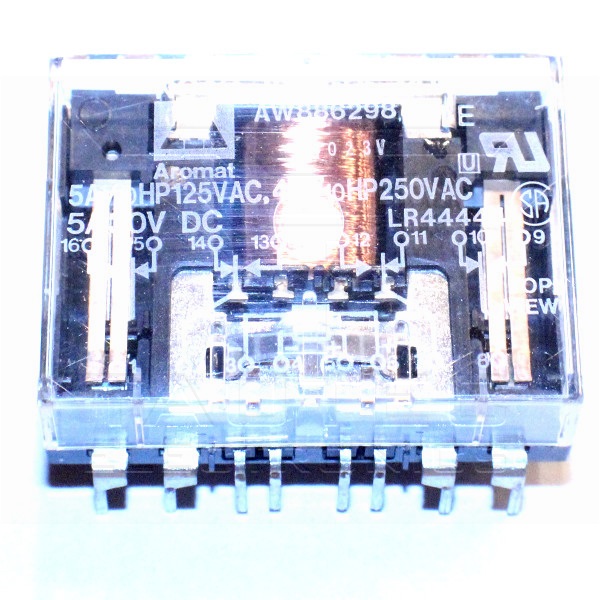

NC4D-JPL2-DC24V

Beschreibung: PCB Relay For 3VDC Voltage, Polarized, Monostable Datenblatt: NC RELAYS.pdf

€ 8 .00*

SDS-Relais AG

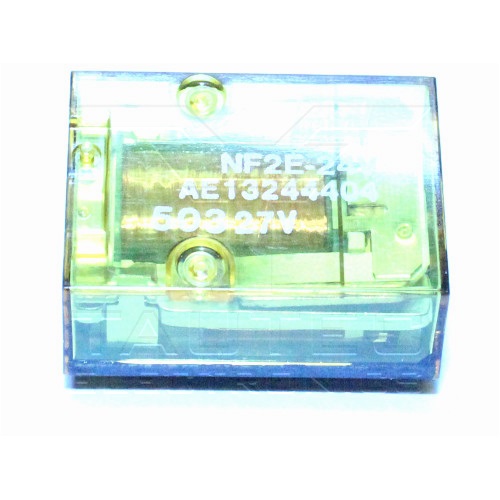

NF2E-24V

NF Relay 24VDC - Arrangement 2 Form C, 4 Form C - Initial contact resistance: 25 m? - Contact material: Gold-clad silver - Max. switching power: 60 W 100 VA - Max. switching voltage: 220 V AC, DC - Max. switching current: 2 A - Max. operating speed: 50 cps - Initial insulation resistance*1 1,000 M? at 500 V DC NF relays are widely acceptable in applications where small size and high sensitivity are required. Such applications include: Electronic equipment, Household applications. Alarm systems, Off ce machines, Communication equipment, Measuring equipment, Remote control systems, General control circuits, Machine tools, Industrial machinery, etc. Datenblatt: NF4EB.pdf

€ 15 .00*

Matsushita

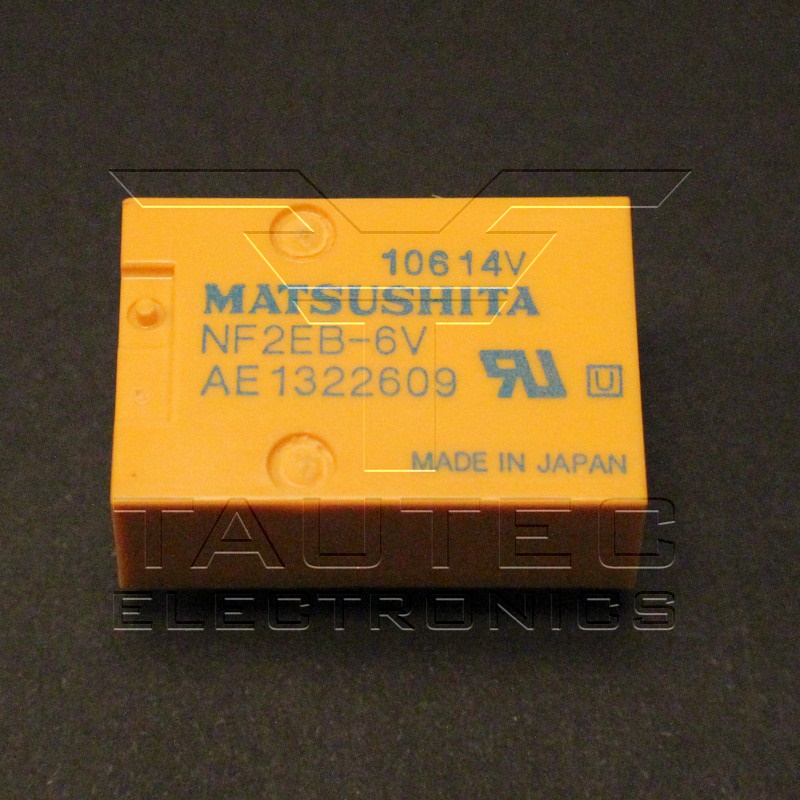

NF2EB-6V

NF Relais 6VDC Datenblatt: NF4EB.pdf

€ 54 .00*

SDS-Relais AG

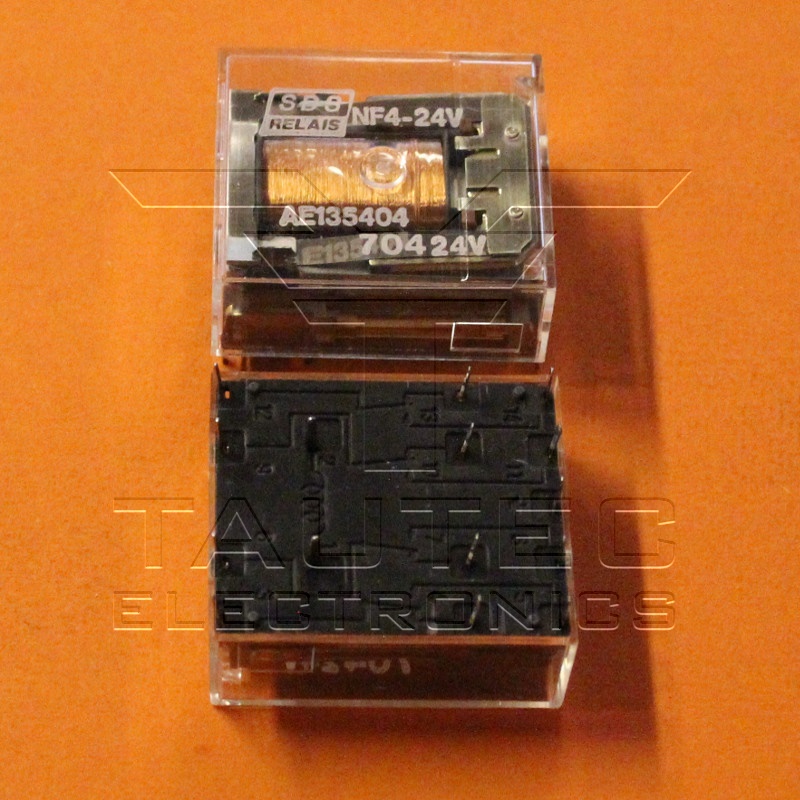

NF4-24V

NF Relay 24VDC Coil Voltage: 24 VDC Relay Contact Form: 4 Form C Contact Current Rating: 2 A Max. switching voltage: 220V Max. switching power: 60W / 100VA Coil Type: Non-Latching Coil Resistance: 1200 Ohms Contact material: Gold-clad silver Datenblatt: NF4EB.pdf

€ 18 .00*

Aromat

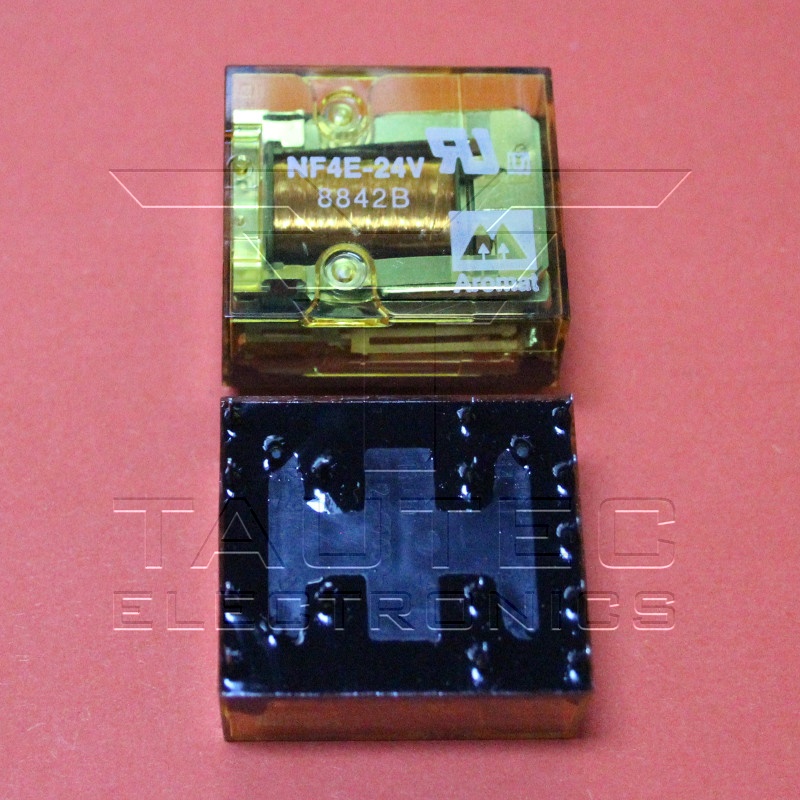

NF4E-24V AROMAT

€ 15 .00*

Aromat

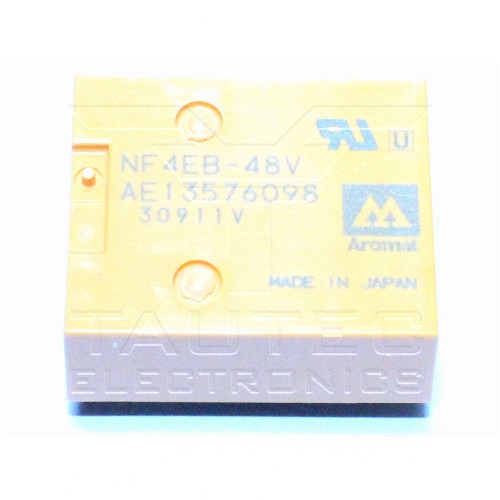

NF4EB-48V

NF Relais 48VDC / 550mW Datenblatt: NF4EB.pdf

€ 5 .00*

NF Forward GmbH

NF8100E12

POWER RELAY 1NO THT 12V 10A Coil voltage: 12 V Coil type: MONOSTABLE Normaly open: 1 Coil resistance: 400 Ohm P(N) coil: 360 mW No. of coils: 1 Switch current: 10 A Switch volt[AC]: 250 V[AC] Contact materia: AgSnO Length: 19 mm Width: 15.5 mm Height: 15 mm Technology: THT Approvals: UL/CUL Datenblatt: NF8100E12.pdf

€ 0 .50*

Takamisawa

NY12W-K

12VDC Power Relay 1 Pole / 5A Product: Slim Form Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 5 A Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.2 kOhms Power Consumption: 120 mW Contact Material: Silver (Ag) Height: 17.5 mm Length: 20.1 mm Width: 5 mm Datenblatt: NY12W-K.pdf

€ 1 .00*
