LZ...
Takamisawa

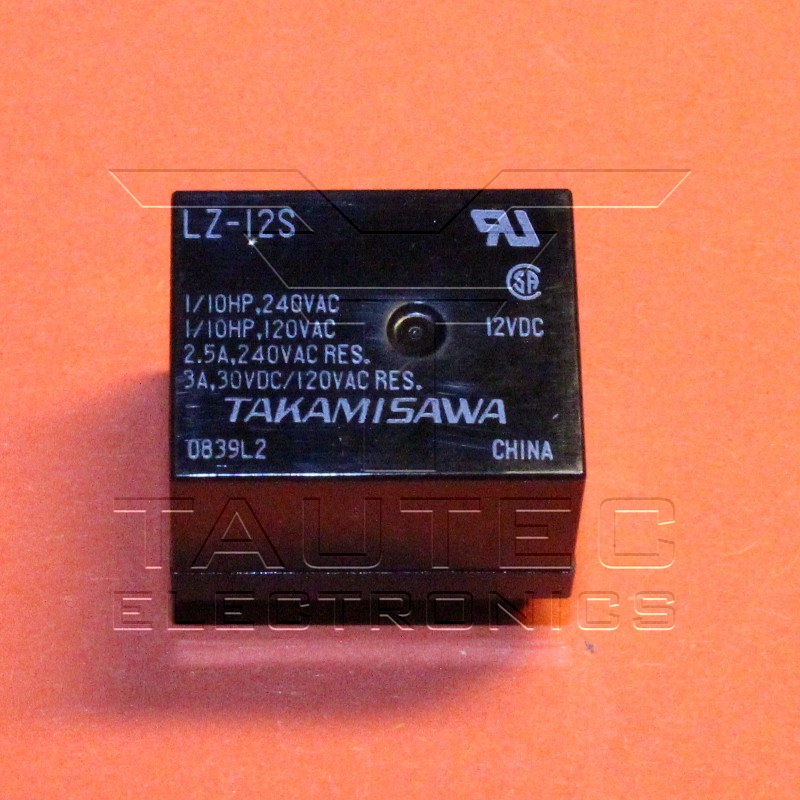

LZ-12S-US
General Purpose Relays
Type: High Sensitivity
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Current Rating: 3 A
Contact Termination: Solder Pin
Mounting Style: Through Hole
Switching Voltage: 250 VAC, 150 VDC
Coil Voltage: 12 VDC
Coil Termination: Solder Pin
Coil Type: Non-Latching
Coil Resistance: 440 Ohms
Power Consumption: 330 mW
Contact Material: Silver Nickel (AgNi)
Datenblatt:
LZ-12S-UC.pdf
€
2
.05*
