Clare, Inc.

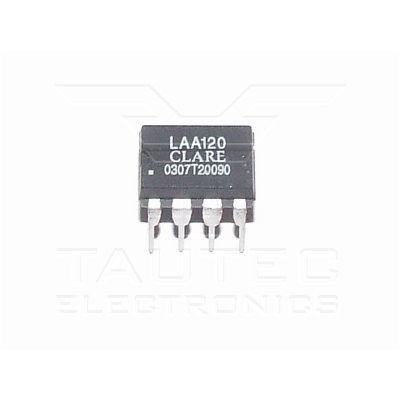

LAA120

Dual Single-Pole, Normally Open OptoMOS® Relay Load Current Rating: 170 mA Load Voltage Rating: 250 VDC Relay Contact Form: 2 Form A (DPST-NO) Control Voltage Range: 900 mVDC to 1.4 VDC Output Type: MOSFET Input Current: 50 mA Pd - Power Dissipation: 800 mW Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: LAA120.pdf

€ 5 .00*

Clare, Inc.

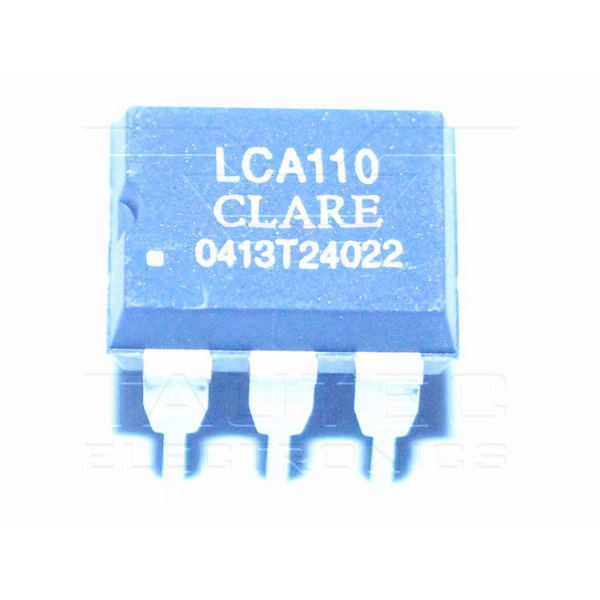

LCA110

Single Pole OptoMOS® Relay Control Voltage Range: 0.9 VDC to 1.4 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 120 mA Input Current: 50 mA Output Type: MOSFET Pd - Power Dissipation: 800 mW Datenblatt: LCA110.pdf

€ 1 .00*

IXYS

LCA110STR

PCB Solid State Relays Control Voltage Range: 0.9 VDC to 1.4 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 120 mA Input Current: 50 mA Output Type: MOSFET Height: 3.302 mm Length: 8.382 mm Width: 6.35 mm Pd - Power Dissipation: 800 mW Datenblatt: LCA110.pdf

€ 0 .52*

IXYS

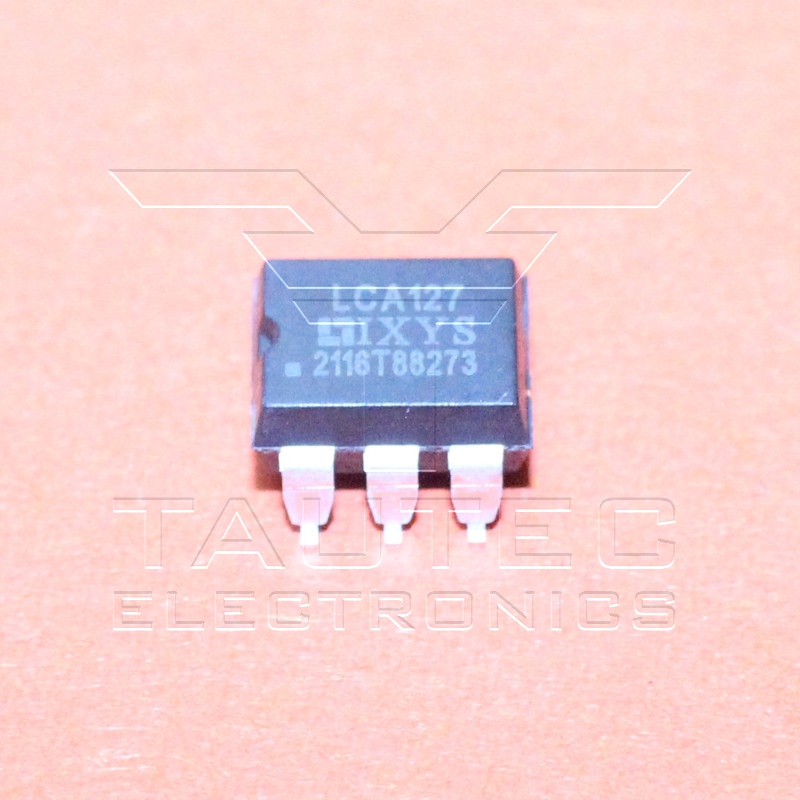

LCA127STR

PCB Mount Single-Pole Relay 250V 200mA Mounting Style: PCB Mount Load Current Rating: 200 mA Load Voltage Rating: 250 VDC Relay Contact Form: 1 Form A (SPST-NO) Control Voltage Range: 900 mVDC to 1.4 VDC Output Type: MOSFET Input Current: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: LCA127.pdf

€ 1 .75*

Infineon

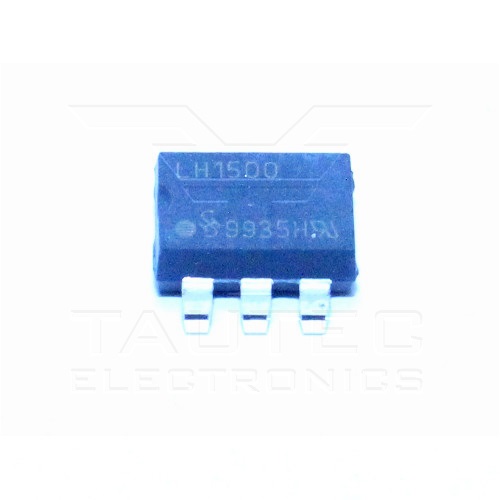

LH1500AAB

Form A Solid-State Relay - Load Voltage Rating: 350 VDC - Load Current Rating: 150 mA - Input Current: 50 mA - Contact Form: SPST (1 Form A) - Output Type: MOSFET Datenblatt: LH1500AAB.pdf

€ 0 .65*

Vishay

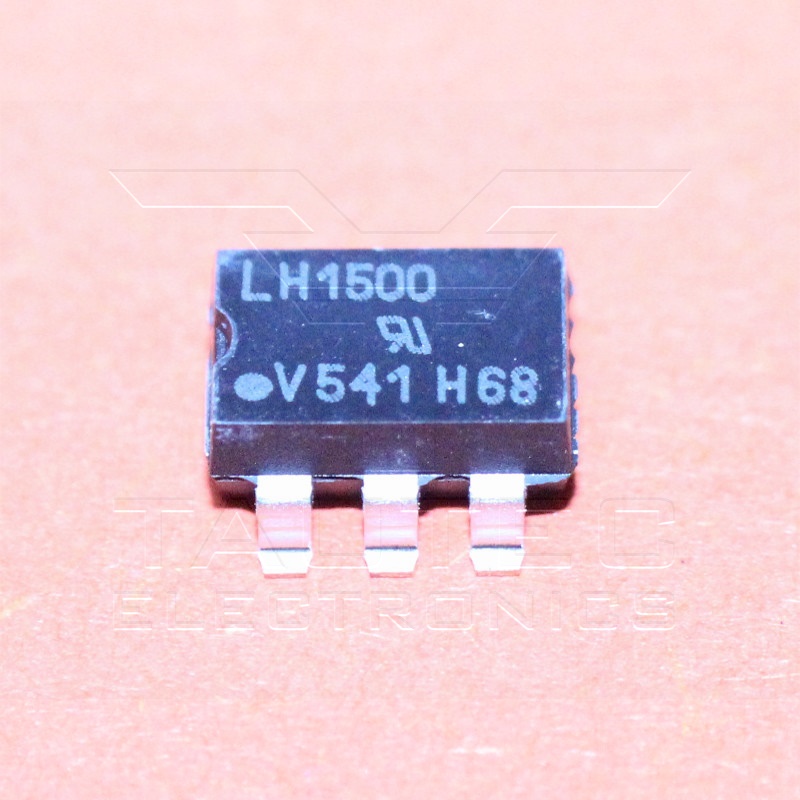

LH1500AAB RoHs

Form A Solid-State Relay • Isolation test voltage 5300 V RMS • Load voltage 350 V • Load current 150 mA • High surge capability • Clean bounce free switching • Low power consumption • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC APPLICATIONS • General telecom switching • Instrumentation • Industrial controls Datenblatt: LH1500AAB.pdf

€ 0 .75*

Vishay

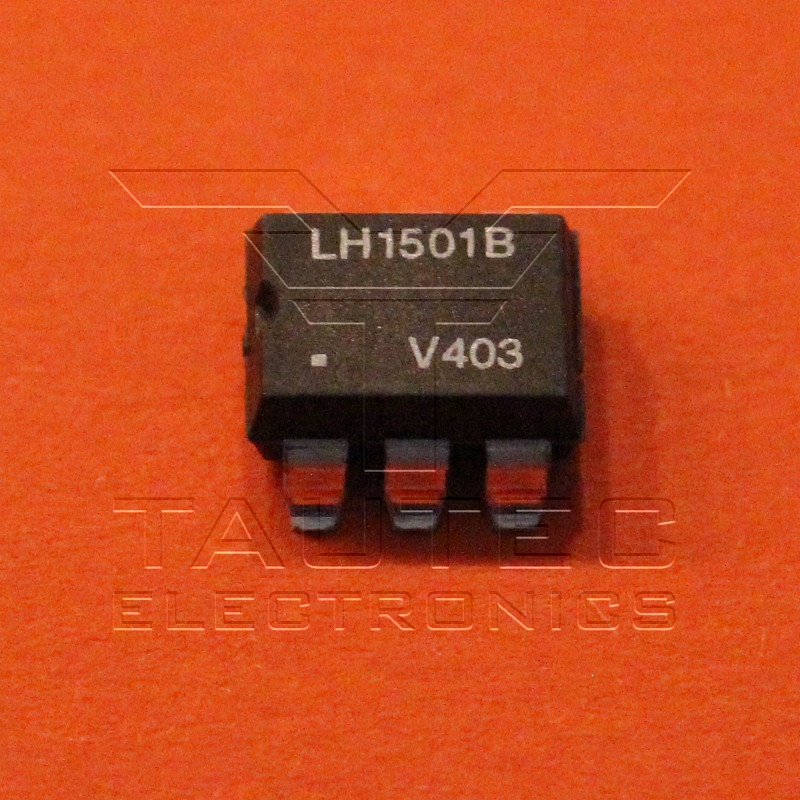

LH1501BAB

1 Form B Solid State Relay - Isolation test voltage 3750 VRMS - Typical RON 20 Ohm - Load voltage 350 V - Clean bounce free switching - Low power consumption - Load Voltage Rating: 350 VDC - Load Current Rating: 300 mA - Input Current: 50 mA - Contact Form: SPST (1 Form B) Datenblatt: LH1501.pdf

€ 1 .75*

Vishay

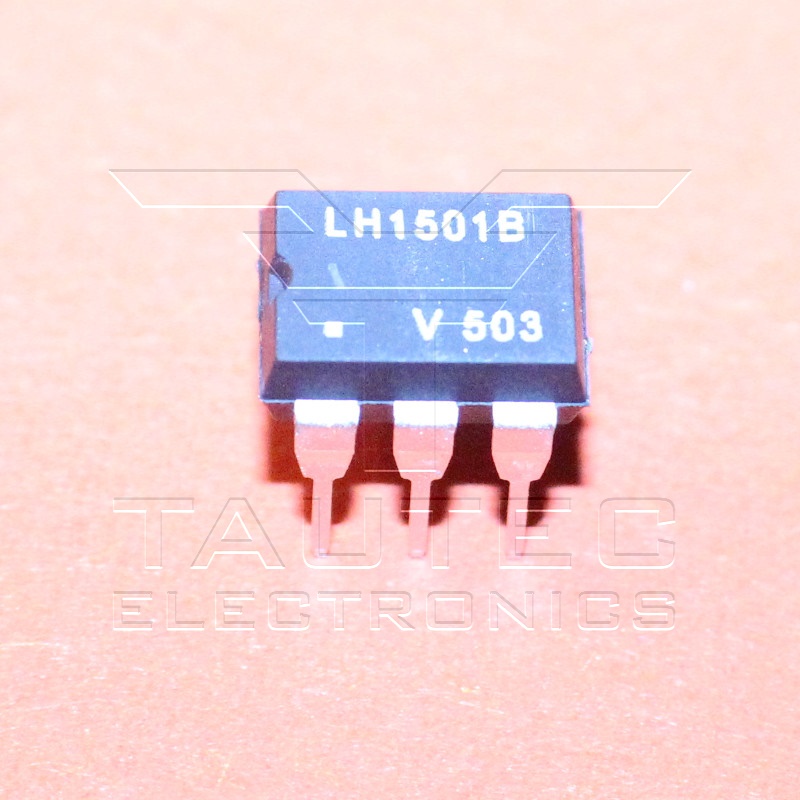

LH1501BT

€ 1 .25*

Vishay

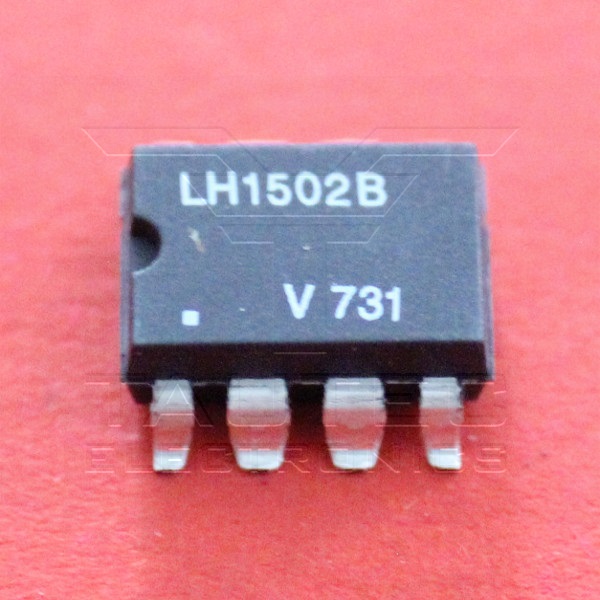

LH1502BAC

Dual 1 Form A/B, C Solid State Relay Datenblatt: LH1502.pdf

€ 1 .10*

Infineon

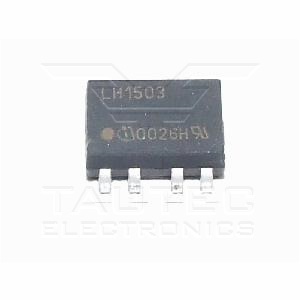

LH1503AAC

2 Form A Solid State Relay Load Current Rating: 110 mA Load Voltage Rating: 350 VDC Relay Contact Form: 2 Form A (DPST-NO) Output Type: MOSFET Input Current: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: LH1503AAC.pdf

€ 1 .04*

Vishay

LH1503AB

Solid State Relay - Current Limit Protection - Isolation Test Voltage 5300 VRMS - Typical RON 20 Ohm - Load Voltage 350 V - Load Current 110 mA - High Surge Capability - Clean Bounce Free Switching - Low Power Consumption - High Reliability Monolithic Receptor Datenblatt: LH1503AB.pdf

€ 2 .38*

Vishay

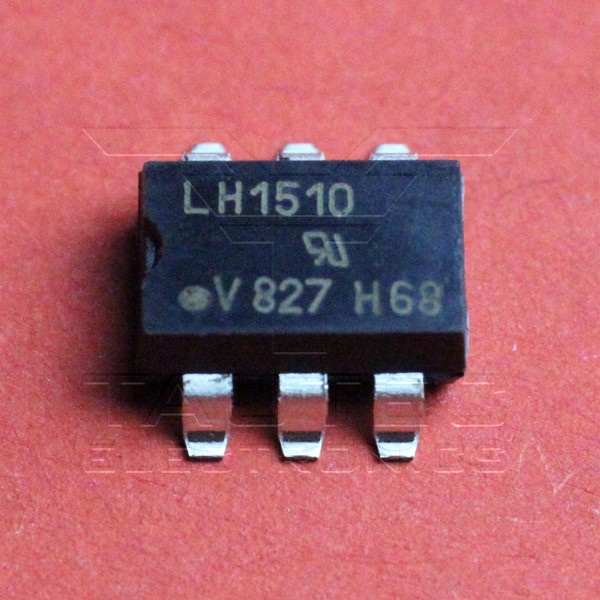

LH1510AAB

1 Form A Solid-State Relay The LH1510 is an SPST normally open switch (1 form A) that can replace electromechanical relays in many applications. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuity, and MOSFET switches. - Isolation test voltage 5300 VRMS - Current limit protection built in - High reliability monolithic output die - Low power consumption - Clean bounce free switching - High surge capability - Surface mountable - Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC Datenblatt: LH1510AAB.pdf

€ 0 .90*

Vishay

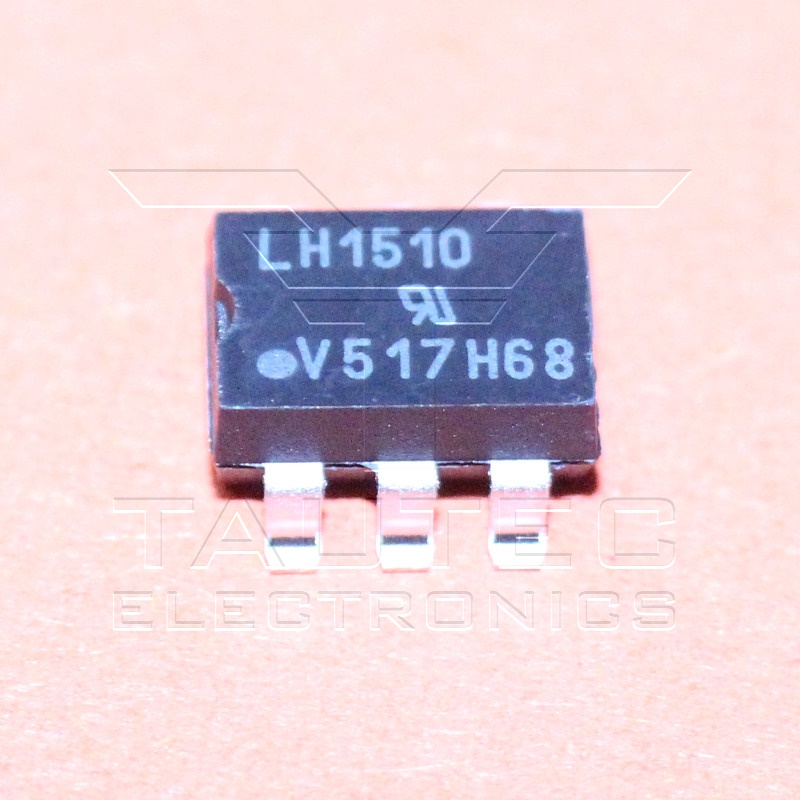

LH1510AABTR

Solid-State Relay Mounting Style:SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 200 VDC Load Current Rating: 350 mA Input Current: 50 mA Output Type: MOSFET Input to Output Isolation Method: Optocoupler Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1510AAB.pdf

€ 1 .00*

Vishay

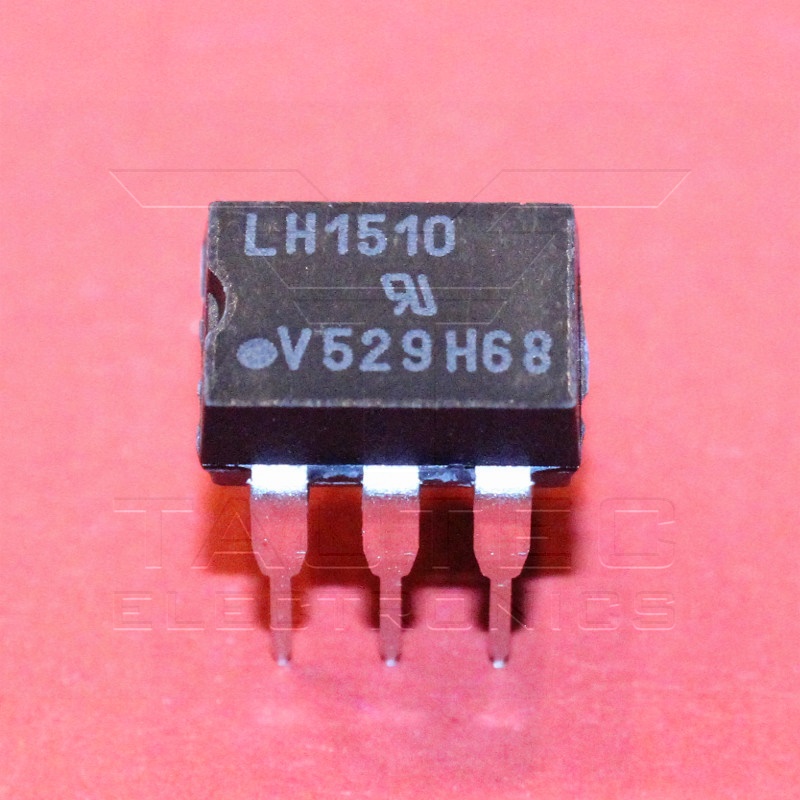

LH1510AT

Solid-State Relay Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 200 VDC Load Current Rating: 350 mA Input Current: 50 mA Output Type: MOSFET Height: 3.81 mm Length: 8.7 mm Width: 6.5 mm Input to Output Isolation Method: Optocoupler Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1510AAB.pdf

€ 0 .90*

Vishay

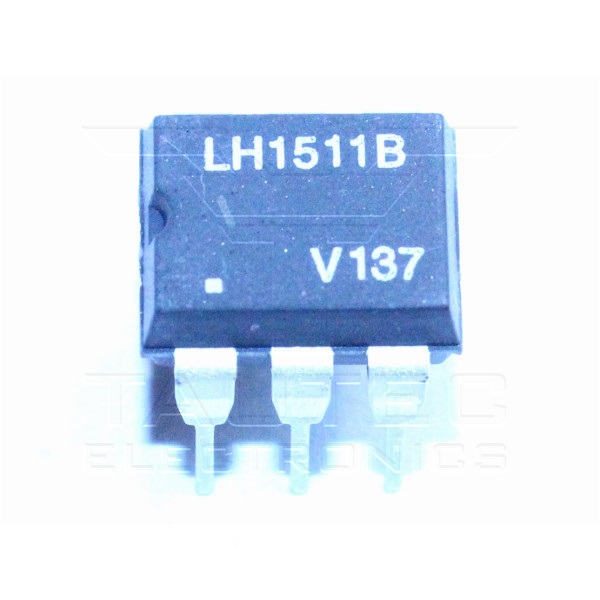

LH1511BT

Beschreibung: 1 Form B Solid State Relay Datenblatt: LH1511B.pdf

€ 1 .20*

Vishay

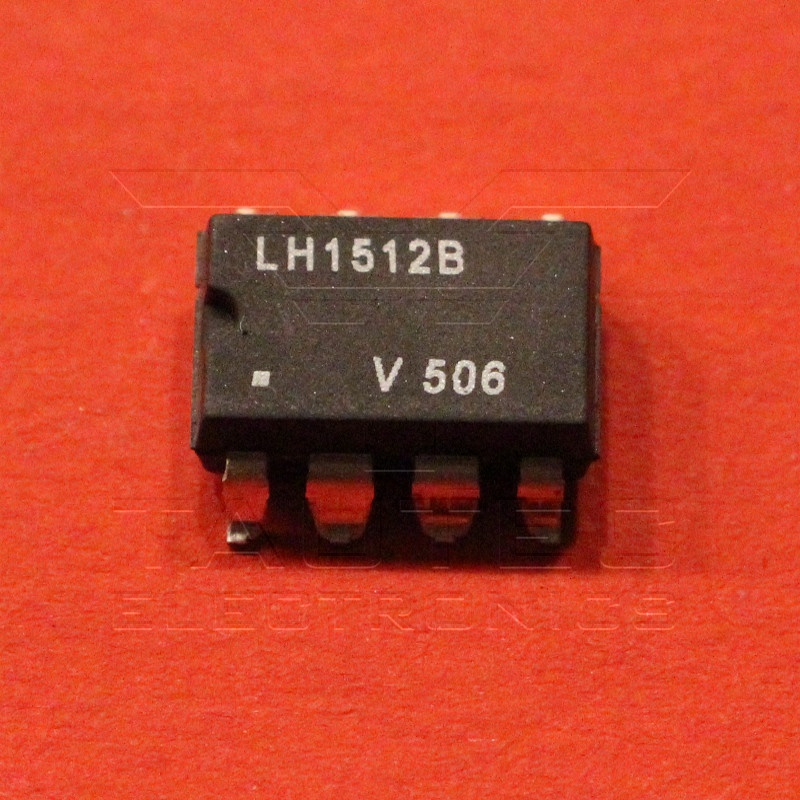

LH1512BAC

Beschreibung: Dual 1 Form A/B, C Solid State Relay Datenblatt: LH1512B.pdf

€ 2 .00*

Vishay

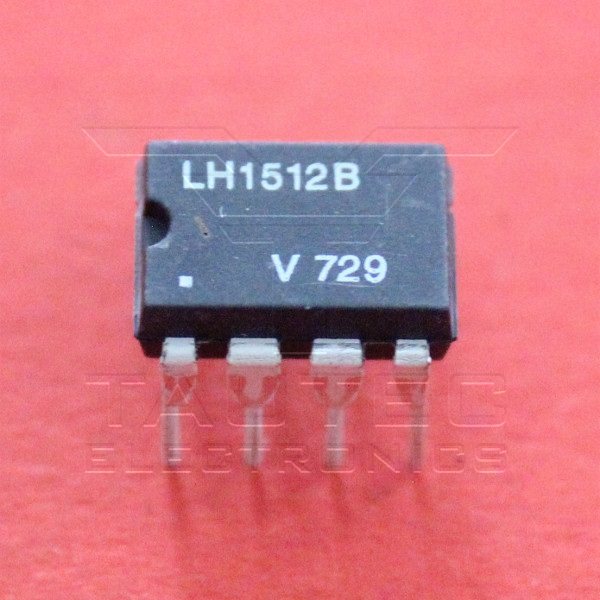

LH1512BB

Dual 1 Form A/B, C Solid State Relay Datenblatt: LH1512B.pdf

€ 2 .67*

Vishay

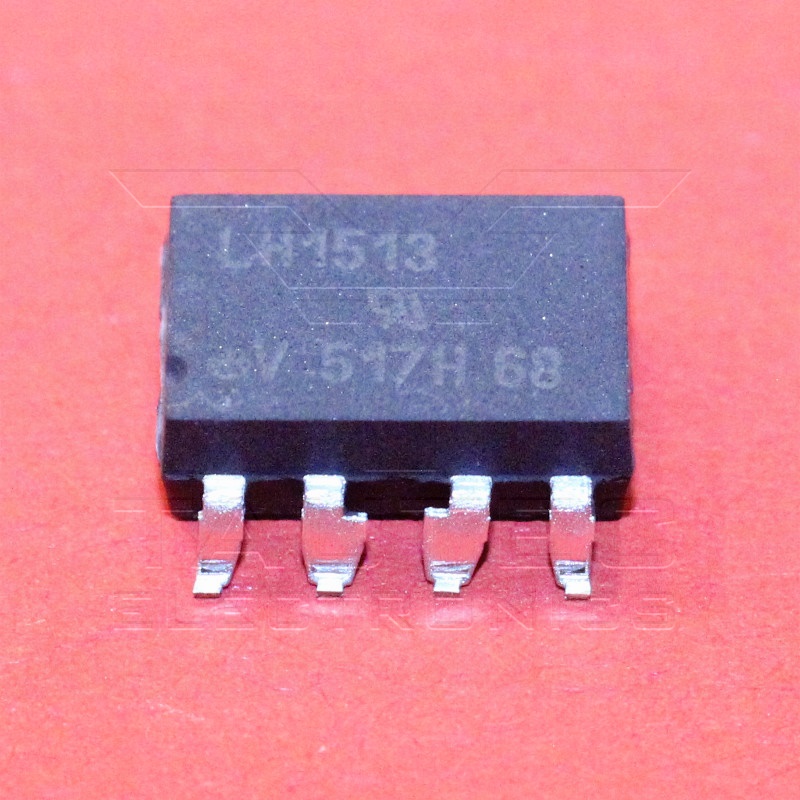

LH1513AACTR

2 Form A Solid-State Relay - Control Voltage Range: 1.15 VDC to 1.45 VDC - Load Voltage Rating: 200 VDC - Load Current Rating: 140 mA - Input Current: 50 mA - Contact Form: DPST (2 Form A) - Output Type: MOSFET - Package/Case: SMD DIP-8 - Mounting Style: SMD/SMT - Height: 3.81 mm - Input to Output Isolation Method: Optocoupler - Input Voltage: 1.45 V - Length: 9.91 mm - Maximum Operating Temperature: + 85 C - Minimum Operating Temperature: - 40 C Datenblatt: LH1513.pdf

€ 2 .00*

Vishay

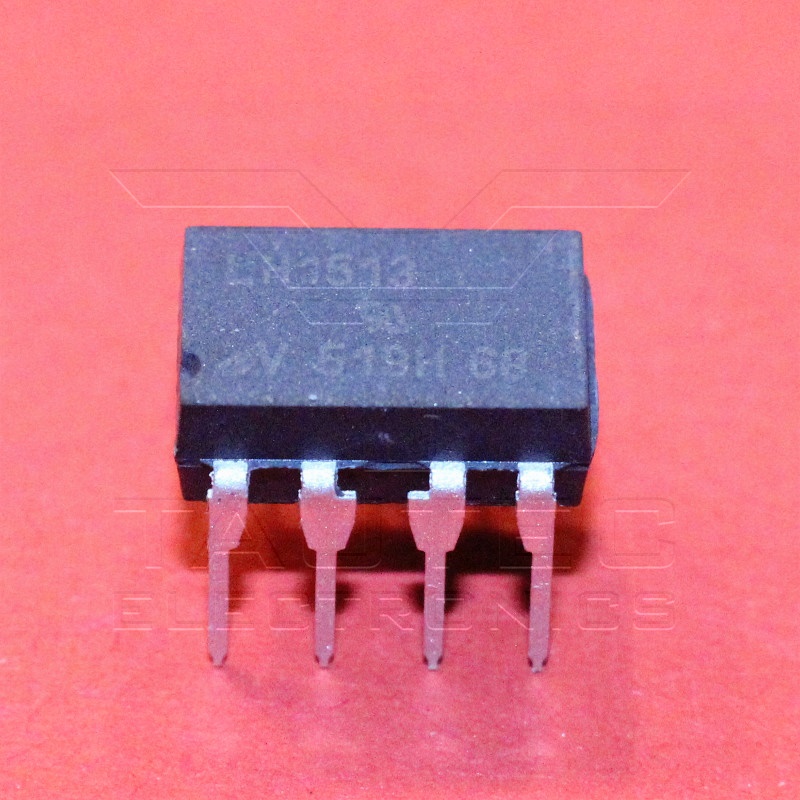

LH1513AB

Solid-State Relay - Current limit protection - Isolation test voltage 5300 VRMS - Typical RON 10 Ohm - Load voltage 200 V - Load current 140 mA - High surge capability - Clean bounce free switching - Low power consumption - High reliability monolithic output die Datenblatt: LH1513.pdf

€ 1 .50*

Vishay

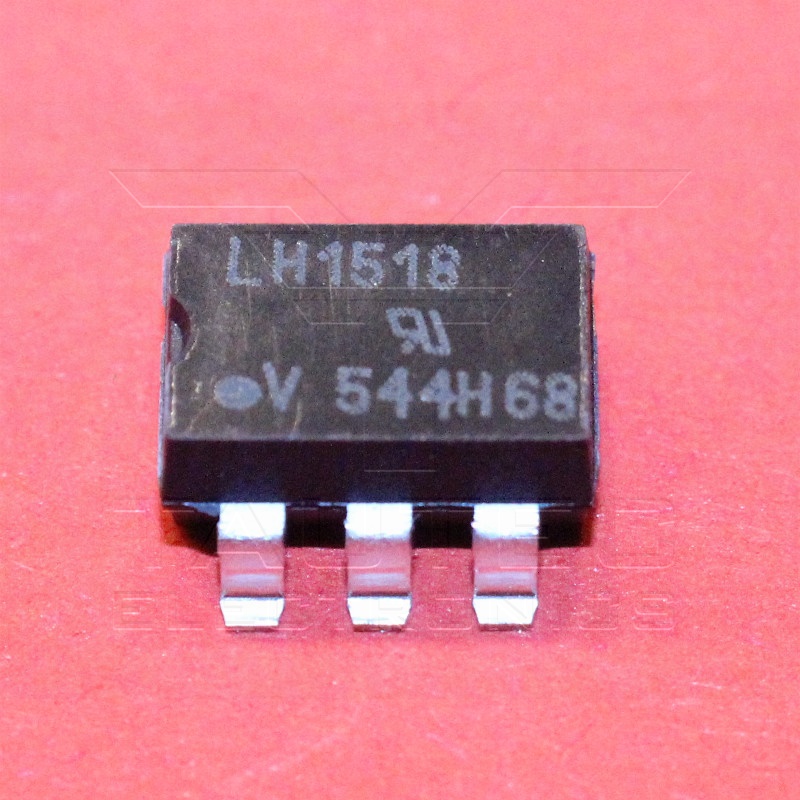

LH1518AAB

1 Form A Solid State Relay - Isolation test voltage 5300 VRMS - Current limit protection - High reliability monolithic detector - Low power consumption - Clean bounce free switching - High surge capability - Surface mountable - Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC APPLICATIONS - General telecom switching - Instrumentation - Industrial controls Datenblatt: LH1518.pdf

€ 1 .55*

Vishay

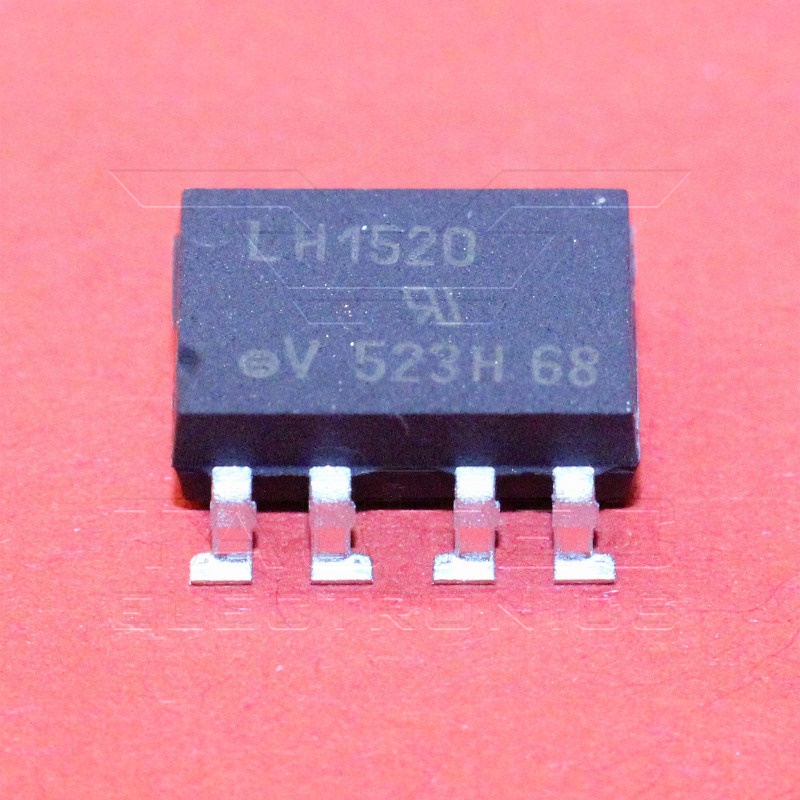

LH1520AACTR

Solid-State Relay Circuit Arrangement: 2 Form A I/O Isolation Voltage: 5300 V Input Type: DC Lead Finish: Tin Max Processing Temp: 260°C Maximum Input Current: 50 mA Maximum Input Voltage: 1.45 V Maximum Output Current: 0.15 A Maximum Output Voltage: 350 V Output Device: MOSFET Output Type: AC|DC Typical RON 20 Ohm Datenblatt: LH1520A.pdf

€ 2 .10*

Vishay

LH1521BACTR

Solid State Relays - PCB Mount Control Voltage Range: 1.15 VDC to 1.45 VDC Mounting Style: SMD/SMT Relay Contact Form: 2 Form B (DPST-NC) Load Voltage Rating: 350 VDC Load Current Rating: 400 mA Input Current: 50 mA Output Type: MOSFET Typical RON: 20 Ohm Linear, AC/DC Operation Clean Bounce Free Switching Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1521B.pdf

€ 1 .90*

Vishay

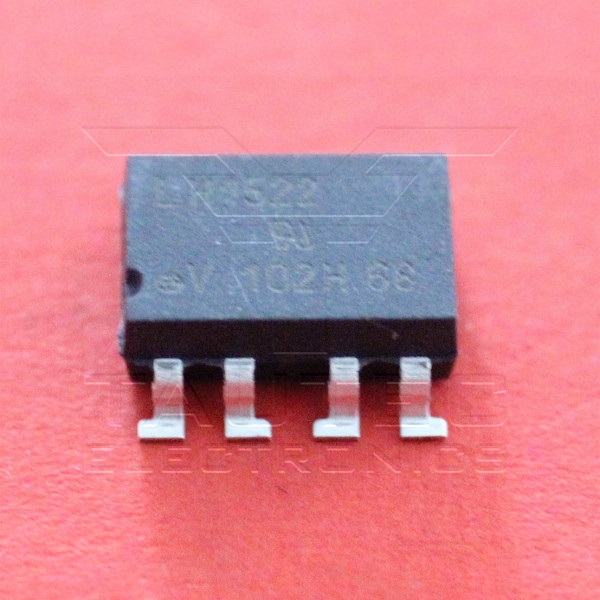

LH1522AAC

Solid-State Relay Mounting Style: SMD/SMT Relay Contact Form: 2 Form A (DPST-NO) Load Voltage Rating: 200 VDC Load Current Rating: 200 mA Input Current: 50 mA Typical Ron 10 Ohm Output Type: MOSFET Current limit protection Isolation test voltage 5300 VRMS Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C - mit Kratzspuren auf einigen Gehäusen (Transportschaden) Datenblatt: LH1522.pdf

€ 1 .40*

Vishay

LH1522AB

Solid-State Relay Mounting Style: DIP Relay Contact Form: 2 Form A (DPST-NO) Load Voltage Rating: 200 VDC Load Current Rating: 200 mA Input Current: 50 mA Typical Ron 10 Ohm Output Type: MOSFET Current limit protection Isolation test voltage 5300 VRMS Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1522.pdf

€ 2 .00*

Vishay

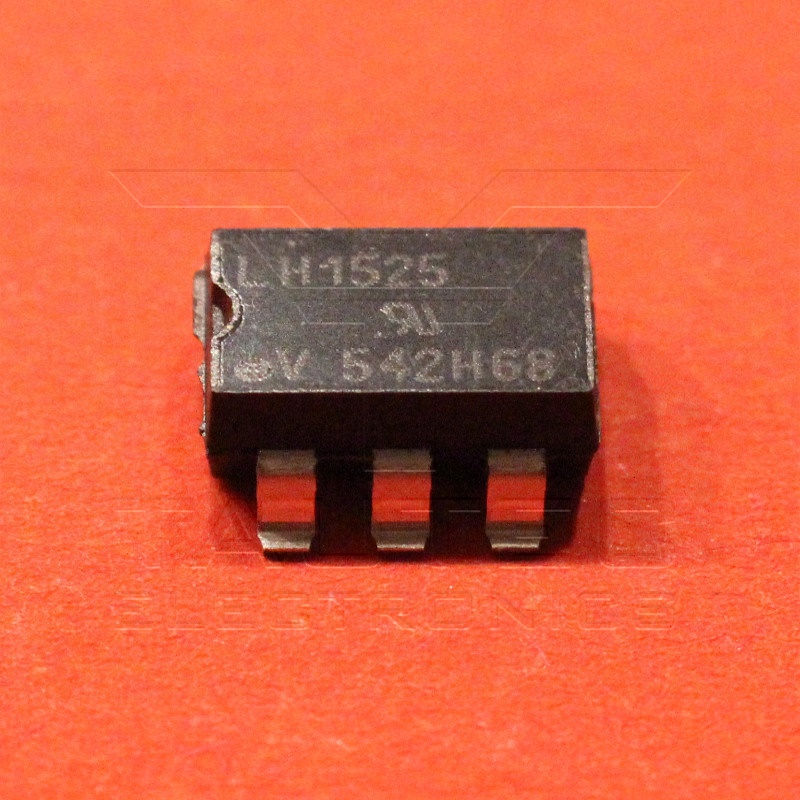

LH1525AAB

Solid-State Relay Control Voltage Range: 0.8 VDC to 1.4 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 400 VDC Load Current Rating: 250 mA Input Current: 50 mA Output Type: MOSFET Input to Output Isolation Method: Optocoupler Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1525.pdf

€ 0 .73*

Vishay

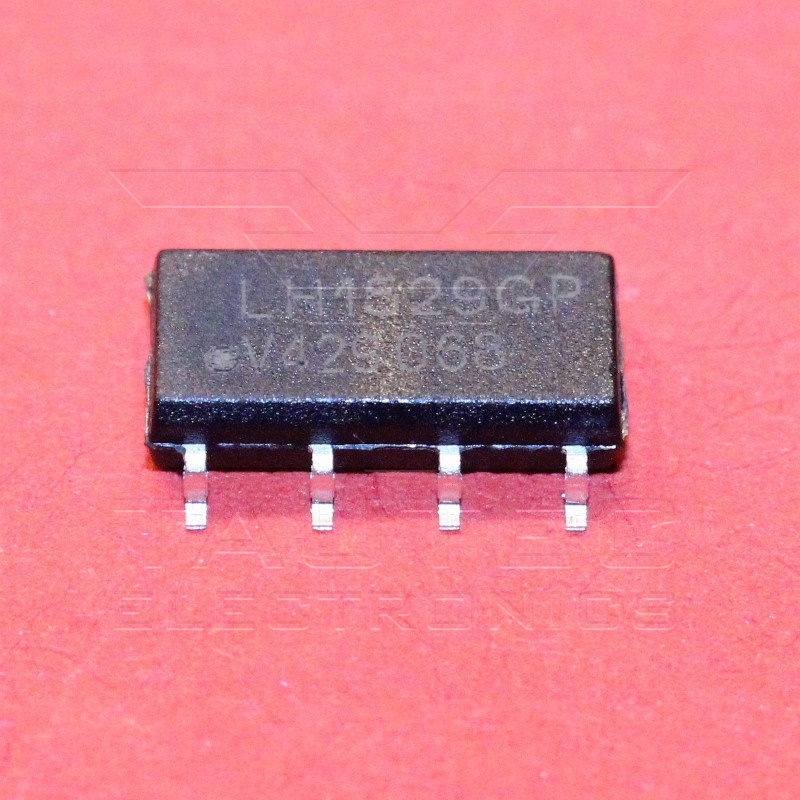

LH1529GP

Telecom Switch - 1 Form A Solid-State Relay Circuit: SPST-NO (1 Form A) Output Type: AC, DC Voltage - Input: 1.2VDC Voltage - Load: 0V to 350V Load Current: 120mA On-State Resistance (Max): 20 Ohms Datenblatt: LH1529GP.pdf

€ 1 .60*

Vishay

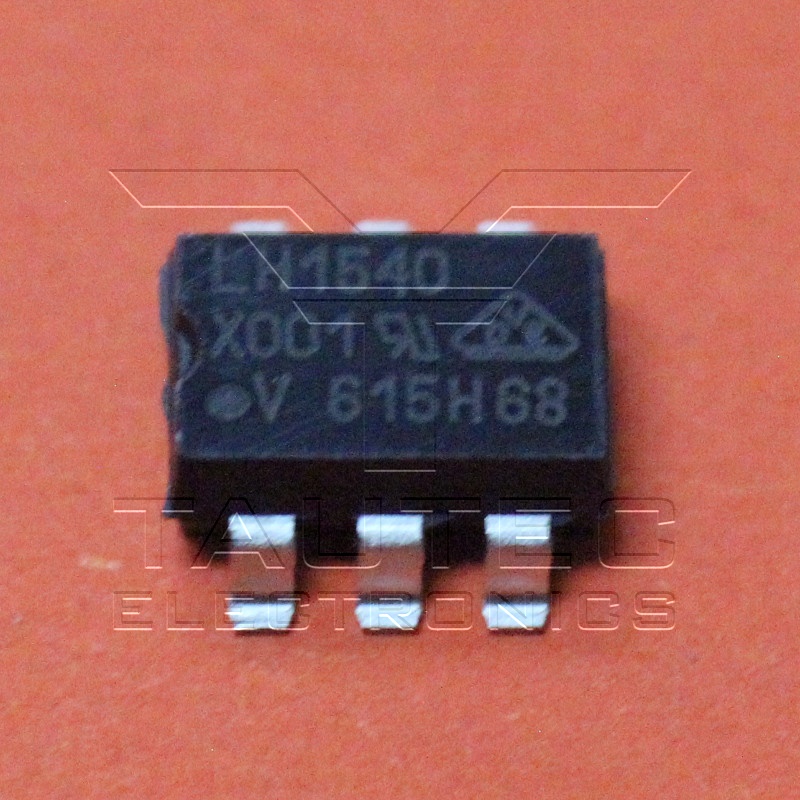

LH1540AAB-X001

SSR - Solid State Relays Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 250 mA Input Current: 50 mA Typical RON 20 Ohm Output Type: MOSFET Mounting Type: PCB Mount High surge capability Clean bounce free switching Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1540.pdf

€ 0 .75*

Vishay

LH1540AATR

€ 0 .90*

Infineon

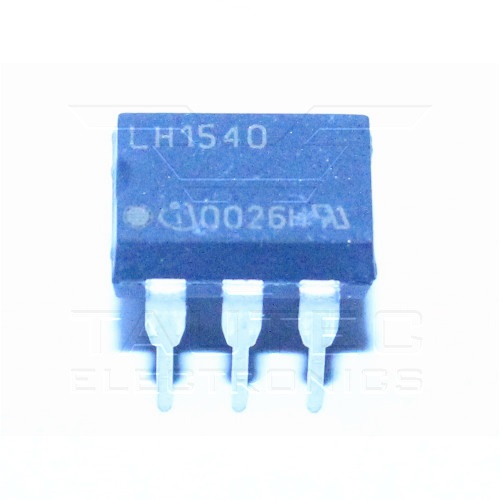

LH1540AT

1 Form A Solid-State Relay Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 250 mA Input Current: 50 mA Input Voltage: 1.45 V Output Type: MOSFET Height: 3.81 mm Length: 8.7 mm Width: 6.5 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1540.pdf

€ 0 .75*

Vishay

LH1540AT-X001

1 Form A Solid-State Relay Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 250 mA Input Current: 50 mA Input Voltage: 1.45 V Output Type: MOSFET Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1540.pdf

€ 1 .22*

Vishay

LH1540AT-X016

1 Form A Solid-State Relay Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 250 mA Input Current: 50 mA Input Voltage: 1.45 V Output Type: MOSFET Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1540.pdf

€ 2 .67*

Vishay

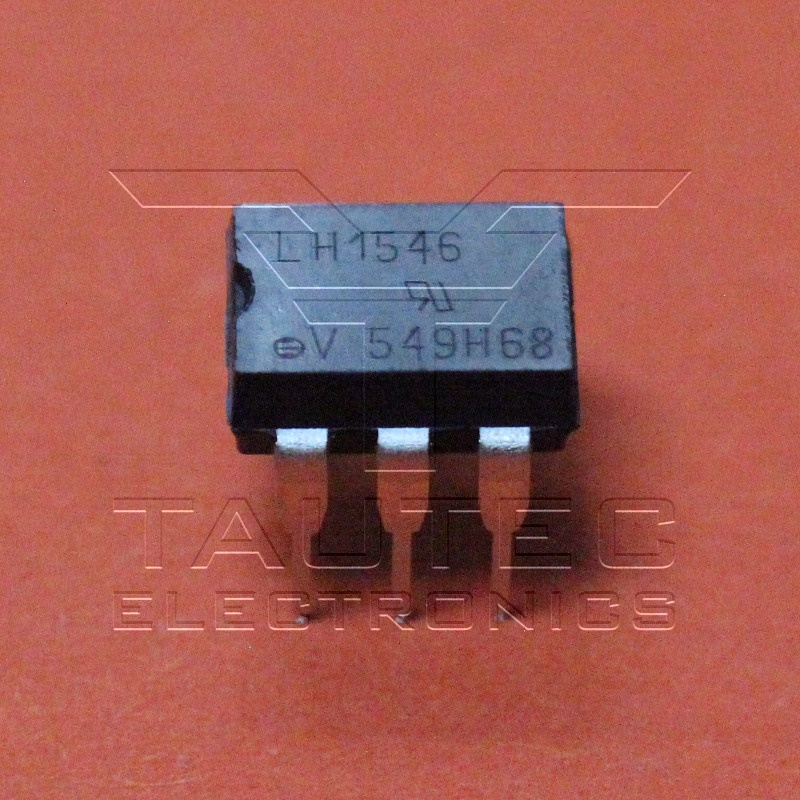

LH1546AT

Solid-State Relay Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 200 mA Input Current: 50 mA Typical Ron 28 Ohm Isolation test voltage 5300 VRMS Clean bounce free switching Low power consumption Output Type: MOSFET Termination Style: Solder Pin Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: LH1546A.pdf

€ 0 .75*

Crydom

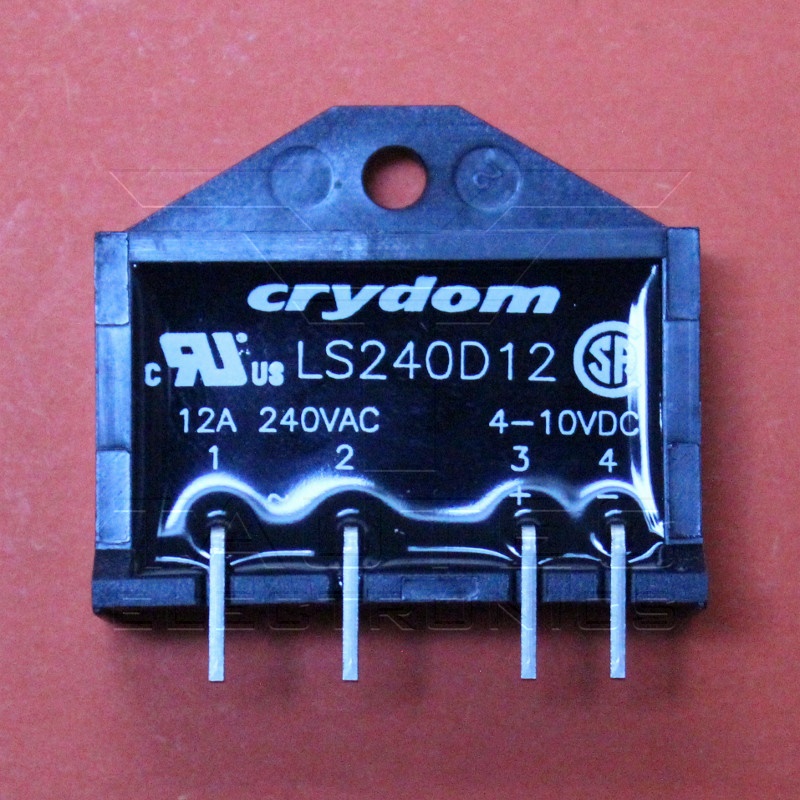

LS240D12

Solid State Relay SSR - Ratings to 12A @ 280 VAC - SCR output for heavy industrial loads - DC control - Zero Voltage Turn-on (resistive loads) or Instantenous Turn-on (inductive loads) output Datenblatt: LS240D12.pdf

€ 24 .30*

Crydom

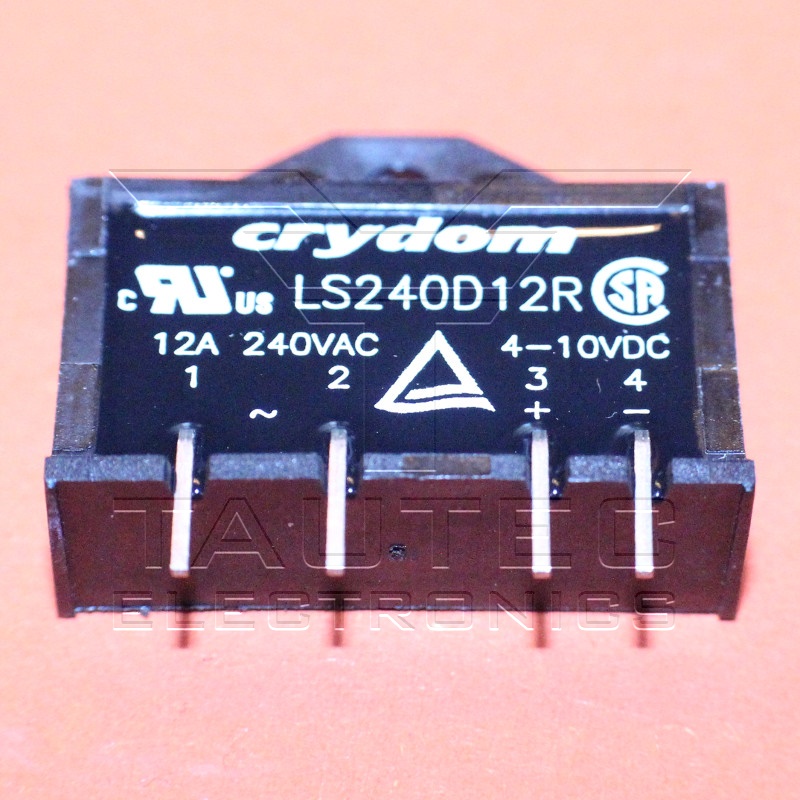

LS240D12R

Solid State Relay SSR, Instantaneous Turn-On - Ratings to 12A @ 280 VAC - SCR output for heavy industrial loads - DC control - Control Voltage Range: 4 VDC to 10 VDC - Load Voltage Rating: 280 VAC - Input Current: 15 mA - Output Type: SCR - Zero Voltage Turn-on (resistive loads) or Instantenous Turn-on (inductive loads) output Datenblatt: LS240D12.pdf

€ 20 .00*

Omron

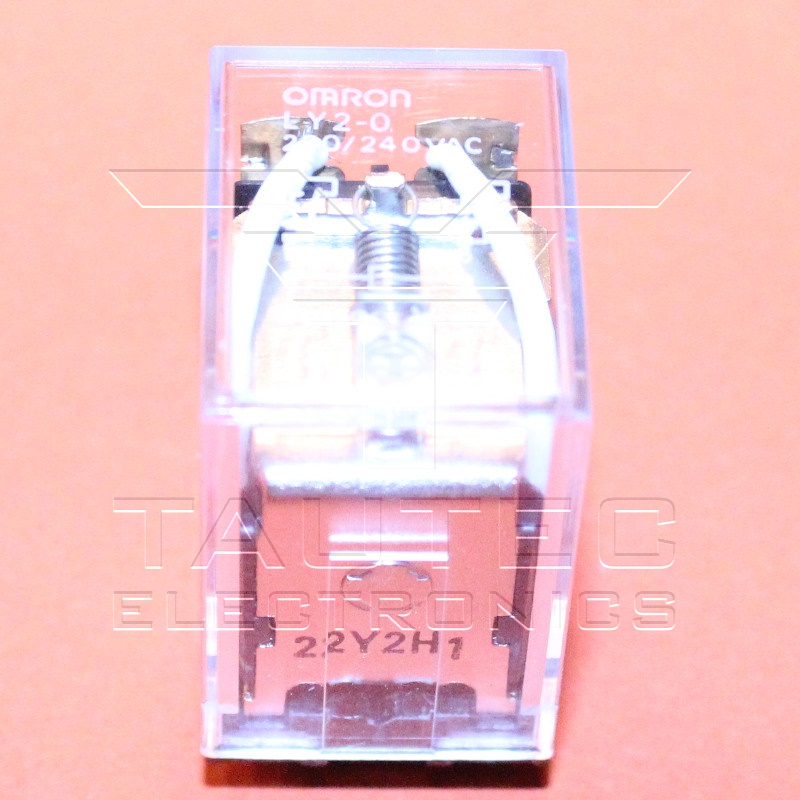

LY2-0-AC220/240

General Purpose Relays G.P Relay - Relays with PCB Terminals - Coil Voltage: 220 VAC to 240 VAC - Contact Form: DPDT (2 Form C) - Contact Current Rating: 10 A - Switching Voltage: 250 VAC, 125 VDC - Coil Resistance: 18.79 kOhms - Coil Current: 5.3 mA - Contact Material: Silver Alloy (Ag) Datenblatt: LY2-0-AC220/240.pdf

€ 6 .50*

Takamisawa

LZ-12S-US

General Purpose Relays Type: High Sensitivity Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 3 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 150 VDC Coil Voltage: 12 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 440 Ohms Power Consumption: 330 mW Contact Material: Silver Nickel (AgNi) Datenblatt: LZ-12S-UC.pdf

€ 2 .05*
