JV...
Takamisawa

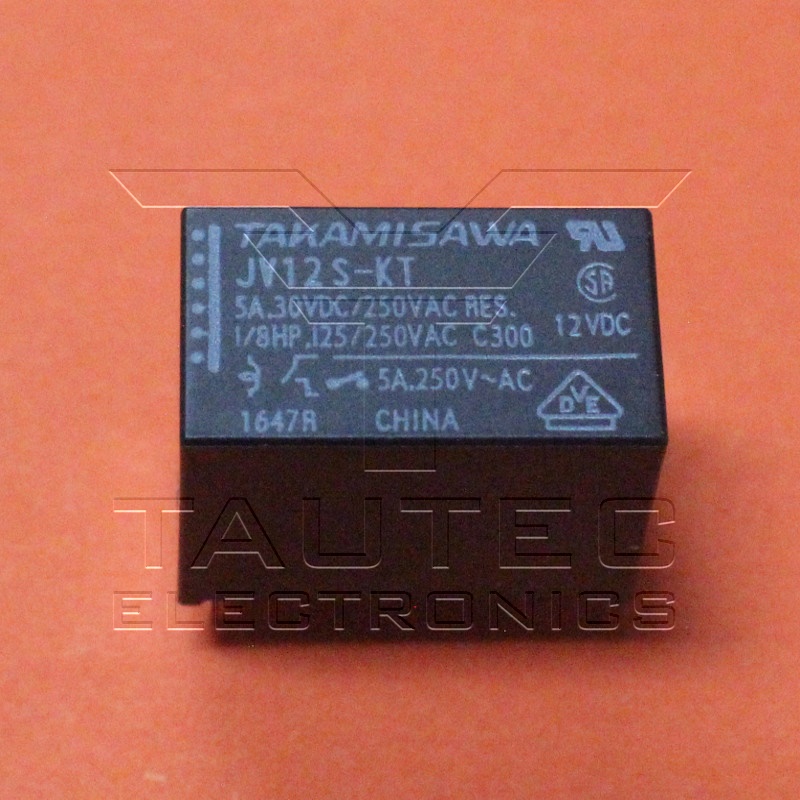

JV12S-KT
Power Relay
Coil Voltage: 12 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Pin
Mounting Style: Through Hole
Coil Termination: Solder Pin
Coil Type: Non-Latching
Coil Resistance: 720 Ohms
Contact Material: Silver (Ag)
Series: JV
Power Consumption: 200 mW
Datenblatt:
JV12S-KT.pdf
€
1
.04*
Takamisawa

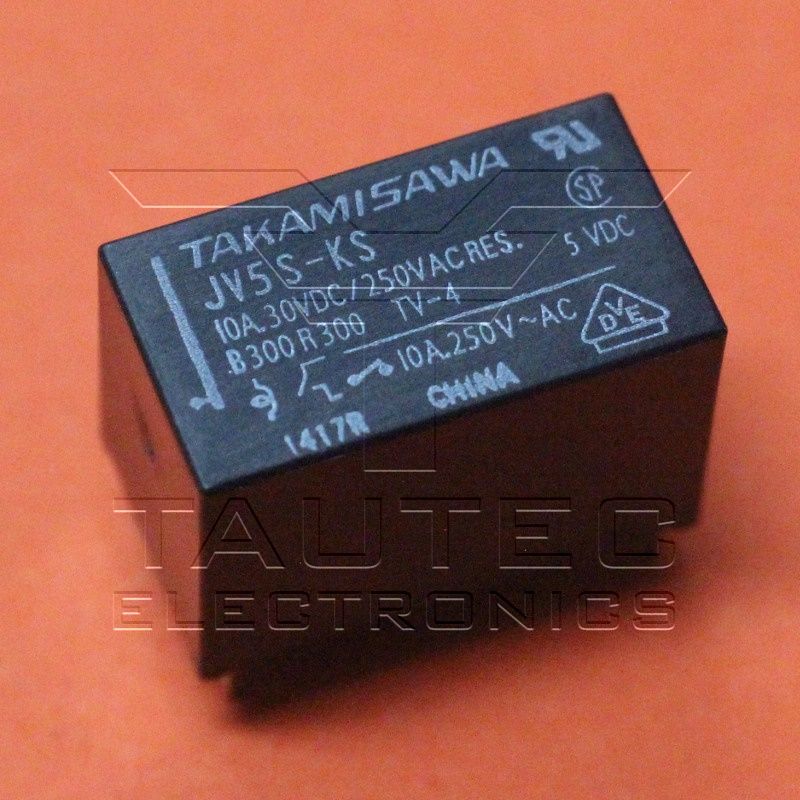

JV5S-KS
Power Relay
- Rated Coil Voltage: 5VDC
- Coil Resistance: 100 Ohm
- Rated Power: 250mW
- Configuration: 1 form A (SPST-NO)
- Construction: Single
- Material: AgSnO2 + Au
- Contact rating: 10A, 250VAC / 24VDC
- Max. carrying current: 10A
- Max. switching power: 2,500VA / 240W
- Max. switching current: 10A
- Min. switching load: 100 mA, 5 VDC
Datenblatt:
JV5S-KS.pdf
€
1
.40*
