Panasonic

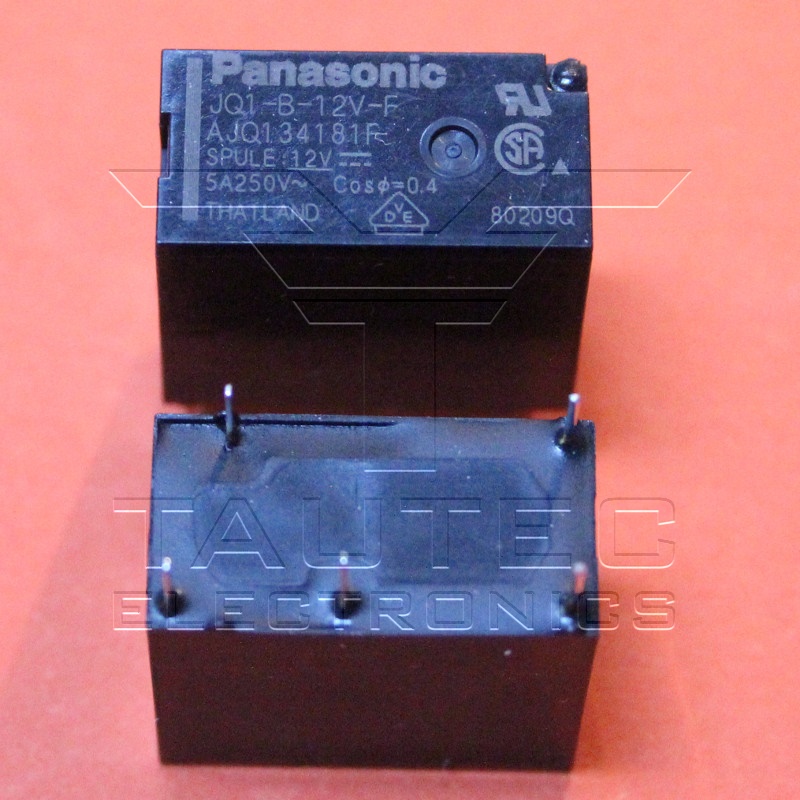

JQ1-B-12V-F
General Purpose Relays
Coil Voltage: 12 VDC
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Mounting Style: Through Hole
Coil Termination: Solder Pin
Coil Type: Non-Latching
Coil Resistance: 360 Ohms
Coil Current: 33.3 mA
Contact Material: Silver Tin Oxide (AgSnO)
Power Consumption: 400 mW
Datenblatt:
JQ1-B-12V-F.pdf
€
1
.10*
Panasonic

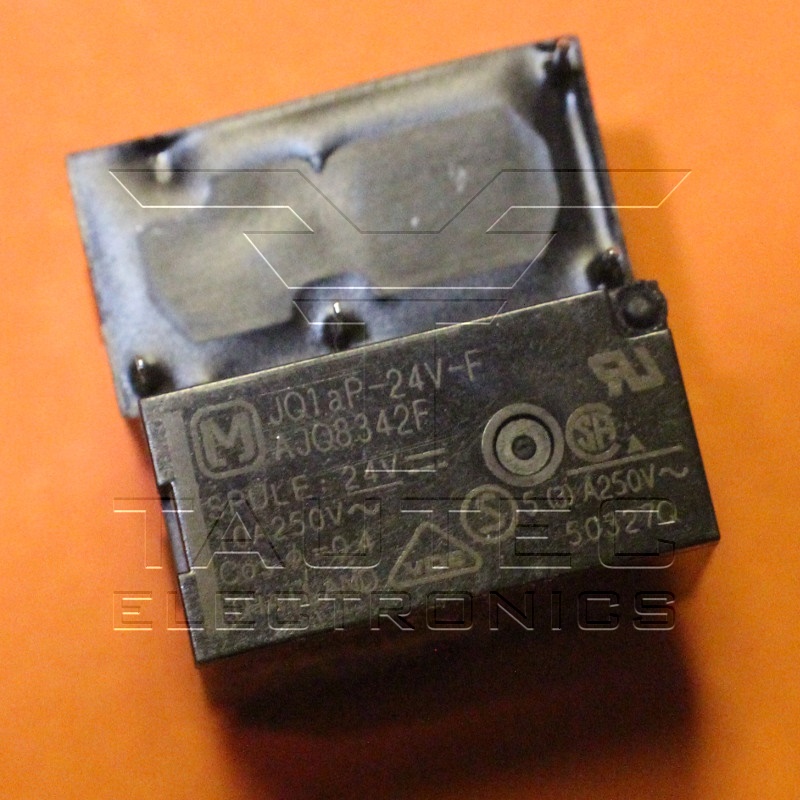

JQ1aP-24V-F
General Purpose Relays
- Product: Power Relays
- Switching Current: 5 A
- Maximum Switching Voltage AC : 250V
- Maximum Switching Voltage DC : 110V
- Coil Voltage: 24 VDC
- Relay Contact Form: 1 Form A (SPST-NO)
- Contact Termination: Solder Pin
- Mounting Style: Through Hole
- Coil Type: Non-Latching
- Coil Resistance: 2.88 kOhms
- Coil Current: 8.3 mA
- Contact Material: Silver Tin Oxide (AgSnO)
- Power Consumption: 200 mW
Datenblatt:
JQ1aP-24V-F.pdf
€
1
.00*
Panasonic

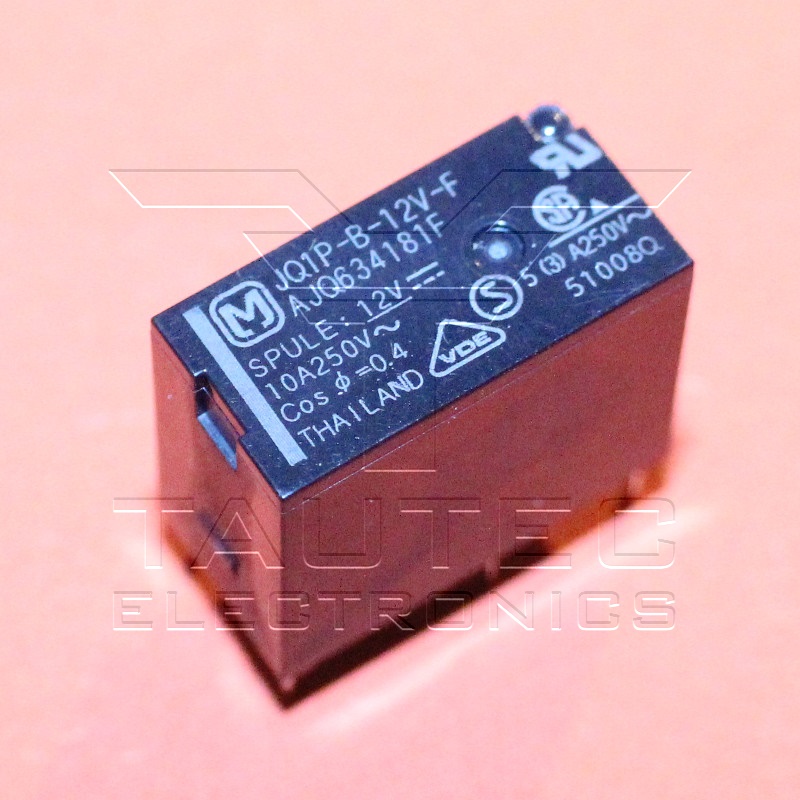

JQ1P-B-12V-F
General Purpose Relays
Mounting Type: Through Hole
Coil Voltage: 12VDC
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 10A
Switching Voltage: 250VAC, 110VDC - Max
Coil Current: 33,3mA
Coil Type: Non Latching
Coil Insulation: Class B
Coil Resistance: 360 Ohms
Must Operate Voltage: 9.6 VDC
Must Release Voltage: 0.6 VDC
Operate Time: 20ms
Release Time: 10ms
Operating Temperature: -40°C to 85°C
Contact Material: Silver Tin Oxide (AgSnO)
Datenblatt:
JQ1P-B-12V-F.pdf
€
1
.05*
