J...

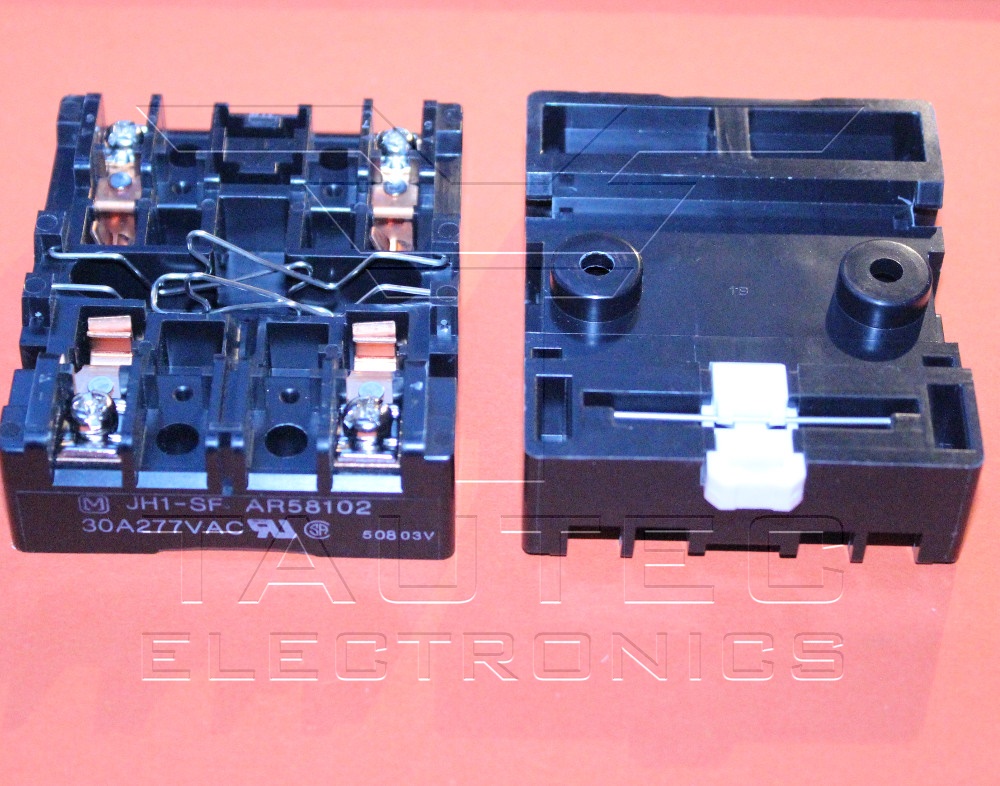

Panasonic

JH1-SF

HE Relay Terminal Socket - Single side stable type - For 1 Form A - Max. continuous current: 30A 250V AC - Breakdown voltage (initial) 2,000 Vrms for 1min (between terminals) (Detection current: 10mA.) - Insulation resistance Min. 100MOhm (between poles) - Heat resistance 150°C ±3°C 302°F ±37.4°F for 1 hour Datenblatt: JH1-SF.pdf

€ 5 .50*

Panasonic

JQ1-B-12V-F

General Purpose Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 360 Ohms Coil Current: 33.3 mA Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 400 mW Datenblatt: JQ1-B-12V-F.pdf

€ 1 .10*

Panasonic

JQ1aP-24V-F

General Purpose Relays - Product: Power Relays - Switching Current: 5 A - Maximum Switching Voltage AC : 250V - Maximum Switching Voltage DC : 110V - Coil Voltage: 24 VDC - Relay Contact Form: 1 Form A (SPST-NO) - Contact Termination: Solder Pin - Mounting Style: Through Hole - Coil Type: Non-Latching - Coil Resistance: 2.88 kOhms - Coil Current: 8.3 mA - Contact Material: Silver Tin Oxide (AgSnO) - Power Consumption: 200 mW Datenblatt: JQ1aP-24V-F.pdf

€ 1 .00*

Panasonic

JQ1P-B-12V-F

General Purpose Relays Mounting Type: Through Hole Coil Voltage: 12VDC Contact Form: SPDT (1 Form C) Contact Rating (Current): 10A Switching Voltage: 250VAC, 110VDC - Max Coil Current: 33,3mA Coil Type: Non Latching Coil Insulation: Class B Coil Resistance: 360 Ohms Must Operate Voltage: 9.6 VDC Must Release Voltage: 0.6 VDC Operate Time: 20ms Release Time: 10ms Operating Temperature: -40°C to 85°C Contact Material: Silver Tin Oxide (AgSnO) Datenblatt: JQ1P-B-12V-F.pdf

€ 1 .05*

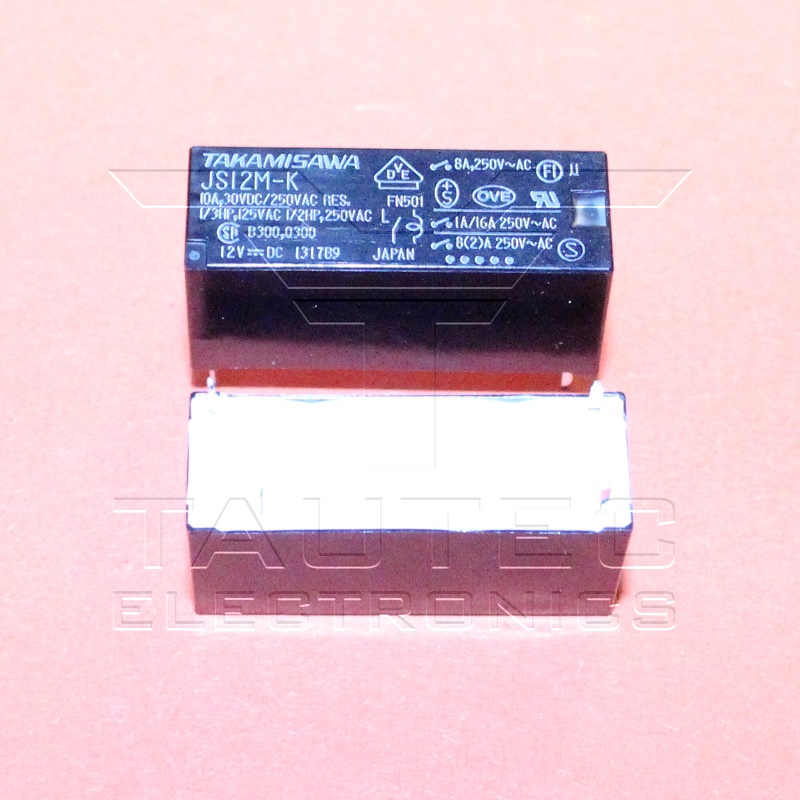

Takamisawa

JS-12M-K

General Purpose Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 400 VAC, 300 VDC Coil Termination: Solder Pin Coil Resistance: 660 Ohms Power Consumption: 220 mW Contact Material: Silver Tin Oxide (AgSnO) Series: JS Height: 12.5 mm Length: 29 mm Width: 10 mm Datenblatt: JS-Series.pdf

€ 3 .04*

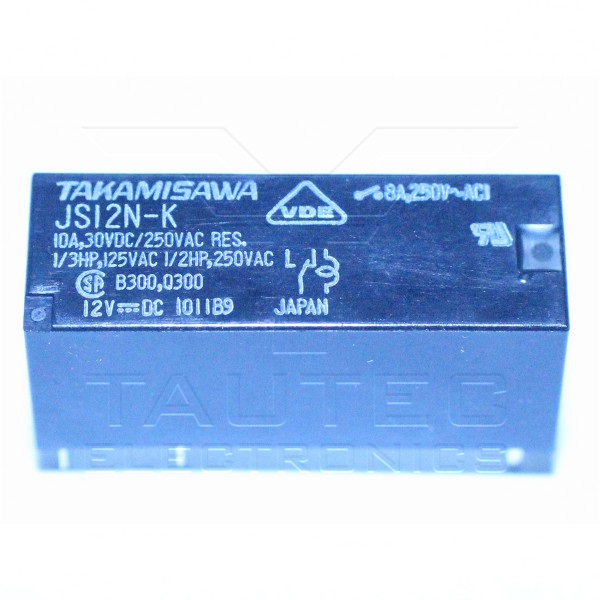

Fujitsu

JS-12N-K

12VDC Power Relay 1 POLE - 8A Medium Load Control Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 8 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 400 VAC, 300 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 660 Ohms Power Consumption: 220 mW Contact Material: Silver Tin Oxide (AgSnO) with Gold Plating Series: JS Height: 12.5 mm Length: 29 mm Width: 10 mm Datenblatt: JS-Series.pdf

€ 1 .50*

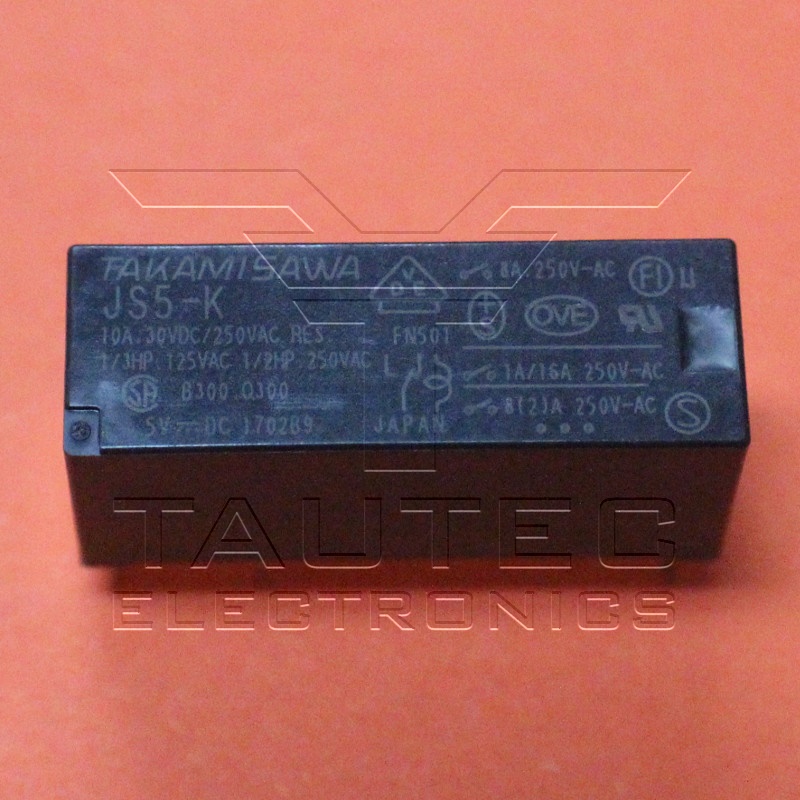

Fujitsu

JS-5-K

General Purpose Relays Power Coil Voltage: 5 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 112 Ohms Contact Material: Silver Cadmium Oxide (AgCdO) Series: JS Power Consumption: 225 mW Datenblatt: JS-5-K.pdf

Varianten ab 4,75 €*

€ 2 .15*

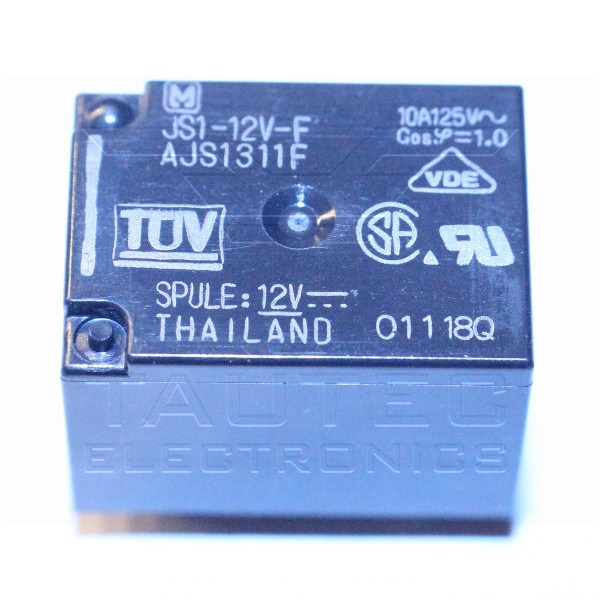

Panasonic

JS1-12V-F

12VDC Power Relay 250VAC/10A Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Type: Non-Latching Coil Resistance: 400 Ohms Coil Current: 30 mA Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 360 mW Datenblatt: JS1-12V-F.pdf

€ 1 .00*

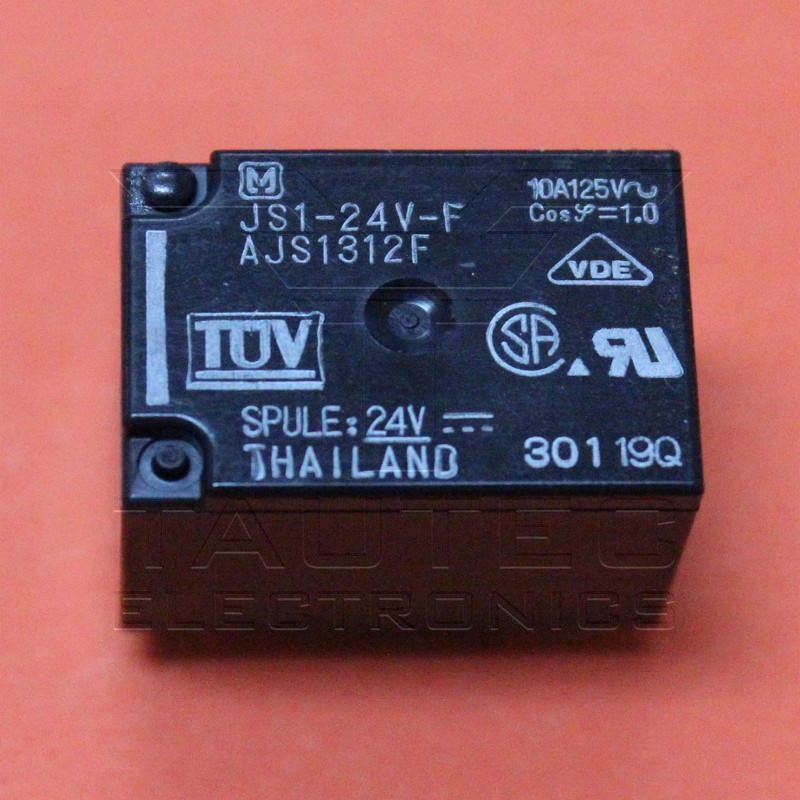

Panasonic

JS1-24V-F

General Purpose Relays Relay Contact Form: 1 Form C (SPDT-NO, NC) Voltage Rating: 250VAC Voltage Rating: 100VDC Contact Current Rating: 5ADC/10AC Contact Termination: Solder Pin Mounting Style: Through Hole Power Consumption: 360 mW Coil Termination: Solder Pin Coil Voltage: 24 VDC Coil Type: Non-Latching Coil Resistance: 1.6 kOhms Coil Current: 15 mA Operating Temp Range: -40C to 70C Contact Material: Silver Tin Oxide (AgSnO) Datenblatt: JS1-24V-F.pdf

€ 1 .00*

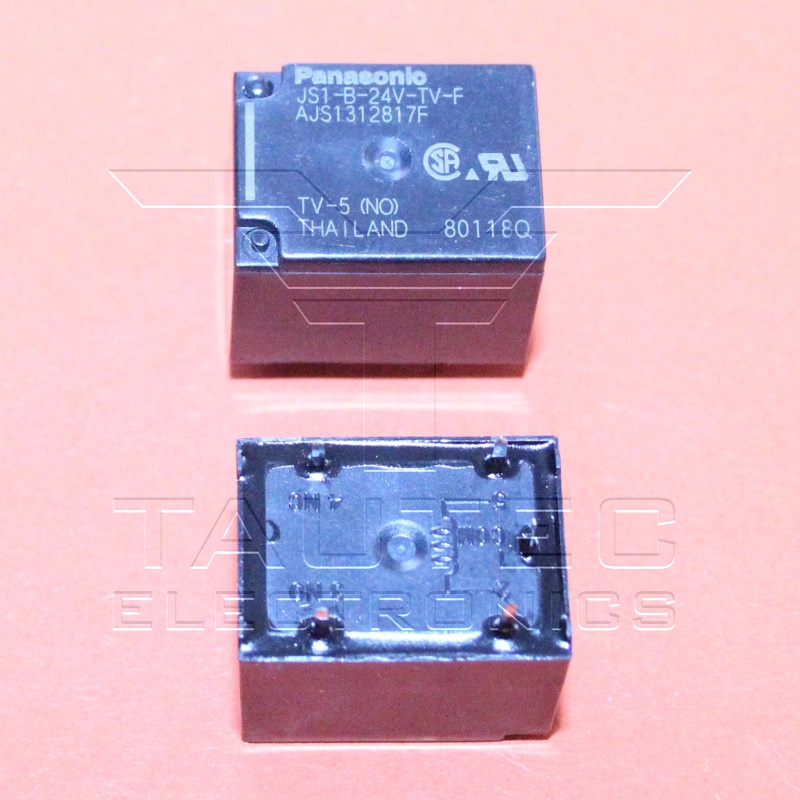

Panasonic

JS1-B-24V-TV-F

General Purpose Relays Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Voltage: 24 VDC Coil Type: Non-Latching Coil Resistance: 1.6 kOhms Coil Current: 15 mA Power Consumption: 360 mW Contact Material: Silver Tin Oxide (AgSnO) Datenblatt: JS1-B-24V-TV-F.pdf

€ 2 .02*

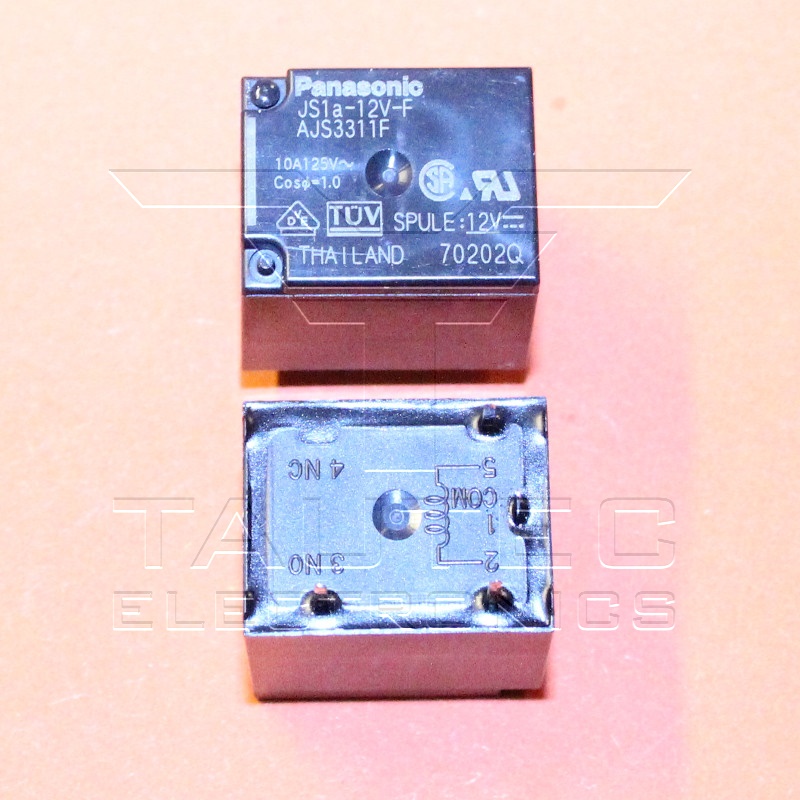

Panasonic

JS1a-12V-F

General Purpose Relays Contact Rating (Current): 10A Switching Voltage: 250VAC, 100VDC - Max Coil Voltage: 12 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 400 Ohms Coil Current: 30 mA Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 360 mW Datenblatt: JS1a-12V-F.pdf

€ 1 .84*

Panasonic

JS1a-B-6V-F

Beschreibung: 6VDC Power Relay 250VAC/10A Datenblatt: JS1-12V-F.pdf

€ 1 .25*

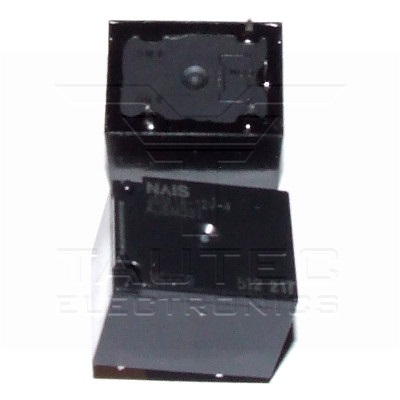

NAIS

JSM1A-12V-4

Automotive Power Relay 12V Datenblatt: JSM1A.pdf

€ 0 .50*

Panasonic

JTN1aS-PA-F-DC5V

5VDC / 30A High Switching Capacity Power Relay Coil Voltage: 5 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Type: Non-Latching Coil Resistance: 31 Ohms Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 800 mW Datenblatt: JTN1aS-PA-F-DC5V.pdf

€ 2 .50*

Panasonic

JTN1S-PA-F-DC12V

12VDC / 30A High Switching Capacity Power Relay Datenblatt: JTN.pdf

€ 2 .65*

Panasonic

JTV1aS-PA-24V

General Purpose Relays Switching Voltage: 277VAC Contact Rating: 30A Relay Contact Form: 1 Form A (SPST-NO) Mounting Style: Through Hole Coil Voltage: 24 VDC Coil Current: 41,7mA Coil Resistance: 576 Ohms Power Consumption: 1 W Contact Material: Silver Tin Oxide (AgSnO) Datenblatt: JTV1aS-PA-24V.pdf

€ 2 .03*

Takamisawa

JV12S-KT

Power Relay Coil Voltage: 12 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 720 Ohms Contact Material: Silver (Ag) Series: JV Power Consumption: 200 mW Datenblatt: JV12S-KT.pdf

€ 1 .04*

Takamisawa

JV5S-KS

Power Relay - Rated Coil Voltage: 5VDC - Coil Resistance: 100 Ohm - Rated Power: 250mW - Configuration: 1 form A (SPST-NO) - Construction: Single - Material: AgSnO2 + Au - Contact rating: 10A, 250VAC / 24VDC - Max. carrying current: 10A - Max. switching power: 2,500VA / 240W - Max. switching current: 10A - Min. switching load: 100 mA, 5 VDC Datenblatt: JV5S-KS.pdf

€ 1 .40*

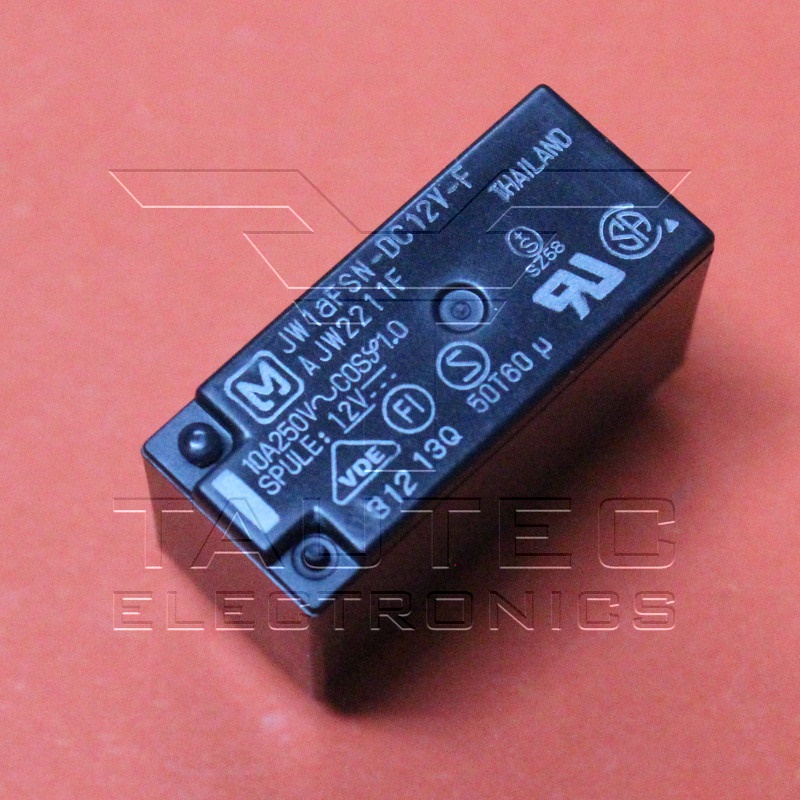

Panasonic

JW1aFSN-DC12V-F

General Purpose Relays - Coil Voltage: 12 VDC - Relay Contact Form: 1 Form A (SPST-NO) - Contact Current Rating: 10 A - Contact Termination: Solder Pin - Mounting Style: Through Hole - Switching Voltage: 250 VAC, 30 VDC - Coil Termination: Solder Pin - Coil Type: Non-Latching - Coil Resistance: 270 Ohms - Coil Current: 44 mA - Contact Material: Silver Tin Oxide (AgSnO) - Power Consumption: 530 mW Datenblatt: JW1aFSN-DC12V-F.pdf

€ 1 .00*

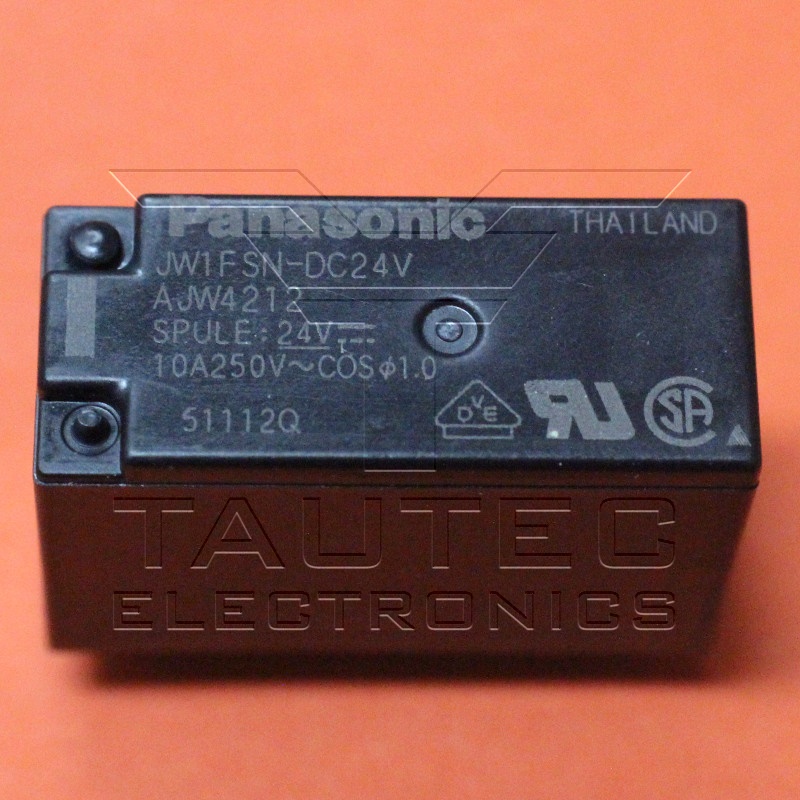

Panasonic

JW1FSN-DC24V

General Purpose Relays Coil Voltage: 24 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 30 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.1 kOhms Coil Current: 22 mA Power Consumption: 530 mW Contact Material: Silver Tin Oxide (AgSnO) Height: 20 mm Length: 28.6 mm Width: 12.8 mm Datenblatt: JW1FSN-DC24V.pdf

€ 1 .10*

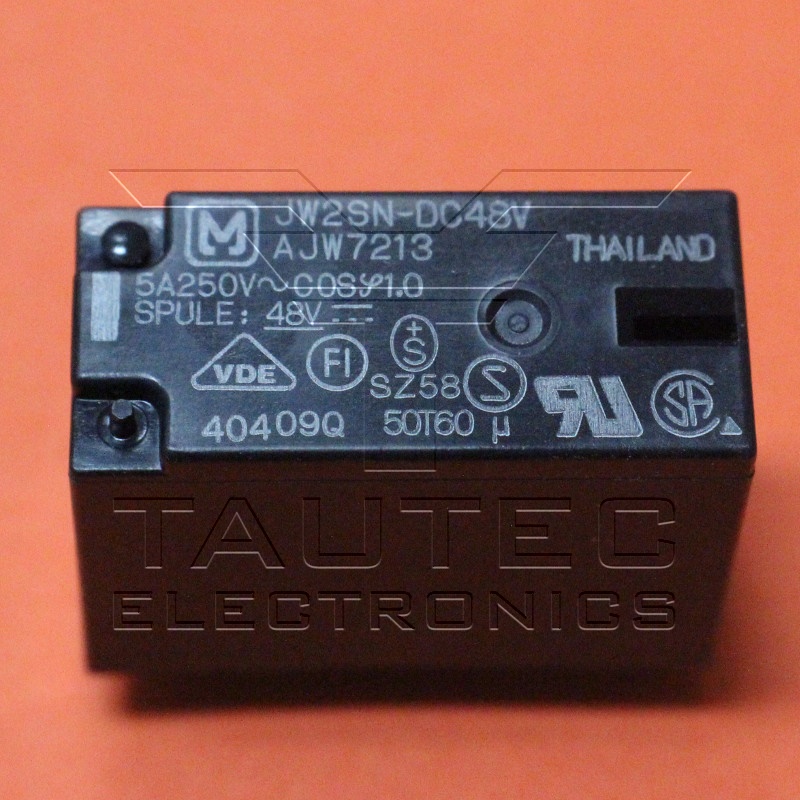

Panasonic

JW2SN-DC48V

General Purpose Relays Coil Voltage: 48 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 4.4 kOhms Coil Current: 11 mA Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 530 mW Datenblatt: JW2SN-DC48V.pdf

€ 1 .30*
