I...

AXICOM

IM01GR

High Frequency / RF Relays Coil Voltage: 3 VDC Coil Resistance: 64 Ohms Contact Rating: 2 A Relay Contact Form: 2 Form C (DPDT-NO, NC) Frequency: 900 MHz Contact Termination: Gull Wing Lead Coil Type: Non-Latching Power Consumption: 140 mW Isolation: - 18.8 dB Insertion Loss: - 0.33 dB Datenblatt: IM01GR.pdf

€ 1 .50*

TE Tyco Electronics

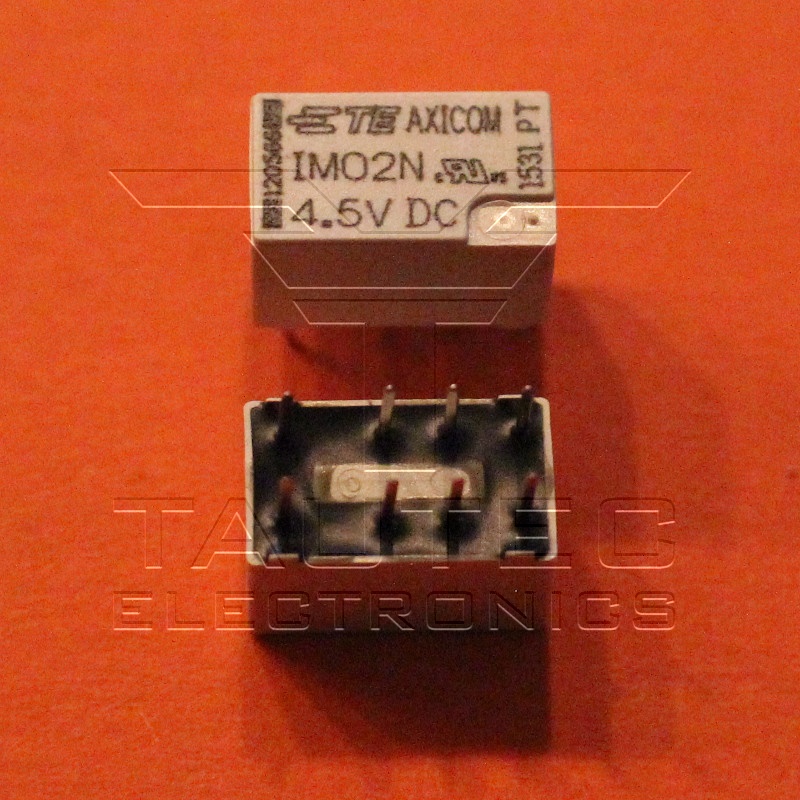

IM02NS

4.5VDC Signal Relay - Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm2 - Switching current 2/5A, switching power 60W/62.5VA and switching voltage 220VDC/250VAC - Low coil power consumption, - 140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version - High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts - High mechanical shock resistance up to 50g functional - Coil Voltage: 4.5 VDC - Contact Form: DPDT (2 Form C) - Contact Current Rating: 2 A - Power Consumption: 140 mW - Coil Resistance: 145 Ohms - Coil Current: 31.03 mA Datenblatt: IM-Relais.pdf

€ 1 .50*

TE Tyco Electronics

IM06GR

Signal Relays, Up to 2 Amps Contact Form: DPDT (2 Form C) Contact Rating: 2A Switching Voltage: 250VAC, 220VDC - Max Coil Voltage: 12VDC Coil Current: 11,6mA Coil Resistance: 1,03 kOhms Coil Type: Non Latching Termination Style: Gull Wing Seal Rating: Sealed - Hermetically Operating Temperature: -40C to 85C Contact Material: Palladium (Pd), Ruthenium (Ru), Gold (Au) Datenblatt: IM06GR.pdf

€ 1 .35*

AXICOM

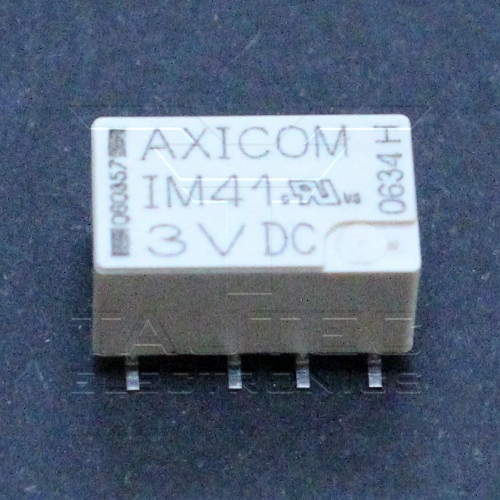

IM41GR

3V Miniature Signal Relay Coil Voltage: 3VDC Contact Form: DPDT (2 Form C) Contact Rating: 2A Switching Voltage: 250VAC, 220VDC - Max Coil Current: 33,3mA Coil Resistance: 90 Ohms Coil Type: Latching, Single Coil Operating Temperature: -40C to 85C Tyco - Partnumber: 5-1462037-4 Datenblatt: IM41GR.pdf

€ 1 .00*

TE Tyco Electronics

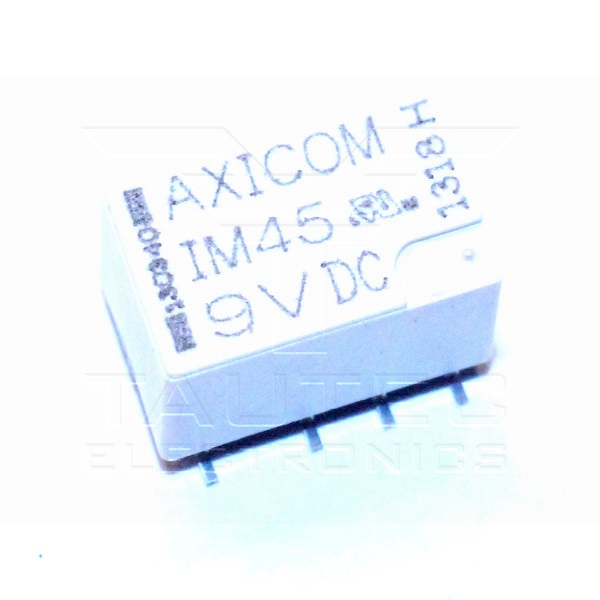

IM45GR

Beschreibung: 9VDC Miniature Signal Relay -Tyco - Bestellnummer: 6-1462037-4 Datenblatt: IM45GR.pdf

€ 1 .00*
