Panasonic

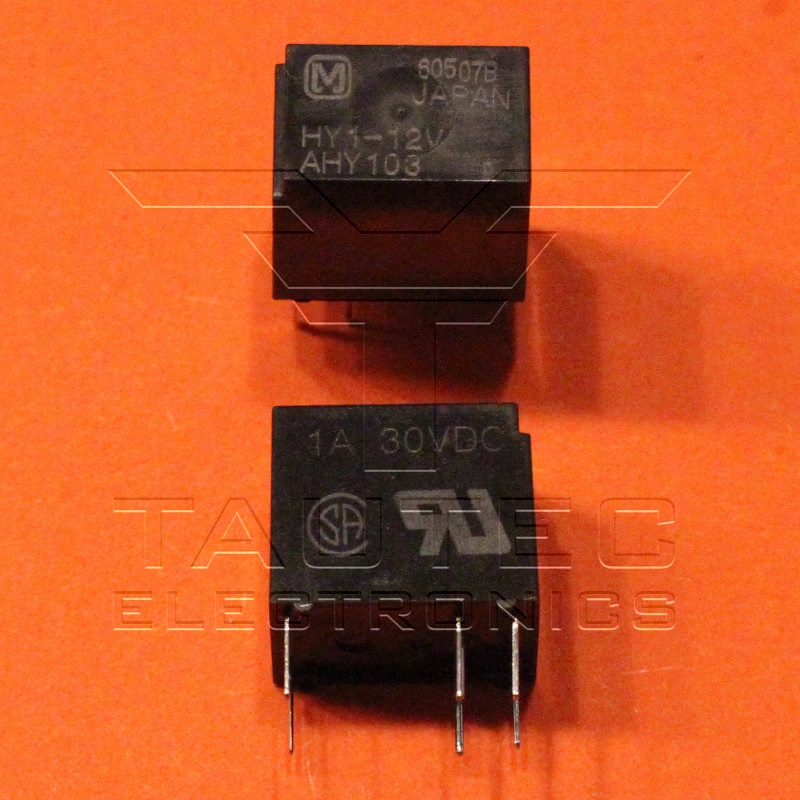

HY1-12V
12VDC Low Profile Signal Relay
Coil Voltage: 412 VDC
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Rating: 1 A at 30 VDC
Contact Current Rating: 2 A
Maximum Switching Current: 1 A
Coil Current: 12.5 mA
Coil Type: Non-Latching
Power Consumption: 150 mW
Coil Resistance: 960 Ohms
Contact Material: Silver (Ag) with Gold Plating
Contact Termination: Solder Pin
Datenblatt:
HY1-12V.pdf
€
1
.34*
Panasonic

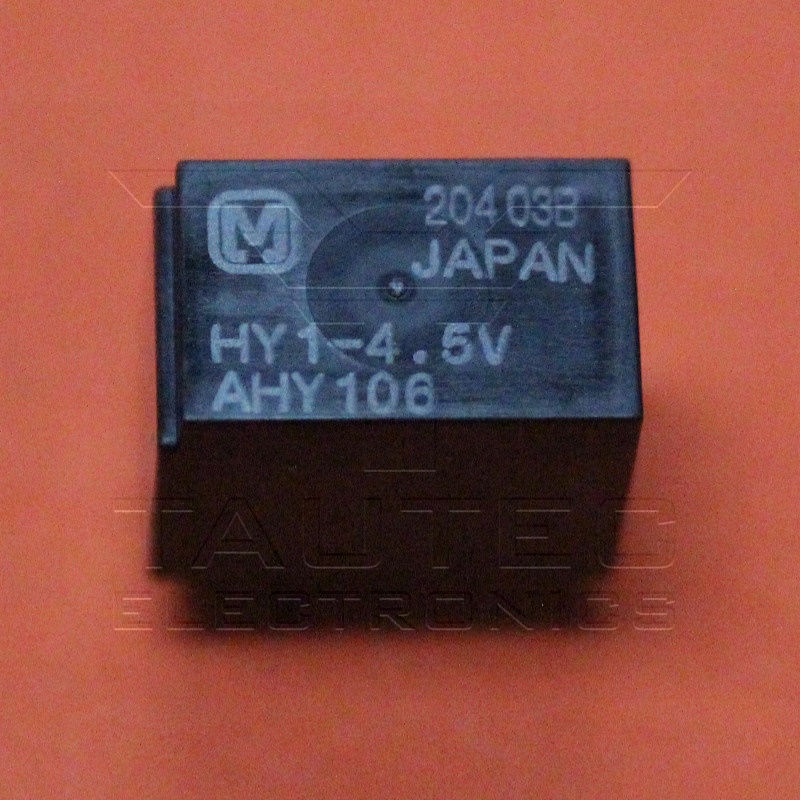

HY1-4.5V
4.5VDC Low Profile Signal Relay
Coil Voltage: 4.5 VDC
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Rating: 1 A at 30 VDC
Contact Current Rating: 2 A
Maximum Switching Current: 1 A
Coil Current: 33.3 mA
Coil Type: Non-Latching
Power Consumption: 150 mW
Coil Resistance: 135 Ohms
Contact Material: Silver (Ag) with Gold Plating
Contact Termination: Solder Pin
Datenblatt:
HY1-4.5V.pdf
€
1
.50*
Panasonic

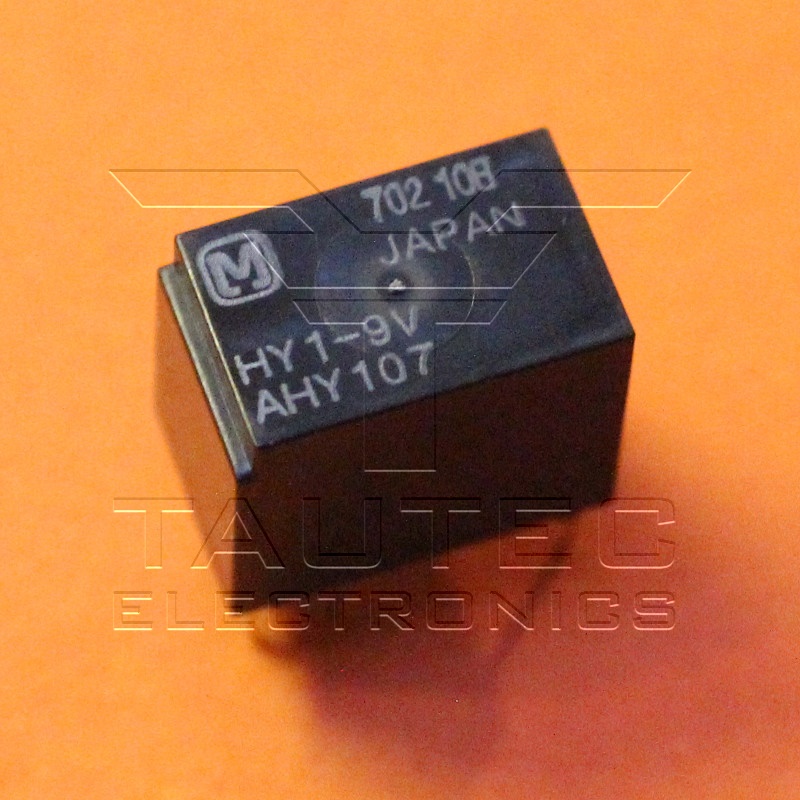

HY1-9V
Low Signal Relays
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Rating: 1 A at 30 VDC
Contact Current Rating: 2 A
Maximum Switching Current: 1 A
Coil Voltage: 9 VDC
Coil Current: 16.7 mA
Coil Resistance: 540 Ohms
Coil Type: Non-Latching
Power Consumption: 150 mW
Contact Termination: Solder Pin
Contact Material: Silver (Ag) with Gold Plating
Datenblatt:
HY1-9V.pdf
€
1
.53*
