Omron

G2R-1 24DC

24VDC PCB Relay Contacts configuration: SPDT Rated coil voltage: 24V DC AC contacts rating: 10A / 250V AC DC contacts rating: 10A / 30V DC Contact current max.: 10A Switched voltage: max. 125V DC, max. 380V AC Relay variant: miniature, monostable Mounting: PCB Coil resistance: 1.1kOhm Coil current: 21.8mA Contact resistance: 30mOhm Operate time: 15ms Release time: 5ms Body dimensions: 29x13x25.5mm Operating temperature: -40...70C Datenblatt: G2R.pdf

€ 1 .10*

Omron

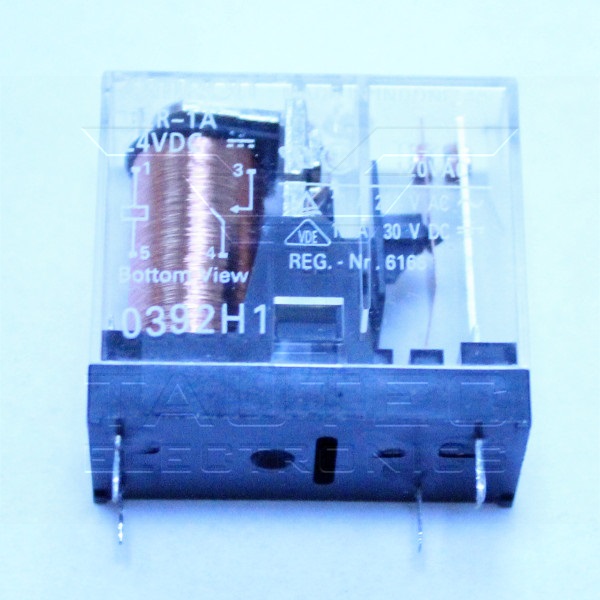

G2R-1 24DC PBF

24VDC PCB Relay - Coil Voltage: 24 V dc - Contact Configuration: SPDT - Mounting Type: PCB Mount - Switching Current: 10 A - Terminal Type: Through Hole - Coil Resistance: 1.1 k? - Length: 29mm - Depth: 13mm - Height: 25.5mm - Operating Temperature Range: -40 to +70°C - Maximum Switching Power DC: 300 W - Maximum Switching Power AC: 2.5 kVA - Contact Material: Silver Datenblatt: G2R.pdf

€ 1 .75*

Omron

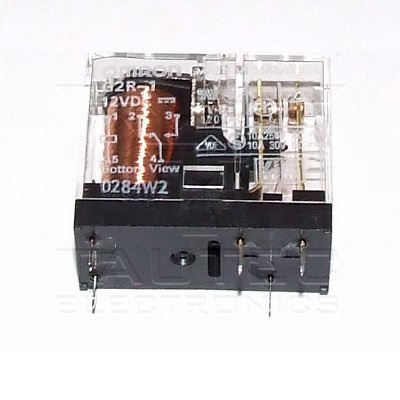

G2R-1-DC12

12VDC PCB Relay Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 10 A Mounting Style: Through Hole Coil Resistance: 275 Ohms Coil Current: 43.6 mA Power Consumption: 530 mW Contact Material: Silver Cadmium Oxide (AgCdO) Length: 29 mm Width: 13 mm Height: 25.3 mm Datenblatt: G2R.pdf

€ 1 .54*

Omron

G2R-1-E-ASI-80VDC

Beschreibung: 80VDC PCB Relay Datenblatt: G2R.pdf

€ 3 .50*

Omron

G2R-1-T AC110

General Purpose Relays Coil Voltage: 110 VAC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 10 A Mounting Style: Socket Switching Voltage: 380 VAC, 125 VDC Coil Termination: Quick Connect Terminal Coil Type: Non-Latching Coil Resistance: 4.6 kOhms Coil Current: 9 mA Contact Material: Silver Alloy (Ag) Power Consumption: 900 mW Datenblatt: G2R-1-T AC110.pdf

€ 3 .50*

Omron

G2R-1-T AC120

General Purpose Relays Coil Voltage: 120 VAC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 10 A Mounting Style: Socket Switching Voltage: 380 VAC, 125 VDC Coil Termination: Quick Connect Terminal Coil Type: Non-Latching Coil Resistance: 6,5 kOhms Coil Current: 7.5 mA Contact Material: Silver Alloy (Ag) Power Consumption: 900 mVA Datenblatt: G2R-1-T AC120.pdf

€ 3 .50*

Omron

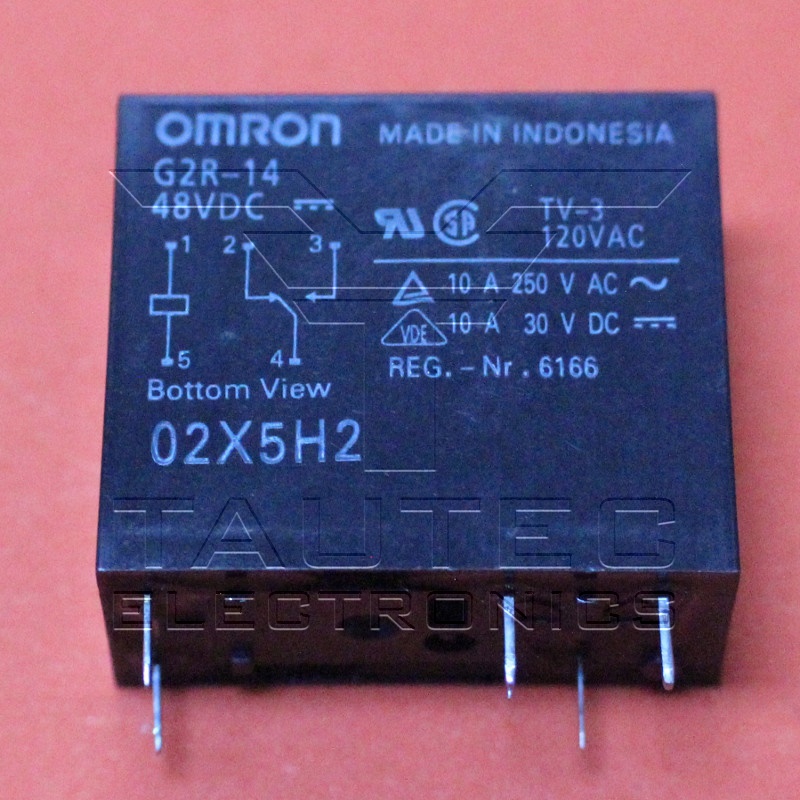

G2R-14-DC48

General Purpose Relay Mounting Type: Through Hole Coil Voltage: 48VDC Coil Resistance: 4,17 kOhms Contact Form: SPDT (1 Form C) Contact Rating (Current): 8A Switching Voltage: 380VAC, 125VDC - Max Coil Current: 11,5mA Coil Type: Non Latching Seal Rating: Sealed - Fully Operating Temperature: -40°C to 70°C Contact Material: Silver Alloy Coil Resistance: 4,17 kOhms Datenblatt: G2R-14-DC48.pdf

€ 2 .00*

Omron

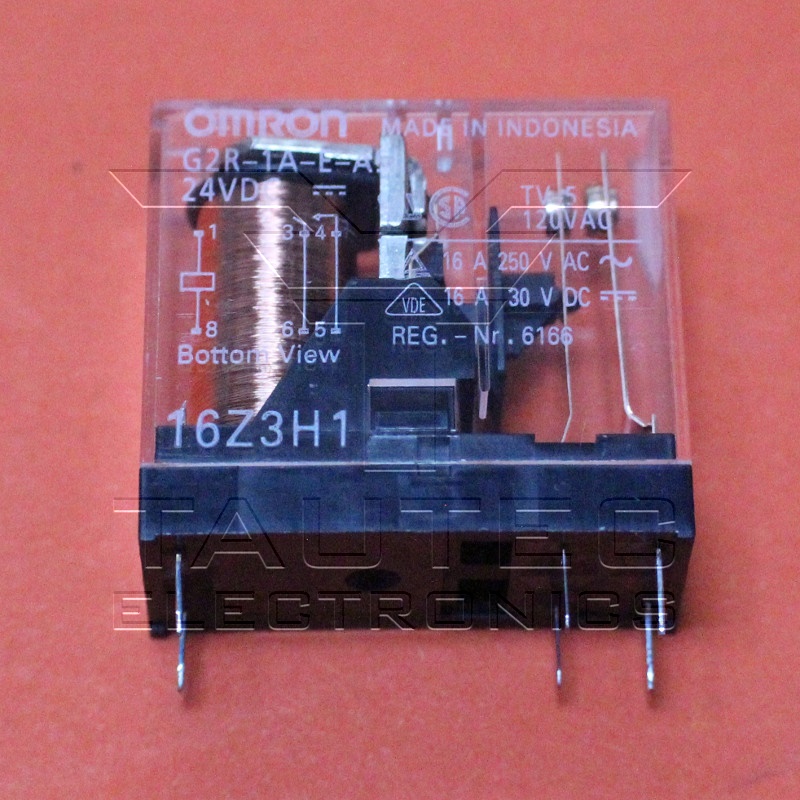

G2R-1A-E-ASI-DC24

General Purpose Relay Mounting Type: Through Hole Coil Voltage: 24VDC Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 16A Switching Voltage: 380VAC, 125VDC - Max Coil Current: 21,8mA Coil Type: Non Latching Operating Temperature: -40°C to 70°C Contact Material: Silver Alloy Coil Resistance: 1,1 kOhms Datenblatt: G2R-1A-E-ASI-DC24.pdf

€ 2 .50*

Omron

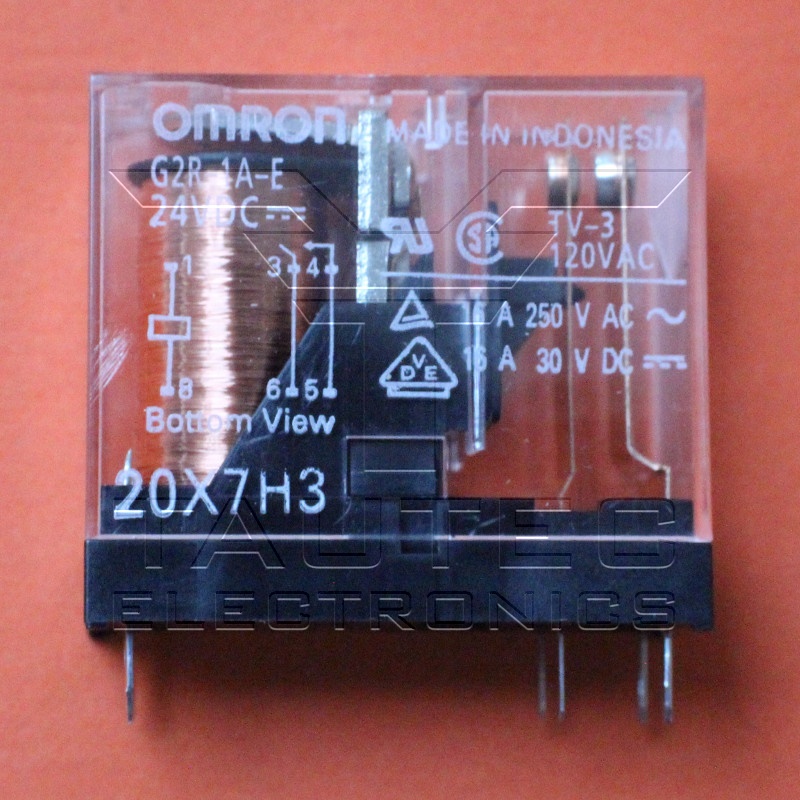

G2R-1A-E-DC24

€ 3 .18*

Omron

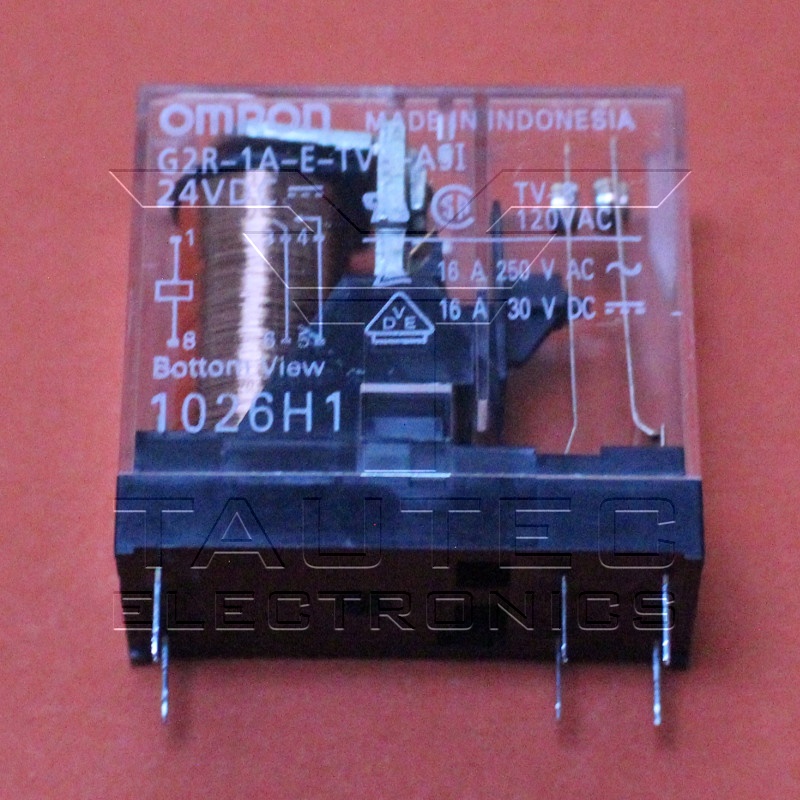

G2R-1A-E-TV8-ASI-DC24

€ 3 .00*

Omron

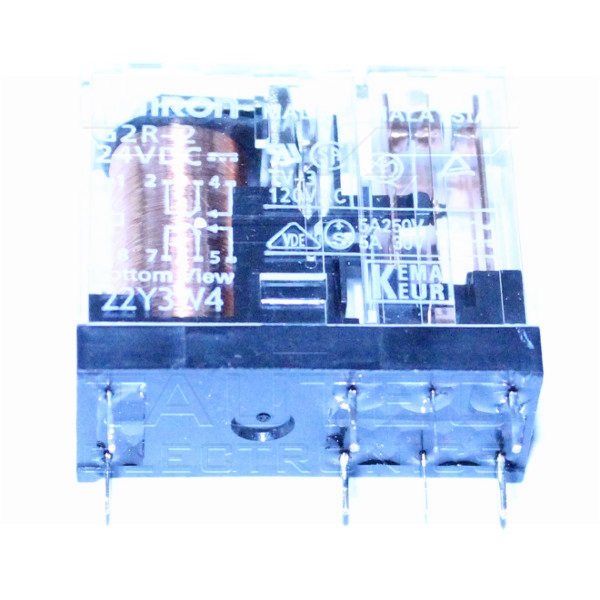

G2R-2 24VDC

24VDC PCB Relay Contact Form: DPST-NO (2 Form A) Mounting Type: Through Hole Switching Voltage: 380VAC, 125VDC - Max Contact Rating (Current): 5A Coil Voltage: 24VDC Coil Current: 21,8mA Coil Resistance: 1,1 kOhms Coil Type: Non Latching Contact Material: Silver Alloy Datenblatt: G2R.pdf

€ 2 .21*

Omron

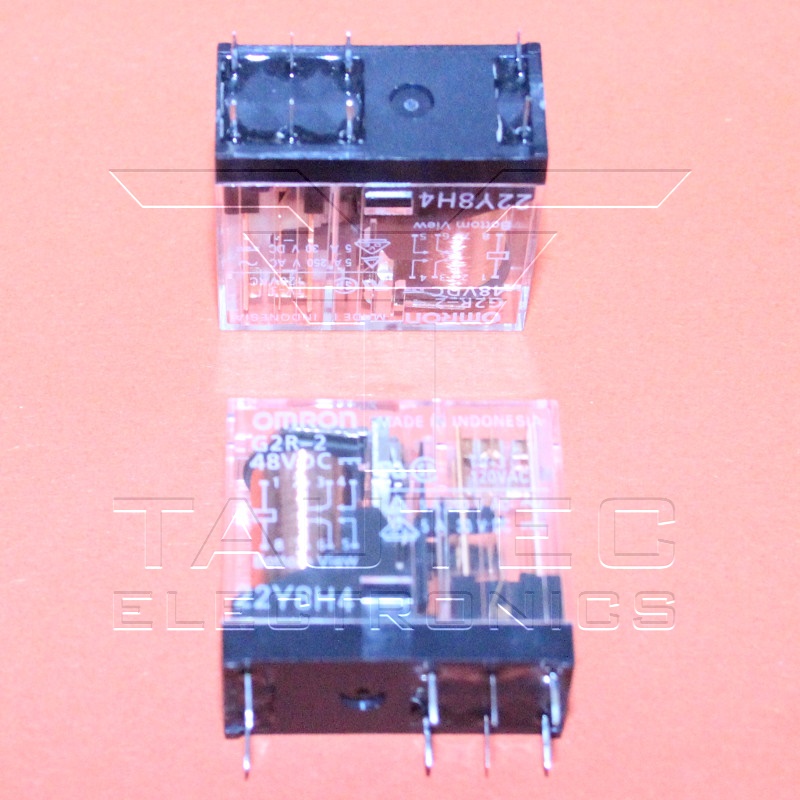

G2R-2-48VDC

48VDC PCB Relay Relay Contact Form: 2 Form C (DPDT-NO, NC) Switching Voltage: 125 VDC Switching Voltage: 380 VAC Contact Current Rating: 5 A Switching Capacity: 1.25 kVA Mounting Style: Through Hole Coil Voltage: 48 VDC Coil Resistance: 4.17 kOhms Coil Current: 11.5 mA Power Consumption: 530 mW Contact Material: Silver Cadmium Oxide (AgCdO) Length: 29 mm Width: 13 mm Height: 25.3 mm Datenblatt: G2R-2-48VDC.pdf

€ 1 .73*

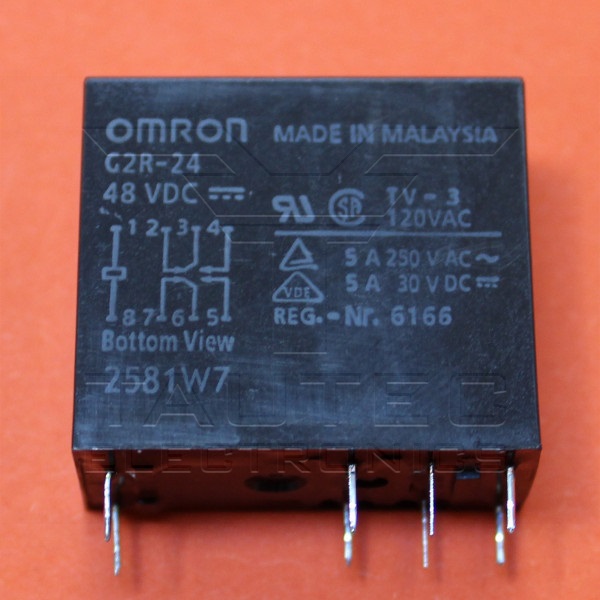

Omron

G2R-24-DC48

48VDC PCB Power Relay Coil Voltage: 48 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Mounting Style: Through Hole Coil Type: Non-Latching Coil Resistance: 4.17 kOhms Coil Current: 11.5 mA Contact Material: Silver Alloy (Ag) Series: G2R Height: 25.5 mm Length: 29 mm Width: 13 mm Power Consumption: 530 mW Datenblatt: G2R.pdf

€ 3 .86*

Omron

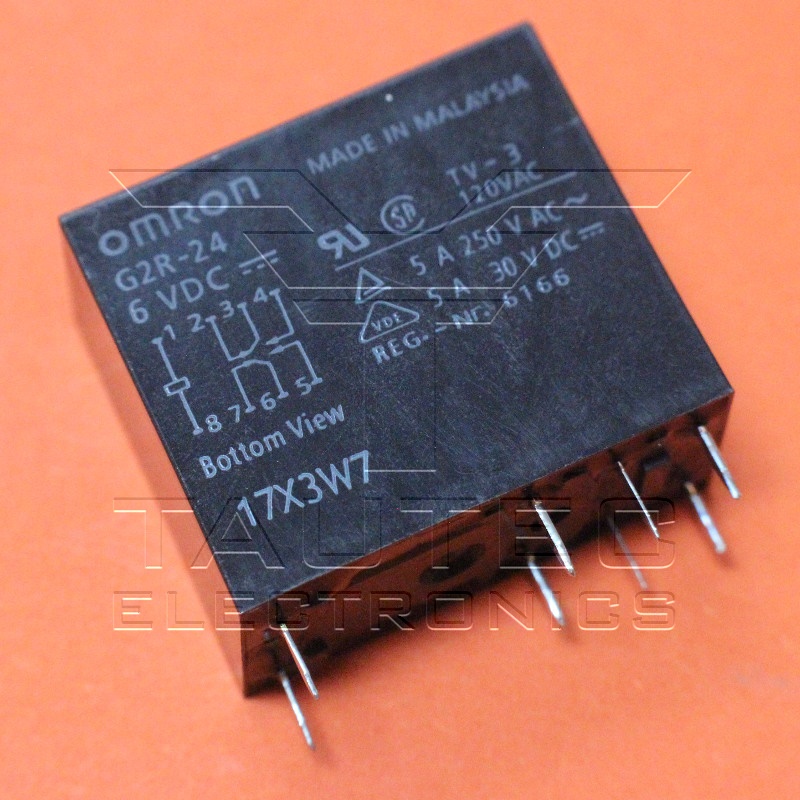

G2R-24-DC6

6VDC PCB Power Relay Coil Voltage: 6 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 4 A Switching Voltage: 380 VAC, 125 VDC Coil Type: Non-Latching Coil Resistance: 68 Ohms Coil Current: 88.2 mA Maximum Switching Current: 4 A Power Consumption: 530 mW Contact Material: Silver Alloy (Ag) Series: G2R Height: 25.5 mm Length: 29 mm Width: 13 mm Datenblatt: G2R-24-DC6.pdf

€ 2 .75*

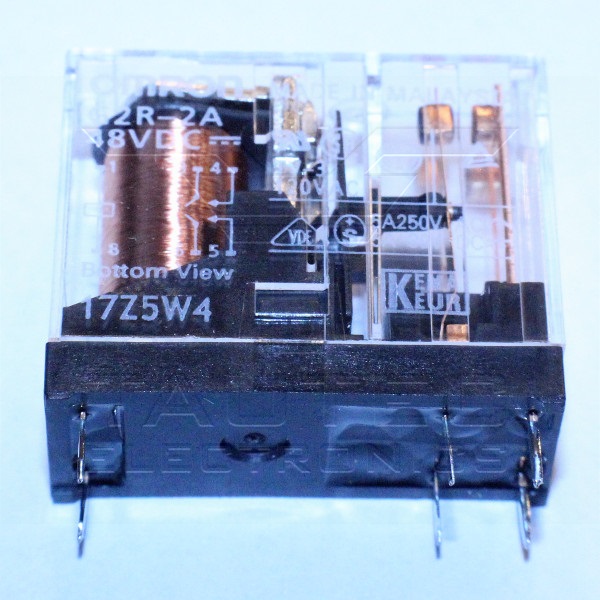

Omron

G2R-2A-DC48

PCB Relay 48VDC / 5A - Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO. - Meets VDE0700 requirements for household products according to VDE0110. - Clearance and creepage distance: 8 mm/8 m. - Models with CTI250 material available. - High-sensitivity (360 mW) and high-capacity (16 A) types available. - Double-winding latching type available. - Plug-in with test button and quick-connect terminals available. - Highly functional socket available Datenblatt: G2R.pdf

€ 1 .75*

Omron

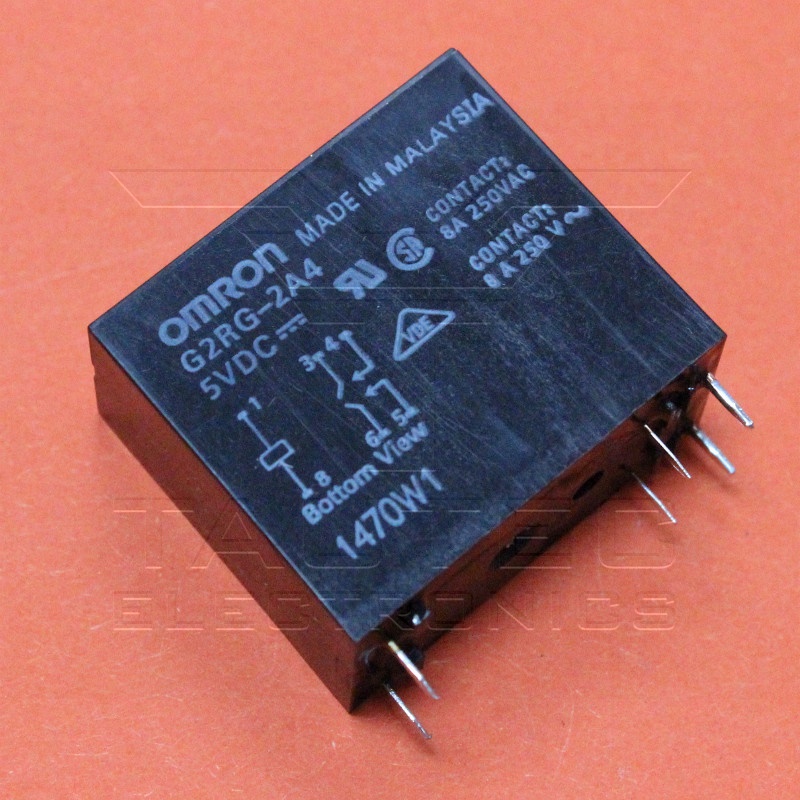

G2RG-2A4 DC5

5VDC PCB Power Relay - Product: Slim Form Relay - Coil Voltage: 5 VDC - Contact Form: DPST (2 Form A) - Contact Current Rating: 8 A - Mounting Style: Socket - Switching Voltage: 380 VAC, 125 VDC - Coil Type: Non-Latching - Coil Resistance: 31.3 Ohms - Coil Current: 160 mA - Contact Material: Silver Alloy (Ag) data Datenblatt: G2RG-2A4.pdf

€ 3 .50*

Omron

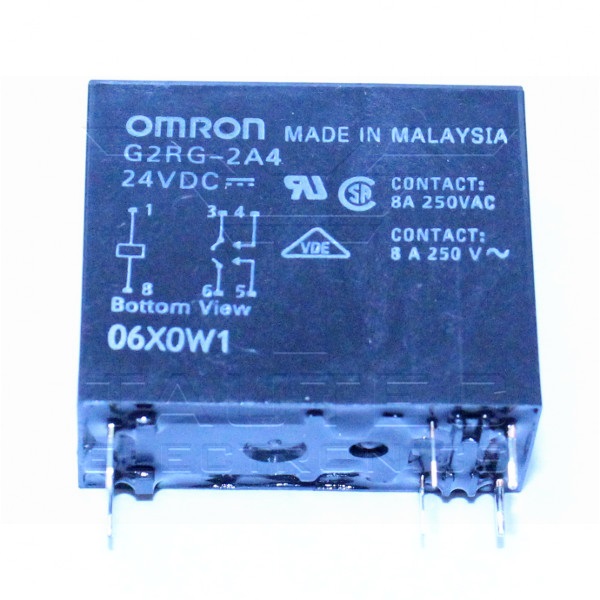

G2RG-2A4-DC24

24VDC PCB Power Relay Maximum AC Switching Voltage: 380VAC Maximum DC Switching Voltage: 125DC Maximum Switching Current: 8A Relay Contact Form: 2 Form A (DPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Voltage: 24 VDC Coil Type: Non-Latching Coil Resistance: 720 Ohms Coil Current: 33.3 mA Contact Material: Silver Alloy (Ag) Series: G2R Power Consumption: 800 mW Datenblatt: G2RG-2A4.pdf

€ 3 .06*

Omron

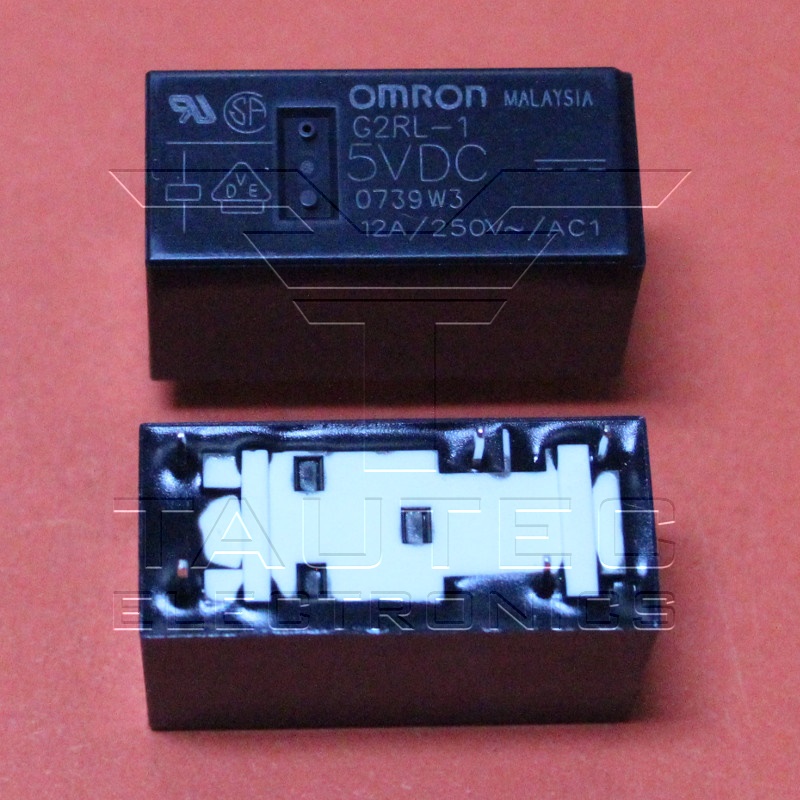

G2RL-1-DC5

5VDC PCB Relay, High Capacity, Low Profile Relay Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 440 VAC, 300 VDC Contact Rating (Current): 12A Coil Voltage: 5 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 62.5 Ohms Coil Current: 80 mA Power Consumption: 400 mW Contact Material: Silver Alloy (Ag) Operating Temperature: -40 C to 85C Datenblatt: G2RL-1-DC5.pdf

€ 1 .95*

Omron

G2RL-14-DC24

General Purpose Relays Relay Contact Form: 1 Form C (SPDT-NO, NC) Mounting Style: Through Hole Contact Rating (Current): 12A Switching Voltage: 440VAC, 300VDC - Max Coil Voltage: 24 VDC Coil Type: Non-Latching Coil Resistance: 1.44 kOhms Coil Current: 16.7 mA Power Consumption: 400 mW Contact Material: Silver Tin Oxide (AgSnO) Length: 29 mm Width: 12.7 mm Height: 15.7 mm Datenblatt: G2RL-14-DC24.pdf

€ 3 .15*

Omron

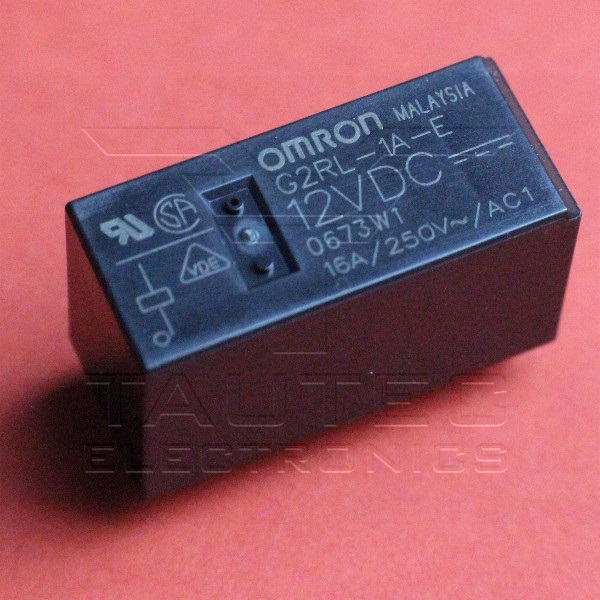

G2RL-1A-E DC12

12VDC PCB Relay, High Capacity, Low Profile Relay - Low profile: 15.7 mm max. in height. - Cadmium-free contacts ensuring environment-friendly use. - 10 kV impulse surge withstand. - Clearance and creepage distance: 10 mm/10 mm. - Tracking resistance: CTI>250. - Choose from UL Class-B or Class-F insulation systems. - Low coil power of 400 mW. - UL, CSA and VDE approved. Datenblatt: G2RL.pdf

€ 1 .60*

Omron

G2RL-1A-E-CV DC24

General Purpose Relays Power PCB Relay Type: High Capacity Coil Voltage: 24 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 12 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 440 VAC, 300 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.44 kOhms Coil Current: 16.7 mA Contact Material: Silver Alloy (Ag) Contact Rating: 12 A at 250 VAC Maximum Switching Current: 12 A Power Consumption: 400 mW Height: 15.7 mm Length: 29 mm Width: 12.7 mm Datenblatt: G2RL-1A-E-CV.pdf

€ 1 .25*

Omron

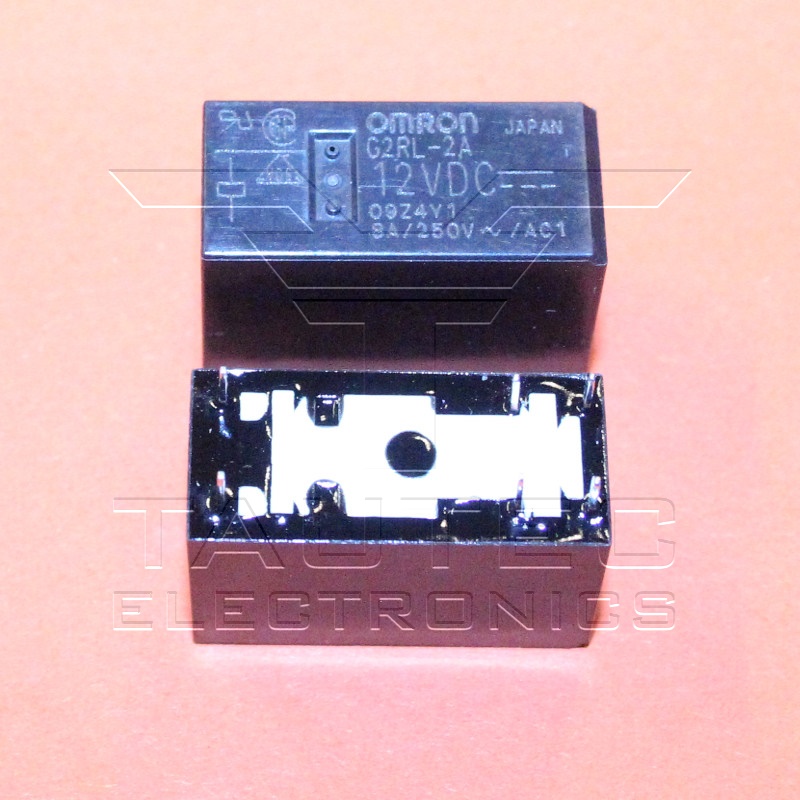

G2RL-2A DC12

12VDC PCB Relay, High Capacity, Low Profile Relay Relay Contact Form: 2 Form A (DPST-NO) Maximum AC Switching Voltage: 440VAC Maximum DC Switching Voltage: 300VDC Maximum Switching Current: 8A Maximum Switching Power: 2kVA Mounting Style: Through Hole Coil Type: Non-Latching Coil Voltage: 12 VDC Coil Resistance: 360Ohms Coil Current: 33.3 mA Contact Material: Silver Tin Oxide (AgSnO) Length: 29 mm Width: 12.7 mm Height: 15.7 mm Datenblatt: G2RL.pdf

€ 2 .71*

Omron

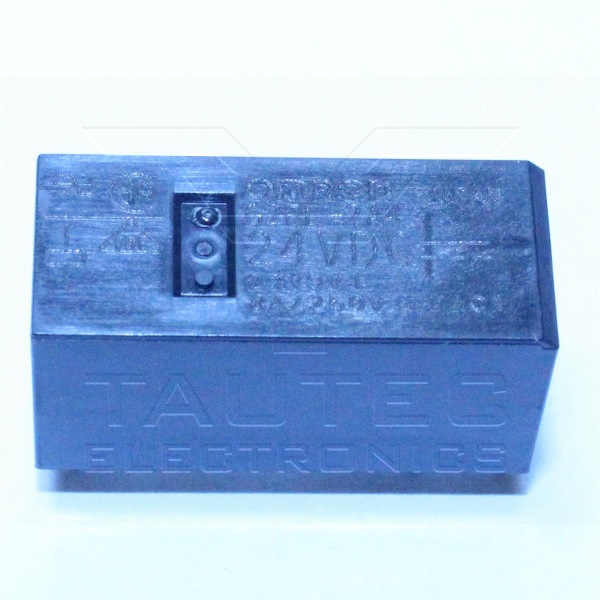

G2RL-2A4 DC24

24VDC PCB Relay, High Capacity, Low Profile Relay Relay Contact Form: 2 Form A (DPST-NO) Maximum AC Switching Voltage: 440VAC Maximum DC Switching Voltage: 300VDC Maximum Switching Current: 8A Maximum Switching Power: 2kVA Mounting Style: Through Hole Coil Type: Non-Latching Coil Voltage: 24 VDC Coil Resistance: 1.44 kOhms Coil Current: 16.7 mA Power Consumption: 400 mW Contact Material: Silver Tin Oxide (AgSnO) Length: 29 mm Width: 12.7 mm Height: 15.7 mm Datenblatt: G2RL.pdf

€ 2 .62*

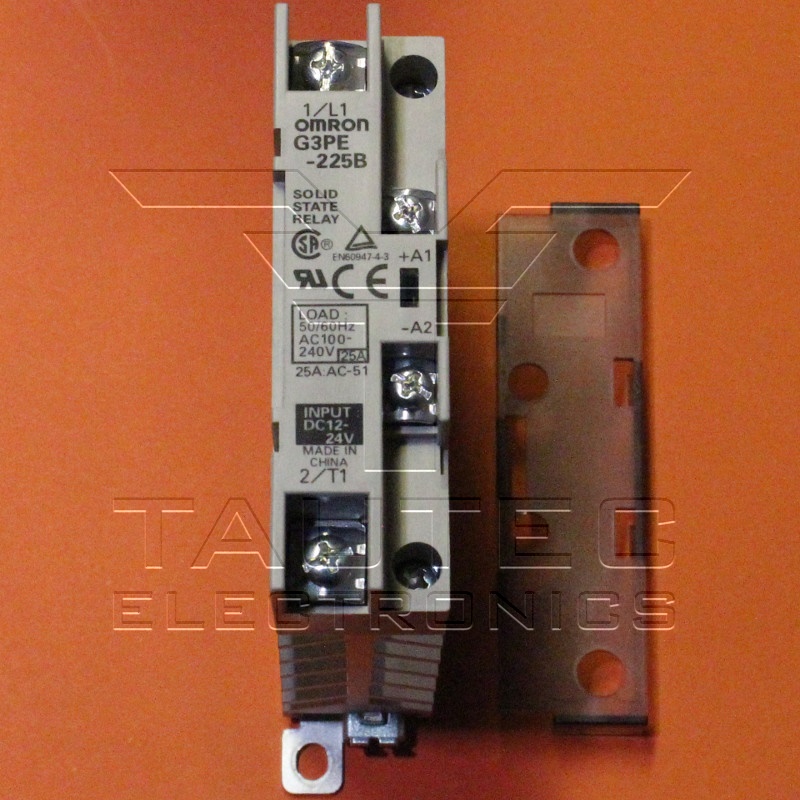

Omron

G3PE-225B DC12-24

DIN Rail Interface Relay Module, Screw - Coil Voltage : 24V dc - Applicable load: 25 A, 100 to 240 VAC - Mounting Type : DIN Rail - Terminal Type : Screw - Length : 22.5mm - Depth : 130mm - Height : 100mm - Input Current : 7mA - Operating Temperature Range : -30 ? +80°C - Turn Off Time : 1ms - Turn On Time : 1ms Datenblatt: G3PE-225B.pdf

€ 30 .00*

Omron

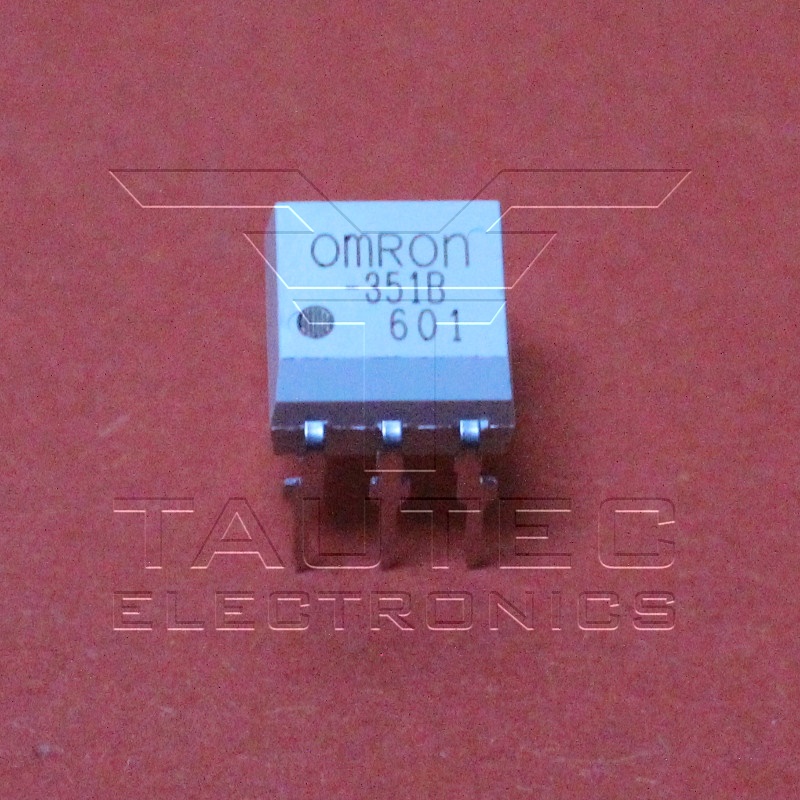

G3VM-351B

SSR - Solid State Relays Control Voltage Range: 1 VDC to 1.3 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VAC, 350 VDC Load Current Rating: 100 mA Input Current: 50 mA Output Type: MOSFET Input Voltage: 1.3 V Maximum Operating Temperature: + 65 C Minimum Operating Temperature: - 20 C Datenblatt: G3VM-351B.pdf

€ 0 .85*

Omron

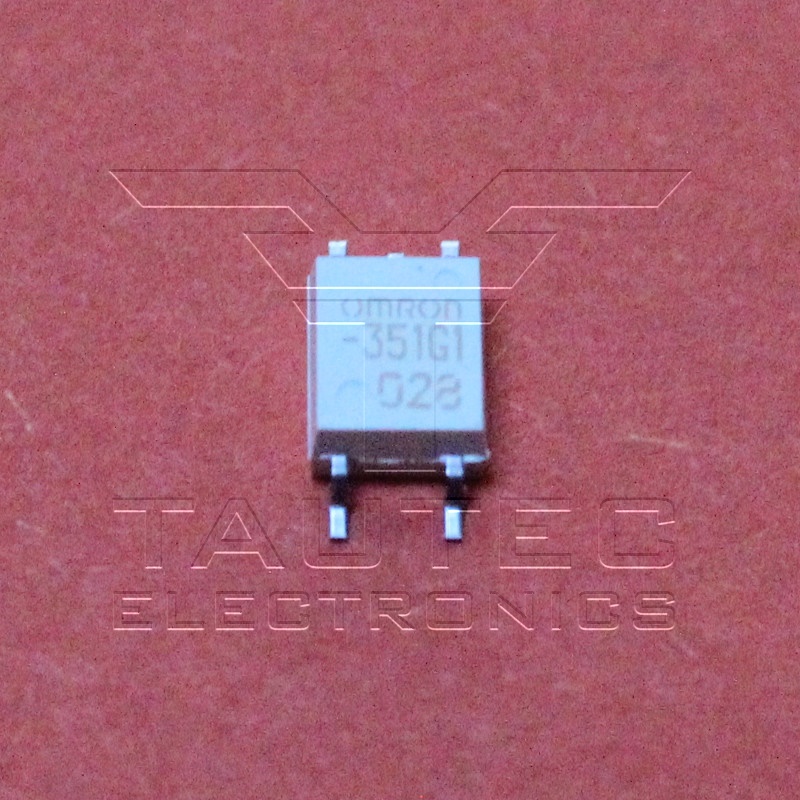

G3VM-351G1

SSR - Solid State Relays Control Voltage Range: 1 VDC to 1.3 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VAC, 350 VDC Load Current Rating: 100 mA Output Type: MOSFET Input Voltage: 1.3 V Maximum Operating Temperature: + 65 C Minimum Operating Temperature: - 20 C Datenblatt: G3VM-351G1.pdf

€ 1 .50*

Omron

G3VM-351GL

€ 1 .00*

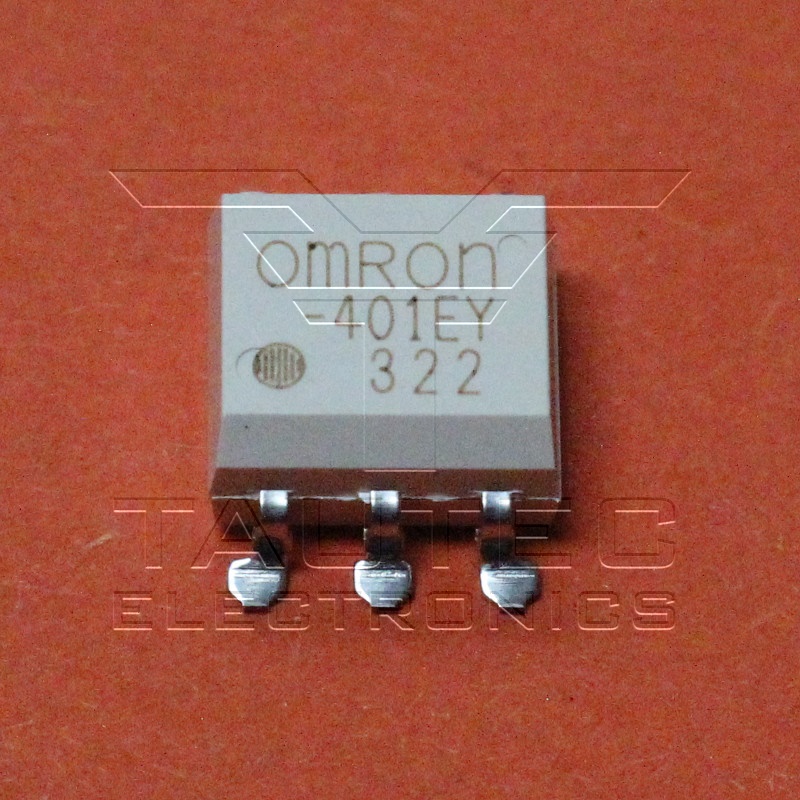

Omron

G3VM-401EY(TR)

SSR - Solid State Relays Control Voltage Range: 1 VDC to 1.3 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 400 VAC, 400 VDC Load Current Rating: 120 mA Input Current: 50 mA Output Type: MOSFET Series: G3VM Height: 3.65 mm Width: 6.4 mm Length: 7.12 mm Input to Output Isolation Method: Optocoupler Maximum Operating Temperature: + 65 C Minimum Operating Temperature: - 20 C Datenblatt: G3VM-401EY(TR).pdf

€ 1 .75*

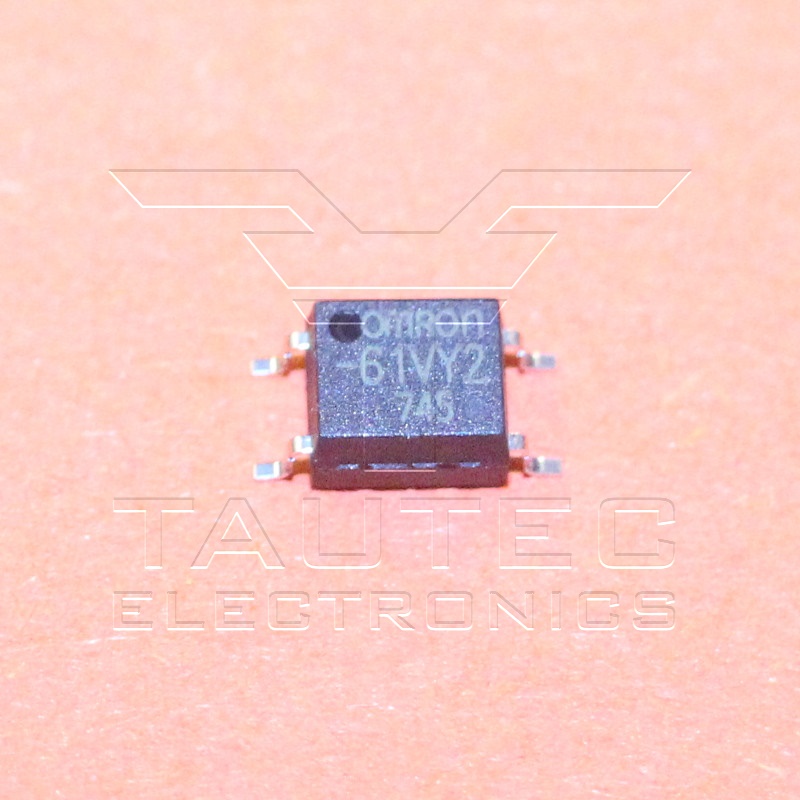

Omron

G3VM-61VY2(TR)

Solid State Relays Contact Form: SPST (1 Form A) Load Current Rating: 500 mA Load Voltage Rating: 60 VAC, 60 VDC Relay Contact Form: 1 Form A (SPST-NO) Output Type: MOSFET Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 110 C Datenblatt: G3VM-61VY.pdf

€ 0 .67*

Omron

G4A-1A-E DC48

Beschreibung: 48VDC Miniature Single-pole Relay with 80A Surge Current and 20A Switching Current Datenblatt: G4A.pdf

€ 1 .70*

Omron

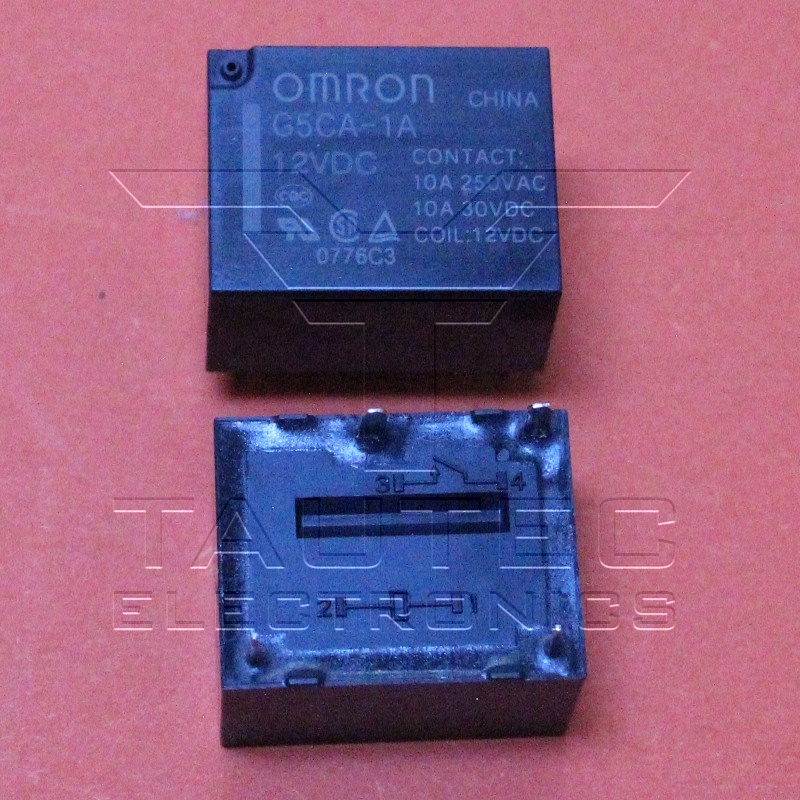

G5CA-1A-DC12

General Purpose Power Relays Relay Contact Form: 1 Form A (SPST-NO) Maximum Switching Current: 10A Maximum Switching Power: 300W|2.5kVA Maximum AC Switching Voltage: 250V Maximum DC Switching Voltage: 125V Contact Termination: Solder Pin Mounting Style: Through Hole Coil Type: Non-Latching Coil Voltage: 12 VDC Coil Resistance: 720 Ohms Coil Current: 16.7 mA Contact Material: Silver Alloy (Ag) Power Consumption: 200 mW Datenblatt: G5CA.pdf

€ 1 .50*

Omron

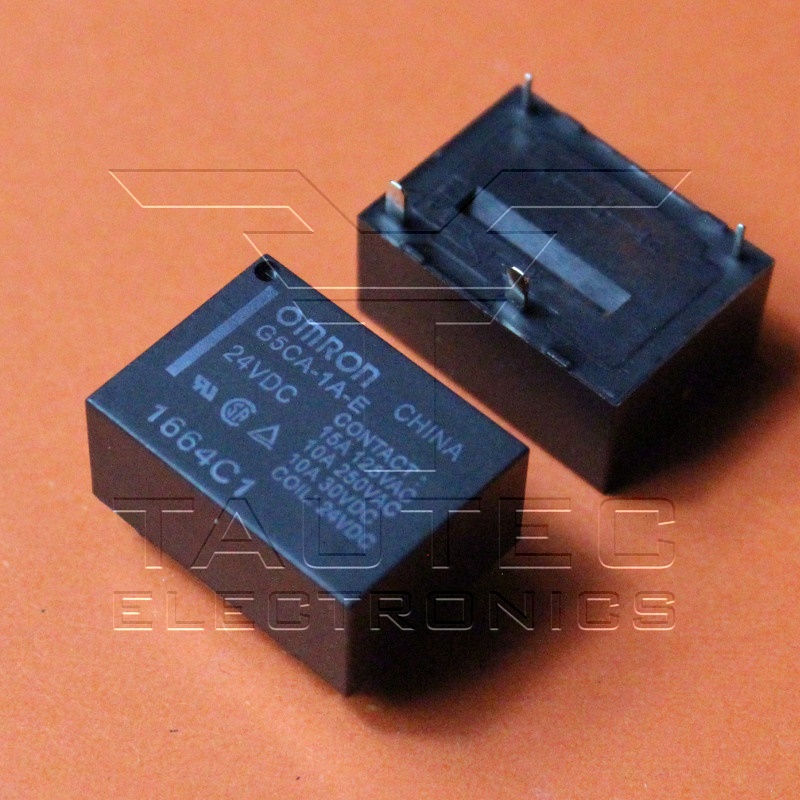

G5CA-1A-E DC24V

General Purpose Relays High-Capacity Coil Voltage: 24 VDC Contact Form: SPST (1 Form A) Mounting Style: Through Hole Coil Resistance: 3.84 kOhms Coil Current: 6.25 mA Power Consumption: 150 mW Contact Material: Silver Alloy (Ag) Height: 11 mm Length: 22 mm Width: 16 mm Datenblatt: G5CA.pdf

€ 2 .50*

Omron

G5LA-1-E-DC12

Power Relay 12VDC 10A Contact Arrangement: SPDT / 1 Form C Dropout Volt: 1.2VDC Coil Voltage DC: 12V Relay Construction: Non-Latching Voltage Rating: 250VAC Voltage Rating: : 24VDC Pick-up Voltage (Max): 9VDC Maximum Power Rating: 120W/1.25KVA Termination Style: PC Pin Seal: Sealed Contact Material: Silver(Cadmium Free) Coil Resistance: 400Ohm Contact Current Rating: 5A Coil Current: 30mA Operating Temp Range: -40C to +85C Datenblatt: G5LA-1-E-DC12.pdf

€ 1 .60*

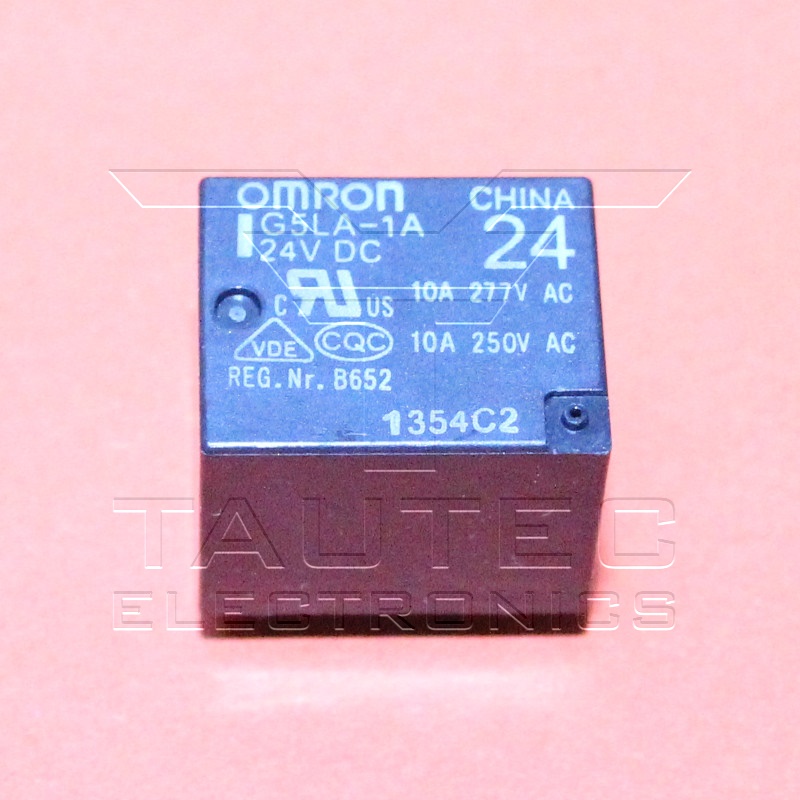

Omron

G5LA-1A-DC24

General Purpose Relay Mounting Type: Through Hole Coil Voltage: 24VDC Contact Form: SPST-NO (1 Form A) Contact Rating: 10A Switching Voltage: 250VAC, 24VDC - Max Coil Current: 15mA Coil Type: Non Latching Coil Resistance: 1,6 kOhms Contact Material: Silver Tin Oxide (AgSnO) Must Operate Voltage: 18 VDC Must Release Voltage: 2.4 VDC Operate Time: 10ms Release Time: 5ms Operating Temperature: -40 C to 85C Datenblatt: G5LA-1A-DC24.pdf

€ 2 .75*

Omron

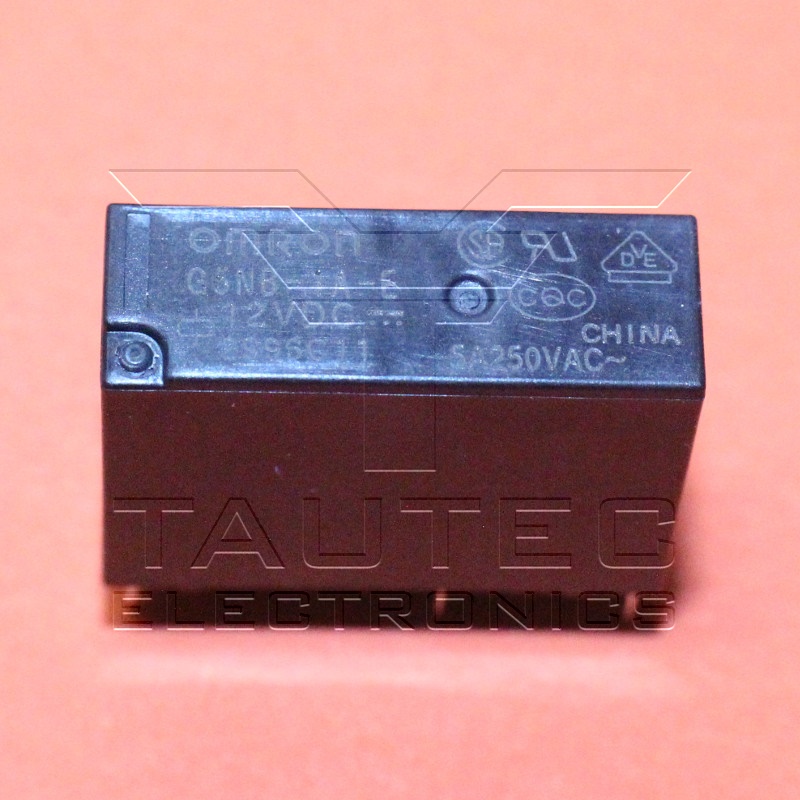

G5NB-1A-E-DC12

Power PCB Relay Coil Type: Non Latching Coil Current: 16,7mA Coil Voltage: 12VDC Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 5A Switching Voltage: 250VAC, 30VDC - Max Turn On Voltage (Max): 9 VDC Turn Off Voltage (Min): 1.2 VDC Operate Time: 10ms Release Time: 10ms Features: Sealed - Flux Protection Mounting Type: Through Hole Operating Temperature :-40°C to 70°C Coil Power: 200 mW Coil Resistance: 720 Ohms

€ 1 .92*

Omron

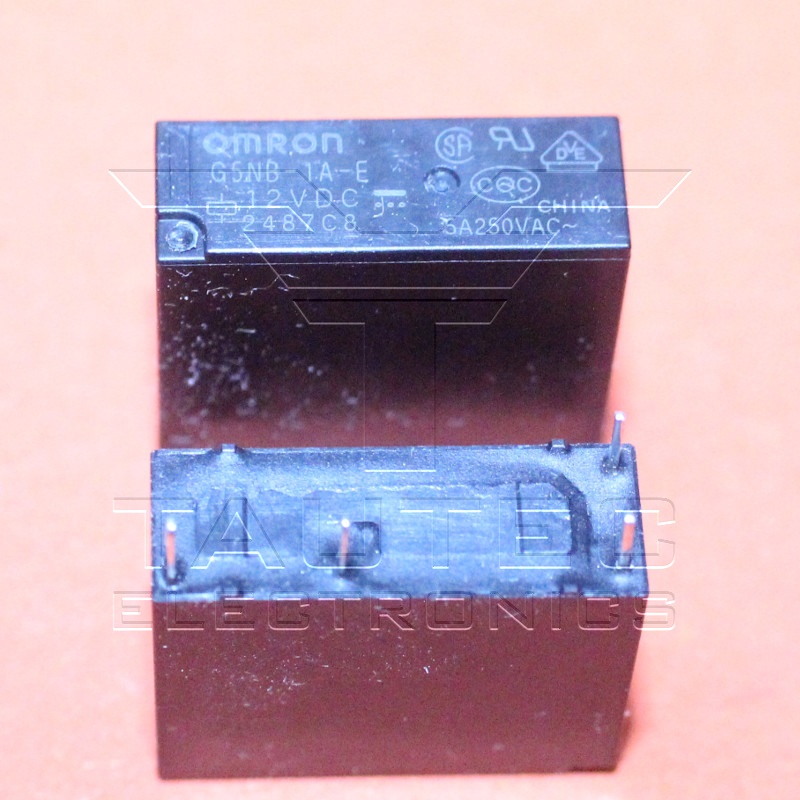

G5NB-1A-E-DC12(N)

General Purpose Relays Relay Contact Form: 1 Form A (SPST-NO) Contact Rating (Current): 5A Switching Voltage: 250VAC, 30VDC - Max Coil Voltage: 12 VDC Coil Type: Non-Latching Coil Resistance: 720 Ohms Coil Current: 16.7 mA Power Consumption: 200 mW Datenblatt: G5NB-1A-E-DC12(N).pdf

€ 1 .90*

Omron

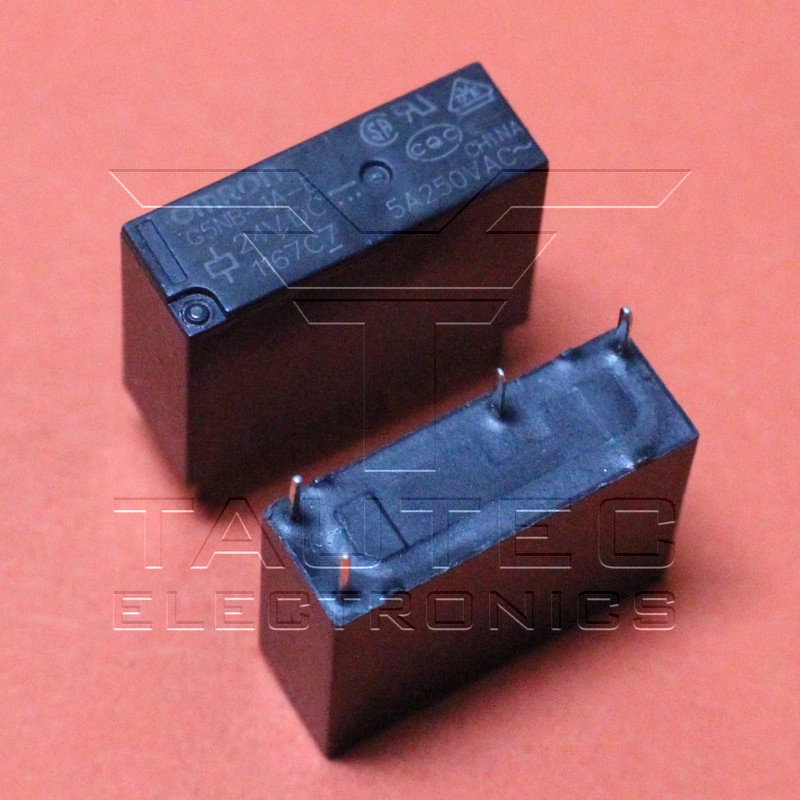

G5NB-1A-E-DC24

Power PCB Relay Coil Type: Non Latching Coil Current: 8,3mA Coil Voltage: 24VDC Coil Resistance: 2.88 KOhms Coil Power: 200 mW Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 5A Switching Voltage: 250VAC, 30VDC - Max Features: Sealed - Flux Protection Mounting Type: Through Hole Operating Temperature: -40°C to 70°C Datenblatt: G5NB-1A-E-DC24.pdf

€ 0 .75*

Omron

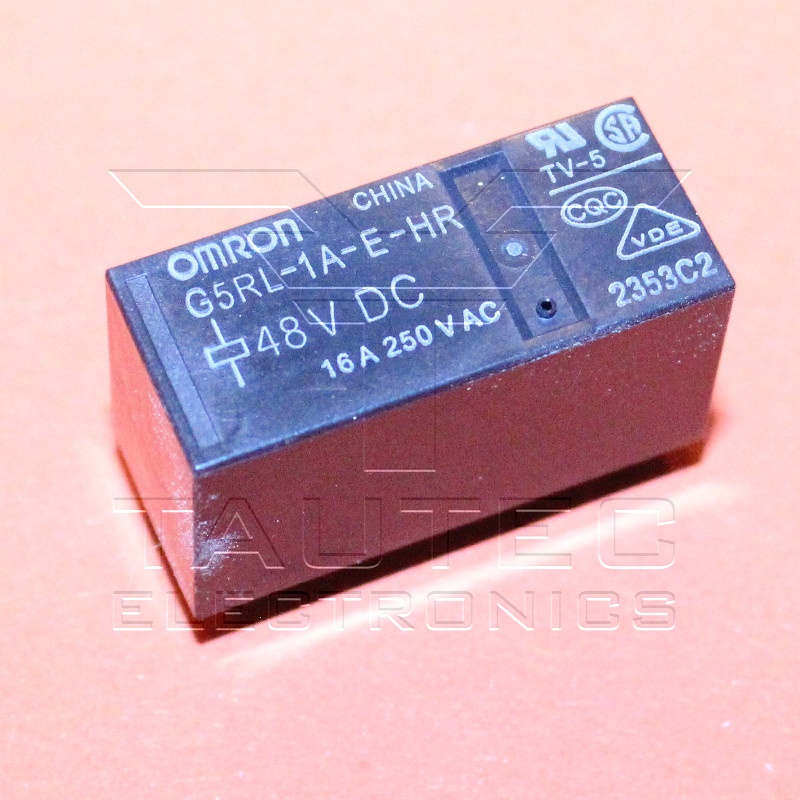

G5RL-1A-E-HR DC48

General Purpose Relays Power PCB Relay - Type: Polarized - Coil Voltage: 48 VDC - Contact Form: SPST (1 Form A) - Contact Current Rating: 16 A - Maximum Switching Voltage: 250 VAC - Contact Termination: Solder Pin - Mounting Style: Through Hole - Coil Termination: Solder Pin - Coil Type: Non-Latching - Contact Material: Silver Alloy (Ag) Datenblatt: G5RL-1A-E-HR.pdf

€ 1 .75*

Omron

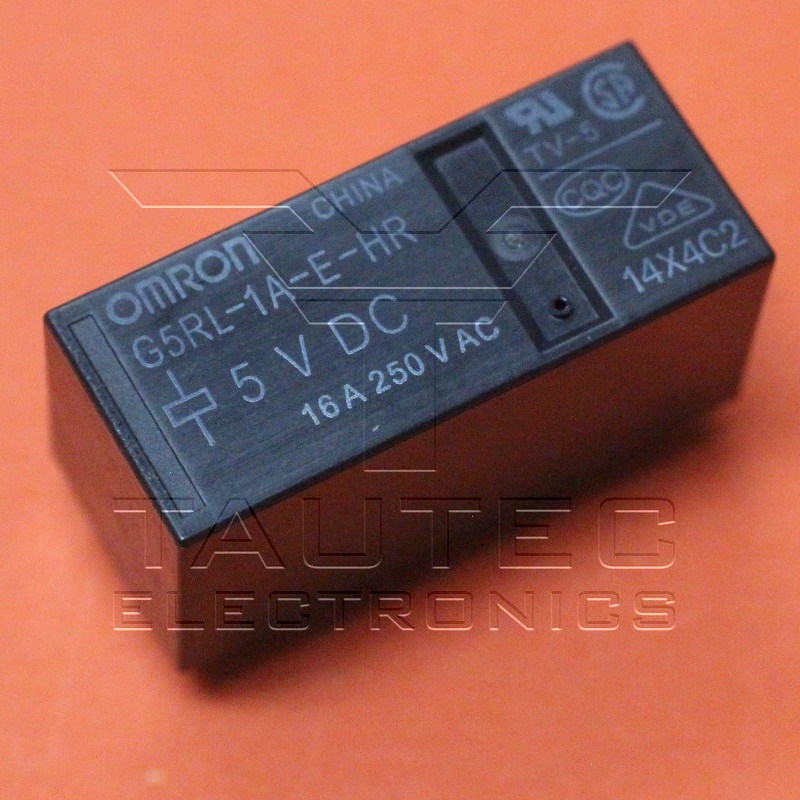

G5RL-1A-E-HR DC5

PCB Power Relays Type: Polarized Coil Voltage: 5 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 16 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 24 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 62.5 Ohms Coil Current: 80 mA Contact Material: Silver Alloy (Ag) Series: G5RL Height: 15.7 mm Length: 29 mm Width: 12.7 mm Power Consumption: 400 mW Datenblatt: G5RL-1A-E-HR.pdf

€ 2 .38*

Omron

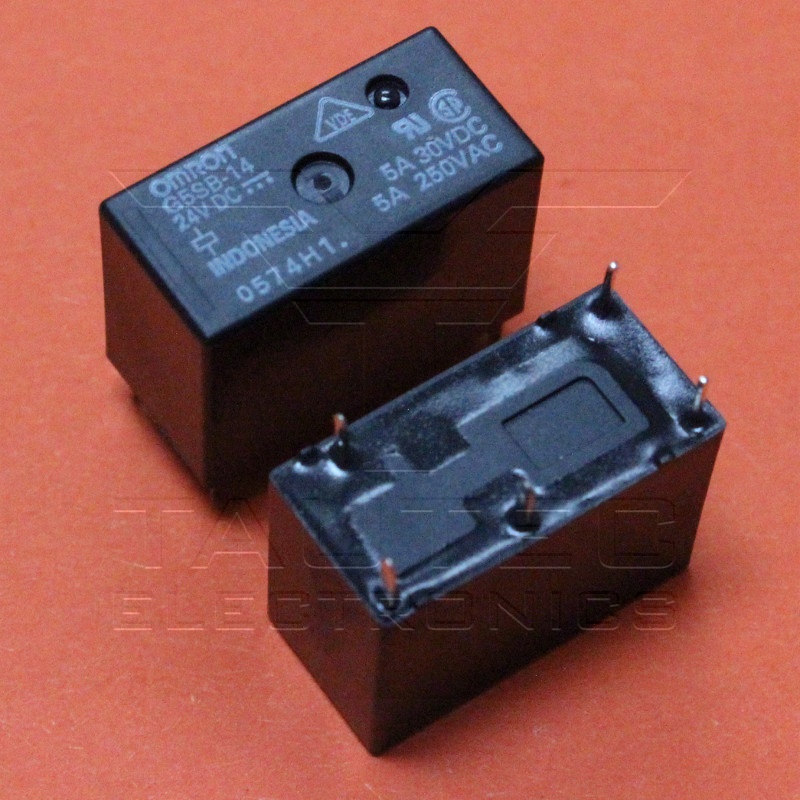

G5SB-14 DC24

24VDC Compact Single-pole Relay for Switching 5 A Contact Form: SPDT (1 Form C) Contact Rating: 5A Switching Voltage: 250VAC, 30VDC - Max Must Operate Voltage: 18 VDC Must Release Voltage: 1.2 VDC Coil Voltage: 24VDC Coil Current: 16,7mA Coil Resistance: 1,44 kOhms Coil Type: Non Latching Operate Time: 10ms Release Time: 5ms Contact Material: Silver Alloy Seal Rating: Sealed - Fully Operating Temperature: -40C to 70C Datenblatt: G5SB.pdf

€ 1 .63*
