F...

Fujitsu

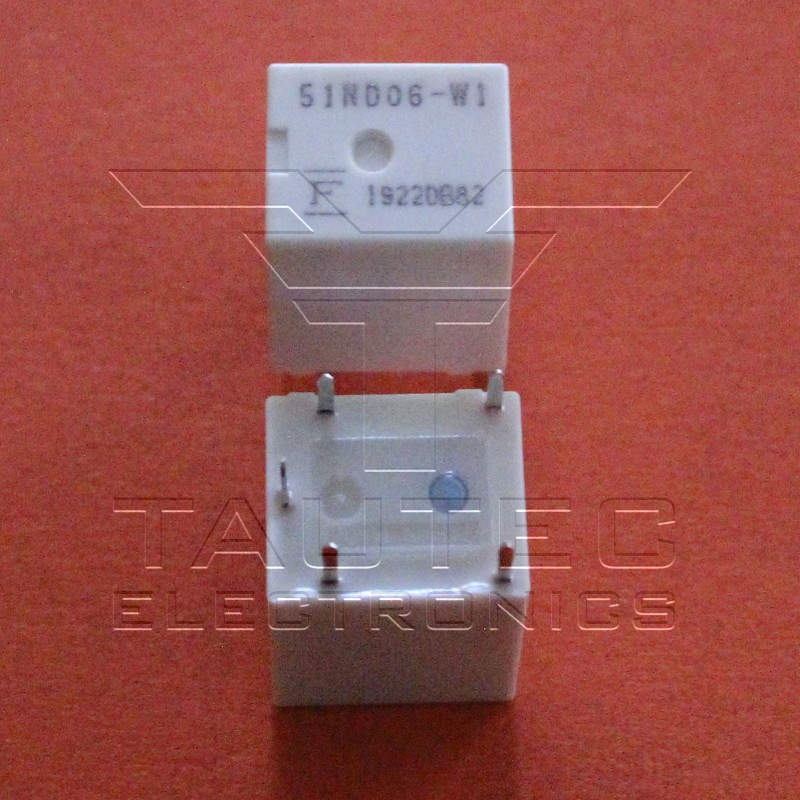

FBR51ND06-W1

Automotive Relays Relay Contact Form: 1 Form C (SPDT-NO, NC) Maximum Switching Current: 25 A Maximum Switching Voltage: 30 V Coil Voltage: 6 VDC Coil Resistance: 60 Ohms Power Consumption: 600 mW Mounting Style: PCB Mount Contact Termination: Solder Pin Contact Material: Silver Tin Indium (AgSnIn) Series: FBR51 Coil Type: Latching Datenblatt: FBR51ND06-W1.pdf

€ 1 .28*

Fujitsu

FTR-B3CA4.5Z

High Frequency Relays Coil Voltage: 4.5 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 2 A Contact Termination: Solder Pin Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 140 mW Series: FTR-B3 Coil Resistance: 145 Ohms Contact Material: Silver Nickel (AgNi) with Gold Plating Product Type: High Frequency Relays Operating Temperature: -40 to 85 °C Dimension: 10.6 x 7.2 x 5.2 mm Datenblatt: FTR-B3.pdf

€ 0 .70*

Fujitsu

FTR-B3GA4.5Z-B10

High Frequency Relays Coil Voltage: 4.5 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 2 A Contact Termination: Solder Pin Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 140 mW Series: FTR-B3 Contact Material: Silver Nickel (AgNi) with Gold Plating Datenblatt: FTR-B3.pdf

€ 1 .90*

Fujitsu

FTR-B3GA4.5Z-B10

4.5V Ultra Miniature Relay - DPDT 2C - Ultra miniature low profile relay with high heat resistant material - Height: 5.45mm, Weight: 0.85g, Mounting space: 87mm2 - Adopted superior contact spring for high frequency characteristic - Comply with Telcordia / FCC standard - Isolation distance: min. 1.6mm - Dielectric strength between coil and contact: 1500VAC - Surge strength: 2500V - High reliable bifurcated gold overlay silver contact Datenblatt: FTR-B3.pdf

€ 0 .67*

Fujitsu

FTR-B3SA003Z-B10

High Frequency Relays Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum AC Voltage Rating: 250 VAC Maximum DC Voltage Rating: 220 VDC Contact Current Rating: 2 A Contact Termination: Solder Pin Maximum Switching Current: 1 A Coil Voltage: 3 VDC Coil Resistance: 64.3 Ohms Coil Type: Non-Latching Power Consumption: 140 mW Contact Material: Silver Nickel (AgNi) with Gold Plating Datenblatt: FTR-B3.pdf

€ 1 .80*

Fujitsu

FTR-B3SA012Z-B10

Ultra Miniature Relay Contact Arrangement: DPDT Maximum AC Voltage Rating: 250 V Maximum Current Rating: 2 A Maximum DC Voltage Rating: 220 V Maximum Power Rating: 30 W Contact Material: Silver Nickel Coil Voltage: 12 VDC Coil Current: 11.67 mA Coil Resistance: 1028 Ohms Operating Temperature: -40 C to 85 C Datenblatt: FTR-B3SA012Z-B10.pdf

€ 1 .25*

Fujitsu

FTR-B3SB003Z-B10

3V Ultra Miniature Relay Coil Voltage: 3 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 2 A Contact Termination: Solder Pin Maximum Switching Current: 1 A Coil Type: Latching Power Consumption: 100 mW Series: FTR-B3 Coil Resistance: 90 Ohms Contact Material: Silver Nickel (AgNi) with Gold Plating Product Type: High Frequency Relays Datenblatt: FTR-B3.pdf

€ 2 .00*

Fujitsu

FTR-B4GA003Z-B05

3V Ultra Miniature Relay 2 Poles - 2 A (Slim Profile Signal Relay) Product: Low Profile Relays Type: Miniature Coil Voltage: 3 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 140 mW Contact Termination: Solder Pin Coil Resistance: 90 Ohms Contact Material: Silver Nickel (AgNi) with Gold Plating Mounting Style: Through Hole Datenblatt: FTR-B4.pdf

€ 1 .25*

Fujitsu

FTR-B4GA4.5Z-B05

Low Signal Relays Product: Low Profile Relays Type: Miniature Coil Voltage: 4.5 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Maximum Switching Current: 1 A Coil Type: Non-Latching Power Consumption: 140 mW Contact Termination: Solder Pin Coil Resistance: 145 Ohms Contact Material: Silver Nickel (AgNi) with Gold Plating Mounting Style: Through Hole Datenblatt: FTR-B4.pdf

€ 1 .25*

Fujitsu

FTR-F3AA024E

Beschreibung: 24VDC 1 Pole Slim Type Relay 5A/30VDC Datenblatt: FTR-F3-Series.pdf

€ 0 .80*

Fujitsu

FTR-H1AA012V

Beschreibung: 12VDC Power Relay, 1 Pole, 250VAC/10A, Low Profile Typ Datenblatt: FTR-H1-Series.pdf

€ 1 .00*

Fujitsu

FTR-H1AA024V

24VDC Power Relay 1 Pole - 10A Coil Voltage: 24 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 11 Ohms Contact Material: Silver (Ag) Power Consumption: 530 mW Datenblatt: FTR-H1.pdf

€ 2 .40*

Fujitsu

FTR-H3AA005V

General Purpose Relays Coil Voltage: 5 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage:´250 VAC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 47 Ohms Power Consumption: 530 mW Contact Material: Silver (Ag) Length: 28.8 mm Width: 13.7 mm Height: 18.8 mm Datenblatt: FTR-H3AA005V.pdf

€ 0 .75*

Fujitsu

FTR-K1AK024T

24VDC Power Relay 1 Pole - 16A 80A Inrush Type Coil Voltage: 24 VDC Contact rating (resistive): 16A, 250VAC / 24VDC Max. switching power: 4,000VA / 384W Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Type: Non-Latching Coil Resistance: 1440Ohms Contact Material: AgSnO2 Operating temperature range: -40 °C to +85 °C (no frost) Datenblatt: FTR-K1AK024T.pdf

€ 0 .75*

Fujitsu

FTR-K1AK028T

Beschreibung: 28VDC Power Relay 1 Pole - 16A 80A Inrush Type Datenblatt: FTR-K1AK028T.pdf

€ 1 .50*

Fujitsu

FTR-K1CK012W

12VDC Power Relay 1 Pole - 16A 80A Inrush Type Coil Voltage: 12 VDC Contact rating (resistive): 16A, 250VAC / 24VDC Max. switching power: 4,000VA / 384W Relay Contact Form: 1 form C (SPDT) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Type: Non-Latching Coil Resistance: 360Ohms Contact Material: AgSnO2 Operating temperature range: -40 °C to +85 °C (no frost) Datenblatt: FTR-K1CK012W.pdf

€ 1 .56*

Fujitsu

FTR-LYAA012V

Electromechanical Relay SPST-NO 6A 12VDC 847Ohm Through Hole - Slim 15.0mm (h) x 5.0 mm (w) x 28.0mm (l) - 1 form C and right angle type available - Mounting space: 140mm2, weight: 5.0g - High insulation in small package - Insulation distance (between coil and contacts): 8mm (creepage/clearance) - Dielectric strength: 4,000 VAC - Surge strength: 6,000V - Operating Temperature: -40 to 85 °C - Maximum Current Rating: 6 A - Minimum Dropout Voltage: 0.6 Vdc - Maximum AC Voltage Rating: 250 V - Plastic sealed type RTIII - UL, CSA, VDE compliance Datenblatt: FTR-LYAA012V.pdf

€ 2 .75*

Fujitsu

FTR-LYAA012Y

Slim Form Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 6 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 847 Ohms Contact Material: Silver (Ag) Series: FTR-LY Power Consumption: 170 mW Datenblatt: FTR-LYAA012Y.pdf

€ 3 .50*

Fujitsu

FTR-MYAA024D

General Purpose Relays Product: Slim Form Relays Coil Voltage: 24 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Termination: Solder Pin Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 155 Ohms Contact Material: Silver Nickel (AgNi) Series: FTR-MY Power Consumption: 110 mW Datenblatt: FTR-MYAA024D.pdf

€ 1 .77*

AXICOM

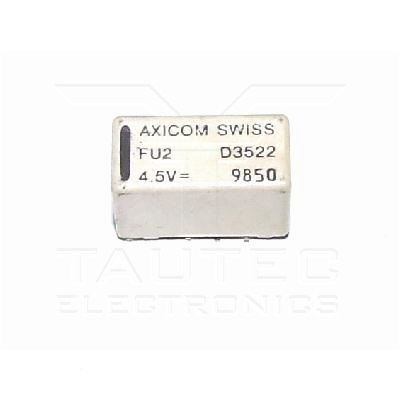

FU2 D3522N

Beschreibung: 2 Pole Telecom/Signal Relay 4,5 Volt Datenblatt: FU2.pdf

€ 2 .00*

FEME

FV-A-001-26-10

6,5VDC Miniature Relays, Monostble, 250VAC/10A Datenblatt: FV-A-001-26-10.pdf

€ 7 .50*
