EC...
NEC

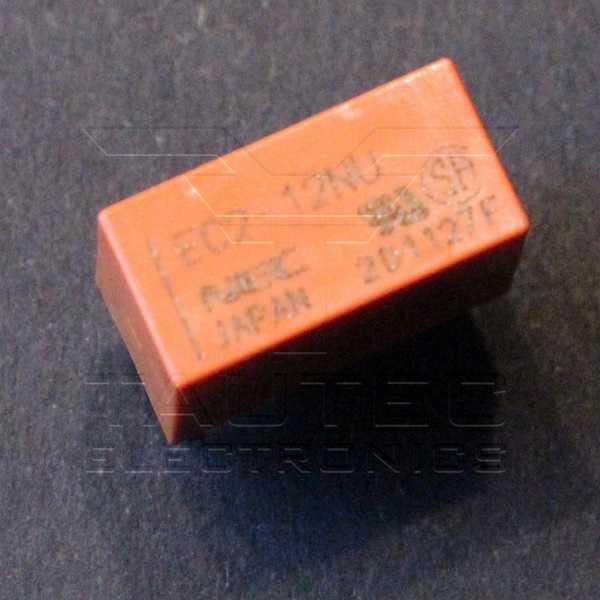

EC2-12NU
12VDC Miniature Signal Relay
Coil Voltage: 12 VDC
Coil Resistance (Ohm): 1.028K
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 2 A
Maximum Switching Current: 2 A
Coil Type: Non-Latching
Power Consumption: 140 mW
Contact Material: Silver/Gold
Contact Termination: Solder Pin
Datenblatt:
EC2-12NU.pdf
€
1
.76*
NEC Tokin

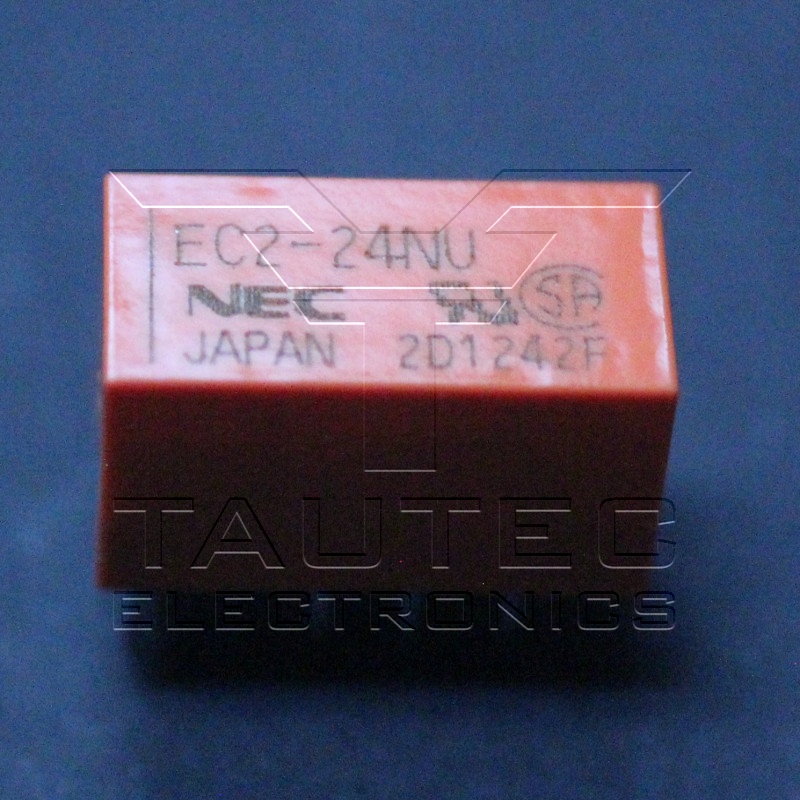

EC2-24NU
Low Signal Relays
Coil Voltage: 24 VDC
Coil Resistance (Ohm): 2.88K
Contact Material: Silver/Gold
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 2 A
Maximum Switching Current: 2 A
Maximum AC Switching Voltage:250V
Maximum DC Switching Voltage:220V
Coil Type: Non-Latching
Power Consumption: 200 mW
Contact Termination: Solder Pin
Datenblatt:
EC2-12NU.pdf
€
2
.00*
NEC Tokin

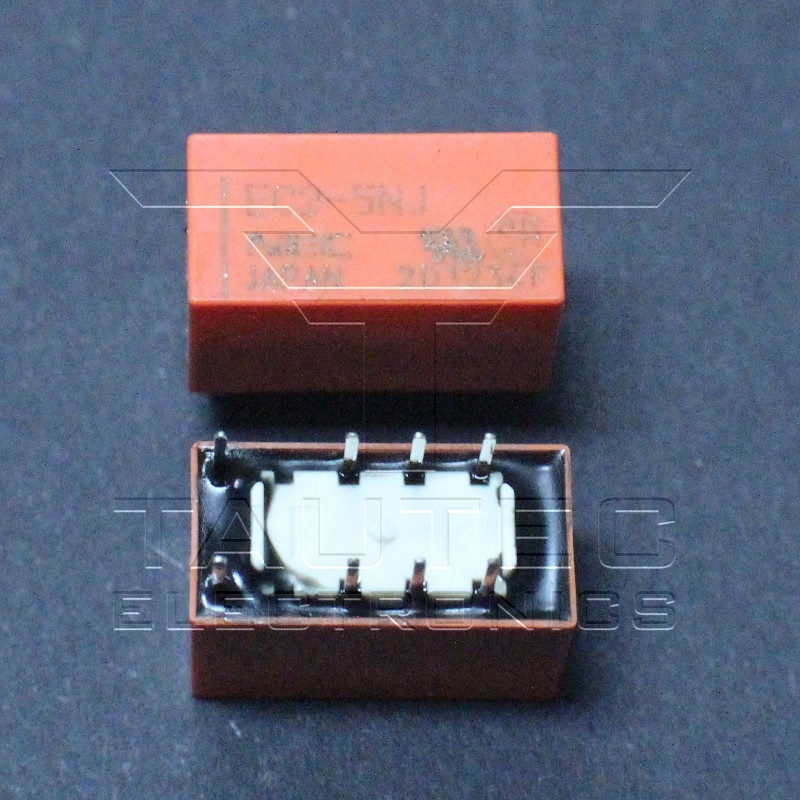

EC2-5NJ
5VDC Miniature Signal Relay
Coil Voltage: 5 VDC
Coil Resistance: 178 Ohms
Power Consumption: 140 mW
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Maximum Switching Current: 2 A
Maximum Switching Voltage: 220 VDC, 250 VAC
Maximum Switching Power: 60 W, 125 VA
Coil Type: Non-Latching
Contact Termination: Solder Pin
Mounting Style: Through Hole
Series: EC2
Contact Material: Silver (Ag) with Gold Plating
Trimmed lead type
Datenblatt:
EC2-5NJ.pdf
€
1
.00*
