DR...

SDS-Relais AG

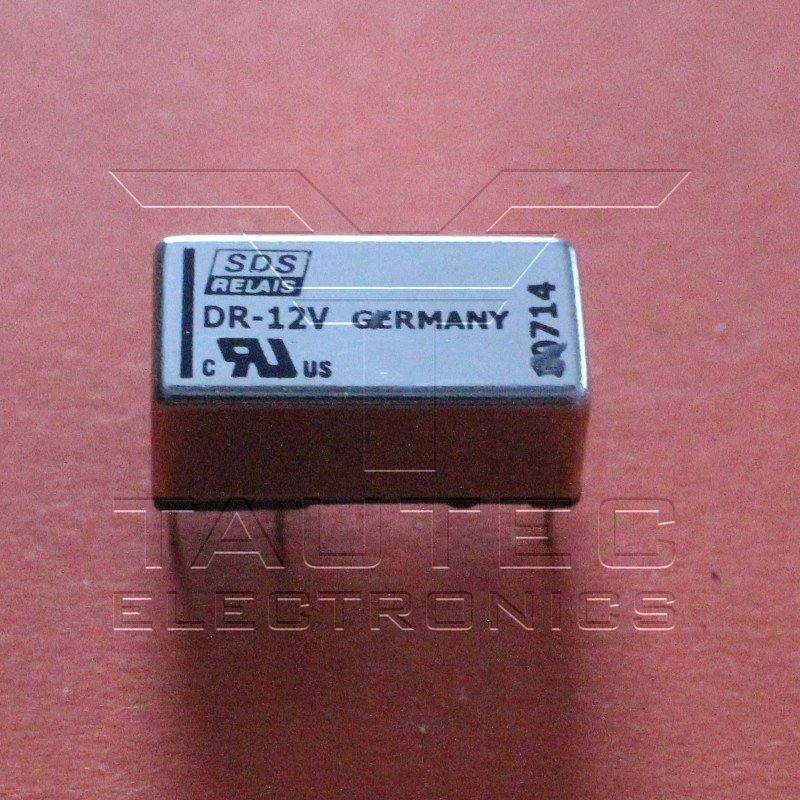

DR-12V

12V Reedrelais Coil Voltage: 12VDC Contact Form: SPDT (1 Form C) Contact Rating (Current): 1A DC / 0.3A AC Switching Voltage max.: 110VAC / 30VDC Operating Temperature: -40°C ... 70°C Contact Material: PdNI Au layer Datenblatt: DR-12V.pdf

€ 10 .00*

Crydom

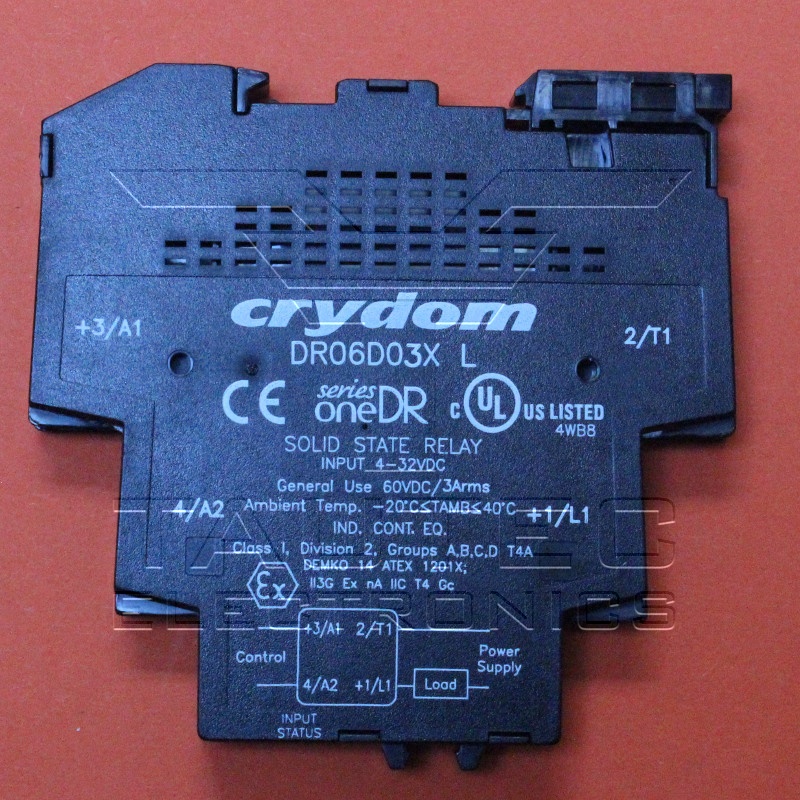

DR06D03X

Solid State Relays - Industrial Mount Circuit : SPST-NO (1 Form A) Load Current : 3A Voltage - Input : 4 to 32VDC Voltage - Load : 1V to 60V Mounting Type : DIN Rail Termination Style : Screw Terminal Datenblatt: DRD06D03X.pdf

€ 38 .50*

Crydom

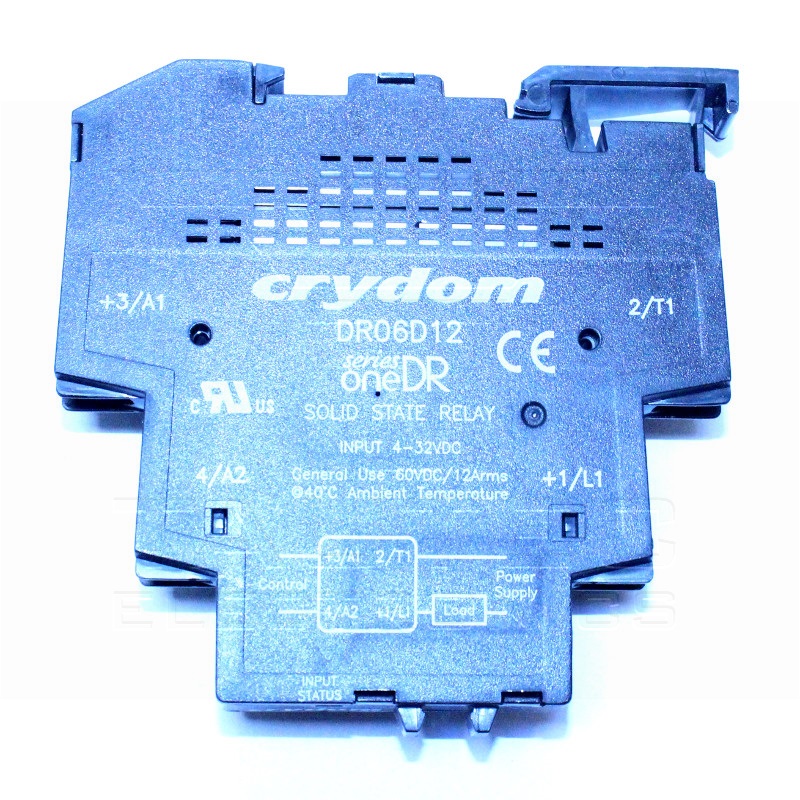

DR06D12

Solid State Relay, Input: 4...32VDC, Output: 1...60VAC/6A Control Voltage Range: 4 VDC to 32 VDC Mounting Style: DIN Rail Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 1 VDC to 60 VDC Load Current Rating: 12 A Input Current: 9 mA to 11 mA Output Type: SCR Termination Style: Screw Type: Indicator Datenblatt: DR06D12.pdf

€ 30 .00*

Crydom

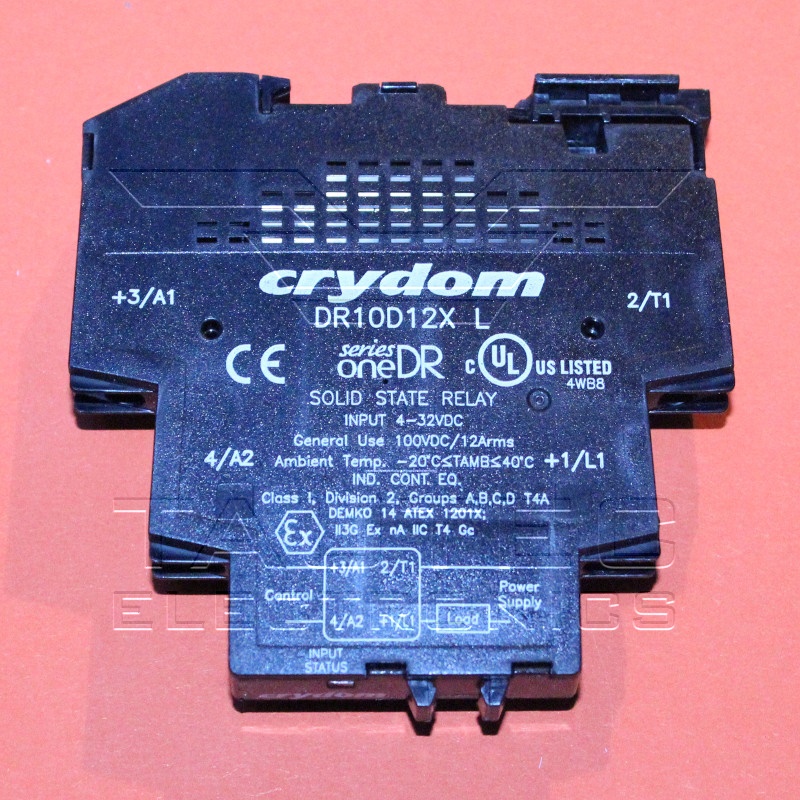

DR10D12X

Solid State Relay Minimum Load Current : 0.15 A rms Maximum Load Current : 12 ADC Mounting Type : DIN Rail Minimum Load Voltage : 1 VAC Maximum Load Voltage : 100 VAC Minimum Control Voltage : 4 VDC Maximum Control Voltage : 32 VDC Switching Type : Zero Voltage Turn-On Maximum Turn On Time : 1/2 cycles Dimensions 87.6 x 18.3 x 83.7mm Off State Leakage Current : 0.1 mA Capacitance : 10pF Operating Temperature Range : -30 / +80°C Output Device : Triac Terminal Type : Screw Special Features: Fits Standard 35mm DIN-RAIL, LED Input Status Indicator

€ 45 .00*

Crydom

DR24A06

Beschreibung: Solid State Relay, Input: 4...32VDC, Output: 48...600VAC/12A Datenblatt: DR24A06.pdf

€ 30 .00*

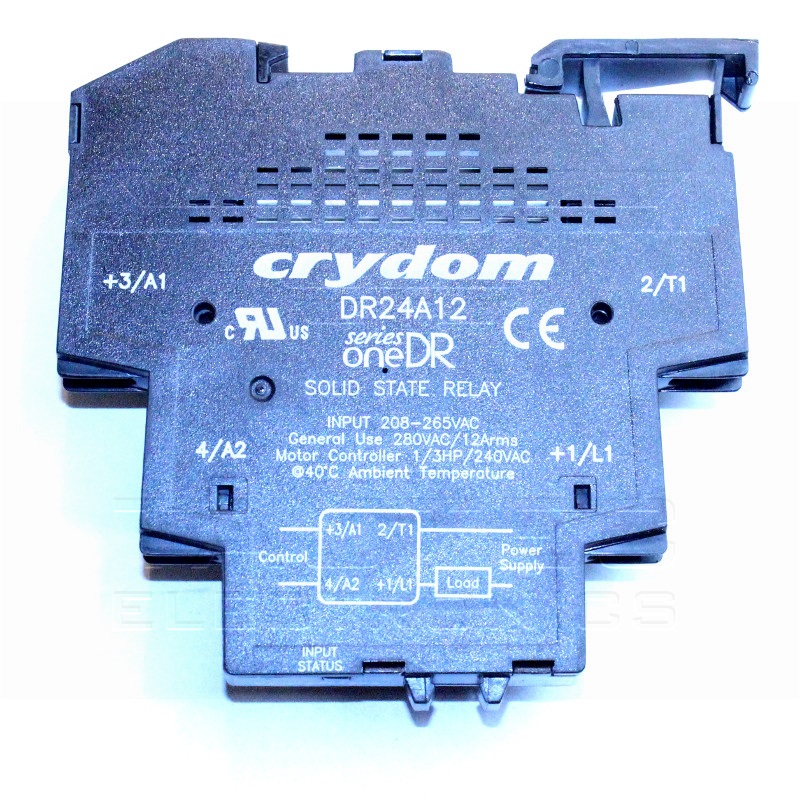

Crydom

DR24A12

Beschreibung: Solid State Relay, Input: 208...265VAC, Output: 24...280VAC/12A Datenblatt: DRD24D12.pdf

€ 30 .00*

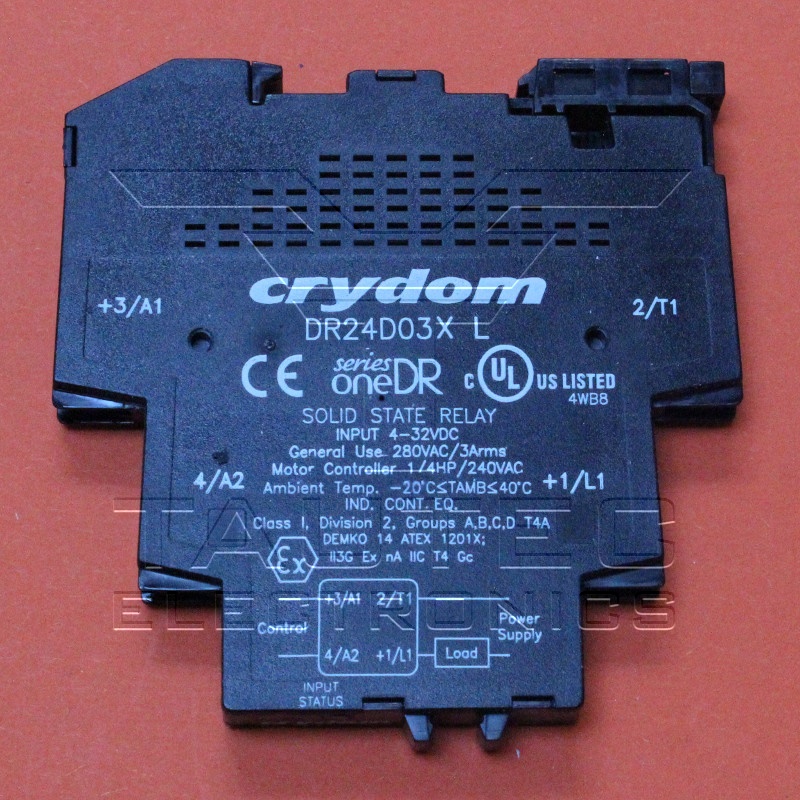

Crydom

DR24D03X

Solid State Relay DIN Rail Mount Current Rating: 3 A Mounting Type: DIN Rail Relay Type: Solid State Series: DR Series Load voltage: 24-280VAC Circuit : SPST-NO (1 Form A) Output Type : AC, Zero Cross Voltage - Input : 4 to 32VDC Mounting Type : DIN Rail Termination Style : Screw Terminal Datenblatt: DRD24D03X.pdf

€ 18 .00*

Crydom

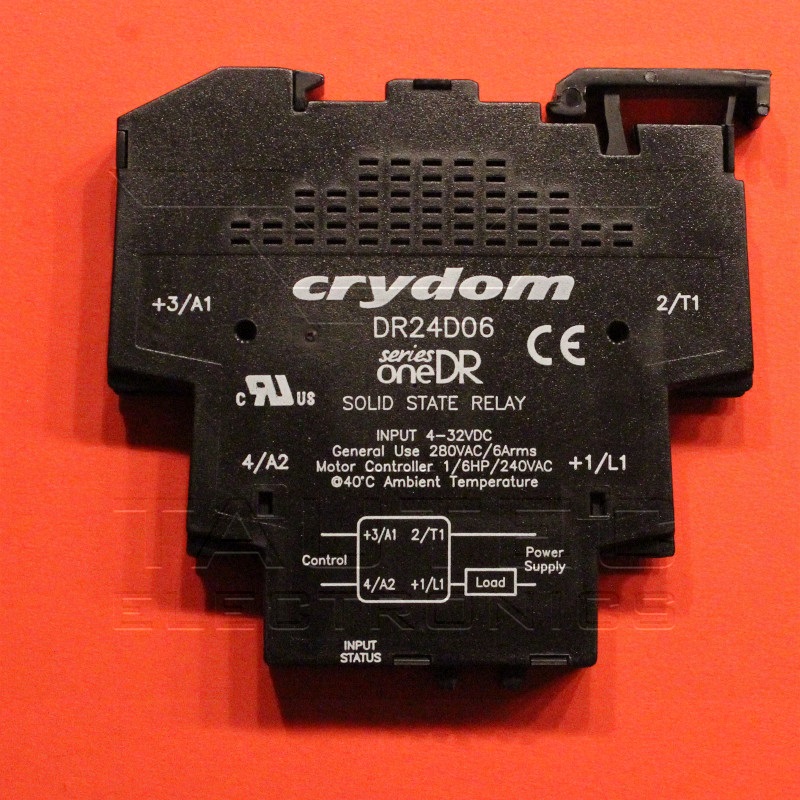

DR24D06

Solid State Relay, Input: 4...32VDC, Output: 24...280VAC/6A, Control Voltage Range: 4 VDC to 32 VDC Mounting Style: DIN Rail Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 24 VAC to 280 VAC Load Current Rating: 6 A Input Current: 9 mA to 11 mA Output Type: SCR Series: SeriesOne DR Termination Style: Screw Type: Indicator Datenblatt: DRD24D06.pdf

€ 25 .00*

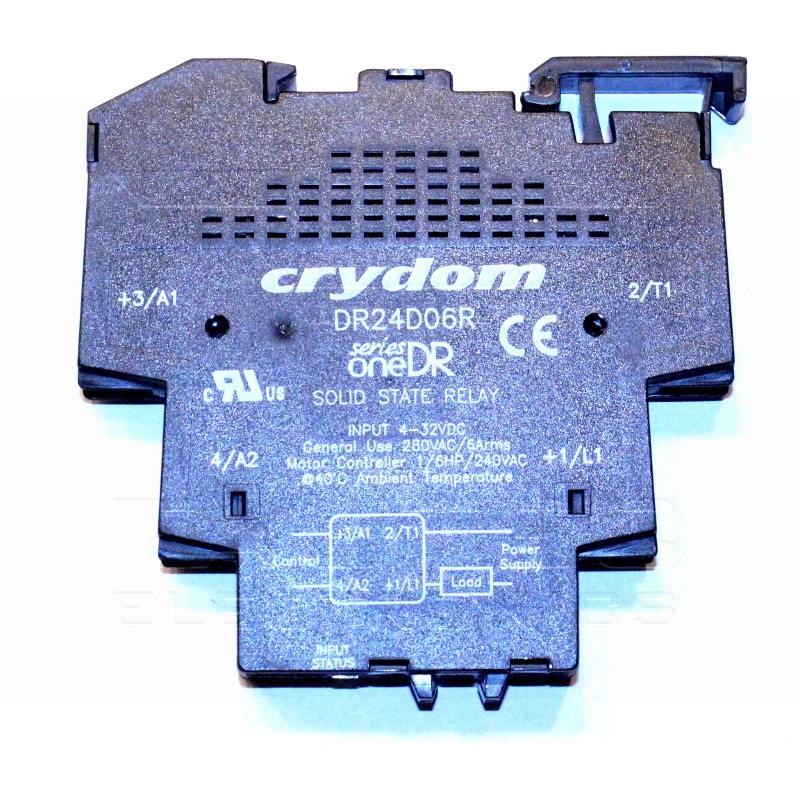

Crydom

DR24D06R

Beschreibung: Solid State Relay, Input: 4...32VDC, Output: 24...280VAC/6A, Random Turn-on Datenblatt: DRD24D06.pdf

€ 20 .00*

Crydom

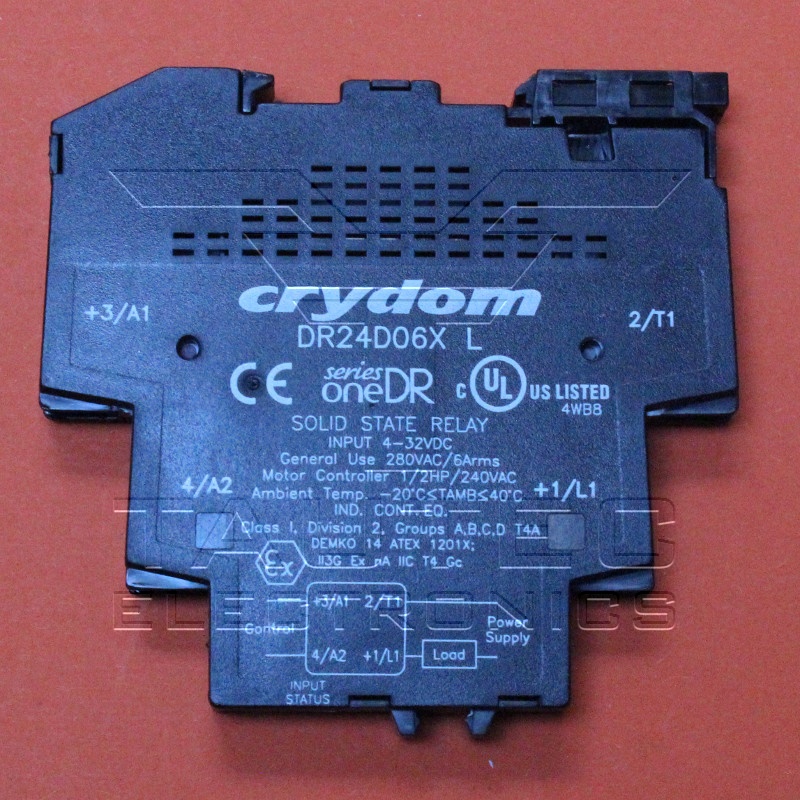

DR24D06X

Solid State Relay Minimum Load Current : 0.15 A rms Maximum Load Current : 6 A DC Mounting Type : DIN Rail Minimum Load Voltage : 24 V AC Maximum Load Voltage : 280 V AC Minimum Control Voltage : 4 V DC Maximum Control Voltage : 32 V DC Switching Type : Zero Voltage Turn-On Terminal Type : Screw Output Device : Triac Maximum Turn On Time : 1/2 cycles Dimensions : 87.6 x 11 x 83.7mm Operating Temperature Range : -30 to +80°C Capacitance : 10pF Special Features Fits Standard 35mm DIN-RAIL, LED Input Status Indicator Standards Met ATEX Off State Leakage Current : 0.1 mA

€ 25 .00*

Crydom

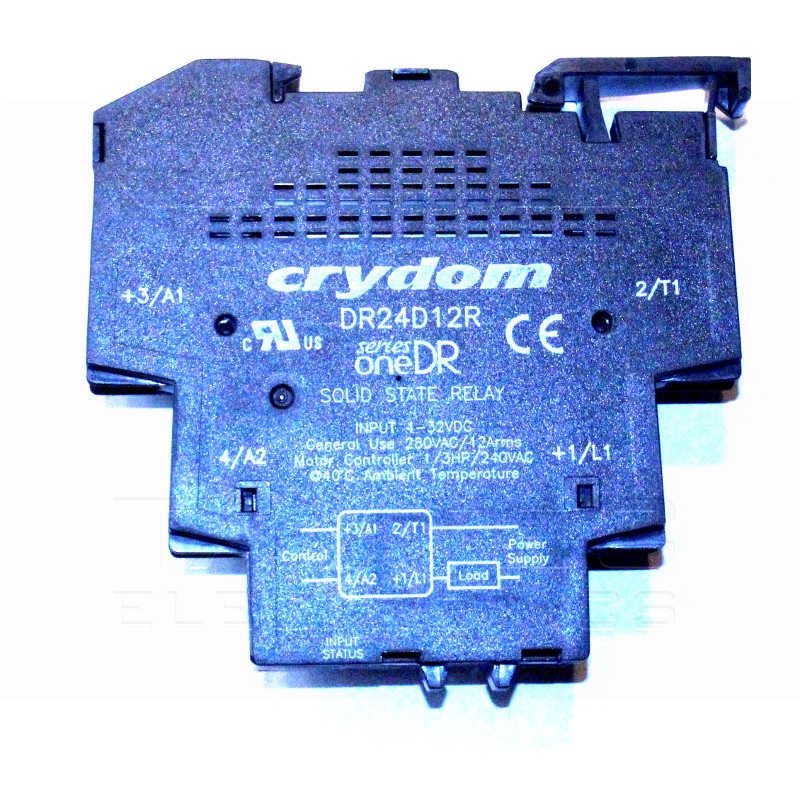

DR24D12R

Solid State Relay, Input: 4...32VDC, Output: 24...280VAC/12A Datenblatt: DRD24D12.pdf

€ 43 .00*

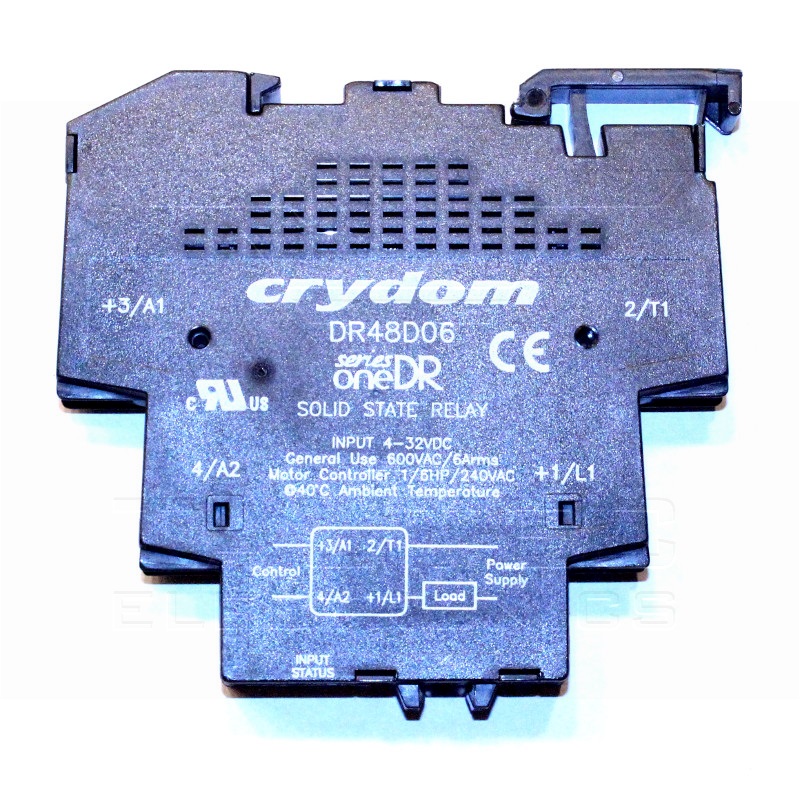

Crydom

DR48D06

Beschreibung: Solid State Relay, Input: 4...32VDC, Output: 48...600VAC/6A Datenblatt: DRD24D12.pdf

€ 30 .00*

Crydom

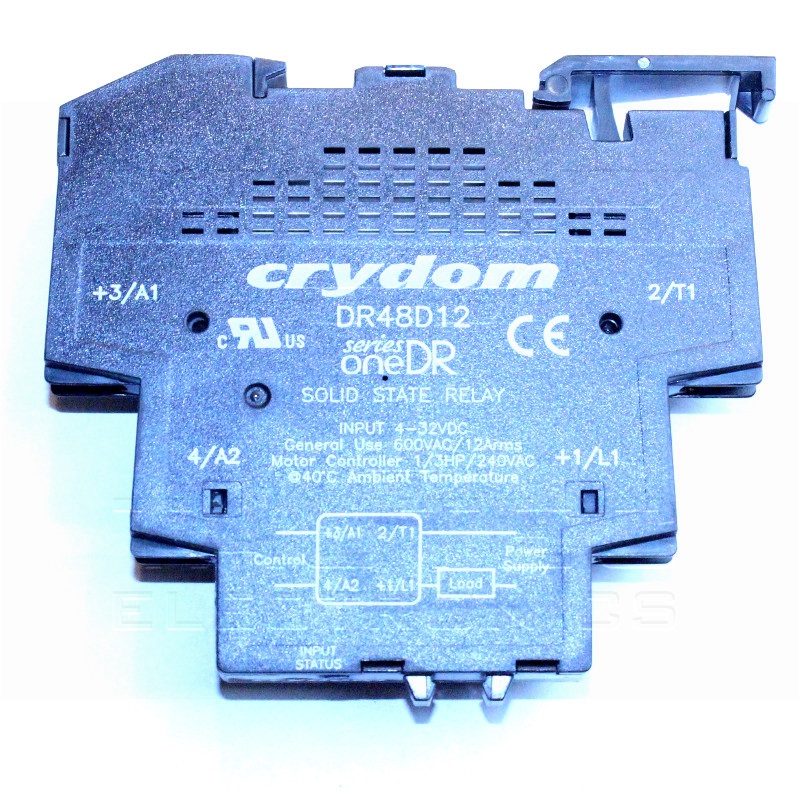

DR48D12

Solid State Relay, Input: 4...32VDC, Output: 48...600VAC/12A Control Voltage Range: 4 VDC to 32 VDC Mounting Style: DIN Rail Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 48 VAC to 600 VAC Load Current Rating: 12 A Input Current: 9 mA to 11 mA Output Type: SCR Series: SeriesOne DR Termination Style: Screw Type: Indicator Datenblatt: DRD24D12.pdf

€ 40 .00*

Crydom

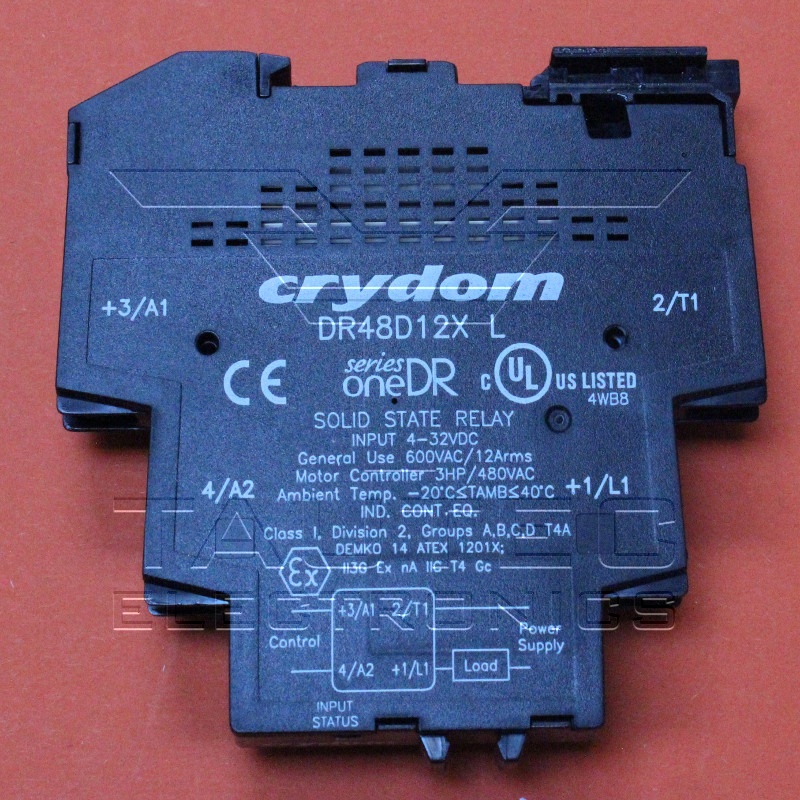

DR48D12X

Solid State Relays - Industrial Mount Minimum Load Current : 0.15 A rms Maximum Load Current : 12 A DC Mounting Type : DIN Rail Minimum Load Voltage : 48 V AC Maximum Load Voltage : 600 V AC Minimum Control Voltage : 4 V DC Maximum Control Voltage : 32 V DC Switching Type : Zero Voltage Turn-On Terminal Type : Screw Output Device : Triac Maximum Turn On Time : 1/2 cycles Dimensions : 87.6 x 18.3 x 83.7mm Operating Temperature Range : -30 to +80°C Load Voltage Range 48 to 600V AC Capacitance : 10pF Off State Leakage Current : 0.1 mA Datenblatt: DRD24D12X.pdf

€ 30 .00*

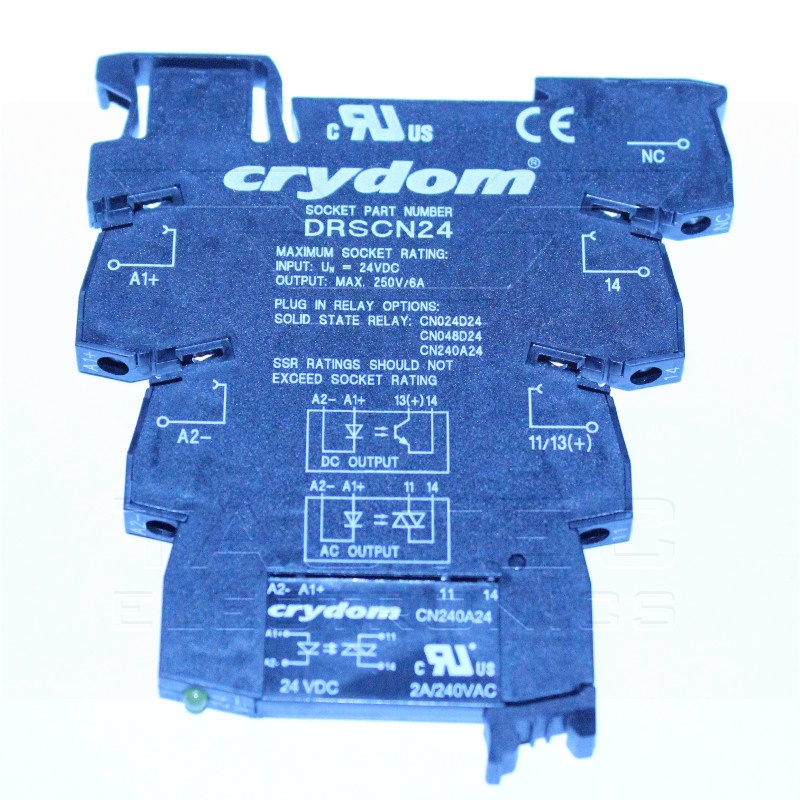

Crydom

DRA-CN240A24

Beschreibung: Solid State Relay, Input: 15...30VDC, Output: 24...250VAC/2A Datenblatt: DRA-CN240A24.pdf

€ 25 .00*

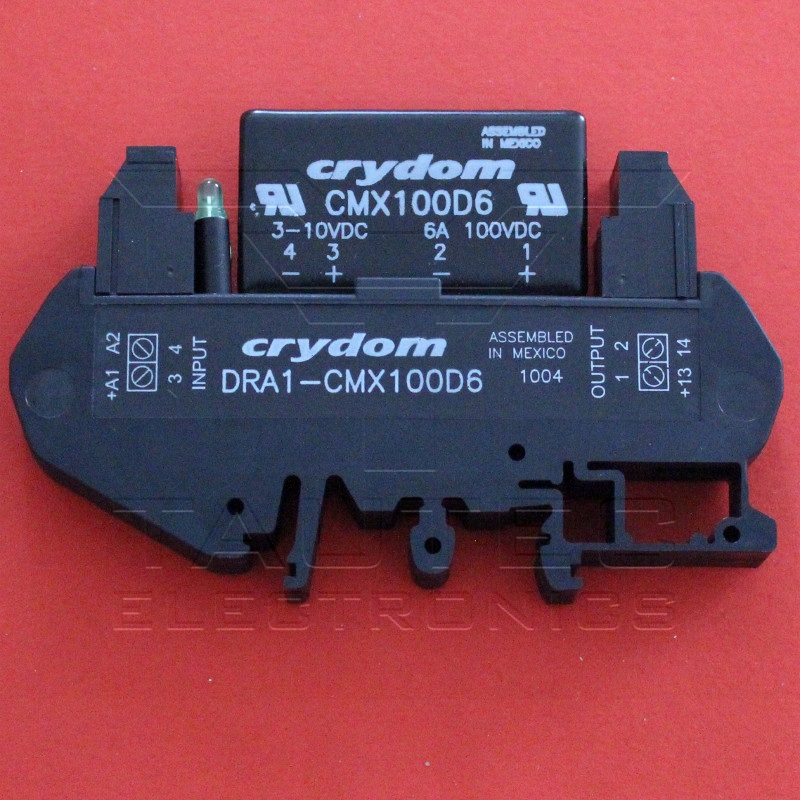

Crydom

DRA1-CMX100D6

Beschreibung: Solid State Relay, Input: 3...10VDC, Output: 1...100VDC/6A Datenblatt: DRA1-CMX100D6.pdf

€ 35 .00*

Crydom

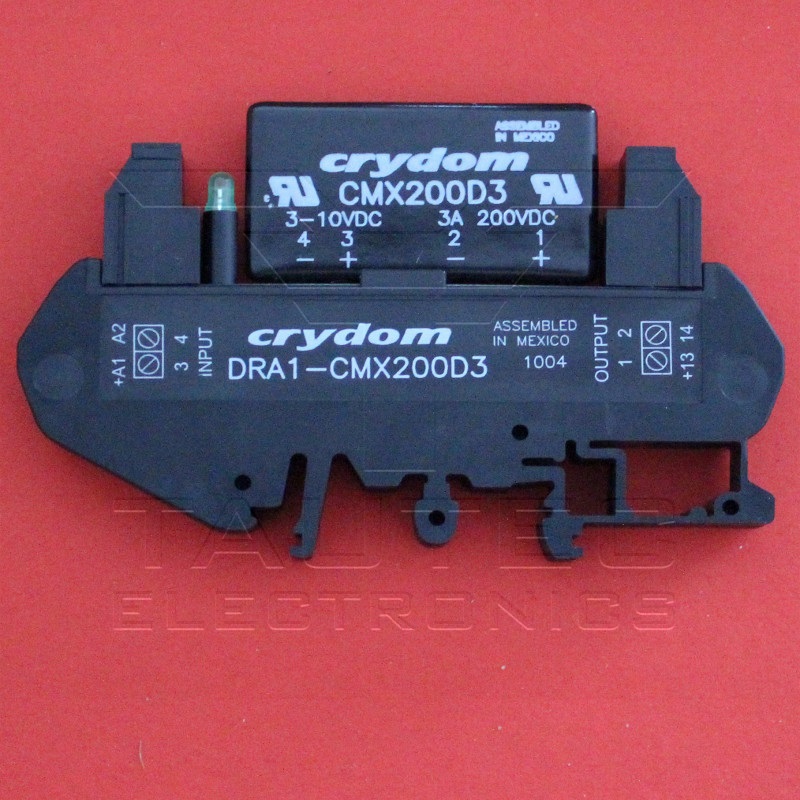

DRA1-CMX200D3

Beschreibung: Solid State Relay, Input: 3...10VDC, Output: 1...200VDC/3A Datenblatt: DRA1-CMX200D3.pdf

€ 35 .00*

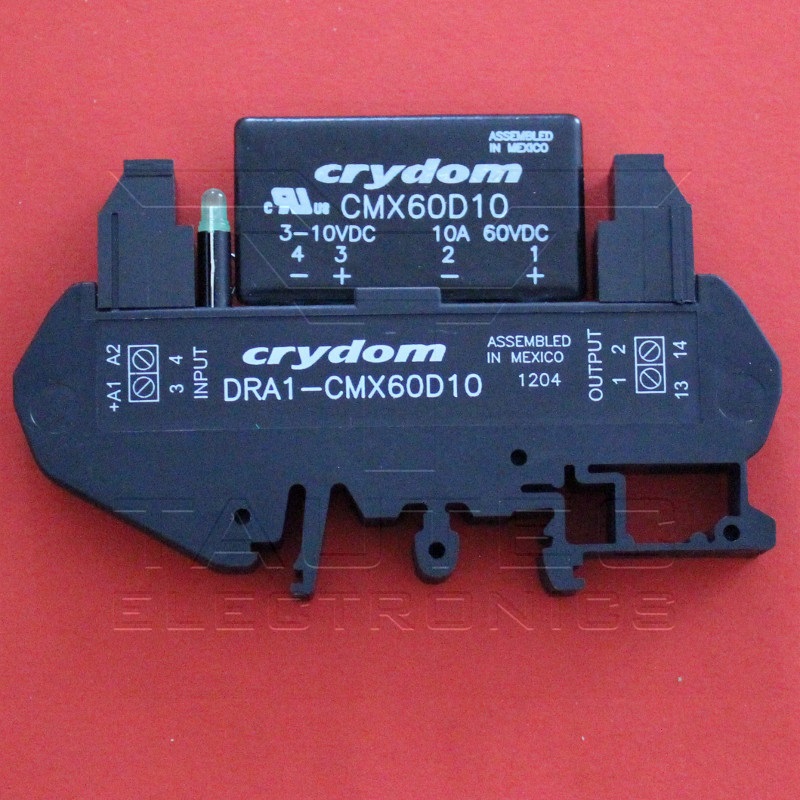

Crydom

DRA1-CMX60D10

Beschreibung: Solid State Relay, Input: 3...10VDC, Output: 1...60VDC/10A Datenblatt: DRA1-CMX200D3.pdf

€ 40 .00*

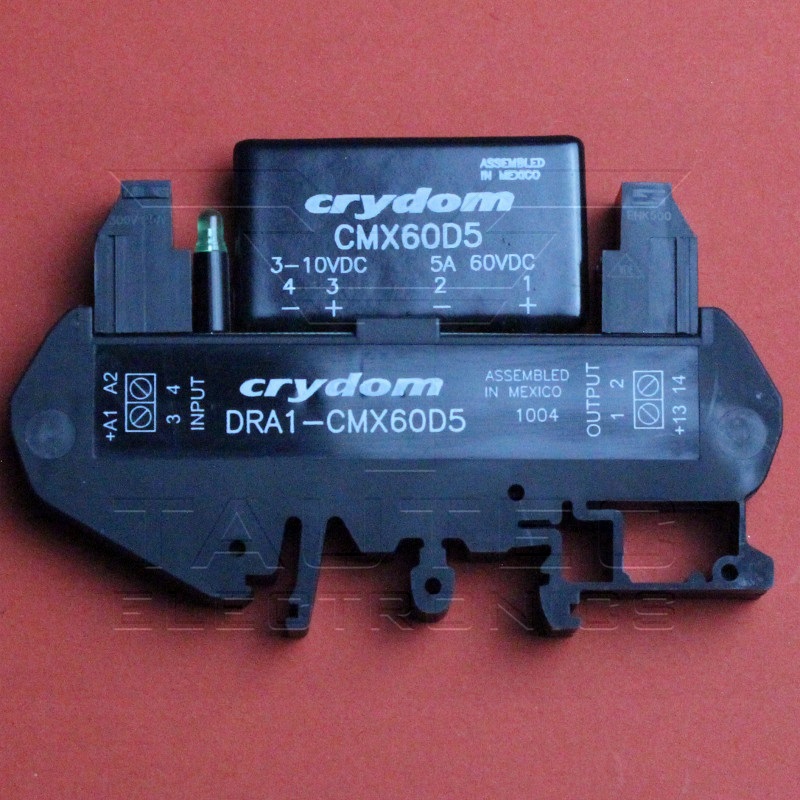

Crydom

DRA1-CMX60D5

Beschreibung: Solid State Relay, Input: 3...10VDC, Output: 1...60VDC/5A Datenblatt: DRA1-CMX60D5.pdf

€ 35 .00*

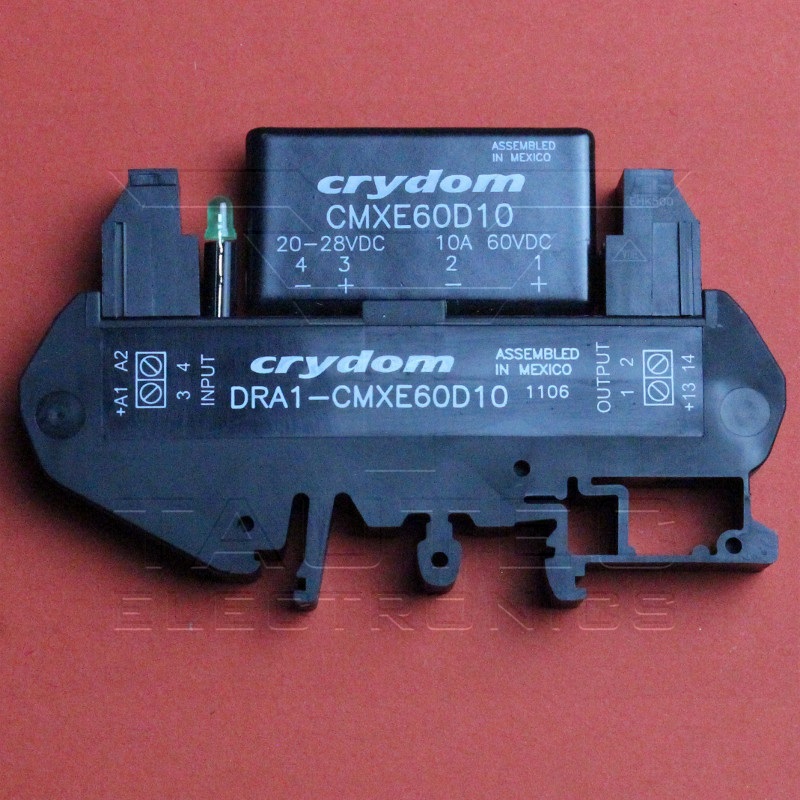

Crydom

DRA1-CMXE60D10

Beschreibung: Solid State Relay SSR Input Voltage: 20...28VDC Input Current: 12mA Output Voltage: 1...60VDC Output Current: 10A Montageart: Hutschiene Datenblatt: DRA1-CMXE60D10.pdf

€ 42 .30*

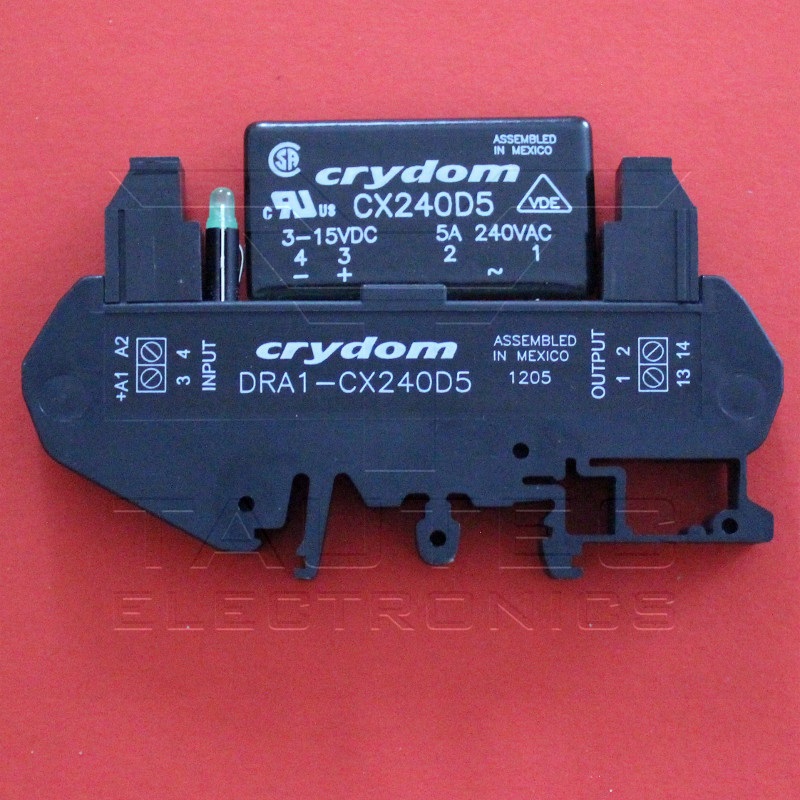

Crydom

DRA1-CX240D5

Beschreibung: Solid State Relay, Input: 3...15VDC, Output: 12...280VDC/5A Datenblatt: DRA1-CX240D5.pdf

€ 30 .00*

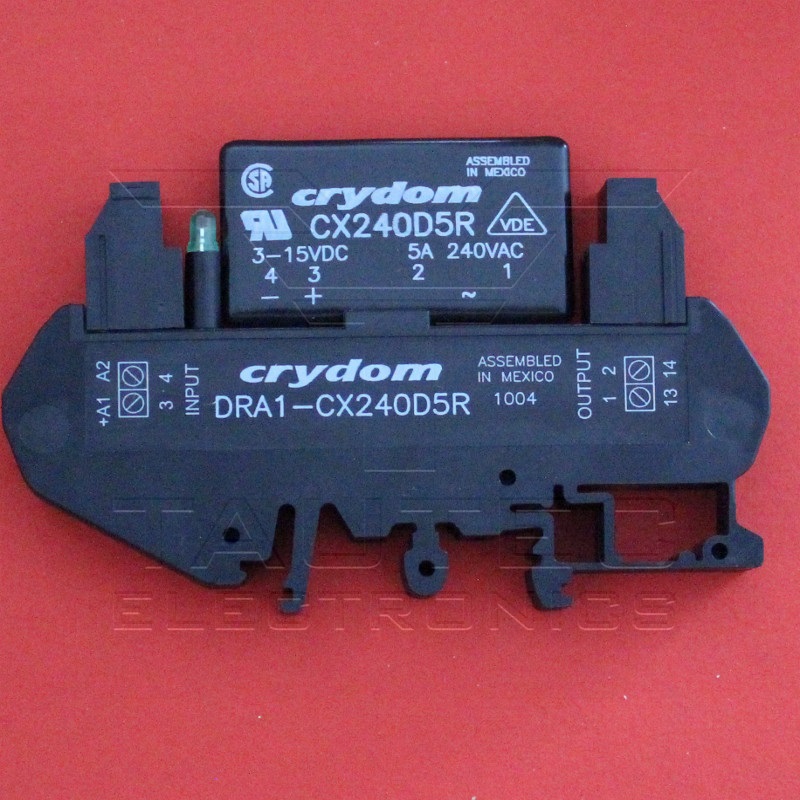

Crydom

DRA1-CX240D5R

Beschreibung: Solid State Relay, Input: 3...15VDC, Output: 12...280VDC/5A Datenblatt: DRA1-CX240D5R.pdf

€ 27 .50*

Crydom

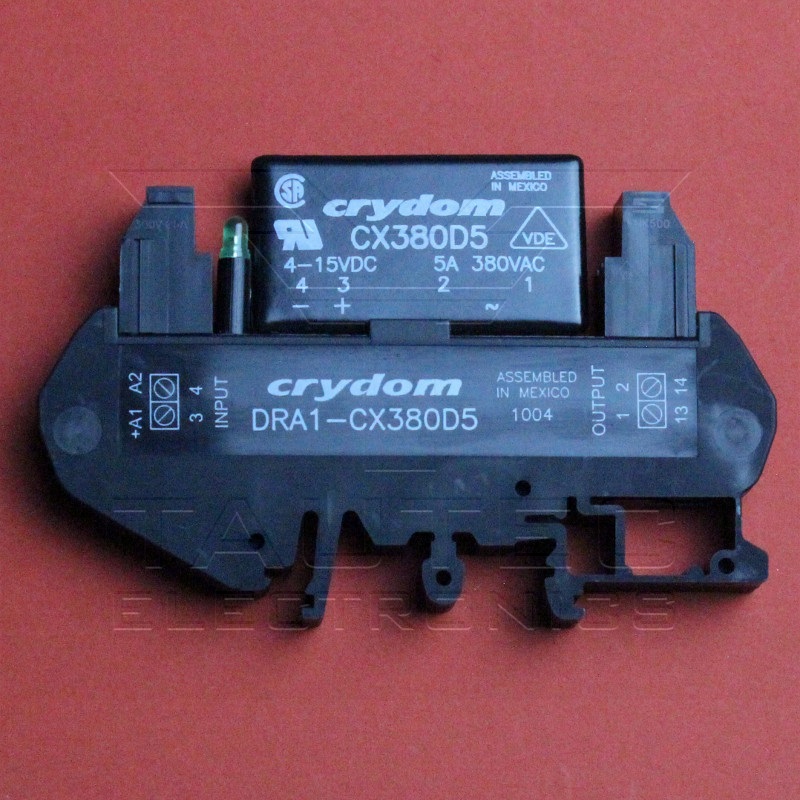

DRA1-CX380D5

Beschreibung: Solid State Relay, Input: 4...15VDC, Output: 48...380VDC/5A Datenblatt: DRA1-CX380D5.pdf

€ 35 .00*

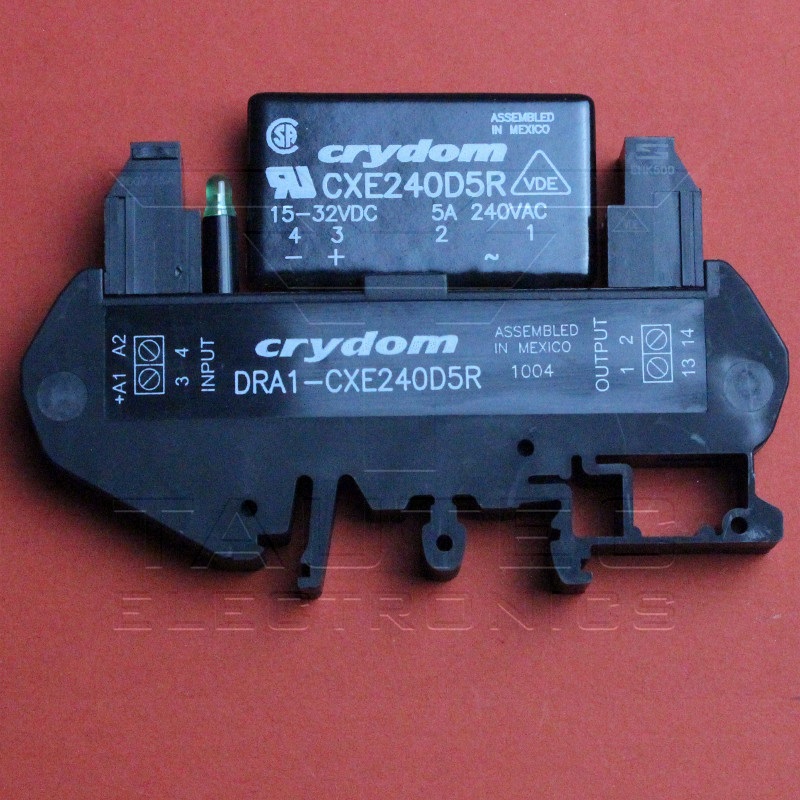

Crydom

DRA1-CXE240D5R

Solid State Relay, Input: 15...32VDC, Output: 12...280VDC/5A Datenblatt: DRA1-CXE240D5R.pdf

€ 32 .00*

Crydom

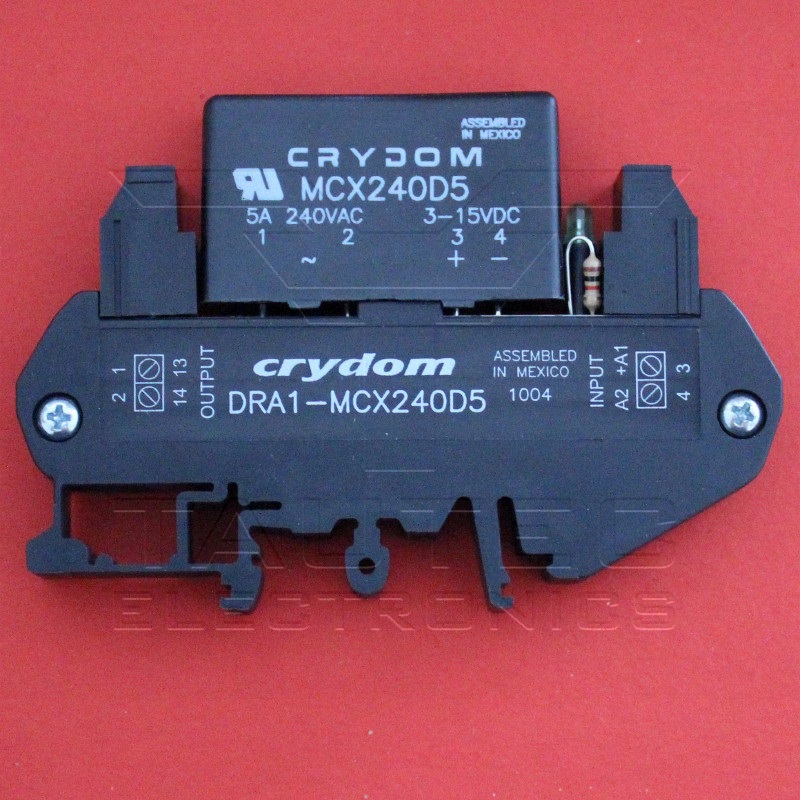

DRA1-MCX240D5

Beschreibung: Solid State Relay, Input: 3...15VDC, Output: 3...60VDC/3A Datenblatt: DRA1-MCX240D5.pdf

€ 27 .50*

Crydom

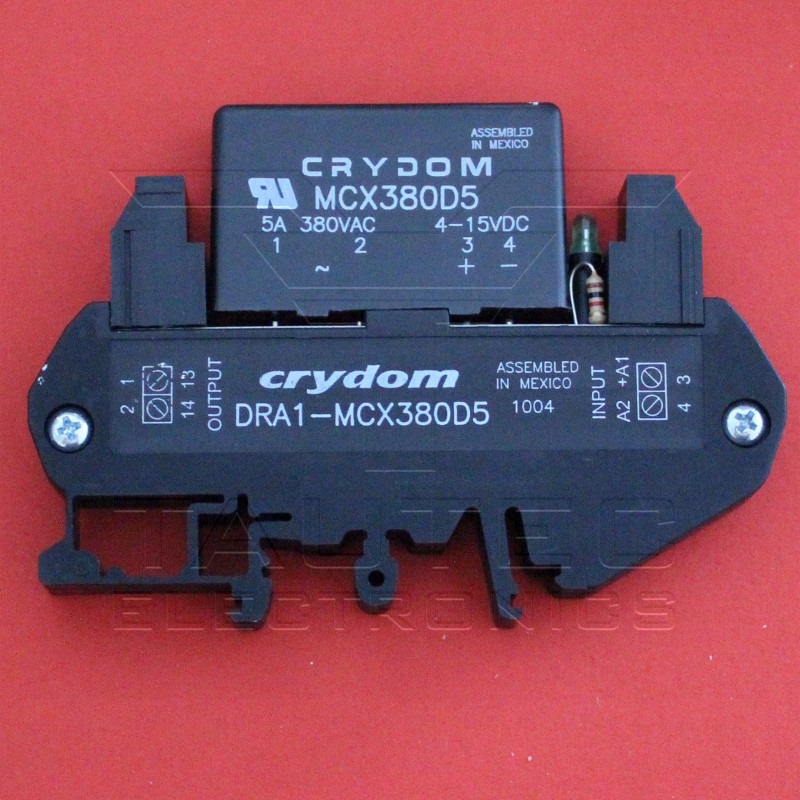

DRA1-MCX380D5

Solid State Relay, Input: 4...15VDC, Output: 48...380VDC/5A Datenblatt: DRA1-MCX380D5.pdf

€ 42 .00*

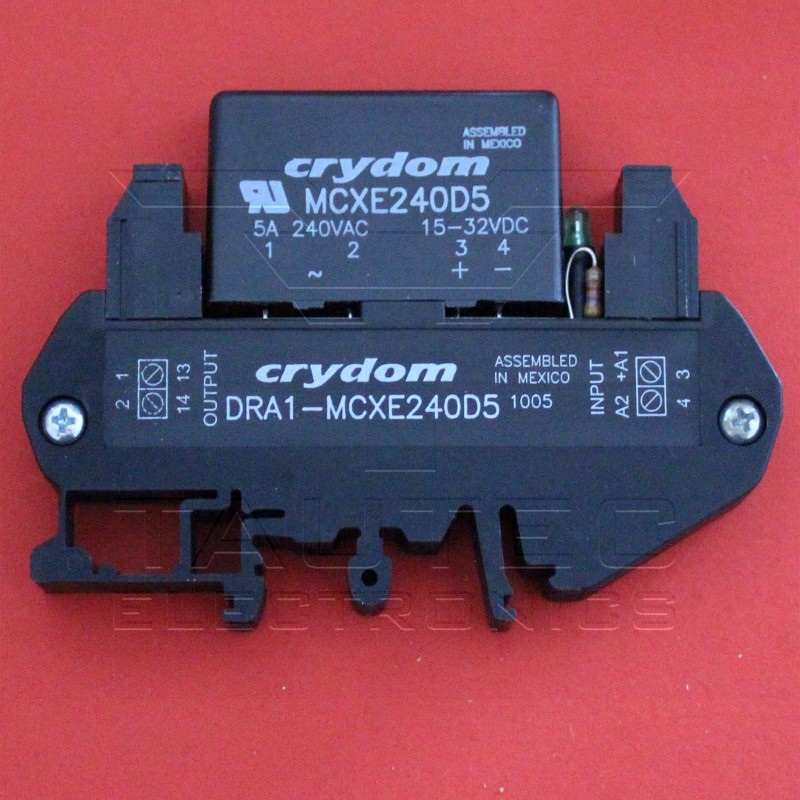

Crydom

DRA1-MCXE240D5

Solid State Relay, Input: 15...32VDC, Output: 12...280VDC/5A Datenblatt: DRA1-MCXE240D5.pdf

€ 37 .50*

Crydom

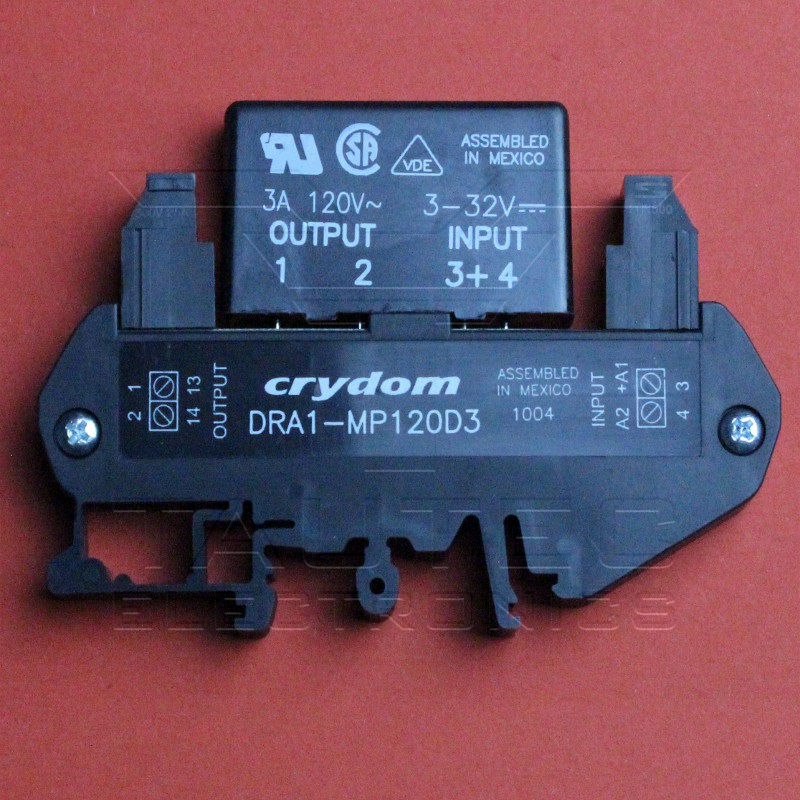

DRA1-MP120D3

Beschreibung: Solid State Relay, Input: 3...32VDC, Output: 12...140VDC/3A Datenblatt: DRA1-MP120D3.pdf

€ 35 .00*

Crydom

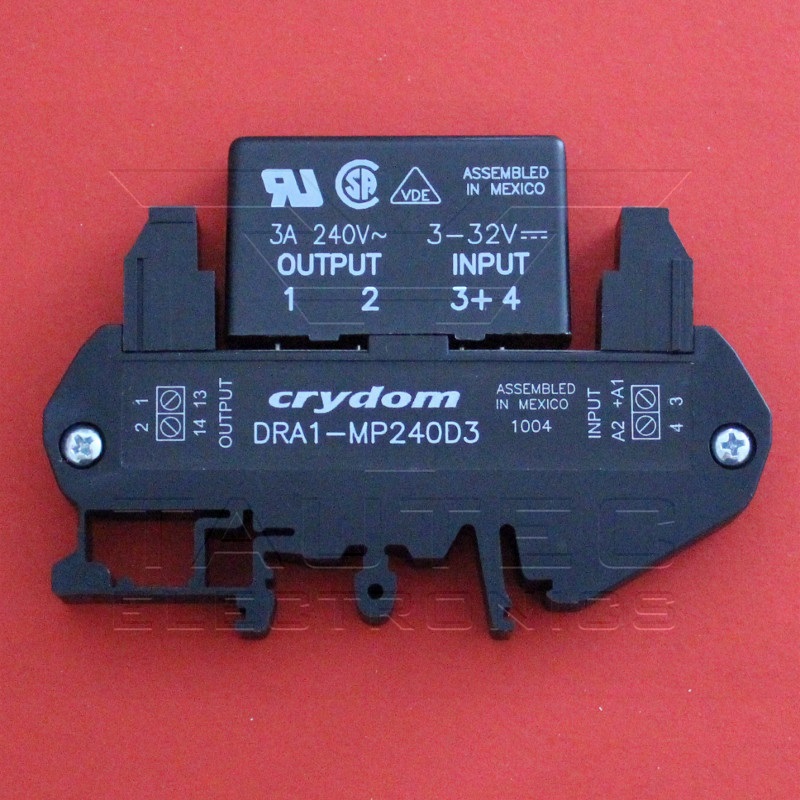

DRA1-MP240D3

Beschreibung: Solid State Relay, Input: 3...32VDC, Output: 24...280VDC/3A Datenblatt: DRA1-MP240D4.pdf

€ 33 .00*

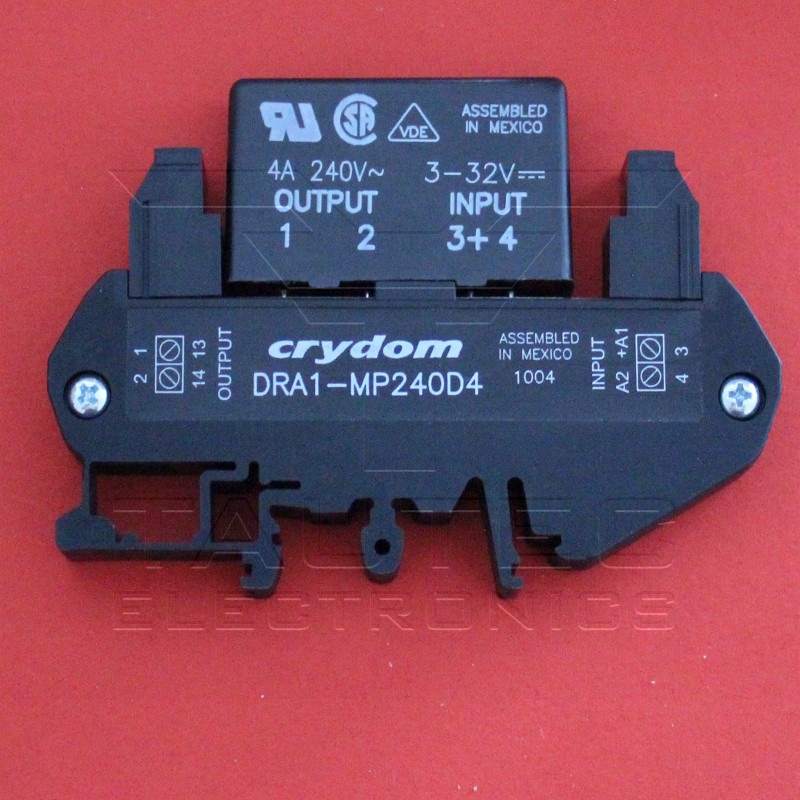

Crydom

DRA1-MP240D4

Beschreibung: Solid State Relay, Input: 3...32VDC, Output: 24...280VDC/4A Datenblatt: DRA1-MP240D4.pdf

€ 35 .00*

Crydom

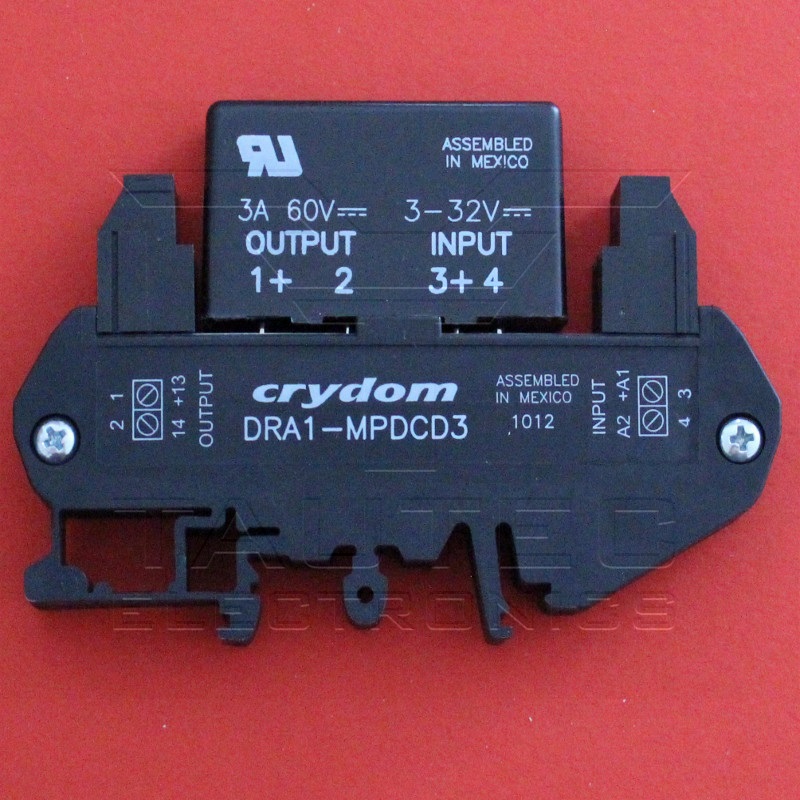

DRA1-MPDCD3

Solid State Relay, Input: 3...32VDC, Output: 3...60VDC/3A Datenblatt: DRA1-MP.pdf

€ 41 .01*

Crydom

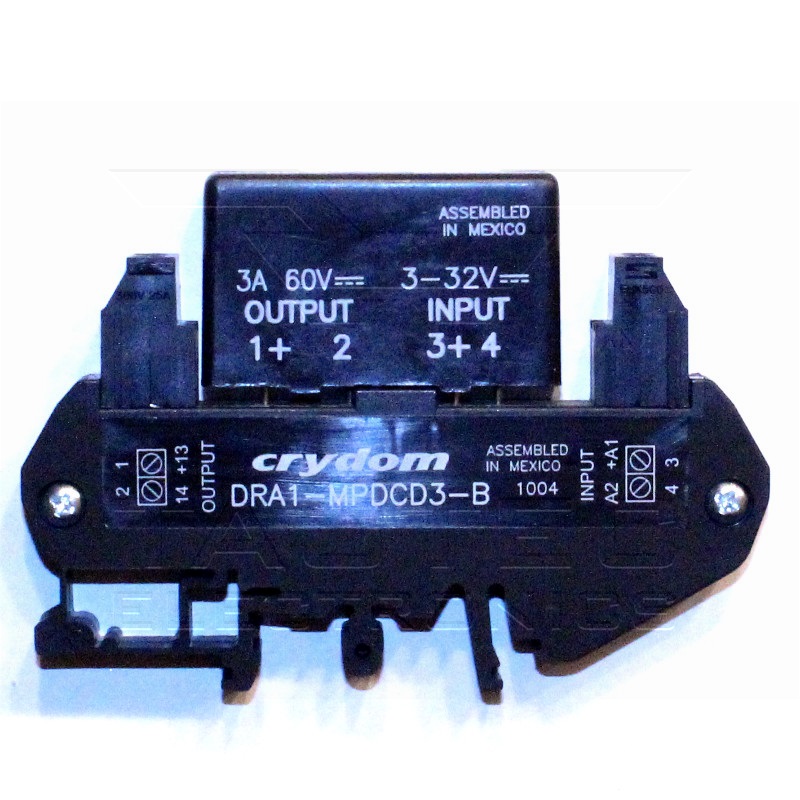

DRA1-MPDCD3-B

Solid State Relay, Input: 3...32VDC, Output: 3...60VDC/3A Mounting Style: DIN Rail Mount Load Current Rating: 3 A Load Voltage Rating: 3 VDC to 60 VDC Relay Contact Form: 1 Form B (SPST-NC) Output Type: SCR Control Voltage Range: 3 VDC to 32 VDC Input Current: 2.6 mA Datenblatt: DRA1-MP.pdf

€ 35 .60*

Crydom

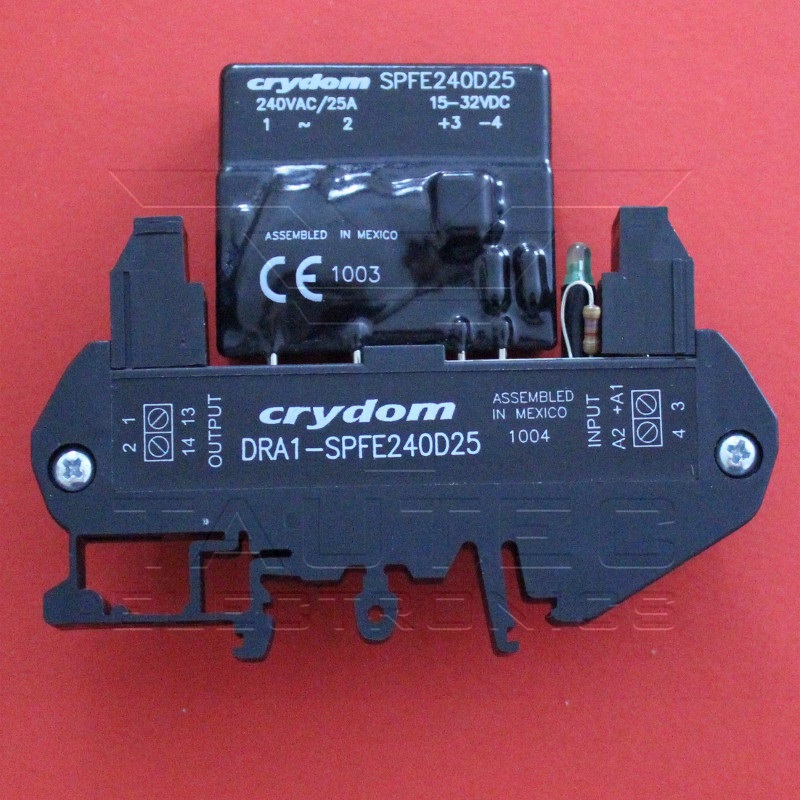

DRA1-SPFE240D25

Beschreibung: Solid State Relay, Input: 15...32VDC, Output: 12...280VDC/10A Datenblatt: DRA1-SPFE240D25.pdf

€ 40 .00*

Crydom

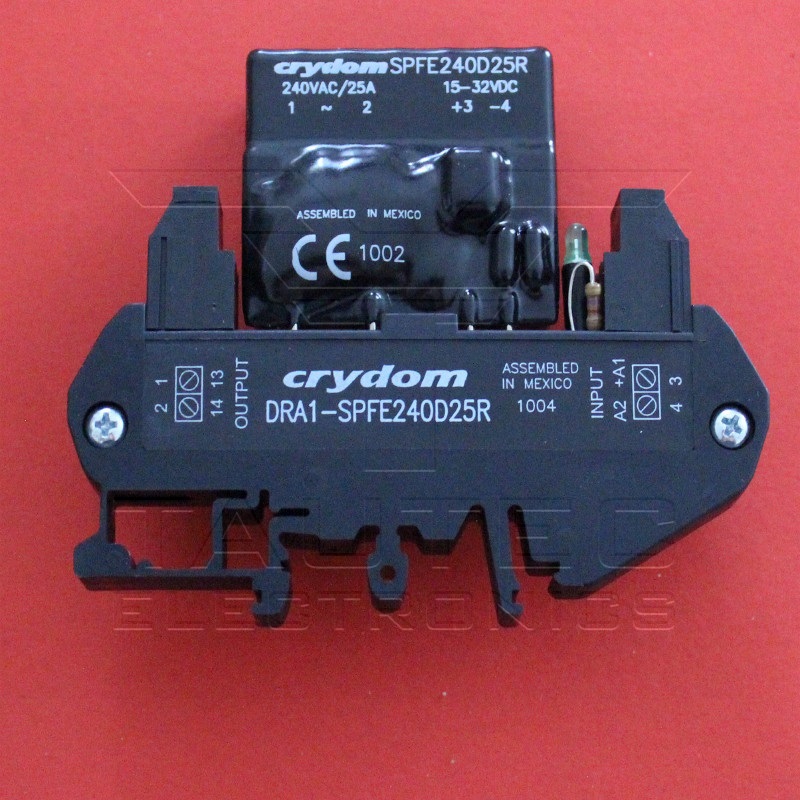

DRA1-SPFE240D25R

Solid State Relay, Input: 15...32VDC, Output: 12...280VDC/10A Datenblatt: DRA1-SPFE240D25.pdf

€ 60 .00*

Crydom

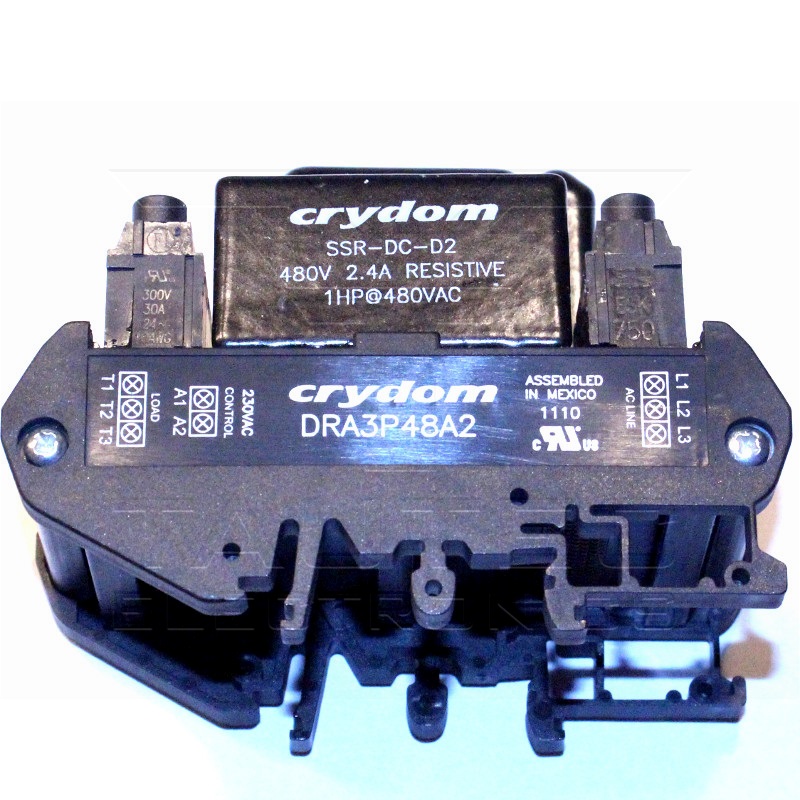

DRA3P48A2

Beschreibung: Solid State Relay, Input: 200...265VAC, Output: 48...510VAC/2,4A Datenblatt: DRA3P48A2.pdf

€ 25 .00*

Crydom

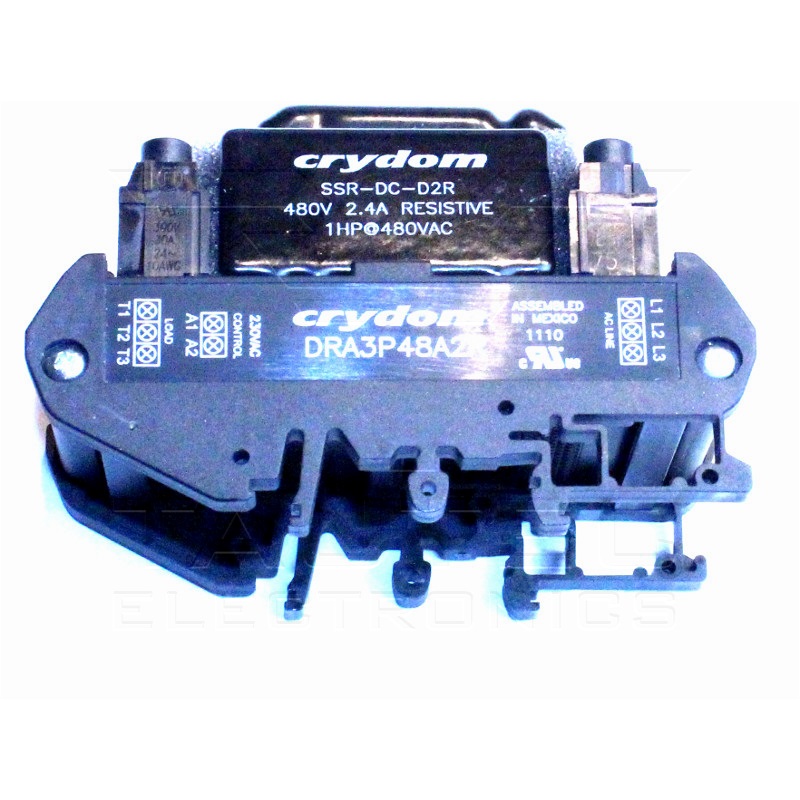

DRA3P48A2R

Beschreibung: Solid State Relay, Input: 200...265VAC, Output: 48...510VAC/2,4A Datenblatt: DRA3P48A2.pdf

€ 40 .00*

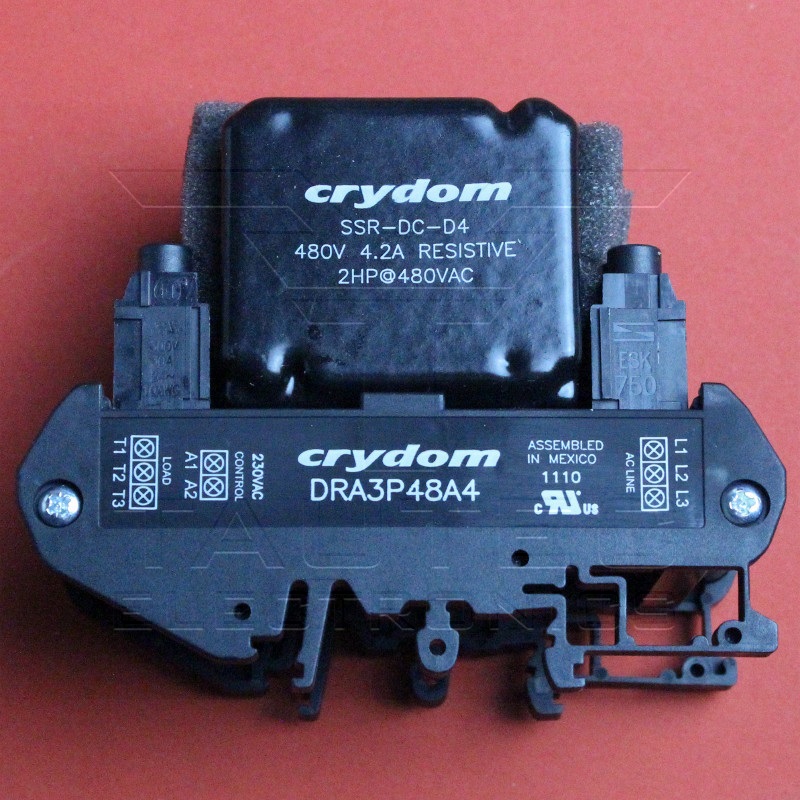

Crydom

DRA3P48A4

Beschreibung: Din Rail Mount Contractor, Solid State Relay, Input: 200...265VAC, Output: 48...510VAC/4,2A Datenblatt: DRA3P48A4.pdf

€ 35 .00*

Crydom

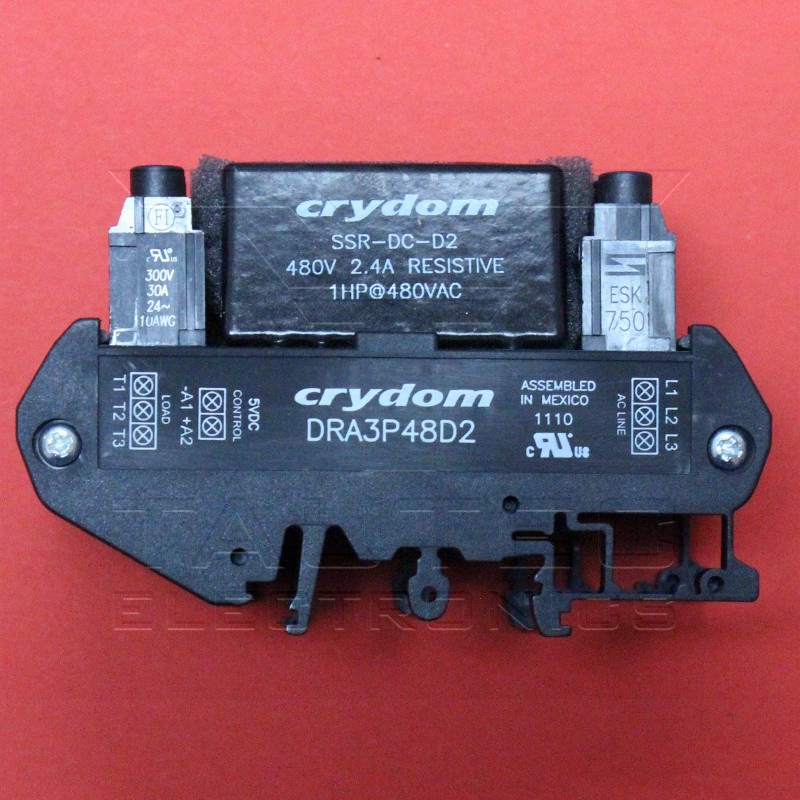

DRA3P48D2

Solid State Relay, Input: 4...6VDC, Output: 48...510VAC/2,4A Product: Three Phase Contactors Mounting Style: DIN Rail Mount Load Current Rating: 2.4 A Load Voltage Rating: 48 VAC to 510 VAC Control Voltage Range: 4 VDC to 6 VDC Input Current: 17 mA to 35 mA Datenblatt: DRA3P48D2.pdf

€ 30 .00*

Crydom

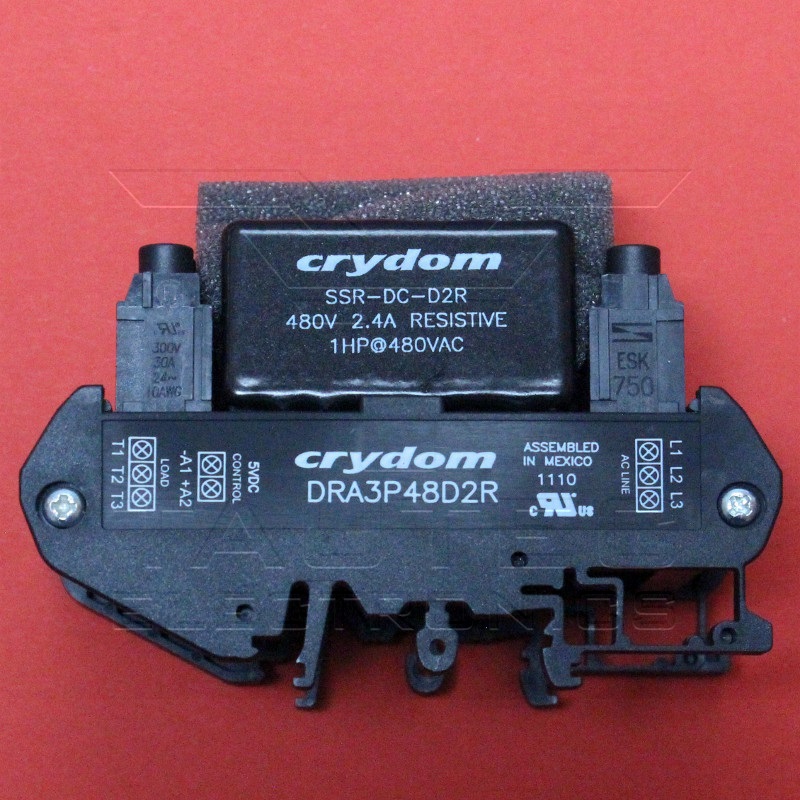

DRA3P48D2R

Beschreibung: Solid State Relay, Input: 4...6VDC, Output: 48...510VAC/2,4A, Instantaneous Turn-On Datenblatt: DRA3P48D2R.pdf

€ 35 .00*

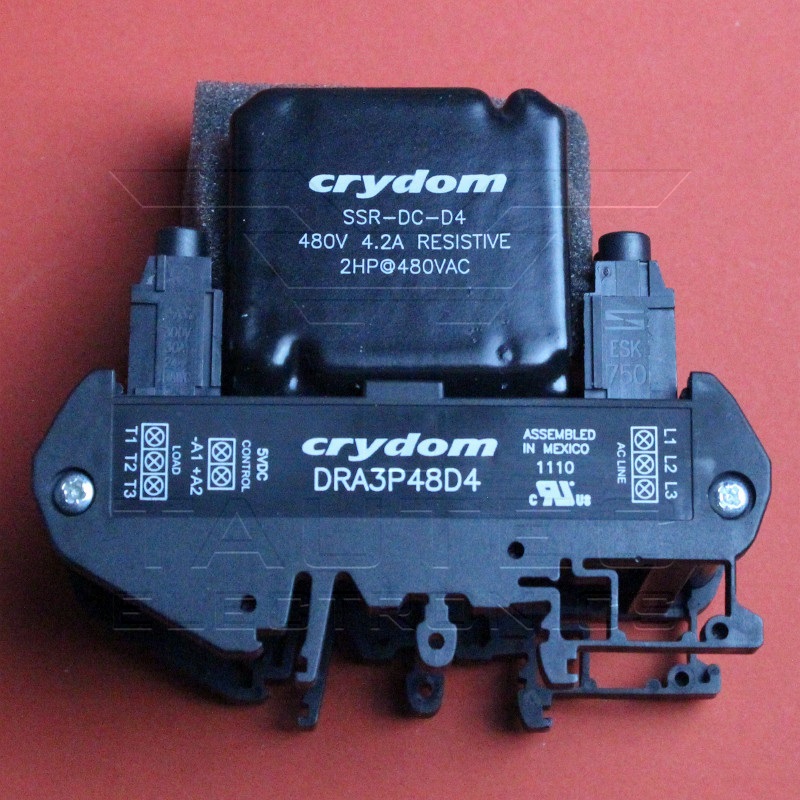

Crydom

DRA3P48D4

Beschreibung: Solid State Relay, 3 Phase, Input: 4...6VDC, Output: 48...510VAC/4,2A Datenblatt: DRA3P48D4.pdf

€ 40 .00*
