DE...

Panasonic

DE1a-DC12V

General Purpose Relays Relay Contact Form: 1 Form A (SPST-NO) Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Voltage: 12 VDC Coil Resistance: 720 Ohms Coil Current: 16.6 mA Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 200 mW Contact Rating (Current): 10A Switching Voltage: 250VAC, 30VDC - Max Datenblatt: DE1a-DC12V.pdf

€ 3 .92*

Panasonic

DE1a-L-DC3V

3VDC Compact Power Relay - Low operating power 200mW - Compact body saves space Size: 12.5(W) x 25.0(L) x 12.5(H) mm - Max. switching voltage : 250V AC - Max. switching current :10A - Contact arrangement : 1 Form A Datenblatt: DE1a-L-DC3V.pdf

€ 4 .00*

Panasonic

DE1a1b-3V

3VDC Compact High-Insulation Polarized Power Relay Conforms to European safety standards (VDE0700 and VDE0631) Extensive product line-up Surge voltage between contact and coil 12 kV Low operating power Compact body saves space Size: 12.5(W) x 25.0(L) x 12.5(H) mm Coil Voltage: 3 VDC Max. switching power: 2,000 VA / 240W Max. switching voltage: 440VAC / 230VDC Max. switching current: 8A Relay Contact Form: 1 Form A (SPST-NO), 1 Form B (SPST-NC) Contact Current Rating: 8 A Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Contact Material: Silver Tin Oxide (AgSnO) Datenblatt: DE1a1b-DC3V.pdf

€ 4 .50*

Panasonic

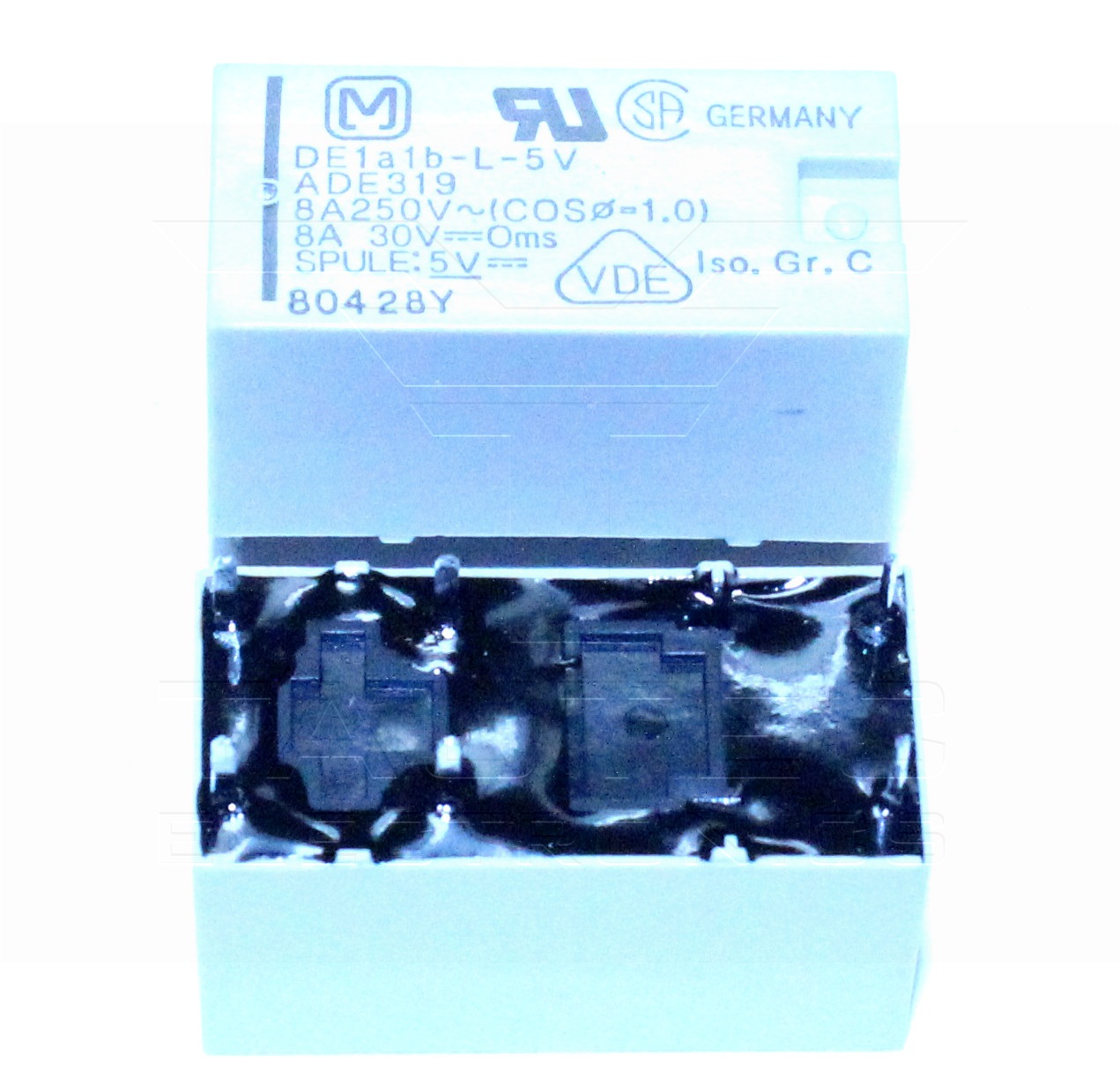

DE1a1b-L-5V

5VDC Compact High-Insulation Polarized Power Relay Datenblatt: DE1A1BL5V.pdf

€ 3 .50*

Panasonic

DE2a-L-5V

Beschreibung: 5VDC Compact High-Insulation Polarized Power Relay Datenblatt: DE2AL5V.pdf

€ 5 .00*
