Sensata Technologies

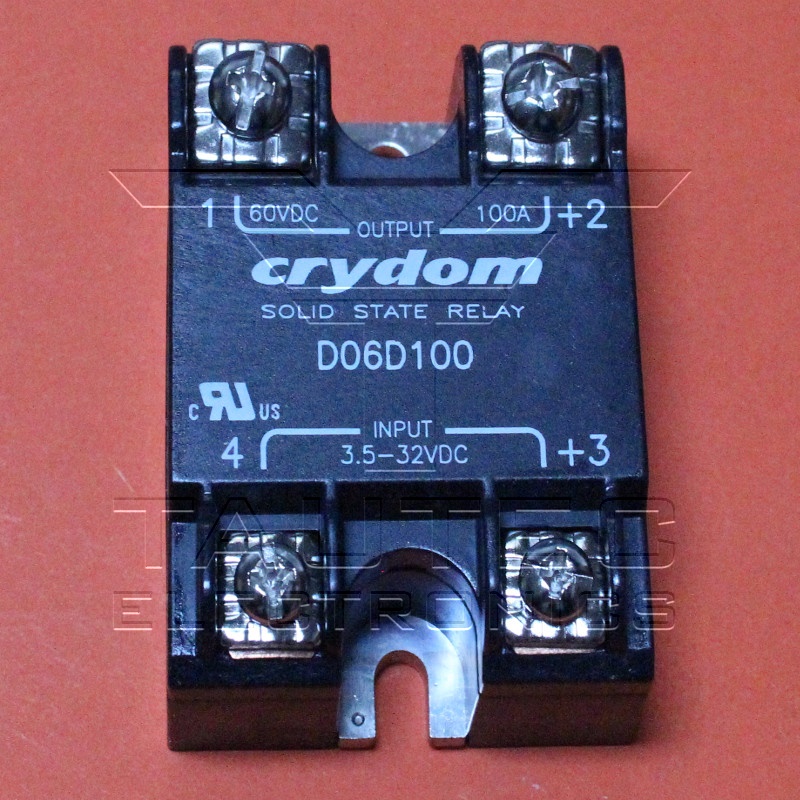

D06D100

Solid State Relay SSR Mounting Style: Panel Mount Load Current Rating: 100 A Load Voltage Rating: 0 VDC to 60 VDC Relay Contact Form: 1 Form A (SPST-NO) Output Type: MOSFET Control Voltage Range: 3.5 VDC to 32 VDC Input Current: 1.6 mA IP Rating: IP00 Termination Style: Screw Pd - Power Dissipation: 500 mW Datenblatt: D06D100.pdf

€ 65 .00*

Crydom

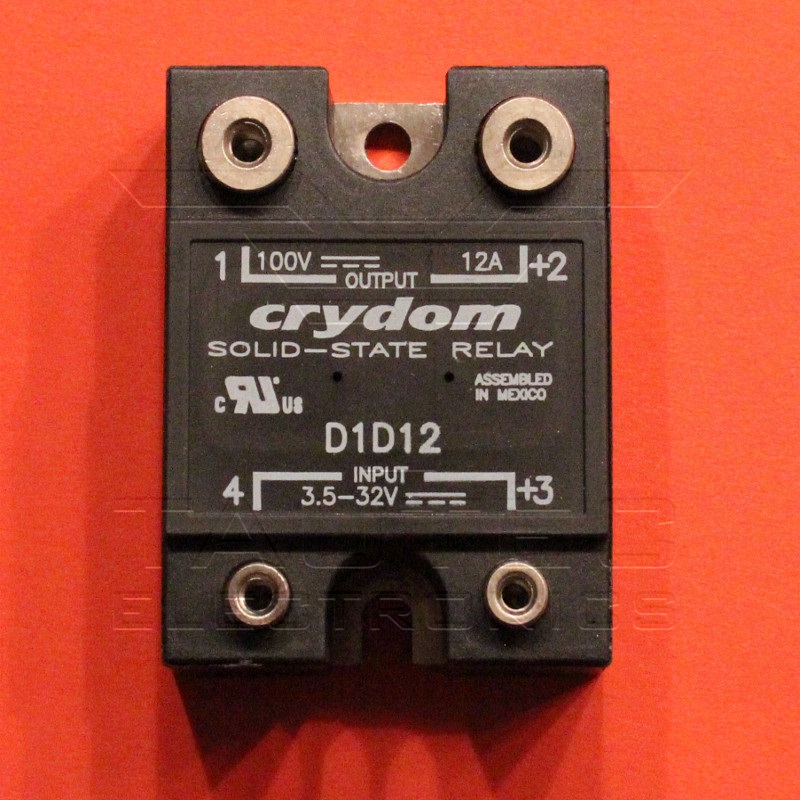

D1D12

Solid State Relay - Control Voltage Range: 3.5 VDC to 32 VDC - Load Voltage Rating: 1 VDC to 72 VDC - Load Current Rating: 12 A - Input Current: 10 mA to 15 mA - Contact Form: SPST (1 Form A) - Output Type: MOSFET - Mounting Style: Panel Datenblatt: D1D12.pdf

€ 35 .00*

Crydom

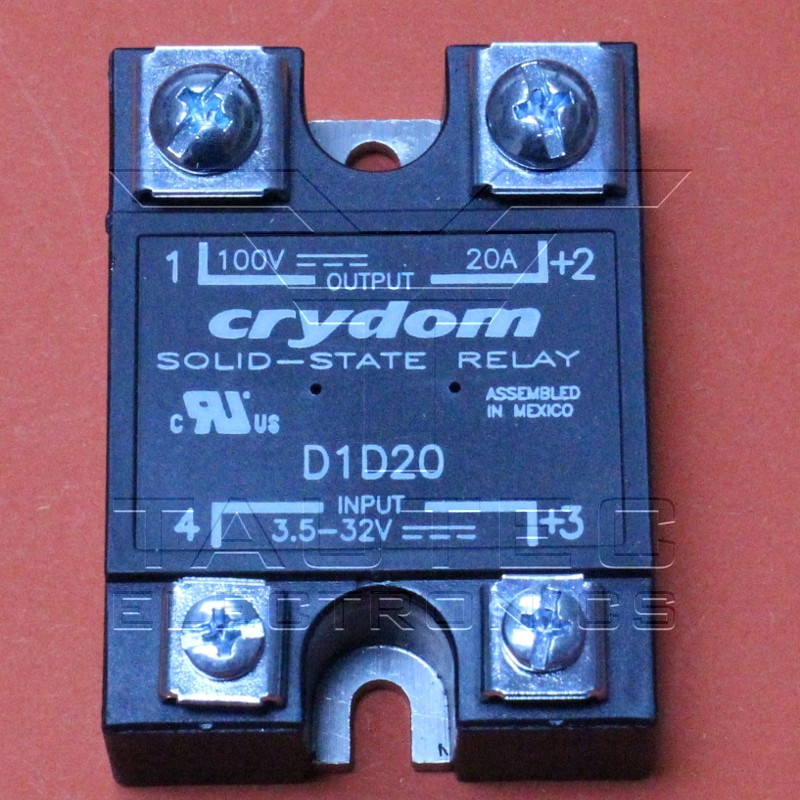

D1D20

SSR - Solid State Relays Control Voltage Range: 3.5 VDC to 32 VDC Mounting Style: Panel Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 1 VDC to 72 VDC Load Current Rating: 20 A Input Current: 10 mA to 15 mA Output Type: MOSFET Series: 1-DC Series Package/Case: Hockey Puck Termination Style: Screw Datenblatt: D1D20.pdf

€ 35 .00*

Crydom

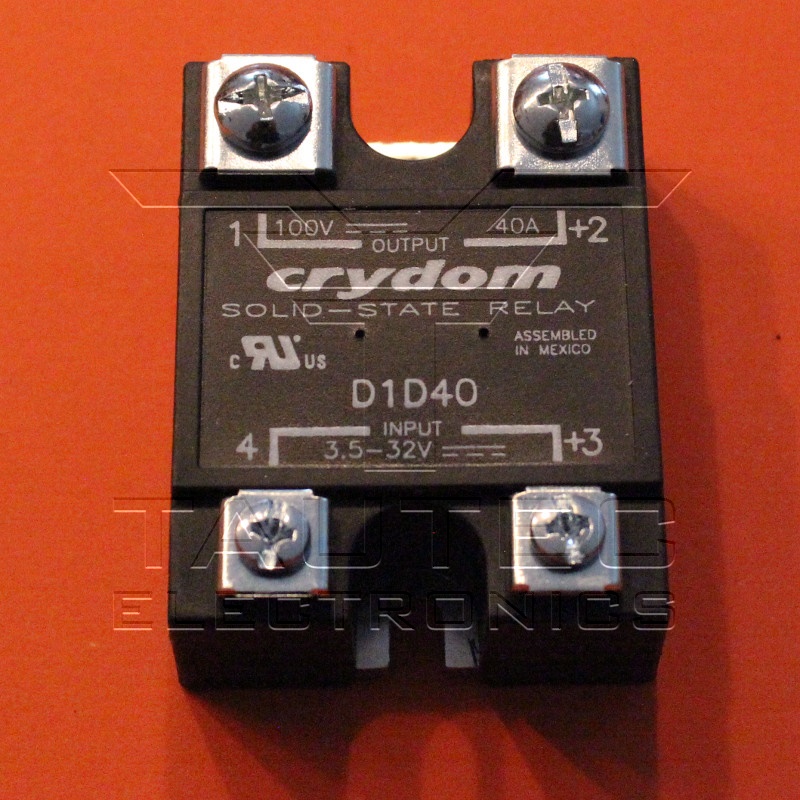

D1D40

Solid State Relay - Control Voltage Range: 3.5 VDC to 32 VDC - Load Voltage Rating: 1 VDC to 72 VDC - Load Current Rating: 40 A - Input Current: 10 mA to 15 mA - Contact Form: SPST (1 Form A) - Output Type: MOSFET - Mounting Style: Panel Datenblatt: D1D40.pdf

€ 26 .65*

Crydom

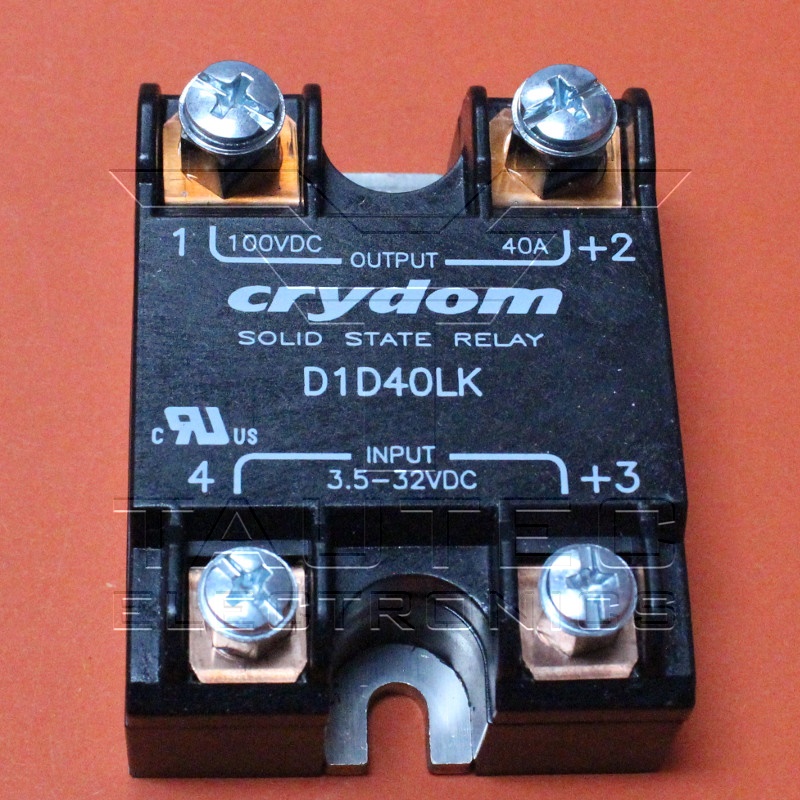

D1D40LK

Solid State Relays - Industrial Mount Operating Voltage: 1VDC - 100VDC Rated Load Current: 40A Maximum Off-State Leakage Current @ Rated Voltage: 0,3mA Maximum Pulse Width Modulation Frequency: 950Hz Control Voltage Range: 3.5-32 VDC Maximum Reverse Voltage: -32VDC Minimum Turn-On Voltage: 3.5V Must Turn-Off Voltage: 1V Maximum Input Current: 15mA Ambient Operating Temperature Range: -40 to 100 °C Improved SEMS screw and washer Redesigned housing with anti-rotation barriers UL Approved, CE Compliant to EN60950-1 Datenblatt: D1D40LK.pdf

€ 50 .00*

Crydom

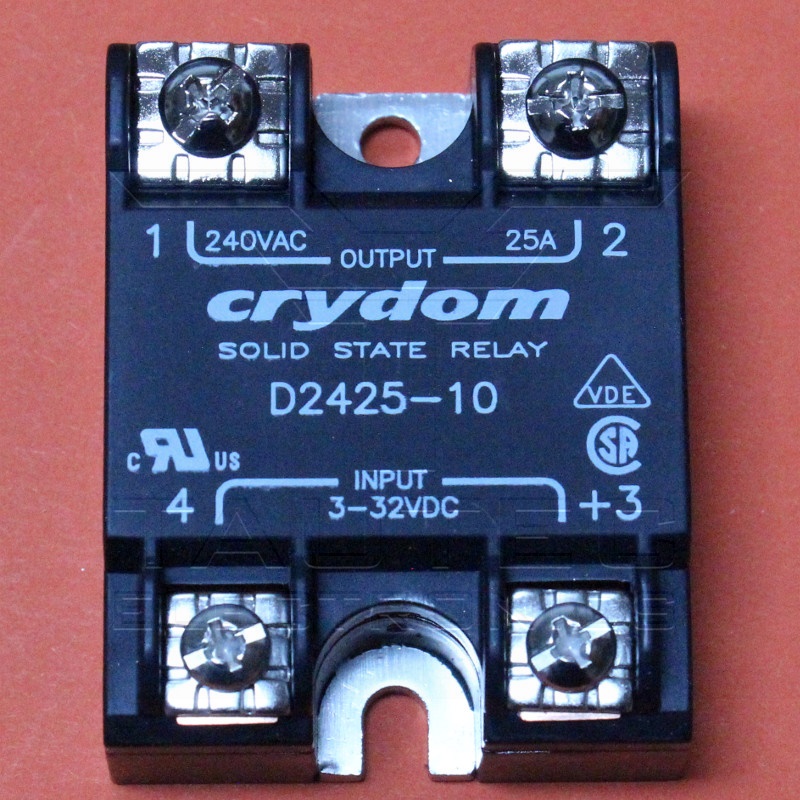

D2425-10

Beschreibung: Solid State Relay SSR - Input: 4...32VDC - Output: 24VAC ... 280VDC/25A - Schaltform: 1 Form B - Anschlußform: Schraube Datenblatt: D2425-10.pdf

€ 28 .00*

Crydom

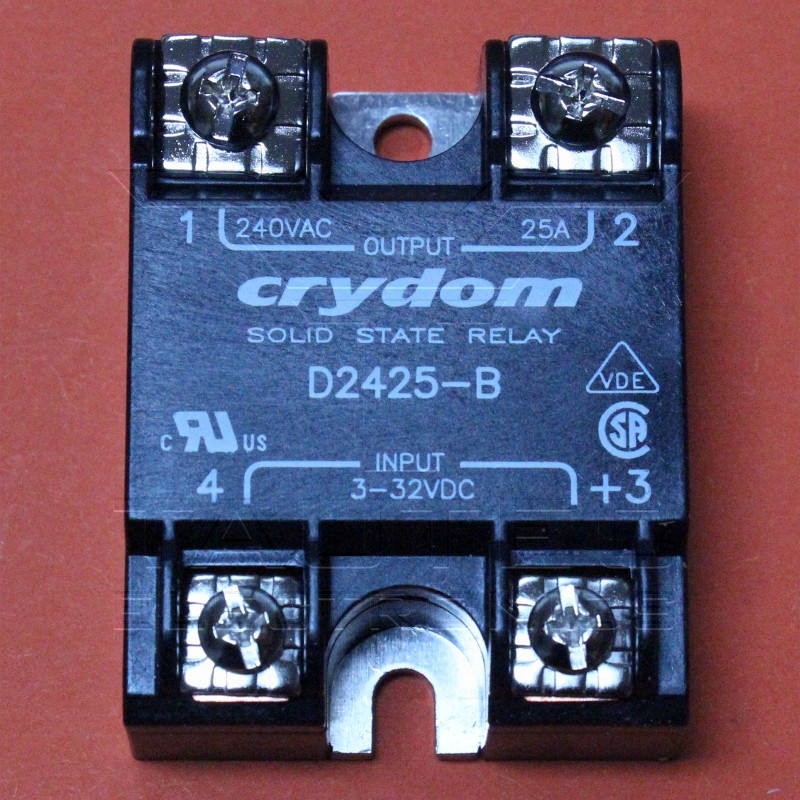

D2425-B

Beschreibung: Solid State Relay SSR - Input: 3...32VDC - Input Current: 3.4mA - 30mA - Output: 24VAC ... 280VDC - Output Current: 25A - Anschlußform: Schraube Datenblatt: D2425-B.pdf

€ 25 .00*

Crydom

D2425D

Solid State Relay SSR - Input: 4...15VDC - Input Current: 13mA - Output: 24VAC ... 280VDC - Output Current: 25A - Circuit Arrangement: 1 Form A Datenblatt: D2425D.pdf

€ 50 .00*

Crydom

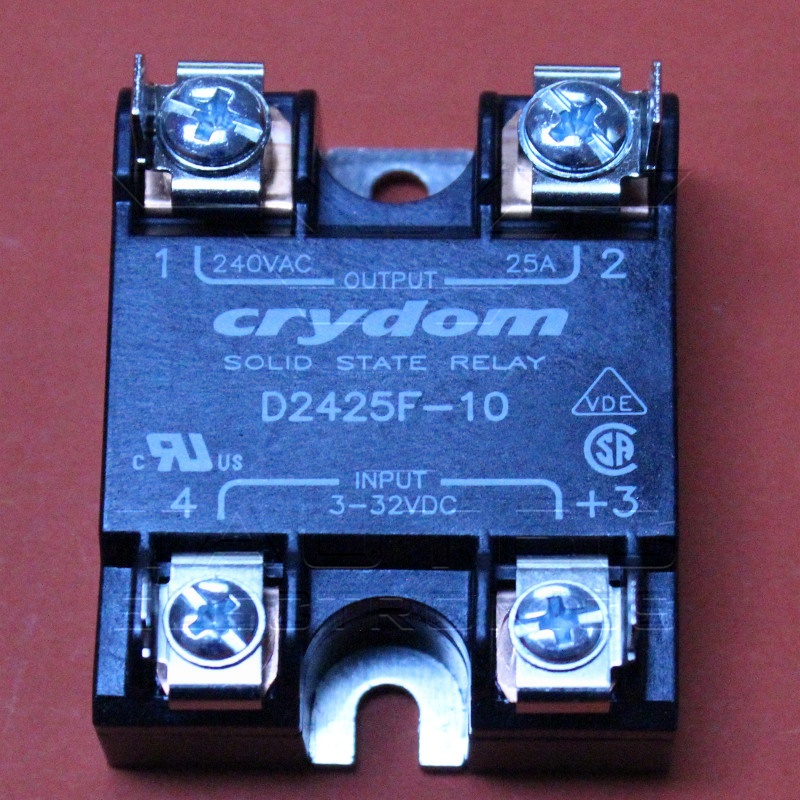

D2425F-10

Beschreibung: Solid State Relay, Input: 4...32VDC, Output: 24VAC ... 280VDC/25A Datenblatt: D2425F-10.pdf

€ 25 .00*

Crydom

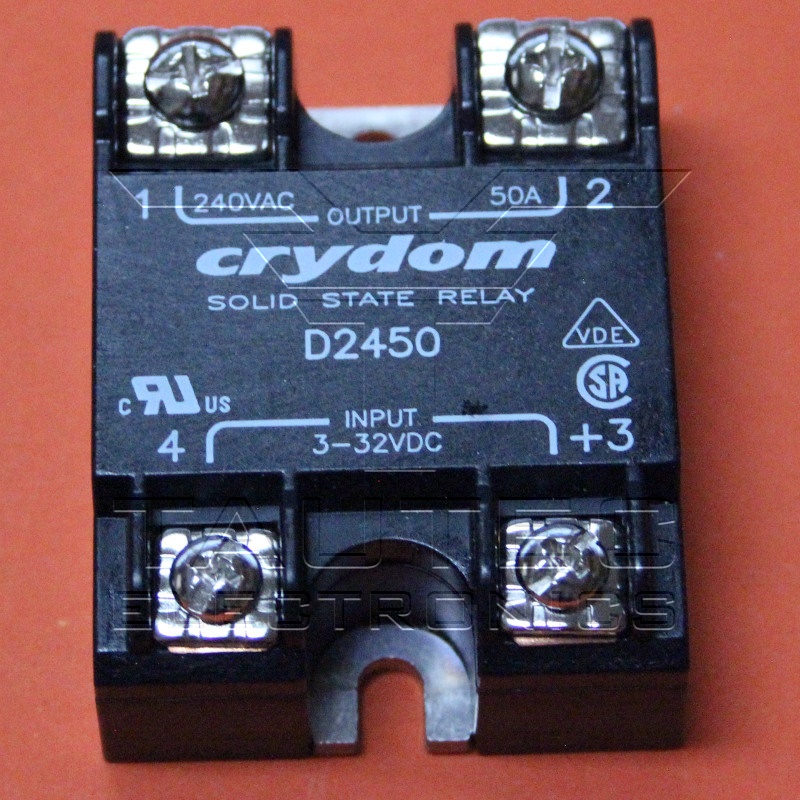

D2450

Solid State Relays - Industrial Mount Control Voltage Range: 4 VDC to 32 VDC Mounting Style: Panel Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 24 VAC to 280 VAC Load Current Rating: 50 A Input Current: 7 mA to 12 mA Output Type: SCR Package/Case: Hockey Puck Termination Style: Screw Pd - Power Dissipation: 500 mW Datenblatt: D2450.pdf

€ 25 .00*

Crydom

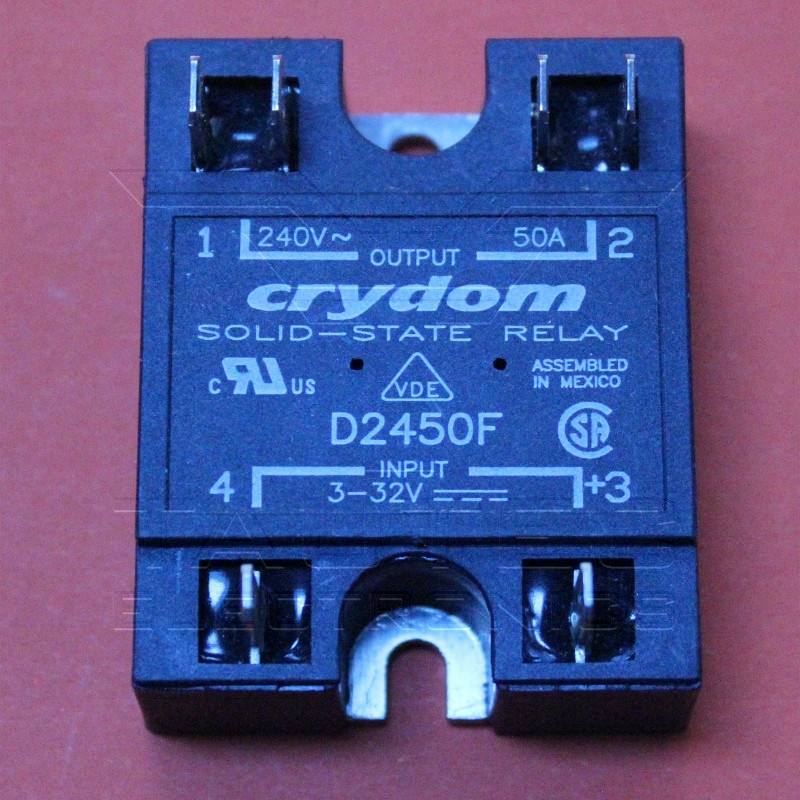

D2450F

Solid State Relay SSR - Input: 4...32VDC - Output: 24VAC ... 280VAC - Output Current: 50A Datenblatt: D2450F.pdf

€ 25 .00*

Crydom

D2450PG

Beschreibung: Solid State Relay SSR - Input: 4...32VDC - Input Current: 7mA - 12mA - Output: 24VAC ... 280VDC - Output Current: 50A Datenblatt: D2450PG.pdf

€ 25 .00*

Crydom

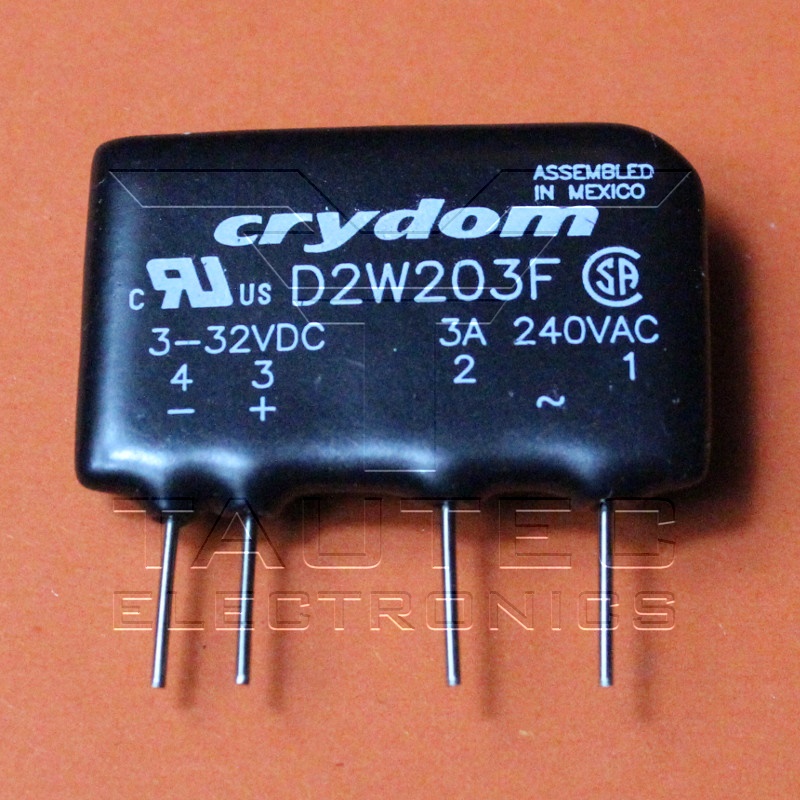

D2W203F

Solid State Relays - PCB Mount Control Voltage Range: 3 VDC to 32 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 280 VAC Load Current Rating: 3 A Input Voltage: 32 V Input Current: 3 mA Output Type: MOSFET Package/Case: SIP-4 Series: D2W Height: 29.9 mm Width: 11.9 mm Length: 43.2 mm Datenblatt: D2W203F.pdf

€ 20 .68*

Celduc Relais

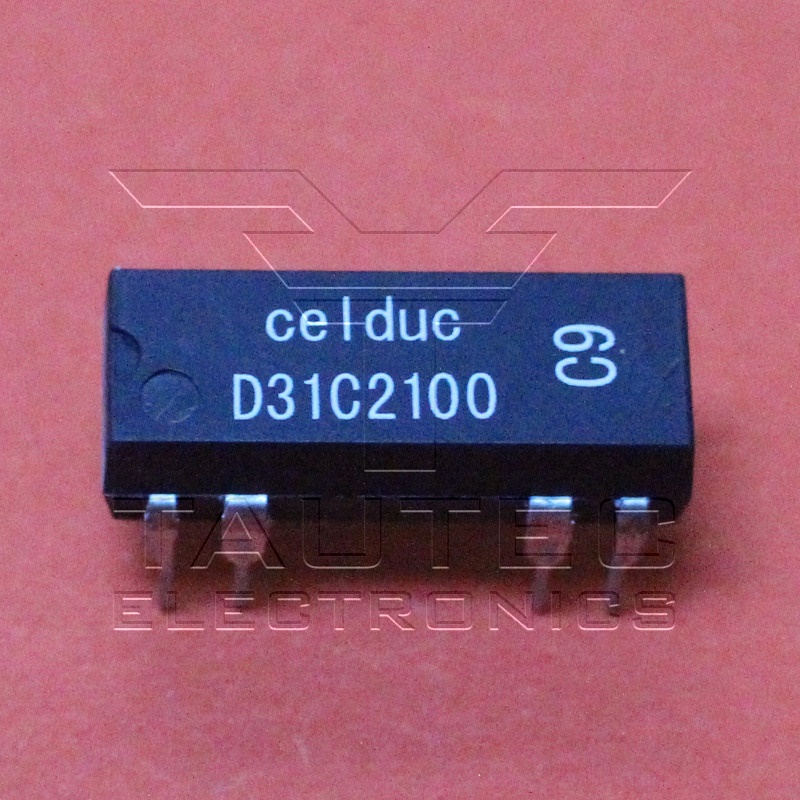

D31C2100

Reed Relay, SPDT, 5 VDC, D31C Series, Through Hole, 200 ohm, 250 mA Contact Configuration: SPDT Coil Voltage: 5VDC Product Range: D31C Series Relay Mounting: Through Hole Coil Resistance: 200ohm Switching Current Max: 250mA Switching Voltage Max: 30VDC Datenblatt: D31C2100.pdf

€ 5 .00*

Crydom

D4D07

Beschreibung: Solid State Relay, Input: 3,5...32VDC, Output: 1...300VAC/7A Datenblatt: D4D07.pdf

€ 45 .00*

Crydom

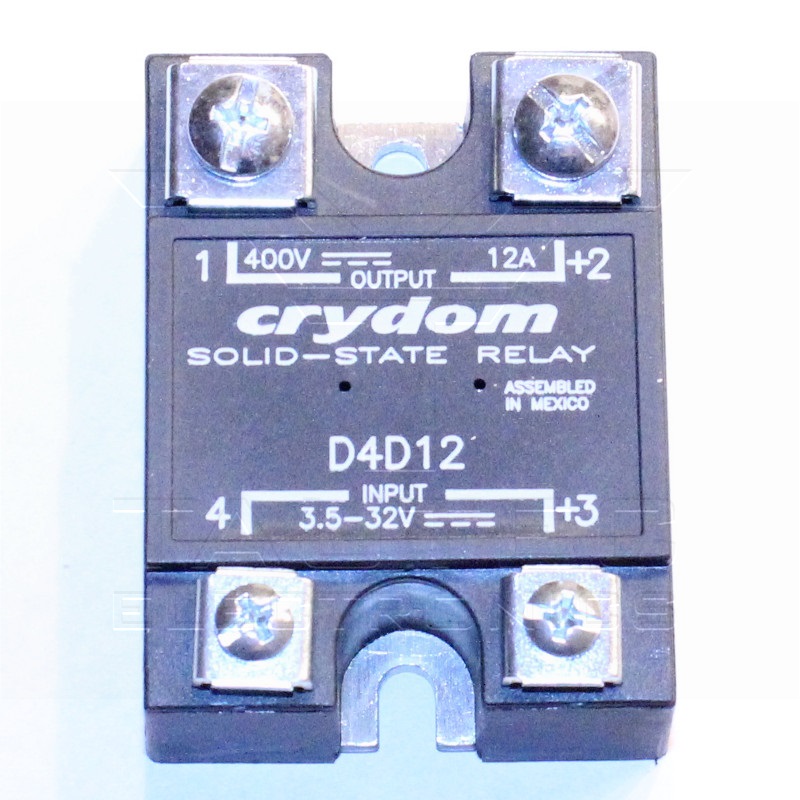

D4D12

Beschreibung: Solid State Relay, Input: 3,5...32VDC, Output: 1...400VAC/10A Datenblatt: D4D12.pdf

€ 100 .00*

Crydom

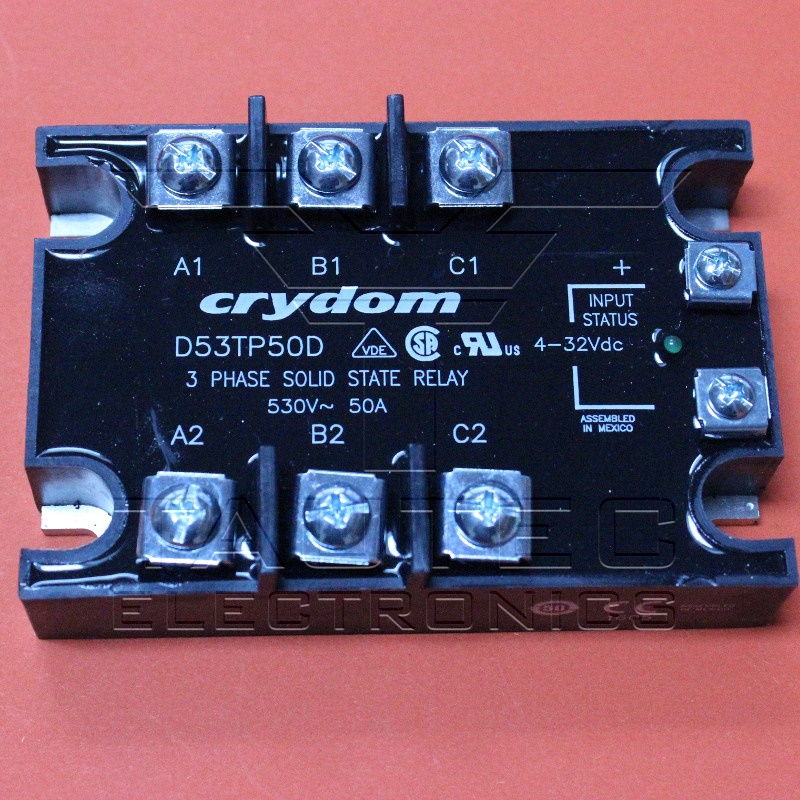

D53TP50D

Three-phase solid-state relay - Minimum Load Current 0.05 A - Maximum Load Current 50 A rms - Mounting Type Panel Mount - Maximum Load Voltage 530 V rms - Minimum Control Voltage 4 V - Maximum Control Voltage 32 V - Switching Type Zero Cross - Output Device SCR - Maximum Turn On Time 1/2 cycle - Dimensions 103.8 x 73.4 x 30mm - Minimum Operating Temperature -40°C - Maximum Operating Temperature +80°C Datenblatt: D53TP50D.pdf

€ 148 .00*

Celduc Relais

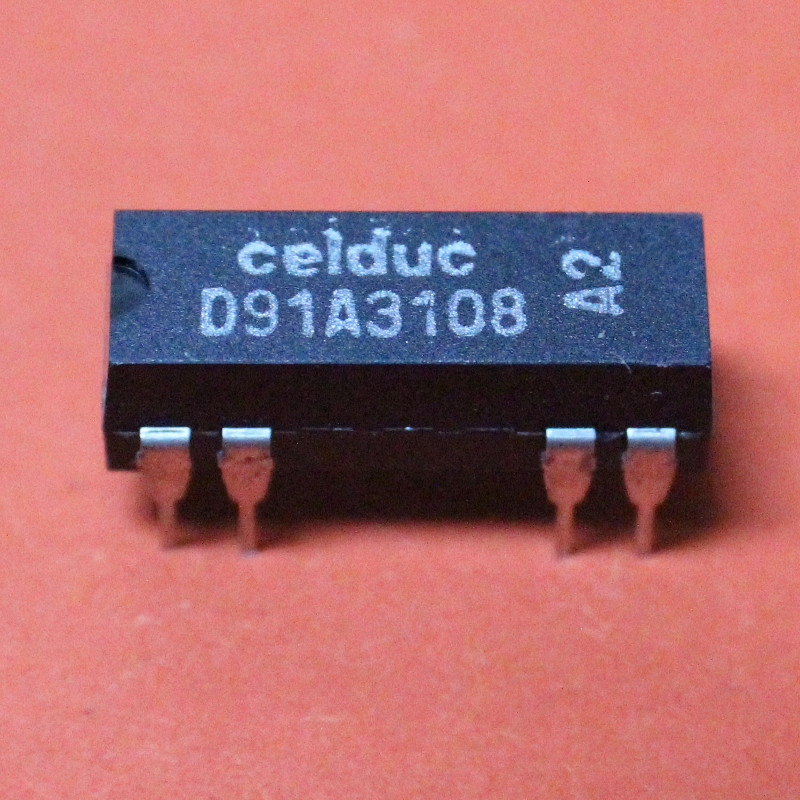

D91A3108

Dual In Line Solid State Relay 5V / 500Ohm Input Voltage: 5V Coil Resisteance: 500 Ohm Power switching: max 10W Carrying current: 1A Max switching current: 500mA Switching fréquency max: 200Hz Datenblatt: D91A3108.pdf

€ 2 .00*

SDS-Relais AG

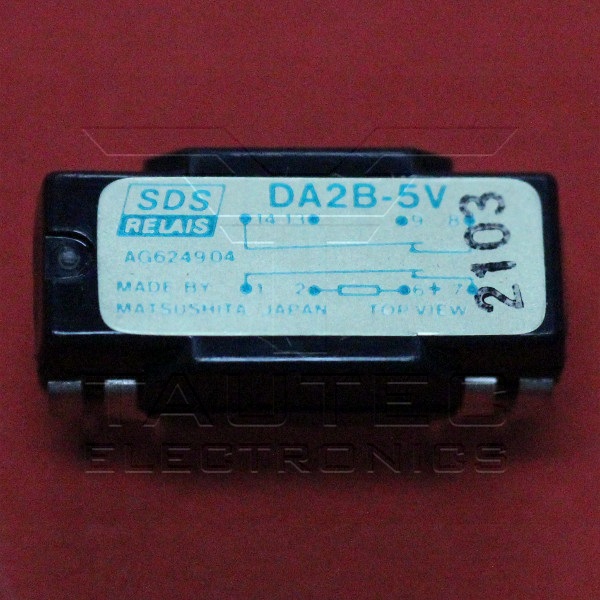

DA2B-5V

Beschreibung: 5VDC PCB Relay

€ 10 .00*

Crydom

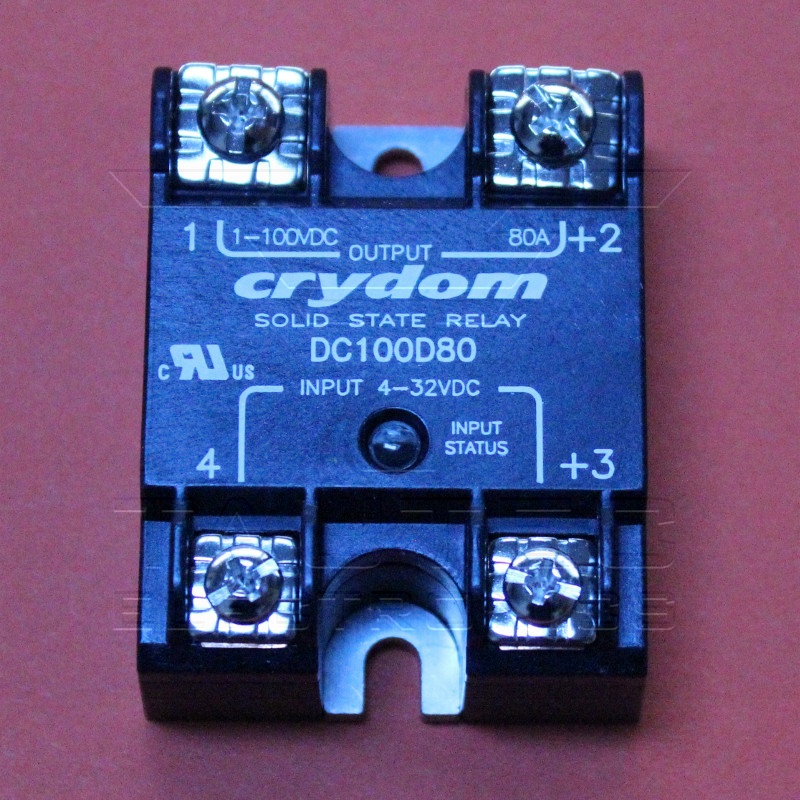

DC100D80

Beschreibung: Solid State Relay, Input: 4...32VDC, Output: 1...72VDC/80A Datenblatt: DC100D80.pdf

€ 75 .00*

Crydom

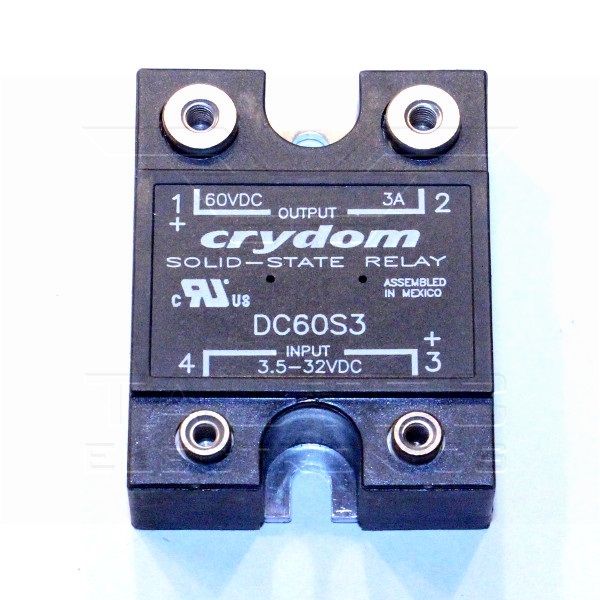

DC60S3

Solid State Relay, Input: 3...32VDC, Output: 3...60VDC/3A Mounting Style: Panel Mount Load Current Rating: 3 A Load Voltage Rating: 3 VDC to 48 VDC Relay Contact Form: 1 Form A (SPST-NO) Output Type: Bi-Polar Transistor Control Voltage Range: 3.5 VDC to 32 VDC Input Current: 2.2 mA to 25 mA Minimum Operating Temperature: - 30 C Maximum Operating Temperature: + 80 C IP Rating: IP00 Package/Case: Hockey Puck Termination Style: Screw Type: Isolated Datenblatt: DC60S3.pdf

€ 13 .50*

Sensata Technologies

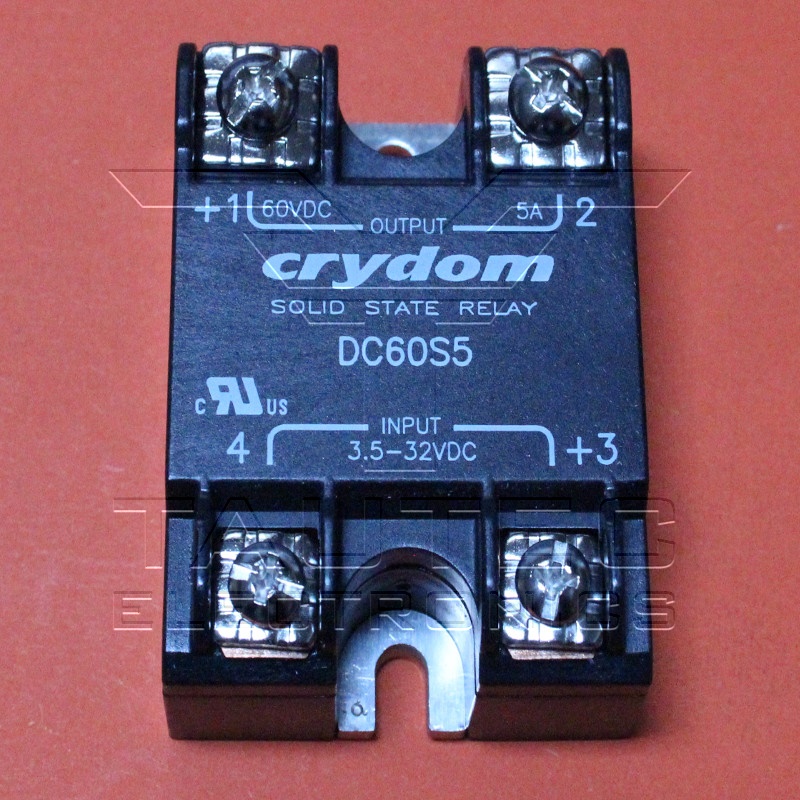

DC60S5

SSR - Solid State Relays Mounting Style: Panel Mount Load Current Rating: 5 A Load Voltage Rating: 3 VDC to 48 VDC Relay Contact Form: 1 Form B (SPST-NC) Output Type: Bi-Polar Transistor Control Voltage Range: 3.5 VDC to 32 VDC Input Current: 2.2 mA to 25 mA Minimum Operating Temperature: - 30 C Maximum Operating Temperature: + 80 C IP Rating: IP00 Package/Case: Hockey Puck Termination Style: Screw Type: Isolated Datenblatt: DC60S5.pdf

€ 22 .00*

Panasonic

DE1a-DC12V

General Purpose Relays Relay Contact Form: 1 Form A (SPST-NO) Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Coil Voltage: 12 VDC Coil Resistance: 720 Ohms Coil Current: 16.6 mA Contact Material: Silver Tin Oxide (AgSnO) Power Consumption: 200 mW Contact Rating (Current): 10A Switching Voltage: 250VAC, 30VDC - Max Datenblatt: DE1a-DC12V.pdf

€ 3 .92*

Panasonic

DE1a-L-DC3V

3VDC Compact Power Relay - Low operating power 200mW - Compact body saves space Size: 12.5(W) x 25.0(L) x 12.5(H) mm - Max. switching voltage : 250V AC - Max. switching current :10A - Contact arrangement : 1 Form A Datenblatt: DE1a-L-DC3V.pdf

€ 4 .00*

Panasonic

DE1a1b-3V

3VDC Compact High-Insulation Polarized Power Relay Conforms to European safety standards (VDE0700 and VDE0631) Extensive product line-up Surge voltage between contact and coil 12 kV Low operating power Compact body saves space Size: 12.5(W) x 25.0(L) x 12.5(H) mm Coil Voltage: 3 VDC Max. switching power: 2,000 VA / 240W Max. switching voltage: 440VAC / 230VDC Max. switching current: 8A Relay Contact Form: 1 Form A (SPST-NO), 1 Form B (SPST-NC) Contact Current Rating: 8 A Mounting Style: Through Hole Coil Termination: Solder Pin Coil Type: Non-Latching Contact Material: Silver Tin Oxide (AgSnO) Datenblatt: DE1a1b-DC3V.pdf

€ 4 .50*

Panasonic

DE1a1b-L-5V

5VDC Compact High-Insulation Polarized Power Relay Datenblatt: DE1A1BL5V.pdf

€ 3 .50*

Panasonic

DE2a-L-5V

Beschreibung: 5VDC Compact High-Insulation Polarized Power Relay Datenblatt: DE2AL5V.pdf

€ 5 .00*

Meder Electronic

DIL24-K100-10A

Beschreibung: 24VDC DIL PCB Relais

€ 10 .00*

ERNI Electronics

DILRID-A-1A4.5-12V

12VDC PCB Relay

€ 25 .00*

ERNI Electronics

DILRID-B-1W4.3-12V

12VDC PCB Relay

€ 25 .00*

ERNI Electronics

DILRID-B-2W4.3-12V

€ 25 .00*

Meder Electronic

DIP05-1A72-12D

Beschreibung: 5VDC Reed Relay Datenblatt: DIP05-1A72-12D.pdf

€ 2 .00*

Meder Electronic

DIP05-1B72-19D

Reed Relays Contacts configuration: SPST-NC Rated coil voltage: 5V DC Contact current max.: 1A Switched voltage: max 200V DC, max 200V AC Coil resistance: 500Ohm Coil power consumption: 50mW Contact resistance: 150mOhm Coil voltage min.: 3.5V DC Coil voltage max.: 7.5V DC Operating temperature: -20...70°C Body dimensions: 19.3 x 7.5 x 7mm Datenblatt: DIP05-1B72-19D.pdf

€ 3 .50*

Meder Electronic

DIP12-1A72-13L

12VDC Reed Relay Coil Voltage: 12 VDC Relay Contact Form: SPDT-NO Maximum Switched Current: 1A Switching Voltage: 200 VAC, 200VDC Maximum Switched Power: 10 W Coil Resistance: 1000 Ohms Datenblatt: DIP12-1A72-13L.pdf

€ 1 .25*

Meder Electronic

DIP12-1C90-51D

Reed Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Maximum Switched Current: 500 mA Switching Voltage: 175 VAC, 175 VDC Maximum Switched Power: 20 W Coil Suppression Diode: Yes Coil Resistance: 500 Ohms Datenblatt: DIP12-1C90-51D.pdf

€ 2 .75*

Meder Electronic

DIP12-1C90-51QHR

Reed Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Maximum Switched Current: 500 mA Switching Voltage: 175 VAC, 175 VDC Maximum Switched Power: 20 W Coil Resistance: 500 Ohms Datenblatt: DIP12-1C90-51QHR.pdf

€ 4 .75*

Meder Electronic

DIP24-2A72-21L

Reed Relays Coil Voltage: 24 VDC Relay Contact Form: 2 Form A (DPST-NO) Maximum Switched Current: 1 A Maximum Switched Power: 15 W Coil Suppression Diode: Yes Coil Resistance: 2 kOhms Datenblatt: DIP24-2A72-21L.pdf

€ 2 .75*

Panasonic

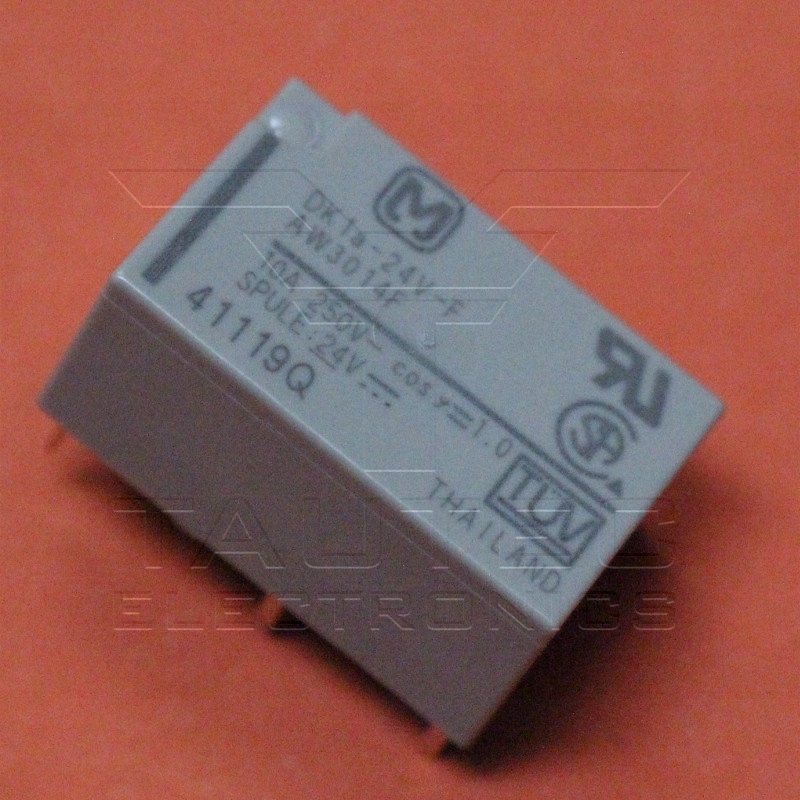

DK1a-24V-F

24VDC Small Polarized Power Relays, 250VAC/10A Datenblatt: DK1a-24V-F.pdf

€ 5 .00*

Panasonic

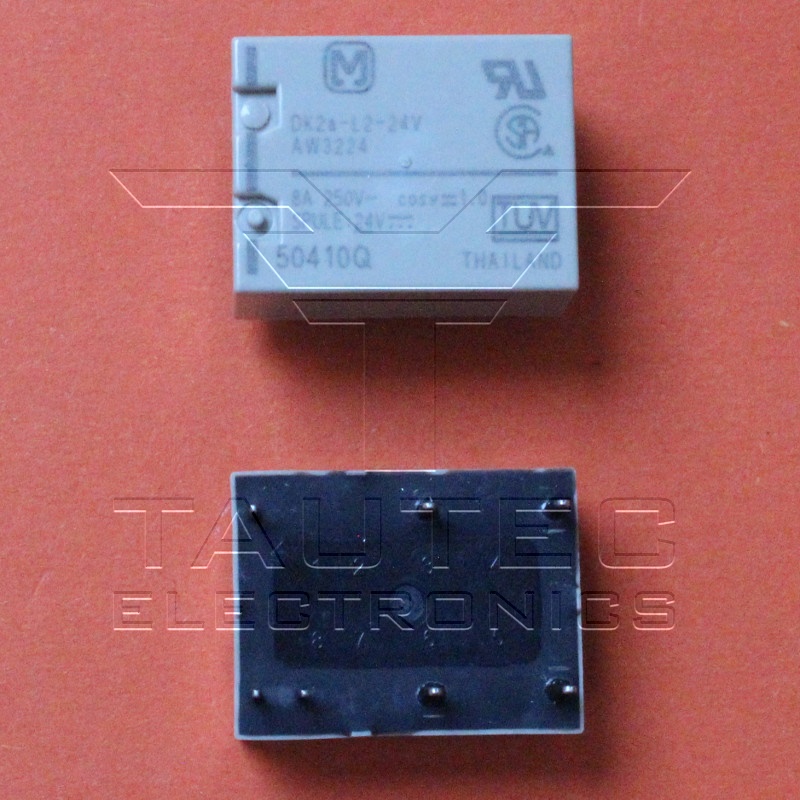

DK2a-L2-24V

24VDC General Purpose Relays Type: Polarized Relay Contact Form: 2 Form A (DPST-NO) Contact Current Rating: 8 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 125 VDC Coil Voltage: 24 VDC Coil Type: Dual Coil Latching Coil Resistance: 2.88 kOhms Coil Current: 8.3 mA Power Consumption: 200 mW Contact Material: Silver Nickel (AgNi) Datenblatt: DK2a-L2-24V.pdf

€ 7 .62*

Crydom

DP4R60D60

Solid State Relays - Industrial Mount - Control Voltage Range: 4.5 VDC to 15 VDC - Mounting Style: Panel - Relay Contact Form: 3 Form A (3PST-NO) - Load Voltage Rating: 1 VDC to 48 VDC - Load Current Rating: 60 A - Input Current: 16 mA to 20 mA - Output Type: SCR - Series: DP4R - Termination Style: Screw - DC Reversing Solid State Contactor - Optional Soft Start w/Brake, Soft Start/Soft Stop no Brake - LED input status indicator. Green (Forward), Yellow (Reverse) - DC control - cULus Recognized, IEC Rated, CE & RoHS Compliant Datenblatt: DP4R60D60.pdf

€ 220 .00*
