CX...
Crydom
CX240D5R
Solid State Relays
- Control Voltage Range: 3 VDC to 15 VDC
- Mounting Style: Through Hole
- Load Voltage Rating: 280 VAC
- Input Current: 15 mA
- Input Voltage: 15 V
- Pd - Power Dissipation: 500 mW (1/2 W)
- Output Type: SCR
- Package/Case: SIP-4
- Series: CX
- Packaging: Bulk
- Height: 25.4 mm
- Length: 43.1 mm
- Width: 7.6 mm
- Termination Style: Solder Pin
Datenblatt:
CX240D5-7010.pdf
€
20
.70*
Crydom

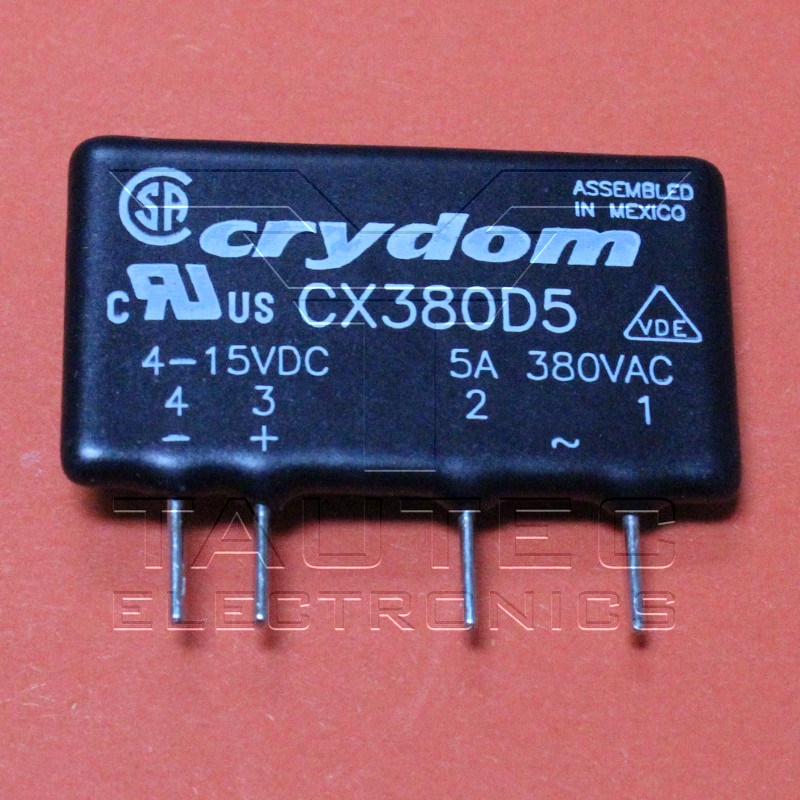

CX380D5
Solid State Relays
Control Voltage Range: 4 VDC to 15 VDC
Mounting Style: Through Hole
Load Voltage Rating: 530 VAC
Input Current: 15 mA
Output Type: SCR
Package/Case: SIP-4
Series: CX
Packaging: Bulk
Height: 25.4 mm
Length: 43.1 mm
Width: 7.6 mm
Pd - Power Dissipation: 500 mW (1/2 W)
Datenblatt:
CX380D5.pdf
€
14
.50*
Crydom

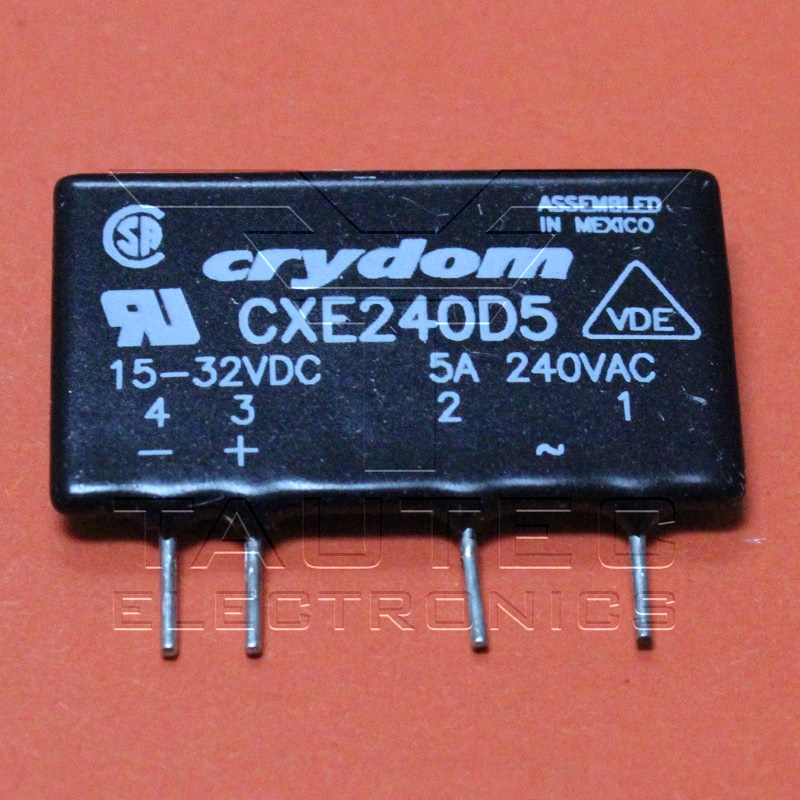

CXE240D5
Solid State Relay, Input: 15...32VDC, Output: 12...280VAC/5A
- SIP SSR
- Ratings of 5 A @ 660 VAC
- SCR output for heavy industrial loads
- AC or DC control
- Zero-crossing (resistive loads) or random-fire (inductive loads) output
- CE Compliant to EN60950-1
Datenblatt:
CXE240D5.pdf
€
13
.00*
Crydom

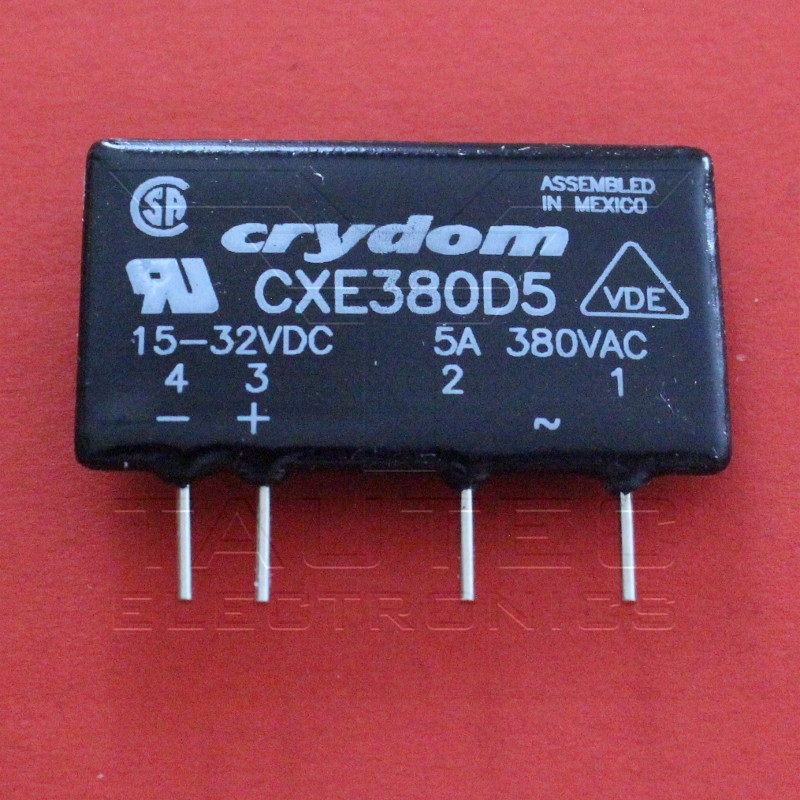

CXE380D5
Solid State Relay, Input: 15...32VDC, Output: 48...530VDC/5A
Mounting Style: PCB Mount
Load Voltage Rating: 530 VAC
Control Voltage Range: 15 VDC to 32 VDC
Pd - Power Dissipation: 500 mW
Output Type: SCR
Input Current: 15 mA
Length: 43.1 mm
Width: 7.6 mm
Height: 25.4 mm
Datenblatt:
CXE380D5.pdf
€
8
.65*
