Panasonic

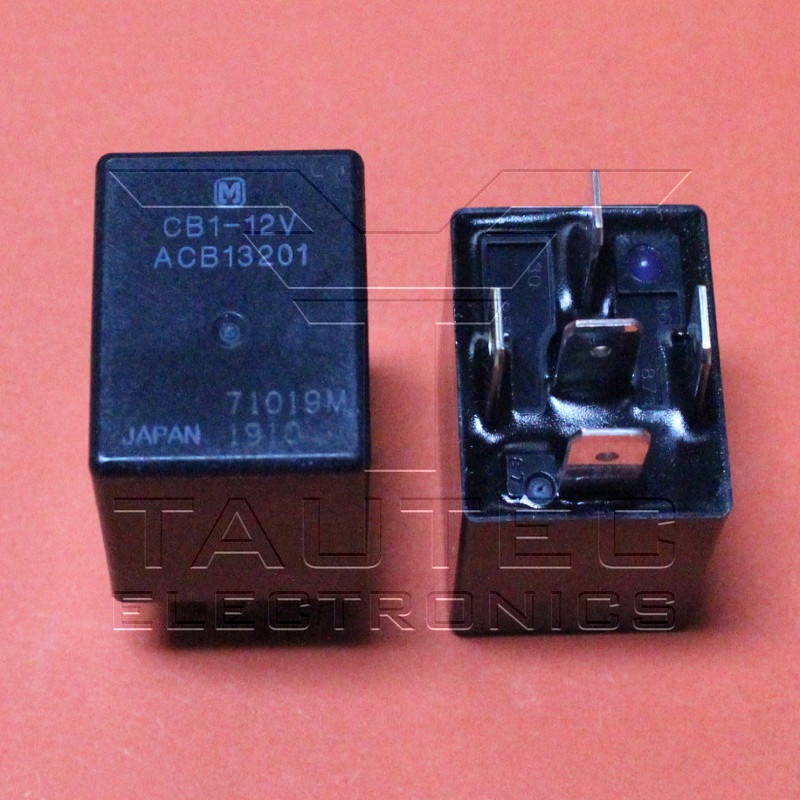

CB1-12V
Power Relay 12VDC
Contact Arrangement: SPDT / 1 Form C
Maximum DC Switching Voltage: 14 VDC
Maximum Switching Current: 40A(NO)/30A(NC)
Coil Resistance: 103 Ohm
Coil Current: 117 mA
Control Voltage: 12 VDC
Mounting: Plug-In
Operate Time: 15 ms
Operating Temperature: -40 to 85 C
Product Dimensions: 26 x 22 x 36 mm
Relay Construction: Non-Latching
Contact Material: Silver(Cadmium Free)
Datenblatt:
CB1-12V.pdf
€
1
.75*
Panasonic

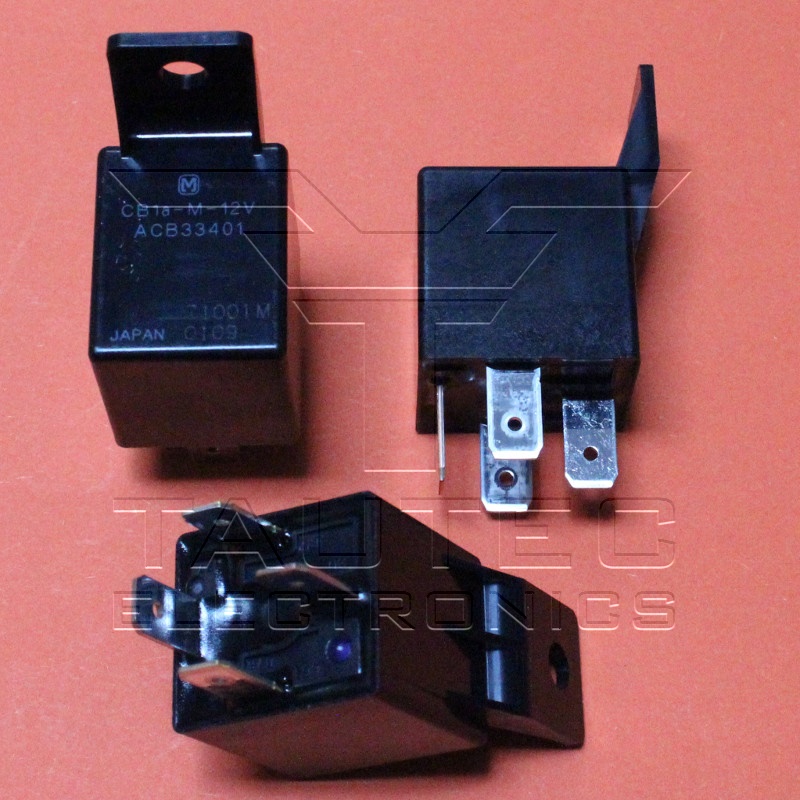

CB1a-M-12V
Automotive Relays 40A 12VDC
Coil Voltage: 12 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Current Rating: 40 A
Coil Resistance: 103 Ohms
Coil Current: 117 mA
Mounting Style: Panel Mount
Contact Material: Silver Alloy (Ag)
Coil Termination: Quick Connect
Contact Form: SPST (1 Form A)
Contact Termination: Quick Connect
Power Consumption: 1.4 W
Datenblatt:
CB1a-M-12V.pdf
€
1
.81*
Panasonic

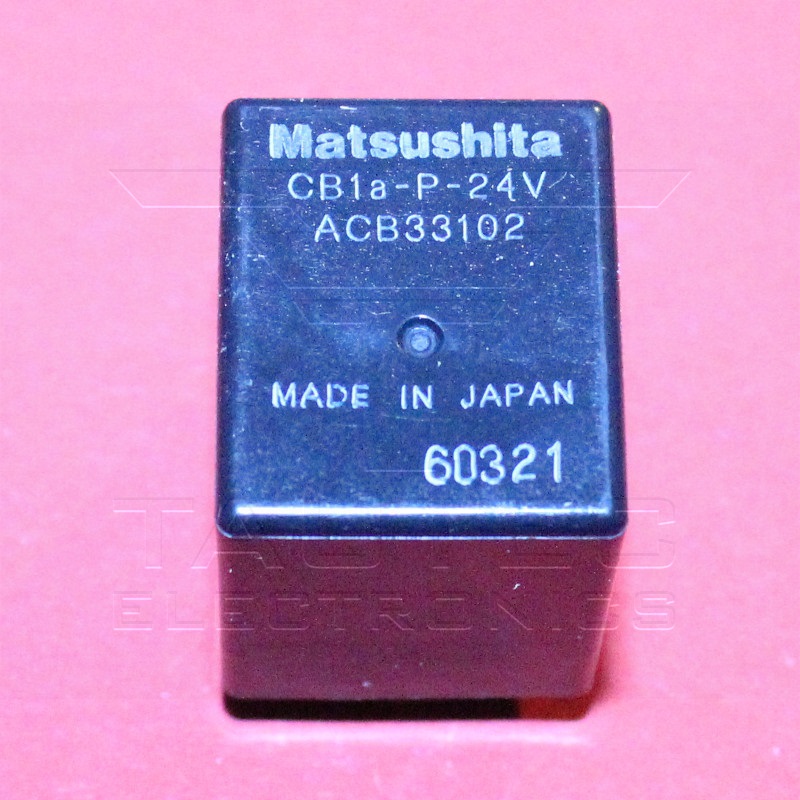

CB1a-P-24V
24VDC Mini ISO Automotive Relay
Coil Type: Non Latching
Coil Current: 75mA
Coil Voltage: 24VDC
Coil Power: 1.8W
Coil Resistance: 320 Ohms
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 20A
Switching Voltage: 28VDC - Nom
Features: Sealed - Fully
Mounting Type: Through Hole
Termination Style: PC Pin
Operating Temperature: -40°C to 85°C
Contact Material: Silver Alloy, Cadmium Free
Datenblatt:
CB1a.pdf
€
1
.30*
Panasonic

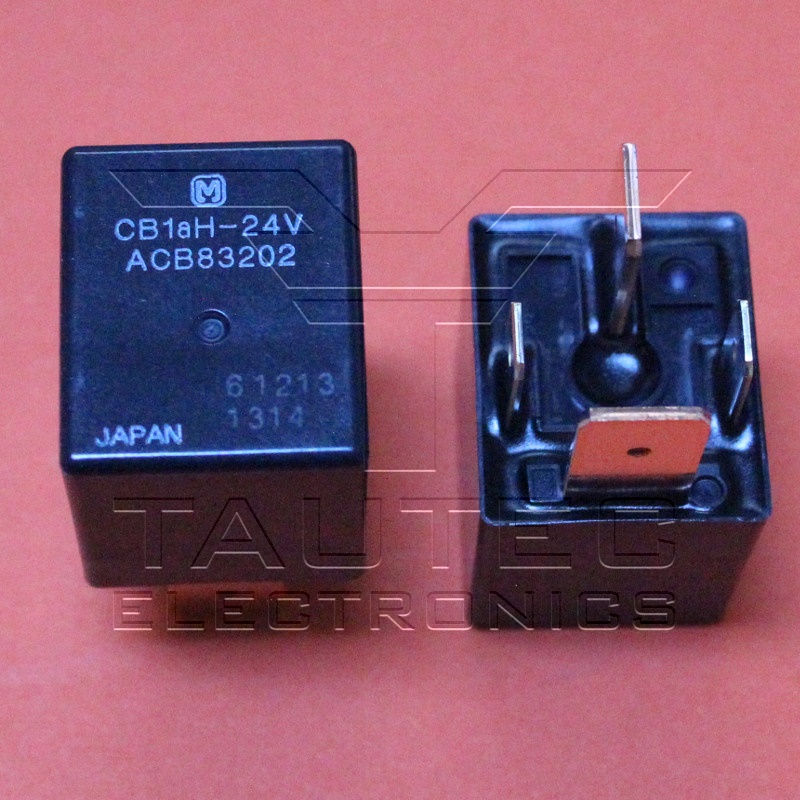

CB1aH-24V
24VDC Mini ISO Automotive Relay
Coil Type: Non Latching
Coil Current: 75mA
Coil Voltage: 24VDC
Coil Power: 1.8W
Coil Resistance: 320 Ohms
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 20A
Switching Voltage: 28VDC - Nom
Features: Sealed - Fully
Mounting Type: Through Hole
Termination Style: PC Pin
Operating Temperature: -40°C to 85°C
Contact Material: Silver Alloy, Cadmium Free
Datenblatt:
CB1aH-24V.pdf
€
2
.40*
