Coto Technology

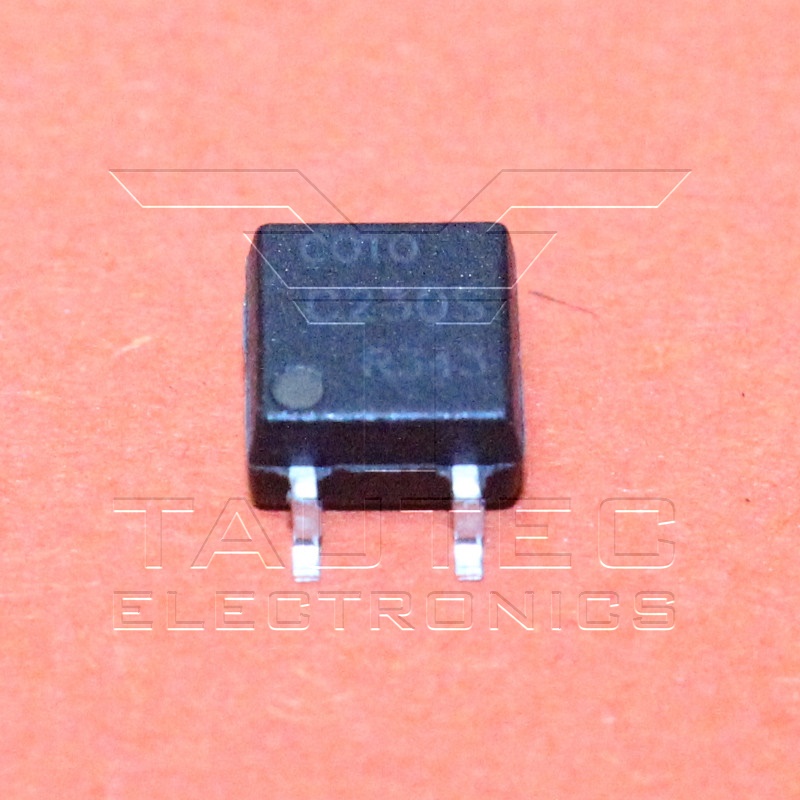

C230S

Solid State Relays - PCB Mount Control Voltage Range: 1 VDC to 1.5 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 400 VDC Load Current Rating: 100 mA Output Type: MOSFET Height: 2 mm Length: 4.6 mm Width: 4.4 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: C230S.pdf

€ 0 .70*

Coto Technology

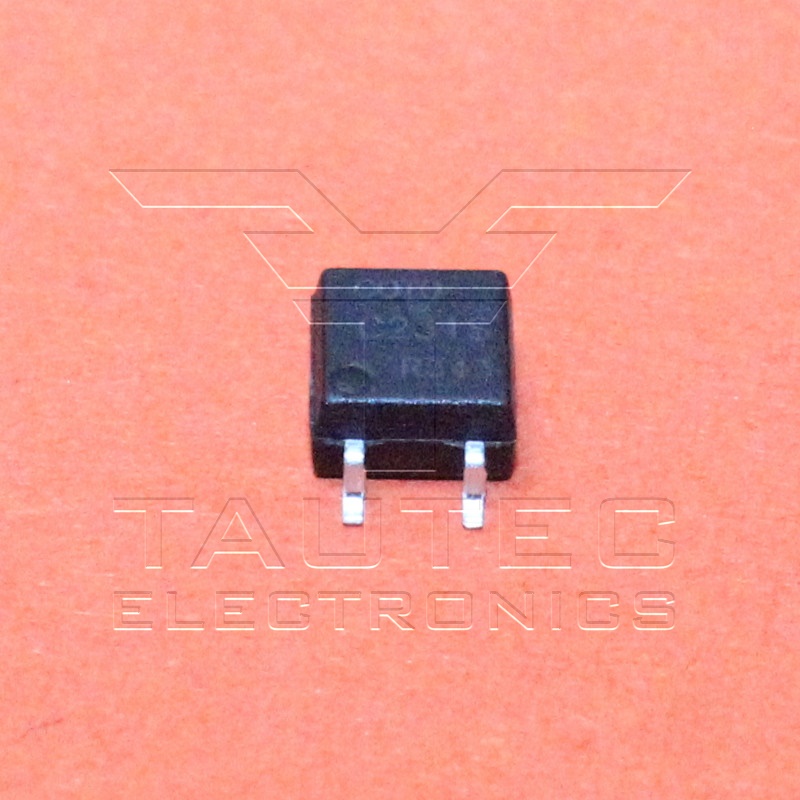

C231S

SMD Solid State Relays Control Voltage Range: 1 VDC to 1.5 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 120 mA Output Type: MOSFET Termination Style: Gull Wing Lead Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: C231S.pdf

€ 0 .80*

Coto Technology

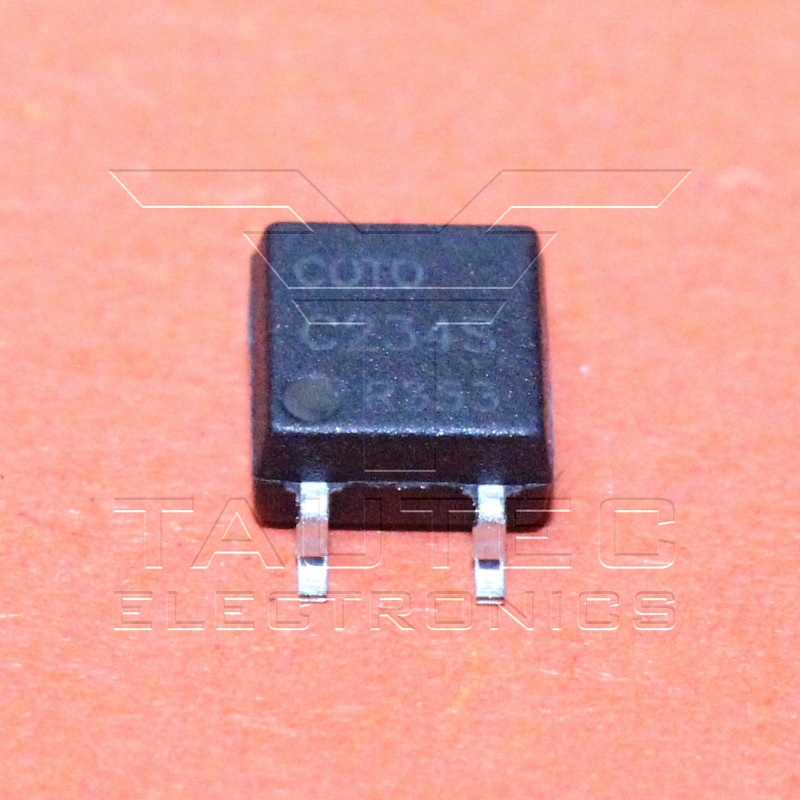

C234S

Solid State Relays - PCB Mount Control Voltage Range: 1 VDC to 1.5 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 200 VDC Load Current Rating: 180 mA Output Type: MOSFET Height: 2 mm Length: 4.6 mm Width: 4.4 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: C234S.pdf

€ 0 .75*

Amphenol

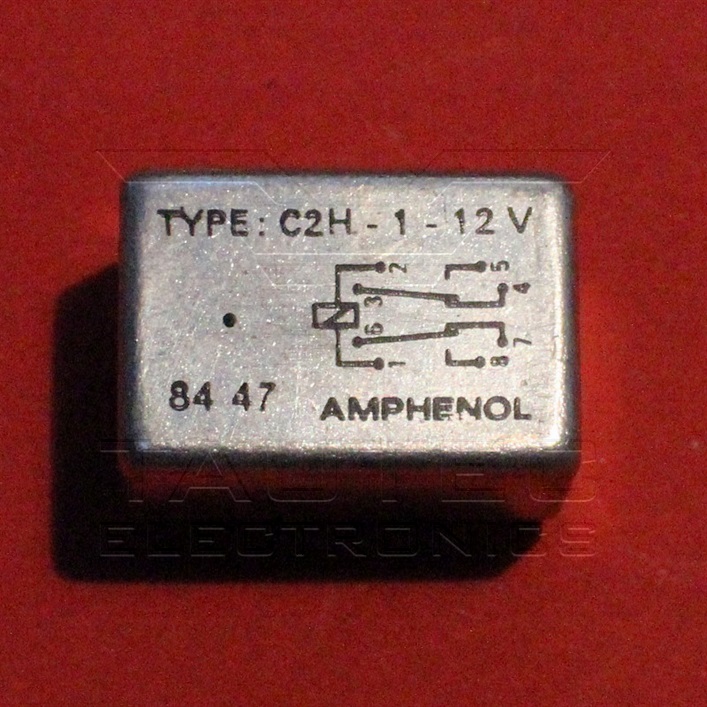

C2H-1-12V

12VDC PCB Relay Coil Voltage: 12VDC Relay Contact Form: DPST Dimension: 20.18mm x 13.96mm x 10mm

€ 13 .50*

Gabriel-Lyon

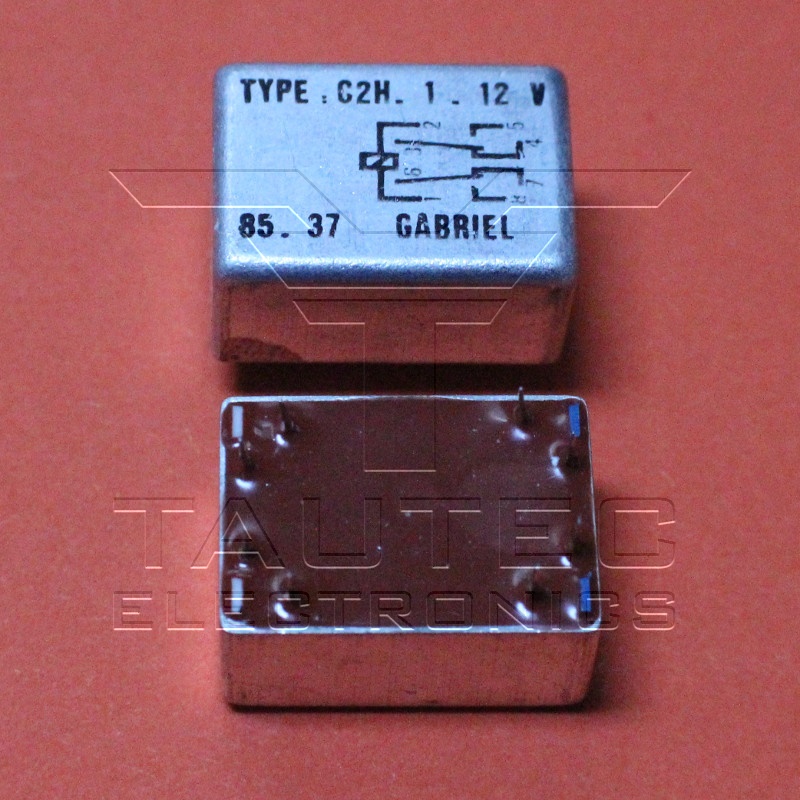

C2H-1-12V Gabriel

12VDC PCB Relay Coil Voltage: 12VDC Relay Contact Form: DPST Dimension: 20.18mm x 13.96mm x 10mm

€ 13 .50*

Gabriel-Lyon

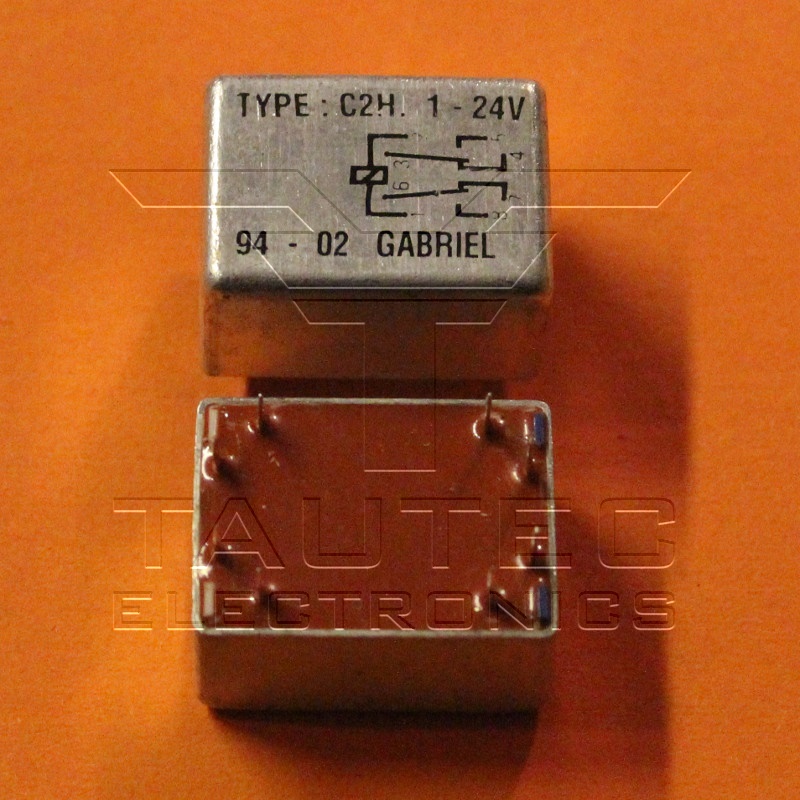

C2H-1-24V

24VDC PCB Relais gekapselt 2 Wechsler

€ 15 .00*

Amphenol

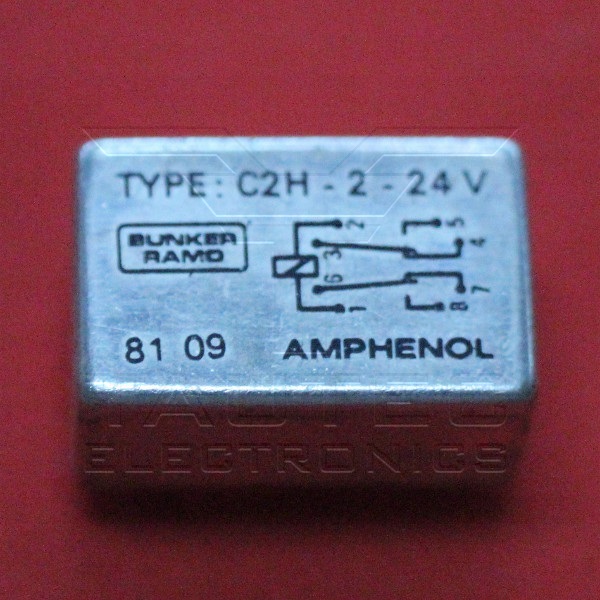

C2H-2-24V

Beschreibung: 24VDC PCB Relais, gekapselt, 2xUM

€ 15 .00*

Panasonic

CB1-12V

Power Relay 12VDC Contact Arrangement: SPDT / 1 Form C Maximum DC Switching Voltage: 14 VDC Maximum Switching Current: 40A(NO)/30A(NC) Coil Resistance: 103 Ohm Coil Current: 117 mA Control Voltage: 12 VDC Mounting: Plug-In Operate Time: 15 ms Operating Temperature: -40 to 85 C Product Dimensions: 26 x 22 x 36 mm Relay Construction: Non-Latching Contact Material: Silver(Cadmium Free) Datenblatt: CB1-12V.pdf

€ 1 .75*

Panasonic

CB1a-M-12V

Automotive Relays 40A 12VDC Coil Voltage: 12 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 40 A Coil Resistance: 103 Ohms Coil Current: 117 mA Mounting Style: Panel Mount Contact Material: Silver Alloy (Ag) Coil Termination: Quick Connect Contact Form: SPST (1 Form A) Contact Termination: Quick Connect Power Consumption: 1.4 W Datenblatt: CB1a-M-12V.pdf

€ 1 .81*

Panasonic

CB1a-P-24V

24VDC Mini ISO Automotive Relay Coil Type: Non Latching Coil Current: 75mA Coil Voltage: 24VDC Coil Power: 1.8W Coil Resistance: 320 Ohms Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 20A Switching Voltage: 28VDC - Nom Features: Sealed - Fully Mounting Type: Through Hole Termination Style: PC Pin Operating Temperature: -40°C to 85°C Contact Material: Silver Alloy, Cadmium Free Datenblatt: CB1a.pdf

€ 1 .30*

Panasonic

CB1aH-24V

€ 2 .40*

Panasonic

CB1F-P-24V

Beschreibung: 24VDC Mini ISO Automotive Relay Datenblatt: CB1F.pdf

€ 2 .30*

Crydom

CD4825W2U

Solid State Relays Type: Heavy Duty Mounting Style: Panel Mount Load Current Rating: 25 A Load Voltage Rating: 48 VAC to 660 VAC Output Type: SCR Control Voltage Range: 4 VDC to 32 VDC Input Current: 10 mA IP Rating: IP00 Datenblatt: CD4825W2U.pdf

€ 68 .88*

Sensata Technologies

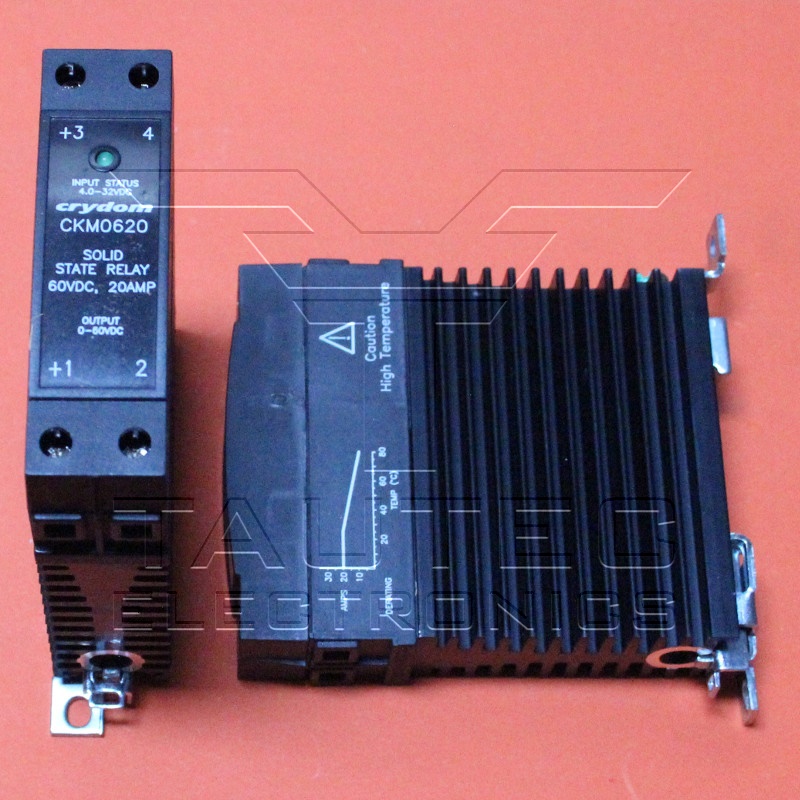

CKM0620

Solid State Relay SSR Mounting Style: DIN Rail Load Current Rating: 20 A Load Voltage Rating: 0 VDC to 60 VDC Relay Contact Form: 1 Form A (SPST-NO) Output Type: MOSFET Control Voltage Range: 4 VDC to 32 VDC Input Current: 9 mA to 11 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 80 C Length: 81.3 mm Width: 22.5 mm Height: 99 mm Termination Style: Screw Datenblatt: CKM0620.pdf

€ 50 .00*

Crydom

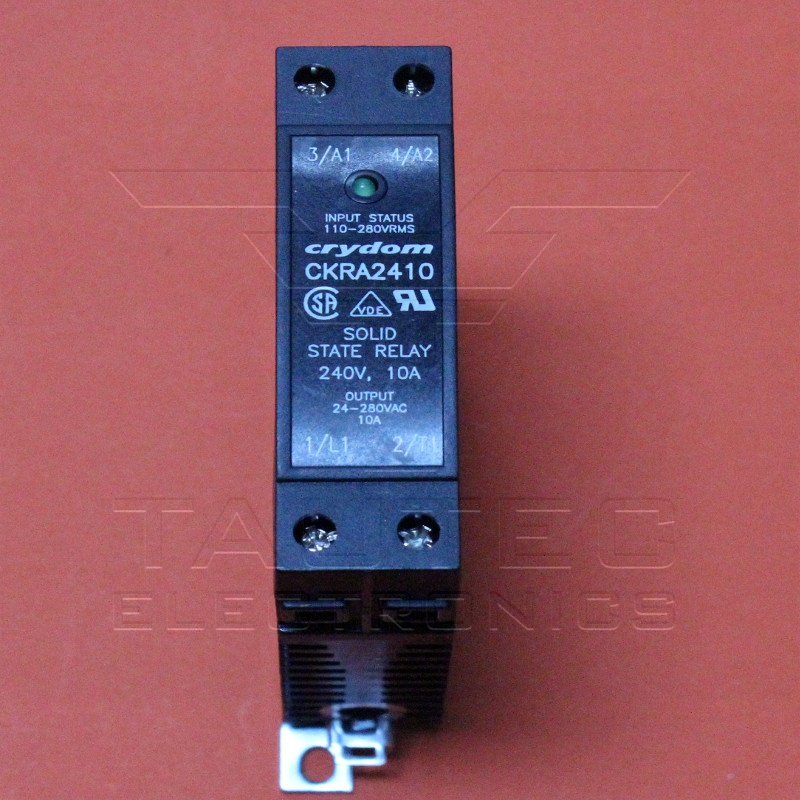

CKRA2410

Solid State Relay SSR Input: 110VAC...280VAC Input Current: 5mA Output: 24VAC...280VAC Output Current: 10A Mounting Style: DIN Rail Contact Form: SPST (1 Form A) Output Type: SCR Datenblatt: CKRD2410.pdf

€ 40 .00*

Crydom

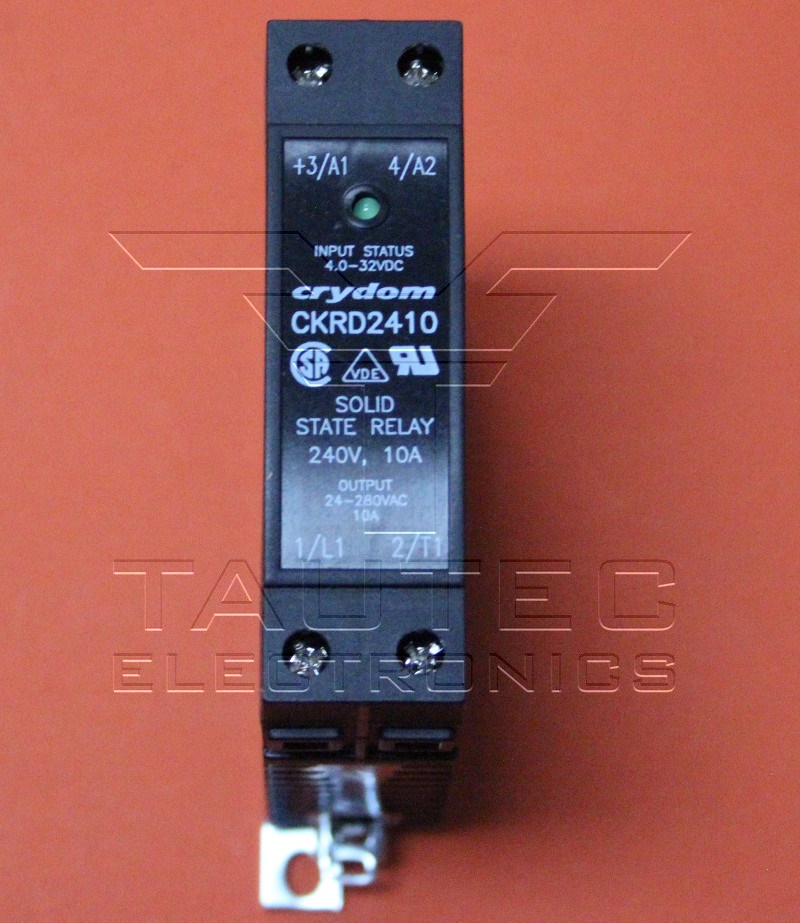

CKRD2410

Solid State Relay Control Voltage Range: 4 VDC to 32 VDC Mounting Style: DIN Rail Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 24 VAC to 280 VAC Load Current Rating: 10 A Input Current: 8 mA to 12 mA Output Type: SCR Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 80 C Height: 99 mm Length: 81.3 mm Width: 22.5 mm Termination Style: Screw Type: Indicator Datenblatt: CKRD24.pdf

€ 30 .00*

Crydom

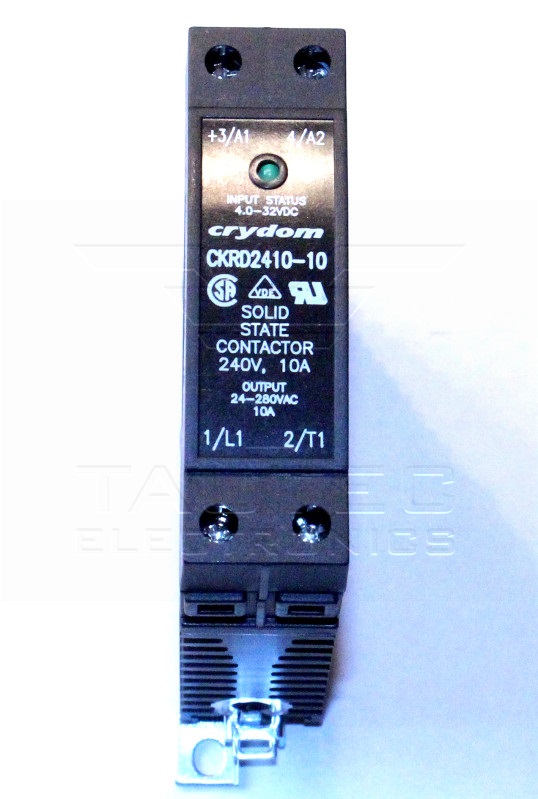

CKRD2410-10

Solid State Relay, Input: 4...32VDC, Output: 24...280VAC/10A Control Voltage Range: 4 VDC to 32 VDC Mounting Style: DIN Rail Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 24 VAC to 280 VAC Load Current Rating: 10 A Input Current: 8 mA to 12 mA Output Type: SCR Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 80 C Height: 99 mm Length: 81.3 mm Width: 22.5 mm Termination Style: Screw Type: Indicator Datenblatt: CKRD24.pdf

€ 35 .00*

Crydom

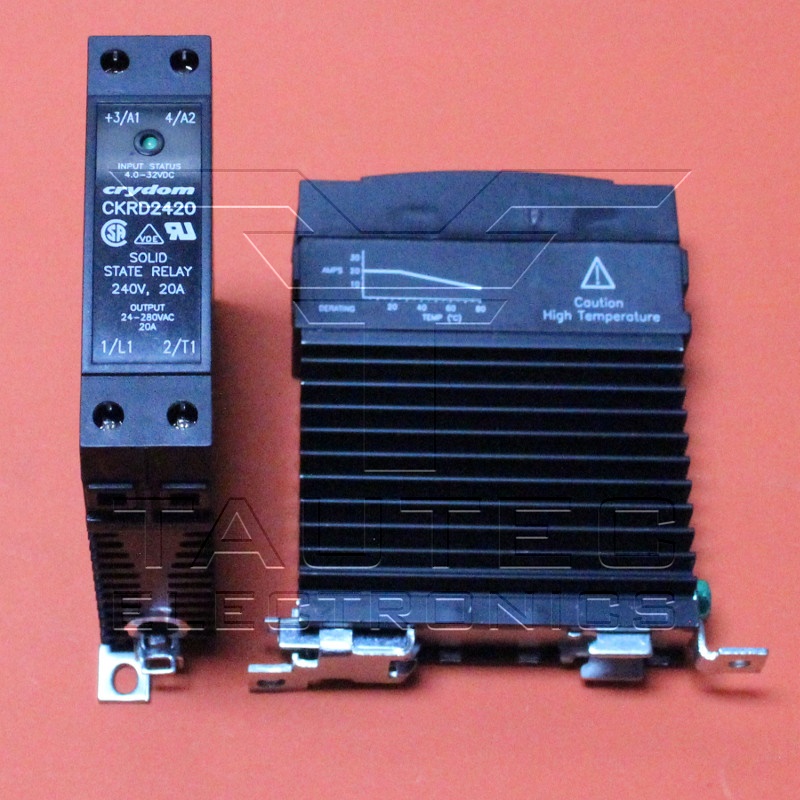

CKRD2420

Solid State Relay SSR - Input: 4 VDC to 32 VDC - Input Current: 8 mA to 12 mA - Output: 24VAC...280VAC - Output Current: 20A - Mounting Style: DIN Rail - Contact Form: SPST (1 Form A) - Output Type: SCR Datenblatt: CKRD2420.pdf

€ 36 .00*

Crydom

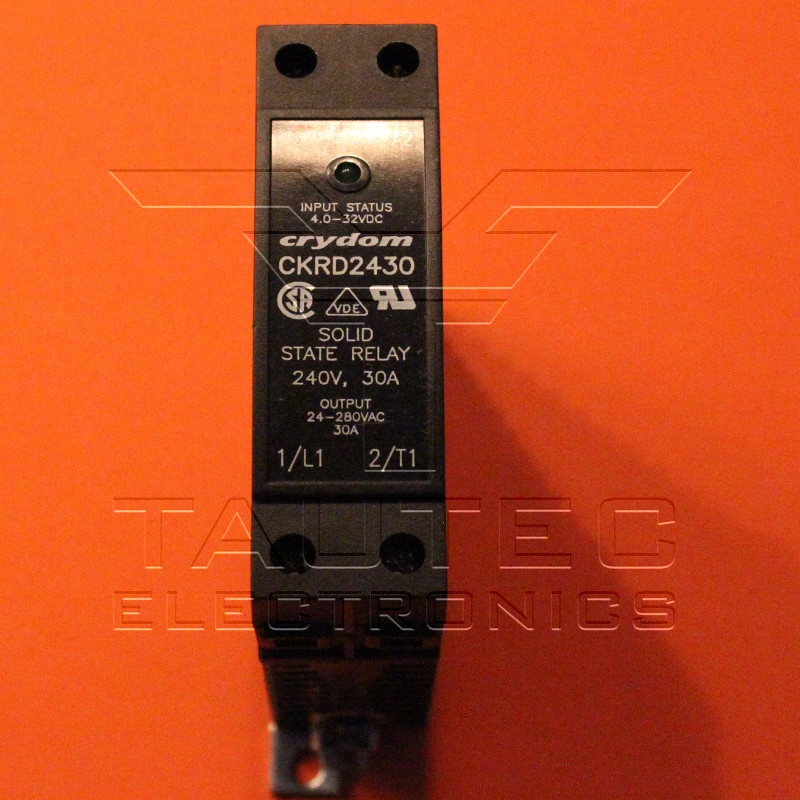

CKRD2430

Solid State Relay SSR - Input: 4 VDC to 32 VDC - Input Current: 30mA - Output: 24 VAC to 280 VAC - Output Current: 30A - Mounting Style: DIN Rail - Contact Form: SPST (1 Form A) - Output Type: SCR Datenblatt: CKRD2430.pdf

€ 35 .00*

Crydom

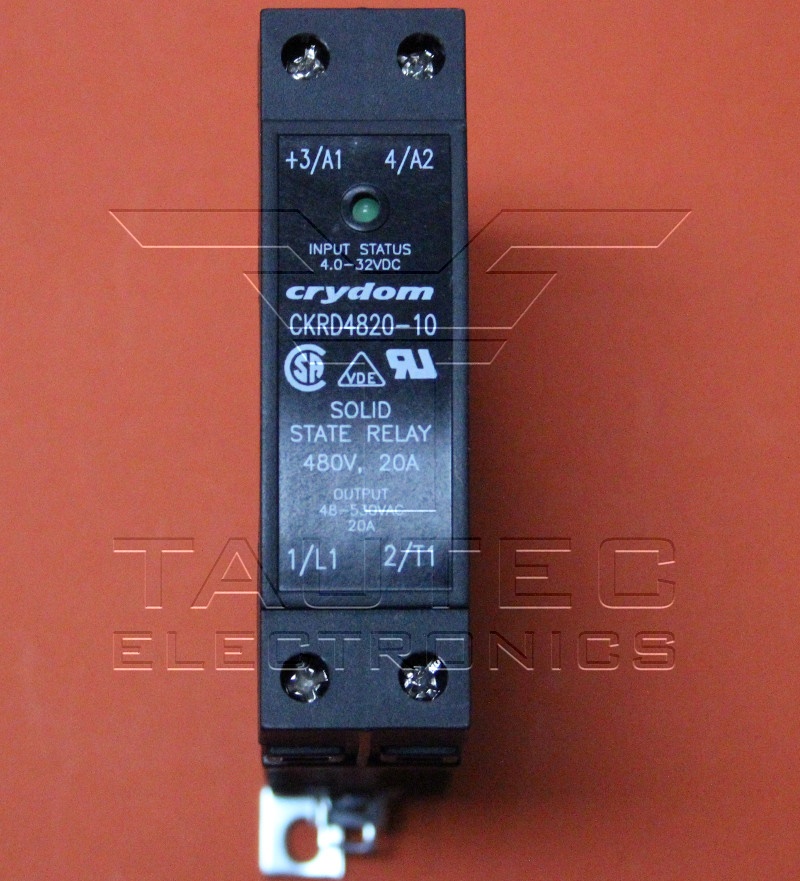

CKRD4820-10

Solid State Relay SSR Control Voltage Range: 4 VDC to 32 VDC Mounting Style: DIN Rail Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 48 VAC to 530 VAC Load Current Rating: 20 A Input Current: 8 mA to 12 mA Output Type: SCR Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 80 C Series: CKR48 Height: 99 mm Length: 81.3 mm Width: 22.5 mm Termination Style: Screw Type: Indicator Datenblatt: CKRD4820-10.pdf

€ 35 .00*

Crydom

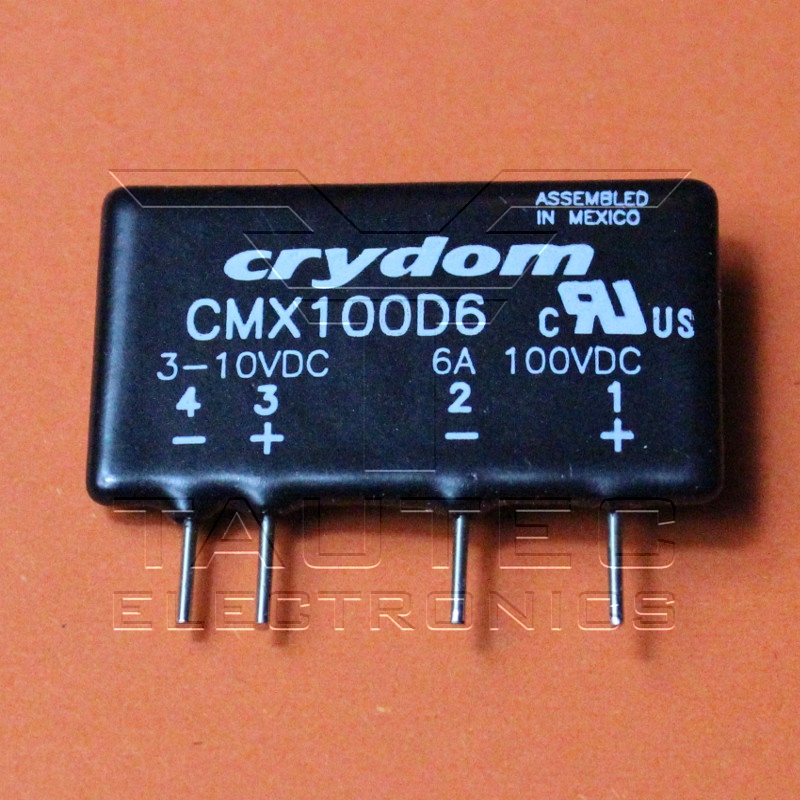

CMX100D6

Solid State Relays - PCB Mount Control Voltage Range: 3 VDC to 10 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 100 VDC Load Current Rating: 6 A Input Voltage: 10 V Input Current: 15 mA Output Type: MOSFET Series: CMX Height: 25.4 mm Length: 43.1 mm Width: 7.6 mm Maximum Operating Temperature: + 80 C Minimum Operating Temperature: - 30 C Datenblatt: CMX100D6.pdf

€ 21 .00*

Crydom

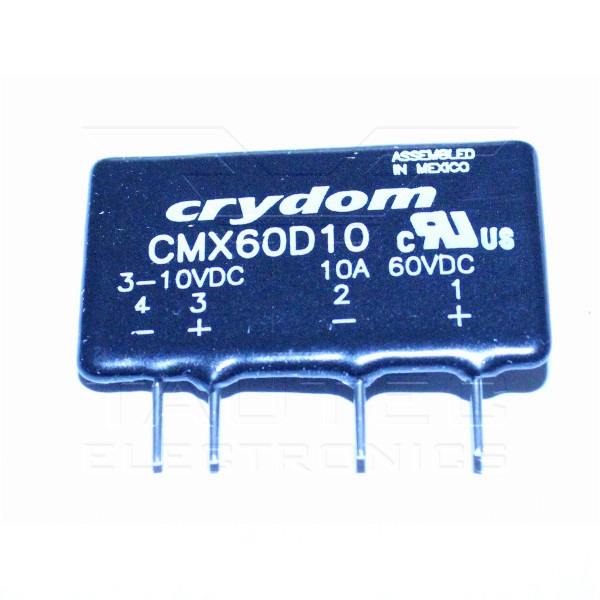

CMX60D10

Solid State Relay, Input: 3...10VDC, Output: 60VDC/10A Control Voltage Range: 3 VDC to 10 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VDC Load Current Rating: 10 A Input Current: 15 mA Input Voltage: 10 V Output Type: MOSFET Package/Case: SIP-4 Series: CMX Height: 25.4 mm Length: 43.1 mm Width: 7.6 mm Datenblatt: CMX60D10.pdf

€ 14 .00*

Crydom

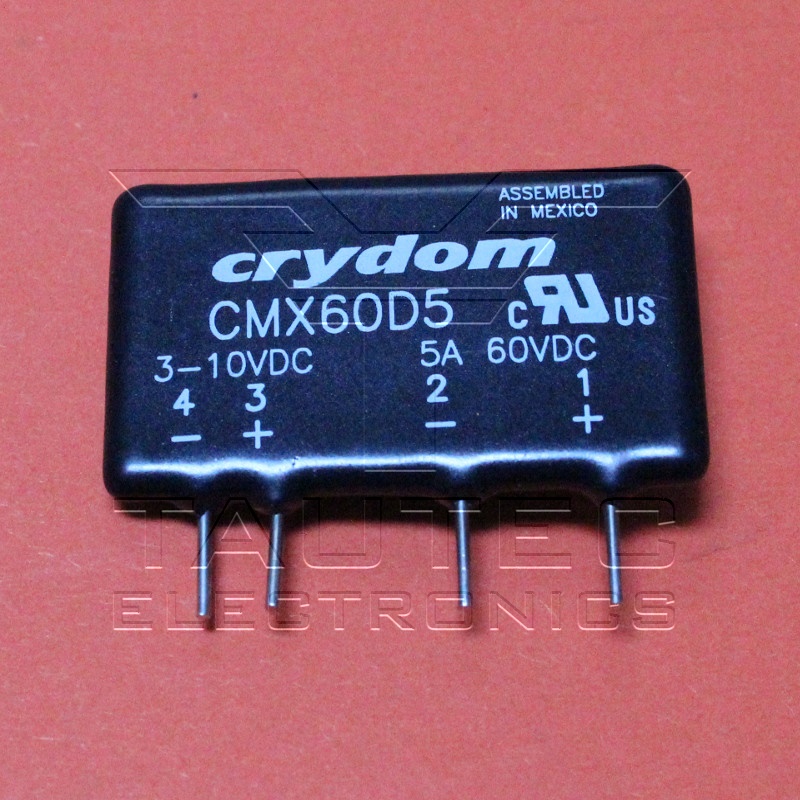

CMX60D5

Solid State Relays - PCB Mount Control Voltage Range: 3 VDC to 10 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VDC Load Current Rating: 5 A Input Voltage: 10 V Input Current: 15 mA Output Type: MOSFET Length: 43.1 mm Width: 7.6 mm Height: 25.4 mm Datenblatt: CMX60D5.pdf

€ 18 .00*

Panasonic

CP1SA-12V-Z-H134

SMD Automotive Relay Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Mounting Style: SMD/SMT Contact Material: Silver Alloy (Ag) Power Consumption: 640 mW Coil Resistance: 225 Ohms Dimension: 17mm x 15.9mm x 10.5mm Datenblatt: CP1SA.pdf

€ 1 .50*

Panasonic

CP1SA-12V-Z-H148

€ 1 .50*

IXYS

CPC2317N

SSR - Solid State Relays Load Current Rating: 120 mA Load Voltage Rating: 60 VDC Relay Contact Form: 1 Form A (SPST-NO), 1 Form B (SPST-NC) Control Voltage Range: 900 mVDC to 1.4 VDC Output Type: MOSFET Input Current: 50 mA Pd - Power Dissipation: 600 mW Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: CPC2317N.pdf

€ 0 .98*

Coto Technology

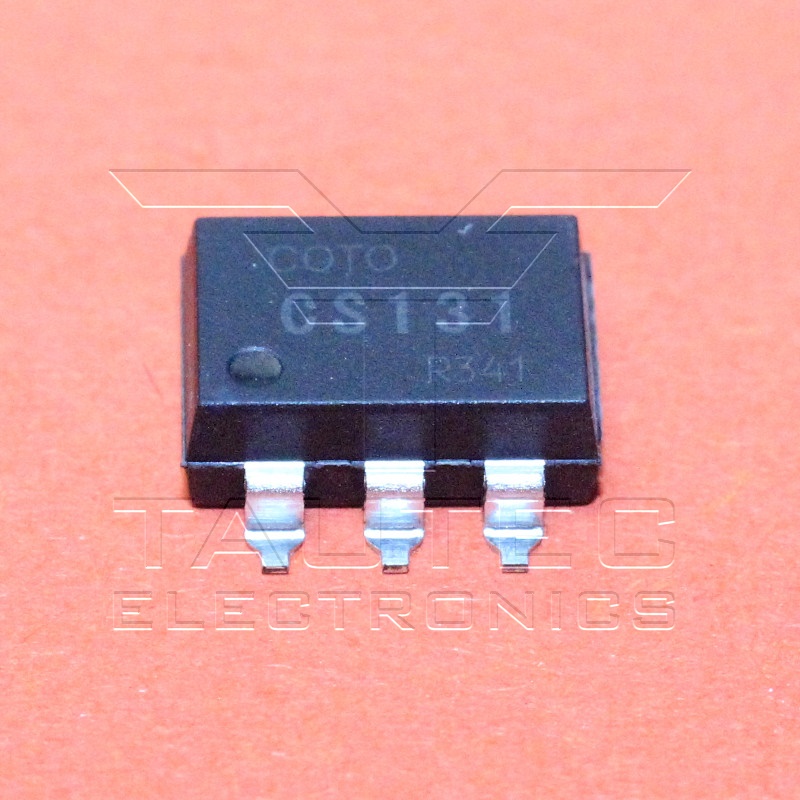

CS131

Solid State Relays - PCB Mount Control Voltage Range: 1 VDC to 1.5 VDC Mounting Style: SMD/SMT Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 350 VDC Load Current Rating: 130 mA Output Type: MOSFET Height: 3.4 mm Length: 9.1 mm Width: 6.4 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: CS131.pdf

€ 1 .50*

Coto Technology

CT337-H

Solid State Relays - PCB Mount Control Voltage Range: 1 VDC to 1.5 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VDC Load Current Rating: 360 mA Output Type: MOSFET Suffix -H for I/O Breakdown Voltage: 5000Vrms Minimum Height: 3.4 mm Length: 10.1 mm Width: 6.4 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: CT337-H.pdf

€ 1 .40*

Crydom

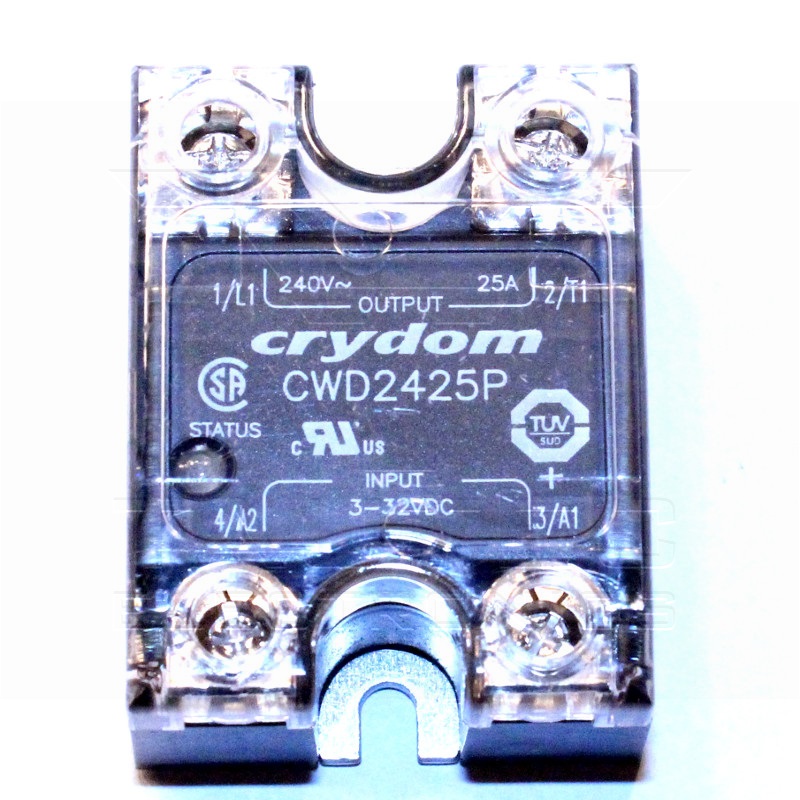

CWD2425P

Solid State Relay, Input: 3...32VDC, Output: 90...240VAC/25A Load Current Rating: 25 A Load Voltage Rating: 24 VAC to 280 VAC Relay Contact Form: 1 Form A (SPST-NO) Output Type: SCR Control Voltage Range: 3 VDC to 32 VDC Input Current: 10 mA to 15 mA Datenblatt: CWD2425P.pdf

€ 23 .44*

Crydom

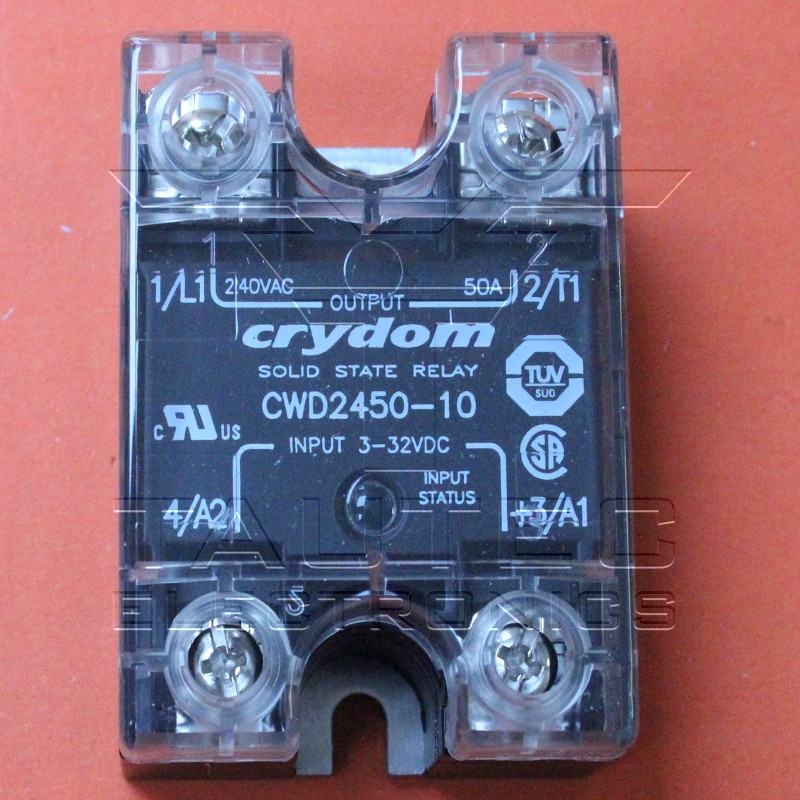

CWD2450-10

Solid State Relay Load Current Rating: 50 A Load Voltage Rating: 24 VAC to 280 VAC Relay Contact Form: 1 Form A (SPST-NO) Pd - Power Dissipation: 500 mW Output Type: SCR Control Voltage Range: 3 VDC to 32 VDC Input Current: 10 mA to 15 mA Datenblatt: CWD2450.pdf

€ 31 .19*

Crydom

CX240D5R

Solid State Relays - Control Voltage Range: 3 VDC to 15 VDC - Mounting Style: Through Hole - Load Voltage Rating: 280 VAC - Input Current: 15 mA - Input Voltage: 15 V - Pd - Power Dissipation: 500 mW (1/2 W) - Output Type: SCR - Package/Case: SIP-4 - Series: CX - Packaging: Bulk - Height: 25.4 mm - Length: 43.1 mm - Width: 7.6 mm - Termination Style: Solder Pin Datenblatt: CX240D5-7010.pdf

€ 20 .70*

Crydom

CX380D5

Solid State Relays Control Voltage Range: 4 VDC to 15 VDC Mounting Style: Through Hole Load Voltage Rating: 530 VAC Input Current: 15 mA Output Type: SCR Package/Case: SIP-4 Series: CX Packaging: Bulk Height: 25.4 mm Length: 43.1 mm Width: 7.6 mm Pd - Power Dissipation: 500 mW (1/2 W) Datenblatt: CX380D5.pdf

€ 14 .50*

Crydom

CXE240D5

Solid State Relay, Input: 15...32VDC, Output: 12...280VAC/5A - SIP SSR - Ratings of 5 A @ 660 VAC - SCR output for heavy industrial loads - AC or DC control - Zero-crossing (resistive loads) or random-fire (inductive loads) output - CE Compliant to EN60950-1 Datenblatt: CXE240D5.pdf

€ 13 .00*

Crydom

CXE380D5

Solid State Relay, Input: 15...32VDC, Output: 48...530VDC/5A Mounting Style: PCB Mount Load Voltage Rating: 530 VAC Control Voltage Range: 15 VDC to 32 VDC Pd - Power Dissipation: 500 mW Output Type: SCR Input Current: 15 mA Length: 43.1 mm Width: 7.6 mm Height: 25.4 mm Datenblatt: CXE380D5.pdf

€ 8 .65*
