AZ...
Zettler

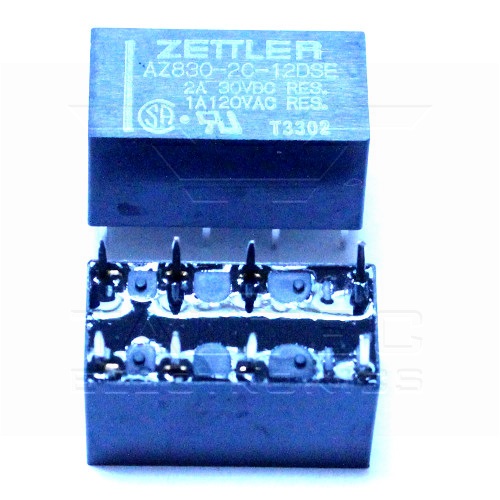

AZ830-2C-12DSE
12Volt Polarized DIP Relay Single Side Stable
- Low profile for compact board spacing
- High sensitivity, 96 mW pickup
- Life expectancy to 100 million operations
- High switching capacity, 60 W, 125 VA
- Fits standard 16 pin IC socket
- Max. switched power: 60 W or 125 VA
- Max. switched current: 2 A
- Max. switched voltage: 250 VDC or 300 VAC
- Max. carry current: 3A
- Coil Voltage: 12VDC
- Coil Resistance: 360 Ohm
- Material Silver alloy, gold clad.
Datenblatt:
AZ830.pdf
€
2
.75*
Zettler

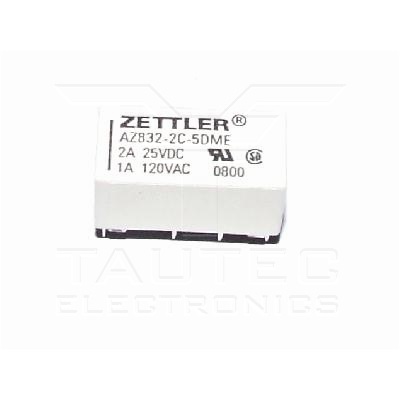

AZ832-2C-5DME
Beschreibung: 5Volt Polarized DIP Relay Single Side Stable
Datenblatt:
AZ832.pdf
€
1
.00*
Zettler
AZ847-3
Beschreibung: 3VoltDC Microminiature Polarized Relay
Datenblatt:
AZ847.pdf
€
1
.00*
Zettler

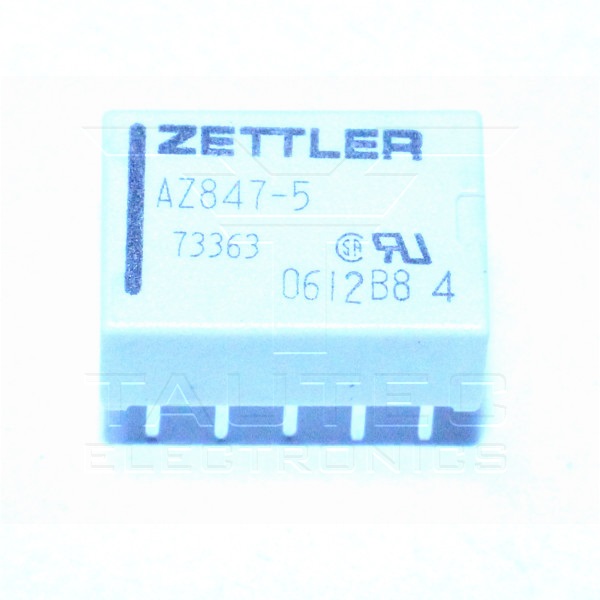

AZ847-5
Beschreibung: 5VoltDC Microminiature Polarized Relay
Datenblatt:
AZ847.pdf
€
1
.00*
