Panasonic

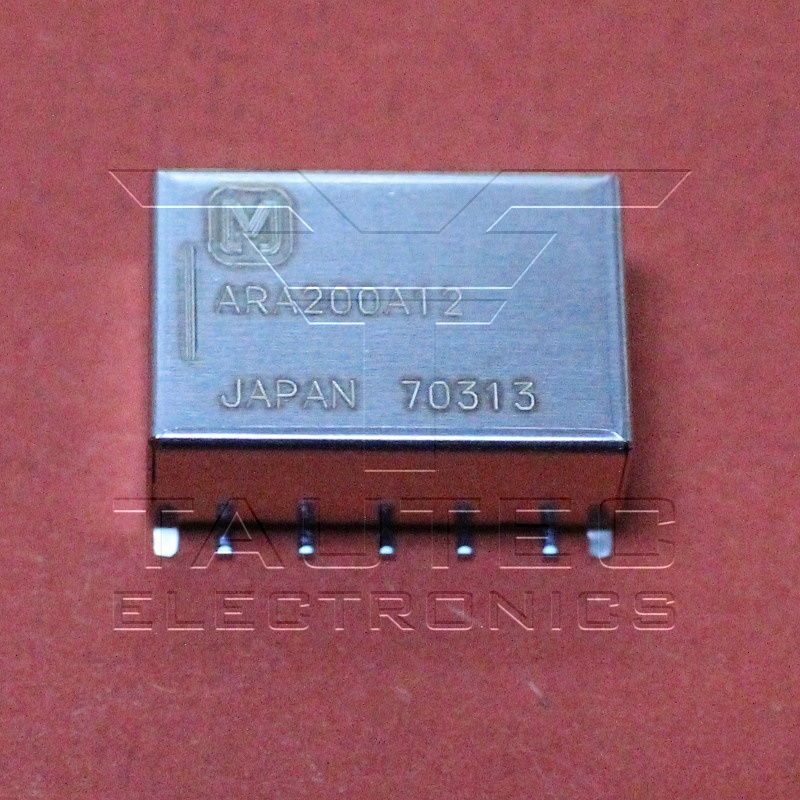

ARA200A12
High Frequency / RF Relays 1GHZ
Coil Voltage: 12 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 1 A
Frequency: 1 GHz
Maximum Switching Current: 1 A
Coil Type: Non-Latching
Power Consumption: 140 mW
Isolation: 30 dB
Insertion Loss: 0.3 dB
Contact Rating: 1 A at 30 VDC
Impedance: 50 Ohms
Coil Current: 11.7 mA
Coil Resistance: 1.028 kOhms
Contact Material: Silver Palladium (AgPd) with Gold Plating
Datenblatt:
ARA200A12.pdf
€
12
.00*
