AQ...

Panasonic

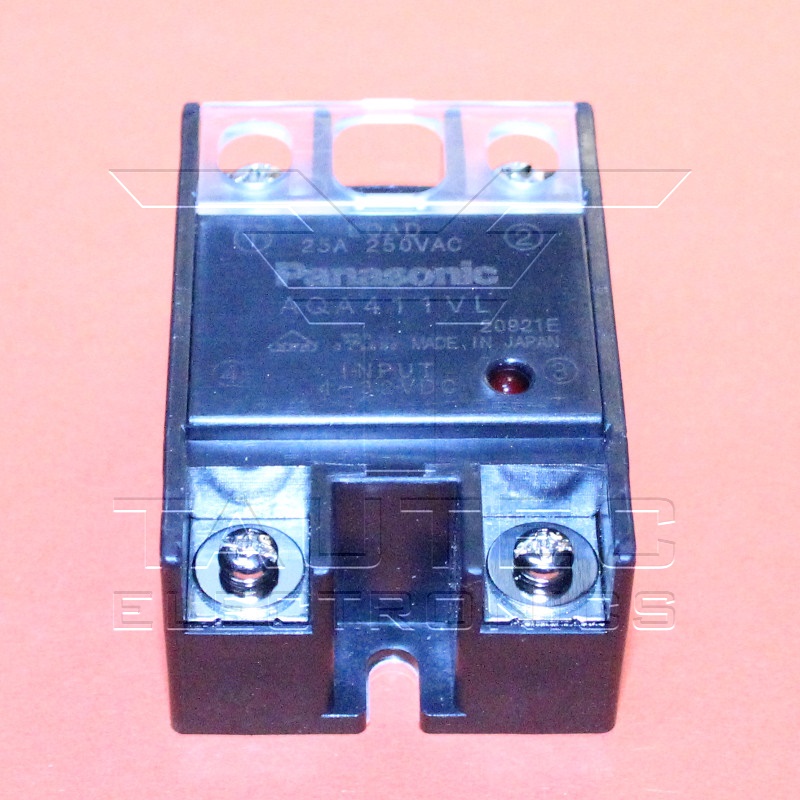

AQA411VL

Solid State Relays - Industrial Mount 25A, 75V to 250V Screw term Random Mounting Style: DIN Rail Mount Load Current Rating: 25 A Load Voltage Rating: 75 VAC to 250 VAC Output Type: SCR Control Voltage Range: 4 VDC to 32 VDC Datenblatt: AQA411VL.pdf

€ 20 .12*

Panasonic

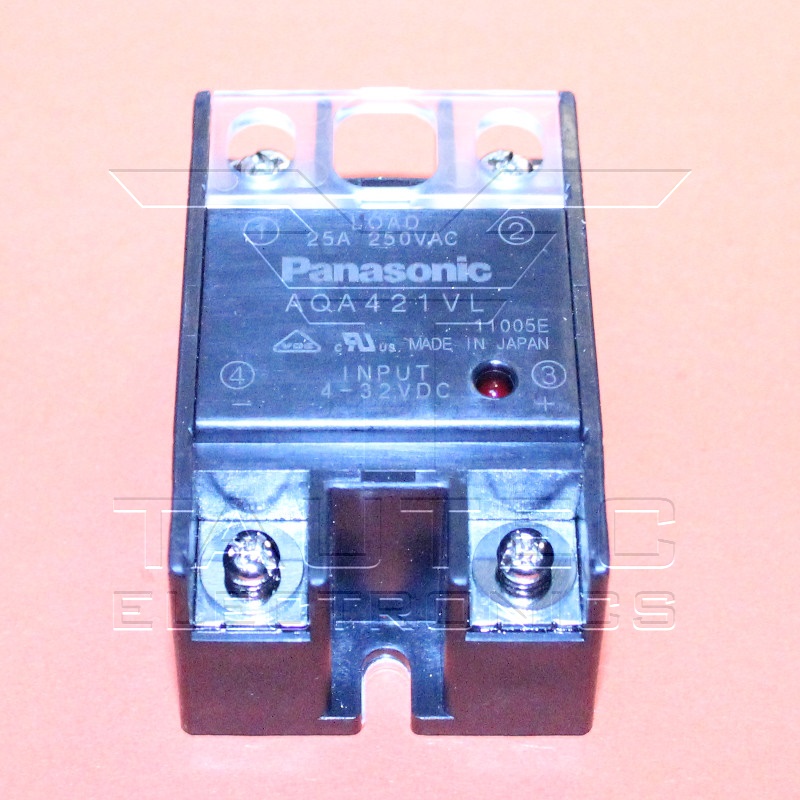

AQA421VL

€ 17 .14*

Panasonic

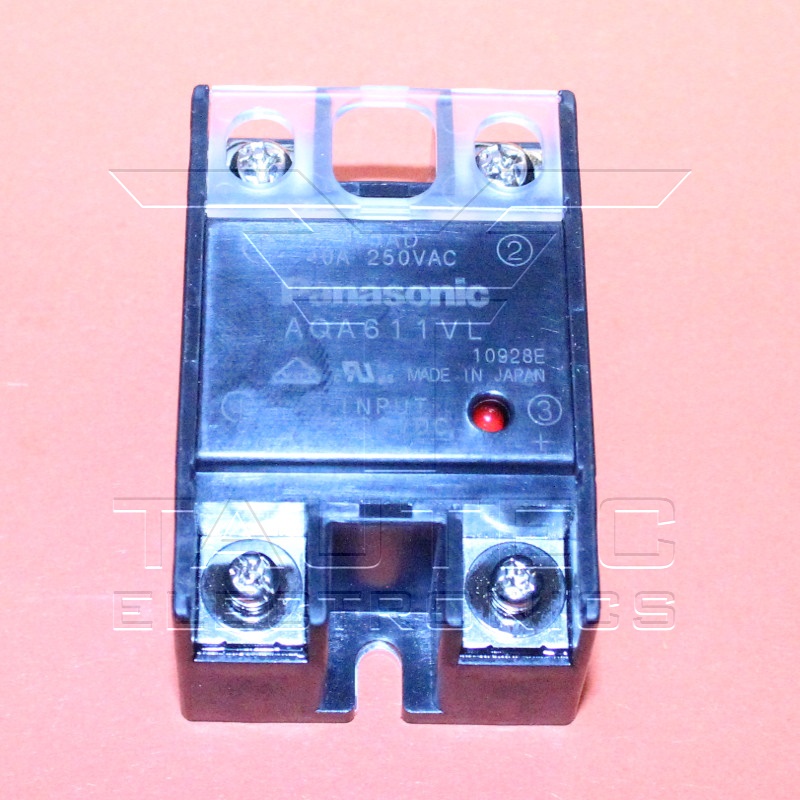

AQA611VL

Solid State Relays - Industrial Mount 40A, 75V to 250V Screw term Random Mounting Style: DIN Rail Mount Load Current Rating: 40 A Load Voltage Rating: 75 VAC to 250 VAC Output Type: SCR Control Voltage Range: 4 VDC to 32 VDC Datenblatt: AQA611VL.pdf

€ 19 .06*

Panasonic

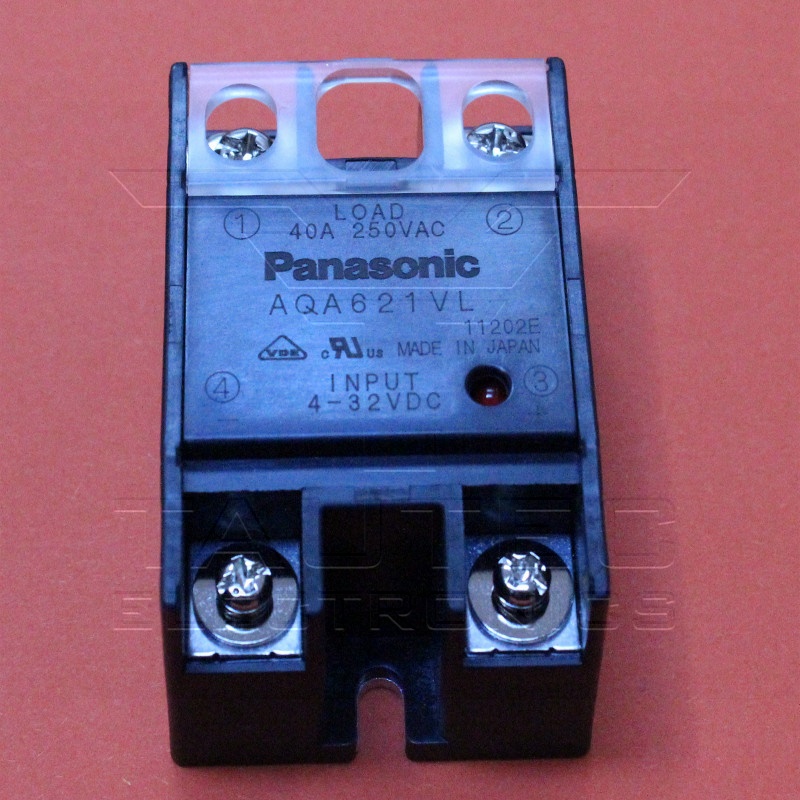

AQA621VL

€ 30 .00*

Panasonic

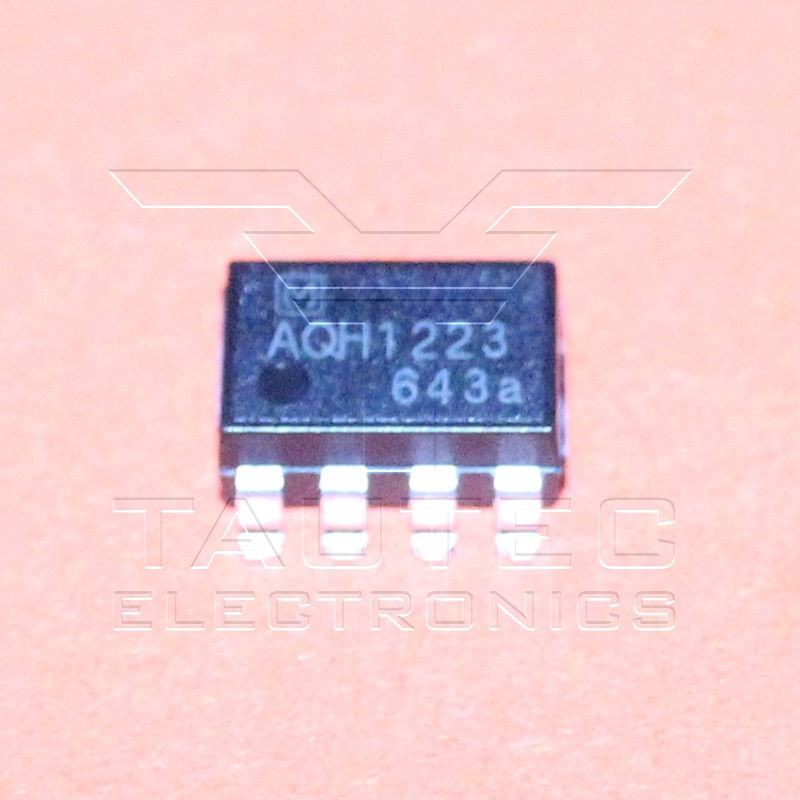

AQH1223AX

Solid State Relays Output Type: AC Maximum Output Voltage: 600 V Maximum Output Current: 0.6(RMS) A Output Device: Triac Input Type: DC Input Voltage: 1.3 V Datenblatt: AQH1223.pdf

€ 0 .82*

Panasonic

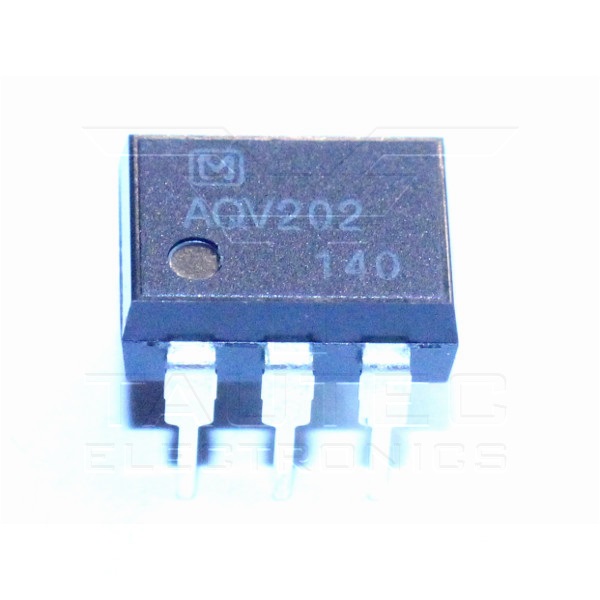

AQV202

PhotoMOS Relay Output 80V DC/AC / 400mA Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VAC, 60 VDC Load Current Rating: 400 mA Input Current: 50 mA Output Type: MOSFET Datenblatt: AQV202.pdf

€ 1 .50*

Panasonic

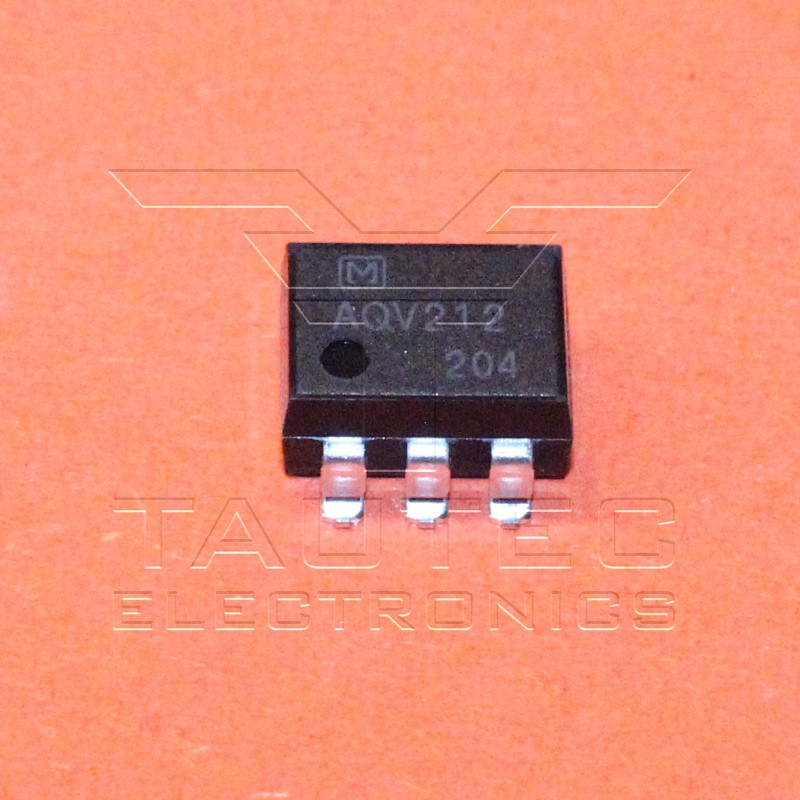

AQV212A

SSR - Solid State Relays Load Current Rating: 550 mA Load Voltage Rating: 60 VAC, 60 VDC Relay Contact Form: 1 Form A (SPST-NO) Output Type: MOSFET Input Current: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Termination Style: Gull Wing Lead Datenblatt: AQV212A.pdf

€ 1 .12*

Panasonic

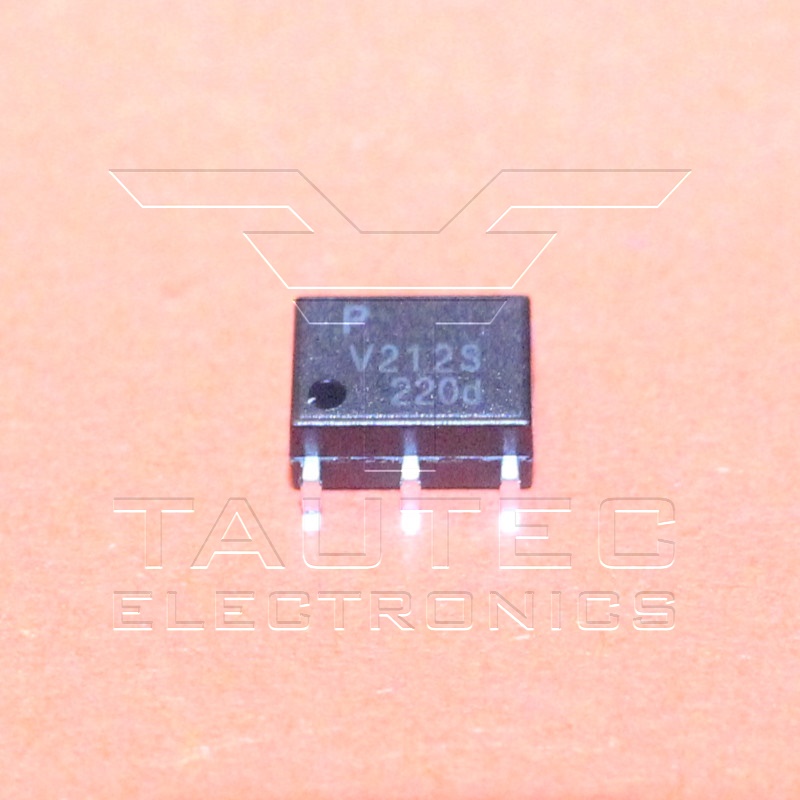

AQV212SX

1 Channel Solid State Relay Load Current Rating: 500 mA Load Voltage Rating: 60 VAC, 60 VDC Relay Contact Form: 1 Form A (SPST-NO) Control Voltage Range: 1.25 VDC Output Type: Photo MOSFET Input Current: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: AQV212SX.pdf

€ 1 .22*

Panasonic

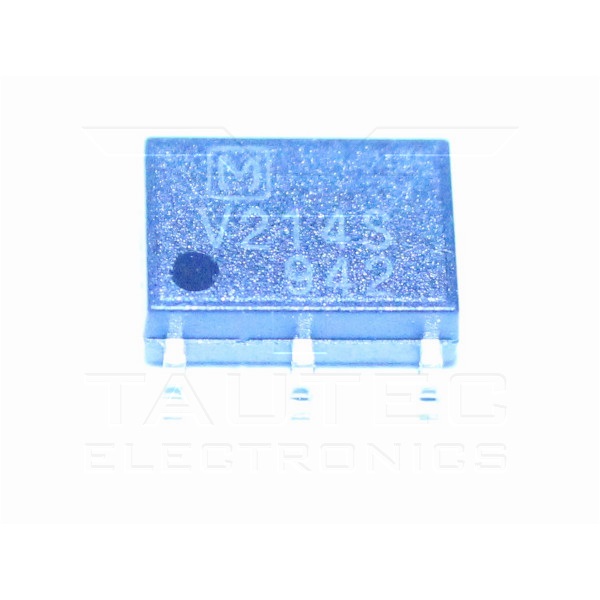

AQV214S

Beschreibung: PhotoMOS Relay Datenblatt: AQV214S.pdf

€ 0 .60*

Panasonic

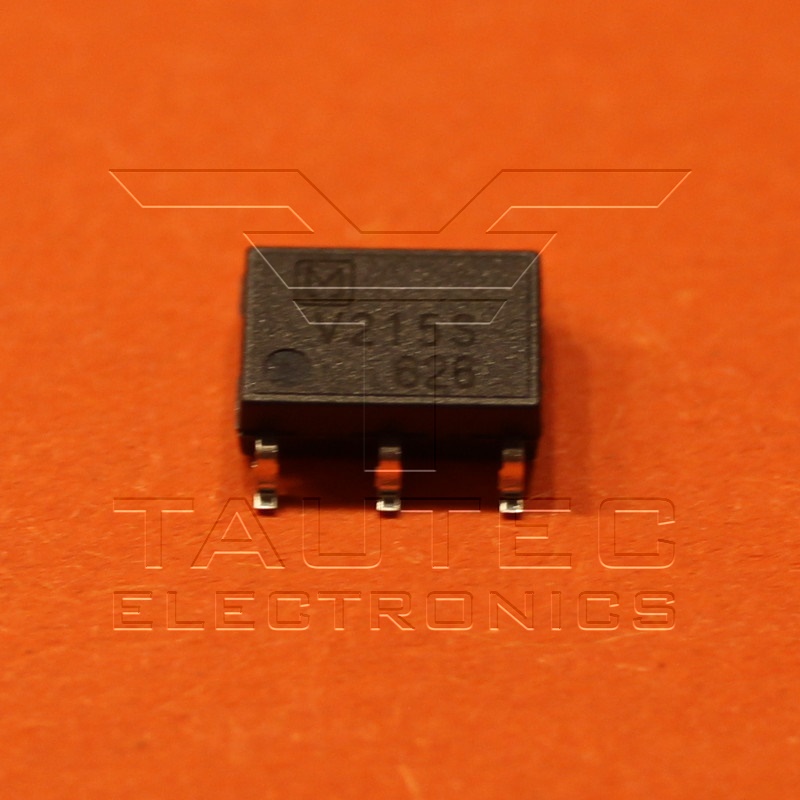

AQV215S

PhotoMOS Relay Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 100 VAC, 100 VDC Load Current Rating: 320 mA Input Current: 50 mA Output Type: MOSFET Datenblatt: AQV215S.pdf

€ 1 .50*

Panasonic

AQV216SX

SSR - Solid State Relays Load Current Rating: 50 mA Load Voltage Rating: 600 VAC, 600 VDC Relay Contact Form: 1 Form A (SPST-NO) Output Type: MOSFET Input Current: 50 mA Pd - Power Dissipation: 500 mW Datenblatt: AQV215S.pdf

€ 1 .44*

Panasonic

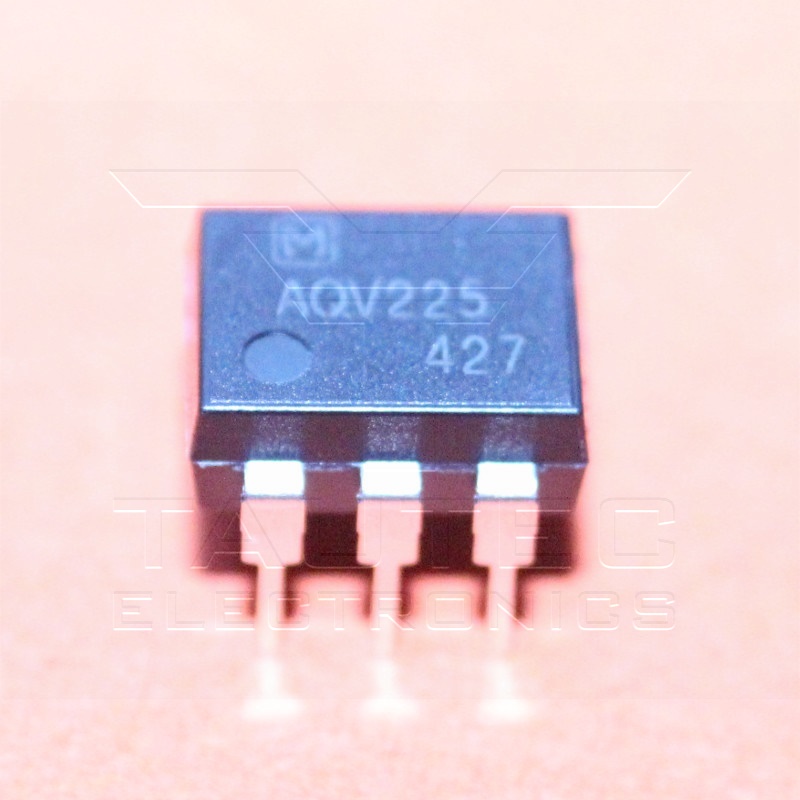

AQV225

PhotoMOS Relay Output 80V DC/AC / 50mA - High frequency characteristics with low capacitance between output terminals - Low output capacitance: typ. 4.8 pF Isolation loss: 40 dB or more (at 1 MHz) Datenblatt: AQV225.pdf

€ 2 .25*

Panasonic

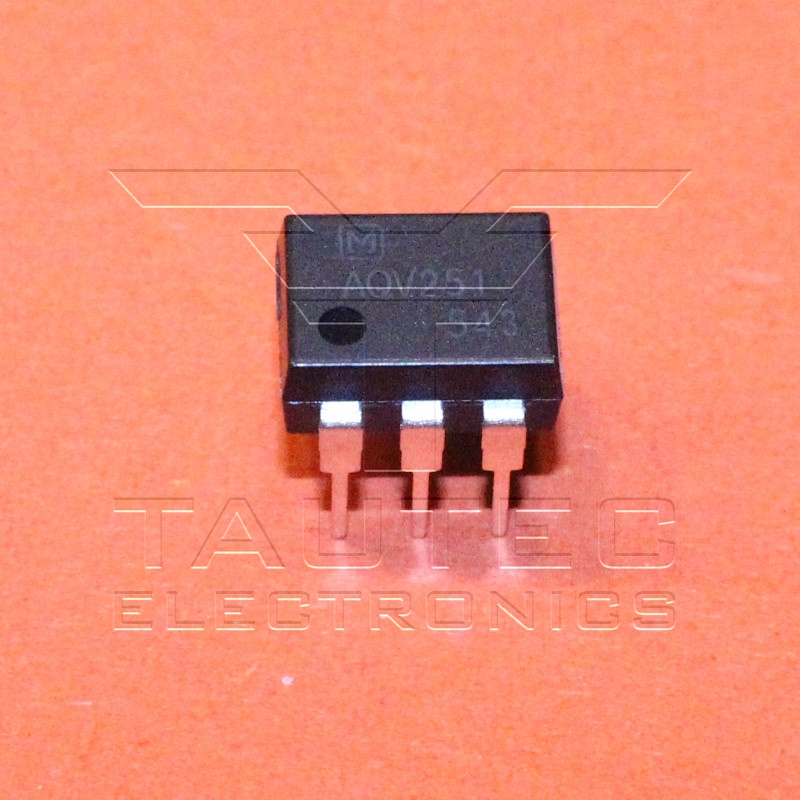

AQV251

SSR - Solid State Relays LED forward current IF: 50 mA LED reverse voltage VR: 5 V Peak forward current IFP: 1 A Power dissipation Pin: 75 mW Load voltage VL: 40 V Load current: 500 mA Continuous load current IL: 0.5 A Peak load current Ipeak: 1.8 A Power dissipation Pout: 360 mW Total power dissipation Pt: 410 mW I/O isolation voltage Viso: 1,500 Vrms Ambient temperature: Operating Topr: -40 to +85°C Datenblatt: AQV251.pdf

€ 2 .11*

Panasonic

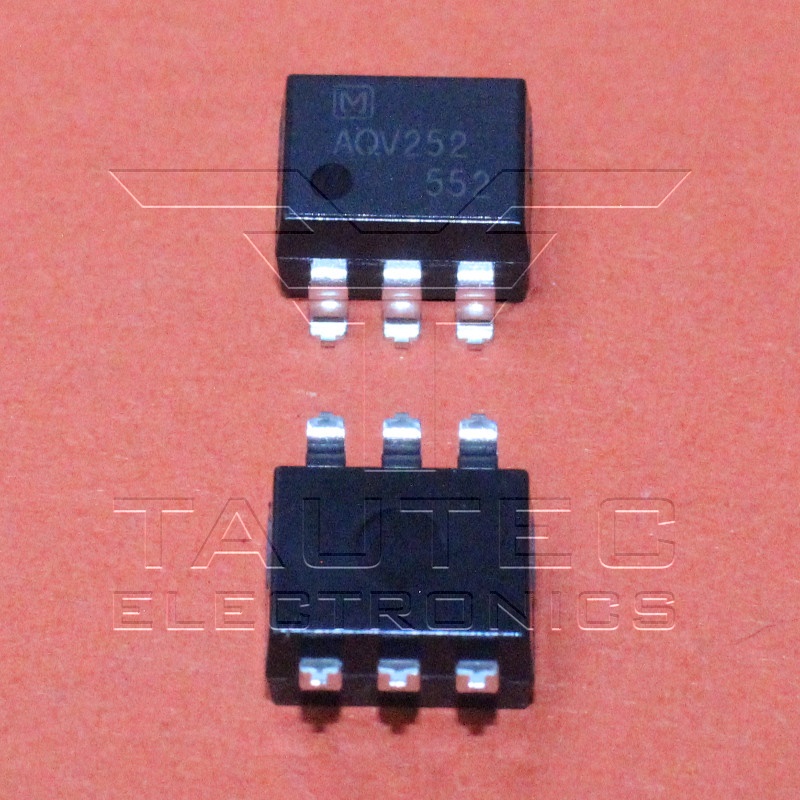

AQV252AX

Solid State Relays Load Current Rating: 400 mA Load Voltage Rating: 60 V Relay Contact Form: 1 Form A (SPST-NO) Output Type: MOSFET Input Current: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: AQV252.pdf

€ 1 .65*

Panasonic

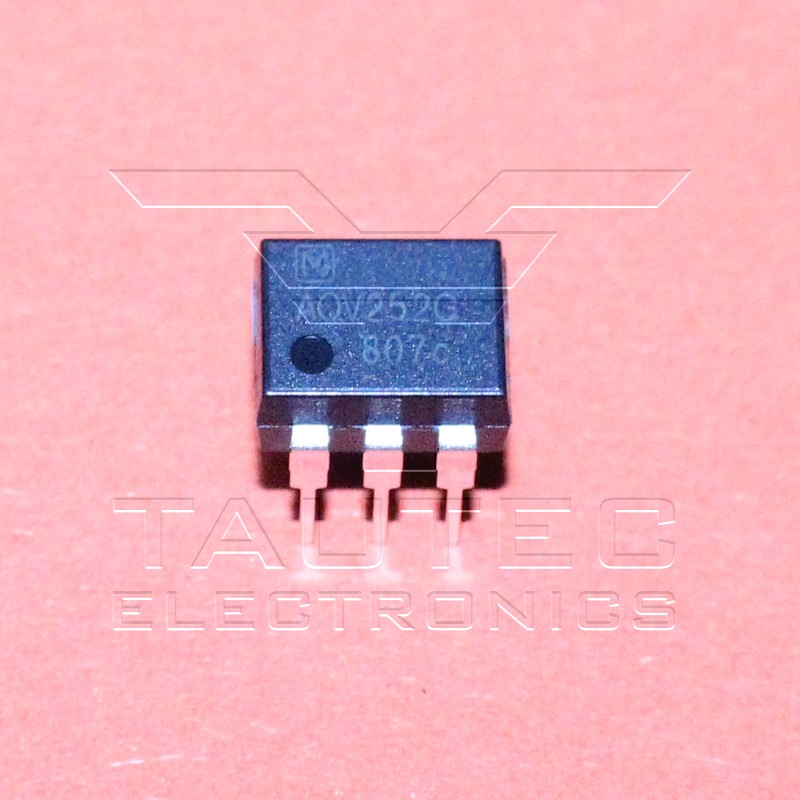

AQV252G

Solid State Relays Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VAC, 60 VDC Load Current Rating: 2.5 A Input Current: 50 mA Output Type: MOSFET On-State Resistance (Max): 120 mOhms Datenblatt: AQV252G.pdf

€ 2 .40*

Panasonic

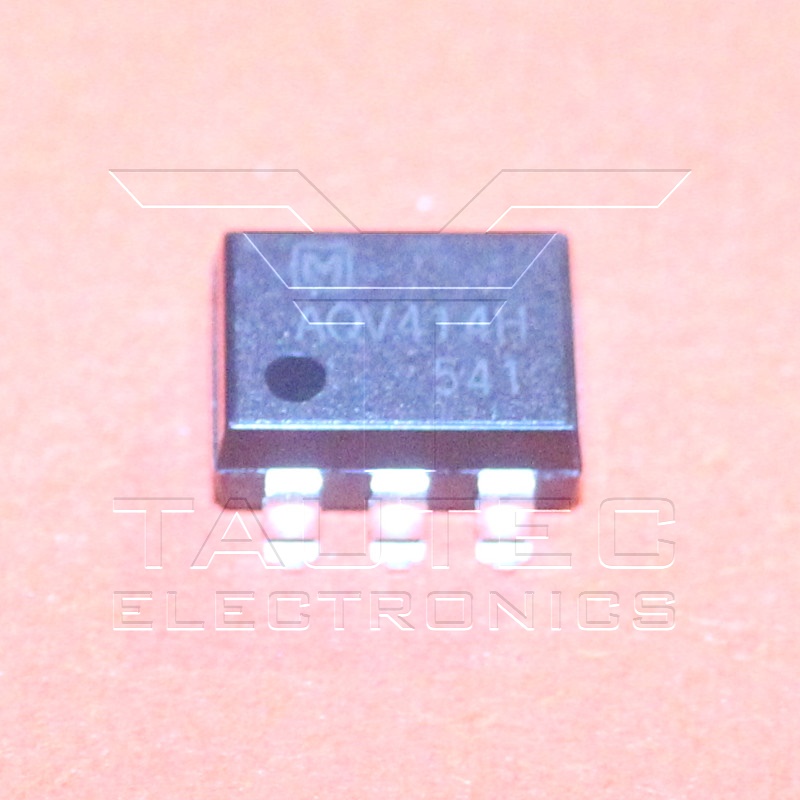

AQV414HAZ

Solid State Relays - PCB Mount Mounting Type: Surface Mount Circuit: SPST-NC (1 Form B) Output Type: AC, DC Voltage - Input: 1.14VDC Voltage - Load: 0V - 400V Load Current: 120mA On-State Resistance (Max): 50 Ohms Termination Style: Gull Wing Package / Case: 6-SMD (0.300", 7.62mm) Datenblatt: AQV414H.pdf

€ 2 .38*

Panasonic

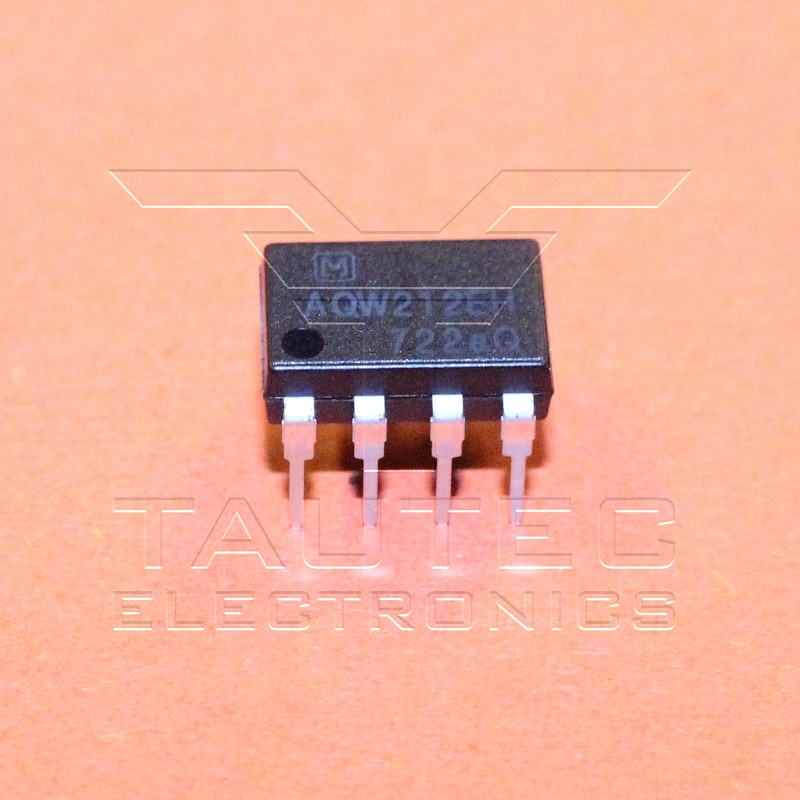

AQW212EH

Solid State Relays Load Current Rating: 500 mA Load Voltage Rating: 60 VAC, 60 VDC Relay Contact Form: 2 Form A (DPST-NO) Output Type: MOSFET Input Current: 50 mA Pd - Power Dissipation: 850 mW Datenblatt: AQW212EH.pdf

€ 1 .70*

Panasonic

AQW214SX

Solid State Relays Mounting Style: SMD/SMT Relay Contact Form: 2 Form A (DPST-NO) Load Voltage Rating: 400 VAC, 400 VDC Load Current Rating: 100 mA Minimum Input Voltage: 1.25V(Typ) Maximum Input Voltage: 1.5V Input Current: 50 mA Output Type: MOSFET Series: AQW Input to Output Isolation Method: Optocoupler Pd - Power Dissipation: 650 mW Datenblatt: AQW214S.pdf

€ 1 .35*

Panasonic

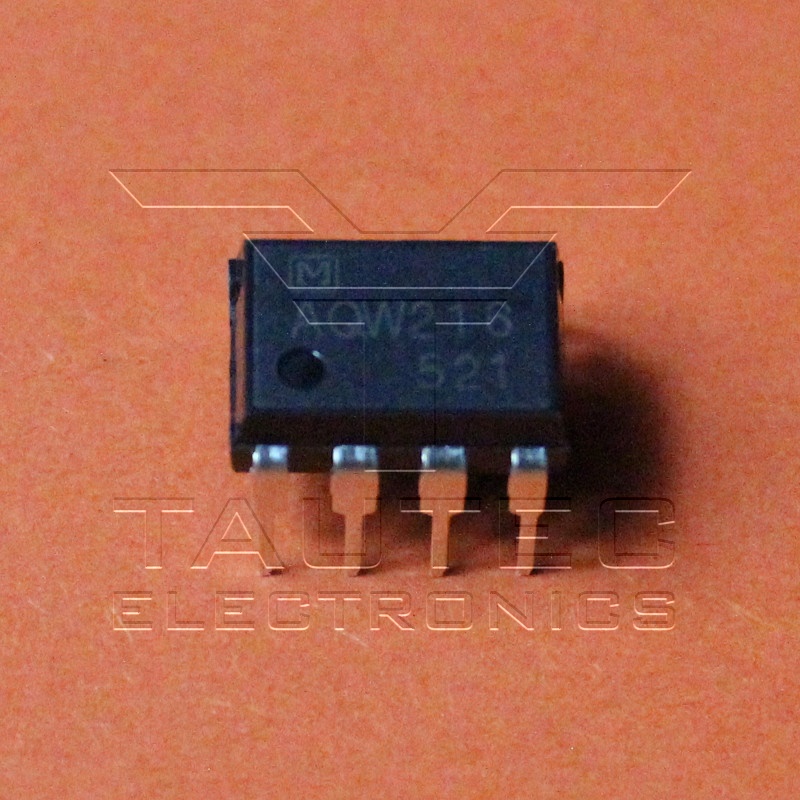

AQW216

PhotoMOS Relay Load Voltage Rating: 600 VAC, 600 VDC Load Current Rating: 40 mA Input Current: 50 mA Contact Form: DPST (2 Form A) Output Type: MOSFET Datenblatt: AQW216.pdf

€ 3 .00*

Panasonic

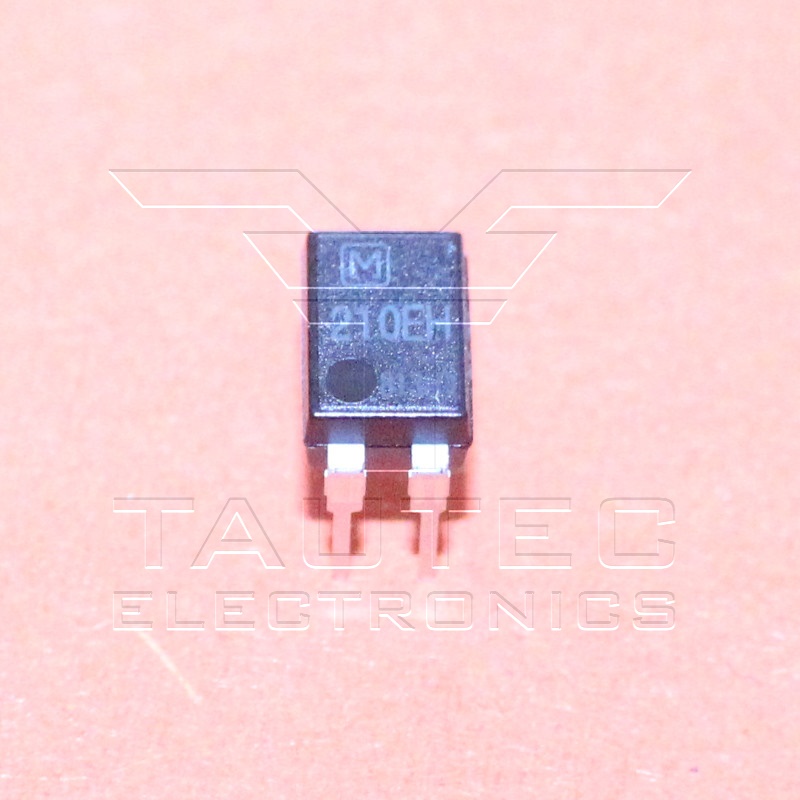

AQY210EH

SSR - Solid State Relays Load Current Rating: 130 mA Load Voltage Rating: 350 VAC, 350 VDC Relay Contact Form: 1 Form A (SPST-NO) Package/Case: DIP-4 Output Type: MOSFET Input Current: 50 mA Power dissipation Pin: 75 mW I/O isolation voltage [ Viso ]: 5,000 Vrms data sheet: AQY210EH.pdf

€ 0 .75*

Panasonic

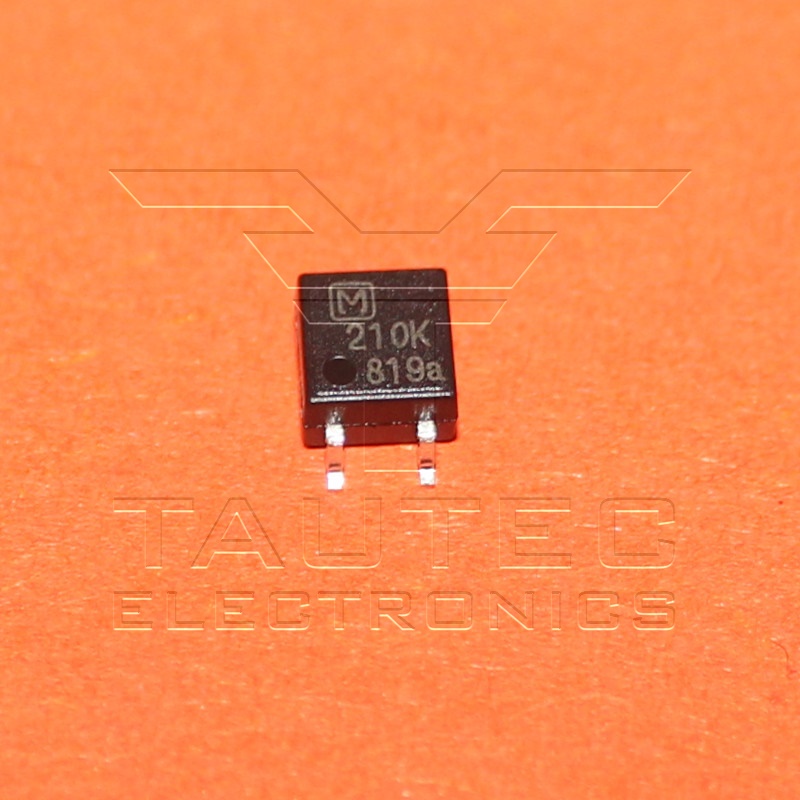

AQY210KSK

PhtoMos Relay, Miniature SOP4-Pin Type Voltage type: AC/DC LED forward current IF: 50 mA LED reverse voltage VR: 5 V Peak forward current IFP: 1 A Power dissipation Pin: 75 mW Load voltage VL: 350 V Load current: 120 mA Continuous load current IL: 0.12 A Power dissipation Pout: 400 mW Total power dissipation Pt: 450 mW I/O isolation voltage Viso: 1,500 Vrms Ambient temperature: Operating: -40 to +85C -40 to +185F Datenblatt: AQY210SX.pdf

€ 1 .52*

Panasonic

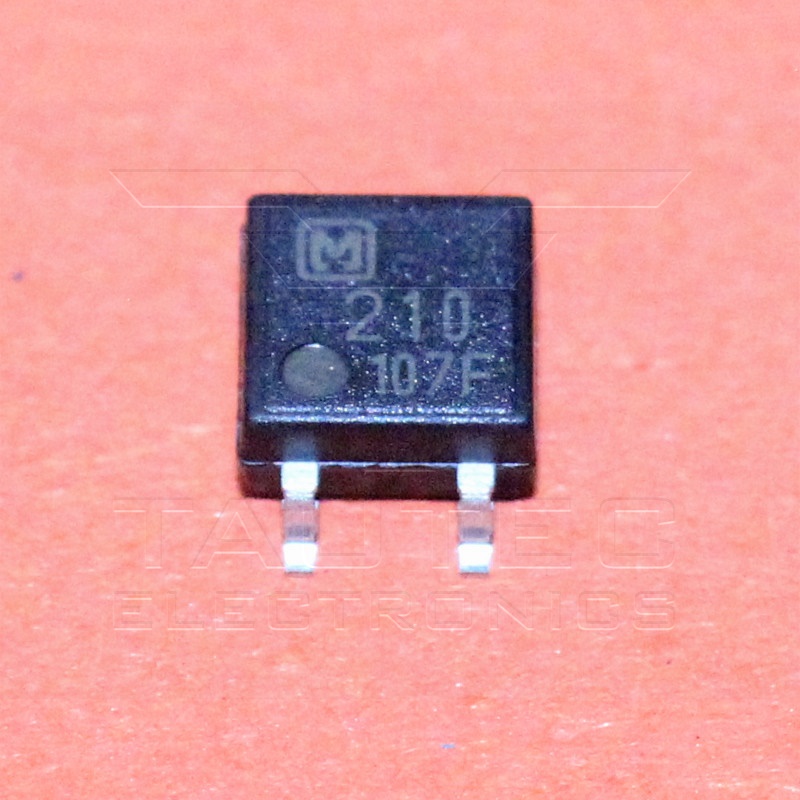

AQY210SX

PhtoMos Relay, Miniature SOP4-Pin Type Of 60V/350V/400V Load Voltage - Controls low-level analog signals - Low-level off state leakage current of max. 1 uA - Load Voltage Rating: 350 VAC, 350 VDC - Load Current Rating: 120 mA - Input Current: 50 mA - Contact Form: SPST (1 Form A) Datenblatt: AQY210SX.pdf

€ 0 .50*

Panasonic

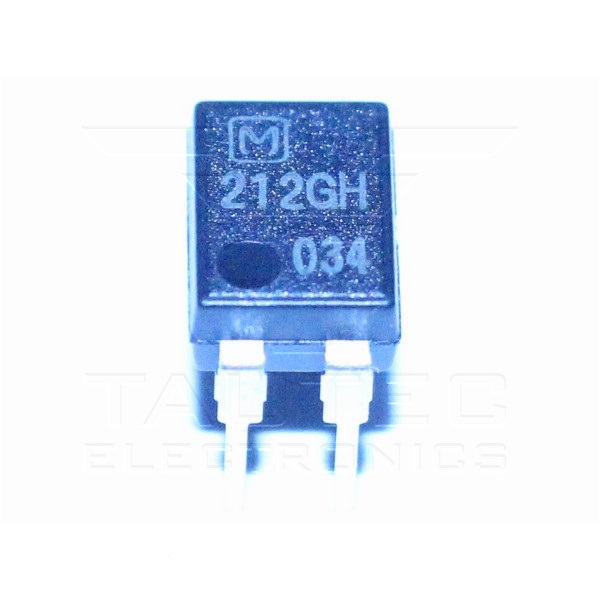

AQY212GH

4-Pin High Capacitivy Of 1.1A I/O Isolation Valtage Of 5000V PhotoMOS Relay Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VAC, 60 VDC Load Current Rating: 1.1 A Input Current: 50 mA Output Type:´MOSFET Datenblatt: AQY212GH.pdf

€ 2 .00*

Panasonic

AQY212GHA

€ 0 .45*

Panasonic

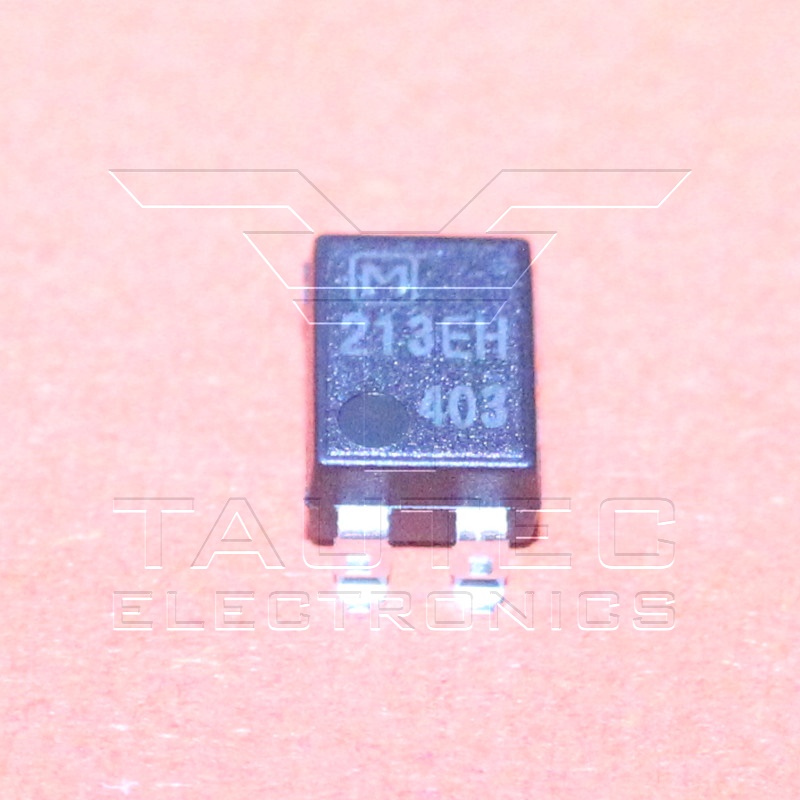

AQY213EHAX

PhotoMOS Signal Relay Relay Contact Form: 1 Form A Load Voltage Rating: 250 VAC, 250 VDC Load Current Rating: 150 mA Output Type: MOSFET Datenblatt: AQY213EH.pdf

€ 1 .50*

Panasonic

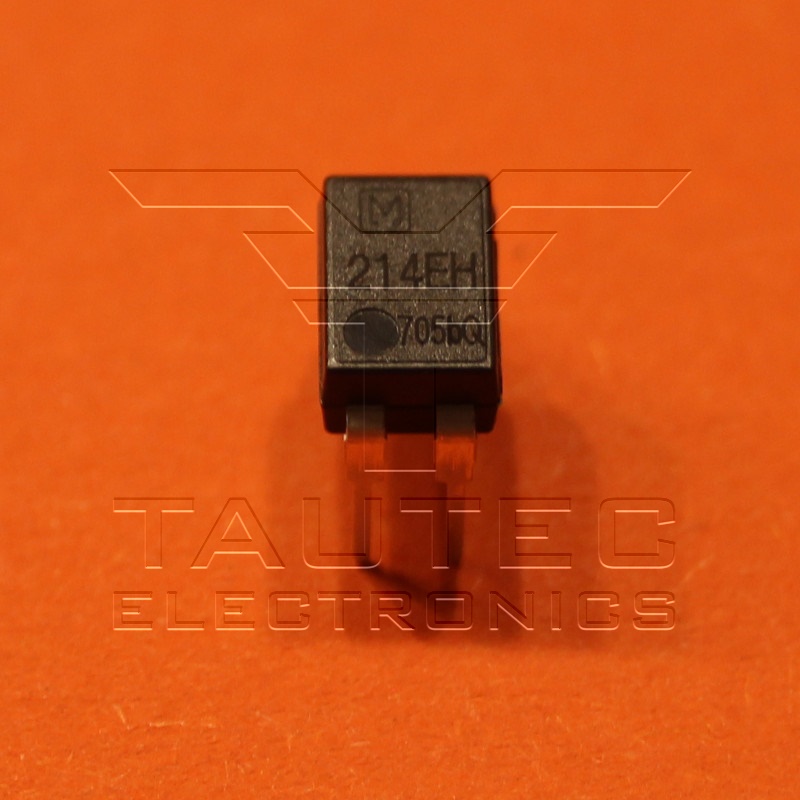

AQY214EH

Solid State Relays Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 400 VAC, 400 VDC Load Current Rating: 120 mA Input Current: 50 mA Output Type: MOSFET Input to Output Isolation Method: Optocoupler Pd - Power Dissipation: 550 mW Datenblatt: AQY214EH.pdf

€ 1 .25*

Panasonic

AQY225R1S

PhotoMOS Relay 80V / 0.12A Datenblatt: AQY225.pdf

€ 3 .00*

Panasonic

AQY225R2TY

PhotoMOS Relay 80V / 0.12A Relay Contact Form: 1-Form-A LED Forward Current: 50mA LED Reverse Voltage: 5V Peak Forward Current: 1A Power Dissipation: 75mW Load Voltage(AC): 80V Continuous Load Current: 120mA Peak Load current: 300mA Total Power dissipation: 300mW Datenblatt: AQY225.pdf

€ 5 .00*

Panasonic

AQY410SX

Solid State Relays - PCB Mount Relay Contact Form: 1 Form B (SPST-NC) Load Voltage Rating: 350 VAC, 350 VDC Load Current Rating: 120 mA Input Current: 50 mA Input Voltage: 5 V Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Datenblatt: AQY410SX.pdf

€ 1 .22*

Panasonic

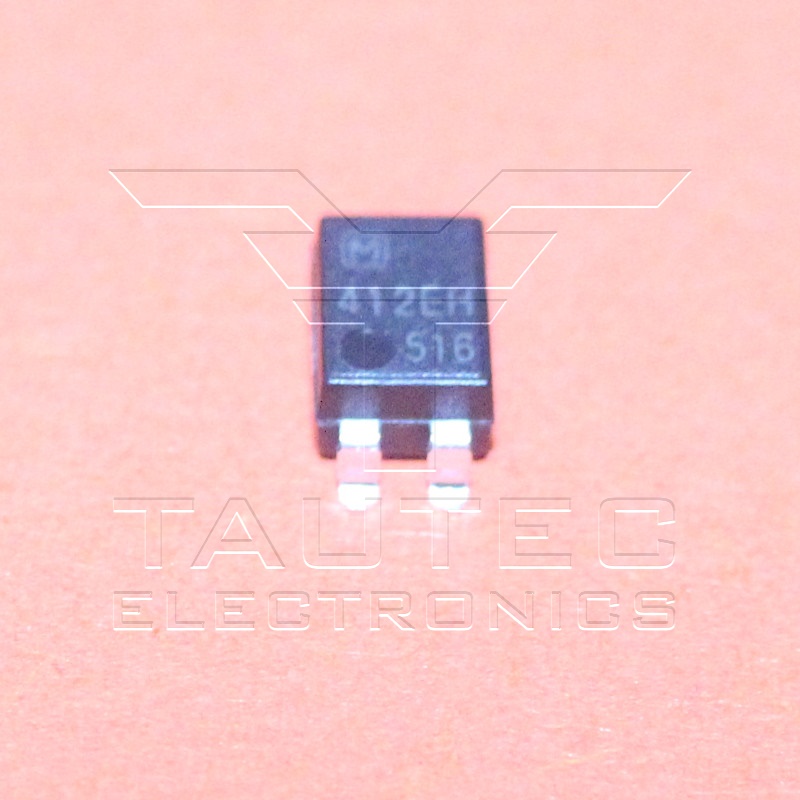

AQY412EHA

Solid State Relays - PCB Mount PhotoMOS Load Current Rating: 550 mA Load Voltage Rating: 60 V Relay Contact Form: 1 Form B (SPST-NC) Output Type: MOSFET Input Current: 50 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: AQY412EHA.pdf

€ 1 .74*

Panasonic

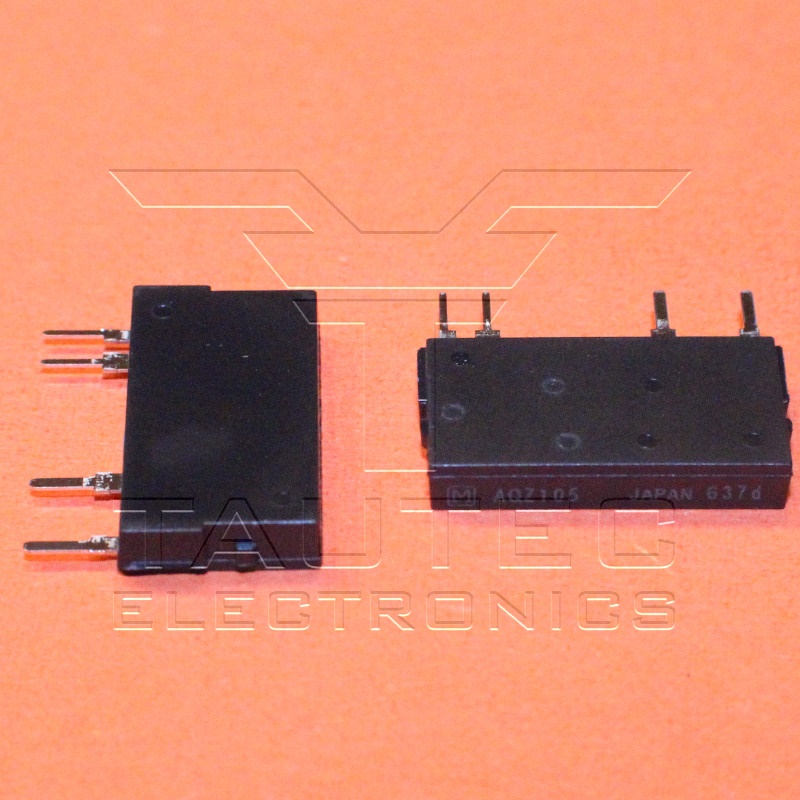

AQZ105

PhotoMOS Relay Mounting: Through Hole Operating Temp Range: -40C to 85C Output Type: DC Input Type: DC Operating Temperature Classification: Industrial Input Voltage (Max): 1.5 V Output Voltage (Max): 100V Circuit Arrangement: 1 Form A Input Current (Max): 50 mA Isolation Voltage: 2500V Output Current: 2600mA Output Device: MOSFET Input Voltage: 1.5V Input Current: 50mA Datenblatt: AQZ105.pdf

€ 4 .02*

Panasonic

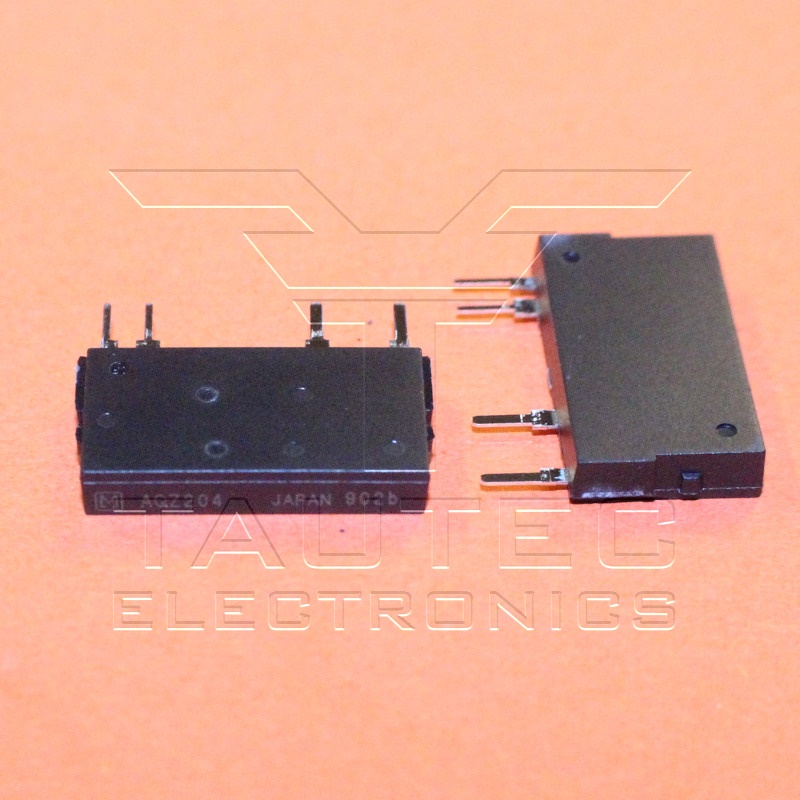

AQZ204

Solid State Relays Load Current Rating: 500 mA Load Voltage Rating: 400 VAC, 400 VDC Relay Contact Form: 1 Form A (SPST-NO) Control Voltage Range: 1.5 VDC to 5 VDC Output Type: MOSFET Input Current: 50 mA Length: 21 mm Width: 3.5 mm Height: 12.5 mm Datenblatt: AQZ204.pdf

€ 4 .00*

Panasonic

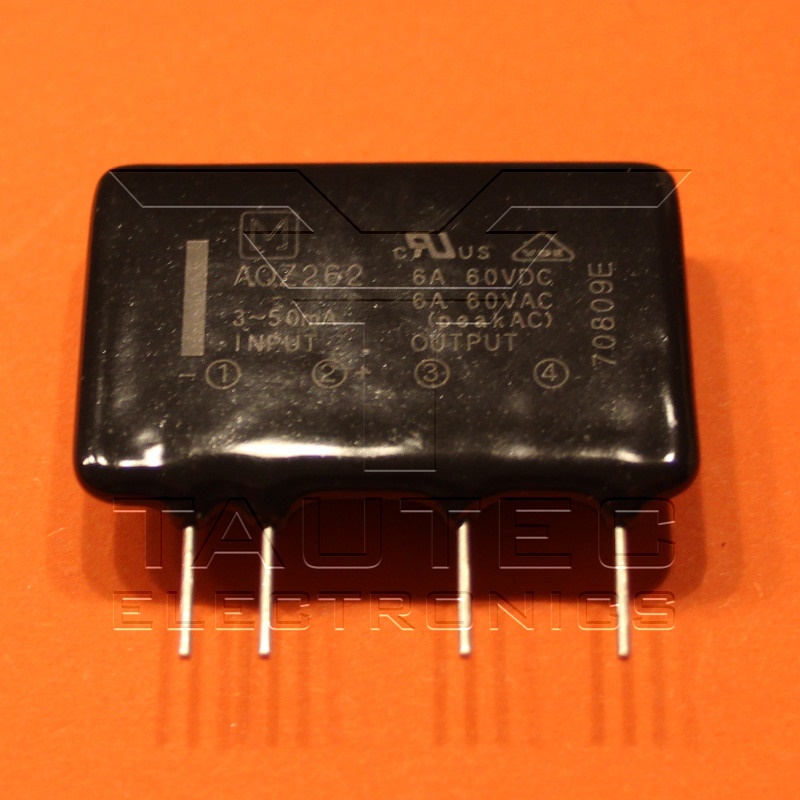

AQZ262

Solid State Relays Control Voltage Range: 1.5 VDC to 5 VDC Mounting Style: Through Hole Relay Contact Form: 1 Form A (SPST-NO) Load Voltage Rating: 60 VAC, 60 VDC Load Current Rating: 6 A Input Current: 50 mA Output Type: MOSFET Length: 21 mm Width: 3.5 mm Height: 12.5 mm Datenblatt: AQZ262.pdf

€ 18 .00*
