Fujitsu

AL-1.5W-K

1.5VDC Low Signal Relays - Extremely low profile and light weight: Height: 5 mm - Weight: approximately 1.2 g - Contact Form: DPDT (2 Form C) - Maximum Switching Current: 2 A - Meet FCC (Part 68) standard - Coil Type: Latching - Power Consumption: 100 mW - Conforms to FCC rules and regulations part 68 - Surge strength 1,500 V - High reliability—bifurcated contacts - Wide operating range - DIL pitch terminals - Plastic sealed type Datenblatt: AL-1.5W-K.pdf

€ 1 .10*

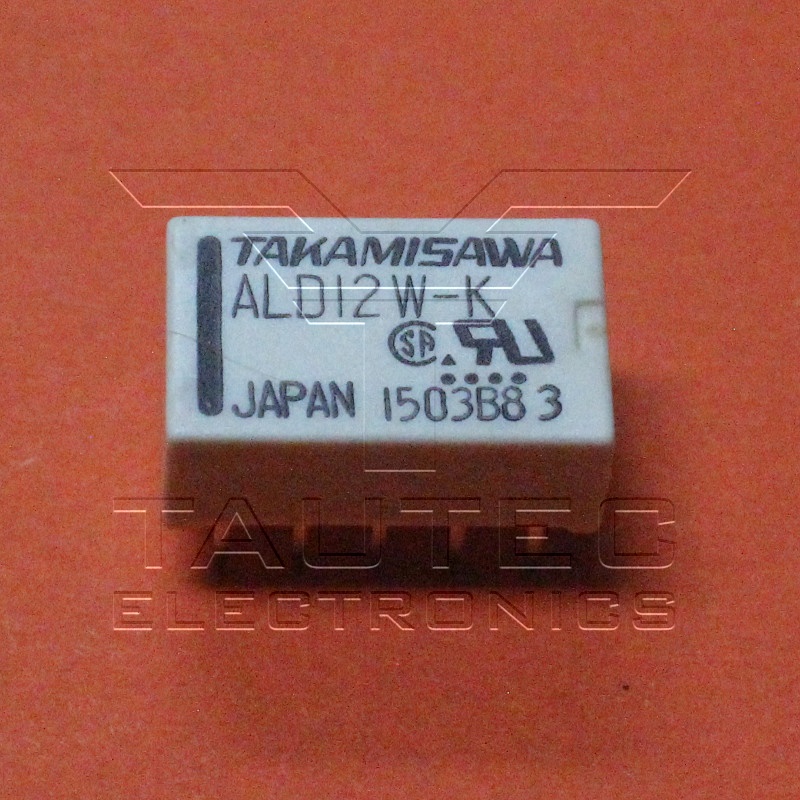

Takamisawa

AL-D12W-K

Low Signal Relays Coil Voltage: 12 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 0.5 A 125 VAC or 1 A 30 VDC Maximum Switching Current: 2 A Maximum Switching Power: 62.5 AV/30 W Maximum Switching Voltage: 125VAC, 110VDC Coil Type: Dual Coil Latching Power Consumption: 200 mW Contact Termination: Solder Pin Coil Resistance: 720 Ohms Contact Material: Silver Alloy (Ag) with Gold Plating Mounting Style: Through Hole Datenblatt: AL-D12W-K.pdf

€ 2 .00*

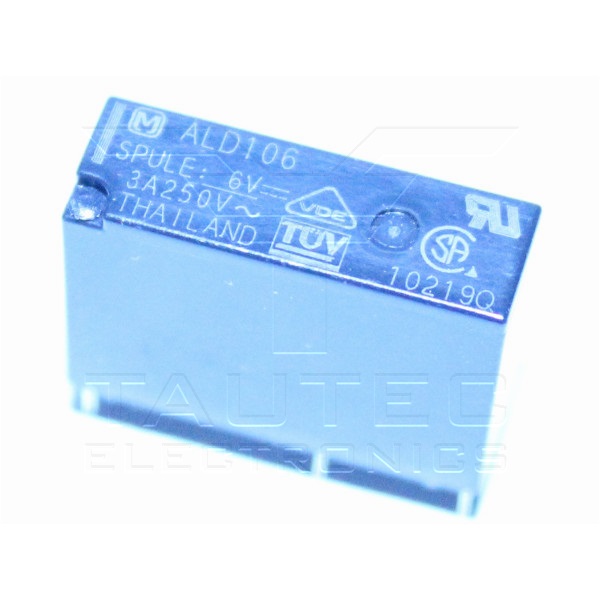

Panasonic

ALD106

6VDC Slim Power Relay Datenblatt: ALD106.pdf

€ 0 .65*

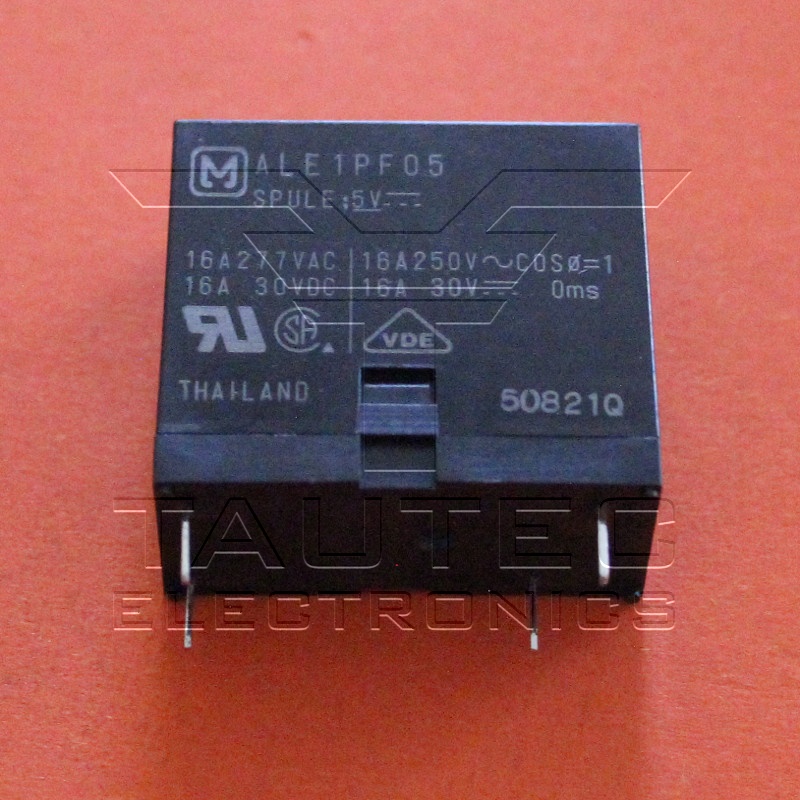

Panasonic

ALE1PF05

General Purpose Relay Mounting Type: Through Hole Contact Form: SPST-NO (1 Form A) Contact Rating: 16A Switching Voltage Max: 277VAC Coil Voltage: 5VDC Coil Current: 80mA Coil Resistance: 63 Ohms Coil Type: Non Latching Coil Insulation: Class F Operating Temperature: -40C to 85C Contact Material Silver Tin Oxide (AgSnO) Datenblatt: ALE1PF05.pdf

€ 1 .16*

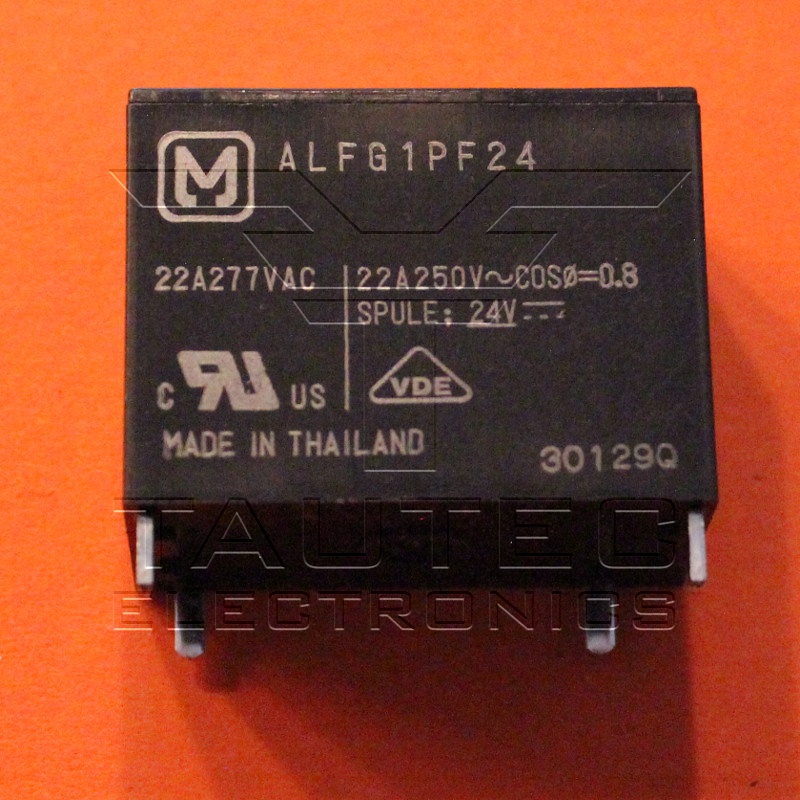

Panasonic

ALFG1PF24

PCB Power Relay - Coil Voltage: 24 VDC - Contact Configuration: SPNO - Switching Current: 22 A - Maximum AC Switching Voltage: 250 VAC - Coil Resistance: 410 Ohm - Dimensions: 30.1 x 15.7 x 23.3mm Datenblatt: ALFG1PF24.pdf

€ 2 .50*

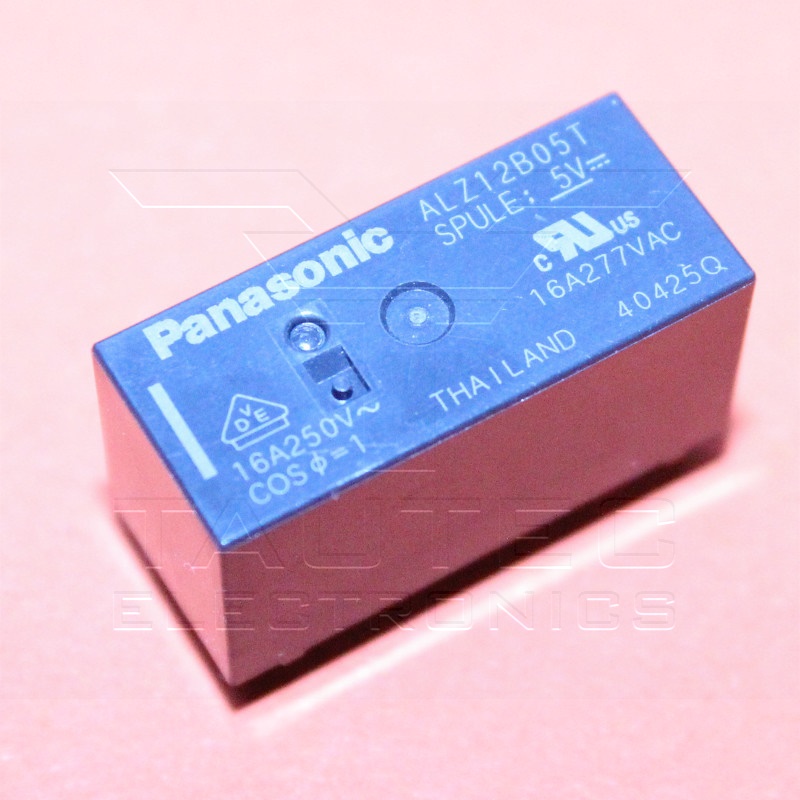

Panasonic

ALZ12B05T

5VDC Power Relay, Low Profile, 250VAC/16A - High insulation resistance Superior insulation characteristics have been achieved by maintaining an insulation distance between coil and contacts of at least 10 mm for both creepage distance and clearances. Furthermore, anti-surge voltage is 10 kV and higher. (Supports European reinforced insulation requirement.) - Superior heat resistance Can be used in ambient temperatures up to 85°C 185°F for the class B and 105°C 221°F for the class F. - Low operating power Power saved with a nominal operating power of only 400 mW. - Conforms to the various safety standards: UL/C-UL, VDE approved. - Superior heat resistance and tracking resistanc EN60335-1 GWT compliant (Tested by VDE) type available Datenblatt: ALZ12B05T.pdf

€ 1 .30*

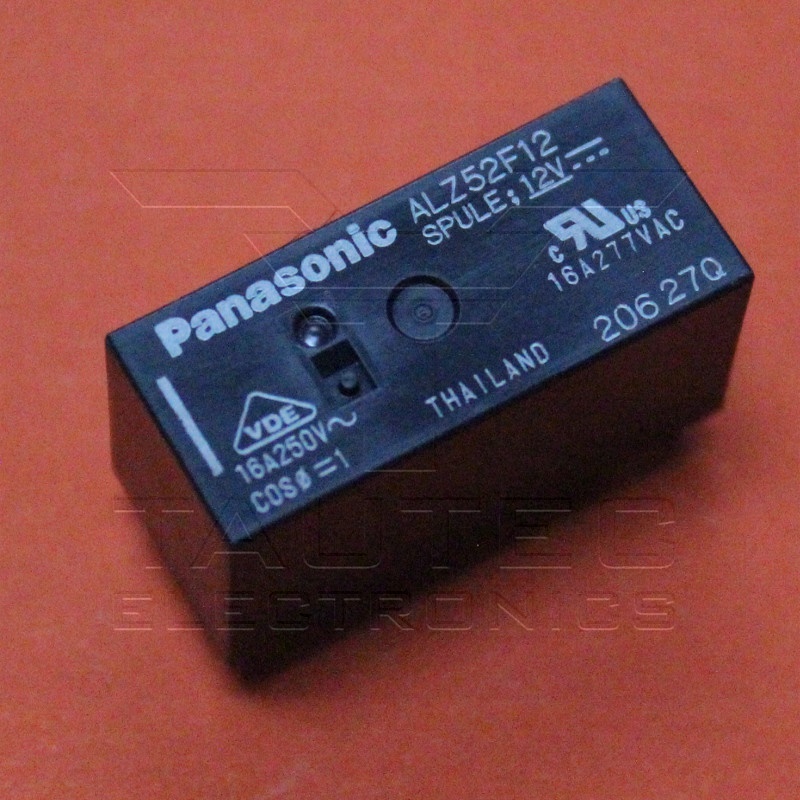

Panasonic

ALZ52F12

12VDC Power Relay, Low Profile, 250VAC/16A - High insulation resistance Superior insulation characteristics have been achieved by maintaining an insulation distance between coil and contacts of at least 10 mm for both creepage distance and clearances. Furthermore, anti-surge voltage is 10 kV and higher. (Supports European reinforced insulation requirement.) - Superior heat resistance Can be used in ambient temperatures up to 85°C 185°F for the class B and 105°C 221°F for the class F. - Low operating power Power saved with a nominal operating power of only 400 mW. - Conforms to the various safety standards: UL/C-UL, VDE approved. - Superior heat resistance and tracking resistanc EN60335-1 GWT compliant (Tested by VDE) type available Datenblatt: ALZ52F12.pdf

€ 1 .62*
