AG...

Panasonic

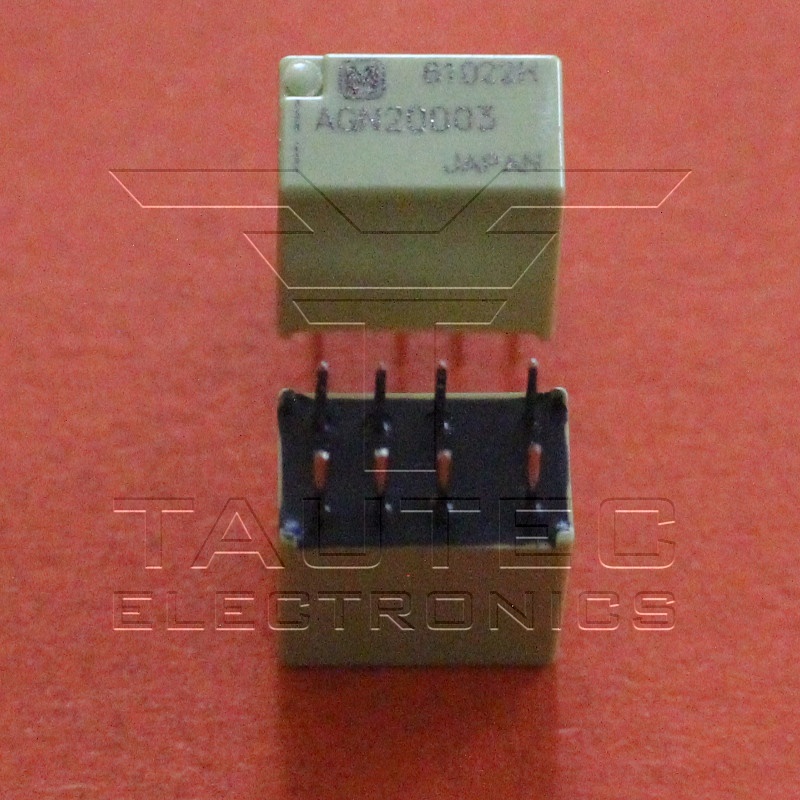

AGN20003

Slim Form Relays Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 300 mA at 125 VAC, 1 A at 30 VDC Contact Current Rating: 1 A Maximum Switching Current: 1 A Coil Voltage: 3 VDC Coil Current: 46.7 mA Coil Type: Non-Latching Power Consumption: 140 mW Coil Resistance: 64.2 Ohms Contact Material: Silver Palladium (AgPd) with Gold Plating Datenblatt: AGN20003.pdf

€ 1 .22*

Panasonic

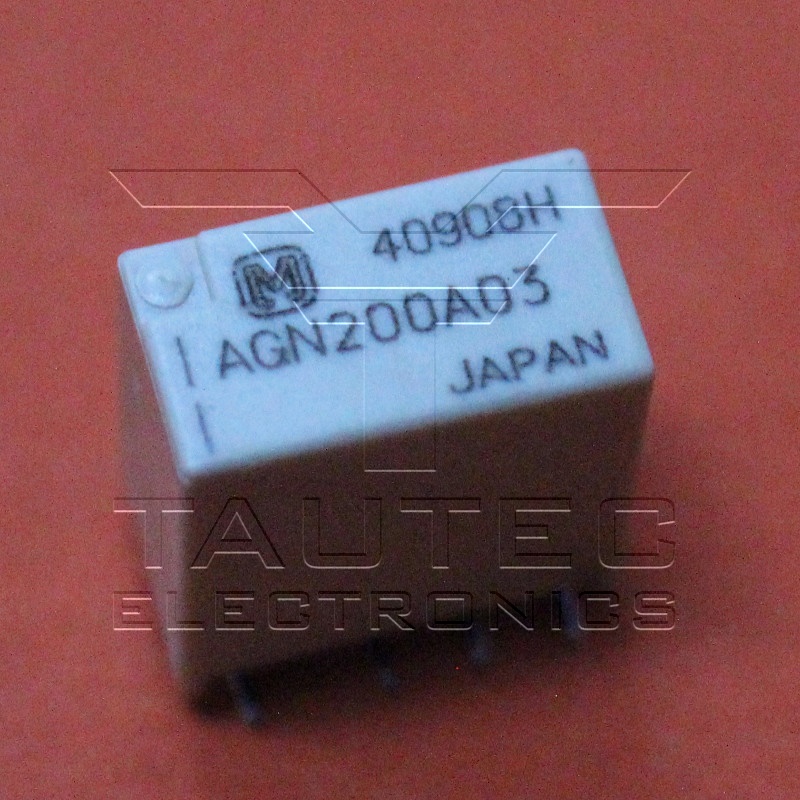

AGN200A03

3VDC High Sensitivity, With 100mW Nominal Operating Power, In A Compact And Space Saving Case Coil Voltage: 3 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 300 mA at 125 VAC, 1 A at 30 VDC Contact Current Rating: 1 A Maximum Switching Current: 1 A Coil Current: 46.7 mA Coil Type: Non-Latching Power Consumption: 140 mW Coil Resistance: 64.2 Ohms Contact Material: Silver Palladium (AgPd) with Gold Plating Datenblatt: AGN200A03Z.pdf

€ 2 .00*

NAIS

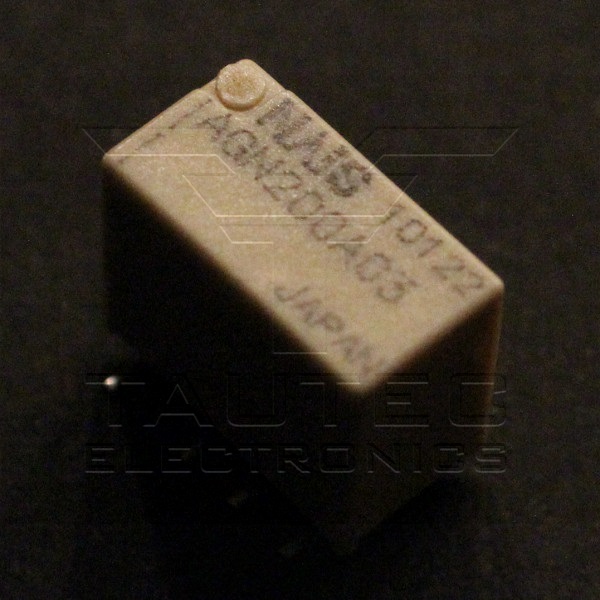

AGN200A03Z

€ 1 .00*

Panasonic

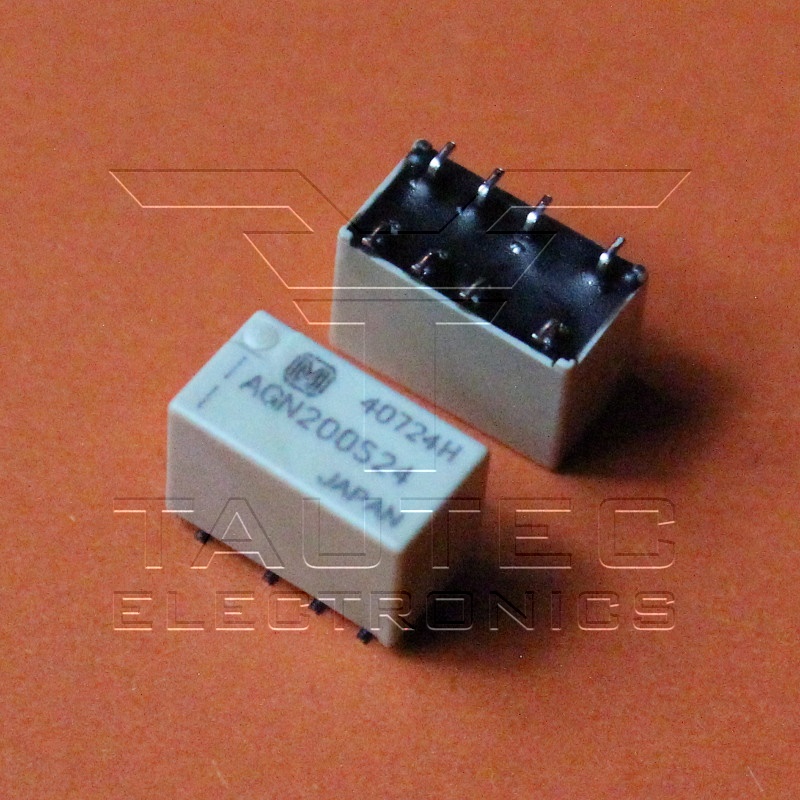

AGN200S24

24VDC High Sensitivity, With 100mW Nominal Operating Power, In A Compact And Space Saving Case Operating Temp Range: -40C to 85C Pick-up Voltage (Max): 18VDC Pin Count: 8 Contact Form: 2 Form C Dropout Volt (Min): 2.4VDC Contact Material: Silver Palladium Voltage Rating (VAC): 125(V) Voltage Rating (VDC): 110(V) Coil Resistance: 2504(ohm) Product Length (mm): 10.6(mm) Product Depth (mm): 5.7(mm) Product Height (mm): 10(mm) Coil Voltage DC: 24V Coil Current: 9.6(mA) Contact Current Rating: 1(A) Relay Construction: Non-Latching Operate Time: 4(ms) Datenblatt: AGN200S24Z.pdf

€ 1 .50*

Panasonic

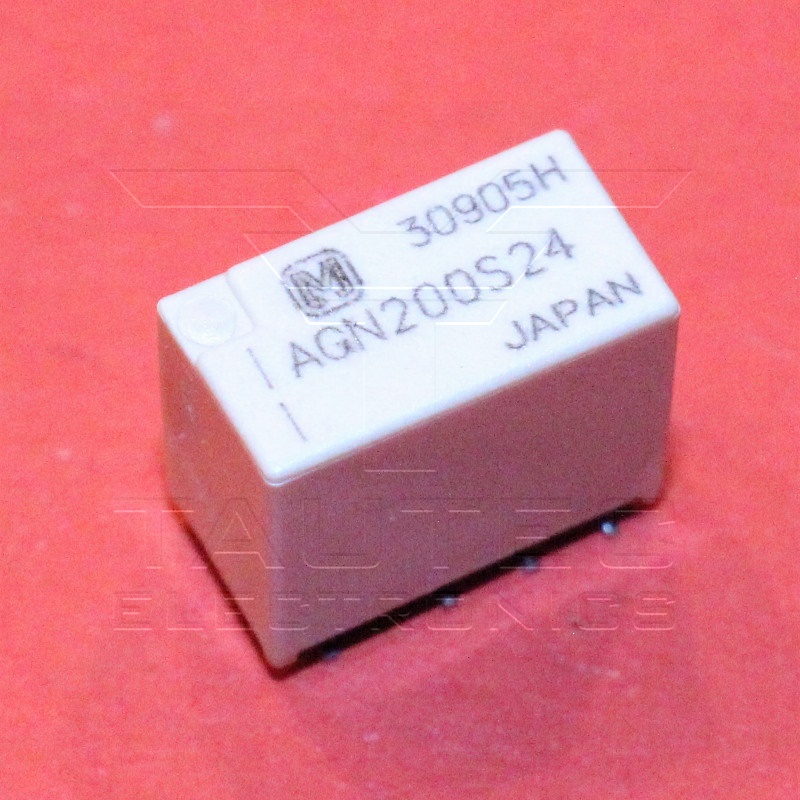

AGN200S24Z

€ 1 .80*

Panasonic

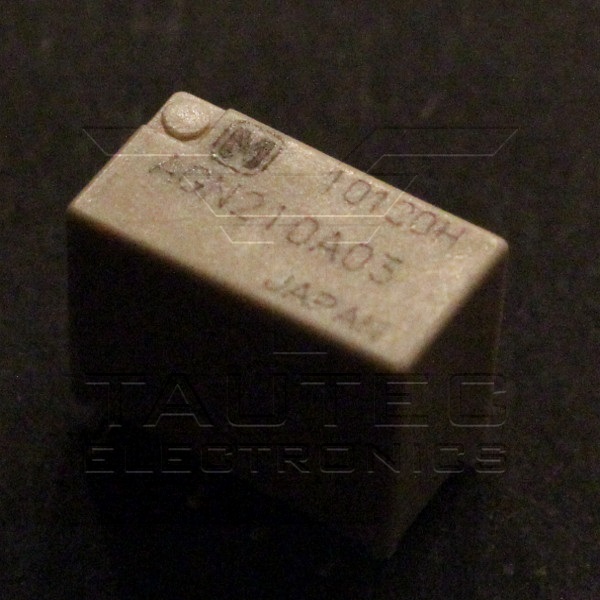

AGN210A03

High Sensitivity, With 100mW Nominal Operating Power Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 300 mA at 125 VAC, 1 A at 30 VDC Contact Current Rating: 1 A Maximum Switching Current: 1 A Coil Voltage: 3 VDC Coil Current: 33.3 mA Coil Resistance: 90 Ohms Coil Type: Latching Power Consumption: 100 mW Contact Termination: J Form Lead Contact Material: Silver Palladium (AgPd) with Gold Plating Datenblatt: AGN210.pdf

€ 1 .25*

Panasonic

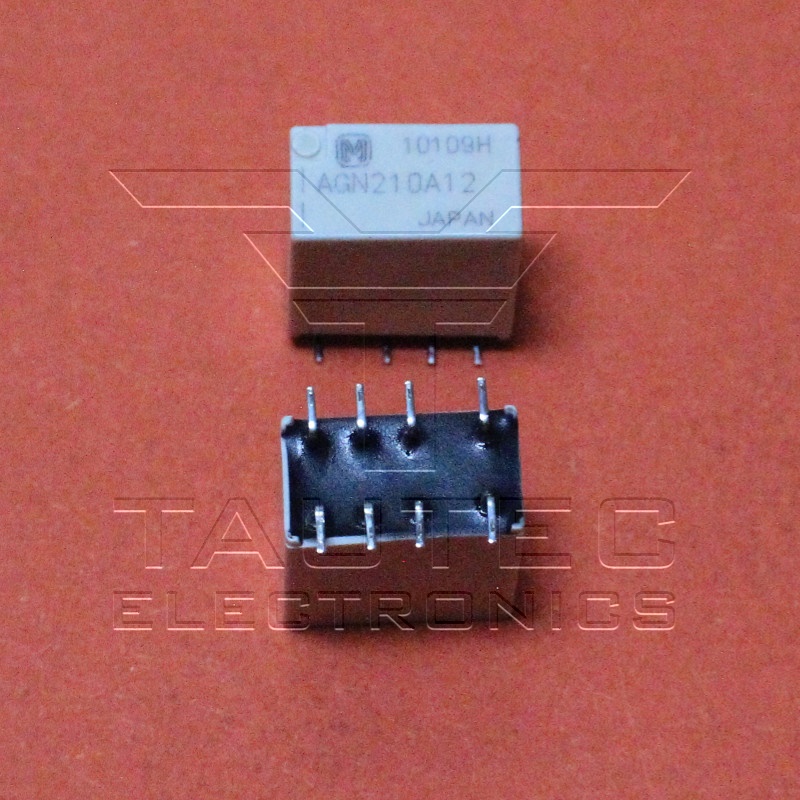

AGN210A12Z

Low Signal Relays Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 300 mA at 125 VAC, 1 A at 30 VDC Contact Current Rating: 1 A Maximum Switching Current: 1 A Coil Voltage: 12 VDC Coil Current: 8.3 mA Coil Resistance: 1.44 kOhms Coil Type: Latching Power Consumption: 100 mW Contact Material: Silver Palladium (AgPd) with Gold Plating Datenblatt: AGN210A12Z.pdf

€ 1 .25*

Panasonic

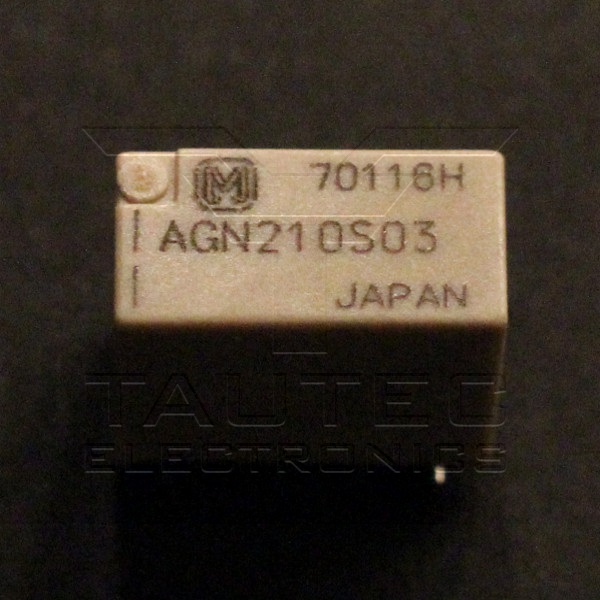

AGN210S03Z

Beschreibung: High Sensitivity, With 100mW Nominal Operating Power Datenblatt: AGN210S03Z.pdf

€ 1 .25*

Panasonic

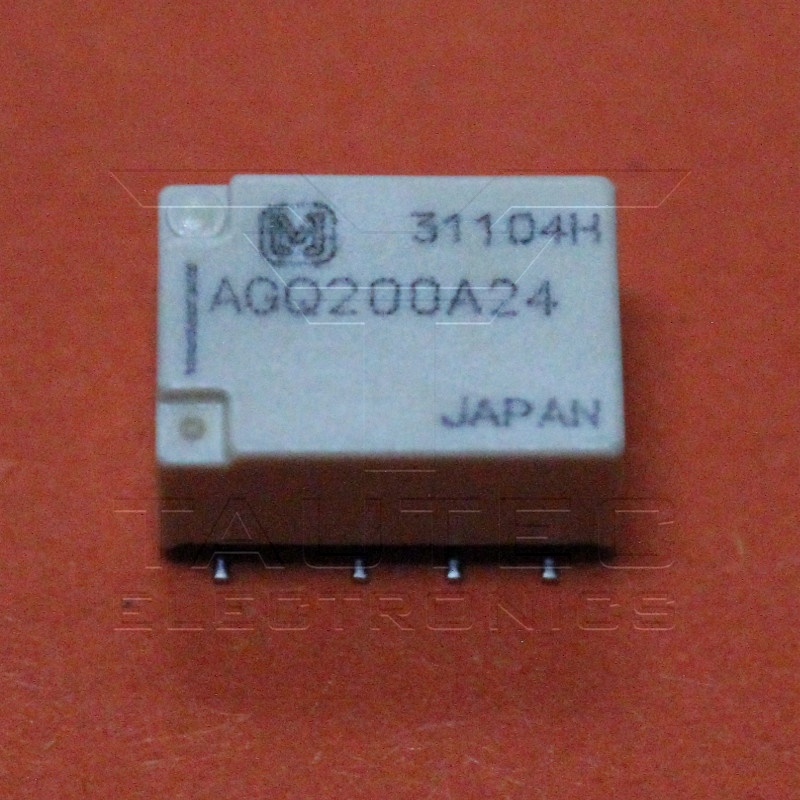

AGQ200A24

24VDC Signal Relay, High Sensitivity, 100 mW Nominal Operating Power Datenblatt: AGQ200A24.pdf

€ 1 .00*

Panasonic

AGQ200A4HZ

Low Signal Relays Type: High Sensitivity Coil Voltage: 4.5 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 300 mA at 125 VAC, 1 A at 30 VDC Contact Current Rating: 1 A Maximum Switching Current: 2 A Coil Current: 31 mA Coil Resistance: 145 Ohms Coil Type: Non-Latching Power Consumption: 140 mW Contact Material: Silver Palladium (AgPd) with Gold Plating Series: AGQ Datenblatt: AGQ200A4HZ.pdf

€ 1 .65*

Panasonic

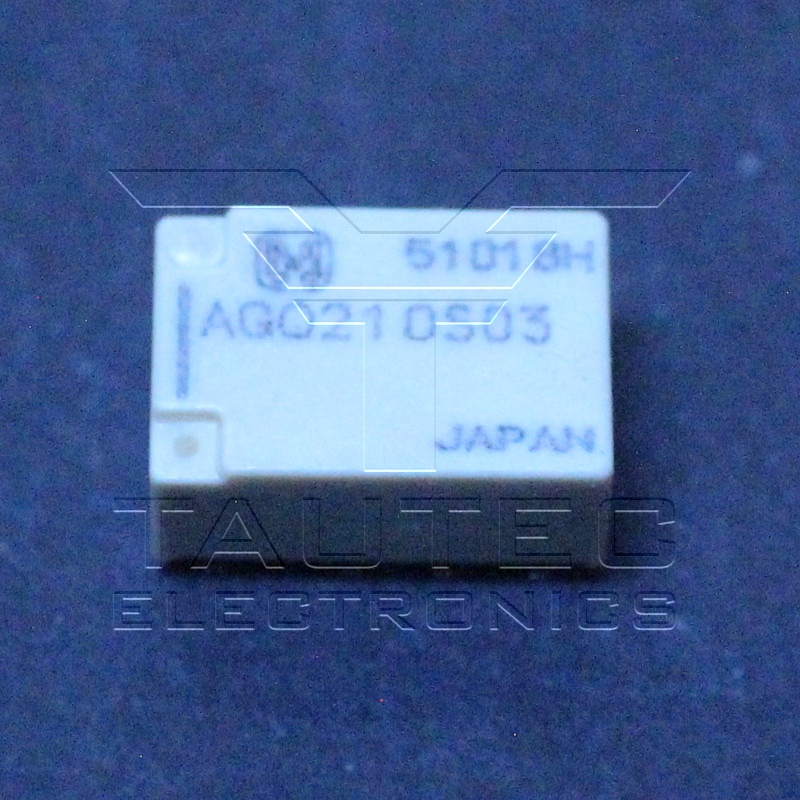

AGQ210S03Z

Telecom Relay DPDT (2 Form C) Surface Mount Coil Voltage: 3VDC Contact Form: DPDT (2 Form C) Contact Rating (Current): 2A Switching Voltage: 125VAC, 110VDC - Max Coil Current: 33,3mA Coil Type: Latching, Single Coil Must Operate Voltage: 2.25 VDC Operating Temperature: -40°C - 85°C Contact Material: Silver Palladium (AgPd), Gold (Au) Coil Resistance: 90 Ohms Datenblatt: AGQ210S03Z.pdf

€ 0 .72*
