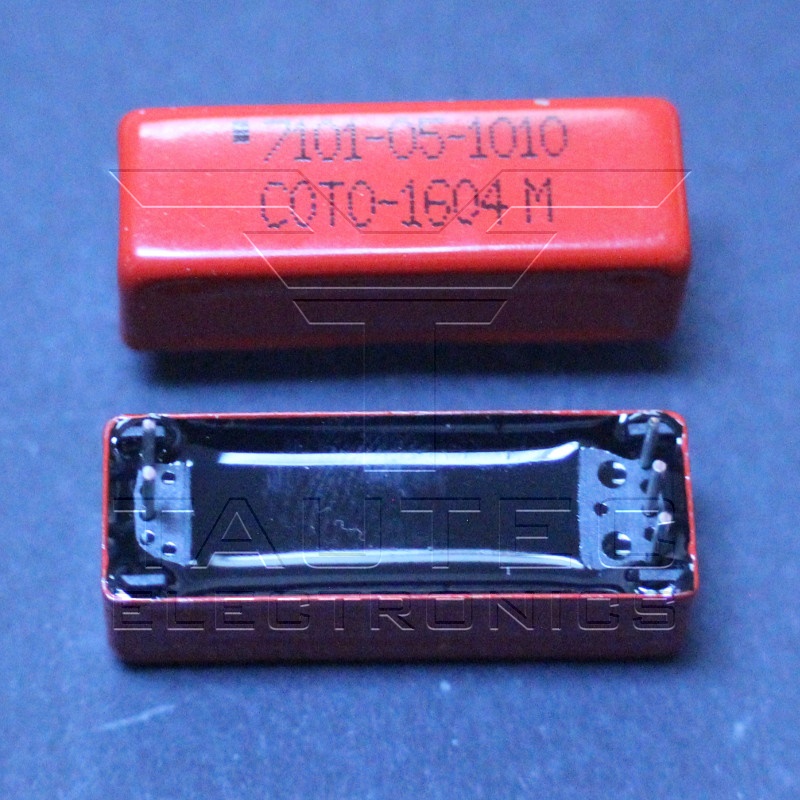

Coto Technology
7101-05-1010
Reed Relay
Coil Voltage: 5VDC
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 500mA
Switching Voltage: 200VAC, 200VDC - Max
Coil Current: 16,7mA
Coil Type: Non Latching
Features: Electrostatic Shield
Termination Style: PC Pin
Must Operate Voltage: 3.75 VDC
Must Release Voltage: 0.4 VDC
Operate Time: 1ms
Release Time: 0,1ms
Operating Temperature: -20°C to 85°C
Coil Resistance: 300 Ohms
Datenblatt:
7101-05-1010.pdf
€
