4...

TE Tyco Electronics

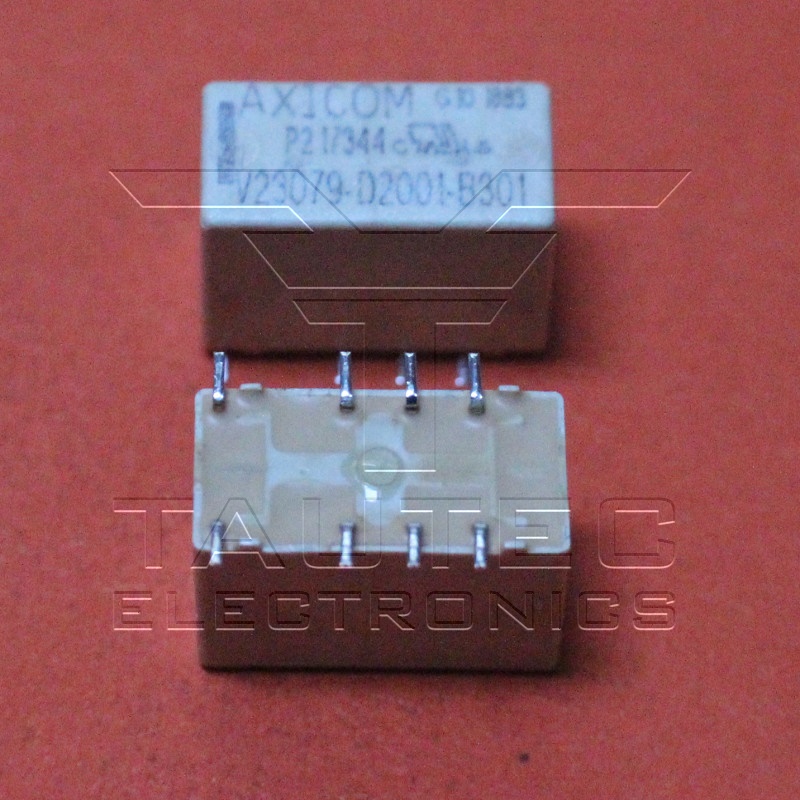

4-1393789-3

Low Signal Relays Relay Contact Form: 2 Form C (DPDT-NO, NC) Switching Voltage: 250VAC, 220VDC - Max Contact Current Rating: 2 A Contact Termination: Solder Pin Series: V23079/P2 Relay Coil Type: Non-Latching Coil Voltage: 5 VDC Coil Current: 28mA Coil Resistance: 178 Ohms Power Consumption: 140 mW Contact Material: Silver Nickel (AgNi) with Gold Plating Operating Temperature: -40C to 85C Datenblatt: V23079.pdf

€ 0 .69*

TE Tyco Electronics

4-1393789-9

Low Signal Relays Coil Voltage: 5 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 2 A Contact Current Rating: 2 A Coil Type: Non-Latching Power Consumption: 140 mW Coil Resistance: 178 Ohms Contact Termination: Solder Pin Contact Material: Silver Nickel (AgNi) with Gold Plating Datenblatt: V23079.pdf

€ 0 .75*

FINDER S.p.A.

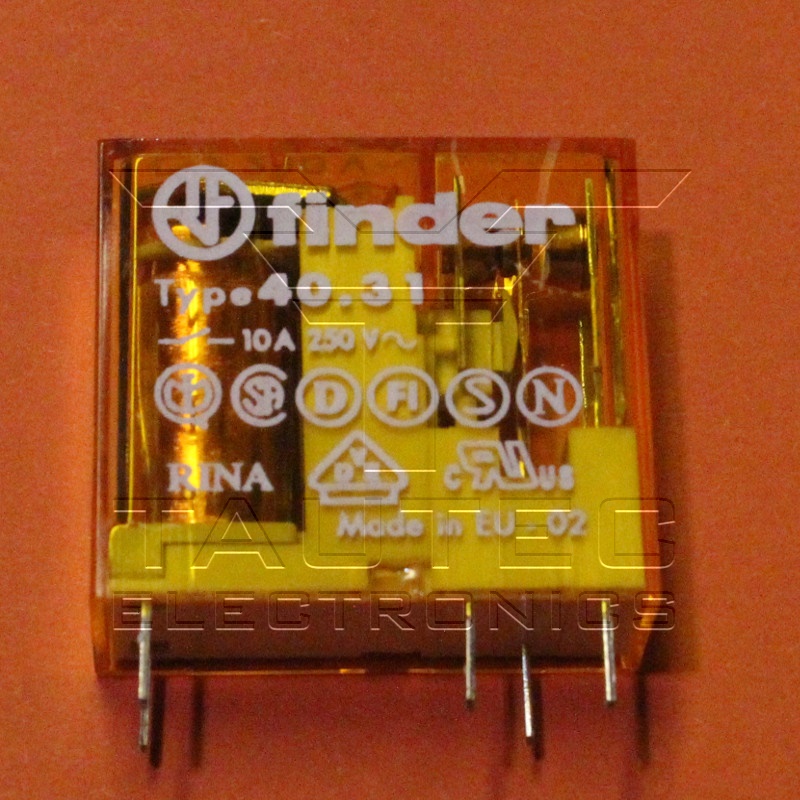

40.31.8.230.0000

Finder SPDT Non-Latching Relay PCB Mount, 230V Coil, 10 A Coil Voltage : 230 VAC Contact Configuration : SPDT Switching Current : 10 A Mounting Type : PCB Mount Terminal Type : Through Hole Coil Resistance : 28 k? Series : 40 Series Maximum Switching Voltage: 400VAC Dimensions 29 x 12.4 x 25mm Isolation Coil To Contact : 6kV Operating Temperature Range : -40 / +85C Coil Power : 1.2W Maximum Switching Power AC : 2.5 kVA Contact Material Silver Alloy Datenblatt: Serie 40.31.8.230.0000.pdf

€ 4 .50*

FINDER S.p.A.

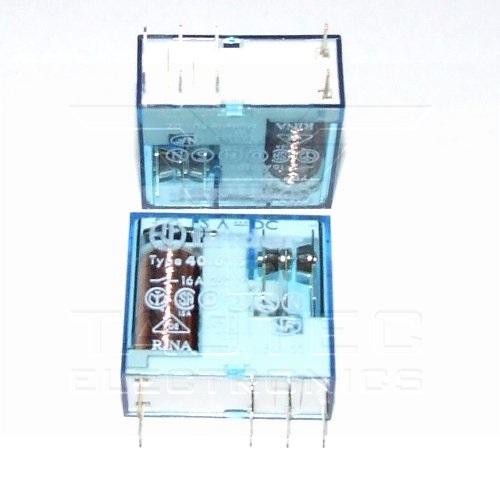

40.61.7.012.0000

SPDT Non-Latching Relay PCB Mount, 12VDC Coil, 16 A Coil Voltage : 12 VDC Contact Configuration :SPDT Mounting Type :PCB Mount Switching Current : 16 A Terminal Type : Through Hole Series: 40 Series Coil Resistance : 300 Ohm Maximum Switching Voltage AC : 400VAC Dimensions 29 x 12.4 x 25mm Coil Power : 500mW Isolation Coil To Contact : 6kV Contact Material : Silver Alloy Operating Temperature Range : -40 / +85°C Maximum Switching Power AC : 4 kVA Datenblatt: Serie 40.61.7.012.0000.pdf

€ 3 .02*

FINDER S.p.A.

41.61.9.024.0010

Beschreibung: 24VDC Leiterplattenrelais Datenblatt: Finder41.pdf

€ 5 .00*

Teledyne Semiconductor

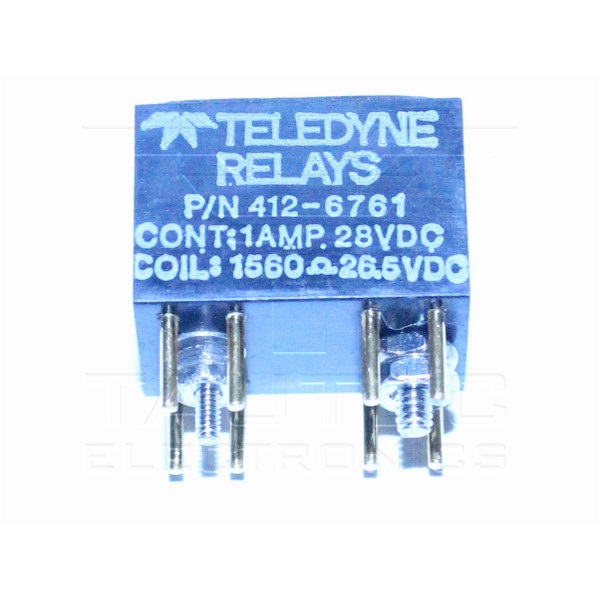

412-6761

Beschreibung: Gold Platet Relay, Input: 26,5VDC/1560Ohm, Output: 28VDC/1A

€ 50 .00*

HELLA GmbH & Co. KGaA

4RD 965 453-01

12VDC Automotive Power Relay Coil Resistance: 90 Ohm Coil Power: 1.6W Nominal Voltage: 12VDC Contact Material: Silver Alloy Contact Ratings: NO: 20A 12VDC Max Switching Voltage: 30VDC Max Switching Current: 20A Dimensions: 23mm x 15mm x 38mm data sheet: 4RD 965 453-01.pdf

€ 1 .97*
