3...

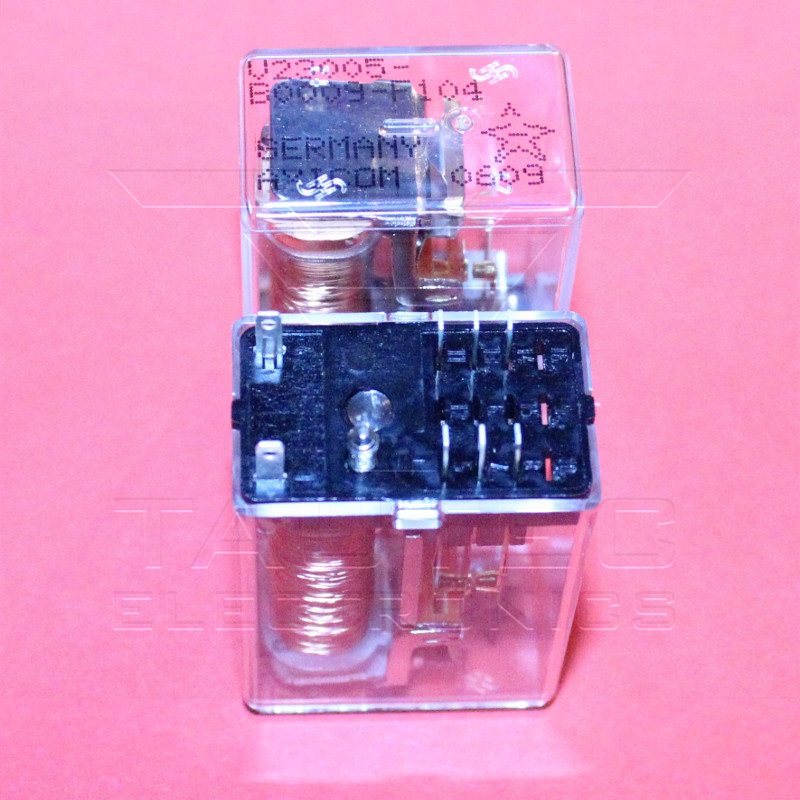

AXICOM

3-1393816-9

42VDC Kammrelais, Göße II, Kontaktfedersatz mit 2 Wechslern, Einfachkontakte, Kontaktwerkstoff Silber, hauchvergoldet Siemens Artikelnummer: V23005-B0009-F104 Datenblatt: V23005.pdf

€ 100 .00*

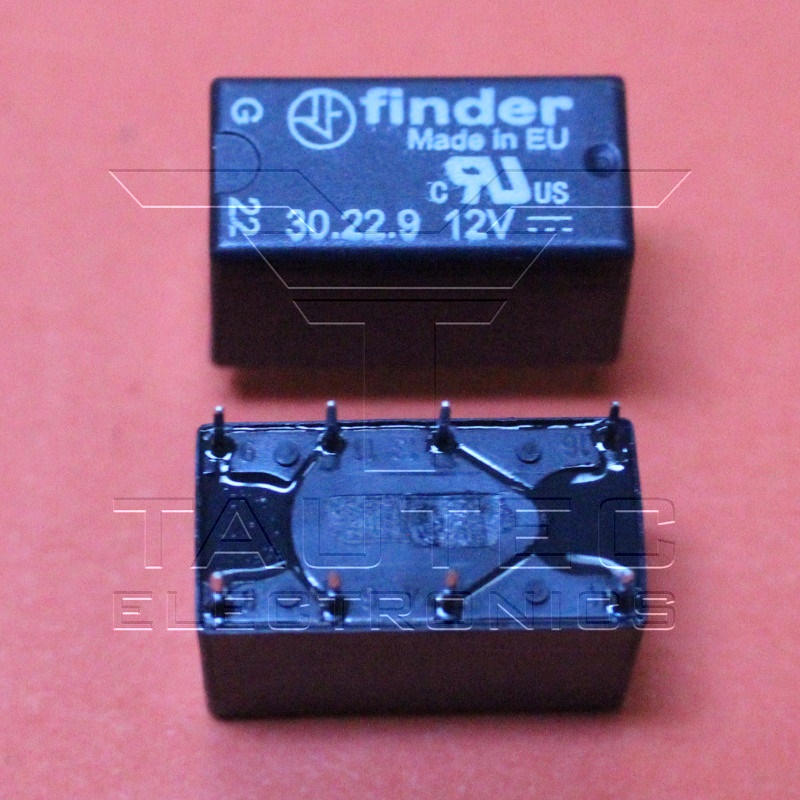

FINDER S.p.A.

30.22.9.012.0000

Subminiature DIL relays 2 A Relay Contact Form: 2 CO (DPDT) Contact Current Rating: 2 A Switching Voltage: 230VAC Coil Voltage: 12VDC Coil Resistance: 720 Ohms Coil Current: 8.3 mA Contact material: AgNi + Au Ambient temperature range: -40 ... +85 Datenblatt: 30.22.9.012.0000.pdf

€ 3 .75*

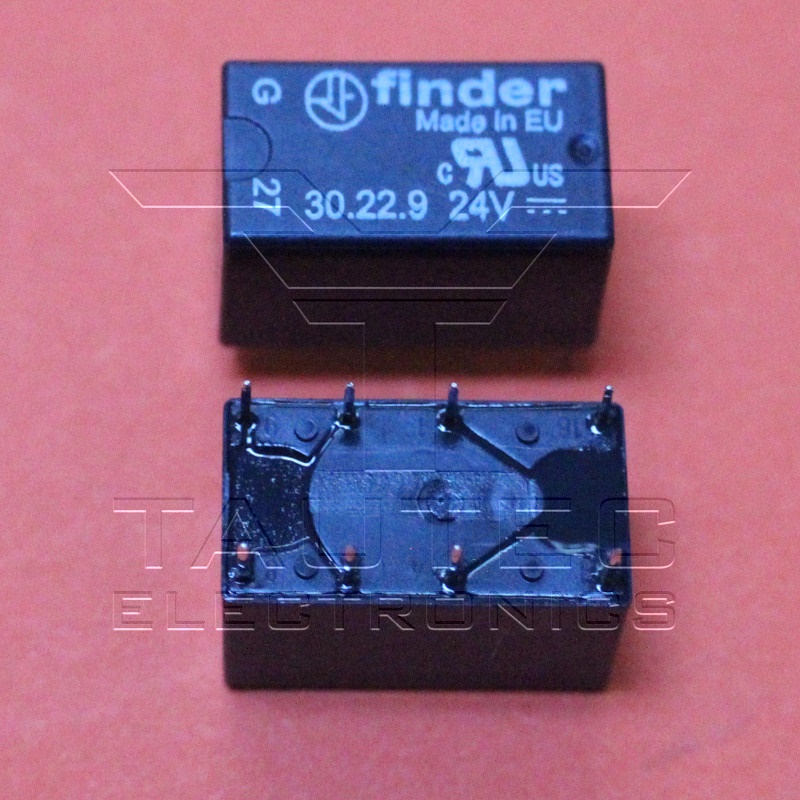

FINDER S.p.A.

30.22.9.024.0010

Subminiature DIL relays 2 A Relay Contact Form: 2 CO (DPDT) Contact Current Rating: 2 A Switching Voltage: 230VAC Coil Voltage: 24VDC Coil Resistance: 1440 Ohms Coil Current: 17 mA Coil Power: 400mW Contact material: AgNi + Au Ambient temperature range: -40 ... +85 Datenblatt: 30.22.9.024.0010.pdf

€ 2 .25*

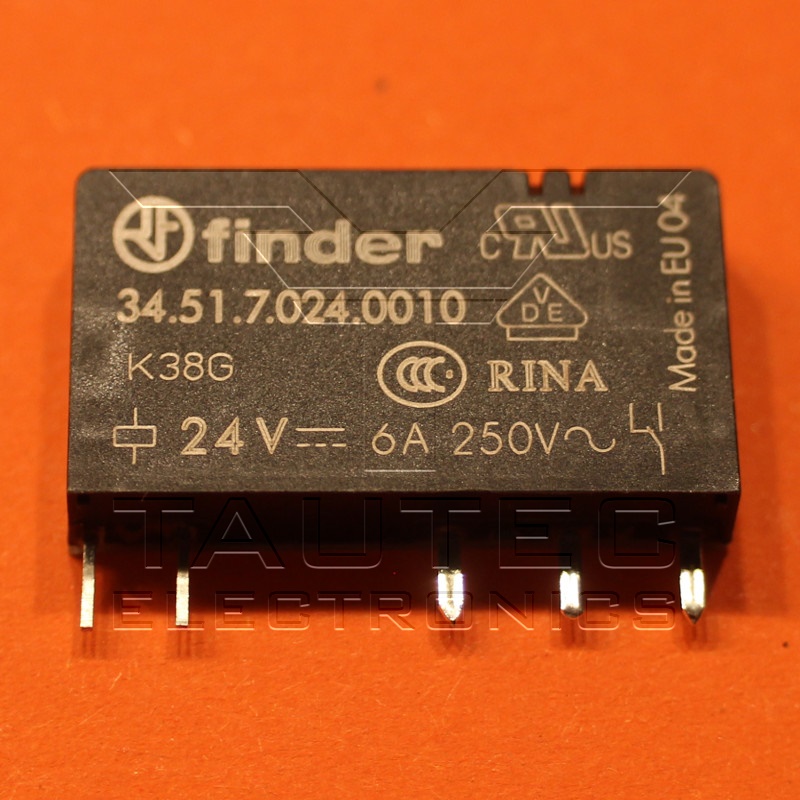

FINDER S.p.A.

34.51.7024.0010

SPDT PCB Mount Non-Latching Relay Rated coil voltage: 24V DC AC contacts rating: 6A / 250V AC DC contacts rating: 6A / 30V DC Contact current max.: 6A Switched voltage: max. 220V DC, max. 250V AC Mounting: PCB, socket Coil resistance: 3.35kOhm Coil voltage min.: 16.8V DC Coil voltage max.: 36V DC Body dimensions: 28x5x15mm Coil power consumption: 170mW Operating temperature: -40...85°C Contact material: AgNi Datenblatt: 34.51.7024.0010.pdf

€ 2 .40*

Comus International

3570.1301.241

Reed Relay - Coil voltage: 24Volt - Coil resistance: 2000 Ohm - Switch current: 0.5 A - Switch volt[AC]: 200 V[AC] - Switch volt[DC]: 200 V[DC] - Switching Power: 10 W - Contact Form: 1 Normally Open Datenblatt: 3570.1301.241.pdf

€ 0 .90*

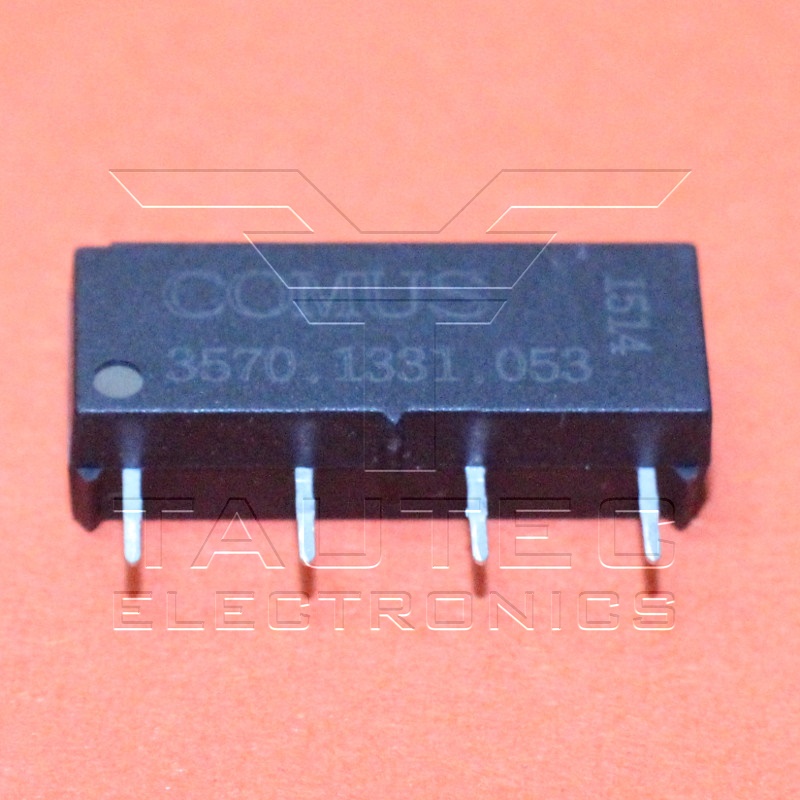

Comus International

3570.1331.053

Reed Relais - Coil voltage: 5Volt - Coil resistance: 500 Ohm - P(N) coil: 50 mW - Switch current: 0.5 A - Switch volt[AC]: 200 V[AC] - Switch volt[DC]: 10 V[DC] - Switching Power: 10 W - Contact Form: 1 Normally Open - Length: 19.0 mm - Width: 5.08 mm - Height: 7.4 mm - Technology: THT Datenblatt: 3570.1331.053.pdf

€ 0 .47*

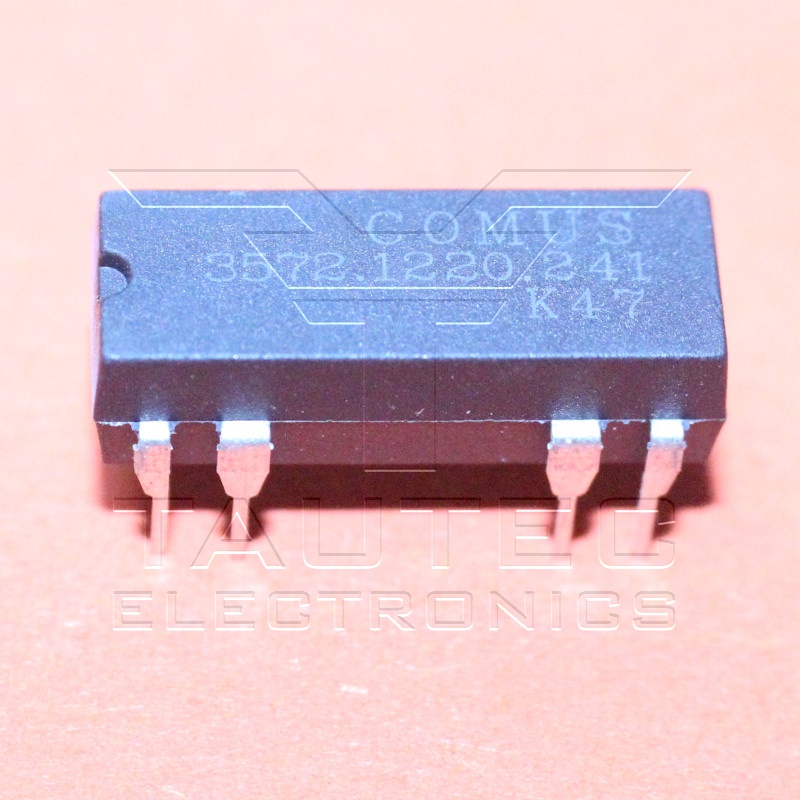

Comus International

3572.1220.241

High Profile-Reed Relay Pull-in voltage: 18VDC Nominal coil voltage: 24VDC Operating voltage max: 40VDC Drop-out voltage: 2VDC Rated coil current: 11mA Coil resistance: 2150-Ohm +-10% Switching capacity max: 10W/VA Switching current max: 0.5A Carrying current max: 1A Switching voltage max: 100VAC/VDC Contact resistance max: 150m-Ohm Datenblatt: 3572.1220.241.pdf

€ 3 .00*

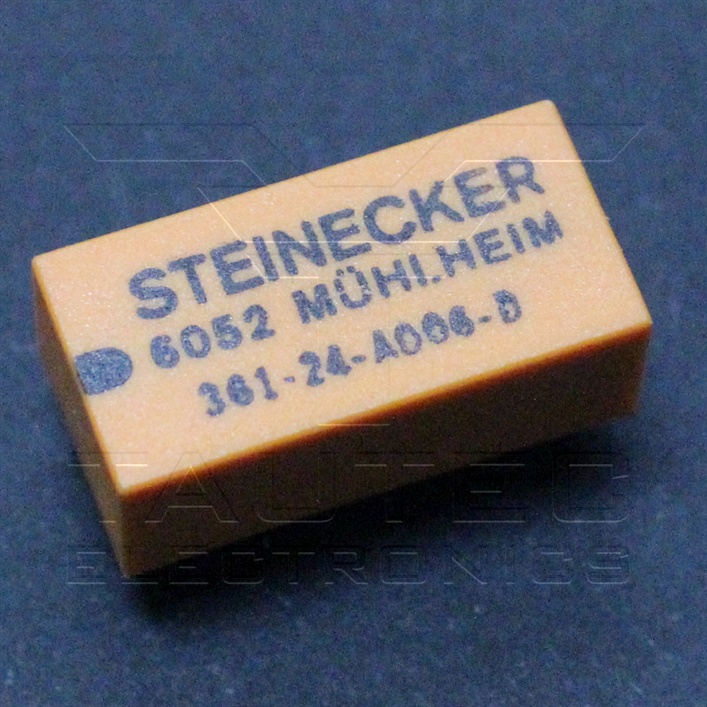

Steinecker

361-24-A006-D

Reed Relay, Dual-in-Line, 24VDC Datenblatt: 361-24-A006-D.pdf

€ 25 .00*

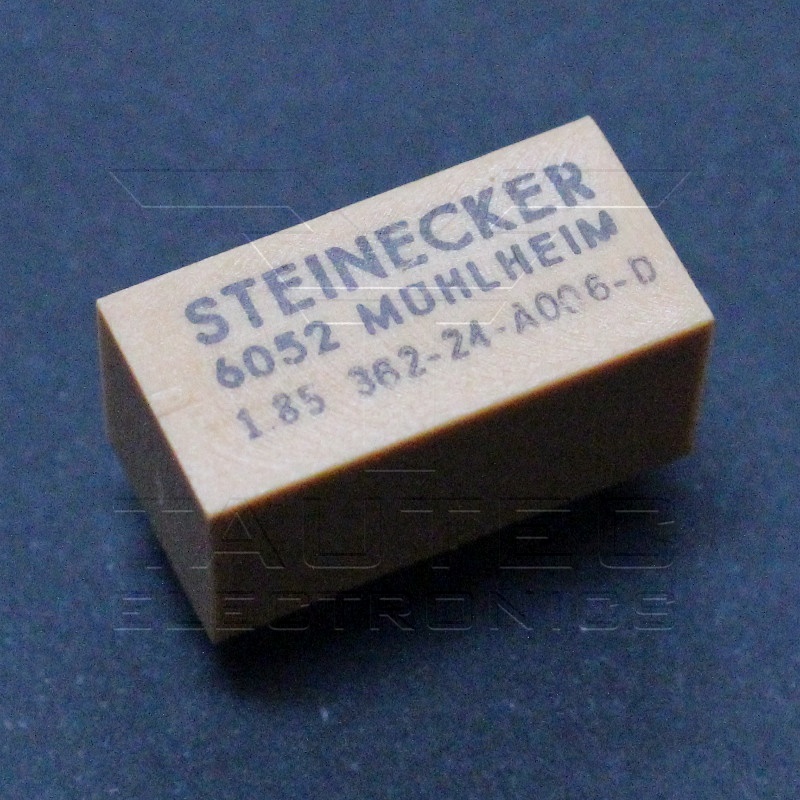

Steinecker

362-24-A006-D

Beschreibung: Reed Relay, Dual-in-Line, 24VDC Datenblatt: 362-24-A006-D.pdf

€ 20 .00*

Steinecker

363-24-A006-D

Reed Relay, Dual-in-Line, 24VDC - contact-form: 3A TPST-NO - VDC = 24V - Coil Resistance: 1350 Ohm - Pull-In Voltage: 16,8V - drop-out Voltage: 2,4V - Rated Current: 18mA - Contact Material: Rh - Switching Power: 10VA - max. Switching Voltage: 200V - max. Switching Current: 0.5A Datenblatt: 363-24-A006-D.pdf

€ 8 .00*

FINDER S.p.A.

38.51.7.024.0050

Electromechanical Relay 24VDC 2.307KOhm 10A SPDT DIN Rail Contact Arrangement: SPDT / 1 Form C Maximum Power Rating: 1.5KVA Contact Current Rating: 10(A) Operate Time: 5(ms) Contact Material: Silver Nickel Voltage Rating (VAC): 400(V) Relay Construction: Non-Latching Push To Test Button:No Coil Voltage DC: 24V Coil Current: 10.4mA Coil resistance: 2.307kOhm Coil Suppression Diode: No LED Indicator: No Rad Hardened: No Pin Count: 5 Seal: Unsealed Mounting Style: Din-Rail Operating Temp Range: -40C to 70C Termination Style: Screw Terminal Datenblatt: 38.51.7.024.0050.pdf

€ 7 .67*

Genicom

3SAV5004E2

Low Signal Relays Relay Contact Form: 2 Form C Coil Resistance: 310 Ohm Coil Type: Non-Latching Contact Termination: Solder Pin Operating Temperature Range: -65 to +125C

€ 201 .00*
