0...

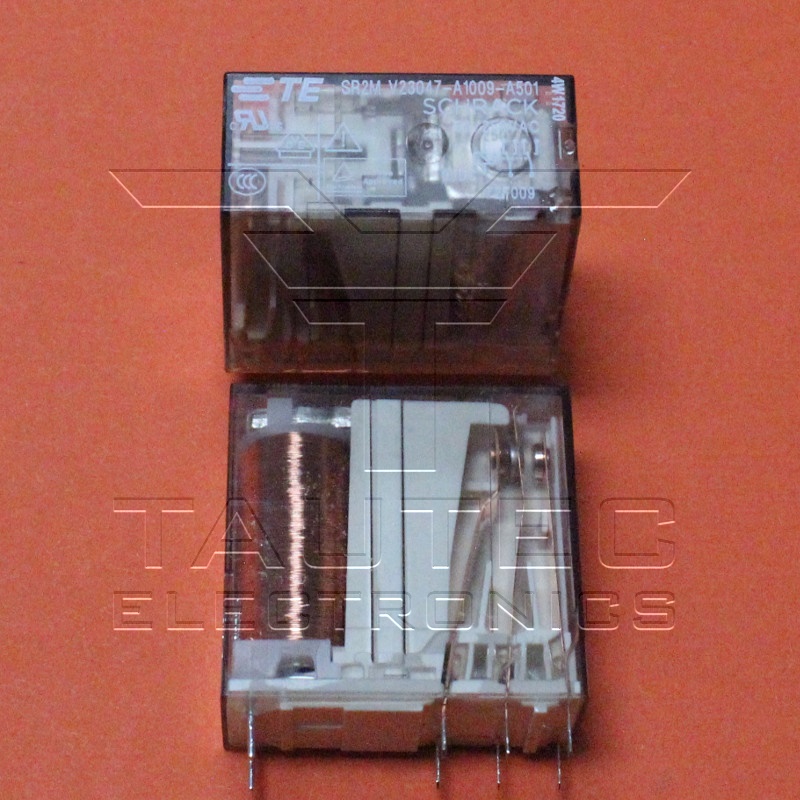

tyco

0-1393258-3

Safety Relays Coil Voltage: 9 VDC Coil Resistance: 116 Ohms Coil Power: 698mW Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Termination: Solder Pin Contact Rating: 6 A Maximum Switching Voltage AC: 400V Dimensions 29 x 12.6 x 25.5mm Operating Temperature Range: -25 to +70°C Contact Material Silver Alloy Series: SR2M Datenblatt: V23047.pdf

€ 5 .00*

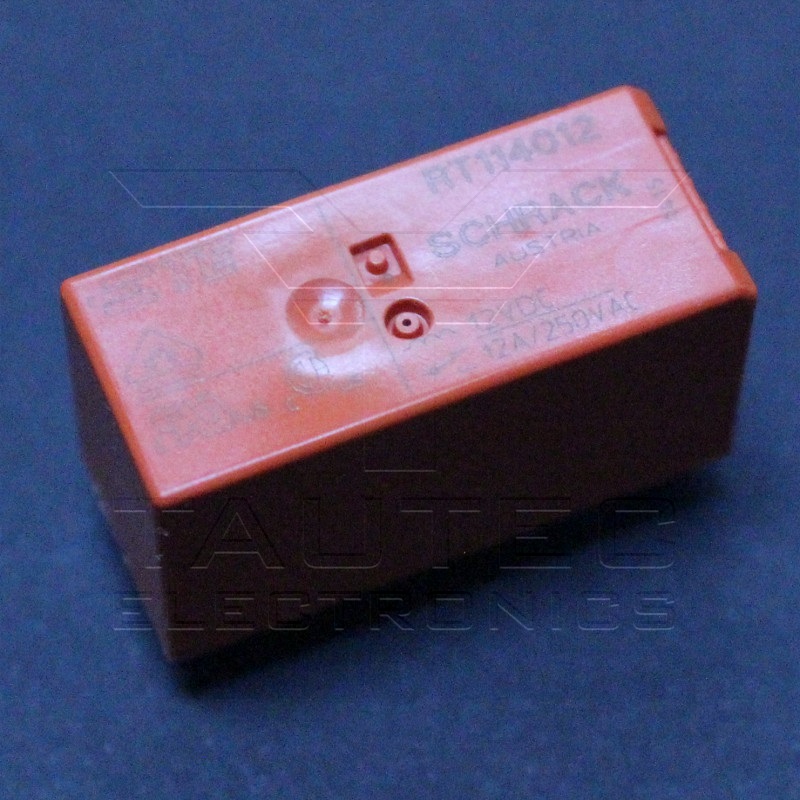

tyco

0-1419108-1

12VDC Power PCB Relay 250VSC/12A Contact Arrangement: 1 Form C Contact Switching Voltage: 250VAC Contact Limiting Breaking Current: 12A Coil Voltage Rating: 12VDC Coil Magnetic System: Monostable, DC Coil Power Rating Class: 300 – 400mW Coil Power Rating: 400mW Coil Resistance: 360 Ohm Datenblatt: RT114012.pdf

€ 2 .39*

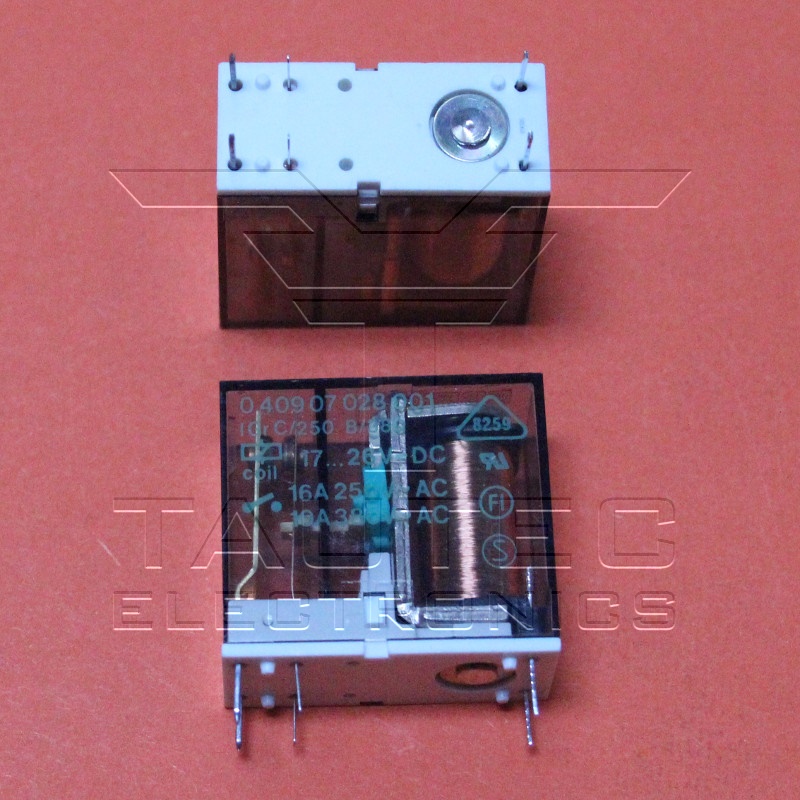

EBERLE

0-409-07-028-001

17 -26VDC Power PCB Relay 250VAC/16A Contact Arrangement: 1 Form A Contact Switching Voltage: 250VAC / 380VAC Contact Limiting Breaking Current: 16A / 10A Coil Voltage Rating: 17 - 26VDC Dimension: 28,5mm x 24mm x 12,2mm

€ 3 .75*

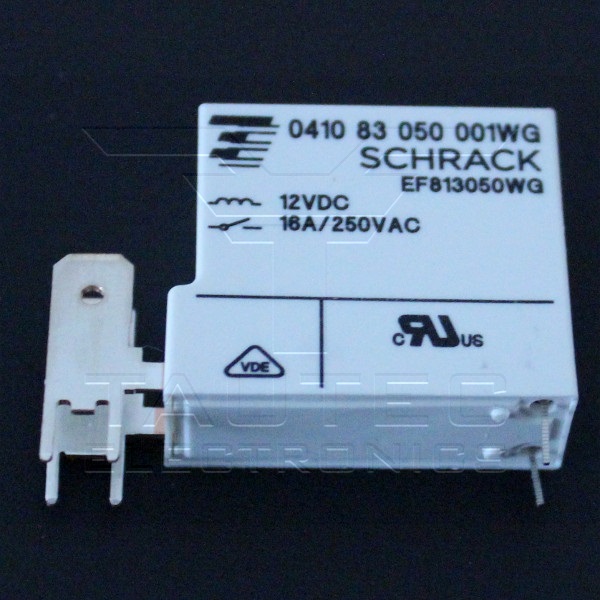

Schrack

0410 83 050 001 WG

Power Relay 12VDC - 250VAC/16A TE Part number: 8-1415536-7 - 1 pole 16 A, 1 NO bridging contact - Contact gap > 3 mm - Switching capacity 4000 VA - Coil power 360 mW - 4 kV / 8 mm coil-contact, insulation to VDE 0631 and 0700 - Ambient temperature up to 85°C - Quick connect terminals for load side Datenblatt: 0410.pdf

€ 9 .00*

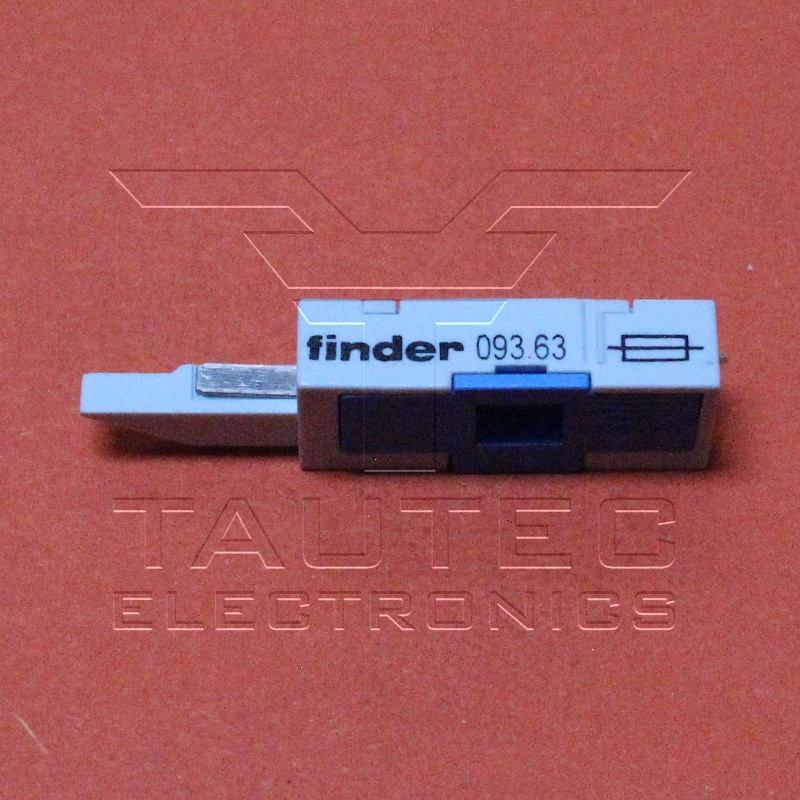

FINDER S.p.A.

093.63

Fuse Module Series: Finder 39... Color: grey/blue Fuse type: 5x20mm Datenblatt: 093.63.pdf

€ 2 .50*

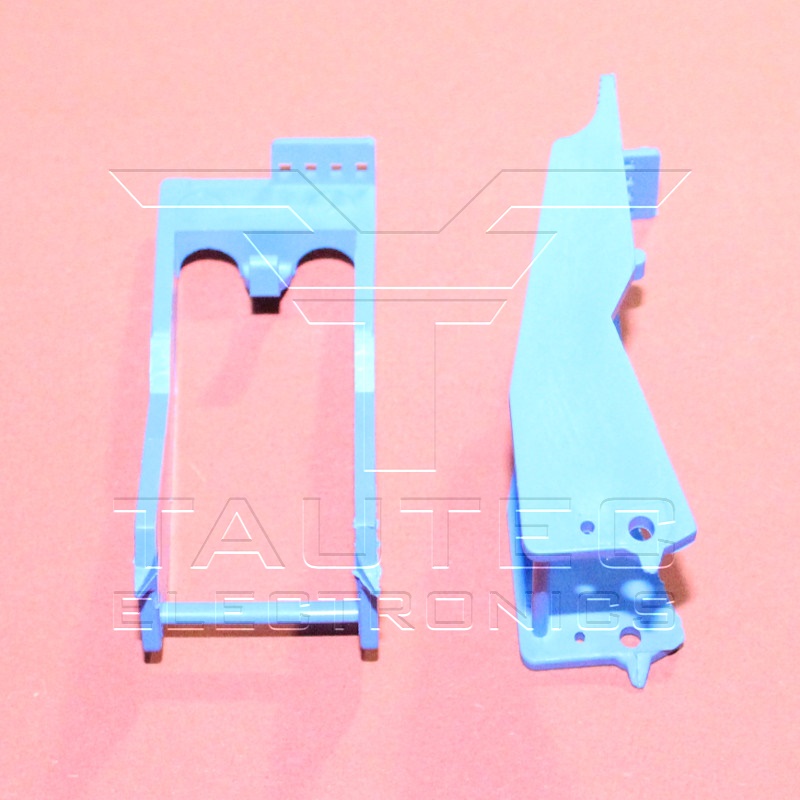

FINDER S.p.A.

094.91.3

Type of relays accessories: retainer/retractor clip Application: 94.02, 94.03, 94.04, 96.02 Relay series: 55.32, 55.33, 55.34 Datenblatt: 094.91.3.pdf

€ 0 .65*
