RELAIS

tyco

0-1393258-3

Safety Relays Coil Voltage: 9 VDC Coil Resistance: 116 Ohms Coil Power: 698mW Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Termination: Solder Pin Contact Rating: 6 A Maximum Switching Voltage AC: 400V Dimensions 29 x 12.6 x 25.5mm Operating Temperature Range: -25 to +70°C Contact Material Silver Alloy Series: SR2M Datenblatt: V23047.pdf

€ 5 .00*

tyco

0-1419108-1

12VDC Power PCB Relay 250VSC/12A Contact Arrangement: 1 Form C Contact Switching Voltage: 250VAC Contact Limiting Breaking Current: 12A Coil Voltage Rating: 12VDC Coil Magnetic System: Monostable, DC Coil Power Rating Class: 300 – 400mW Coil Power Rating: 400mW Coil Resistance: 360 Ohm Datenblatt: RT114012.pdf

€ 2 .39*

EBERLE

0-409-07-028-001

17 -26VDC Power PCB Relay 250VAC/16A Contact Arrangement: 1 Form A Contact Switching Voltage: 250VAC / 380VAC Contact Limiting Breaking Current: 16A / 10A Coil Voltage Rating: 17 - 26VDC Dimension: 28,5mm x 24mm x 12,2mm

€ 3 .75*

Schrack

0410 83 050 001 WG

Power Relay 12VDC - 250VAC/16A TE Part number: 8-1415536-7 - 1 pole 16 A, 1 NO bridging contact - Contact gap > 3 mm - Switching capacity 4000 VA - Coil power 360 mW - 4 kV / 8 mm coil-contact, insulation to VDE 0631 and 0700 - Ambient temperature up to 85°C - Quick connect terminals for load side Datenblatt: 0410.pdf

€ 9 .00*

FINDER S.p.A.

093.63

Fuse Module Series: Finder 39... Color: grey/blue Fuse type: 5x20mm Datenblatt: 093.63.pdf

€ 2 .50*

FINDER S.p.A.

094.91.3

Type of relays accessories: retainer/retractor clip Application: 94.02, 94.03, 94.04, 96.02 Relay series: 55.32, 55.33, 55.34 Datenblatt: 094.91.3.pdf

€ 0 .65*

tyco

1-1393154-7

24VDC Industrial Relay, 777Ohm, 4PDT, 250VAC/6A Product: Cube Relays Relay Contact Form: 4 Form C (4PDT-NO, NC) Contact Termination: Quick Connect Terminal Coil Termination: Quick Connect Terminal Mounting Style: Socket Switching Voltage: 240 VAC Contact Current Rating: 6 A Coil Type: Non-Latching Coil Voltage: 24 VDC Coil Resistance: 777 Ohms Power Consumption: 741 mW Contact Material: Silver Nickel (AgNi) Length: 28 mm Width: 22.5 mm Height: 29 mm Datenblatt: PT580024.pdf

€ 4 .00*

tyco

1-1393232-9

Beschreibung: 24VDC Power PCB Relay RPII/1 250VAC/8A - Schrack Artikelnummer: RP818024 Datenblatt: RP818024.pdf

€ 2 .50*

TE Tyco Electronics

1-1393239-3

24VDC Power PCB Relay 250VAC/12A Datenblatt: RT114024.pdf

€ 1 .44*

TE Tyco Electronics

1-1393258-7

General Purpose Relays Switching Voltage: 400VAC - Max Current Rating: 6 A Relay Contact Form: 1 Form A (SPST-NO), 1 Form B (SPST-NC) Contact Termination: Solder Pin Coil Voltage: 24 VDC Coil Current: 29,2mA Coil Power: 700mW Coil Resistance: 823 Ohms Contact Material Silver Nickel (AgNi) Operating Temperature: -25C to 70C Datenblatt: V23047A1024A511.pdf

€ 7 .03*

TE Tyco Electronics

1-1393788-6

Low Signal Relays Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 2 A Contact Current Rating: 2 A Maximum Switching Current: 5 A Coil Type: Non-Latching Power Consumption: 140 mW Contact Termination: Solder Pin Isolation: 20.7 dB Insertion Loss: 0.27 dB Coil Resistance: 4.114 kOhms Contact Material: Silver Nickel (AgNi) with Gold Plating Datenblatt: V23079.pdf

€ 0 .75*

TE Tyco Electronics

1-1414761-0

12VDC PC Board Relay for Automotive Applications Coil Voltage: 12 VDC Coil Current: 47.24mA Coil Resistance: 254 Ohm Coil Power: 567mW Contact Rating: 30 A Switching Voltage: 12VDC - Nom Relay Contact Form: 1 Form C (SPDT-NO, NC) Mounting Style: PCB Mount Contact Material: Silver Tin (AgSn) Datenblatt: V23086.pdf

€ 1 .60*

tyco

1-1721081-4

Beschreibung: Industrial Relays 24VDC - 3A/250VAC Datenblatt: PCJ-112D3M-WG.pdf

€ 0 .70*

TE Tyco Electronics

1-1956170-6

Power Relay Mounting: Through Hole Operating Temperature: -40 to 70 °C Package Dimensions: 28.5 x 10.1 x 12.3 mm Contact Material: Silver Nickel 0.15 Maximum Pick-Up Voltage: 8.4 Vdc Type: Miniature PCB Relay Maximum Power Rating: 230 mW DC Coil Voltage: 12 V Minimum Dropout Voltage: 1.2 Vdc Maximum AC Voltage Rating: 400 V Maximum Current Rating: 8 A Operate Time: 9 ms Coil Current: 19.13 mA Contact Arrangement: SPDT Relay Construction: Non-Latching Coil Resistance: 627 Ohm

€ 2 .38*

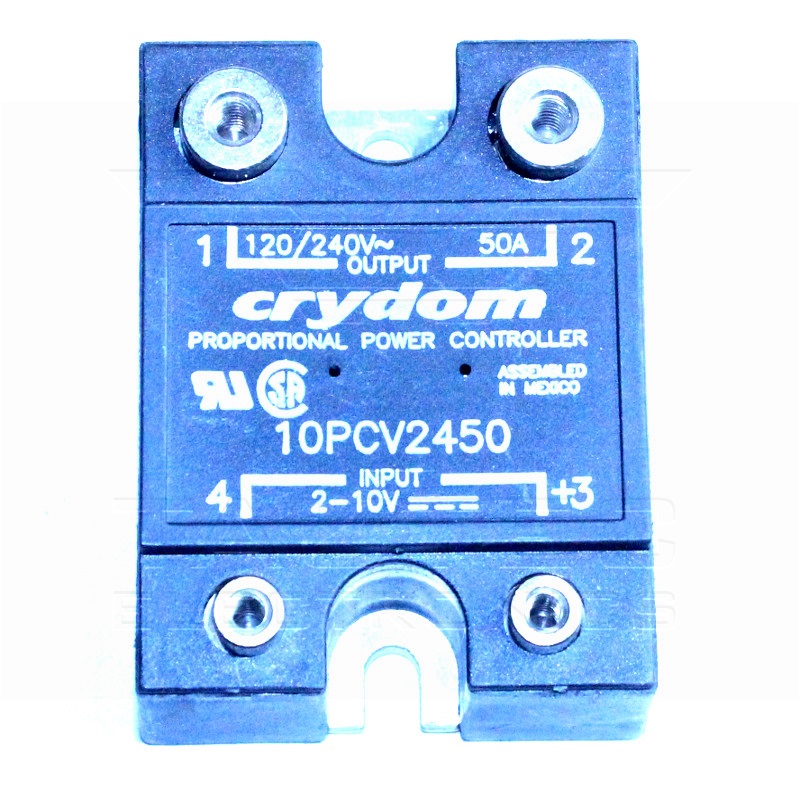

Crydom

10PCV2450

Control Relay, Input: 2...10VDC, Output: 100...240VAC/50A Load Current Rating: 50 A Load Voltage Rating: 100 VAC to 240 VAC Relay Contact Form: 1 Form A (SPST-NO) Output Type: SCR Control Voltage Range: 2 VDC to 10 VDC Input Current: 4 mA Minimum Operating Temperature: - 30 C Maximum Operating Temperature: + 80 C Datenblatt: 10PCV2450.pdf

€ 111 .00*

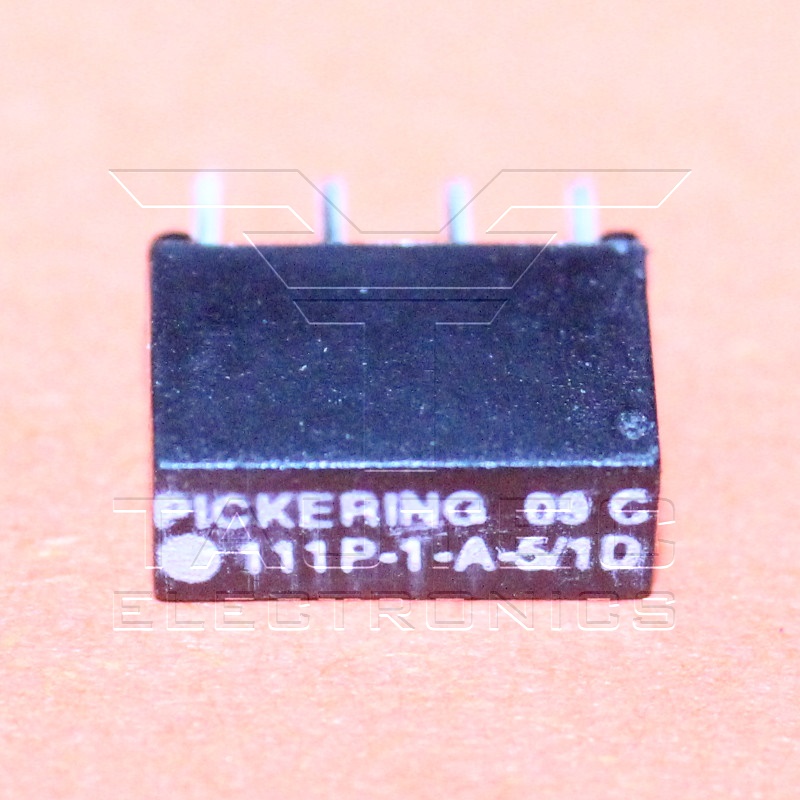

Pickering Electronics Ltd

111P-1-A-5/1D

Pico-SIL/SIP Reed Relays - Highest quality instrumentation grade switches - They take up the minimum of board area, conserving board space - Coil Voltage: 5VDC - Number of Reeds: 1 - switch Form: 1 Form A data sheet: 111P.pdf

€ 5 .80*

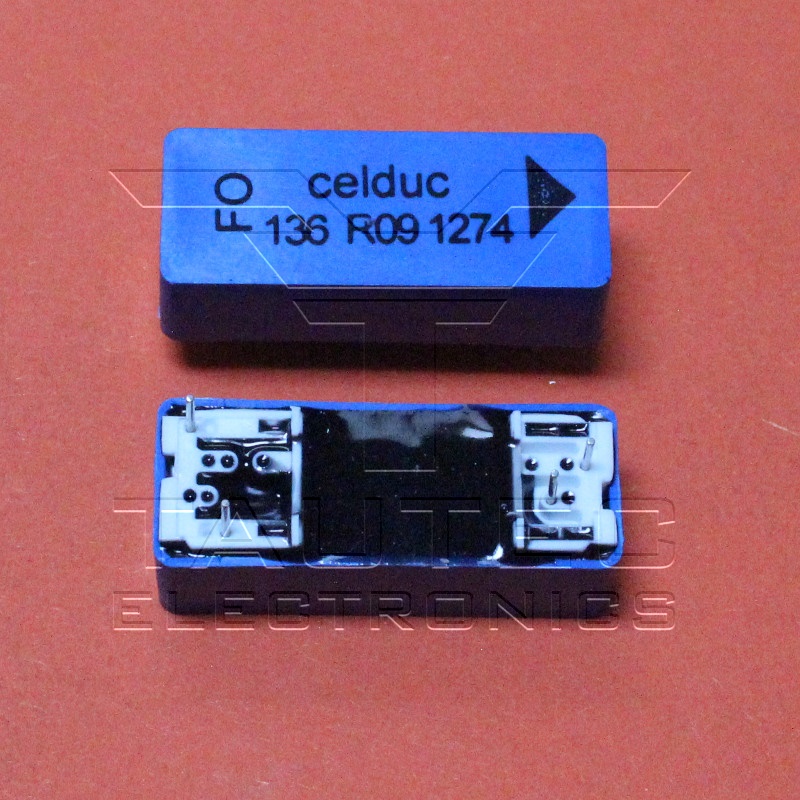

Celduc Relais

136R091274

Reed Relays

€ 3 .50*

TE Tyco Electronics

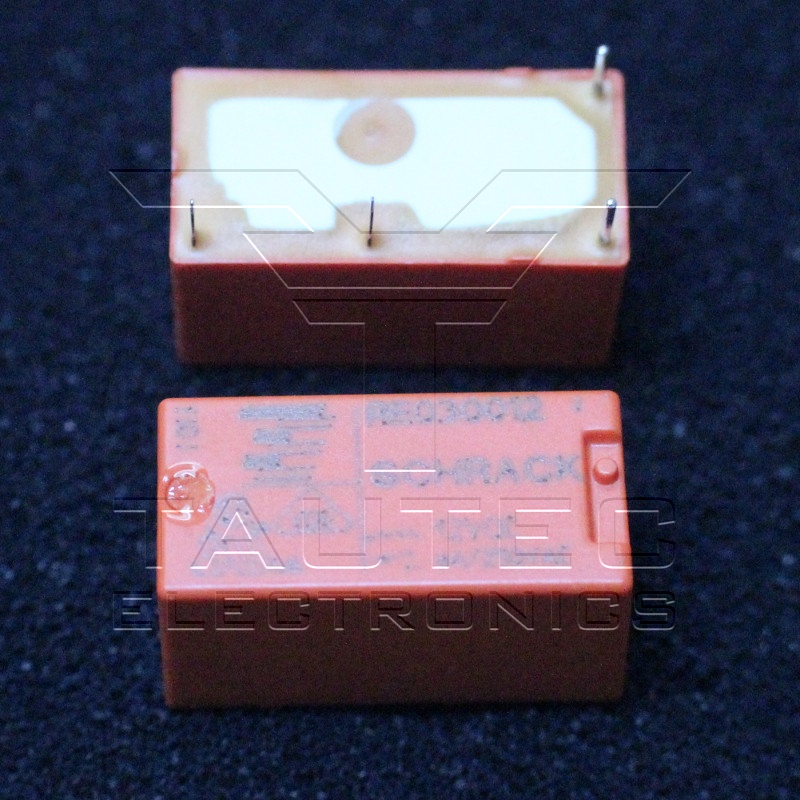

1393217-4

12VDC Miniature Relay Mounting: Through Hole Maximum AC Voltage Rating: 400 V Maximum Current Rating: 15 A Maximum Power Rating: 1.5 kVA Contact Arrangement: SPST-NO Contact Form: 1 Form A Coil Current: 16.67 mA Coil Voltage: 12 VDC Coil Resistance: 720 Ohm Contact Material: Silver Cadmium Oxide Datenblatt: RE030012.pdf

€ 1 .81*

TE Tyco Electronics

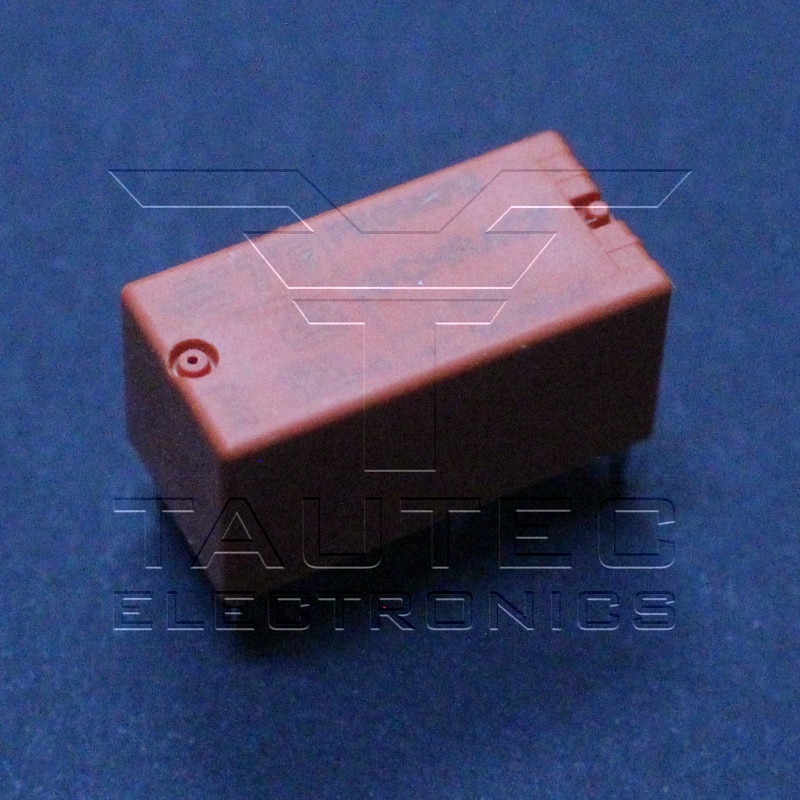

1393219-6

General Purpose Relays Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 5 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 400 VAC Coil Type: Non-Latching Coil Resistance: 685 Ohms Contact Material: Silver Nickel (AgNi) Datenblatt: PE014012.pdf

€ 1 .85*

tyco

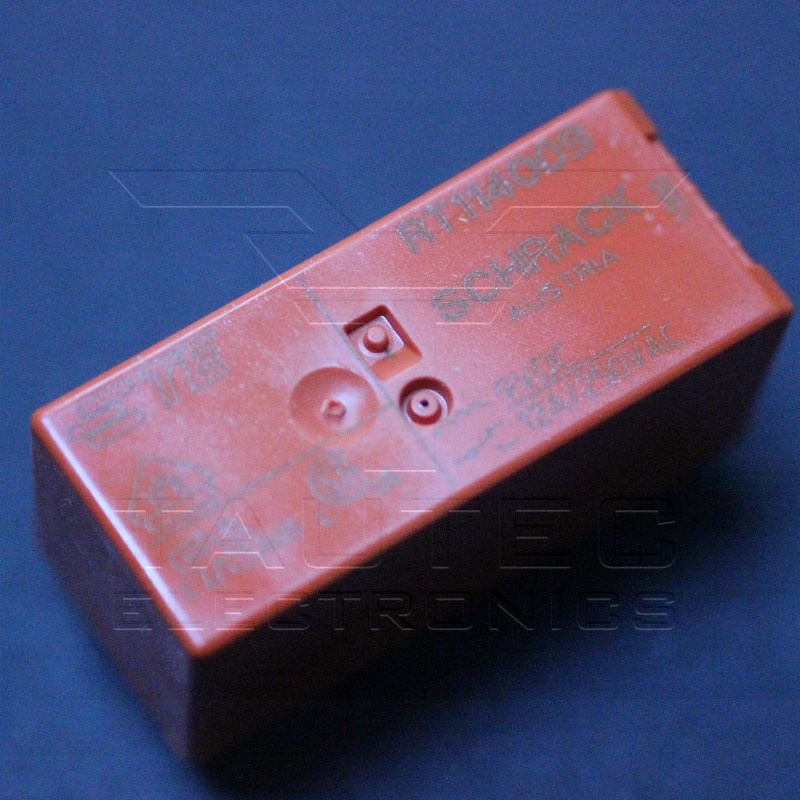

1393239-9

General Purpose PCB Relays - 1 pole 12A/16A, 1 form C (CO) or 1 form A (NO) contact - DC or AC coil - 5kV/10mm coil-contact, reinforced insulation - Ambient temperature 85°C (DC coil) - WG version: product in accordance to IEC 60335-1 - Reflow version: for THR (Through-Hole Reflow) soldering process Datenblatt: RT114009.pdf

€ 1 .75*

TE Tyco Electronics

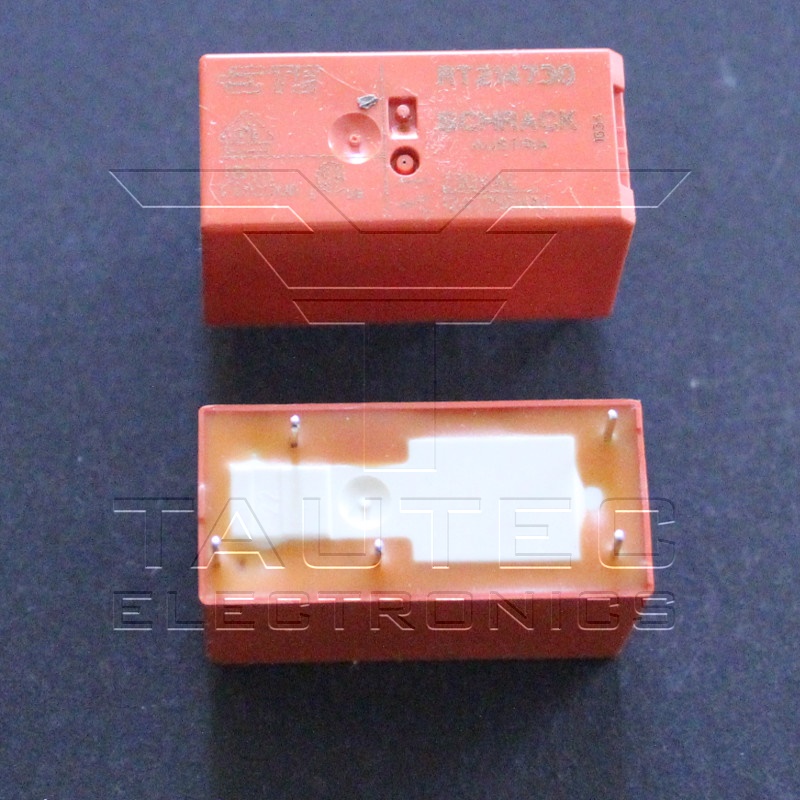

1419108-6

General Purpose Relays Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 12 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 230 VAC aximum Switching Current: 25 A Coil Type: Non-Latching Coil Resistance: 32.5 kOhms Power Consumption: 750 mVA Contact Material: Silver Nickel (AgNi) Length: 29 mm Width: 12.7 mm Height: 15.7 mm Datenblatt: RT214730.pdf

€ 1 .92*

Teledyne Semiconductor

172M4-5

Beschreibung: Ultraminiature, Hermetically Sealed, Armature Centigrid® Relay For Commercial Applications Datenblatt: 172.pdf

€ 22 .00*

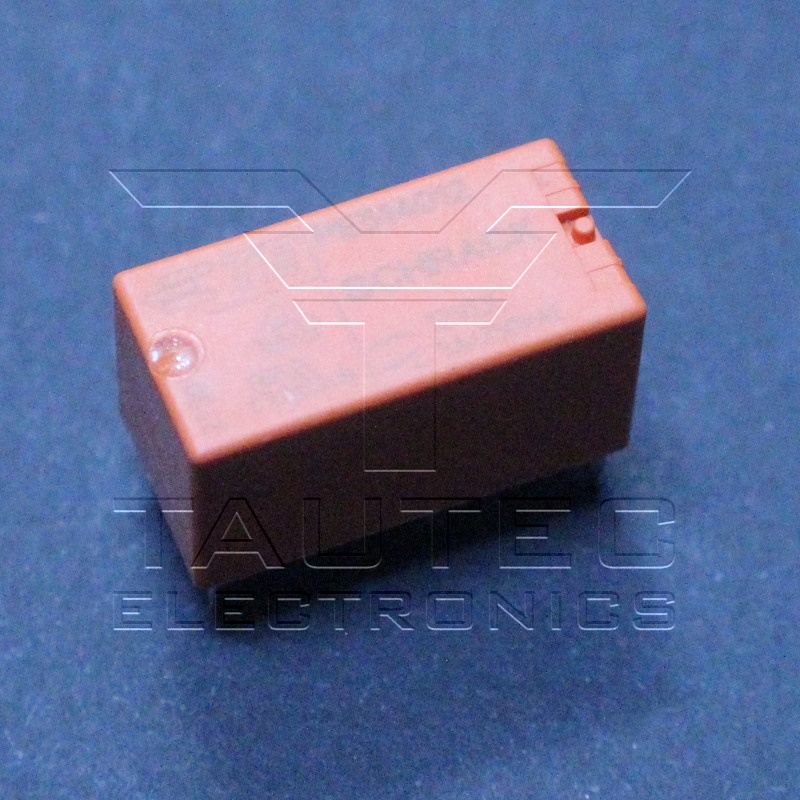

TE Tyco Electronics

2-1393219-0

12VDC Minature PCB Relay Coil Voltage: 12 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 5 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 400 VAC Coil Type: Non-Latching Coil Resistance: 685 Ohms Contact Material: Silver Nickel (AgNi) Datenblatt: PE514012.pdf

€ 1 .92*

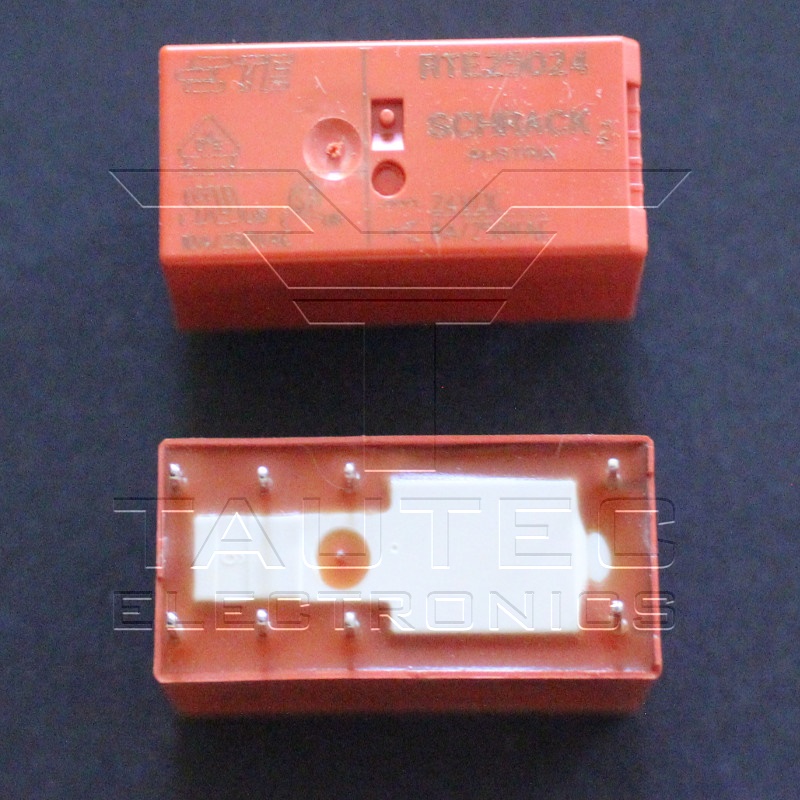

tyco

2-1393243-1

General Purpose Relays Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 8 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 400 VAC Coil Termination: Solder Pin Coil Resistance: 1.44 kOhms Contact Material: Silver Nickel (AgNi) Length: 29 mm Width: 12.7 mm Height: 15.7 mm Power Consumption: 400 mW Datenblatt: RTE25024.pdf

€ 3 .40*

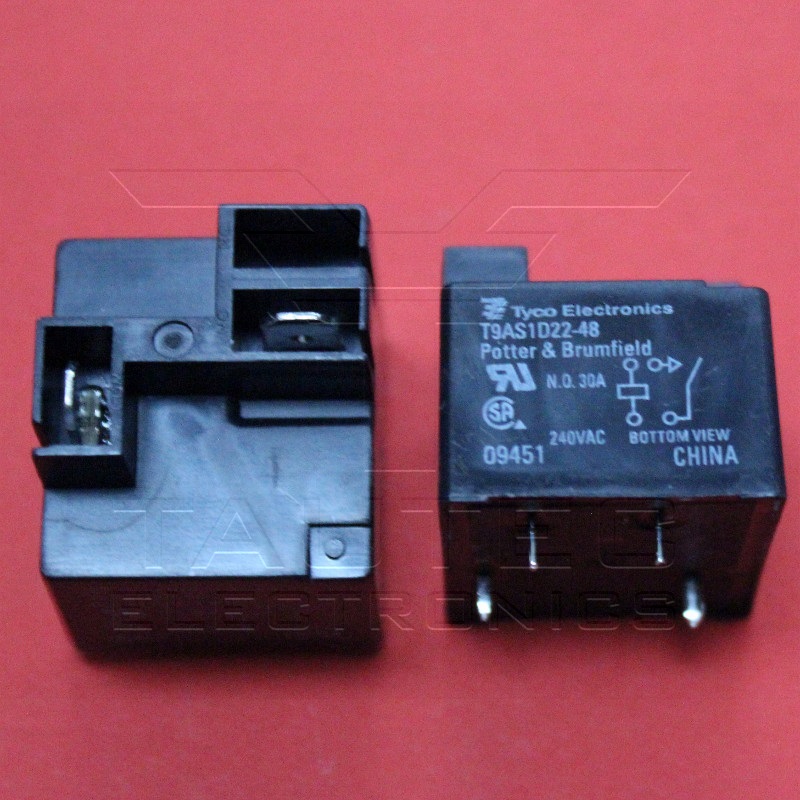

tyco

2-1419104-2

48VDC PCB or Panel Mount Relay 240VAC/30A - Potter & Brumfield Artikelnummer: T9AS1022-48 Coil Voltage: 48 VDC Relay Contact Form: 1 Form A (SPST-NO) Contact Current Rating: 30 A Contact Termination: Solder Pin Mounting Style: Through Hole Mounting Type: Flange Switching Voltage: 277 VAC Coil Termination: Quick Connect Terminal Coil Type: Non-Latching Coil Resistance: 2.304 kOhms Contact Material: Silver Cadmium Oxide (AgCdO) Length: 32.5 mm Width: 27.4 mm Height: 27.9 mm Power Consumption: 1 W Datenblatt: T9AS1022.pdf

€ 2 .00*

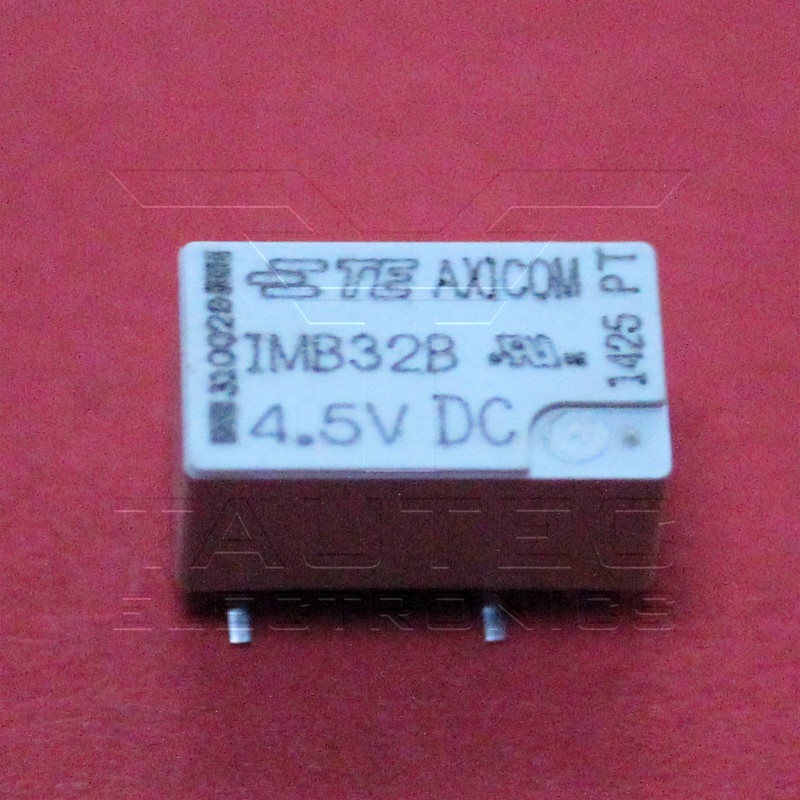

tyco

2-1462041-0

Beschreibung: 4.5VDC RF-Relay, HF3-50, 500 Ohm, 140mW Datenblatt: IMB32BGR.pdf

€ 3 .50*

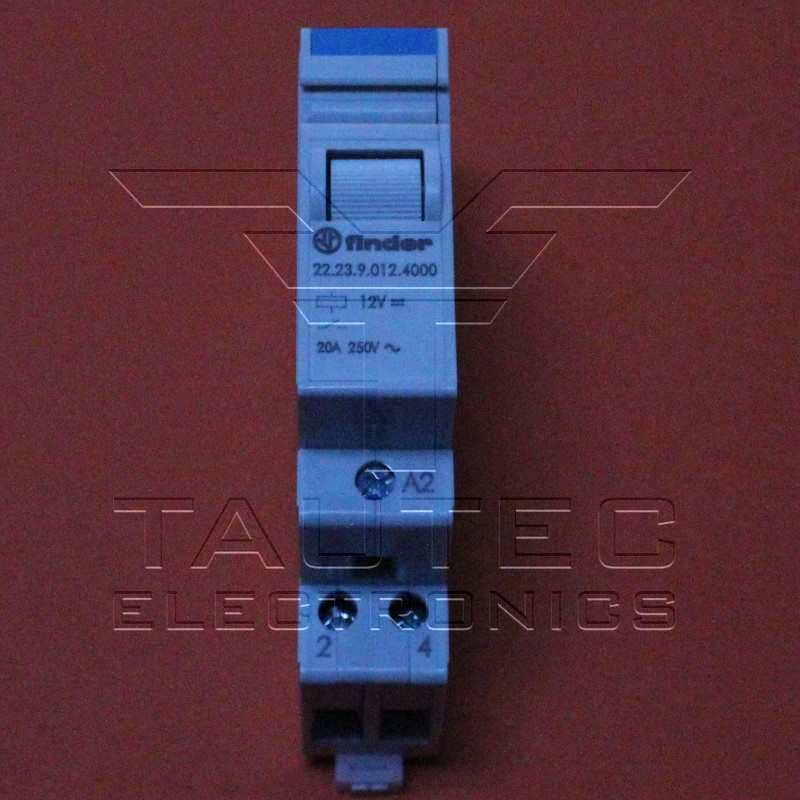

FINDER S.p.A.

22.23.9.012.4000

DIN Rail Panel Mount Non-Latching Relay Rated coil voltage: 12V DC Max. operating current: 20A ontact voltage, max.: 400V AC IP rating: IP20 Relay variant: monostable Termination: Screw Contact Form: SPST-NO, SPST-NC Operating temperature: -40...40°C Datenblatt: Serie 22.23.9.012.4000.pdf

€ 10 .00*

FINDER S.p.A.

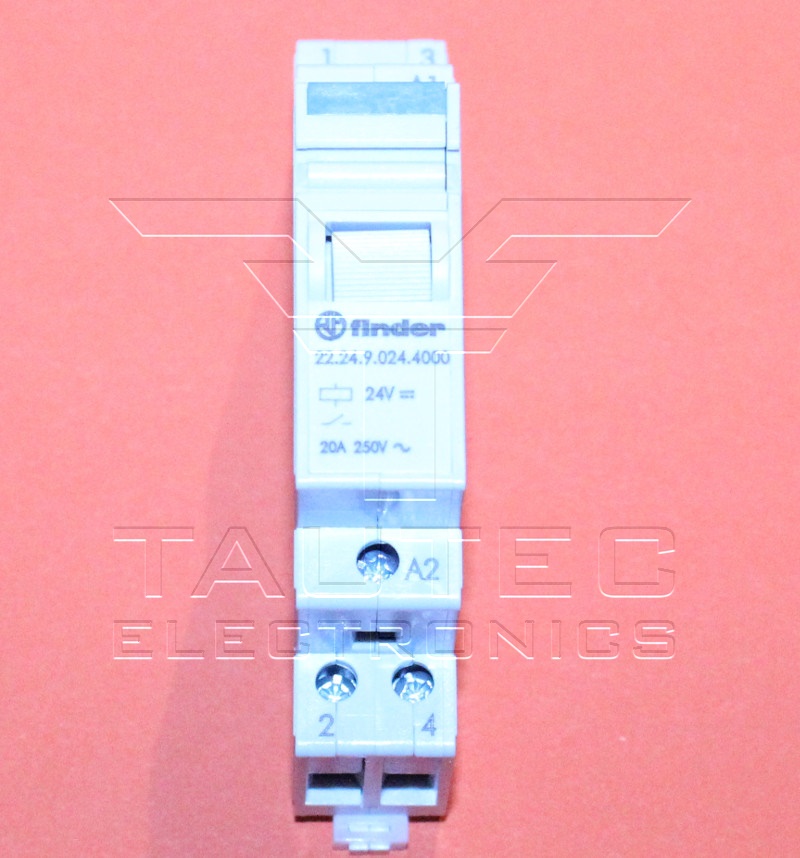

22.24.9.024.4000

DPNC Non-Latching Relay DIN Rail, 24V dc Coil, 20 A Coil Voltage : 24 VDC Contact Configuration : DPNC Mounting Type : DIN Rail Maximum Switching Voltage AC : 250VAC Switching Current : 20 A Terminal Type : Screw Series : 22 Series Coil Resistance : 460 Ohm Depth : 58.4mm Maximum Switching Power AC : 5 kVA Contact Material Silver Alloy Maximum Operating Temperature : +40°C Minimum Operating Temperature : -40°C Datenblatt: Serie 22.24.9.024.4000.pdf

€ 16 .00*

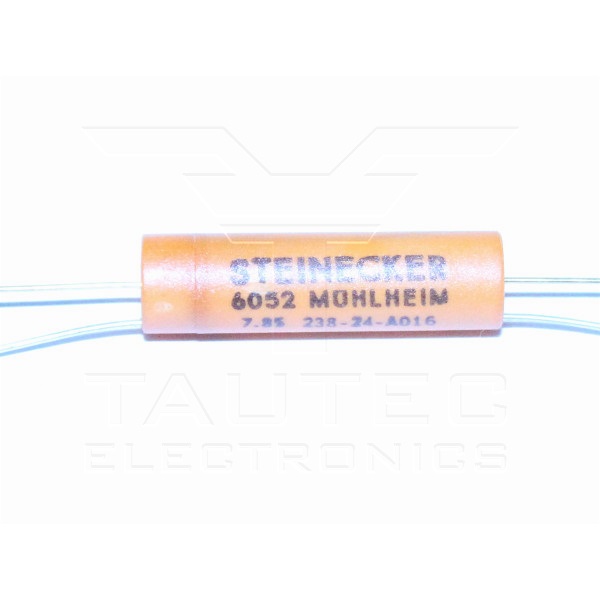

Steinecker

238-24-A016

24VDC Reed Relais, Axial, High Insulated Datenblatt: 238-24-A016.pdf

€ 10 .00*

Steinecker

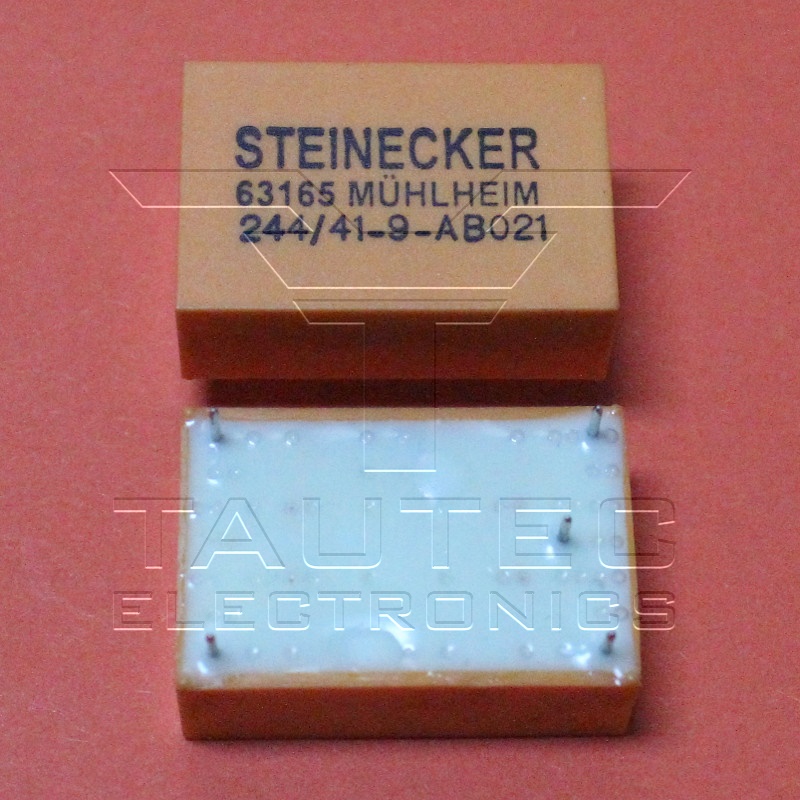

244/41-9-AB021

Standrad Reed Relais - Spulen Nennspannung: 9VDC - Schaltleistung max.: 100W - Schaltspannung max.: 1000V - Schaltstrom max.: 1,5A - 1 Wechsler Kontaktform: C - Abmessungen (LxBxH) 30 x 20,0 x 10,5 mm

€ 12 .00*

Phoenix Contact

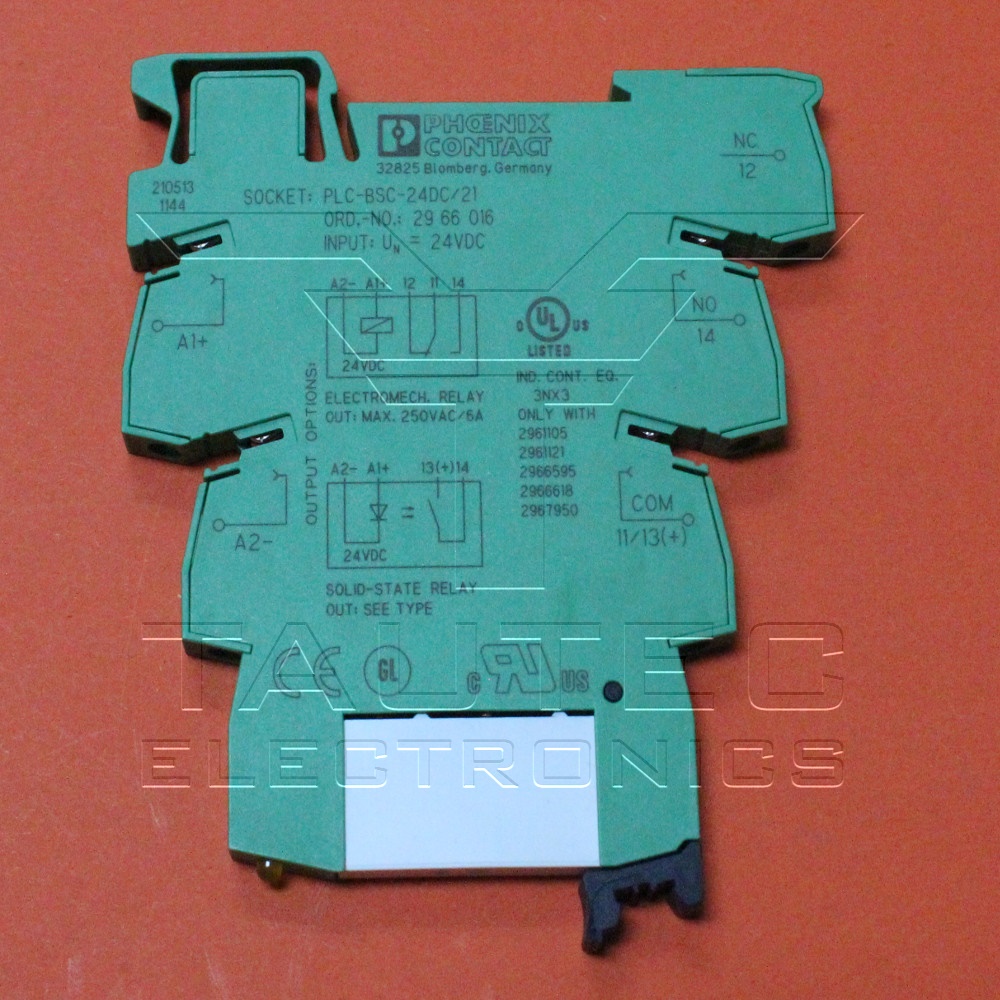

2966265

Relaismodul - PLC-RSC- 24DC/21AU Contact Termination: Screw Relay Contact Form: 1 Form A (SPST-NO) Coil Termination: Screw Coil Type: Non-Latching Coil Voltage: 24 VDC Coil Current: 10 mA Switching Voltage: 30 VAC, 36 VDC Mounting Style: DIN Rail Contact Material: Silver Tin Oxide (AgSnO) IP Rating: IP20 Series: PLC-RSC Application: Industrial Current Rating: 6 A Power Consumption: 140 W Datenblatt: 2966265.pdf

€ 19 .00*

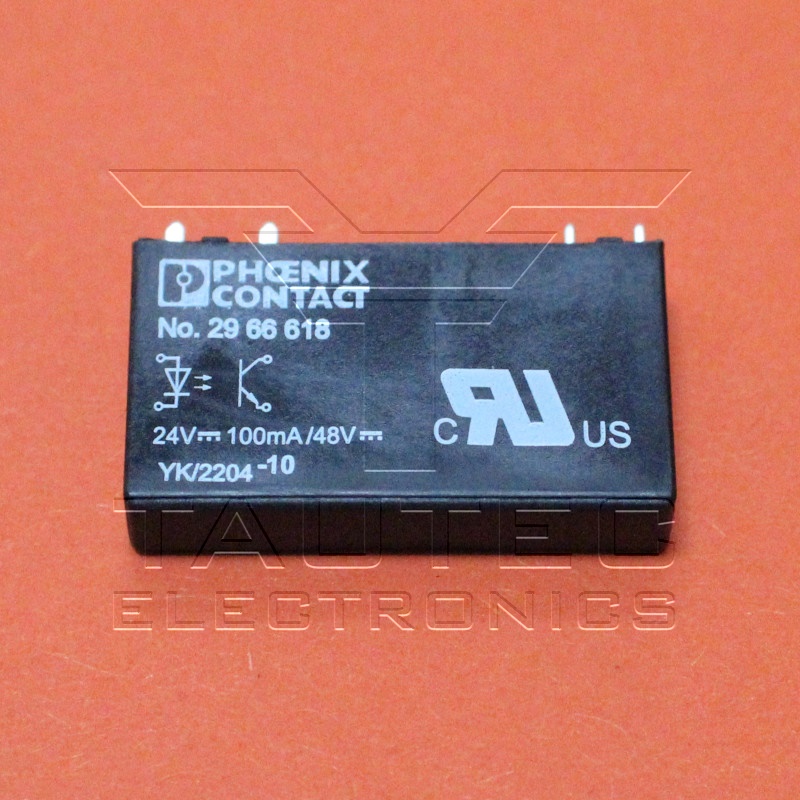

Phoenix Contact

2966618

Solid State Relays Mounting Style: PCB Mount Load Current Rating: 100 mA Load Voltage Rating: 3 VDC to 48 VDC Relay Contact Form: 1 Form A (SPST-NO) Control Voltage Range: 19.2 VDC to 28.8 VDC Output Type: MOSFET Input Current: 7 mA Length: 28 mm Width: 5 mm Height: 15 mm Minimum Operating Temperature: - 25 C Maximum Operating Temperature: + 60 C Datenblatt: 2966618.pdf

€ 14 .00*

AXICOM

3-1393816-9

42VDC Kammrelais, Göße II, Kontaktfedersatz mit 2 Wechslern, Einfachkontakte, Kontaktwerkstoff Silber, hauchvergoldet Siemens Artikelnummer: V23005-B0009-F104 Datenblatt: V23005.pdf

€ 100 .00*

FINDER S.p.A.

30.22.9.012.0000

Subminiature DIL relays 2 A Relay Contact Form: 2 CO (DPDT) Contact Current Rating: 2 A Switching Voltage: 230VAC Coil Voltage: 12VDC Coil Resistance: 720 Ohms Coil Current: 8.3 mA Contact material: AgNi + Au Ambient temperature range: -40 ... +85 Datenblatt: 30.22.9.012.0000.pdf

€ 3 .75*

FINDER S.p.A.

30.22.9.024.0010

Subminiature DIL relays 2 A Relay Contact Form: 2 CO (DPDT) Contact Current Rating: 2 A Switching Voltage: 230VAC Coil Voltage: 24VDC Coil Resistance: 1440 Ohms Coil Current: 17 mA Coil Power: 400mW Contact material: AgNi + Au Ambient temperature range: -40 ... +85 Datenblatt: 30.22.9.024.0010.pdf

€ 2 .25*

FINDER S.p.A.

34.51.7024.0010

SPDT PCB Mount Non-Latching Relay Rated coil voltage: 24V DC AC contacts rating: 6A / 250V AC DC contacts rating: 6A / 30V DC Contact current max.: 6A Switched voltage: max. 220V DC, max. 250V AC Mounting: PCB, socket Coil resistance: 3.35kOhm Coil voltage min.: 16.8V DC Coil voltage max.: 36V DC Body dimensions: 28x5x15mm Coil power consumption: 170mW Operating temperature: -40...85°C Contact material: AgNi Datenblatt: 34.51.7024.0010.pdf

€ 2 .40*

Comus International

3570.1301.241

Reed Relay - Coil voltage: 24Volt - Coil resistance: 2000 Ohm - Switch current: 0.5 A - Switch volt[AC]: 200 V[AC] - Switch volt[DC]: 200 V[DC] - Switching Power: 10 W - Contact Form: 1 Normally Open Datenblatt: 3570.1301.241.pdf

€ 0 .90*

Comus International

3570.1331.053

Reed Relais - Coil voltage: 5Volt - Coil resistance: 500 Ohm - P(N) coil: 50 mW - Switch current: 0.5 A - Switch volt[AC]: 200 V[AC] - Switch volt[DC]: 10 V[DC] - Switching Power: 10 W - Contact Form: 1 Normally Open - Length: 19.0 mm - Width: 5.08 mm - Height: 7.4 mm - Technology: THT Datenblatt: 3570.1331.053.pdf

€ 0 .47*

Comus International

3572.1220.241

High Profile-Reed Relay Pull-in voltage: 18VDC Nominal coil voltage: 24VDC Operating voltage max: 40VDC Drop-out voltage: 2VDC Rated coil current: 11mA Coil resistance: 2150-Ohm +-10% Switching capacity max: 10W/VA Switching current max: 0.5A Carrying current max: 1A Switching voltage max: 100VAC/VDC Contact resistance max: 150m-Ohm Datenblatt: 3572.1220.241.pdf

€ 3 .00*

Steinecker

361-24-A006-D

Reed Relay, Dual-in-Line, 24VDC Datenblatt: 361-24-A006-D.pdf

€ 25 .00*
