Rohm

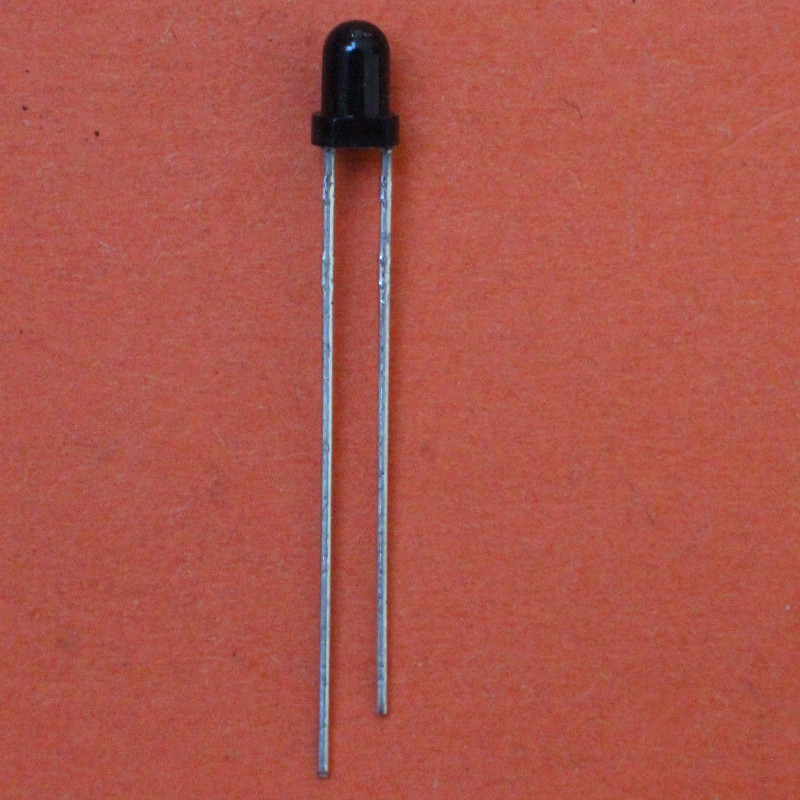

RPT-37PB3F
Phototransistor Chip Silicon
Emitter-Collector Voltage (Max): 5V
Package Type: T-1
Polarity: NPN
Number of Elements: 1
Light Current: 2000uA
Collector-Emitter Sat Volt (max): 0.4V
Collector-Emitter Voltage: 32V
Fall Time: 10000ns
Operating Temperature Classification: Commercial
Collector Current (DC) : 0.03A
Peak Wavelength: 800nm
Mounting: Through Hole
Pin Count:2
Power Dissipation: 0.15W
Rise Time: 10000ns
Dark Current: 500nA
Half-Intensity Angle: 72deg
Peak Wavelength: 800nm
Operating Temp Range: -25C to 85C
Datenblatt:
RPT-37PB3F.pdf
€
